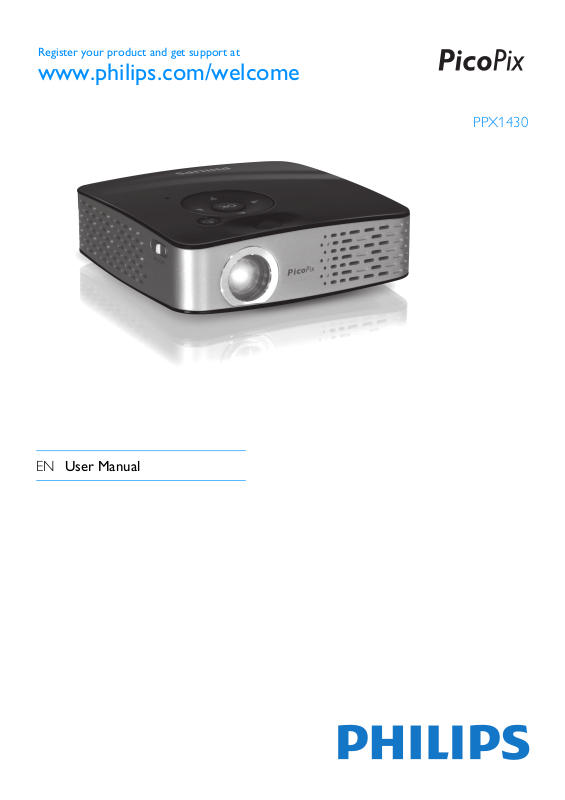

Page 1
EN
Register your product and get support at
www.philips.com/welcome
User Manual
PPX1430
Page 2
Overview
Notice
Notice
CAUTION!
DANGER!
Dear Customer
Thank you for purchasing our Pocket Projector.
We hope you enjoy your device and its many functions!
Packing Contents
Pocket Projector
USB Adaptercable to connect a USB storage medium
Audio / video cable
Tripod
Pouch
Quick Start Guide
Warranty Card
Missing Package Contents
Missing Package Contents
If any of the parts are missing or damaged,
please contact your retailer or our customer
service.
Spaltenumbruch
About this User Manual
With the installation guide on the following pages, you
can start using your device quickly and easily. Detailed
descriptions can be found in the following sections of
this user manual.
Read the entire user manual carefully. Follow all safety
instructions in order to ensure proper operation of
your device. The manufacturer accepts no liability if
these instructions are not followed.
Symbols Used
Troubleshooting
Troubleshooting
This symbol designates tips that will help you
to use your device more effectively and easily.
Damage to the Device or Loss of Data!
Damage to the Device or Loss of Data!
This symbol gives warning of damage to the
device and possible loss of data. These damages can result from improper handling.
Danger to Persons!
Danger to Persons!
This symbol gives warning of danger to persons. Physical injury or damage can result
from improper handling.
2 Philips · PPX1430
Page 3
Table of Contents
Overview ................................................... 2
Dear Customer ................................................................... 2
Packing Contents ................................................................ 2
About this User Manual ..................................................... 2
1 General Safety Information................ 4
Setting Up the Device ........................................................ 4
Repairs ................................................................................... 4
Power Supply ....................................................................... 4
2 Overview............................................... 5
Remote Control .................................................................. 5
Top of the Device ............................................................... 6
Bottom of the Device ........................................................ 6
Overview of the Menu Functions .................................... 7
3 Initial Operation .................................. 8
Connect power supply / charge battery ........................ 8
Initial Installation .................................................................. 8
Installing or Changing the Batteries of the
Remote Control .................................................................. 8
Using the Remote Control ............................................... 9
4 Connect to the playback device....... 10
Connecting using Video (CVBS) Cable ....................... 10
Connecting using Component-Video
(YPbPr/YUV) Cable ......................................................... 10
Connecting to a Computer (VGA) .............................. 11
5Memory Card /
USB Storage Medium........................ 12
Inserting a Memory Card ............................................... 12
Connecting USB Storage Medium ................................ 12
6 Photo Playback .................................. 13
7 Video playback................................... 14
Video playback (USB/SD card/internal memory) ...... 14
File format .......................................................................... 14
Video Playback (A/V or YPbPr jacks) .......................... 14
8 Music Playback................................... 16
9 Managing files..................................... 17
Copy Files .......................................................................... 17
Delete Files ........................................................................ 17
Connect to a computer (USB) ...................................... 18
10 Settings ............................................... 19
11 Service................................................. 20
Care Instructions for the Battery ................................ 20
Cleaning .............................................................................. 20
Troubleshooting ............................................................... 21
12 Appendix............................................. 22
Technical Data .................................................................. 22
Accessories ........................................................................ 22
Table of Contents 3
Page 4
1 General Safety Information
DANGER!
Introduction 2
Do not make any changes or settings that are not
described in this user manual. Physical injury or damage
to the device or loss of data can result from improper
handling. Take note of all warning and safety notes indicated.
Setting Up the Device
Device only indoor
The device is exclusively for indoor use. The device
should be placed securely on a stabile, flat surface. Position all cables in such a way that no one will stumble on
them, thus avoiding possible injuries to persons or damage to the device itself.
Do not plug in the device in moist rooms.
Do not plug in the device in moist rooms. Never touch
the mains cable or the mains connection with wet
hands.
The device must have sufficient ventilation
The device must have sufficient ventilation and may not
be covered. Do not put your device in closed cabinets
or boxes.
Do not place your device on soft surfac es such as cloth covers or carpet s
Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits.
Otherwise the device could overheat or catch fire.
Protect the device against direct sunlight
Protect the device against direct sunlight, heat, large
temperature fluctuations and moisture. Do not place
the device in the vicinity of heaters or air conditioners.
Observe the information on temperature and humidity
in the technical data.
Do not allow liquids to enter into the device. (switch off)
Do not allow liquids to enter into the device. Switch off
the device and disconnect it from the mains supply if liquids or foreign substances end up inside the device.
Have the unit inspected by a technical service department.
Lens
Always handle the unit with care. Avoid touching the
lens. Never place heavy or sharp objects on the projector or the power cable.
If the device overheats or emits smoke (switch off)
If the projector gets too hot or emits smoke, shut it
down immediately and unplug the power cable. Have
your device examined by trained professionals at a technical service location. To prevent the spread of fire,
open flames should be kept away from the device.
Moisture build-up
Under the following conditions, a layer of moisture can
appear inside the device which can lead to malfunctions:
· if the device is moved from a cold to a warm area;
· after a cold room is heated;
· when this device is placed in a damp room.
Proceed as follows to avoid any moisture build-up:
1 Seal this device in a plastic bag before moving it to
another room, in order for it to adapt to room conditions.
2 Wait one to two hours before you take the device
out of the plastic bag.
The device should not be used in a very dusty environment.
The device should not be used in a very dusty environment. Dust particles and other foreign objects may
damage the unit.
Do not expose the device to extreme vibrations
Do not expose the device to extreme vibrations. It may
damage the internal components.
Do not allow children to handle th e device without supervision .
Do not allow children to handle the device without
supervision. The packing materials should be kept out of
the hands of children.
Repairs
Repairs
Do not make any repairs to the device yourself.
Improper maintenance can result in injuries or damage
to the device. Only have your device repaired by an
authorised service centre.
Do not remove the type label from your device; this
would void the warranty.
Power Supply
Use only the enclosed power adapter
Use only the enclosed power adapter (see chapter
Appendix / Technical Data). Check whether the mains
voltage of the power supply matches the mains voltage
available at the setup location. This equipment complies
with the voltage type specified on the unit.
The capacity of the battery diminishes with time. (Power supply)
The capacity of the battery diminishes with time. If the
device functions only with the power supply, the battery
is defective. Contact an authorised service centre to
replace the battery.
Do not replace the battery yourself
Do not try to replace the battery yourself. Incorrect
handling of the battery or using the wrong type of battery can cause damage to the device or cause injury.
On/off switch, general (power supp ly)
Switch the device on or off using the power switch
before removing the power supply from the socket.
Turn off the device before cleaning the surface
Turn off the device and remove it from the power supply before cleaning the surface. Use a soft, lint-free
cloth. Never use liquid, gaseous or easily flammable
cleansers (sprays, abrasives, polishes, alcohol). Do not
allow any moisture to reach the interior of the device.
High Power LED
This device is equipped with an high power
LED (Light Emitting Diode), which emits very
bright light. Do not stare directly into the projector lens to avoid eye irritation or injury.
4 Philips · PPX1430
Page 5
2Overview
ZOOM
Remote Control
Remote P3
¾—Magnify still. Pan using the navigation keys (/
, À/Á).
¿—One menu step back, one directory level back;
select memory (USB medium, SD card, internal memory) in the main menu / cancelling a function
Navigation keys
à—Confirms the selection
/, À/Á—Navigation keys / navigate the menu /
modify settings
/—During video playback calling settings / modify
settings
À/Á—During music playback select previous, next
title / during video playback review, cue
Playback keys
:—During video playback review
T—Start / stop playback
;—During video playback cue
Brightness keys
N ß O—Decrease / increase the brightness
Volume keys
N—Decrease the volume
—Deactivate sound
O—Increase the volume
Overview 5
Page 6
Top of the Device
—Navigation keys / OK key
à—Confirm entry / start, stop video/music playback
or slideshow.
/—During music playback adjust volume level
À/Á—During music playback select previous, next
title / during video playback review, cue
—Focus wheel for image sharpness. Please pay atten-
tion to the distance from the projection surface. Minimum 0,2m maximum 3m. If the Pocket Projector is
located outside of this range, it will not be possible to
focus the image. Turn the focus wheel carefully so as to
avoid damaging the lens.
¿—One menu step back, one directory level back;
select memory (USB medium, SD card, internal memory) in the main menu / cancelling a function
/ —On/Off switch
—Battery status monitor: Red: battery empty,
Green: battery fully charged
Charge indicator with connected power supply: Red:
battery empty, Green: battery fully charged
—Remote-control signal receiver
ý—USB connection for a computer (data
exchange) or for a USB storage medium (with the
enclosed adapter cable)
—Power supply connection
//—Memory card slot (SD/SDHC/MMC)
/—Audio/video input jack (composite / CVBS) –
Connection of a playback device with audio/video output
VGA / YPbPr—Component input (YUV/YPbPr) /
VGA input – Connection of a playback device with component (YUV/YPbPr) output or a computer (VGA
audio) for image playback
÷ Ï—Audio output – headphone connection or connection for external speakers
PicoPix P3 top
Bottom of the Device
Tripod socket
Fold-out base
PicoPix P3 Bottom
6 Philips · PPX1430
Page 7
Overview of the Menu
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
Functions
1 After switching on the device the main menu
appears.
2 Select the desired menu using the navigation keys
/, À/Á.
3 Confirm with à.
4 By pressing the ¿ key several times you will return
to the main menu.
Videos—Selecting files for video playback
Source—Switching to the external video input
VGA / YPbPr or /
Pictures—Selecting files for the slideshow
Folder View—Selecting files for Playback. Copy or
Delete Files (Mark files using Á and confirm using
à).
Music—Selecting music files for playback
Settings—Configure settings for playback and for
the device
Symbols in the Main Menu
Using ¿ you can select the storage locations. The chosen storage appears highlighted in white.
—USB Storage Medium
—Memory Card
—Internal Memory (selected and highlighted in
white)
—Charge level of the internal battery The icon will
flash red, when the battery needs to be recharged. If the
power supply is connected, no symbol is displayed.
Overview 7
Page 8
3 Initial Operation
CAUTION!
Notice
DANGER!
Connect power supply / charge battery
Mains Voltage at the Site of Installation!
Check whether the mains voltage of the
power supply matches the mains voltage available at the setup location.
1 Insert the small plug of the power supply into the
socket on the rear side of your device.
2 Plug the power supply into the mains.
3 During the charging process, the indicator light on
the top of the device will be red. When the battery
is fully charged, it will turn green.
4 Charge the built-in battery before using for the first
time for at least 3 hours. This will prolong, the life of
the battery.
Initial Installation
1 Switch the device on using the on/off switch on the
side.
2 Turn the device towards an appropriate projection
surface or wall at a distance of at least 0,2m and at
most 3m. Make sure the projector is in a secure
position.
3 Use the focus wheel on the top to adjust the image
sharpness.
4 Select the desired menu language using /.
5 Confirm with à.
The main menu appears instead of
the language selection
The device has already been installed. In
order to change the menu language, proceed as follows:
1 Select with the navigation keys Settings.
2 Confirm with à.
3 Select using / Language.
4 Confirm using à.
5 Select the desired language with /.
6 Confirm with à.
7 You can exit with ¿.
Installing or Changing the Batteries of the Remote Control
Risk of explosion with incorrect type of batteries
Risk of explosion with incorrect type of
batteries
Use only batterytype:CR 2025.
CAUTION! RISK OF EXPLOSION IF BAT-
TERY IS REPLACED BY ONE OF AN
INCORRECT TYPE.
1 To access the battery, disengage the locking mecha-
nism () and slide out the battery compartment
().
2 Insert the new batteries into the battery compart-
ment with the positive and negative poles as shown
on the back of the remote control. Make sure the
polarities(+ and -) are aligned correctly.
8 Philips · PPX1430
Page 9
3 Push the battery compartment back into the remote
Notice
control until the locking mechanism engages.
Normally the batteries will last for around
one year. If the remote control stops working,
please replace the batteries. If the device is
not used for a long time, take out the batteries. This will prevent leakage and possible
damage to the remote control.
The used batteries should be disposed of
according to the recycling regulations of your
country.
Using the Remote Control
Point the remote control at the remote sensor on the
back of the device. The remote can be used within an
angle of 30 degrees and up to 3 meters from the device.
When using the remote control, no obstacle should be
placed between the remote control and remote sensor.
Initial Operation 9
Page 10
4 Connect to the playback device
Notice
Notice
Only use the supplied cable or cables that are available
as accessories to connect the projector.
Supplied Cables
Video-(CVBS) cable
USB Adaptercable to connect an USB storage medium
Cables available as Accessories
Component Video Cable YUV /YPbPr
.................................................(PPA 1110 / 253372492)
VGA-Audiocable ......................(PPA 1150 / 253372489)
iPod / iPhone Cable ................. (PPA 1160 / 253372471)
Connecting using Video (CVBS) Cable
Use the projector's audio/video cable (AV cable) to
connect camcorders, DVD players or digital cameras.
The jacks for these devices are yellow (video), red
(audio right) and white (audio left).
Composite DVD Camcorder
1 Connect the supplied AV cable to the / socket of
the projector.
2 Connect the video device's audio/video jacks to the
AV cable using a conventional composite video
(RCA) cable.
Connecting to mobile multimedia devices
Connecting to mobile multimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufacturer of the multimedia device. Please note that only the
original cables from the device manufacturer may function.
Composite Mobile Device
Connecting using Component-Video (YPbPr/ YUV) Cable
Please use this type of connection to get the highest
possible quality of image. This cable is included as an
accessory. The device jacks have the colours green (Y),
blue (U/Pb), red (V/Pr) for the video signal and red
(audio right) and white (audio left) for the audio signal.
Component DVD Camcorder
1 Connect the video component cable (accessory) to
the VGA / YPbPr socket of the projector.
2 Connect the video device's appropriate colored
sockets to the component video cable of the projector using a conventional component video (RCA)
cable.
Two red phono (RCA) connectors
When connecting, note that there are two
red phono (RCA) connectors on the cable.
One is for the right audio signal and the
other for the V/Pr element of the component video signal. If these two connectors
are inserted incorrectly, the projected
image appears green and the audio signal
for the right speaker will not work.
Signal output, multimedia devices
Switching to the multimedia device signal output
See the multimedia device instruction manual
to find out how to switch the signal output to
this jack.
10 Philips · PPX1430
Page 11
Connecting to mobile multimedia devices
Notice
Connecting to mobile multimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufacturer of the multimedia device. Please note that only the
original cables from the device manufacturer may function.
Componet Mobile Devi ce
Signal output, multimedia devices
Switching to the multimedia device signal output
See the multimedia device instruction manual
to find out how to switch the signal output to
this jack.
Connecting to a Computer (VGA)
Use the VGA audio cable (accessory) to connect the
projector to a computer, laptop or some PDAs. The
projector supports the following resolutions: VGA/
SVGA/XGA . For best results, set the computer's resolution to SVGA (800x600).
Laptop VGA
1 Connect the VGA audio cable to the VGA / YPbPr
socket of the projector.
2 Connect the VGA plug to the computer's VGA
socket and the audio plug to the computer's audio
output.
3 Adjust the computer's resolution to the correct set-
ting and switch the VGA signal to an external monitor.
4 The following resolutions are supported:
Resolution Image
VGA 640 x 480 60 Hz
SVGA 800 x 600 60 Hz
XGA 1024 x 768 60 Hz
refresh rate
Connect to the playback device 11
Page 12
5 Memory Card / USB Storage Medium
DANGER!
Notice
Inserting a Memory Card
1 Insert a memory card into the // card slot
at the back of the device with the gold plated contacts upwards. Your device supports the following
memory cards: SD/SDHC/MMC.
2 Press the memory card until it snaps into place.
Inserting a Memory Card!
Never pull out the memory card while the
device is accessing it. This could cause data
to be damaged or lost.
In order to make sure that the device does
not access the memory card, press the key
¿ in the main menu until the symbol for
the internal memory has been selected.
3 Press on the back of the memory card to remove it.
4 The memory card is ejected.
Connecting USB Storage Medium
1 Connect the USB adapter cable provided to the
Mini-USB socket on the reverse side of the device.
2 Only connect the USB storage medium to the
adapter cable after the adapter cable is already connected to the device.
USB Storage Medium with Mini USB
Connector
Ensure, that the adapter cable is connected
to the projector and not to the USB storage medium. The signal is switched correctly between the computer connection
and the USB storage medium only when
using the adapter cable.
12 Philips · PPX1430
Page 13
6 Photo Playback
Notice
Notice
Notice
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
3 Select the internal memory, the USB storage
medium or the memory card using the keys ¿. The
chosen storage appears highlighted in white.
4 Use the navigation keys to select Pictures.
5 Confirm with à.
6 Miniature photos are displayed on the screen as an
overview.
Miniature view or list
In the settings, you are able to select
whether the overview will be displayed as
miniatures or in a list.
Many photos on the memory card or
the USB medium
If there are a lot of photos on the memory
card or the USB storage medium it can
take a moment before the overview
appears.
7 Use À/Á or / to select the image that you
want to start the slide show with.
8 Press à to start the slide show.
9 Press à to pause the slide show.
Zoom in / Zoom out
When the slide show is stopped, you can
use the / keys to magnify or reduce
the current image.
10 Press ¿ to end the slide show and return to the
overview.
11 When you press ¿ again, you will return to the
main menu.
Photo Playback 13
Page 14
7 Video playback
Notice
Notice
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
Notice
Video playback (USB/SD card/internal memory)
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
3 Select the internal memory, the USB storage
medium or the memory card using the keys ¿. The
chosen storage appears highlighted in white.
4 Use the navigation keys to select Videos.
5 Confirm with à.
6 Use / to select the video file that you wish to
play.
7 Press à to start playback.
Displaying video files
Only those videos that are compatible
with the Pocket Projector will be displayed.
File format
There are various video file formats: *.mov, *.avi,
*.m4v,.... Many of these formats function as a container
that contains the various encoded audio and video files.
MPEG-4, H.264, MP3, and AAC are all examples of
encoded audio/video files. In order to play these files,
the projector must read them and decode the audio/
video signals.
Please note that some files cannot be played as a result
of different video and audio encoders.
Supported File Formats
Container Video Format
*.avi MJPEG, MPEG-4, H.264
*.mov MJPEG, MPEG-4, H.264
*.mp4 MJPEG, MPEG-4, H.264
*.mkv MPEG-4, H.264
*.flv H.263, H.264
*.ts H.264
*.m2ts H.264
*.swf SWF
Video Playback (A/V or YPbPr jacks)
1 Connect the audio/video output of the external
device to the / or VGA / YPbPr socket of the
Pocket Projector. Use the corresponding cable and
cable adapter for this purpose.
Navigation during playback
Previous, next title: Press À/Á on the
remote control.
Review / cue: Press : / ; on the
remote control or À/Á on the device.
Press T to stop or continue playback.
Remote and device vol ume
During playback you can adjust the volume using N/
O on the remote control. Press or N repeatedly
to shut off the volume completely.
14 Philips · PPX1430
2 To find out how to deactivate the video output for
3 Start the video playback on the external device.
4 Modify the volume with N / O.
Both jacks occupied
If both sockets on the Pocket Projector
are occupied, only the signal from the /
socket will be played. In order to play the
signal from the VGA / YPbPr socket, you
have to remove the cable from the /
socket.
the external device, please see the relevant instruction manual. Most often, this option is labeled "TV
out" or "TV Output" in the corresponding menu.
Page 15
Modify settings during playback
1 Press the or key.
2 Use the / keys to choose from the following
settings:
Brightness: Adjust brightness
Contrast: Adjust contrast
Saturation: Adjust colour saturation
Smart Settings: Select predefined settings for
brightness / contrast / colour saturation
Volume: Adjust volume level
3 Modify the setting using À/Á.
The device saves the modified settings automatically.
Modify other settings
1 Press the button à.
2 Use the / keys to choose from the following
settings:
Image Settings: Adjust brightness, contrast, colour
saturation
Sound Settings: Adjust treble, bass and volume
Power Save: This function reduces the light output
in order to increase the operating time for the builtin battery.
3 Confirm with à.
4 Modify the setting using À/Á or with à and /
.
5 Confirm with à.
Video playback 15
Page 16
8 Music Playback
Notice
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
3 Select the internal memory, the USB storage
medium or the memory card using the keys ¿. The
chosen storage appears highlighted in white.
4 Use the navigation keys to select Music.
5 Confirm with à.
6 Use / to select the file that you wish to play.
7 Press à to start playback.
8 Press T to stop or continue playback.
Image Playback is switched off
During music playback, the projector shuts
off the image playback and the fan in order
to save energy. As soon as you press the
¿ key, the image reappears and the fan
starts again.
Remote and device vol ume
During playback you can adjust the volume using N/
O on the remote control. Press or N repeatedly
to shut off the volume completely.
16 Philips · PPX1430
Page 17
9 Managing files
Notice
Notice
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
Notice
Notice
Notice
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
Copy Files
You can copy files back and forth from the internal
memory to the connected USB storage medium or
memory card.
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
3 Select the internal memory, the USB storage
medium or the memory card using the keys ¿. The
chosen storage appears highlighted in white.
4 Use the navigation keys to select Folder View.
5 Confirm with à.
6 Use / to select the file that you want to copy.
13 Confirm with à.
Files already exist
If the files you are copying already exist in
the target folder, you must choose
whether or not you want to overwrite
them using / and à. If you choose
not to overwrite these files, copies will be
created. The copies can be recognised by a
number added to the file names.
14 The files are copied.
Removing storage medium
Only remove the storage medium after the
copy process is complete.
Delete Files
You can delete files from the internal memory, the connected USB storage medium or the memory card.
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
No Files Found (0 files)
Only those files that are compatible with
the Projector will be displayed.
7 Mark the file using Á. Pressing the key again dese-
lects the chose file(s).
Mark the entire folder
You can also mark an entire folder to copy
all files from the folder. Note that the copy
process of large folders can takes some
time.
8 Use / to select other files.
9 Press à.
3 Select the internal memory, the USB storage
medium or the memory card using the keys ¿. The
chosen storage appears highlighted in white.
4 Use the navigation keys to select Folder View.
5 Confirm with à.
6 Use / to select the file that you wish to delete.
10 Use / to select Copy.
11 Confirm with à.
12 Use / to select the destination memory: SD
card, Internal memory or USB memory.
No Files Found (0 files)
Only those files that are compatible with
the Projector will be displayed.
7 Mark the file using Á. Pressing the key again dese-
lects the chose file(s).
Managing files 17
Page 18
8 Use / to select other files.
Notice
Notice
9 Press à.
10 Use / to select Delete.
11 Confirm with à.
12 Use / if you want to delete the files or cancel
the deletion process.
13 Confirm with à.
Deleting photos on the memory card
Deleting photos on the memory card
When deleting photos via the computer, note
that the photos may not be correctly displayed when the memory card is inserted into
the digital camera again. Digital cameras
sometimes store additional information in
specific folders, including previews and orientation information.
For this reason, only delete the photos using
the digital camera.
Connect to a computer (USB)
You can use the USB cable to connect the Pocket
Project to a computer. In this way, you are able to copy
files back and forth between the internal memory, an
inserted memory card and the computer. You can also
delete them from the device.
Laptop USB
1 Switch the device off using the on/off switch on the
side.
2 Connect the small end of the USB cable to the deac-
tivated Pocket Projector and the larger end to the
computer.
3 Switch the device on using the on/off switch on the
side. Allow the computer a few moments to recognize the new hardware. The Pocket Projector is displayed as a disk drive.
4 If a memory card has been inserted, it will be dis-
played as another disk drive.
5 Now, you are able to move, copy or delete data
from the computer, the memory card (if inserted)
and the internal memory.
Deleting photos on the memory card
When deleting photos via the computer,
note that the photos may not be correctly
displayed when the memory card is
inserted into the digital camera again. Digital cameras sometimes store additional
information in specific folders, including
previews and orientation information.
For this reason, only delete the photos
using the digital camera.
18 Philips · PPX1430
Page 19
10 Settings
9LGHRV
6RXUFH 3LFWXUHV
6HWWLQJV0XVLF)ROGHU9LHZ
1 Switch the device on using the on/off switch on the
side.
2 After the initial screen the main menu appears.
3 Use the navigation keys to select Settings.
4 Confirm with à.
5 Use / to choose from the following settings.
6 Confirm with à.
7 Modify the settings using à, /,
8 Confirm with à.
The ¿ key takes you one step back in the menu.
Image Settings
Smart Settings—Select predefined settings for brightness / contrast / colour saturation. If you modify these
settings, the setting is switched to Manual .
Brightness—Adjust brightness
Contrast—Adjust contrast
Saturation—Adjust colour saturation
Sound Settings
Volume—Adjust volume level
Bass—Set the playback of the low frequencies
Treble—Set the playback of the high frequencies
Video Settings
Repeat—Set the video repeat type: Repeat off (Off),
repeat all videos in the directory (Directory), repeat
only the current video (Movie)
Resume play—If this function is activated, playback will
continue at the position it was last stopped. If deactivated, playback will always start at the beginning of the
video.
Music Settings
Repeat—Set the music repeat type: Repeat off (Off),
repeat all songs in the directory (Directory), repeat
only the current song (Song).
Shuffle—Activate this function for random playback.
Otherwise, playback will take place in sequence.
Photo Settings
View—Display the images as Thumbnail or as List during selection in the main menu.
Time per slide—Image viewing time during slide show
Repeat—Set the type of repeat for slide-show photos:
Repeat off (
Off), repeat all photos in the directory
(Directory), repeat all photos stored (All).
Power Save
This function reduces the light output in order to
increase the operating time for the built-in battery.
When operating from the power supply, Power Save is
always deactivated in order to ensure the best-possible
image display.
Language
Select the desired language for the menu.
Maintenance
Reset settings—Reset settings to factory defaults.
Firmware Update—Update Firmware
Information—Display free space in the internal mem-
ory and information on the device (Capacity: / Free
space: / Firmware Version / Device name: / Model )
Settings 19
Page 20
11 Service
DANGER!
DANGER!
DANGER!
DANGER!
Care Instructions for the Battery
The capacity of the battery diminishes with time. You
can prolong the life of the battery if you observe the following points:
Use the device at least once a week.
Charge the battery regularly. Don’t store the device
with a completely discharged battery.
If the device is not used for several weeks, discharge the
battery a little by using the device before storing it.
If the device only works using the USB connection or
with the power supply, the battery is defective.
Keep the device and the battery away from heat
sources.
Do not replace the battery yourself
Do not try to replace the battery yourself.
Incorrect handling of the battery or using the
wrong type of battery can cause damage to
the device or cause injury.
Cleaning
Switching off the device!
Switch the device on or off using the power
switch before removing the power supply
from the socket.
Cleaning
Instructions for Cleaning!
Use a soft, lint-free cloth. Never use liquid or
easily flammable cleansers (sprays, abrasives,
polishes, alcohol, etc.). Do not allow any
moisture to reach the interior of the device.
Do not spray the device with any cleaning fluids.
Wipe over the surfaces gently. Be careful that
you do not scratch the surfaces.
Cleaning the Lens
Use a brush or lens cleaning paper for cleaning the lens
of the projektor.
Do not use any liquid cleaning agents
Do not use any liquid cleaning agents for
cleaning the lens, to avoid damaging the coating film on the lens.
20 Philips · PPX1430
Page 21
Troubleshooting
Power Cycling
If a problem occurs that cannot be corrected with the
instructions in this user manual (see also the help
below), follow the steps given here.
1 Switch the device off using the on/off switch on the
side.
2 Wait at least ten seconds.
3 Switch the device on using the on/off switch on the
side.
4 If the problem repeats, please contact our technical
customer service or your retailer.
Problems Solutions
The Pocket Projector cannot be switched on • Connect the supplied power supply to recharge the
No sound • Adjust the volume using the O / N key on the
No sound from the external connected device • Check the cables to the external device
Bad sound quality with your computer connection • Check if the audio cable is connected to the comput-
Only the initial screen appears and not the image from
the external device
Only the initial screen appears and not the image from
the connected computer
internal battery.
remote control.
• Set the volume on the external device
• Only the original cables from the device manufacturer may function
ers headphone socket or the line-out socket.
• The volume setting on the computer should not be
too high.
• Check if the cables are connected to the right sockets.
• Please check that the external device is switched on
• Check if the video output of the external device is
switched on.
• Please check that the VGA-output of the computer
is switched on.
• Check if the resolution of the computer is set to
800x600.
Service 21
Page 22
12 Appendix
Technical Data
Dimensions
Dimensions (L¦×¦H¦×¦W).......................100¦×¦32¦×¦100¦mm
Weight
Weight ..........................................................................0,29¦kg
Recommended Ambient
Recommended Ambient........................................5¦–¦40¦ºC
Relative Humidity
Relative Humidity ..................20¦–¦80¦% (non-condensing)
File format
File format................................*.avi, *.mov, *.mp4, *.mkv,
..................................................... *.flv, *.ts, *.m2ts, *.swf
Photo formats
Photo formats.......................JPEG, BMP, PNG, GIF, TIFF
Music formats
Music formats.....................................................MP3, WAV
Video Standard (CVBS)................... PAL, SECAM, NTSC
Video Standard (YPbPr)....... 480i/p, 576i/p, 720p, 1080i
Headphone connection..........Stereo - jack plug: 3,5¦mm
Audio Output
Audio Output...........................................................2x0,3¦W
Technology / Optical
Display technology.............................................0,37" LCoS
Light source ........................................................... RGB LED
Resolution......................................................800¦x¦600¦pixel
Supported Resolutions..........................VGA/SVGA/XGA
Brightness (Bright Mode)...........................up to 30¦lumen
Contrast ratio ............................................................... 400:1
Projected image size .........................................5,2¦–¦81¦inch
Screen distance ...........................................0,2¦m up to 3¦m
Horizontal Scan Rate.........................................31¦–¦69¦kHz
Vertical Scan Rate ................................................56¦–¦85¦Hz
Internal memory
Internal memory.............................................................2¦GB
Compatible Memory Cards
Compatible Memory Cards ...................SD/SDHC/MMC
Power supply
Model
Model No................................................................MPA-630
Manufacturer
Manufacturer ............................. Wanlida Group Co., Ltd.
Built-in rechargeable battery
Battery type
Battery type .................................................................... LiPol
Battery recharging time
Charging time..................................................................... 3¦h
Battery operating time
Operating time...................................................................2¦h
Operating time (Power Save switched on) .................2,5
The CE marking certifies that the product meets the
main requirements of the European Parliament and
Council directive 1999/5/CE on telecommunications
terminal equipment, regarding safety and health of users
and regarding electromagnetic interference.
The declaration of compliance can be consulted on the
site www.sagem-ca.at/doc
Preservation of the environment as part of a sustainable
development logic is an essential concern of Sagemcom.
The desire of Sagemcom is to operate systems observing the environment. The desire of Sagemcom is to
operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of this products, from manufacturing to commissioning use and elimination.
Packaging: The presence of the logo (green dot)
means that a contribution is paid to an approved
national organisation to improve package recovery and
recycling infrastructures to facilitate. Please respect the
sorting rules set up locally for this kind of waste.
Batteries:If your product contains batteries, they must
be disposed of at appropriate collection points.
Accessories
Following accessories are available for your device:
YUV /YPbPr Adaptercable .........PPA 1110 / 253372492
VGA-Audiocable...........................PPA 1150 / 253372489
iPod / iPhone Cable .....................PPA 1160 / 253372471
All data are provided for reference purposes only.
Sagemcom reserves the right to make any changes
without prior notice.
22 Philips · PPX1430
Product: The crossed-out waste bin stuck on the
product means that the product belongs to the family of
electrical and electronic equipment. In this respect, the
European regulations ask you to dispose of it selectively;
• At sales points in the event of the purchase of similar
equipment.
• At the collection points made available to you
locally(drop-off centre, selective collection, etc.).
In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which
can have an effect on the environment and human
health.
The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping
and Styrofoam packaging recycled or dispose of it in the
non-recyclable waste, depending on the requirements
in your country.
Page 23
Trademarks: The references mentioned in this manual are trademarks of the respective companies. The
lack of the trademarks É and Ë does not justify the
assumption that these dedicated terminologies are free
trademarks. Other product names used herein are for
identification purposes only and may be trademarks of
their respective owners. Sagemcom disclaims any and all
rights in those marks.
Neither Sagemcom nor its affiliates shall be liable to the
purchaser of this product or third parties for damages,
losses, costs, or expenses incurred by the purchaser or
third parties as a result of accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or
alterations to this product, or failure to strictly comply
with Sagemcom operating and maintenance instructions.
Sagemcom shall not be liable for any damages or problems arising from the use of any options or any consumable materials other than those designated as original
Sagemcom / PHILIPS products or Sagemcom / PHILIPS
approved products.
Sagemcom shall not be held liable for any damage resulting from electromagnetic interference that occurs from
the use of any interface cables other than those designated as Sagemcom or PHILIPS products.
All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system or transmitted
in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the
prior written permission of Sagemcom. The information
contained herein is designed only for use with this product. Sagemcom is not responsible, if this information is
applied to other devices.
This user manual is a document that does not represent
a contract.
Errors, printing errors and changes are reserved.
Copyright È Sagemcom Austria GmbH
Appendix 23
Page 24
PHILIPS and the PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V.
and are used by Sagemcom under license from Koninklijke Philips Electronics N.V.
È 2010 Sagemcom Austria GmbH
All rights reserved
Sagemcom Documents SAS
Documents Business Unit
Headquarters : 250, route de l’Empereur
92500 Rueil-Malmaison Cedex · FRANCE
Tel: +33 (0)1 57 61 10 00 · Fax: +33 (0)1 57 61 10 01
www.sagemcom.com
Simplified Joint Stock Company · Capital 8.479.978 € · 509 448 841 RCS Nanterre
PPX1430
EN
253378506-A
Loading...
