Philips Portable CD Mini System User Manual [en, es, fr]

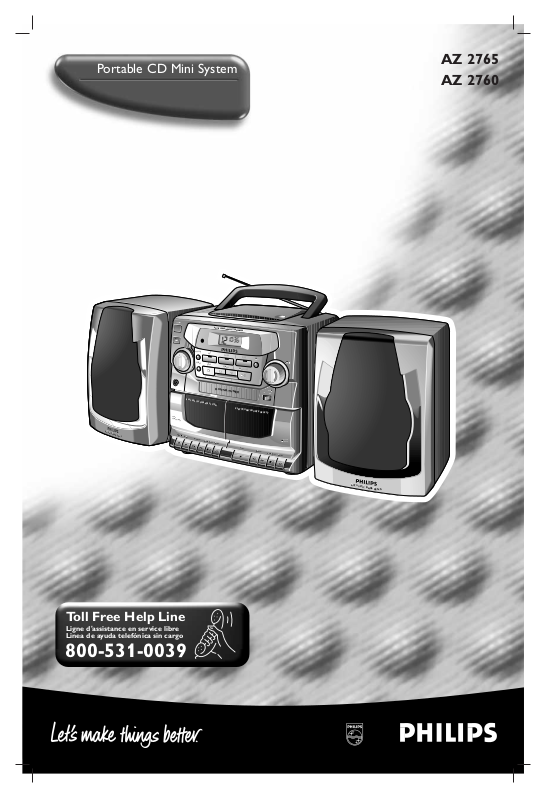

Portable CD Mini System

AZ 2765 AZ 2760

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

TUNER PRESET

DECK B

PLAYBACK

DECK A RECORD PLAYBACK

TUNER

POWER

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

SHUFFLE

DBB

TUNER PRESET

DECK B

PLAYBACK

DECK A RECORD PLAYBACK

TUNER

POWER

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

SHUFFLE

DBB

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

AZ2765 CD RADIO CASSETTE RECORDER

DIGITAL TUNER

Toll Free Help Line

Ligne d'assistance en service libre Linea de ayuda telefónica sin cargo

800-531-0039

• Once your Philips purchase is registered, you’re eligible to receive all the privileges of owning a Philips product.

• So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

This “bolt of lightning” indicates uninsulated

material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls

attention to features for

which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric

shock, match wide blade of plug to wide slot, and fully insert.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. _______________________

Serial No. ________________________

Know these

ssaaffeettyy symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to.

AZ 2765 /17 page 2

AZ 2765 /17 page 3

AZ2765 CD RADIO CASSETTE RECORDER

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

DECK B

PLAYBACK

DECK A RECORD PLAYBACK

TUNER

SHUFFLE

POWER

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

DBB

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

LENS

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

TUNER

PRESET

DIGITAL TUNER

MAINS

SPEAKERS 4

+ R – + L –

90!@

for AZ 2765 model only

SHUFFLE

REPEAT

TUNING

PRESET

STOP

VOLUME

igital

emote

ontrol

6 9

5 7

AZ 2765 /17 page 4

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

ATTENTION

L’utilisation des commandes ou réglages ou le non-respect des procédures ciincluses peuvent se traduire par une exposition dangereuse à l’irradiation.

ATENCIÓN

El uso de mandos o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

El aparato cumple las normas FCC, Parte 15 y 21 CFR 1040.10. Funcionamiento dependiente de dos condiciones siguientes:

1. Este aparato no puede provocar interferencia dañina, y

2. Este aparato debe aceptar cualquier interferencia recibida, incluyendo las interferencias que pueden provocar un funcionamiento insuficiente.

L’appareil répond aux normes FCC, Part 15 et 21 CFR 1040.10. Fonctionnement soumis aux deux conditions suivantes:

1. Cet appareil ne doit pas provoquer d’interférences nuisibles, et

2. Cet appareil doit accepter toute interférence reçue, y compris les interférences susceptibles de provoquer un fonctionement peu satisfaisant.

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

INDEX

AZ 2765 /17 page 5

English

Safety instructions..........2, 4 + 6

Limited warranty.......................7

Controls.....................................8

Power supply.............................9

Speakers..................................10

Digital tuner ............................11

CD Player ...........................12-14

Cassette recorder....................15

Recording...........................15-16

Maintenance...........................17

Troubleshooting.......................18

Français

Español

Instrucciones sobre seguridad

.......................................2, 33-34

Garantie limitada ....................35

Controles.................................36

Alimentación...........................37

Altavoces.................................38

Syntonizador digital ................39

Reproductor de CD.............40-42

Reproductor de casetes..........43

Grabación...........................43-44

Mantenimiento........................45

Resolución de problemas........46

CANADA

English: This digital apparatus does not exceed the Class B limits for noise emissions from

digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français: Cet appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de Classe B prescrites dans le Régelement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

Français

Conseils de sécurité ..4, 19 + 20

Garantie limitée ......................21

Commandes.............................22

Alimentation............................23

Haut-parleurs ..........................24

Syntoniseur numérique...........25

Lecteur de CD ....................26-28

Platine Cassette......................29

Enregistrement...................29-30

Entretien..................................31

Dépannage..............................32

IMPORTANT SAFETY INSTRUCTIONS –

Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions – All the safety

and operating instructions should be read before the appliance is operated.

2. Keep these instructions – The safety and

operating instructions should be retained for future reference.

3. Heed all warnings – All warnings on the

appliance and in the operating instructions should be adhered to.

4. Follow all instructions – All operating and

use instructions should be followed.

5. Do not use this apparatus near water –

for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Clean only with a damp cloth. The

appliance should be cleaned only as recommended by the manufacturer.

7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For

example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particulary at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories

specified by the manufacturer.

12. Use only with a cart, stand,

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

EL 4562-E004: 99/3

AZ 2765 /17 page 6

Polarized Plug

AZ 2765 /17 page 7

LIMITED WARRANTY

WHO IS COVERED?

You must have proof of purchase to exchange the product.A sales receipt or other document showing that you purchased the product is considered proof of purchase.Attach it to this owner’s manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, a defective or inoperative product will be replaced with a new, renewed or comparable product at no charge to you.A replacement product is covered only for the original warranty period.When the warranty on the original product expires, the warranty on the replacement product also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident,unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS EXCHANGE AVAILABLE?

You may exchange the product in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide a replacement product (although there may be a delay if the appropriate product is not readily available).

BEFORE REQUESTING EXCHANGE...

Please check your owner’s manual before requesting an exchange.Adjustments of the controls discussed there may save you a trip.

EXCHANGING A PRODUCT IN U.S.A., PUERTO RICO OR U.S.VIRGIN ISLANDS...

Contact your dealer to arrange an exchange. Or, ship the product, insured and freight prepaid, and with proof of purchase enclosed, to the address listed below.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville,TN 37743 (In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But,because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

EXCHANGING A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special,incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

TO GET OUT-OF-WARRANTY EXCHANGE...

In U.S.A., Puerto Rico or U.S.Virgin Islands, contact Philips Service Company at (800) 851-8885 to obtain the cost of out-of-warranty exchange.Then carefully pack the product and ship it to the Small Product Service Center (address listed above). In Canada, call the phone number listed above under “Exchanging a Product in Canada” to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record the model and serial numbers found on the product below.Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # __________________________________

SERIAL # __________________________________

PORTABLE AUDIO

One Year Free Exchange

This product must be carried in for an exchange.

EL6095T002 / MAC5433 / 1-97

This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.

Philips Service Solutions Group, P.O.Box 2976, Longview,Texas 75606, (903) 242-4800

English

CONTROLS

TOP AND FRONT PANELS

1 POWER - ON/OFF switch 2 DBB (Dynamic Bass Boost) - to enhance

bass response

3 VOLUME - to adjust volume level 4 CD, TUNER, TAPE - to select the source of

sound

5 REMOTE SENSOR - for the remote control

(for AZ 2765 model only)

6 CD Display - to show the CD functions 7 OPEN - to open/ close the CD door 8 p 3.5 mm jack for stereo headphone

connection

Note: Connecting headphones will mute the

speakers

9 CASSETTE RECORDER:

Deck 1:

RECORD 0 - to start recording PLAY 2 - to start playback SEARCH 5 or 6 - to fast rewind/wind the

tape

STOP•EJECT 9/ - to stop the tape and to

open the cassette door

PAUSE ; - to interrupt recording or playback

Deck 2:

PLAY 2 - to start playback SEARCH 5 or 6 - to fast rewind/ wind the

tape

STOP•EJECT 9/ - to stop the tape and to

open the cassette holder

PAUSE ; - to pause recording or playback

0 CD PLAYER:

SHUFFLE - to play tracks CD/ program in

random order

REPEAT - to repeat a track/ CD/ program STOP 9 - to stop playback

- to erase a program

SEARCH ¡ , ™ / 5 , 6 CD: - to skip or search a passage/ track

backwards or forward

Tuner: - to tune to a station (down,up)

PLAY/PAUSE 2; - to start or pause CD play PROG - to program and review programmed

track numbers

CD: - to program and review programmed

track numbers

Tuner: - to program tuner preset stations

TUNER:

! BAND - to select FM/ AM waveband @ PRESET 4 , 3 - to select a preset station

(down, up)

BACK PANEL

# Telescopic antenna - to improve FM

reception

$ Speaker levers - to unlock the loudspeaker

boxes

% Speaker - loudspeaker terminals ^ AC MAINS - inlet for power cord & Battery door - to open the battery

compartment

REMOTE CONTROL (for AZ 2765 model only)

1 VOLUME 3,4- adjusts volume level 2 PRESET 3,4

(up, down) selects a preset radio station

3 TUNING ∞, §

(down, up) tunes to radio stations

4 SHUFFLE

to play CD tracks in random order

5 REPEAT

repeats a track/ CD program/ entire CD

6 2;

starts CD playback/ interrupts CD playback

7 ¡, ™

skips to the beginning of a current track/ previous/ subsequent track

8 STOP 9

stops CD playback or erases a CD program

9 SEARCH 5, 6

searches backwards or forwards within a track/CD

AZ 2765 /17 page 8

English

POWER SUPPLY

Whenever convenient, use the power supply if you want to conserve battery life. Make sure you remove the plug from the set and wall outlet before inserting batteries.

BATTERIES (OPTIONAL)

Open the battery compartment and insert six batteries, type R-20, UM-1 or D-cells, (preferably alkaline) with the correct polarity as indicated by the "

+" and "-" symbols inside the

compartment.

Remote control (supplied)

Open the battery compartment and insert two batteries, type AAA, R03 or UM4 (preferably alkaline).

Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. Therefore:

•

Do not mix battery types:

e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries with the new ones.

• Remove the batteries if the set is not to be used for a long time.

Using AC POWER

Check if the power voltage

as shown on the type plate on

the base of the set

, corresponds to your local power supply.

If it does not, consult your dealer or service center.

Connect the power cord to the MAINS inlet and the wall outlet. The power supply is now connected and ready for use.

To switch off completely, withdraw the power cord from the wall outlet.

– Disconnect the power cord from the wall outlet to protect

your set during heavy thunderstorms.

Batteries contain chemical substances, so they should be disposed of properly.

The type plate is located on the bottom of the set.

Switching POWER on/off: Save energy

Whether you are using mains or battery supply, to avoid unnecessary energy consumption

always push the POWER

button to the off position after using the set.

AZ 2765 /17 page 9

MAIN

6 x R20 • UM-1 • D-CELLS

MAINS

English

SPEAKERS

REMOVABLE LOUDSPEAKERS

Taking off the speakers

Keep the lever (found on the back corner of the speaker) pressed and slide the speaker upwards.

Attaching the speakers

Slide the speakers from above into the sleeves on the sides of the cabinet. The speakers will click into position.

CONNECTING THE SPEAKERS

Connect the right speaker to the R terminal, with the red marked wire to "

+" and the black wire to "-".

Clip the exposed portion of wire into the corresponding color terminal.

Repeat the wiring procedure for the left speaker to terminal L, making sure that you connect the red wire to "

+" and black to

-".

Note:

– Speakers with an impedance of 4 Ohms or higher other than as

supplied may be used instead. Speakers with a lower impedance, however, are unsuitable and will damage your set.

– When headphones are inserted into the headphone jack

the speakers are disconnected.

GENERAL OPERATION

Press POWER to on position.

– A source indicator lights up.

Select and press your source button CD, TUNER or TAPE.

– The selected source indicator lights up.

Operate sound source according to the instructions of the respective chapter about the function.

Adjust the sound using the VOLUME and DBB controls.

– For AZ 2765 model only: The volume level is briefly indicated

in the display when you press VOLUME 4 , 3 on the set or remote control.

Press POWER to off position to switch off the set.

– The selected source indicator goes out.

AZ 2765 /17 page 10

AZ2765 CD RADIO CASSETTE RECORDE

TUNER

SHUFFLE

POWER

DBB

+ R – + L –

SPEAKERS 4

English

DIGITAL TUNER

TUNING TO RADIO STATIONS

Press POWER to on position.

Press TUNER source button.

– The TUNER indicator lights up.

Press BAND once or more to select the desired FM/ AM waveband.

To tune to a radio station press SEARCH ¡ or ™ for more than 1 second and release when the frequency in the display starts to change.

– The radio automatically tunes to a station with sufficient

reception. Display shows Srch during automatic tuning.

Repeat step 4 until you find the desired station.

– To tune to a weak station, press SEARCH ¡ or ™ briefly and

repeatedly until the correct frequency is shown.

To improve radio reception

– For

, pull out the telescopic antenna. Incline and turn the antenna. Reduce its length if the signal is too strong (very close to a transmitter).

– For

, the set is provided with a built-in antenna so the telescopic antenna is not needed. Direct the antenna by turning the whole set.

Adjust the sound using VOLUME and DBB.

Press POWER to off position to switch off the set.

– The TUNER indicator goes out.

Programming radio stations

You can store up to a total of 29 radio stations in the memory.

Tune to your desired station (see Tuning to radio stations).

Press PROG to activate programming.

– Display:

PROGRAM flashes.

Press PRESET 4 or 3 once or more to allocate a number from 1 to 29 to this station.

Press PROG again to confirm the setting.

– Display:

PROGRAM disappears, the preset number and the

frequency of the preset station are shown.

Repeat the above four steps to store other stations.

– You can overwrite a preset station by storing another

frequency in its place

Tuning to preset stations

Press PRESET 4 or 3 once or more until the desired preset number appears in the display.

AZ 2765 /17 page 11

TUNER

SHUFFLE

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

DIGITAL TUNER

PROGRAM

TUNER

POWER

DBB

SHUFFLE

AZ2765 CD RADIO CASSETTE RECORD

TUNER

English

CD PLAYER

DISPLAY INDICATION FOR CD FUNCTIONS

CD door open CD inserted

– In stop mode total track number and total playback time – During CD

playback elapsed playback time of current track and

current track number

– PAUSE elapsed playback time freezes and flashes

and

PROGRAM;

when you program a selected track number program cancelled/ PROG pressed for more

than 2 seconds no disc/error in CD operation or with the

CD (see Troubleshooting)

FULL program memory full – SHUFFLE/ REPEAT

modes when the respective mode is activated

AZ 2765 /17 page 12

REPEAT

ALL

PROGRAM

English

CD PLAYER

PLAYING A CD

Press POWER to on position.

Press CD source button.

– The CD indicator lights up.

To open the CD door, press OPEN on the CD door.

Insert a CD with the printed side facing up and press the CD door gently to close.

Press PLAY/PAUSE 2; on the set to start playback.

Adjust the sound using VOLUME and DBB.

To interrupt playback press PLAY/PAUSE 2;. To resume, press PLAY/PAUSE 2; again.

To stop CD play, press STOP 9.

Press POWER to off position to switch off the set.

– The CD indicator goes out.

Note: CD playback will also stop when: – you press the CD door open; –

TUNER

TAPE

source is pressed;

– the CD has reached to the end.

Selecting a different track

During playback, you can use SEARCH keys to select a particular track.

– If you have selected a track number in the stop or pause

position, press

PLAY/PAUSE 2;

to start playback.

• Press SEARCH ™ once briefly for the next track, or press

repeatedly until the desired track number appears in the display.

• Press SEARCH ¡ once briefly to return to the beginning of a

current track.

• Press SEARCH ¡ more than once briefly for a previous track.

Finding a passage within a track

Press and hold down SEARCH ¡ or ™.

• The CD is played at high speed and low volume.

When you recognize the passage you want release the SEARCH control.

AZ 2765 /17 page 13

TUNER

SHUFFLE

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

DIGITAL TUNER

POWER

DBB

SHUFFLE

STOP

DIGITAL TUNER

TUNER

REPEAT

SHUFFLE

AZ2765 CD RADIO CASSETTE RECORD

TUNER

TAPE

PROG

PLAY/PAUSE

BAND

English

CD PLAYER

DIFFERENT PLAY MODES : SHUFFLE AND REPEAT

The SHUFFLE and REPEAT buttons allow you to select various play modes. The modes can be selected or changed during playback.

SHUFFLE - all tracks are played in random order REPEAT - plays the current track continuously REPEAT ALL - repeats the entire CD

In the stop position or during playback, select your play mode by pressing SHUFFLE or REPEAT once or more until the desired play mode is shown.

– You can use SEARCH ¡ or ™ to skip tracks during the

SHUFFLE/ REPEAT modes.

The SHUFFLE/ REPEAT play options can be combined and used with a program: e.g. SHUFFLE REPEAT ALL - repeats the entire CD in random order.

To return to normal playback press SHUFFLE/ REPEAT until

the various SHUFFLE/ REPEAT modes are no longer shown.

– You can also press STOP 9 to quit the play mode.

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

In the stop position, press SEARCH ¡ or ™ for your desired track.

When your chosen track number appears, press PROG once to store the track.

– The display shows ' ' and

PROGRAM and the selected track

number.

Repeat steps 1.and 2.to select and store all desired tracks in this way.

Reviewing your set program

• In the stop position, press and hold down PROG for one

second or more. The display shows all your stored track numbers in sequence.

– You can also review the program during playback.

• To play your program press PLAY/PAUSE 2;.

Erasing a program

You can erase the contents of the memory by: – pressing the CD door open; – pressing TUNER or TAPE source button; – pressing STOP 9 twice during playback/ in stop position

• The display shows ' ' briefly when the program is cancelled.

AZ 2765 /17 page 14

TUNER

SHUFFLE

REPEAT

STOP

PLAY/PAUSE

BAND

TAPE

PROG

DIGITAL TUNER

SHUFFLE

REPEAT

STOP

DIGITAL TUNER

TUNER

TAPE

PROG

PLAY/PAUSE

BAND

SHUFFLE

PROGRAM

English

CASSETTE RECORDER RECORDING

PLAYING A CASSETTE

Press POWER to on position.

Press TAPE source button.

– The TAPE indicator lights up.

Press STOP•EJECT 9/ to open the cassette holder and insert a cassette.

Press the cassette holder shut.

Press PLAY 2 to start playback.

Adjust the sound using the VOLUME and DBB.

To pause playback press PAUSE ;. To resume, press the key again.

By pressing 5 or 6,fast winding of the tape is possible in both directions.To stop fast winding, press STOP•EJECT 9/.

To stop the tape, press STOP•EJECT 9/.

–

The keys are automatically released at the end of the tape, except if PAUSE ; has been activated.

10.

Press POWER to off position to switch off the set.

– The TAPE indicator goes out.

Continuous Playback

Repeat steps

1 - 4

above, but load both decks. Press PLAY 2

on deck 2 and deck 2 will start.

Press PAUSE ; on deck 1 and then PLAY 2. As soon as deck 2 stops (end of tape or STOP•EJECT 9/ pressed), PAUSE ; on deck 1 is released and deck 1 will start

playback.

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.

• Recording is only possible on deck 1.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.

• The best recording level is set automatically. Altering the VOLUME and DBB controls will not affect the recording in progress.

• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.

• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

AZ 2765 /17 page 15

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

DECK A RECORD PLAYBACK

DIGITAL TU

SHUFFLE

REPEAT

TUNER

TAPE

PAUSE

PLAY/PAUSE

PLAYBACK

PROG

DECK B

STOP

PLAY

STOP/EJECT

+ 32 hidden pages
