PMST2907A
PNP switching transistor
Product specification
Supersedes data of 1999 Apr 22
2001 Nov 19

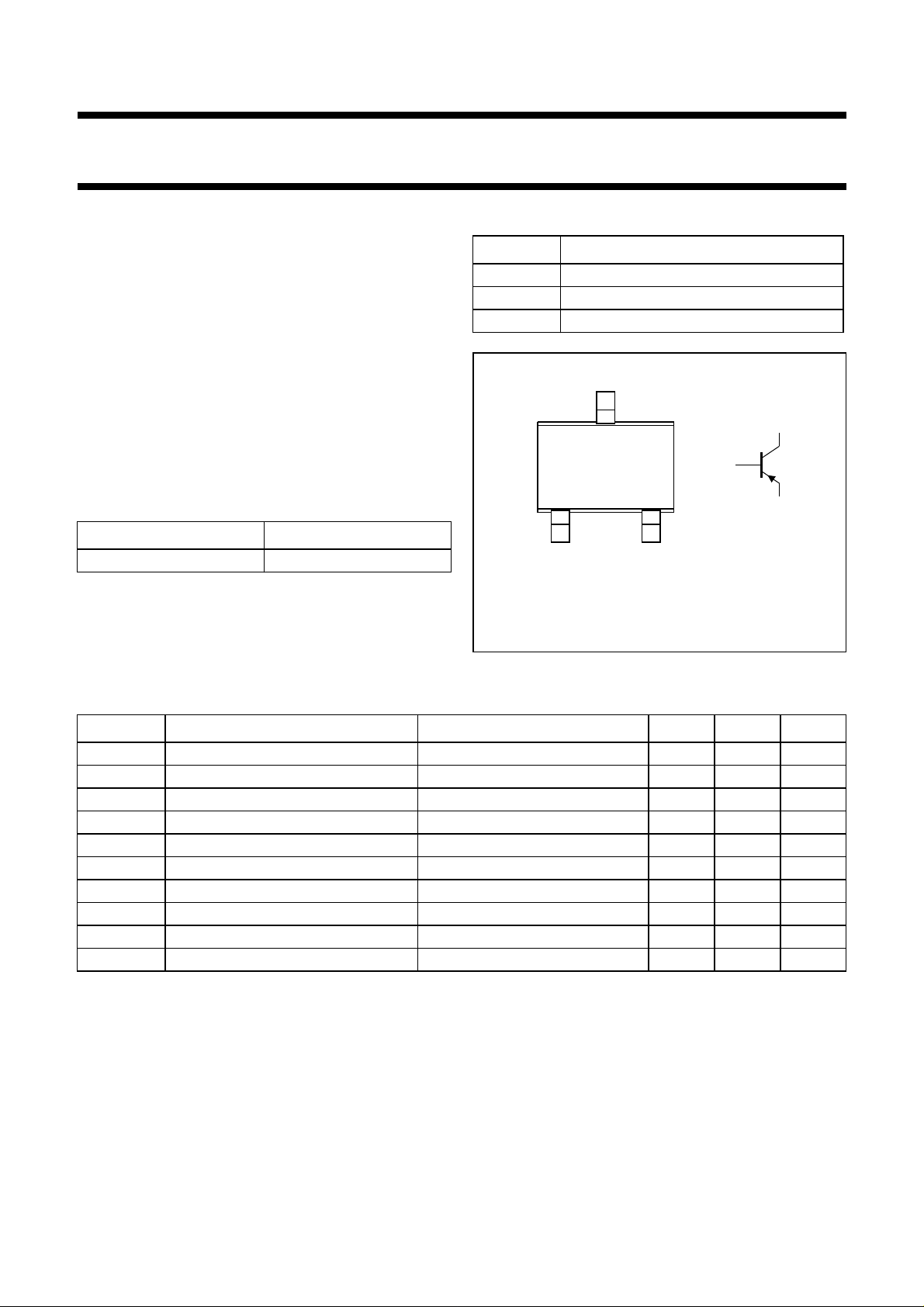

Page 2
Philips Semiconductors Product specification
PNP switching transistor PMST2907A
FEATURES
• Low current (max. 600 mA)
• Low voltage (max. 60 V).
APPLICATIONS
• Medium power switching
• General purpose amplification.
DESCRIPTION
PNP switching transistor in an SC-70; SOT323 plastic
package. NPN complement: PMST2222A.
MARKING
TYPE NUMBER MARKING CODE
(1)
PMST2907A ∗2F
Note
1. ∗ = - : Made in Hong Kong.
∗ = t : Made in Malaysia.
PINNING
PIN DESCRIPTION
1 base
2 emitter
3 collector
handbook, halfpage
Top view
3
1
1
2
MAM048
Fig.1 Simplified outline (SC-70; SOT323) and
symbol.
3
2
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
stg
T
j
T
amb
collector-base voltage open emitter −−60 V
collector-emitter voltage open base −−60 V
emitter-base voltage open collector −−5V
collector current (DC) −−600 mA
peak collector current −−800 mA
peak base current −−200 mA
total power dissipation T
≤ 25 °C; note 1 − 200 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C
Note
1. Transistor mounted on an FR4 printed-circuit board.
2001 Nov 19 2
Page 3
Philips Semiconductors Product specification
PNP switching transistor PMST2907A
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-a
Note
1. Transistor mounted on an FR4 printed-circuit board.
CHARACTERISTICS
T
=25°C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
CBO
I
EBO
h
FE
V
CEsat
V
BEsat
C
c
C
e
f
T
Switching times (between 10% and 90% levels); (see Fig.2)
t
on
t
d
t
r
t
off
t
s
t
f
thermal resistance from junction to ambient note 1 625 K/W
collector cut-off current IE= 0; VCB= −50 V −−10 nA
I
= 0; VCB= −50 V; Tj= 150 °C −−10 µA
E
emitter cut-off current IC= 0; VEB= −3V −−50 nA
DC current gain VCE= −10 V
I
= −0.1 mA 75 −
C
I
= −1 mA 100 −
C
I
= −10 mA; note 1 100 −
C
I
= −150 mA; note 1 100 300
C
I
= −500 mA; note 1 50 −
C
collector-emitter saturation
voltage
IC= −150 mA; IB= −15 mA; note 1 −−400 mV
I
= −500 mA; IB= −50 mA; note 1 −−1.6 V
C
base-emitter saturation voltage IC= −150 mA; IB= −15 mA; note 1 −−1.3 V
I
= −500 mA; IB= −50 mA; note 1 −−2.6 V
C
collector capacitance IE=ie= 0; VCB= −10 V; f = 1 MHz − 8pF
emitter capacitance IC=ic= 0; VEB= −2 V; f = 1 MHz − 30 pF
transition frequency IC= −50 mA; VCE= −20 V;
200 − MHz
f = 100 MHz; note 1
turn-on time I
delay time − 15 ns
= −150 mA; I
Con
I
=15mA
Boff
= −15 mA;
Bon
− 45 ns
rise time − 35 ns
turn-off time − 300 ns
storage time − 250 ns
fall time − 50 ns
Note
1. Pulse test: t
≤ 300 µs; δ≤0.02.
p
2001 Nov 19 3
Page 4
Philips Semiconductors Product specification
PNP switching transistor PMST2907A
handbook, full pagewidth
oscilloscope
Vi= −9.5V; T = 500 µs; tp=10µs; tr=tf≤3 ns.
R1 = 68 Ω; R2 = 325Ω; RB= 325 Ω; RC= 160 Ω.
VBB= 3.5 V; VCC= −29.5 V.
Oscilloscope input impedance Zi=50Ω.
V
R
(probe)
450 Ω
V
i
B
R2
R1
BB
V
CC
R
C
V
o
DUT

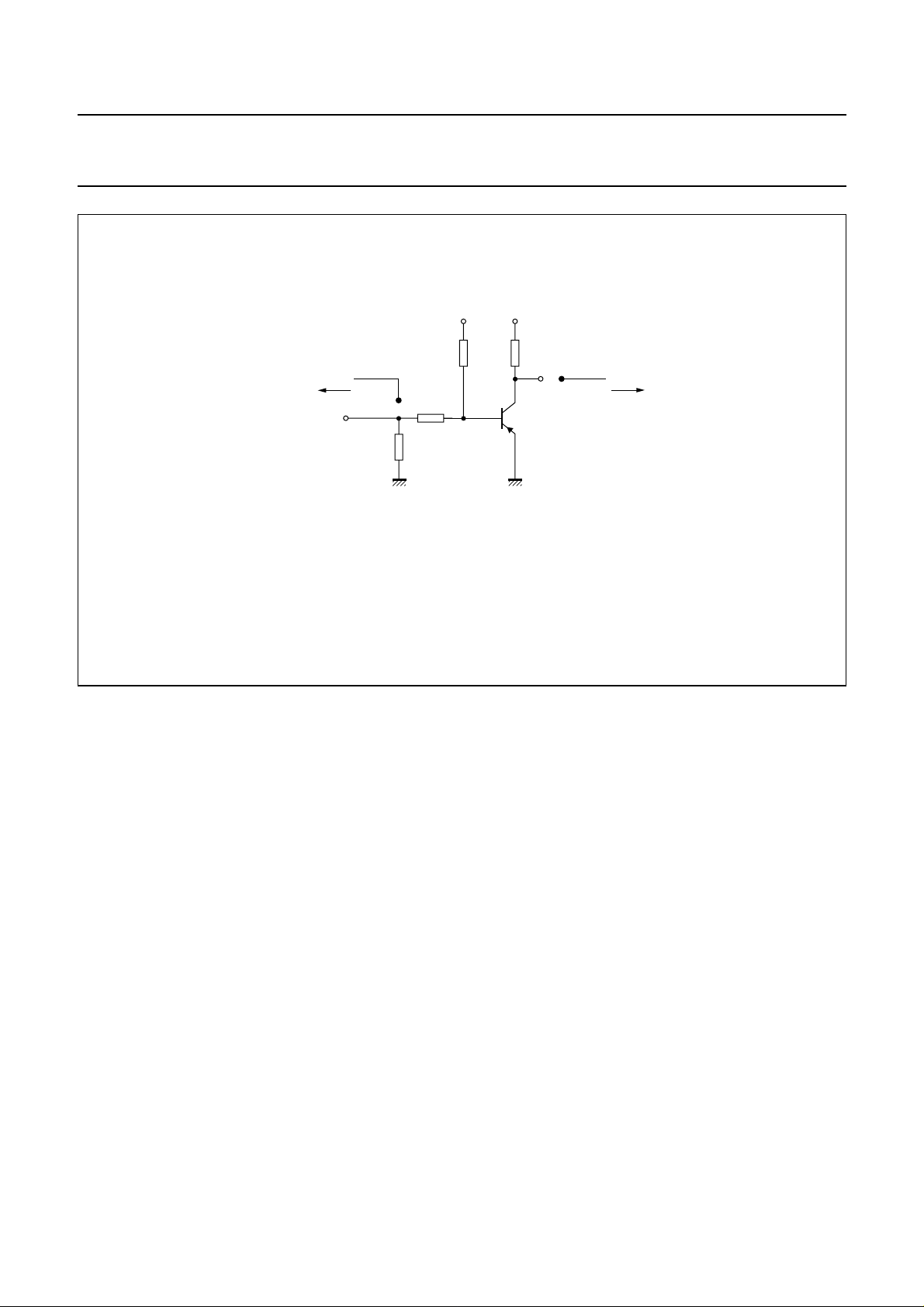

Fig.2 Test circuit for switching times.
(probe)
450 Ω
MGD624
oscilloscope
2001 Nov 19 4
Page 5
Philips Semiconductors Product specification
PNP switching transistor PMST2907A

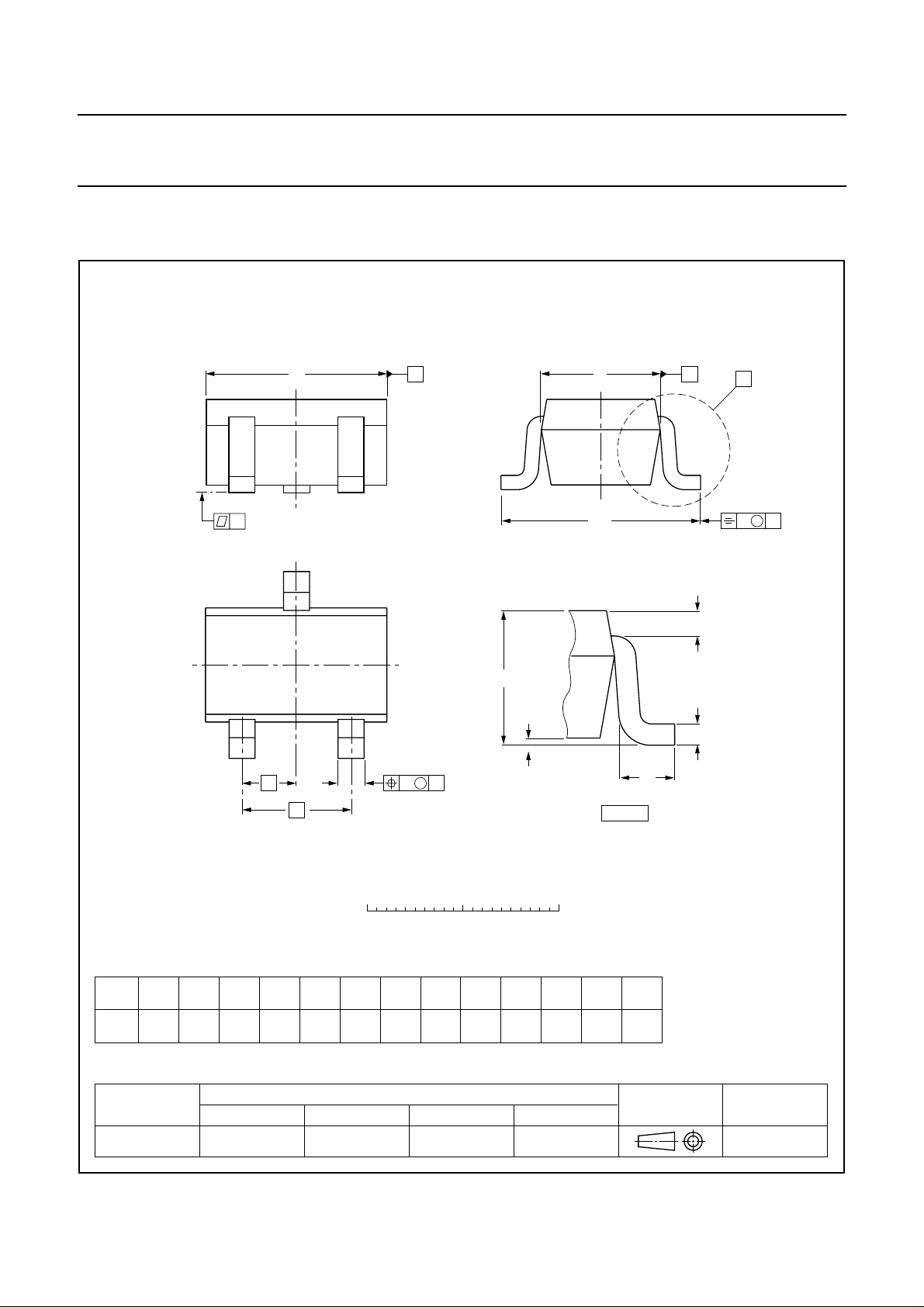

PACKAGE OUTLINE
Plastic surface mounted package; 3 leads SOT323
D
y
3
A
12
e
b
1
p
e
w M
B
E
H
E
A
1
detail X
AB
Q
L
p
X
v M
A
c
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
max
0.1
1
b
cD
p
0.4
0.25
0.10
2.2
1.8
0.3
IEC JEDEC EIAJ
E
1.35
1.15
REFERENCES
1.3
e
e
1
0.65
UNIT
mm
A
1.1
0.8
OUTLINE
VERSION
SOT323 SC-70
2001 Nov 19 5
H
E
2.2
2.0
L
p
0.45
0.15
Qwv
0.23
0.13
0.20.2
EUROPEAN
PROJECTION
ISSUE DATE
97-02-28
