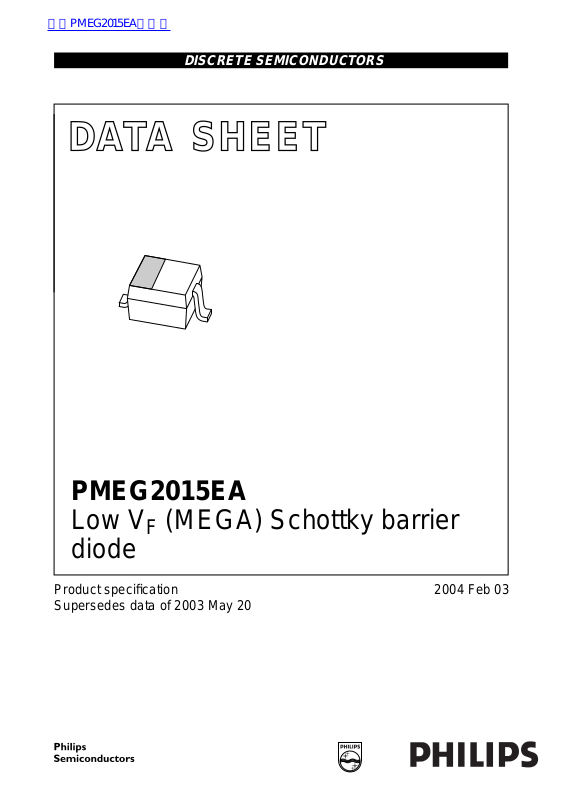

DISCRETE SEMICONDUCTORS
DATA SH EET
PMEG2015EA
Low V
(MEGA) Schottky barrier
F
diode
Product specification
Supersedes data of 2003 May 20
2004 Feb 03

Philips Semiconductors Product specification
Low VF (MEGA) Schottky barrier diode
FEATURES
• Forward current: 1.5 A
• Reverse voltage: 20 V
• Ultra high-speed switching
• Very low forward voltage
• Very small plastic SMD package.
APPLICATIONS
• Ultra high-speed switching
• Voltage clamping
• Protection circuits.
DESCRIPTION
Planar Maximum Efficiency General Application (MEGA)
Schottky barrier diode with an integrated guard ring for
stressprotection,encapsulatedin aSOD323 (SC-76)very
small SMD plastic package.
PMEG2015EA
PINNING
PIN DESCRIPTION
1 cathode
2 anode
21
Top view
Marking code: S5.
The marking bar indicates the cathode.
Fig.1 Simplified outline (SOD323; SC-76) and
symbol.
12
sym001
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME DESCRIPTION VERSION
PMEG2015EA − plastic surface mounted package; 2 leads SOD323
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
I
F
I
FSM
I
FRM
T
T
T
R
stg
j
amb
continuous reverse voltage − 20 V
continuous forward current Ts<55°C − 1.5 A
non-repetitive peak forward current tp= 8 ms square wave − 10 A
repetitive peak forward current tp= 1 ms; δ = ≤ 0.25 − 4.5 A
storage temperature −65 +150 °C
junction temperature − 125 °C
operating ambient temperature −65 +125 °C
2004 Feb 03 2

Philips Semiconductors Product specification
Low VF (MEGA) Schottky barrier diode
PMEG2015EA
CHARACTERISTICS
T
=25°C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT
V
F
continuous forward voltage see Fig.2; note 1
= 10 mA 240 270 mV
I
F
IF= 100 mA 300 350 mV
I
= 1000 mA 480 550 mV
F
IF= 1500 mA 560 660 mV
I
R
continuous reverse current see Fig.3; note 1
VR=5V 5 10 µA
VR=8V 7 20 µA
VR= 15 V 10 50 µA
C
d
diode capacitance VR= 5 V; f = 1 MHz;
19 25 pF
see Fig.4
Note
1. Pulse test: t
= 300 µs; δ = 0.02.
p
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th(j-a)
thermal resistance from junction to ambient note 1 450 K/W
note 2 210 K/W
R
th(j-s)
thermal resistance from junction to solder point note 3 90 K/W
Notes
1. Refer to SC-76 (SOD323) standard mounting conditions.
2. Device mounted on a printed-circuit board with copper clad 10 x 10 mm.
3. Soldering point of cathode tab.
2004 Feb 03 3

Philips Semiconductors Product specification
Low VF (MEGA) Schottky barrier diode
GRAPHICAL DATA
VF (V)
MLE111
0.60.40.20
4
10
handbook, halfpage
I
F
(mA)
3
10
2
10
10
1
−1
10
(1) T
(2) T
(3) T
amb
amb
amb
= 125°C.
=85°C.
=25°C.
(1) (3)(2)
5
10
handbook, halfpage
I
R
(µA)
4
10
3
10
2
10
10
1
(1) T
(2) T
(3) T
amb
amb
amb
= 125 °C.
=85°C.
=25°C.
PMEG2015EA
MHC312
(1)
(2)
(3)
20
VR (V)
250 51015
Fig.2 Forward current as a function of forward
voltage; typical values.
15
MHC313
VR (V)
80
handbook, halfpage
C
d
(pF)
60
40
20
0
05
T
=25°C; f = 1 MHz.
amb
10 20
Fig.3 Reverse current as a function of reverse
voltage; typical values.
Fig.4 Diode capacitance as a function of reverse
voltage; typical values.
2004 Feb 03 4

Philips Semiconductors Product specification
Low VF (MEGA) Schottky barrier diode
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
D
H
D
A
X
M
vA
PMEG2015EA
SOD323
E
(1)
01
DIMENSIONS (mm are the original dimensions)
A
1.1
0.8
1
b
A
max
c D E H
p
0.40
0.25
1.8
0.25
0.10
IEC JEDEC JEITA
1.6
1.35
1.15
D
2.7
2.3
REFERENCES
UNIT
mm 0.05
Note
1. The marking bar indicates the cathode
OUTLINE
VERSION
SOD323 SC-76
21
L
0.45
0.15
Q
b
p
scale
Q
0.25
0.15
v
0.2
p
A
A
2 mm
1
L
detail X
EUROPEAN
PROJECTION
p
c
ISSUE DATE
99-09-13
03-12-17
2004 Feb 03 5

Philips Semiconductors Product specification
Low VF (MEGA) Schottky barrier diode
DATA SHEET STATUS
LEVEL
I Objective data Development This data sheet contains data from the objective specification for product
II Preliminary data Qualification This data sheet contains data from the preliminary specification.
III Product data Production This data sheet contains data from the product specification. Philips
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
3. For datasheets describing multipletype numbers,the highest-level productstatus determines thedata sheetstatus.
DATA SHEET
STATUS
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
(1)
PRODUCT
STATUS
(2)(3)
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).
DEFINITION
PMEG2015EA
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting valuesdefinition Limitingvalues givenarein
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese orat anyother conditionsabovethose givenin the
Characteristics sectionsof the specification isnot implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentation orwarrantythatsuchapplications willbe
suitable for the specified use without further testing or
modification.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably beexpected toresult inpersonal injury.Philips
Semiconductorscustomers usingorselling theseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes in the products including circuits, standard cells, and/or software described or contained herein in order to improve design
and/or performance.When theproduct is infull production
(status ‘Production’), relevant changes will be
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductorsassumes no
responsibility or liability for the use of any of these
products, conveys no licence or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.
