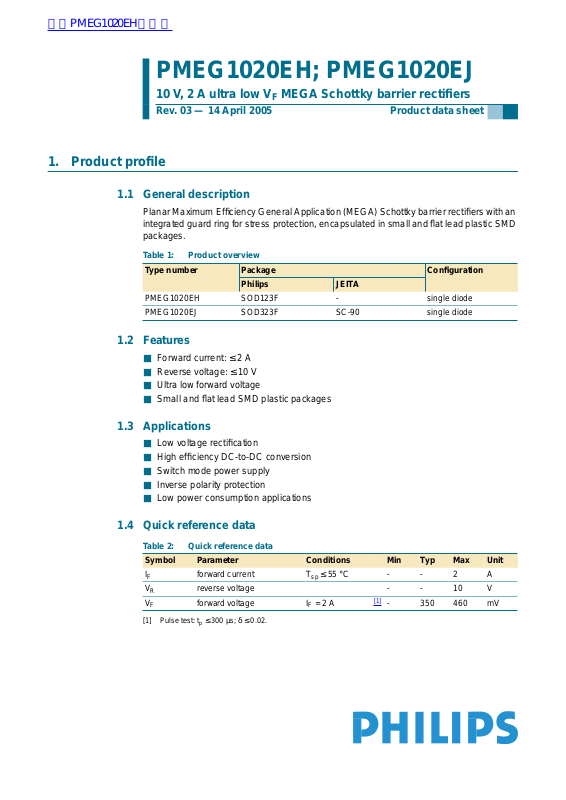

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VF MEGA Schottky barrier rectifiers

Rev. 03 — 14 April 2005 Product data sheet

1. Product profile

1.1 General description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an
integrated guard ring for stress protection, encapsulated in small and flat lead plastic SMD
packages.

Table 1: Product overview

Type number Package Configuration

PMEG1020EH SOD123F - single diode
PMEG1020EJ SOD323F SC-90 single diode

Philips JEITA

1.2 Features

■ Forward current: ≤ 2A

■ Reverse voltage: ≤ 10 V

■ Ultra low forward voltage

■ Small and flat lead SMD plastic packages

1.3 Applications

■ Low voltage rectification

■ High efficiency DC-to-DC conversion

■ Switch mode power supply

■ Inverse polarity protection

■ Low power consumption applications

1.4 Quick reference data

Table 2: Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

I

F

V

R

V

F

[1] Pulse test: tp≤ 300 µs; δ≤0.02.

forward current Tsp≤ 55 °C --2A
reverse voltage - - 10 V
forward voltage IF=2A

[1]

- 350 460 mV

Philips Semiconductors

2. Pinning information

Table 3: Pinning

Pin Description Simplified outline Symbol

1 cathode
2 anode

[1] The marking bar indicates the cathode.

3. Ordering information

Table 4: Ordering information

Type number Package

PMEG1020EH - plastic surface mounted package; 2 leads SOD123F
PMEG1020EJ SC-90 plastic surface mounted package; 2 leads SOD323F

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

[1]

12

12

sym001

001aab540

Name Description Version

4. Marking

Table 5: Marking codes

Type number Marking code

PMEG1020EH A8
PMEG1020EJ CB

5. Limiting values

Table 6: Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

V

R

I

F

I

FRM

I

FSM

P

tot

T

j

reverse voltage - 10 V
forward current Tsp≤ 55 °C-2A
repetitive peak forward current tp≤ 1 ms; δ≤0.5 - 7 A
non-repetitive peak forward

current
total power dissipation T

PMEG1020EH

PMEG1020EJ

square wave;
t

=8ms

p

≤ 25 °C

amb

-9A

[1]

- 375 mW

[2]

- 830 mW

[1]
[2]

- 830 mW

360 mW

junction temperature - 150 °C

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 2 of 9

Philips Semiconductors

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

Table 6: Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

T

amb

T

stg

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard

footprint.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.

ambient temperature −65 +150 °C
storage temperature −65 +150 °C

6. Thermal characteristics

Table 7: Thermal characteristics

Symbol Parameter Conditions Min Typ Max Unit

R

th(j-a)

R

th(j-sp)

thermal resistance from junction
to ambient

PMEG1020EH

PMEG1020EJ

thermal resistance from junction
to solder point

PMEG1020EH - - 60 K/W
PMEG1020EJ - - 55 K/W

…continued

in free air

[1] [2]

- - 330 K/W

[2] [3]

- - 150 K/W

[1] [2]

- - 350 K/W

[2] [3]

- - 150 K/W

[4]

[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
[2] For Schottky barrier rectifiers thermal run-away has to be considered, as in some applications the reverse

power losses PR are a significant part of the total power losses. Nomograms for determining the reverse

power losses PR and I
[3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.
[4] Soldering point of cathode tab.

7. Characteristics

Table 8: Characteristics

T

= 25°C unless otherwise specified.

amb

Symbol Parameter Conditions Min Typ Max Unit

V

F

I

R

C

d

[1] Pulse test: tp≤ 300 µs; δ≤0.02.

rating are available on request.

F(AV)

forward voltage IF= 0.01 A

= 0.1 A

I

F

=1A

I

F

=2A

I

F

[1]

- 100 130 mV

[1]

- 170 200 mV

[1]

- 280 350 mV

[1]

- 350 460 mV

reverse current VR= 5 V - 0.7 2 mA

= 8 V - 1 2.5 mA

V

R

= 10 V - 1.2 3 mA

V

R

diode capacitance VR= 5 V; f = 1 MHz - 40 50 pF

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 3 of 9

Philips Semiconductors

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

4

10

I

F

(mA)

3

10

2

10

10

(1) T
(2) T
(3) T

(1)

1

0 400300100 200

=85°C

amb

=25°C

amb

= −40 °C

amb

(2)

(3)

006aaa008

VF (mV)

Fig 1. Forward current as a function of forward

voltage; typical values

140

V

(V)

R

006aaa009

5

10

I

R

(µA)

10

10

10

10

(1) T
(2) T
(3) T

4

3

2

1

(1)

(2)

(3)

0105

=85°C

amb

=25°C

amb

= −40 °C

amb

Fig 2. Reverse current as a function of reverse

voltage; typical values

006aaa010

C

d

(pF)

100

60

20

T

=25°C; f = 1 MHz

amb

0108462

VR (V)

Fig 3. Diode capacitance as a function of reverse voltage; typical values

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 4 of 9

Philips Semiconductors

8. Package outline

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

1.2

1.0

0.25

0.10

1.35

1.15

1

2.7

1.8

2.3

1.6

2

0.40

0.25

04-11-29Dimensions in mm

0.5

0.3

3.6

3.4

2.7

2.5

1.7

1.5

0.70

0.55

1

0.55

0.35

2

Fig 4. Package outline SOD123F Fig 5. Package outline SOD323F (SC-90)

9. Packing information

Table 9: Packing methods

The indicated -xxx are the last three digits of the 12NC ordering code.

Type number Package Description Packing quantity

PMEG1020EH SOD123F 4 mm pitch, 8 mm tape and reel -115 -135
PMEG1020EJ SOD323F

[1]

3000 10000

0.80

0.65

0.25

0.10
04-09-13Dimensions in mm

[1] For further information and the availability of packing methods, seeSection 15.

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 5 of 9

Philips Semiconductors

10. Soldering

Fig 6. Reflow soldering footprint SOD123F

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

4.4
4

2.9

1.6

1.6

1.1

(2×)

Reflow soldering is the only recommended soldering method.
Dimensions in mm

1.1 1.22.1

solder lands

solder resist

solder paste

occupied area

3.05

2.80

2.10

1.60

1.65

0.50
(2×)

0.500.95

001aab169

Reflow soldering is the only recommended soldering method.
Dimensions in mm

Fig 7. Reflow soldering footprint SOD323F (SC-90)

solder lands

solder resist

0.60
occupied area

solder paste

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 6 of 9

Philips Semiconductors

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

11. Revision history

Table 10: Revision history

Document ID Release date Data sheet status Change notice Doc. number Supersedes

PMEG1020EH_EJ_3 20050414 Product data sheet - 9397 750 14929 PMEG1020EJ_2;

PMEG1020EH_1

Modifications:

PMEG1020EJ_2 20041001 Product data sheet - 9397 750 14013 PMEG1020EJ_1
PMEG1020EH_1 20050203 Objective data sheet - 9397 750 14173 -

• This data sheet is a combination of data sheets PMEG1020EJ_2 and PMEG1020EH_1.

• Product status for PMEG1020EH changed

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 7 of 9

Philips Semiconductors

12. Data sheet status

PMEG1020EH; PMEG1020EJ

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

Level Data sheet status

I Objective data Development This data sheet contains data from the objective specification for product development. Philips

II Preliminary data Qualification This data sheet contains data from the preliminary specification. Supplementary data will be published

III Product data Production This data sheet contains data from the product specification. Philips Semiconductors reserves the

[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at

URL http://www.semiconductors.philips.com.

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

[1]

Product status

13. Definitions

Short-form specification — The data in a short-form specification is

extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.

Limiting values definition — Limiting values given are in accordance with
the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device.
These are stress ratings only and operation of the device at these or at any
other conditions above those given in the Characteristics sections of the
specification is not implied. Exposure to limiting values for extended periods
may affect device reliability.

Application information — Applications that are described herein for any
of these products are for illustrative purposes only. Philips Semiconductors
make no representation or warranty that such applications will be suitable for
the specified use without further testing or modification.

[2] [3]

Definition

Semiconductors reserves the right to change the specification in any manner without notice.

at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.

right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).

14. Disclaimers

Life support — These products are not designed for use in life support

appliances, devices, or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors
customers using or selling these products for use in such applications do so
at their own risk and agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to
make changes in the products - including circuits, standard cells, and/or
software - described or contained herein in order to improve design and/or
performance. When the product is in full production (status ‘Production’),
relevant changes will be communicated via a Customer Product/Process
Change Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no
license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise
specified.

15. Contact information

For additional information, please visit: http://www.semiconductors.philips.com
For sales office addresses, send an email to: [e-mail]

9397 750 14929 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 03 — 14 April 2005 8 of 9

Philips Semiconductors

PMEG1020EH; PMEG1020EJ

16. Contents

1 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1

1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1

2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 2

3 Ordering information. . . . . . . . . . . . . . . . . . . . . 2

4 Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 2

6 Thermal characteristics. . . . . . . . . . . . . . . . . . . 3

7 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 3

8 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 5

9 Packing information. . . . . . . . . . . . . . . . . . . . . . 5

10 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

11 Revision history. . . . . . . . . . . . . . . . . . . . . . . . . 7

12 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . . 8

13 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

14 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

15 Contact information . . . . . . . . . . . . . . . . . . . . . 8

10 V, 2 A ultra low VFMEGA Schottky barrier rectifiers

© Koninklijke Philips Electronics N.V. 2005

All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner. The information presented in this document does
not form part of any quotation or contract, is believed to be accurate and reliable and may
be changed without notice. No liability will be accepted by the publisher for any
consequence of its use. Publication thereof does not convey nor imply any license under
patent- or other industrial or intellectual property rights.

Published in The Netherlands

Date of release: 14 April 2005

Document number: 9397 750 14929
