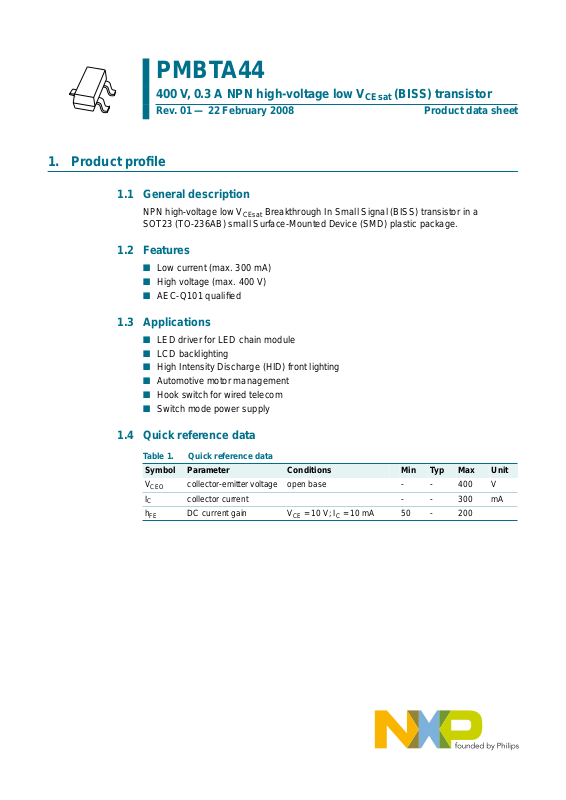

PMBTA44
400 V, 0.3 A NPN high-voltage low V
Rev. 01 — 22 February 2008 Product data sheet
1. Product profile

1.1 General description

NPN high-voltage low V SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.

1.2 Features

n Low current (max. 300 mA) n High voltage (max. 400 V) n AEC-Q101 qualified

1.3 Applications

n LED driver for LED chain module n LCD backlighting n High Intensity Discharge (HID) front lighting n Automotive motor management n Hook switch for wired telecom n Switch mode power supply
(BISS) transistor
CEsat
Breakthrough In Small Signal (BISS) transistor in a
CEsat

1.4 Quick reference data

Table 1. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
V I h
CEO
C
FE
collector-emitter voltage open base - - 400 V collector current - - 300 mA DC current gain VCE=10V; IC=10mA 50 - 200
Page 2
NXP Semiconductors
PMBTA44

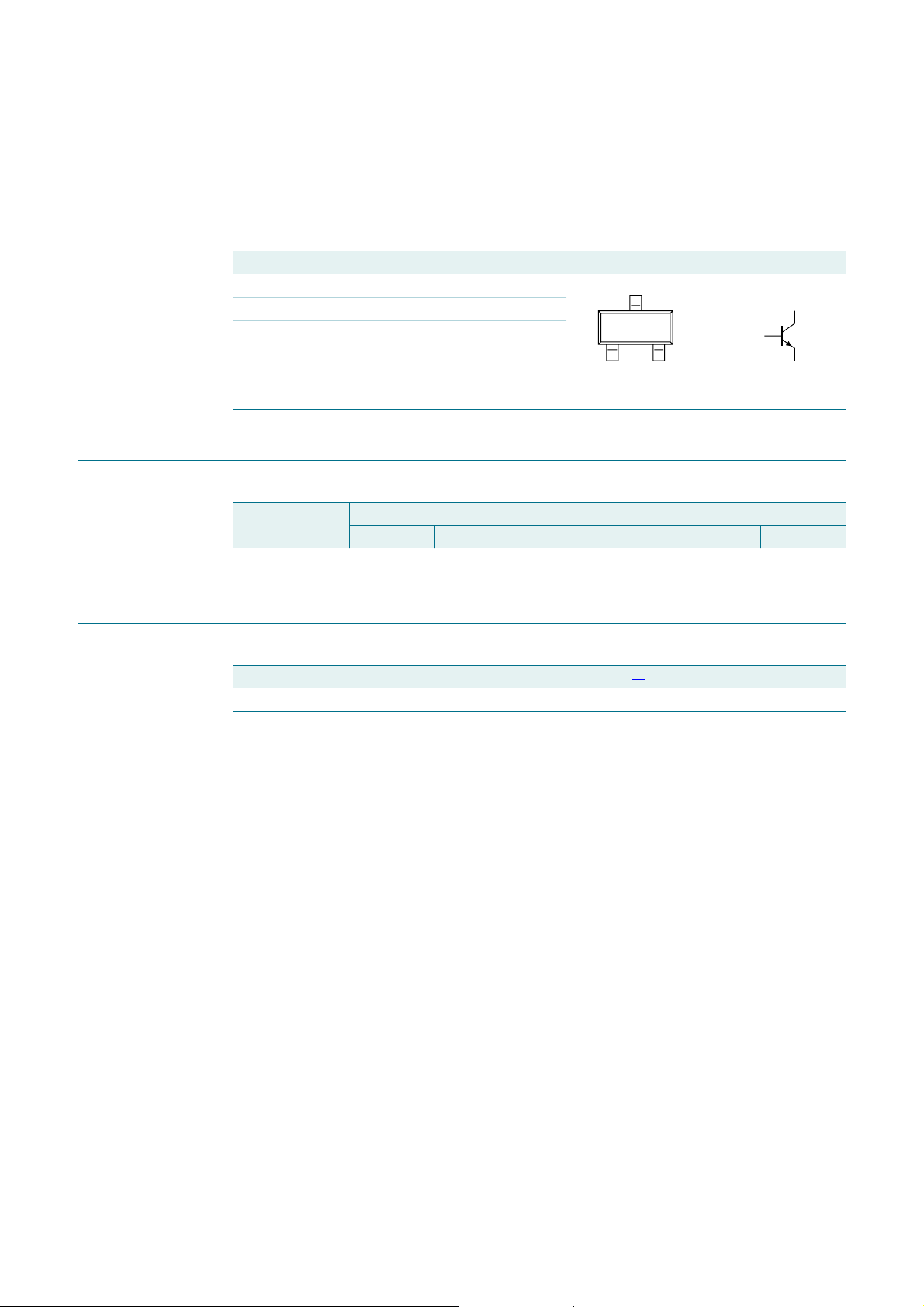

2. Pinning information

Table 2. Pinning
Pin Description Simplified outline Symbol
1 base 2 emitter 3 collector

3. Ordering information

Table 3. Ordering information
Type number Package
PMBTA44 - plastic surface-mounted package; 3 leads SOT23
400 V, 0.3 A NPN high-voltage low V
3
12
Name Description Version
(BISS) transistor
CEsat
1
sym021
3
2

4. Marking

Table 4. Marking codes
Type number Marking code
PMBTA44 W3*
[1] * = -: made in Hong Kong
* = p: made in Hong Kong * = t: made in Malaysia * = W: made in China
[1]
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 2 of 12
Page 3
NXP Semiconductors
PMBTA44

5. Limiting values

Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
j
T
amb
T
stg
[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
400 V, 0.3 A NPN high-voltage low V
(BISS) transistor
CEsat
collector-base voltage open emitter - 500 V collector-emitter voltage open base - 400 V emitter-base voltage open collector - 6 V collector current - 300 mA peak collector current single pulse;
t
≤ 1ms
p
peak base current single pulse;
t
≤ 1ms
p
total power dissipation T
amb
≤ 25 °C
- 300 mA
- 100 mA
[1]
- 250 mW junction temperature - 150 °C ambient temperature −55 +150 °C storage temperature −65 +150 °C
300
P
tot
(mW)
200
100
0
−75 17512525 75−25
FR4 PCB, standard footprint

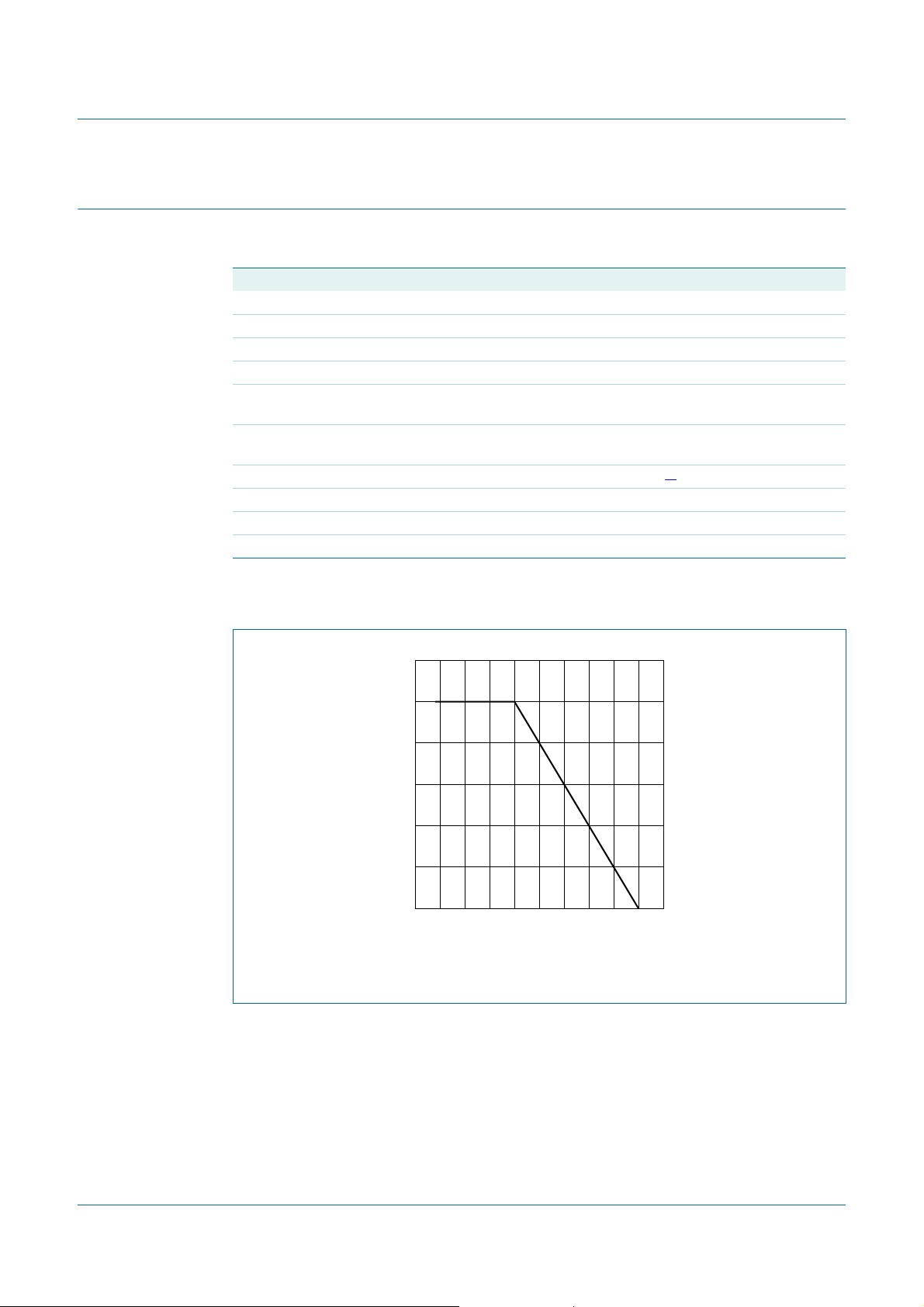

Fig 1. Power derating curve SOT23 (TO-236AB)
006aab196
T
(°C)
amb
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 3 of 12
Page 4
NXP Semiconductors
PMBTA44

6. Thermal characteristics

Table 6. Thermal characteristics
Symbol Parameter Conditions Min Typ Max Unit
thermal resistance from junction to ambient
Z
th(j-a)
(K/W)
3
10
2
10
10
1
duty cycle = 1
0.75
0.33
0.1
0.02
0
0.5
0.2
0.05
0.01
R
th(j-a)
[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
400 V, 0.3 A NPN high-voltage low V
in free air
[1]
- - 500 K/W
(BISS) transistor
CEsat
006aab151
−1
10
−5
10
−4
10
−3
10
−2
−1
10
1
1010
2
10
FR4 PCB, standard footprint

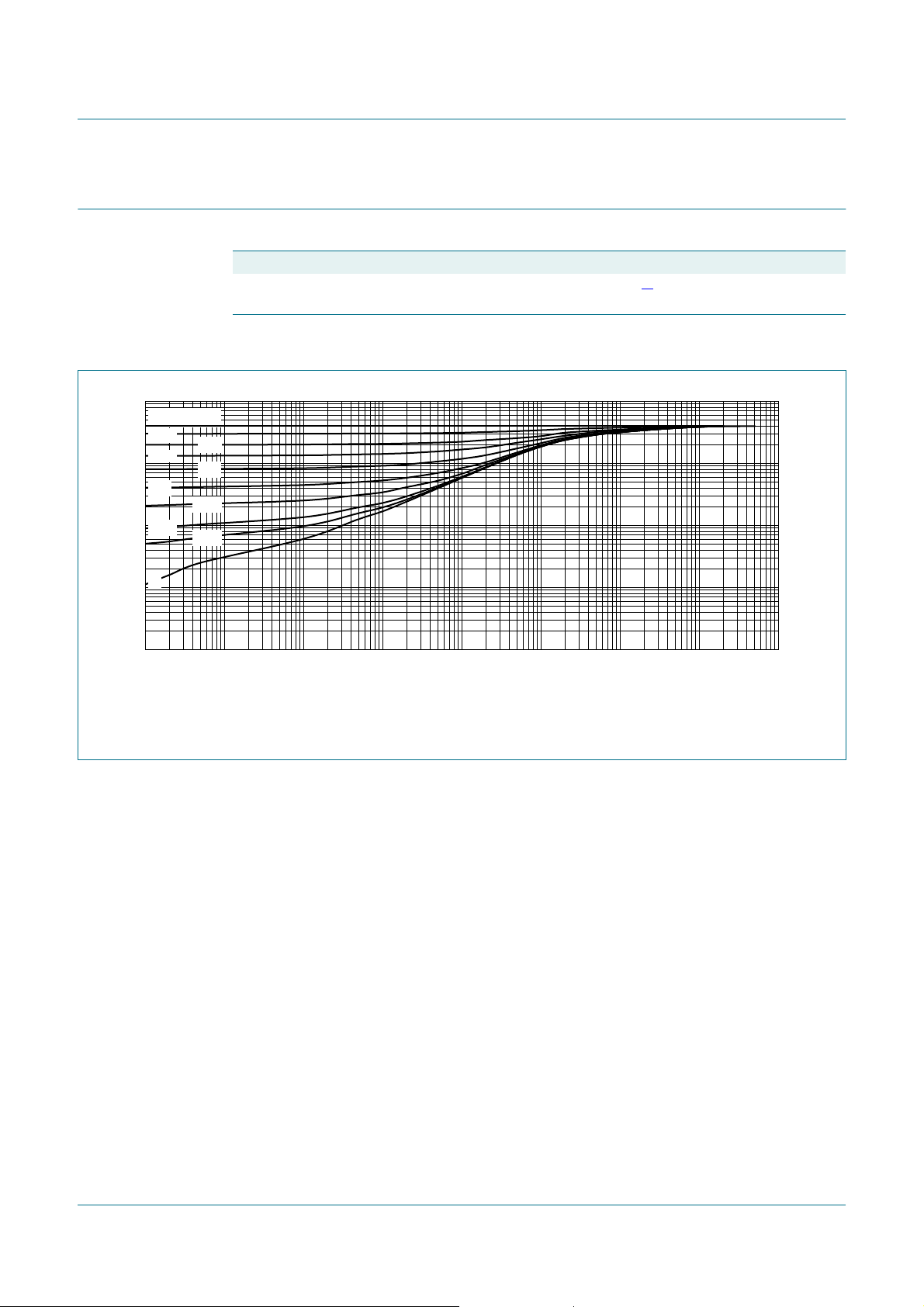

Fig 2. Transient thermal impedance from junction to ambient as a function of pulse duration for
SOT23 (TO-236AB)
tp (s)
3
10
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 4 of 12
Page 5
NXP Semiconductors
PMBTA44

7. Characteristics

Table 7. Characteristics
T
amb
Symbol Parameter Conditions Min Typ Max Unit
I
CBO
I
EBO
h
FE
V
CEsat
V
BEsat
f
T
C
c
C
e
[1] Pulse test: tp≤ 300 µs; δ≤0.02.
400 V, 0.3 A NPN high-voltage low V
=25°C unless otherwise specified.
collector-basecut-off current
emitter-base cut-off current
DC current gain VCE=10V
collector-emitter saturation voltage
base-emitter saturation voltage
transition frequency VCE=10V; IE=10mA;
collector capacitance VCB=20V;IE=ie=0A;
emitter capacitance VEB= 0.5 V;
VCB= 320 V; IE= 0 A - - 100 nA
= 320 V; IE=0A;
V
CB
T
= 150 °C
j
VEB=4V; IC= 0 A - - 100 nA
= 10 mA 50 - 200
I
C
=50mA
I
C
= 100 mA
I
C
IC= 1 mA; IB= 0.1 mA - - 400 mV
= 10 mA; IB= 1 mA - - 500 mV
I
C
= 50 mA; IB=5mA
I
C
IC= 10 mA; IB=1mA
f = 100 MHz
f=1MHz
I
= 0 A; f = 1 MHz
C=ic
(BISS) transistor
CEsat
--10µA
[1]
45 - -
[1]
40 - -
[1]
- - 750 mV
[1]
- - 850 mV
20 - - MHz
--7pF
- - 180 pF
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 5 of 12
Page 6
NXP Semiconductors
PMBTA44
10
006aab190
2
I
(mA)
C
3
10
200
h
FE
150
100
50
0
−1
10
110
(1)
(2)
(3)
VCE=10V (1) T (2) T (3) T
amb amb amb
= 100 °C =25°C = −55 °C

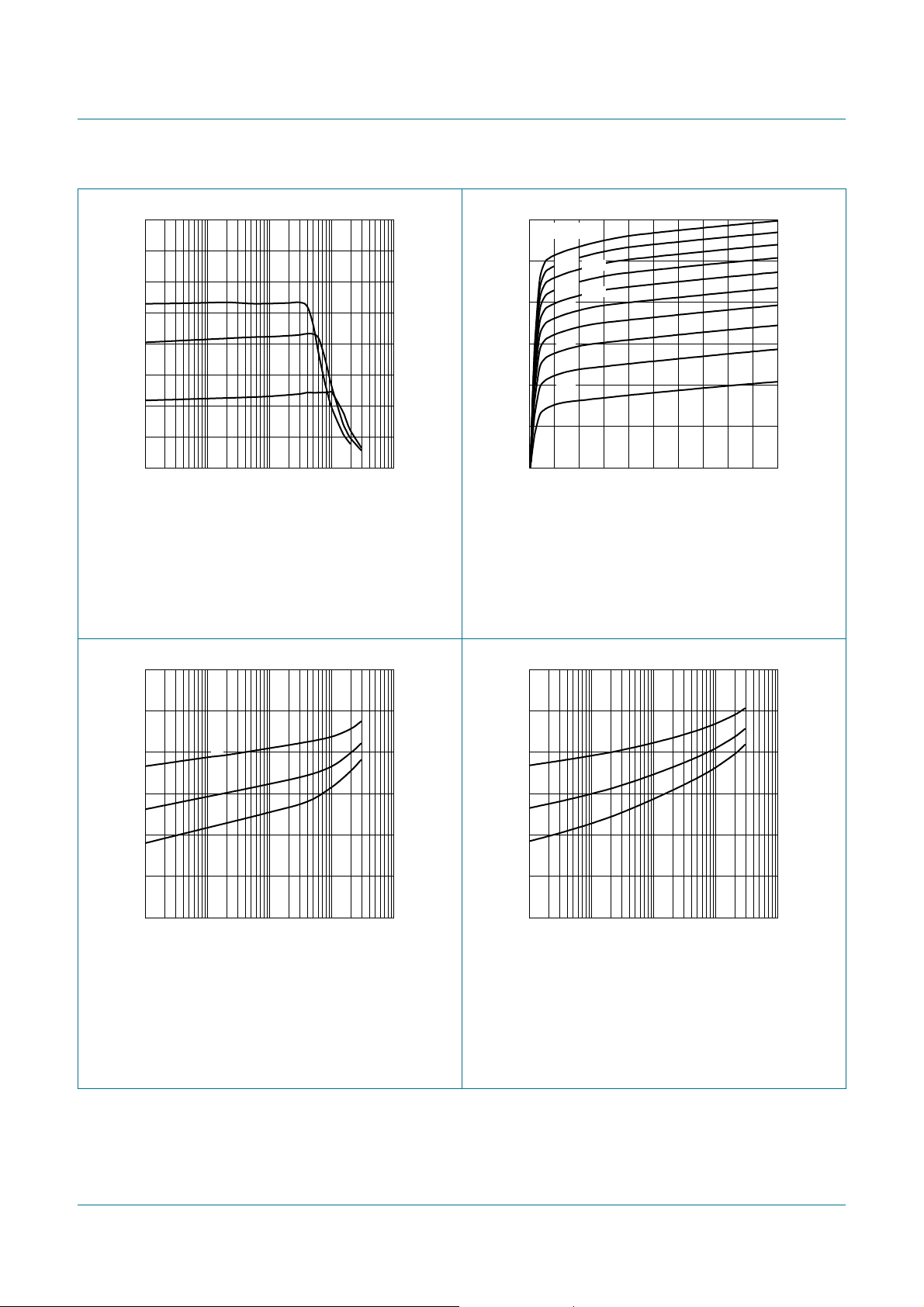

Fig 3. DC current gain as a function of collector
current; typical values
400 V, 0.3 A NPN high-voltage low V
0.3 IB (mA) = 26
I
C
(A)
0.2
0.1
Fig 4. Collector current as a function of
23.4
20.8
18.2
15.6
13
10.4
7.8
5.2
2.6
0
054231
T
=25°C
amb
collector-emitter voltage; typical values
(BISS) transistor
CEsat
006aab191
VCE (V)
10
006aab192
2
I
(mA)
C
3
10
V
(V)
BE
1.2
0.8
0.4
(1)
(2)
(3)
0
−1
10
110
VCE=10V (1) T (2) T (3) T
amb amb amb
= −55 °C =25°C = 100 °C

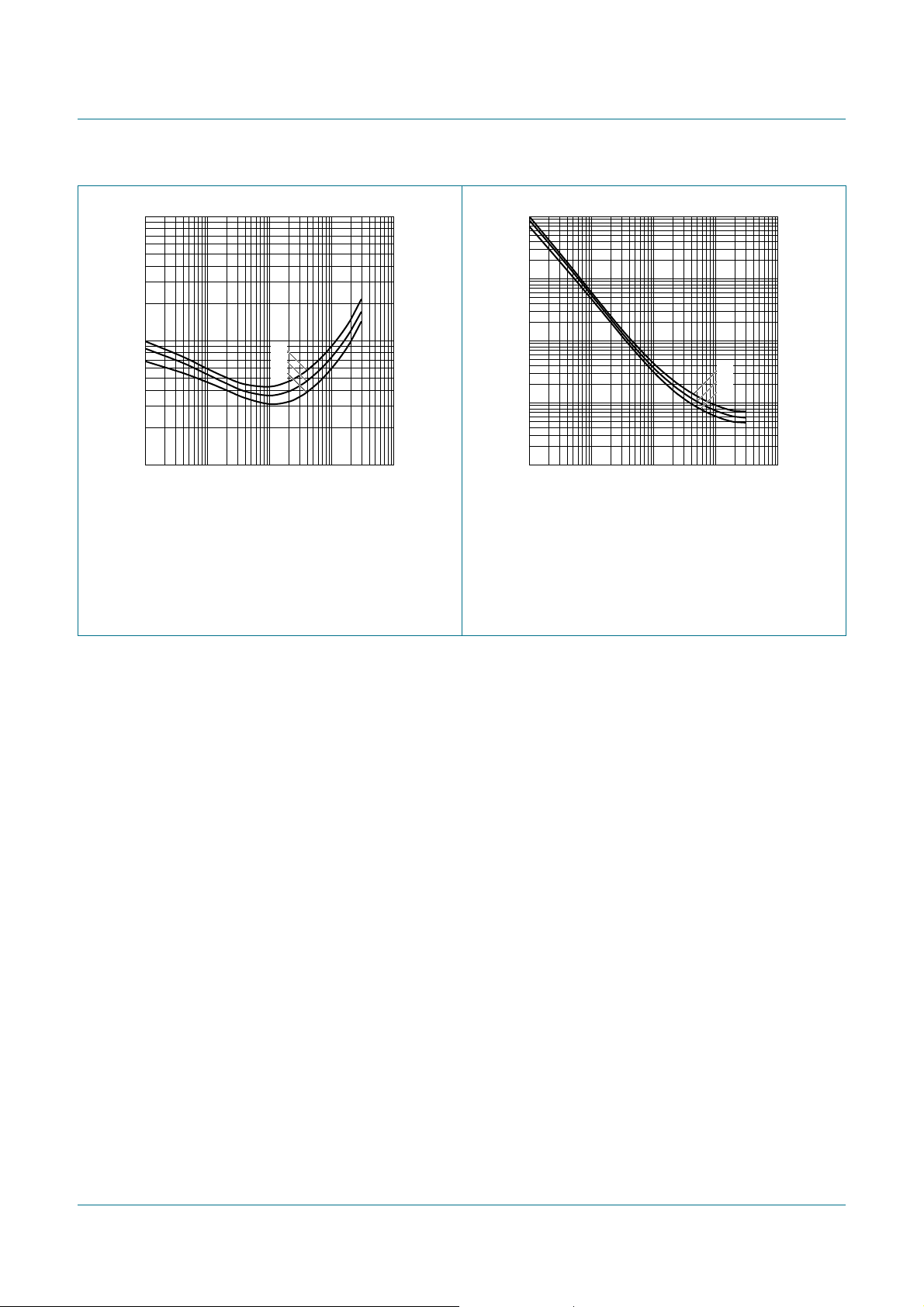

Fig 5. Base-emitter voltage as a function of collector
current; typical values
10
006aab193
2
IC (mA)
3
10
V
1.2
BEsat
(V)
0.8
0.4
(1)
(2)
(3)
0
−1
10
110
IC/IB=5 (1) T (2) T (3) T
amb amb amb
= −55 °C =25°C = 100 °C
Fig 6. Base-emittersaturation voltage as a function of
collector current; typical values
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 6 of 12
Page 7
NXP Semiconductors
PMBTA44
10
006aab194
2
IC (mA)
10
V
CEsat
(V)
10
10
1
−1
−2
−1
10
110
(1) (2) (3)
IC/IB=5 (1) T (2) T (3) T
amb amb amb
= 100 °C =25°C = −55 °C
Fig 7. Collector-emitter saturation voltage as a
function of collector current; typical values
400 V, 0.3 A NPN high-voltage low V
3
10
R
CEsat
(Ω)
2
10
10
1
−1
3
10
−1
10
110
IC/IB=5 (1) T (2) T (3) T
amb amb amb
= 100 °C =25°C = −55 °C
Fig 8. Collector-emitter saturation resistance as a
function of collector current; typical values
(BISS) transistor
CEsat
006aab195
(1) (2) (3)
2
10
IC (mA)
3
10
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 7 of 12
Page 8
NXP Semiconductors
PMBTA44

8. Test information

8.1 Quality information

This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard suitable for use in automotive applications.

9. Package outline

400 V, 0.3 A NPN high-voltage low V
(BISS) transistor
CEsat
Q101 - Stress test qualification for discrete semiconductors
2.5
2.1
1.4
1.2
3.0
2.8
3
0.45
0.15
1.1
0.9
, and is

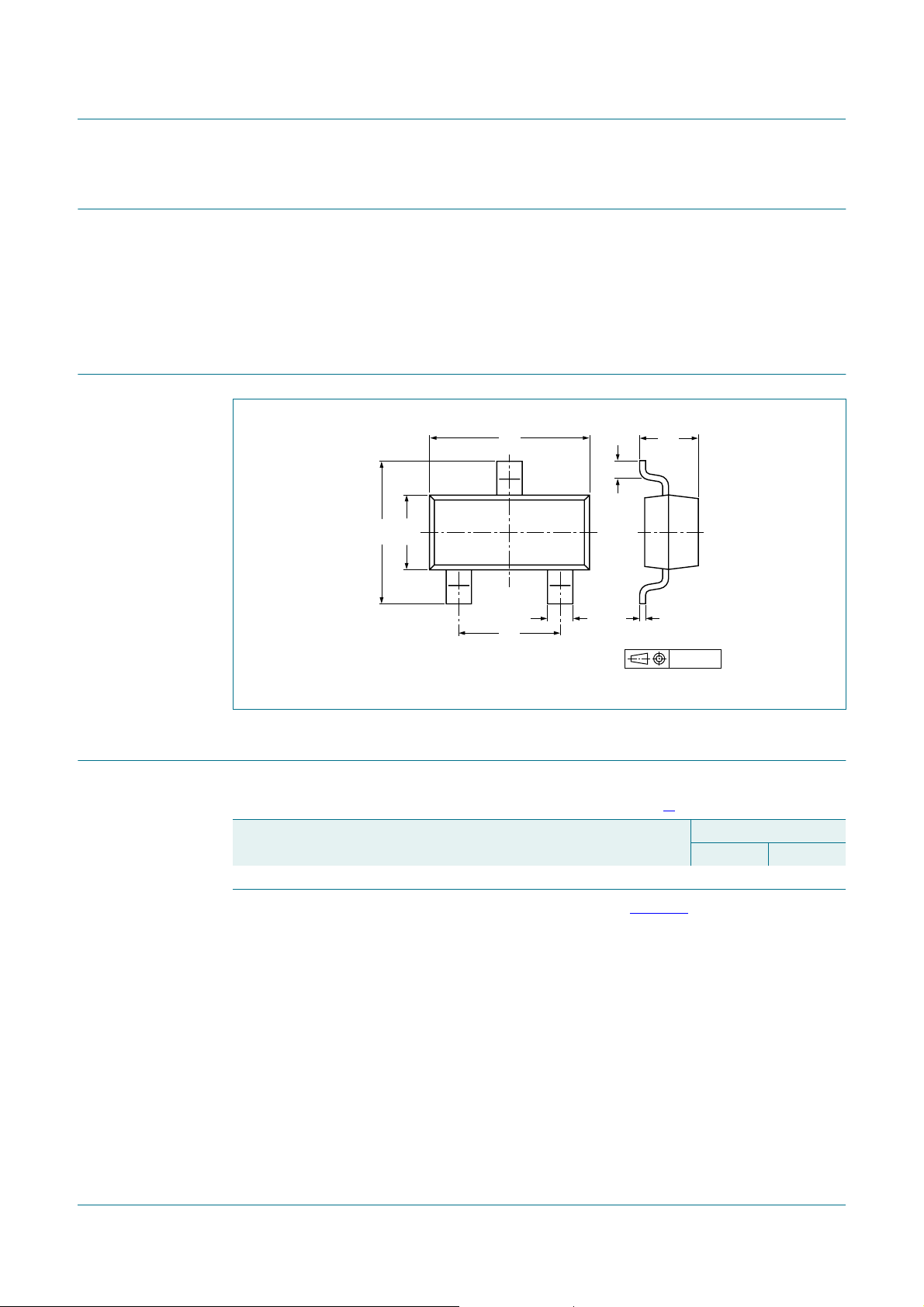

Fig 9. Package outline SOT23 (TO-236AB)

10. Packing information

Table 8. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.
Type number Package Description Packing quantity
PMBTA44 SOT23 4 mm pitch, 8 mm tape and reel -215 -235
[1] For further information and the availability of packing methods, seeSection 14.
12
1.9
0.48
0.38
0.15
0.09
[1]
04-11-04Dimensions in mm
3000 10000
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 8 of 12
Page 9
NXP Semiconductors
PMBTA44

11. Soldering

400 V, 0.3 A NPN high-voltage low V
2.90
2.50
0.85
3.00
1.30
0.85
1.00
3.30

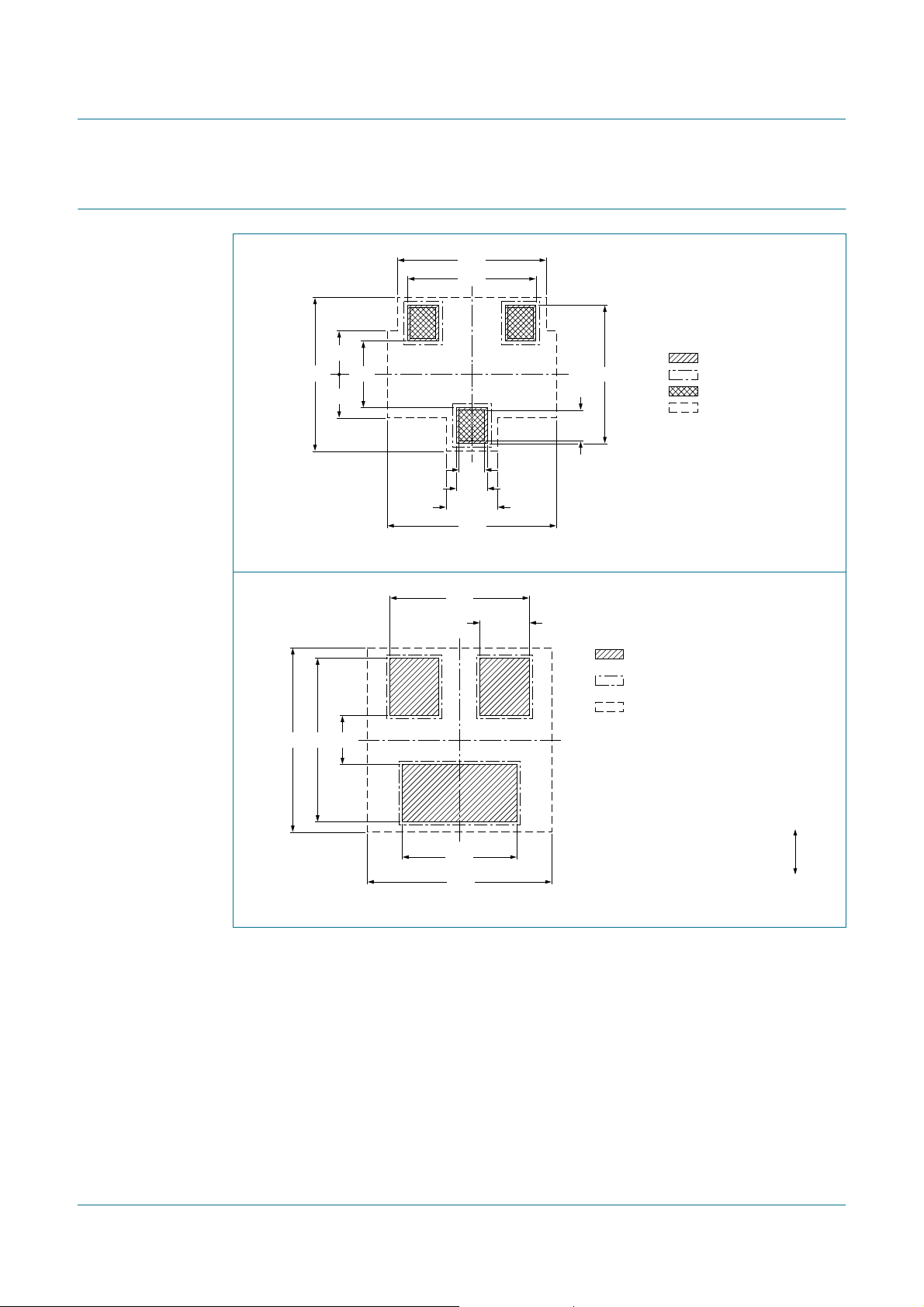

Fig 10. Reflow soldering footprint SOT23 (TO-236AB)
12
3
0.60 (3x)
0.50 (3x)
0.60 (3x)
2.70
sot023
(BISS) transistor
CEsat
solder lands solder resist
solder paste
occupied area
Dimensions in mm
3.40
1.20 (2x)
4.004.60
1.20
21
3
Dimensions in mm
2.80
4.50
preferred transport direction during soldering
Fig 11. Wave soldering footprint SOT23 (TO-236AB)
solder lands solder resist occupied area
sot023
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 9 of 12
Page 10
NXP Semiconductors
PMBTA44
400 V, 0.3 A NPN high-voltage low V
(BISS) transistor
CEsat

12. Revision history

Table 9. Revision history
Document ID Release date Data sheet status Change notice Supersedes
PMBTA44_1 20080222 Product data sheet - -
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 10 of 12
Page 11
NXP Semiconductors
PMBTA44
400 V, 0.3 A NPN high-voltage low V
(BISS) transistor
CEsat

13. Legal information

13.1 Data sheet status

Document status
Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification.
[1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status
information is available on the Internet at URL
[1][2]
Product status
13.2 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local NXP Semiconductors sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail.

13.3 Disclaimers

General — Information in this document is believed to be accurate and
reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information.
Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof.
Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or
[3]
http://www.nxp.com.
Definition
malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors accepts no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk.
Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification.
Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) may cause permanent damage to the device. Limiting values are stress ratings only and operation of the device at these or any other conditions above those given in the Characteristics sections of this document is not implied. Exposure to limiting values for extended periods may affect device reliability.
Terms and conditions of sale — NXP Semiconductors products are sold subject to the general terms and conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those pertaining to warranty,
intellectual property rights infringement and limitation of liability, unless explicitly otherwise agreed to in writing by NXP Semiconductors. In case of any inconsistency or conflict between information in this document and such terms and conditions, the latter will prevail.
No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyanceor implication of any license under any copyrights, patents or other industrial or intellectual property rights.

13.4 Trademarks

Notice: All referenced brands,product names, service names and trademarks are the property of their respective owners.

14. Contact information

For additional information, please visit: http://www.nxp.com For sales office addresses, send an email to: [email protected]
PMBTA44_1 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 01 — 22 February 2008 11 of 12
Page 12
NXP Semiconductors
PMBTA44
400 V, 0.3 A NPN high-voltage low V

15. Contents

1 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1
2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 2
3 Ordering information. . . . . . . . . . . . . . . . . . . . . 2
4 Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3
6 Thermal characteristics. . . . . . . . . . . . . . . . . . . 4
7 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 5
8 Test information. . . . . . . . . . . . . . . . . . . . . . . . . 8
8.1 Quality information . . . . . . . . . . . . . . . . . . . . . . 8
9 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 8
10 Packing information. . . . . . . . . . . . . . . . . . . . . . 8
11 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
12 Revision history. . . . . . . . . . . . . . . . . . . . . . . . 10
13 Legal information. . . . . . . . . . . . . . . . . . . . . . . 11
13.1 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 11
13.2 Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
13.3 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
13.4 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
14 Contact information. . . . . . . . . . . . . . . . . . . . . 11
15 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
(BISS) transistor
CEsat
Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’.
© NXP B.V. 2008. All rights reserved.
For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: [email protected]
Date of release: 22 February 2008
Document identifier: PMBTA44_1
Loading...
