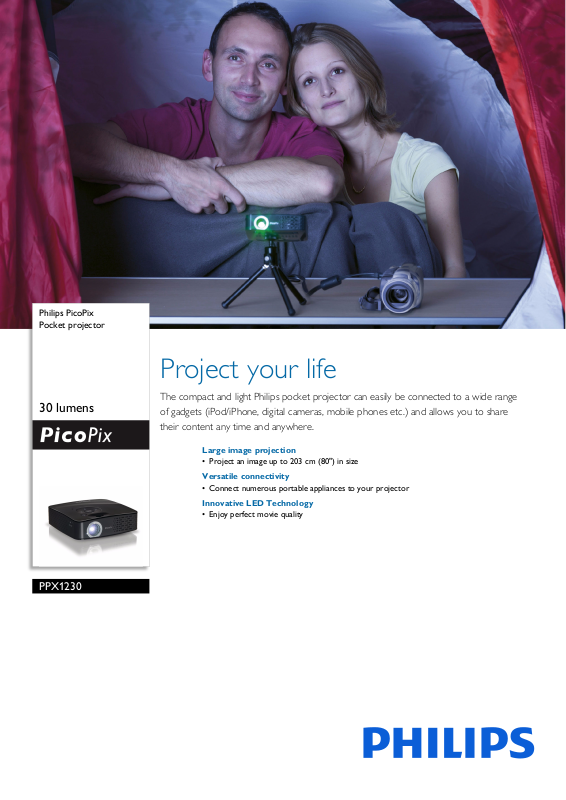

Page 1
Philips PicoPix
Pocket projector
30 lumens
PPX1230
Project your life
The compact and light Philips pocket projector can easily be connected to a wide range
of gadgets (iPod/iPhone, digital cameras, mobile phones etc.) and allows you to share
their content any time and anywhere.
Large image projection
• Project an image up to 203 cm (80") in size
Versatile connectivity
• Connect numerous portable appliances to your projector
Innovative LED Technology
• Enjoy perfect movie quality
Page 2
Pocket projector
30 lumens
PPX1230/CN
Specifications
Technology/ optical
• Display technology: VueG8* LCoS
• Light source: RGB LED
• LED light source lasts over: 20.000 hours
• Brightness: up to 30 lumens
• Native resolution: 800 x 600 pixels
• Contrast ratio: 500:1
• Color temperature: 6500 Kelvin
•Throw ratio: 2
• Screen size (diagonal): 13.2cm - 205.7cm
• Screen distance: 0.2m - 3.0m
• Autoswitch: 16:9 and 4:3
• Focus: manual
• Integrated stand: for 6° display angle
Supported video standards
•PAL
•SECAM
•NTSC
•480i/p
•576i/p
•720i/p
• 1080i/p
Sound
• Internal stereo speaker: 2x0.3 Watt
Connection
• Input audio & video: Composite video (CVBS) &
audio: 3.5 mm A/V jack; Component video
(YPbPr): custom plug - requires adapter
• Input PC: VGA: custom plug - requires adapter
• Output audio: 3.5 mm audio out jack for
hones
headp
• Battery charger: DC jack
Power Supply
• Power adapter: 110-240V AC, 50-60Hz, 12V@2A
for EU and UK
• Internal battery: 7.4V @ 2300mAh
• Battery life: Standard mode: 2.5 hours; Bright
de: 1.5 hours; LED indicator: battery charge
mo
Dimensions
• Packed (WxDxH): 200 x 170 x 80 mm
• Unpacked: 100 x 100 x 32 mm
Weight
• Packed: 0.785 kg
• Unpacked (without accessories): 0.280 kg
Temperature range
• Operation: 5 ~ 40° C
• Storage packed: -25 ~ 60° C
• Storage unpacked: 0 ~ 45° C
Relative humidity
• Operation: 15 ~ 85% RH
• Storage packed: 5 ~ 93% RH
• Storage unpacked: 15 ~ 85% RH
Standard package includes
•User guide
•Warranty card
• Carrying case
•Tripod
• AC-adapter
• Audio/video cable adapter: Composite
•
Highlights
LED Technology
Enjoy perfect movie quality from this battery
powered pocket projector
Large image projection
Project an image up to 203 cm (80") in size
Versatile connectivity
Connect numerous portable appliances to your
projector
Issue date 2014-02-13
Version: 1.0.1
12 NC: 8670 000 76106
EAN: 69 40971 30113 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* patented all-digital smart panel technology by Syndiant
