DVD Portable
PD7000B/05/12/51/79/93/98
PD7000C/12
PD7000S/12
Service Manual
©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
TABLE OF CONTENTS
Chapter
Technical Specification, PCBs Location………………….. 1
Safety Instruction ……………………………………………… 2
Instruction for Use……………………………………………… 3
Mechanical and Dismantling Instructions…………………. 4
Service Modes, Troubleshooting……………………………. 5
Overall Block Diagram, Wiring Diagram……………………. 6
Electrical Diagram……………………………………………… 7
Exploded View Diagram & Service Part List………………..8
Revision List……………………………………………………. 9
Published by BL AVM Printed in the Netherlands Subject to modification
Version 4.1
3141 785 34740
1-1
1.0 TECHNICAL SPECIFICATION
VIDEO/ AUDIO Characteristic Testing discs
Test discs：DOLBY: Dolby Test disc
ABEX: TDV-540A
VIDEO FORMAT
DVD / SVCD / JPEG / MPEG4 / DIVX3, 4,5,6(Home
theater)
AUDIO FORMAT
CD / MP3(32 - 320 kbps)
Video (PAL / NTSC)
White bar : 714mV +10%/-20%
Sync. Amplitude: 286mV ±40mV
Burst/chroma ratio: ± 15%
S/N luminance: >42 dB
POWER CONSUMPTION
Power-Supply(AC-DC Adaptor):
Supply voltage: AC 100~240V ±10%
Supply Power consumption
+10%
A
DC Power supply(Operate voltage range): 6.2V-15.49V±10%
Standby Power (AC adaptor, no load)
GENERAL DESCRIPTION
Optical Pickup: ASA PM2381-D(850PH)
Chip set/ Solution: SPHE8202PS-A
Disc Size:8cm/12cm
(AC adaptor 100/240V): 9V 0.8A
,264VAC: <0.75W
1-2
1.1 PCBs Location
VERSION VARIATIONS
Type/Versions:
Service policy
Board in used:
MAIN BOARD M
KEY BOARD M
TFT BOARD M
*TIPS: C -- Component Lever Repair.
M -- Module Lever Repair
X -- OCX
12
PD7000B / C
1-3
1.2 System, Region Code, etc. Setting Procedure
Procedure to change region code of your DVD Portable
1. Power ON the DVD player and do not insert DISC inside player
2. Setup Prefer
Press (NEX T) Æ (PREV)Æ Æ Æ Æ Æ
The LCD display showed the existing region Code
3. Press▲(navigation up)or▼(navigation down)
repeatedly to select the number from 1 to 6.
4. Then press OK to confirm your region code.
5. Refer below table for your region code setting
Procedure for SW upgrade
1. The upgrade will provide a document re-named: PHILIPS.BIN
2. “PHILIPS.BIN” copy to CD-ROM into the data;
3. Reading the CD-ROM，in accordance with prompt，press ”OK” key to upgrade
Warning: Do not unplug the AC adapter during firmware upgrade to prevent flash corrupt of the set!!
Procedure to check SW version of your DVD Portable
1. OPEN
2. Press SETUP MENU
3. Select Preferences
4. Select Version Info
5. Press “OK” key
(PREV) (PREV)(NEX T) (NEX T) (NEX T)
2.0 SAFTETY INSTRUCTIONS
WARNING
GB
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.
2-1
ESD
D
WARNUNG
Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
WAARSCHUWING
NL
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
I
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
“Pour votre sécurité, ces documents
doivent être utilisés par des spécialistes agréés, seuls habilités à réparer
votre appareil en panne”.
CLASS 1
LASER PRODUCT
GB
Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning !
Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
Varoitus !
SF
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!
3122 110 03420
"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."
Advarse !
DK
Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.
2-2
2.1 ESD PROTECTION
Whenthepowersupplyisbeingturnedon,youmaynotremovethislasercautionslabel.Ifitremoves,radiationoflaser
maybereceived.
PREPARATIONOFSERVICING
PickupHeadconsistsofalaserdiodethatisverysusceptibletoexternalstaticelectrocity.
Althoughitoperatesproperlyafterreplacement,ifitwassubjecttoelectrostaticdischargeduringreplacement,
itslifemightbeshortened.Whenreplacing,useaconductivemat,solderingironwithgroundwire,etc.to
protectthelaserdiodeform
Andalso,theLSIandICaresameasabove.
Solderingiron
withgroundwire
orceramictype
damagebystaticelectricity.
Groundconductive
wriststrapforbody.
Conductivemat
1M
Thegroundresistance
betweenthegroundline
andthegroundislessthan10
SAFTY NOTICE
LEAKAGE CURRENT CHECK
2-3
SAFTY PRECAUTIONS
Plug the AC line cord directly into a 120V AC outlet (do
not use an isolation transformer for this check). Use an
AC voltmeter, having 5000 per volt or more sensitivity.
Connect a 1500 10W resistor,paralleled by a 0.15uF
150V AC capacitor between a knomn good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of
cabinet (antennas, handle bracket, metal cabinet
screwheads, metal overlays, control shafts, etc.).
READING SHOULD NOT EXCEED 0.3V
DVD VIDEO PLAYER
Measure the AC voltage across the 1500 resistor.
The test must be conducted with the AC switch on and
then repeated with the AC switch off. The AC voltage
indicated by the meter may not exceed 0.3V.A reading
exceeding 0.3V indicates that a dangerous potential
exists, the fault must be located and corrected.
Repeat the above test with the DVD VIDEO PLAYER
power plug reversed.
NEVER RETURN A DVD VIDEO PLAYER TO THE
CUSTOMER WITHOUT TAKING NECESSARY
CORRECTIVE ACTION.
AC VOLTMETER
(5000 per volt
or more sensitivity)
Good earth ground
1500
10W
such as a water pipe,
conduit, etc.
AC OUTLET
0.15uF 150V AC
Test all exposed metal.
Voltmeter Hook-up for Leakage Current Check
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
2-4
2.2 SAFETY INSTRUCTIONS
Battery Handling Guideline
Since the battery is packed in soft package, to ensure its better performance, it’s very important to carefully handle
the battery
2.2.1 Soft Aluminium foil
The soft aluminum packing foil is very easily damaged by sharp edge parts such as Ni-tabs, pins and needles.
x Don’t strike battery with any sharp edge parts
x Trim your nail or wear glove before taking battery
x Clean worktable to make sure no any sharp particle
2.2.2 Sealed edge
Sealing edge is very flimsy
x Don’t bend or fold sealing edge
2.2.3 Folding edge
The folding edge is form in battery process and passed all hermetic test.
x Don’t open or deform folding edge
2.2.4 Tabs
The battery tabs are not so stubborn especially for aluminum tab.
x Don’t bend tab
2.2.5 Mechanical shock
x Don’t Fall, hit, bend battery body
2.2.6 Short
Short terminals of battery is strictly prohibited, it may damage battery.
3-1
3.0 Instruction for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
4-1
4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
1
2 Generally open the middle cabinet.
3
4
Remove screws on back cabinet to separate
top cabinet and back cabinet.
Remove screws on main board.
Disassemble hous and connecter.
Remove screws on KEY board.
Disassemble hous and connecter.
5
Remove screws on front cabinet.
Open the top cabinet
Spindle motor does not move
Motor not move
Go
5-1
Trouble shooting chart
Check the FFC connection
between 24P and the loader.
Yes
Check whether “M+5V”
(VCC) voltage is normal.
Yes
Check whether laser voltage
(1.9V for CD & 2.3V for DVD)
on L13 & L14
Yes
No
No
Correct connection
Check the P+5V power
supply
No
Check/Replace Q9ǃQ10.
Whether U5 and the peripheral components
are eroded or badly soldered.
Yes
Check opu focus
Yes
Check/Replace the loader
No
No
Check/ Replace U5.
1. Check U5 FOO signals
2.If there are FCO, SPDCO, SCO
and TCO signals output from U4.
The power can not be on or off
main board can’t start-up
Go
5-2
Trouble shooting chart
Check the power supply from
adapter
Yes
Check if the DC_IN from D4 is ok
Yes
Whether the DVCC3 is ok
Ye s
No
replace adapter
No
Check/replace D8,Q1,Q2,Q3,R2
No
check/replace Q5,L12,U2,D5
Yes
Whether the U6 and peripheral component is
normal,the program in u6 is normal
Yes
check the crystalloid is normal,
if the reset circuit ,
U4 and U8 and
peripheral components are ok
No
Replace U6.and peripheral component
check and replace the bad
Disc cannot be read
Disc cannot be read.
.
Yes
5-3
Trouble shooting chart
Check the FFC connection
between 24P and the loader.
Yes
Check whether there is
laser voltage (1.9V for CD
and 2.3V for DVD) on
Collector of Q9 &Q10
Yes
Check U4, U5, and
peripheral components are
eroded or badly soldered.
No
No
No
Check the loaded circuit
Check whether peripheral
components are eroded or defect
Re-solder or replace the defective parts
Yes
Check if there is PUHRF signal
on the pin96 of U4. (The
normal PUHRF signal is a clear
reticulated wave)
Yes
Check the connection
between U4 and U5
Yes
Replace U5 or loader.
No
Check U4 and peripheral components
No
Correct connection
5-4
p
p
,
Only DVD disc or only disc except DVD can be played
Only DVD disc, or only disc
exce
t DVD can be Played.
Go
Trouble shooting chart
Check the FFC
connection between
24
in and the loader.
Yes
Check laser voltage (1.9V)
output on Collector of Q9
Yes
Check whether there
is voltage variance on
U4.
Yes
No
No
No
Check the loaded circuit
Check the solder status on U5 and
peripheral components
check if bad solder exist on U4 and
peripheral components
Check whether pin 94 - 120
of U2 and peripheral
components are badly
soldered
defected
Yes
Check Q9,Q10
whether in good
condition
Yes
Change U4 or the loader.
No
Replace the bad spare parts
No
Correct connection
Distorted audio and loud noise
Distorted audio and
loud noise
Yes
Check he power supply
voltages +9V
to the operation amplifying
L11 are normal
Yes
5-5
Trouble shooting chart
No
Replace L11
Check whether the
peripheral component
of U11 and U12
Yes
No
Checking the U11 leads
the feet has no to break
to open
Yes
Check whether the U11
or U12 power supply
normal
Yes
No
check/Replace the peripheral component
No
Correct connection
No
Check U11, U12
Replace U11, U12
Abnormal color of video picture
p
Abnormal color of
video
icture
Yes
5-6
Trouble shooting chart
Check whether the 27MHz
output signal is normal.
Yes
Check whether the 3.3V
and 1.8V power supply
voltages on the decoder
board are normal.
Yes
Check whether the
video filter network
circuit is normal.
No
No
No
Check xt1, R32, C30 and C31
Check other of power supply electric
circuit
Correct the connection
Yes
Change U4
No video picture, no sound.
y
No video picture,
no sound.
Go
5-7
Trouble shooting chart
Check whether all the
voltages from the power
board to the decoder board
are normal.
Yes
Check if the reset circuit consisting
of EC42,L22,L21,C88,C89,C90,R75 is normal
(at a high level for tens of milliseconds,
then constantl
Check whether there is
27MHz signal output.
Check if there is 122MHz
signal output on R57.
at 0V).
Yes
Yes
No
No
Check the loaded circuit
No
Change EC42,L22,L21
Crystal oscillator XT1 and
peripheral components
are defected or eroded.
No
CVBS(L27 point) waveform
27M waveform
Check whether
short-circuit or bad
solder on U4, U8
SDRAM(R49 SDCLK) waveform
Yes
Yes
Reconnect the component in
short-circuit
Check U4.
No
No display on LED, and buttons do not work
buttons do not work
Yes
5-8
Trouble shooting chart
Check whether there is
correct contact
J5 of decoder board
Yes
Check DV33(+3.3V)
voltage on the power
and KEY board
Yes
Check whether the circuit
connected to BUTTONS
is broken,
No
No
Correct connection
Fix power supply board top
a power supply for should
electric circuit
No
Correct connection
OVERALL BLOCK DIAGRAM
Power input
9~15V
BACK LIGHT
6-1
TFT PANNEL
LG J2
AV OUT JACK
L/R AND CVBS
EARPHONE
PolymerBattery
DC-DC
KEY
CONTROL
REMOTE
CONTROL
SPI FLASH
16M
MPEG
DECODER
SPHE8202
SDRAM
4X16
AMPLIFIER
MOTOR DRIVER
SW5888
SPEAKER
0.3WX2
LOADER(SANYO
SP850)
CIRCUIT DIAGRAM-DVD MAIN BOARD
F1
PolyFuse/8v/1.1A
1
3
2
DGND PGND
DC_IN
DC_IN
R253
0R
CHARGE_STOP
R249 NC/47K
R133 47K
CHARGE_STAR
P
C2
0.1uF/25V
POWER GND
R260 560R
L32
FB600R/2A
PGND
L34
FB600R/2A
DC9V_IN
B-CHARG
PGND
EC10100uF/25V
PGND
L3
4
2
L-851
DVCC3
R45
4.7K
+
EC6
100uF/25V
C15
1uF/25V
C19
+
0.1uF/25V
C21
1uF/25V
R138=2.4K 6V
R138=1.5K
VGND GNDAGND MGND
C100.1uF/25V
DVCC3
C24
1000pF
GND
3
1
SS14
CARDGNDSGND ADGND
R6
10
R255
NC
R13
10
R256
NC
翻转电压为
翻
转电压为
0.6V
DC
INPUT
6~15V
H=PLUG_IN
L=PLUG_OUT
RFGND
MARK1
MARK2
MARK3
MARK4
P+5V
R11
10K
POWER Switch
POWER ON
C22
0.1uF/25V
POWER
OFF
开
3 4
ON/OFF
34
2
2
1
1
关
POWER_SWITCH_SK-22D13-V4
PGND
PGND
78
GG
CN1
DC/JACK
D4
电源指示green
PGND
SW1
5
5
6
6
ADAPTER_DET
R254
22K
R257
22K
D25
NC/3.0V
DC_IN
5.25V
翻转
EC1
47uF/25V
+
GND
TGND
5
1
SS7701
Q41
NC/2N3906
5
1
SS7701
R234
30K_1%
R237
0R
R239
3K6_1%
BAT_OUT
DC9V_IN
2 3
VIN
CE
U1
P+5V
2 3
VIN
CE
U2
Q42
NC/2N3906
UTC1117-ADJ
3
IN
R238
4.7K
1
BAT_OUT
L26 NC
C3
0.1uF/25V
Q4 SI2307
1
FB1
0R
4
EXT
VFB
GND
2
Q5 SI2307
1
FB2
0R
4
EXT
VFB
GND
2
DVCC3
U3
OUT
GND
1
2 3
Q40
3904
D8
SS24
GND
R3
10K
R5
6.8K
R8 18K
R10 2.7K
L33
FB600R/2A
R14 560R
R16 2.7K
R18
1K
R134
27R
9V_IN
PGND PGNDPGND
L9
47uH
L12
47uH
PS
D7
SS24
L31 FB600R/2A
3
R12
10K
3
R17
10K
2
DVCC3
R235
10K
BAT_DET
C115
100nF
D2
15V
D3 SS24
R9 22K
220uF/16V
VCC1.2
EC14
100uF_10V
GND
C16
0.1uF/25V(NC)
PGND
R4
100K
3
1
2
C9
+
EC5
100nF
220uF/16V
C12 1000pF
1 2
D5
SS24
C18
EC11
+
100nF
R15 22K
C20 1000P
1 2
C25
100nF
R2
100K
Q2
2N3904
1
P+5V
+5V POWER
+3.3V POWER
DVCC3
PLL_VDD1.2
+1.25V
POWER
VDS=30V
VGS=20V
Current=8A
2
S
G
1
3
2N3904
2
7-1
3
D
Q1
SI2307
ON/OFF
Q3
DC_IN
C69
0.1uF/25V(NC)
PGND
R131
1K
P+5V
DC_IN
D14
15V
R132
47K
1
R1 2.2_0805
L4 FB600R/2AD1
B-CHARG
3
Q23
2N3904
2
PGND
L11 FB120R
9V FOR 2822
PS
U7 MARK
U9 MARK
U10 MARK
U15 MARK
R130
47K
1
AU+9V
C116 100nF/25V
1 2
C118 100nF/25V
1 2
C121 100nF/25V
A+5V
Servo analog +5V
C1
100nF
RFGND
M+5V
Servo MOTOR +5V
C4
100nF
RFGND
Video buffer +5V
CHARGE_INDC9V_IN
3
2
D
S
G
Q21
1
SI2307
3
Q22
2N3904
2
PGND
9V
EC9
C17
22uF_25V
100nF
GND
D18
BAT54S
3
D19
BAT54S
3
D21
3
1 2
DC_IN
BAT54S
R241
1k
C23
100nF
2
1
2
1
DVCC3
1
2
EC13
47uF_16V
GND
R58
NC
L6
FB120R
PGND
DVCC_3.3V
12
C119
1uF/50V
PGND
12
1uF/50V
PGND
DVCC3
L1 FB120R
L5 FB120R
L7 2.2R
L8 3.3uH_0805
R7 3.3uH_0805
DVCC_3.3CORE
L10
0R
12
C120
1uF/50V
PGND
C122
SD_VCC3
EC2
100uF_10V
RFGND
EC3
100uF_10V
GND
EC4
220uF_10V
GND
EC7
100uF_10V
GND
L2 FB120R
ADAPTER_DET
BAT_DET
R240
12
100R
R242
1K
R258
4.7k
12
ZD7
16V
1 2
PGND
SDRAM +3.3V
SPI Flash +3.3V
Close to 8202P-A
RF3.3V
C5
RF +3.3V
100nF
USB_AVDD3V3
USB +3.3V
C7
100nF
VIDEO DAC +3.3V
VVCC3
C8
100nF
AUDIO DAC +3.3V
AVCC3
C11
100nF
SPI_VCC3
ADAPTER_DET 3
BAT_DET 3
VGL
13
Q43
2N3906
$$$16
12
12
2
ZD6
12V
PGND
VGH
VGH
12
C123
1uF/50V
VGL
VGL
EC48
10uF_16V
PGND
RFGND
A+5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26 25
CN2
RFGND
KEY0
KEY1
KEY2
KEY3
10uF_16V
RFGND
M+5V
RFGND
CN3 4P/2.0
FB12 FB600R
FB13 FB600R
FB14 FB600R
FB15 FB600R
KOUT1
KOUT2
KOUT3
VREF2
EC18
RFGND
C43
R41
0.1uF
5.1
Q9
3 2
S8550
D23
1N4148
RFGND RFGND
C46
EC22
0.1uF
470uF_6.3V
R44 1
SP+
XOPVIP
XOPVIN
4
3
2
1
1
2
CN4
2P/2.0
FOCFOC+
RAD+
RADC
D
/LDSW
PUHRF
A
B
F
VREF1
E
CDVR#
DVDVR#
PUH_CDLD#
DVDMDI
A_+5V
PUH_DVDLD#
C34
0.1uF
RFGND
RFGND
DVCC3
RF3.3V
R243
91K/NC
R244
470R/0R
C41
0.1uF
软件输出为
PWM /
EC20
47uF_16V
CDLDO
1
PUH_CDLD PUH_DVDLD
FCO
C47
SPDCO
0.1uF
RFGND
M+5V M+5V
SPFOC-
FOC+
SPSP+
HOME
R_FGND
SLEDSLED+

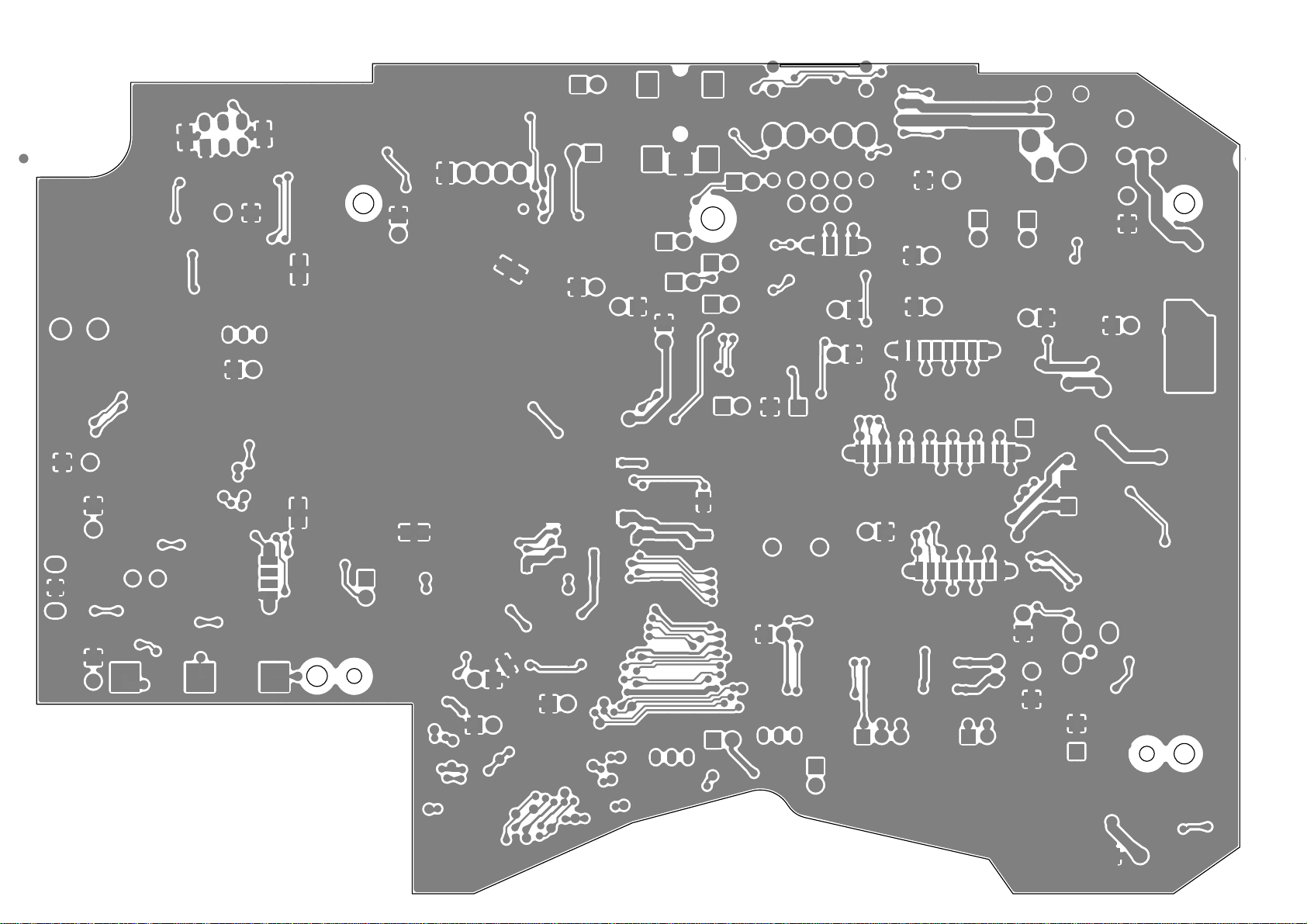

CIRCUIT DIAGRAM-DVD MAIN BOARD
A+5V
EC15
C26
100uF_10V
0.1uF
RFGND
close to connector
0.1uFC27
0.1uFC28
R26 FB600R
R27 FB600R
L13 10uH
R129 200R
L14 10uH
C125
1000pF
R175 10K
D15 1N4148
D16 1N4148
D17 1N4148
VREF_2
时，用 杠之前的值
RFGND
Hitachi 1200X
TP40
R176 10K
R177 10K
R178 10K
C44
0.1uF
Q10
3 2
S8550
U5
1
VINFC
2
CFCerr1
3
CFCerr2
4
VINSP
5
VNFFC
6
FWD
7
REV
8
Vcc1
9
VOLD-
10 19
VOLD+ Vcc2
11
VOSP-
12
VOSP+
13
VOFC-
14
VOFC+
AM5888 HSOP28
SPSP+
HOME
RFGND
R_FGND
SLEDSLED+
TP41
TP42
RF3.3VRF3.3V
R42
5.1
1
D24
1N4148
RFGND
CD_VR
DVD_VR
PUH_CDLD
PUH_DVDLD
TP43
TP44
TP45
TP46
EC21
47uF_16V
DVDLDO
STBY
BIAS
VINTK
CTKerr1
CTKerr2
VINSL
PreGND
GND1GND2
VCTL
VNFTK
VOSL-
VOSL+
VOTK-
VOTK+
GND
28
27
26
25
24
23
22
2930
21
20
18
17
16
15
TP69
TP70
TP71
TP72
TP73
TP74
1000pF C126
A+5V
1000pF C127
CLOSE TO 8202
DMEA
VREF2
TCO
SCO
SLED+
SLEDRADRAD+
CD_VR CDVR
DVD_VR DVDVR
TP47
RFGND
R29 4.7K
FOCFOC+
RAD+
RADC
D
/LDSW
PUHRF
A
B
F
VREF1
E
CDVR#
DVDVR#
PUH_CDLD#
DVDMDI
PUH_DVDLD#
A+5V
RFGND
A_+5V
8
7
6
5
4
3
2
1
GND
VREF1
C42
0.1uF
0.1uFC45
RFGND
RFGND
RF3.3V
J5
8PIN/1.25L
1000pF C129
1000pF C128
EC19
10uF_16V
TP19
TP20
TP21
TP22
TP23
TP24
TP25
TP26
TP27
TP28
TP29
TP30
TP31
TP32
TP33
TP34
TP35
TP36
TP37
TP38
TP39
HOME
RFGND
RFGND
DVCC_3.3V
DVCC_3.3V
DVCC_3.3V
GND
C48
0.1uF
DVCC_3.3V
R50
10K
GND
GND
RF3.3V
C50
0.1uF
EC23
10uF_16V
R49 100
A+5V
R19
10K
C145
1000pF
680pFC37
1000pFC38
0.1uFC39
0.1uFC40
R179 10K
RFGND
R43 10K
C51
0.1uF
D6
1N4148
LDSW/LDSW
L28 NC/FB
L29 FB120R
GND
R37 91K
TCO
R38 20K
FCO
R39 2.2K
SPDCO
R40 2.2K
SCO
DMEA
FB11 FB600R
GND
RESET_DEMOD
R47
10K
Q11
2N3904
DA_VDD
C124
0.1uF
RFGND
R36 0
DA_VDD
TP9
FGIN
C52
0.1uF
GNDGND RFGND
XOPVIP
XOPVIN
DVDLDO
CDLDO
DVDMDI
RF3.3V
VREF1
VREF_2
OTP
DA_TEO
DA_FEO
DA_VDD
SPDC_OUT
SC_OUT
DVDVR
CDVR
ADAPTERDET
SPI_CE M_A5
SPI_D0
SPI_D1
PLL_VDD1.2 RF3.3VDVCC_3.3CORE VCC1.2
C53
0.1uF
GND
C54
0.1uF
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
142
143
129
130
131
DVCC3
GND
RESET
RESET_B
C58
0.1uF
TP10
Reset
7-2
P+5V
EC47
10uF_10V
IR_IN
R174 FB600
F
E
102
CDE
OPVIP
OPVIN
DVDLDO
CDLDO
MDI
SRV_AVDD
V21
V165
VDDQ
DA_TEO
DA_FEO
DA_AVDD
SPDC_OUT
SC_OUT
DMEA
FGIN
DVDVR/SCL/GPIO74
CDVR/SDA/GPIO75
CARD_SENSE/GPIO80
SPI_CE
SPI_D0
SPI_CLK
SPI_D1
SD_D0/MS_D0
SD_CLK/MS_CLK
SD_CMD/MS_BS
GND5
GND6
GND7
GND8
GND9
GND10
GND11
GND12
GND13
GND14
GND15
132
133
134
135
136
137
GND
C49
0.1uF
C55
C56
0.1uF
0.1uF
The Cover Limit Switch
RESET_DEMOD
GND3
GND4
123456789101113151214
140
141
RESET_DEMOD
C57
0.1uF
3 4
SW3
2 1
R48 10K
GND
FB9 FB600R
C150
GND
U16 IR_MS-C2FN61NL
C114
100nF
GND GND
C14
1000pF
GND
GND
C30 33pF
R32 4.7K
XT1 27MHz
PUHRF
A
B
C
D
101
10099989796959493929190898887868584
CDF
DVDA
DVDB
DVDC
DVDD
1uFC35
RFIS
C31 33pF
RF3.3V
HOME
LDSW
LDSW
AD_AVDD
HOME/CARD_RST
USB_AVDD3V3
PLL_VDD1.2
CLKOUT
CLKIN
CLKIN
USB_DP
CLKOUT
USB_DM
USB_AVDD
PLL_VDD12
SPHE8202PQ-A
TS_ERR
VDD_33
RESET_B
TS_SYNC
TS_DATA
TS_DEN
TS_CLK
VDD12
GPIO7/HSYNC(1)
GPIO8/VSYNC(1)
GPIO10
GPIO12
GPIO9
GPIO11
GPIO13
161718192021222324
RESET_B
BACKL_EN
DVCC_3.3CORE
DISC_SWITCH_TC-0030
1000pF
VCC1.2
DVCC3
KEY0
KEY1
KEY2
FB17 FB600R
FB18 NC
FB19 NC
FB20 NC
DET
GND
VCC
1
2
3
GND
GND
P_CPH1CPH1
2200pFC32
R30
FB1000R(SZ1005K102)
R35 10K
DVCC_3.3CORE
COMP
COMP
GPIO14
KEY3
STHL
83
82
FB
TCON_PWM
DCDC_PWM
TCON_STHL
TCON_CPH1
DCDC_VCC3
GPIO15
GPIO16
IR/GPIO17
M_D0
M_D1
M_D2
COVER_SW
M_D0
M_D1
M_D2
IR_IN
FB16 FB600R
UART/I2C
10pFC29
10pFC33
GND GND
VCC1.2
OEH
STVU
OEVM_D5
CKV
787576
77
798081
747372717069686766
VDD12
TCON_CKV
TCON_OEV
TCON_OEH
TCON_STVU
M_D3
M_D4
M_D5
M_D6
M_D7
29
25262728303132
M_D15
M_D6
M_D4
M_D7
M_D3
SDA
SCL
UA_TX
UA_RX
R46 NC/4.7K
DVCC_3.3V
P+5V
DVCC_3.3CORE
B/U
R/V
G/Y
VDD_33
TV_DAC3
TV_DAC2
TV_DAC1
M_D15
M_D14
M_D13
M_D12
3334353637
M_D13
M_D11
M_D12
M_D14
AUDIO_MUTE
UA_TX
UA_RX
GND
GND
GND
GND
GND
VVCC3
EC16
10uF_16V
R33 1K
VVCC3
DC_COM
V_FSADJ
CVBS
V_COMP
65
VCOMP
V_FSADJ
TV_DAC0
TV_AVDD
TV_AVDD
TCON_AC_VCOM
TCON_DC_VCOM
AUDIO_MUTE/GPIO54/HSYNC(3)
SPDIF_OUT/GPIO53/VSYNC(3)
M_D11
M_D10
M_D9
M_D8
M_DQM1
VDD_33
MARK1
38
138
M_D10
M_DQM1
M_D8
M_D9
DVCC_3.3CORE
SDA
SCL
NC/CON4/1.25MM/DIP
TP11
TP12
CN5
1
1
2
2
3
3
4
4
R28 150
R31 150
R34 150
AOUT_R
AOUT_L
ADAC_AVDD
VREF
M_A3
M_A2
M_A1
M_A0
M_A10
M_BA1
M_BA0
M_RAS
M_CAS
M_WE
M_DQM0
M_A4
M_A5
M_A6
M_A7
M_A8
M_A9
M_A11
M_CLK
MARK2
139
U4
CVBS
AOUT_R
AOUT_L
AUDIO_MUTE
M_A11
M_CAS
M_RAS
M_WE
M_BA0
M_BA1
M_CLK
SPI_D0
SPI_D1
SPI_CE
SPI_CLK
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
GND
B/U
G/Y
R/V
AC_COM
AOUT_R
AOUT_L
DAC_VREF
PWM2
M_A3
M_A2
M_A1
M_A0
M_A10
M_BA1
M_BA0
M_RAS
M_CAS
M_WE
M_DQM0
M_A4
M_A6
M_A7SPI_CLK
M_A8
M_A9
M_A11
M_CLK
GND
0.1uFC13
0.1uFC152
0.1uFC153
1000pFC140
1000pFC141
1000pFC142
NC/1000pFC146
NC/1000pFC147
NC/1000pFC148
NC/1000pFC149
CVBS 6
AOUT_R 6
AOUT_L 6
AUDIO_MUTE 6
M_A[0..11] 4
M_D[0..15] 4
M_DQM[0..1] 4
M_A11 4
M_CAS 4
M_RAS 4
M_WE 4
M_BA0 4
M_BA1 4
M_CLK 4
SPI_D0 4
SPI_D1 4
SPI_CE 4
SPI_CLK 4
ADAPTERDET
AVCC3
100pFC130
100pFC131
100pFC132
100pFC133
100pFC134
100pFC135
100pFC136
100pFC137
100pFC138
100pFC139
BACKL_E
DVCC3
P_+5V
VGH
VGL
P_PWM2
SDA
SCL
UA_TX
UA_RXCOVER_SW
STVU
FB3 FB600R
CKV
FB4 FB600R
OEV
FB5 FB600R
OEH
FB6 FB600R
FB7 FB600R
STHL
B/U
G/Y
R/V
P_STHL
P_OEH
P_OEV
P_CKV
P_STVU
DC_COM
AC_COM
J7
8pin/1.25w
AUDIO_MUTE
FB10
NC/FB600R
GND
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
TP61
C6
1000pF
GND
ADAPTER_DET
SDA
C151
NC/1000pF
0.1uFC36
EC17 10uF_16V
P_CPH1
B/U
G/Y
R/V
P_CPH1
P_STHL
P_OEH
P_OEV
P_CKV
P_STVU
GND
DC_COM
AC_COM
GND
P+5V
L30
FB600R/2A
DVCC3
P_+5V
BACKL_E
TP63
TP64
TP65
TP66
TP67
TP62
GND
屏蔽罩接脚
GND
AC_COM
DC_COM
P_STVU
P_CKV
P_OEV
P_OEH
P_STHL
R/V
G/Y
B/U
GND
VGH
R245 FB600R
P_PWM2
FB8 FB600R
GND
TP68
R20
R21
R22
R23
R24
R25
ADAPTER_DET 2
BAT_DET 2
J6
CON14/1.25mm/DIP
1
2
3
4
5
6
7
8
GND
9
10
11
12
13
14
TP48
TP49
TP50
TP51
TP52
TP53
TP54
TP55
TP56
TP57
TP58
TP59
TP60
VGL
BACKL_EN
PWM2
GND
CIRCUIT DIAGRAM-DVD MAIN BOARD
EON25T16/MX25L1605
SPI_CE
DQ0
SPI_WP
1
/CS
2
DO
3
/WP
4
VSS
DQ0 DQ1
R51 NC
For 1bit SPI Flash
SPI Mode Setting
R47
R50
U6
VCC
/HOLD
CLK
DIO
2bit 1bit
NC
0
0
NC
8
7
6
5
SPI_HOLD
SPI_CLK_1
DQ1
SPI_VCC3
GND
SD_VCC3
M_A0
M_A1
M_A2
M_A3
M_A4
M_A5
M_A6
M_A7
M_A8
M_A9
M_A10
M_A11
M_DQM0
M_DQM1
M_WE
M_CAS
M_RAS
RAM_CLK
M_BA0
M_BA1
GND
U8
23
A0
24
A1
25
A2
26
A3
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
22
A10/AP
35
A11
15
LDQM
39
UDQM
16
WE
17
CAS
18
RAS
19
CS
37
CKE
38
CLK
20
BA0
21
BA1
6
VSSq
12
VSSq
46
VSSq
52
VSSq
SDRAM_1Mx16x4
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
NC
NC/RFU
VSS
VSS
VSS
VDD
VDD
VDD
VDDq
VDDq
VDDq
VDDq
7-3
2
4
5
7
8
10
11
13
42
44
45
47
48
50
51
53
36
40
28
41
54
1
14
27
3
9
43
49
M_D0
M_D1
M_D2
M_D3
M_D4
M_D5
M_D6
M_D7
M_D8
M_D9
M_D10
M_D11
M_D12
M_D13
M_D14
M_D15
GND
SD_VCC3
M_A[0..11] 3
M_D[0..15] 3
M_DQM[0..1] 3
R52 0R
R54 0R
R55 10K
R56 10K
R57 33R
C68
NC
GND
DQ0SPI_D0
DQ1SPI_D1
SPI_WP
SPI_HOLD
SPI_CLK_1SPI_CLK
SPI_VCC3
EC24
10uF_16V
GND
C59
100nF
SD_VCC3
EC25
100uF_10V
GND
C60
100nF
C61
100nF
C62
100nF
C63
100nF
C64
100nF
C65
100nF
C66
100nF
R53 33R
GND
RAM_CLKM_CLK
C67
10pF
M_CAS
M_RAS
M_WE
M_BA0
M_BA1
M_CLK
SPI_D0
SPI_D1
SPI_CE
SPI_CLK
M_CAS 3
M_RAS 3
M_WE 3
M_BA0 3
M_BA1 3
M_CLK 3SPI_VCC3
SPI_D0 3
SPI_D1 3
SPI_CE 3
SPI_CLK 3
CIRCUIT DIAGRAM-DVD MAIN BOARD
7-4
TVCC
Vin_DET
TP16
TP17
TP18
R157 10R
C109
0.47uF
CHARGE_IN
R141
30K
R149
10K
GND
CHARGE_LED
PWM1
C110
0.47uF
D11 IN4148
TL431
1
32
Iout_DET
Vout_DET
ZD5
TL431
1
2
3
4
5
6
7
8
9
10
R142
10K
1 2
GND
PA3/PFD
PA2
PA1
PA0
PD0/PWM
VREF
VSS
PB0/AN0
PB1/AN1
PB2/AN2
3
U14
HT46R52A
PA4/TMR
PB4/AN4
PB3/AN3
Q26
9013
2
PA5/INT
PA6
PA7
OSC2
OSC1
VDD
RES
13
C101
0.1uF
TVCC
R143
20K
R152
20K
GND
R250 NC/10K
20
19
18
17
16
15
14
13
12
11
R155 10R
R163 10K
R166 10K
GND
EC45
47uF/25V
+
GND
C100
10uF_16V
P+5V
GND
C106
470pF
TVCC
C95
0.1uF/25V
R167
100K
C98
1000pF
Q27
3904
TVCC
D9
IN4148
R136 100R
R138 680R
R139 680R
2
1 3
GND
C107
10nF
GND
R156
100K
R165
10K
C112
0.1uF
2
R140 4.7K
R144
3.3K
Vout_DET
GND
Iout_DETVin_DET
C105
0.1uF
Q25
1 3
R150
3904
B+
100K_1%
R153
GND
Q24
HT722J
1 3
2
PWM1
R151
NC
R154
NC
100K_1%
GND
R159 470R
C111 0.47uF
D10 SS14
GND
BAT_GND
R168
0.1R
C97 1000pF
R169
0.1R
R135
10R
L27
47uH/2A
+
EC46 220uF/16V
GND
BAT_GND
B+
C96 1uF/50V
GND
R147
1K
U13
8242
5
3 4
VM VC
VCC
2
CO
DO
R148
4.7M
C103
0.1uF
1
C104
0.1uF
2
3
45
S1
G2
G1D1
D1
D2
6
7
R137
1K
C99 0.1uF
VSS
1
Q28
S2
9926
D2
8
BAT_OUT
6
R145 1K
C102 0.1uF
BAT_OUTCHARGE_IN
12
+
BAT1 BATTERY
12
+
BAT2 BATTERY
TP15
TP13
TP14
B-
GND GND
CHARGE_LED
GND
R172
1K
D13
Value = LED_RED
GND
GND
GND
GND
CIRCUIT DIAGRAM-DVD MAIN BOARD
7-5
R_AMP
L_AMP
AOUT_R
AOUT_L
2.2uFC81
2.2uFC82
R115 6.8K
R116 6.8K
EC31
10uF_16V
EC35
10uF_16V
R118
4.7K
GND
R92
8.2K
R106
8.2K
R119
4.7K
R93 4.7K
C73
1200pF
GND
R107 4.7K
C79
1200pF
GND
C86
C85
100pF
100pF
R88 22K
2
3
VREF3
AU_OP
R101 22K
6
5
VREF3
AU_OP
EC40
100uF_10V
GND
120pFC70
GND
-
+
U11A
NJM4558
8 4
120pFC76
GND
-
+
U11B
NJM4558
8 4
EC41
100uF_10V
1
7
8
7
6
U12
D2822
EC32
10uF_16V
EC37
10uF_16V
1_OUT
-IN
VDD
+IN
0_OUT
+IN
GND-IN
R94 100R
R97
100K
GND
R110 100R
R112
100K
GND
1
2
3
45
GND
GND
AU+9V
GND
Q15
2N3904
Q18
2N3904
C83
0.1uF
R122
4.7
GND
R_OUT
C74
DC_IN
DVCC3
AUDIO_MUTE
R98
470
A_MUTE
R113
470
A_MUTE
NC/47pF
GND
L_OUT
C80
NC/47pF
GND
5V for 1W application.
EC38 100uF_10V
EC39 100uF_10V
C84
0.1uF
R123
4.7
L19 FB2.2K
L20 FB2.2K
EC34
GND
R99 4.7K
R100 100R
R103 20K
R104 10K
R_OUT
L_OUT
+
220uF/16V
R_AMP
L_AMP
R108 56K
R111 56K
HP_R
HP_L
D22 6.2V
R95 4.7K
R96 4.7K
Q16
2N3906
Q17
2N3906
R90 300R
Q14
2N3906
R247 200R
AGND
DC_IN
CVBS
AOUT_R
AOUT_L
AUDIO_MUTE
A_MUTE
SPK_R
56k
SPK_L
AU_OP
GND
R102
10K
R109
12K
5
4
3
2
6
1
7
VR1
C10K F-1001G -3
volume
CVBS 3
DC_IN
L18 FB120R
51k
EC36
100uF_10V
AOUT_R 3
AOUT_L 3
AUDIO_MUTE 3
TP77
TP76
TP75
C77
47pF
TP78
AU_OP
EC33
22uF_25V
GND
J8
1
1
2
2
3
3
4
4
CON4/1.25MM/DIP
C71
0.1uF
VREF3
J4
Earphone
C91
100nF
GND
7
11
RL
9
10
531 428
GND GND GND
6
C94
R126 200R
100nF
R124
200R
HP_R
HP_L
SPK_L
SPK_R
C92
680pF
C93
680pF
CVBS
C87 10pF
L21
C88
+
+
100pF
1uH
R127
10K
R125
75R
VGND VGND VGND
L_OUT
R_OUT
EC43 10uF/16V
EC44 10uF/16V
R128
AGND
10K
C89
100pF
L23 FB2.2K
L24 FB2.2K
EC42
+
100uF/10V
L22
FB2.2K
33pF
VGND
C90
GND
GND
GND
AV_OUT
J3
45
1
L
2
GND
3
CVBS
R1R2
AV_OUTJACK
GND
AGND
VGND
CIRCUIT DIAGRAM- TFT BOARD
7-6
100uF_10V
DCDC_5V
EC28
P_GND
P_DCDC_PWM
PWM2
P_P+5V
R107
10K
L17 FB/120R
BC8
10uF_16V
P_GND
P_GND
R110 10K
R112 10K
DCDC_5V
P_GND
P_GND
9
10
C74
100nF
BL_EN
BC10
100nF
J4
8
7
6
9
5
4
3
10
2
1
8pin/1.25w
3
1
P_GND P_GND
P_P+3V3 P_P+5V
8
7
6
5
4
3
2
1
TP52
TP51
R108
10K
Q17
2N39042
PVB_5V
P_R/V
P_G/Y
P_B/U
R89
3.9K
BC18
10uF_10V
R98
1k
R92
3.9K
BC19
10uF_10V
R100
1k
R95
3.9K
BC20
10uF_10V
R102
1k
P_P+5V
PANEL_VGL
C11
2.2uF_16V
P_GND
PANEL_VGH
C9
2.2uF/25V
P_GND
P_P+5V
L21 FB/120R
L20
22uH
U10
SS6610
6
SW
VIN
2
OV
GND
P_DCDC_PWM
P_FB
P_P_PWM
PWM2
TP55
TP56
TP57
TP58
TP53
TP54
1 2
D10 SSD03
1
5
R109 2.4K
34
FBEN
R111
91K
P_GND
P_GND
6.2R
100NUX
10uF_10V
C75
100nF
-10V
+15V
P_PANEL_VAA
EC32
P_GND
EC30 10uF
R69 2.2R
P_GND
R70 15R
C76
100nF
P_GND
LED+
LED-
LED
TP20
TP21
背光
P_AC_COM
P_AC_COM
P_DC_COM
STVU
CKV
OEV
P_P_OEH
P_P_STHL
P_P_CPH1
P_R/V
P_G/Y
P_B/U
R58 10K
R62 4.7K
EC26
10uF_10V
PANEL_VGL
TP60
TP61
TP62
P_GND
R65
20K
R67
0R
P_GND
27
TO HANSTAR PANNEL
上接
TP65
TP63
TP64
GND3
VCOM1
VCOM2
GND4
28
P_GND
TP67
TP66
J2
CON26
1
AVSS
2
AVDD
3
VB
4
VG
5
VR
6
GND1
7
VCC1
8
CPH1
9
CPH2
10
CPH3
11
STHR
12
STHL
13
OEH
14
MOD
15
L/R
16
17
18
OEV
19
U/D
20
CKV
21
STVL
22
STVR
23
VGH
24
VGL
25
VCC0
26
GND0
TP49
TP48
P_GND P_GND
TP68
R63 20K
R64 10K
R71 2.2R
TP22
TP23
TP30
TP31
TP50
CON14/1.25mm/DIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TP59
U9 NJM3414
1
O/P_A
2
-I/P_A
3
+I/P_A
4 5
GND +I/P_B
TP24
TP25
TP26
TP27
TP28
TP29
TP37
TP32
TP38
TP33
TP34
TP35
TP36
J3
15
16
TP39
O/P_B
-I/P_B
VCOM_5VP_P+5V
P_GND
TP40
TP41
V+
BC4
10uF_10V
TP42
TP43
VCOM_5V
R59 20K
8
7
6
BC5
100nF
EC27
10uF_10V
R60 100K
R61 10K
P_GND
R75 510
R76 510
R83 510
R85 510
P_GND
P_GND
P_GND
P_DC_COM
PANEL_VCOM
VCOM
P_P_PWM
PANEL_VGL
PANEL_VGH
STVU
CKV
U/D
OEV
PANEL_VCOM
L/R
MOD
P_P_OEH
P_P_STHL
P_P_CPH1
R/V_P
G/Y_P
B/U_P
P_PANEL_VAA
PANEL_VGL
P_FB
R73 NC
R74 0
R77 NC
R78 10K
R80 10K
R81 NC
R82 10K
R84 NC
P_P+5V
P_GND
P_P+5V
P_GND
P_P+5V
P_GND
P_P+5V
P_P+3V3
R90
390
3
2
2
2
10uF_10V
Q14
2N3904
1
R99
100
P_GND
PVB_5V
R93
390
3
10uF_10V
Q15
2N3904
1
R101
100
P_GND
PVB_5V
R96
390
3
10uF_10V
Q16
2N3904
1
R103
100
P_GND
R88 10K
L18 FB/600R
BC15
R104
NC
BC14
10uF_10V
BC16
R105
NC
BC17
R106
NC
P_GND
PVB_5V
P_GND
C71
0.1uF
C72
0.1uF
C73
0.1uF
PR20
10K
C70
0.1uF
PVB_BIAS
R91
10K
R/V_P
PVB_BIAS
R94
10K
G/Y_P
PVB_BIAS
R97
10K
B/U_P
PVB_BIASP_PANEL_VAA
BC12
10uF_10V
CIRCUIT DIAGRAM- KEY BOARD
7-7
K1
UP
K4
DOWN
K7
LEFT
K5
NEXT
K8
PREVIOUS
K2
F.W
K9
SETUP
K3
MENU
K6
F.F
TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
KKEY0
KKEY1
KKEY2
KKEY3
K_OUT1
K_OUT2
K_OUT3
KKEY0
KKEY1
KKEY2
KKEY3
K_OUT1
K_OUT2
K_OUT3
KGND
KGND
K10
RIGHT
K11
ENTER
K12
PLAY
K13
STOP
MAIN BOARD-TOP
7-8
MAIN BOARD-BOTTOM
7-9
TFT BOARD-TOP
7-10
TFT BOARD-BOTTOM
7-11
KEY BOARD-TOP
7-12
KEY BOARD-BOTTOM
7-13
8.0 Exploded View Diagram
8-1
9.0 REVISION LIST
Version 1.0
• Initial release
Version 2.0
Add PD7000C/12
•
Version 3.0
Add PD7000B/S/12
•
Version 3.1
Updated procedure to change region code
•
Version 4.1
Add PD7000B/51/79/93/98
•
Loading...
