Instructions for use
PA9019C1
PA9027C1
PA9032C1
PPC927C1
PPC932C1

Institutional

Television

®

TELEVISION

IndustryStandards

™

INTRODUCTION

Your Philips Institutional Television tuning system is set to operate in either "Consumer" or "Commercial" type product modes. In the
Consumer mode the tuning system operates as a standard TV, allowing normal initial power ON, channel selection, and volume control
(as well as a variety of select Menu features). Use the supplied remote control to adjust the TV in the Consumer mode. Refer to the
"On-Screen Features (Consumer)" section in this manual for descriptions on the use and operation of Consumer mode Menu controls.
Use a T374AH (RG4172-BK03) remote with its TV Setup, Guest, and Data Communication Mode capabilities to set the TV for the
various Commercial mode settings. (Note: On some select Institutional TV models you may also be able to use the buttons at the set to
select a Setup Mode. Again, this may not apply or be available on your current model. Commercial setup and verification procedures
may be performed which are backward compatible with previous Commercial chassis setup remotes. (See T374AH Remote Control
Instructions, part # IB7166E002, for specific operating details.)

Within the TV SETUP MENU (as selected with the T374AH
remote control) use the “PROPLUS SETUP MENU ­ACCESS LEVEL” control to place the television in either the
CONSUMER, COMMERCIAL, LOCKED, or UNLOCKED
mode.

When CONSUMER is the selected mode, the TV functions
as a standard consumer television (Philips RC-5 system) and
accepts standard remote control commands. Events are
ignored and the television is used for normal TV viewing (in
place of any commercial /professional special event applica­tions).

When UNLOCKED is the selected mode, the TV functions
the same as in the Consumer Mode. When an event is active,
no menu is available unless the Setup Code or Setup Remote
is used. (Channel selection either is not allowed or is restrict­ed to the event channel ring - depending upon the event pro­gramming.)

When COMMERCIAL is the selected mode, the Consumer
menu is limited to three Menu items - CLOSED CAPTION
(CC); SLEEPTIMER; and V-CHIP SETUP. Channel selec­tion and tuning are also restricted to channels in the standard
channel ring. When an event is active, no menu is available
unless the Setup Code or Setup Remote is used. (Channel
selection either is not allowed or is restricted to the event
channel ring - depending upon the event programming.)

When LOCKED is the selected mode, the TV may be used
only during an event. If no event is active, the TV cannot be
turned ON (unless the Setup Code is used to enter the Setup
Menu or the Setup Remote is used). When an event is active,
no menu is available unless the Setup Code or Setup Remote
is used. (Channel selection either is not allowed or is restrict­ed to the event channel ring - depending upon the event pro­gramming.)

Note: Use of various Audio/Video connection jacks, or
other input modes on the rear of the set, is dependent on
whether the TV has a ProVideo Kit1 Expansion, or other
Smart Card Assembly, jackpanel installed. Please refer to
the separate setup and use information that will detail the
various Audio and Video connections possible with these
type modules. Also, please be aware that dependent upon
the type of Smart Card module installed with the set that
certain select “event” program features may be affected or
not be operable.

CONSUMER ONSCREEN MENU

(For basic television Menu and supplied remote operation instructions, refer to
the Onscreen Features (Consumer) section of this owner’s manual.)

COMMERCIAL SETUP MENU

(For Menu control operations and use, refer to the OnScreen Features

(Commercial) section of this owner’s manual.)

CC
V-CHIP SETUP
SLEEPTIMER
SET TIME
CLOCK DISPLAY
EXIT

OFF

ON
12:00 PM
ON

LANGUAGE
CHANNEL INSTALL
CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION
SOUND MODE
SAP
AUDIO OUT

MAIN MENU

ENGLISH

ON

34
22
29
40
0
OF F
STEREO
OF F

FIXED
BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR
AUDIO/VIDEO MUTE
REMINDER

0

31

31

ON

OF F

OF F

ON

BLUE

OF F

TV SETUP MENU
LANGUAGE
CHANNEL INSTALL
PROPLUS SETUP
CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION
SOUND MODE
SAP
AUDIO OUT

ENGLISH

ON
34
22
29
40
0
OF F
STEREO
OF F
FIXED

SET TIME
SET DAY
CLOCK DISPLAY

ACCESS LEVEL

EDIT EVENTS
EXIT

PROPLUS SETUP MENU

3:30 PM

FRIDAY
ON
LOCKED

COMMERCIAL

CONSUMER

UNLOCKED

CC
SAVE CC
V-CHIP MENU ITEM
SAVE V-CHIP
V-CHIP SETUP
SLEEPTIMER
SECURITY
EXIT

OFF

OF F
ON
ON
ON
OF F

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR
MIN VOLUME
MAX VOLUME
SWITCH ON VOLUME
SWITCH ON CHANNEL
POWER ON
CHANNEL DISPLAY
KEYBOARD LOCK
ESP
AUDIO/VIDEO MUTE
WELCOME MESSAGE
CHANNEL GUIDE
REMINDER
3 DIGIT ENTRY
A/CH A/V SWITCH

0
31
31
ON
OF F
OF F
ON
0

63
STANDARD
STANDARD
STANDARD
AL L
OF F
OF F
BLUE

OF F
ON
OF F
ON

STANDARD

2

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and
safety standards. There are, however, some installation and operation pre­cautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should
be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should
be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be
followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or
stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven sur­faces may cause the appliance and cart combination to
overturn.

6B. Tilt/Stability - All televisions must comply with recommended inter-

national global safety standards for tilt and stability properties of its
cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could
ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items
could unsuspectingly fall from the top of the set and cause
product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example,
the appliance should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or, placed in a built­in installation, such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (includ­ing amplifiers) that produce heat.

10 . Power Sources - The appliance should be connected to a power sup-

ply only of the type described in the operating instructions or as
marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the
appliance.

12. Cleaning - The appliance should be cleaned only as recommended
by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from
power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to pro­vide some protection against voltage surges and built up static
charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mats
and supporting structure grounding of the lead-in wire to an anten­na discharge unit, size of grounding connectors, location of antenna­discharge unit, connection to grounding electrodes and require­ments for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of time.

16 . Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:

A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance;

or

C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to ser vice the appliance

beyond that described in the operating instructions. All other servic­ing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the
CATV system installer's attention to Article 820-40 of the NEC that pro­vides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.

Example of Antenna Grounding
as per NEC - National Electric Code

3

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

(NEC SECTION 810-20)

4

Introduction

Consumer and Commercial Menus.............2

Safety/Precautions.......................................3

Table of Contents.......................................................4

Features......................................................................5

Hooking Up Your TV................................................6

Basic TV and Remote Control Operation .................7

Using the TV Remote Control ...................................8

Onscreen Features (Consumer)

How to Use the On-Screen Menu..........................9

How to Set the TV for Cable TV Operation........10

Channel Installation Control Features:

- Adding Channels in Memory (Auto Program).11

- Adding Channels in Memory (Manually)..........12

- Using the Input Mode Control...........................13

- Using the Channel Label Control......................13

How to Adjust the TV Color................................14

Using the Stereo (& SAP) Control.......................14

Using the Bass, Treble, Balance Controls............15

How to Set the Incredible Stereo Control ............15

Using the Automatic Volume Limiter Control.....16

How to Set the Volume Bar Control....................16

How to Set the Audio/Video Mute Control .........17

How to Set the Channel Reminder.......................17

How to Select the Closed Caption Feature .........18

Using the V-Chip or Content Advisory Control...19

- V-Chip TV Ratings Guidelines..........................20

- V-Chip Movie Ratings Guidelines.....................21

Setting the Sleep Timer .......................................22

Using the Set Time Control..................................22

Using the Clock Display Control.........................22

How to Set the On-Screen Language Control .....23

Using the External Speaker Terminals.................23

Using the Audio Output Jacks .............................24

Using the Front Audio/Video Input Jacks ...........24

Remote Control Operation with
Accessory Devices (VCRs, Cable TV
Converters, DVDs, etc.)

Setting the Remote to Work Other Devices ............25

- Direct Number Entry Method ...............................26

- Search Method.......................................................27

- Direct Entry Remote Control Code Numbers..28-29

Using the Remote’s VCR Buttons...........................30

Onscreen Features (Commercial)

Description of Onscreen Controls......................31-33

General Information

Tips if Something Isn’t Working.............................34

Glossary of Television Terms..................................35

Index ........................................................................35

Limited Warranty ....................................................36

TABLE OF CONTENTS

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical shock. For

the safety of everyone in your household, please do not remove the product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to

prevent operating and maintenance problems.
WARNING: TO PREVENTFIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENTTO RAIN OR MOIS-

TURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspon-

dante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NOTE: This owner's manual is used with several differ­ent television models. Not all features (and drawings)
discussed in this manual will necessarily match those
found with your television set. This is normal and does
not require you contacting your dealer or requesting
service.

Because of continuous product improvements, the informa­tion mentioned in the documents accompanying your prod­uct are subject to change without notice.

4

12

1

11

2

10

3

9

4

8

5

7

6

Visit our World Wide Web Site at http://www.philipspro.com

Philips exclusive "Pro Video" control tuning soft­ware which allows operation of the TV in either
"Consumer" or "Commercial" modes (depending upon
its applied purpose and use).

Audio/Video jack panel for direct connections with
VCRs (or other video accessories) for quality TV pic­ture and sound playback. Note: Use of various
Audio/Video connection jacks, or input modes (i.e.,
S-VIDEO, etc.), is dependent on whether the TV has a
ProVideo Kit1 Expansion, or other Smart Card
Assembly, jackpanel installed. Please refer to the sep­arate setup and use information that will detail the
various Audio and Video connections possible with
these type modules. Also, please be aware that
dependent upon the type of Smart Card module
installed with the set that certain select “event” pro­gram features may be affected or not be operable.

Infrared Remote Control which operates your TV
set and a variety of Infrared (IR) wireless remote con­trol VCRs, Cable TV Converters, DVDs, and other
accessory equipment.

Standard broadcast (VHF/UHF) or Cable TV
(CATV) channel capability.

Stereo Ready TV with built-in audio amplifier and

twin speaker system for receiving TV programs
broadcast in stereo sound.

Closed Captioning which allows the viewer to read
TV program dialogue or voice conversations as on­screen text.

Automatic Programming of channels for quick and
easy selection of favorite stations available in your
area.

On-Screen Features (in either English, French, or
Spanish) which show helpful messages for setting of
TV controls.

Parental Control for “Censoring” or blocking out
channels to keep children from watching undesirable
programming. Parental guideline and Movie Rating
settings can also be used as part of the new Content
Advisory Data system available with TV program­ming.

Automatic Volume Limiter for the control of TV
volume levels during program changes or commercial
breaks.

Sleep Timer which automatically turns off the TV at
preset times.

Copyright © 2000 Philips Consumer Electronics Company. All rights reserved.

FEATURES

As you unpack your TV please note that the fol­lowing items have been included with your set:

• Owner's Manual

- Safety Tip Information

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use
Please take a few minutes to complete your regis-

tration card. The serial number for the TV is on
the back of the set.

Refer to the back of this manual for instructions
on the cleaning and care of the TV.

End-of-Life disposal

Your new institutional television and its packag­ing contain materials that can be recycled and
reused. Specialized companies can recycle your
product to increase the amount of reusable mate­rials and minimize the amounts which need to be
properly disposed.

Your product also uses batteries which should not
be thrown away when depleted, but should be
handed in and disposed of as small chemical
waste.

Please find out about the local regulations on
how to dispose of your old television, batteries,
and packaging materials whenever you replace
existing equipment.

5

Y

our Cable TV signal

may be a single (75
ohm) cable or a Cable
Converter Box installa­tion. In either case, the
connection to the TV is
easy.

CABLE INPUT/CONVERTER

If your Cable TV sig-

nal is a single round cable (75

ohm), you're ready to connect
to the TV. Go to step 2.

If you have a Cable
Converter Box: Connect the

Cable TV signal to the IN plug
on the Cable Converter Box.

Connect the Cable TV signal to

the 75Ω ANT/CABLE plug on the TV.

If you have a Cable Converter Box:

Use a round cable (75Ω) to connect the
OUT plug on the Cable Converter Box
to the 75Ω ANT/CABLE plug on the
TV.

2

STOP

1

HOOKING UP YOUR TV

A

combination (outdoor

or indoor) antenna
receives normal broadcast
channels 2-13 (VHF) and
14-69 (UHF). Your con­nection to such an antenna
is easy since there is only
one antenna plug (75Ω
ANT/CABLE) on the back
of your TV - and that’s
where the antenna goes.

OUTDOOR/INDOOR

Remember,
set the TV for the
type signal you've
connected (see page

9).
Note: For homes

with separate UHF
and VHF antennas,
you will need an
optional combiner
to connect to the
TV. To order any
optional accessory,
contact your dealer
or call the toll-free
accessory ordering
number (1-800-851-

8885).

SMART

HELP

If your antenna has a

round cable (75 ohm) on the

end, then you're ready to con­nect it to the TV.

If your antenna has flat twin­lead wire (300 ohm), you first

need to attach the antenna wires
to the screws on a 300 to 75
ohm adapter.

Push the round end of the

adapter (or antenna) onto the
75Ω ANT/CABLE plug on the
rear of the TV. If the round end
of the antenna wire is threaded,
screw it down tight.

2

STOP

300 to 75Ω

Adapter

Twin Lead Wire

BEGIN

1

Round Cable 75Ω

Combination VHF/UHF Antenna

(Outdoor or Indoor)

Back of TV

Round Cable

75Ω

Cable Converter Box

Cable TV Signal

T

he basic Antenna, or

Cable, to VCR to TV
connection is shown to the
right. For more informa­tion on hookups with
Cable Converter Boxes,
refer to your VCR and
Cable Converter Box
Owner's Manuals.

BASIC CONNECTION

Connect your
Antenna or Cable TV signal
to the IN FROM ANT(enna)

plug on the VCR.

Connect the OUT TO TV plug

on the VCR to the 75ΩANT/CABLE

plug on the TV (connecting cable sup­plied with the VCR).

2

1

Round Cable

75Ω (supplied

with VCR)

VCR

Outdoor VHF/UHF

Antenna

300 to 75Ω

Adapter

Cable TV signal

Back of TV

VCR TO TV

C

ABLE TV

ANTENNA

Note: Rear view of the model
TV is shown with an optional
ProKit 1 type module installed
for RF Input plug connections.

Back of TV

12

6

1

11

2

10

3

9

4

8

5

7

6

1

BEGIN

1

OR

OUT

IN

2

EXTERNAL SPEAKERS

SMART

EXTERNAL

PLUG

SPEAKER

75Ω

ANT/
CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

IN

IN

VIDEO

R AUDIO LOOP L

R AUDIO LOOP L

OUT

OUT

OUT

OR

+ R – – L +

INT

SPEAKERS
VARIABLE
AUDIO OUTAUDIO OUT

AUDIO LOOP

R

L

EXTERNAL
SPEAKER

OUT VIDEO LOOP IN

IN

R AUDIO LOOP L

OUT

88

EXT

SMART
PLUG

75Ω
ANT/
CABLE

OUT S-VIDEO LOOP IN

IN

VIDEO

R AUDIO LOOP L

OUT

OUT

2

EXTERNAL SPEAKERS

88

+ R + R – – L +

EXT

INT

SPEAKERS
VARIABLEARIABLE
AUDIO OUTAUDIO OUT

BEGIN

OR

IN FROM ANT.

1

OUT TO TV

SMART

EXTERNAL

PLUG

SPEAKER

75Ω
ANT/
CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

IN

IN

VIDEO

R AUDIO LOOP L

R AUDIO LOOP L

OUT

OUT

OUT

2

EXTERNALEXTERNAL SPEAKERS

88

+ R + R – – L +

EXT

INT

SPEAKERSSPEAKERS
VARIABLE
AUDIO OUTAUDIO OUT

Press the POWER button to

turn on the TV.

Press the VOL(ume) ▲/▼

buttons to adjust the sound level.

Press the CH(annel) ▲/ ▼

buttons to select TV channels.

Point the remote control

toward the remote sensor on

the TV when operating the TV

with the remote.
Note: Always press two number

buttons on the remote when
selecting channels. For example:
press "0," then "6," for channel 6.

To load the supplied batteries

into the remote:

1. Remove the battery
compartment lid on the

back of the remote.

2. Place the batteries (two
AA) in the remote. Be

sure the (+) and (-) ends
of the batteries line up
as marked inside the case.

3. Reattach the battery
compartment lid.

1

2

3

STOP

BASIC TV AND REMOTE CONTROL OPERATION

Remember, the tuned

channel number will appear
when you change the channel. You
also may press the STATUS button
on the remote control to see the
current channel number.

SMART HELP

BEGIN

4

Note: The ▼VOLUME▲ buttons can
be used as an AV SWITCH source
control to quickly select the FRONT
Auxiliary Input jacks on the TV for
operation.
(The ▼VOLUME▲ buttons can also
be pressed simultaneously to switch
the set between Auxiliary and Antenna
input modes or, in Commercial mode,
to display the Features menu.)

7

6 CH WXYZ

12:00 PM

12

1

11

2

10

3

9

4

8

5

7

6

VOLUME

POWER

VIDEO L AUDIO R

CHANNEL

A V SWITCH

1

VOLUME

POWER

STATUS/EXIT

SURF

CH

SMART


CLOCK

CC

TV/VCR

SLEEP

A/CH

TV

RECORD

VCR

ACC

SMART

SOUND

MENU

MUTE

VOL

POWER

VIDEO L AUDIO R

2

4

A V SWITCH

3

CHANNEL

USING THE TV REMOTE CONTROL

12

Remember, always point

the remote control toward

the remote sensor on the TV when
operating the TV with the remote.

SMART HELP

POWER

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

TV

VCR

ACC

SMART

SMARTSMART

SOUND


MENU SURF

VOL

CH

MUTE

1

23

4

5

6

7

89
0

TV/VCR

Power Button

Press to turn the TV (or select VCR,
Cable Converter, etc.) ON and OFF.

CC Button

Press to select Closed Caption options
within the menu. (Refer to the Owner’s
Manual for details.)

Clock-TV/VCR Button

Available on select models only, may
not operate or apply to your set.
Press to select TV Clock menu options
With remote switch in the VCR position
press to view the playback of a tape
(VCR indicator will light on front of
VCR). Press again to place the VCR in
the TV mode to view one program
while recording another program (VCR
indicator will go off on the VCR).

Number Buttons

Press the number buttons to select TV
channels. When selecting single digit
channels, press the number of the desired
channel. The TV will pause for a few
seconds then tune to the selected chan­nel. (Note: you can also press "0" first,
then the desired number.) For channels
"100" and above, you must program the
desired channels into the TV’s channel
memory.

SmartPicture™ Button

Available on select models only, may
not operate or apply to your set.
Press to select from a list of
SmartPicture controls (which are facto­ry preset picture levels set for different
types of viewing sources and pro­grams.)

Surf Button

Available on select models only, may
not operate or apply to your set.
Press to quickly select from a series of
previously viewed channels. When the
remote control is in the VCR mode, press
the Surf button to pause the playback of a
video tape.

Channel (+), (–) Buttons

Press to change the tuned channel. Only
channels “saved” into the TV’s program
channel memory ring will be available
for selection.

Sleep Button

Press to set the TV to automatically turn
itself OFF. Also can be used as an Enter but­ton when sending channel commands to
remote controlled cable converters or VCRs.

Status/Exit Button

Press to see the current channel number on the
TV screen. Also press to clear the TV screen
after control adjustments.

A/CH-Record Button

Press to toggle between the currently viewed
channel and the previously viewed channel.
When in the VCR mode, press to start the
recording of a video tape.

TV/VCR/ACC Mode Switch

Slide to TV position to control TVfunctions;
VCR to control VCR functions; and ACC for
Cable Converter, DBS, DVD, etc. functions.

Smar

tSound™ Button

Available on select models only, may not
operate or apply to your set.
Press to select from a list of SmartSound
controls (which are factory preset sound con­trol levels set for different types of listening
modes and types of programming.)

Menu Button

Press for the onscreen menu to appear. Press
the Menu button repeatedly to move forward
through the current onscreen feature control
selections.

Cursor Buttons

Use these buttons to select and adjust the
TV's onscreen menu. Also used with a VCR
for PLAY, FASTFORWARD, REWIND, and
STOP functions.

Volume (+), (–) Buttons

Press to adjust the TV sound level up and
down.

Mute Button

Press to turn the sound OFF on the TV.
“MUTE” appears onscreen to confirm that no
sound will be heard through through the TV
speakers. Press the Mute button again to
return TV sound to its previous listening level.

8

1

11

2

10

3

9

4

8

5

7

6

F

eatures for your TV can be

adjusted from a Menu screen
shown on the TV. Each Menu item
can be adjusted by viewing the
screen and pressing a button.

Press the Menu button on the

remote. The on-screen menu

appears.

Press Menu button repeated-

ly, or use the Cursor (▲) Up and
Down (▼) buttons on the
remote, to select a feature control.

A highlight bar will show the
selected feature.

Press the Cursor Right

(©)

and Left (§ )buttons on the
remote to adjust the selected

onscreen feature control.

Press the STATUS/EXITbut-

ton on the remote to remove the

on-screen menu.
(You can also use the EXIT con­trol within the onscreen Menu to
remove the Menu from the TV
screen, or wait for the Menu
screen to time out.)

1

2

3

STOP

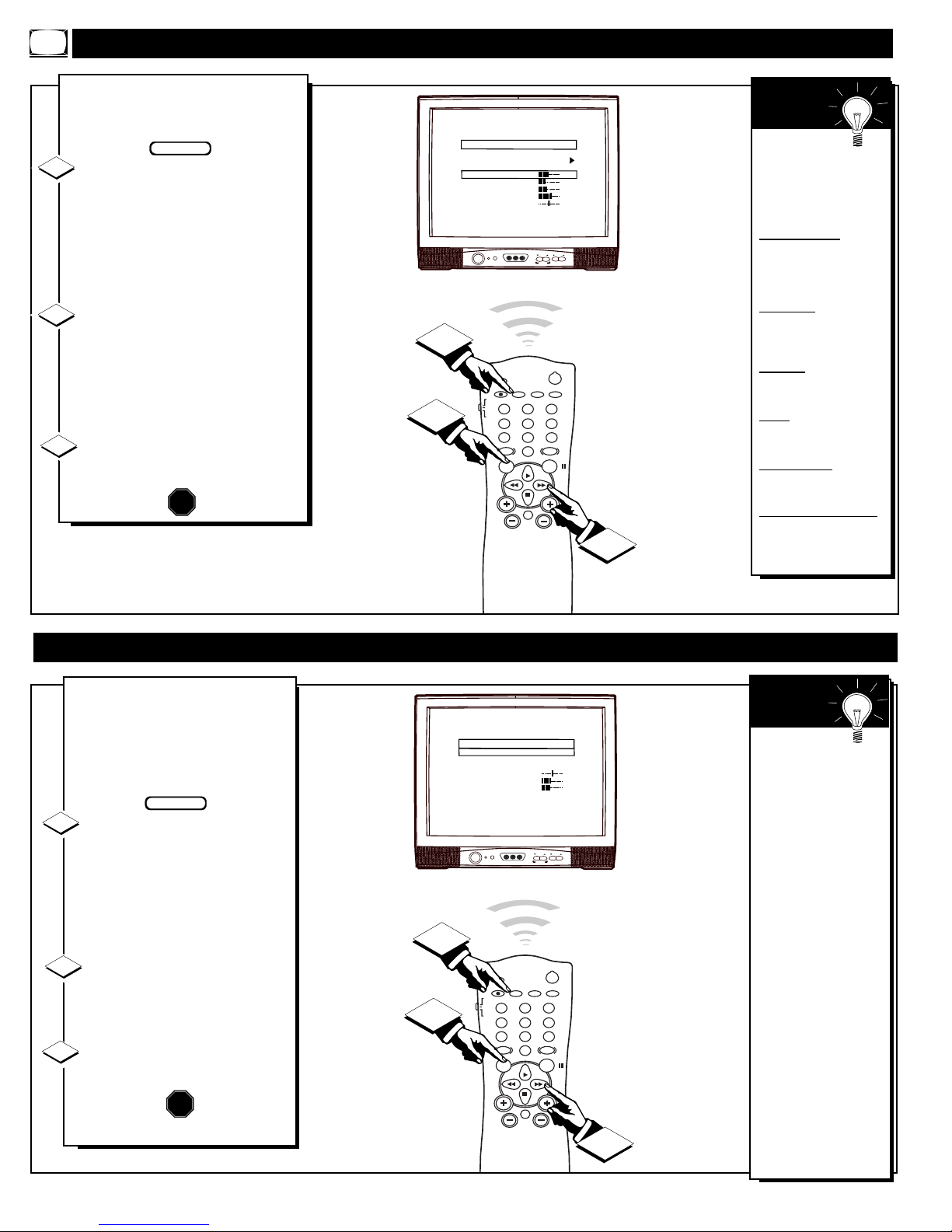

HOW TO USE THE ON-SCREEN MENU

BEGIN

4

If the on-screen menu

disappears and you are not
finished, press the MENU button.
The on-screen menu will return.

Note: Selection and use for both
the Consumer and Commercial
mode onscreen Menu feature con­trols will work in basically the
same manner.

SMART HELP

- Consumer Onscreen Menu Mode -

(In other Commercial mode settings (i.e.,
Unlocked, etc.) not all select control
items will appear as shown above.)

9

1

LANGUAGE

CHANNEL INSTALL

CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION

4

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND

MENU SURF

ENGLISH
ON

34
22
29
40
0
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

6

SMARTSMART


CHANNEL INSTALLATION

CHANNEL

CHANNEL RING
INPUT
LABEL

CHANNEL

AUTO PROGRAM
EXIT

TV 4

DELETED
ANTENNA
( )

2

VOL

CH

MUTE

3

M

ake sure the TV is set to

pick up either Cable TV
stations or Antenna signals. In
other words, the TV needs to
know whether you’ve connected a
Cable TV signal or a normal
antenna to its 75Ω ANT/CABLE
plug.

With the Menu onscreen

press the Menu button repeat­edly , or use the Cursor (▲) Up
and Down (▼) buttons, to select

CABLE TUNING with the TV’s
highlight control bar.

Press the Cursor Right

(©)

or Left (§ )button on the
remote to select:

ON - If you DO have Cable

TV connected to the TV.

Channels 1-125 may be
selected. Or, select

OFF -If you have an Antenna

connected to the TV.
Channels 2-69 may be
selected.

Press STATUS/EXITto

remove the on-screen menu.

1

2

3

STOP

HOW TO SET THE TV FOR CABLE TV OPERATION

Try it out. Press the

CH(annel) +, - buttons to

scan the channels. Remember, the
TV has been set at the factory to
select certain channel numbers.
See the next page to set the TV to
select the channels in your area.

SMART HELP

BEGIN

10

1

LANGUAGE
CHANNEL INSTALL

CABLE TUNING

BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION

3

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND

MENU SURF

ENGLISH
ON

34
22
29
40
0
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

6

SMARTSMART


OFF

CHANNEL

1

VOL

CH

MUTE

2

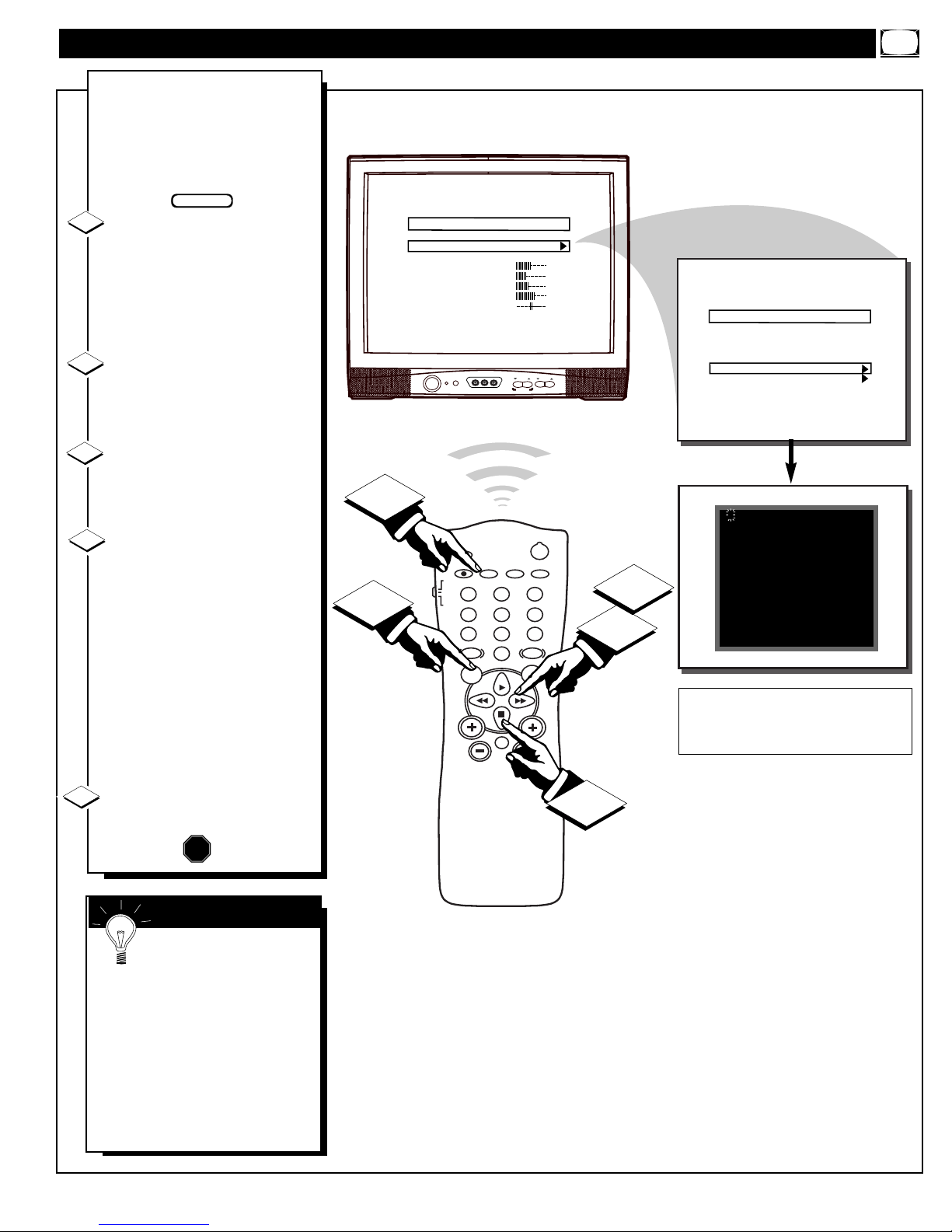

CHANNEL INSTALLATION: ADDING CHANNELS (AUTOPROGRAM)

Y

our TV can automatically set

itself for local area (or Cable
TV) channels. This makes it easy
for you to select only the TV sta­tions in your area when you use
the CH(annel) +, - buttons.

With the Main Menu
onscreen press the Menu button
repeatedly , or use the Cursor
(▲) Up and Down (▼) buttons,

to select CHANNEL INSTALL
with the TV’s highlight control
bar.

Press the Cursor Right

(©) or

Left (§ )button on the remote

to select the Channel Installation
control Menu.

Press the Menu, or Cursor

Down (▼), button to select

AUTO PROGRAM with the
highlight control bar.

Press the Cursor Right (©)

or Left (§ )button on the

remote to start the TV’s automat-

ic search for area channels.
Flashing channel numbers will

count upward on the screen as the
TV looks for channels to "SAVE.”
Press any button (on the TV or
the remote) to stop the channel
search at any time. When the
channel search is completed, the
TV will return to normal channel
viewing and operation.

Press the STATUS button to

remove the on-screen menu.

1

2

3

STOP

“RED” channel numbers have been SAVED to
the TV’s program memory.

“WHITE” channel numbers are not present in

the TV’s program scan memory.

4

SMART HELP

Remember, if you want

to drop any unwanted chan­nels from the TV's memory, see
the next page to "Manually" add
and delete channels.

Note: As the TV searches for
channels to "SAVE" into memory,
the on-screen display may move
(or jitter slightly). This is normal
operation and does not indicate a
need for service.

BEGIN

5

11

1

LANGUAGE

CHANNEL INSTALL

CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION

5

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND

MENU SURF

VOL

MUTE

ENGLISH
ON

34
22
29
40
0
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

6

SMARTSMART


CHANNEL INSTALLATION

CHANNEL
CHANNEL RING
INPUT
LABEL

CHANNEL

4

2

CH

AUTO PROGRAM

EXIT

AUTO - PROGRAMMING ACTIVE

1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31 32 33 34 35
36 37 38 39 40 41 42
43 44 45 46 47 48 49
50 51 52 53 54 55 56
57 58 59 60 61 62 63
64 65 66 67 68 69 70

71 72 73 74 75 76 77
78 79 80 81 82 83 84

PRESS ANY KEY TO STOP

TV 4

DELETED
ANTENNA
( )

3

A

uto Programming (see previ-

ous page) adds all the chan­nels it can find (on your Antenna
or Cable TV system) into the TV's
memory. You may add other chan­nels, or drop unwanted channels
from the list of channels in the
TV's memory.

With the Channel
Installation Menu onscreen
press the Menu button, or use
the Cursor (▲) Up and Down
(▼) buttons, to select CHANNEL

with the TV’s highlight control

bar.

Press the Number, or CH(+,-),
buttons to select the channel you

want to SAVE (or DELETE).

Press the Menu, or Cursor

Down (▼), button to select

CHANNEL RING with the high-

light control bar.

Press the Cursor Right

(©) or

Left (§ )button on the remote
to SAVE (or DELETE) the select-

ed channel number into memory.
Repeat steps 2-4 for each channel

you wish to add (or delete).

Press the STATUS/EXITbutton

to remove the menu when you are
finished.

1

2

3

4

STOP

CHANNEL INSTALLATION: ADDING CHANNELS (MANUALLY)

SMART HELP

Try it out. Press the

CH(annel) +, - buttons.

The channels you SAVED should
appear. The channels you
DELETED should not appear.

If you need to SAVE (or
DELETE) a channel above 100,
use the CH (+, -) buttons. The
consumer remote control number
buttons can not select channels
above 99 (unless the 3 DIGIT
ENTRY Commercial mode Menu
control has been set to receive
such channel entries).

BEGIN

Remember, you may add the FRONT (A/V);
AUX(iliary); and S-VIDEO inputs into the
TV’s channel scan program memory. Then, by
pressing the CH(annel) +, - buttons you may
quickly select the Audio/Video Input jacks on
the front and rear of the TV.

Select CHANNEL in the onscreen menu, then
press the CH (+, -) buttons to select either
FRONT (A/V)/ AUX(iliary)/ or S-VIDEO
inputs. Note: The AUX(iliary) Video modes
are located between the lowest and highest
channel numbers within the CHANNEL con­trol.

5

12

CHANNEL INSTALLATION
CHANNEL

CHANNEL RING
INPUT
LABEL
AUTO PROGRAM
EXIT

POWER

VIDEO L AUDIO R

TV 4

DELETED
ANTENNA
( )

VOLUME

A V SWITCH

CHANNEL INSTALLATION

CHANNEL

CHANNEL RING

INPUT
LABEL

CHANNEL

AUTO PROGRAM
EXIT

TV 4

SAVED
ANTENNA
( )

3

1

5

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND

MENU SURF

VOL

MUTE

SMARTSMART


POWER

TV/VCR

6

2

4

CH

CHANNEL INSTALLATION
CHANNEL

CHANNEL RING
INPUT
LABEL
AUTO PROGRAM
EXIT

TV 1

SAVED
ANTENNA
( )

FRONT

AUX

SVIDEO

T

he Channel Installation Input

control directs the TV to select
an indicated input source (Auxiliary,
Antenna, Front A/V, etc.) whenever a
specific channel number is tuned.

With the Channel Installation

Menu onscreen press the Menu
button, or use the Cursor (▲) Up
and Down (▼) buttons, to select

INPUT with the TV’s highlight con­trol bar.

Press the Cursor Right

(©)

or

Left

(§ )button on the remote to

turn select the desired signal input
mode (Antenna, Front A/V, etc.).

Press the STATUS/EXITbut-

ton to remove the menu.

1

2

STOP

CHANNEL INSTALLATION: INPUT CONTROL

3

Remember,
please refer to the
additional setup and
use information sup­plied with those
models equipped
with a ProKit 1, or
other Smart Card
Expansion Assembly,
jackpanel. This infor­mation will detail all
the various Audio
and Video connec­tions possible with
this type of module.

SMART

HELP

BEGIN

A

Channel Label can be set for a

symbol, letter, or number callout
(up to eight characters in length)
that will appear with the TV’s
onscreen channel numbers. Example:
WXYZ - for a TV station’s call let­ters.

With the Channel Installation

Menu onscreen press the Menu
button, or use the Cursor (▲) Up
and Down (▼) buttons, to select

LABEL with the TV’s highlight con­trol bar.

Press the Cursor Right (©) or

Left

(§ )button on the remote to

select the separate character spaces
within the LABEL control. Use the
Cursor (▲) Up and Down (▼) but­tons to select the specific letters or
symbols for the highlighted space.

Press the STATUS/EXITbutton

to remove the menu when complet­ed.

1

2

STOP

CHANNEL INSTALLATION: LABEL CONTROL

3

Remember,
if you want to con­tinue to write new
Labels for additional
channels, just press
the Channel Number
(or the CH +,-) but­tons with the
LABEL control
highlighted. Then
use the Cursor (▲)
Up and Down (▼)
buttons to select the
characters for the
next channel Label.

SMART

HELP

BEGIN

13

1

CHANNEL INSTALLATION

CHANNEL
CHANNEL RING

INPUT

LABEL
AUTO PROGRAM
EXIT

3

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4
7

SMART

SOUND

MENU SURF

VOL

MUTE

TV 4

DELETED

ANTENNA

( )

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


CH

FRONT

AUX

SVIDEO

CHANNEL

2

1

11 WXYZ

CHANNEL INSTALLATION

CHANNEL
CHANNEL RING
INPUT

LABEL

AUTO PROGRAM
EXIT

POWER

3

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

23

ACC

4

5
89

7

SMART

0

SOUND

MENU SURF

TV 4

DELETED
ANTENNA

(WXYZ )

VOLUME

CHANNEL

A V SWITCH

POWER

TV/VCR

6

SMARTSMART


2

VOL

CH

MUTE

2

T

o adjust your TV color and pic­ture controls, select a channel,

then follow these steps:

With the Main Menu onscreen

press the Menu button repeatedly,
or use the Cursor (▲) Up and
Down (▼) buttons, to select the

desired control (BRIGHTNESS,
COLOR, etc.) with the TV’s high­light control bar.

Press the Cursor Right (©) or

Left (§ ) button on the remote to

adjust the control.
The sliding bar scale, and number

value indicator (0-63), will change
onscreen as adjustments are made.

Press the STATUS/EXITbutton

to remove the menu when you are

finished.

1

2

STOP

HOW TO ADJUST THE TV COLOR

3

Remember,
when the bar scale
is centered, the con­trols are at normal
levels.

BRIGHTNESS - Press

Cursor (©) or (§ ) until

the darkest parts of the pic­ture are as bright as you pre­fer.

PICTURE - Press Cursor

(©) or (§ ) until the light-

est parts of the picture show
good detail.

COLOR - Press Cursor

(©) or (§ ) to add or elimi-

nate color.

TINT - Press Cursor (©)

or (§ ) to obtain natural

skin tones.

SHARPNESS - Press

Cursor (©) or (§ ) to

improve detail in the picture.

NOISE REDUCTION -

Press Cursor (©) or (§ )
to reduce possible signal
noise or interference in the
picture.

SMART

HELP

BEGIN

USING THE STEREO & SAP CONTROLS

Y

our TV is able to receive

broadcast stereo TV pro­grams. The TV is equipped with
an amplifier and twin speaker
system through which the stereo
sound can be heard.

With the Main Menu
onscreen press the Menu but­ton repeatedly, or use the
Cursor (▲) Up and Down (▼)
buttons, to select the SOUND

MODE control with the TV’s
highlight control bar.

Press the Cursor Right

(©)

or Left (§ ) button on the
remote to turn ON the Stereo

mode.

Press the STATUS/EXITbut-

ton to remove the menu.

1

2

3

Note: Second
Audio Program
(SAP) is part of the
stereo broadcast
system. Sent as an
additional audio
channel SAP can be
heard apart from the
current TV program
sound. TV stations
are free to use SAP
for any number of
purposes, but many
experts believe it
will be used for for­eign language trans­lations of TV shows
(or for weather and
news bulletins).
If a SAP signal is
not present with a
selected program
the SAP option can­not be selected

SMART

HELP

STOP

14

3

1

MAIN MENU

LANGUAGE
CHANNEL INSTALL
CABLE TUNING

BRIGHTNESS

COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

ENGLISH
ON

34
22
29
40
0
ON

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


MUTE

CHANNEL

CH

2

BEGIN

1

3

SOUND MODE

SAP
AUDIO OUT
BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL

POWER

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

ACC

VOL

MAIN MENU

VOLUME

VIDEO L AUDIO R

A V SWITCH

1

23

4

5

89

7

SMART

0

SOUND

MENU SURF

MUTE

STEREO

OF F
FIXED
0
31
31
ON
OF F
OF F

CHANNEL

POWER

TV/VCR

6

SMARTSMART


CH

2

HOW TO SET THE INCREDIBLE STEREO CONTROL

Y

our TV has already been pre-

set at the factory for a full­time Stereo mode setting. But you
can add even greater depth and
dimension to TV program sound
reception by using the Incredible
Stereo sound control.

With the Main Menu
onscreen press the Menu button
repeatedly , or use the Cursor
(▲) Up and Down (▼) buttons,

to select INCREDIBLE STEREO
with the TV’s highlight control
bar.

Press the Cursor Right (©) or

Left (§ )button on the remote

to turn INCRED. STEREO On
(or Off).

Press the STATUS/EXITbut-

ton to remove the menu.

1

2

3

STOP

Remember,
with the Incredible
Stereo control
turned ON even
monaural (mono)
audio source materi­al can be heard
through the rear
External Speaker
sound connection
terminals on the TV.

SMART

H

ELP

USING THE BASS, TREBLE, BALANCE CONTROLS

Y

our TV has individual sound

adjustment controls. The
speaker BALANCE, TREBLE
(high frequency), and BASS (low
frequency) controls may be used
to adjust the sound quality of TV
programs.

With the Main Menu

onscreen press the Menu but-

ton repeatedly, or use the
Cursor (▲) Up and Down (▼)
buttons, to select the BAL-

ANCE (TREBLE or BASS) con­trol with the TV’s highlight con­trol bar.

Press the Cursor Right

(©)

or Left (§ ) button on the
remote to adjust the sound to the

level you prefer.

Press the STATUS/EXIT

button to remove the menu.

1

2

3

STOP

Remember,
Besides normal
BASS sound control
adjustments, you
also can set an Ultra
Bass audio range
control that will cre­ate an even deeper,
fuller low frequency
playback sound
which can be heard
through your TV
speakers.

SMART

HELP

Note: The sliding bar scale (and number
value indicator) will change onscreen as
sound adjustments are made.
For example: with the BALANCE con­trol bar scale set to center (0 number
indicator), the sound coming from the
TV’s Left and Right cabinet speakers are
equally balanced. Move the BALANCE
bar scale control to the Right or Left and
sound playback will shift accordingly.

15

BEGIN

3

1

MAIN MENU
BALANCE

TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR
AUDIO/VIDEO MUTE
REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

0

31
31
ON
OF F
OF F
ON
BLUE
OF F

VOLUME

A V SWITCH

23
5
89

SMARTSMART

0


MUTE

CHANNEL

POWER

TV/VCR

6

CH

BEGIN

3

1

MAIN MENU

BALANCE
TREBLE
BASS
ULTRA BASS

INCRED STEREO

AVL
VOLUME BAR
AUDIO/VIDEO MUTE
REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

2

0

31
31
ON
ON
OF F
ON
BLUE
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


MUTE

CHANNEL

1

CH

2

U

se the Volume Bar control to see

the TV’s volume level settings
on the TV screen. The Volume Bar
will appear when the VOL(ume) but­tons are pressed.

With the Main Menu onscreen

press the Menu button repeatedly ,

or use the Cursor (▲) Up and
Down (▼) buttons, to select VOL-

UME BAR with the TV’s highlight
control bar.

Press the Cursor Right (©) or

Left (§ )button on the remote to

turn VOLUME BAR control On (or
Off).

Press the STATUS/EXITbutton

to remove the menu.

1

2

STOP

USING THE TV VOLUME BAR CONTROL

3

Try it out.
Press the VOL(ume)
▲ Up and Down ▼
buttons. The
Volume Bar should
appear onscreen.

SMART

HELP

BEGIN

A

utomatic Volume Limiter (AVL)

allows you to preset a desired
volume level that the TV sound will
not go above or exceed. This makes
for an even, more consistent sound
by reducing the “peaks” and “val­leys” that can occur during commer­cials and other program breaks.

With the Main Menu onscreen

press the Menu button repeatedly ,
or use the Cursor (▲) Up and
Down (▼) buttons, to select AVL

with the TV’s highlight control bar.

Press the Cursor Right (©) or

Left (§ ) button on the remote to

turn the AVL control On (or Off).

Press the STATUS/EXITbutton

to remove the menu.

1

2

STOP

3

USING THE AUTOMATIC VOLUME LIMITER (AVL) CONTROL

Remember,
AVL works for
sound levels com­ing from the
Antenna/Cable
Input on the rear of
the TV (RF Audio),
or the AUX(iliary)
audio inputs for
models that are
properly equipped
(with jackpanel
expansion kit mod­ules such as Pro Kit

1).

SMART

HELP

16

BEGIN

3

1

MAIN MENU

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO

AVL

VOLUME BAR
AUDIO/VIDEO MUTE
REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

0

31
31
ON
OF F
ON
ON
BLUE
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


MUTE

CHANNEL

1

CH

3

1

MAIN MENU

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL

VOLUME BAR

AUDIO/VIDEO MUTE
REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4
7

SMART

SOUND

MENU SURF

0

31
31
ON
OF F
OF F
ON
BLUE
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


2

CHANNEL

VOL

31

1

VOL

CH

MUTE

2

Y

ou can use the Audio/Video Mute

control option to set the back­ground color for the TV screen
(when the TV is set to a blank chan­nel that is not receiving an active
video signal).

With the Main Menu onscreen

press the Menu button repeatedly ,
or use the Cursor (▲) Up and
Down (▼) buttons, to select

AUDIO/VIDEO MUTE with the
TV’s highlight control bar.

Press the Cursor Right

(©)

or

Left

(§ )button on the remote to

set AUDIO/VIDEO MUTE control
to Blue, Black, or Off (normal static
appears with non active channels).

Press the STATUS/EXITbutton

to remove the menu.

1

2

STOP

USING THE AUDIO/VIDEO MUTE

3

Try it out.
Press the CH (+, -)
buttons. The TV’s
background screen
will appear in the
selected color for
nonactive TV chan­nels.

SMART

HELP

BEGIN

Selected Background Color appears
on channels that do not receive a signal.

HOW TO SET THE CHANNEL REMINDER

W

ith the Channel Reminder

control On the current channel
number (with a Label callout, if it
also has been previously set) will
remain onscreen during normal TV
operation and use.

With the Main Menu onscreen

press the Menu button repeatedly,

or use the Cursor (▲) Up and
Down (▼) buttons, to select

REMINDER with the TV’s highlight
control bar.

Press the Cursor Right

(©) or

Left (§ ) button on the remote to

turn the REMINDER control On (or
Off).

Press the STATUS/EXITbutton

to remove the menu.

BEGIN

1

2

3

The Clock
Display control can
also be used to view
current time settings
onscreen if desired.
(See page 22 for
details).

SMART

HELP

STOP

17

3

1

MAIN MENU

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR

AUDIO/VIDEO MUTE

REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

0

31
31
ON
OF F
OF F
ON
BLUE
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


MUTE

OFF

BLACK

CHANNEL

AUX

1:15 PM

1

CH

3

1

MAIN MENU

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR
AUDIO/VIDEO MUTE

REMINDER

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

0

31
31
ON
OF F
OF F
ON
BLUE
ON

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5

89

SMARTSMART

0


2

6 WXYZ

CHANNEL

2

VOL

CH

MUTE

C

losed Captioning allows you to

read the voice content of televi­sion programs on the TV screen.
Designed to help the hearing
impaired, this feature uses on­screen "text boxes" to show dia­logue and conversations while the
TV program is in progress.

Press the CC button on the
remote, or use the Menu button
and Main Menu, to select CC

(Close Caption) with the TV’s
highlight control bar.

Press the Cursor Right (©) or
Left (§ )button on the remote to

select the desired Closed Caption
(CC) mode, for example, CC-1.

CC- 1, 2 modes:

Dialogue and descriptions
for the program appear
on-screen. Note: Usually CC-1
is the most used mode to view
captioned material.

CC ON MUTE:

Used to set the TV to turn On
the Closed Caption mode
whenever the MUTE button on

remote is pressed.

Press the STATUS/EXITbut-

ton after you select a mode. The

menu will disappear and Closed
Captioning (if available for the cur­rently selected TV program) will
appear on the TV screen.

To cancel Closed Captioning, select
OFF at step 2 above.

1

2

STOP

HOW TO SELECT THE CLOSED CAPTION FEATURE

3

CLOSE CAPTION (CC-1) mode

Example Display

BEGIN

SMART HELP

Remember, broadcast

stations will often use
spelling abbreviations, symbols,
dropouts, and other grammatical
shortcuts in order to keep pace
with the on-screen action. These
factors vary upon the source of the
captioned text material and do not
indicate a need for TV service.

NOTE: Not all TV programs and product commercials are broadcast with
Closed Caption (CC) information included. Neither are all Closed Caption
modes (CC 1 and CC 2) necessarily being used by a broadcast station during
the transmission of a closed caption program. Refer to your area's TV pro­gram listings for the stations and times of Closed Caption shows.

CLOSE CAPTION (CC-1) mode

Example Display

18

CC

V-CHIP SETUP
SLEEPTIMER
SET TIME
CLOCK DISPLAY
EXIT
LANGUAGE
CHANNEL INSTALL
CABLE TUNING

3

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

CC-1
ON

12:00 PM
ON

ENGLISH
ON

VOLUME

CHANNEL

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


CH

MUTE

1

2

JOHN: WHY DID THEY MOVE THE MEETING
UP TO THIS WEEK?
MARSHA: I DON'T KNOW, BUT THEY ARE
PUSHING TO CLOSE THE DEAL.

A

new Program Content Advisory

system is available to censor TV
program material for viewing. TV
Ratings and Movie Ratings advisory
data will soon be contained within
the broadcast signals of received TV
programs. When setup by the viewer,
the TV can respond by blocking or
denying access to TV shows (based
on whether the program meets or
exceeds the limitations you select as
viewable). Refer to the following
page sections for explanations on the
different Rating system levels and
their uses.

With the Main Menu onscreen

press the Menu button repeatedly ,
or use the Cursor (▲) Up and
Down (▼) buttons, to select V-

CHIP SETUP with the TV’s high­light control bar.

Press the Cursor Right

(©) or

Left (§ ) button on the remote to

select the V-CHIP SETUP controls
screen.

Press the Menu button, or use

the Cursor (▲) Up and Down (▼)

buttons, to select the Master Disable

control.

Press the Cursor Right

(©) or

Left (§ ) button to turn the Master

Disable control Off (or On).

With Master Disable in the “OFF”
position: All specific TV and Movie

Rating settings for blocking or cen­soring of programs will take place.

With Master Disable in the “ON”
position: All specific TV and Movie

Rating settings for blocking or cen­soring of programs will not take
place (or be disabled).

Continue to the next page for com­plete details on the specific TV
Rating and Movie Rating settings.

1

2

STOP

USING THE V-CHIP OR CONTENT ADVISORY CONTROL

3

NOTE: In normal Content Advisory
system operation the TV screen will
display a message when program­ming is blocked by a Movie Rating
or Parental Guideline.

4

19

BEGIN

CC

V-CHIP SETUP

SLEEPTIMER
SET TIME
CLOCK DISPLAY
EXIT
LANGUAGE
CHANNEL INSTALL
CABLE TUNING

1

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND

MENU SURF

VOL

MUTE

CC-1
ON

12:00 PM
ON

ENGLISH
ON

VOLUME

A V SWITCH

POWER

TV/VCR

6

SMARTSMART


CH

V-CHIP SETUP

MASTER DISABLE

TV RATINGS
MOVIE RATINGS

CHANNEL

EXIT

ON

OFF

4

2

3

USING THE V-CHIP TV RATINGS CONTROL

T

he TV Ratings control can be

very specific in the degree and
extent of program material cen­sored for TV viewing. Sub-settings
fora variety of blocking factors
can be manually switched On or
Off for use within the major TV
Ratings categories (TV-Y7, TV­PG, etc.).

With the V-CHIP SETUP
Menu onscreen press the Menu
button repeatedly, or use the
Cursor (▲) Up and Down (▼)
buttons, to select TV RATINGS

with the TV’s highlight control
bar.

Press the Cursor Right (©) or
Left (§ ) button on the remote

to use the TV RATINGS selection
chart.

Press the Menu button
repeatedly, or use the Cursor
(▲) Up and Down (▼) buttons,

to select the desired TV RAT­INGS level. For example, TV-PG.

Press the Cursor Right

(©) but-

ton on the remote to select the

specific category (ALL, V, S, L,
D) within the TV RATING.
A blinking indicator will show
which category bracket is active.

Press the Menu button, or use

Cursor (▲) Up and Down
(▼), on the remote to select (X)

the specific blocking category for
use.

Note: Selecting “ALL” (or indi­vidually adjusting the V, S, L, D
settings) for any one rating will
set all other higher level ratings to
be automatically blocked as well.

Press STATUS/EXITto save

the specific TV Rating setting.
Then press the remote control
Cursor buttons to move to the
next category area for setup or
use.

1

2

3

STOP

The TV-Y7; TV-PG; TV-14; and TV-MAguide­lines also include customized settings for various
additional items such as V (violence), S (sexual
situations), L (coarse language), and D (sugges­tive dialogue). These additional settings are cate­gory specific and can be individually selected for
use as desired.

• TV-Y - Appropriate for all children:
Designed for a very young audience, including
children ages 2-6. This type of programming is
not expected to frighten younger children.

• TV-Y7 -Appropriate for children seven

and older:

It may be more appropriate for chil­dren who have acquired the development skills
needed to distinguish between make-believe and
reality. This programming may include mild fan­tasy and comic violence.

• TV-G - General Audience:

This type of
programming contains little or no violence, no
strong language, and little or no sexual dialogue
or situations.

• TV-PG - Parental Guidance suggested:
This type of programming contains one or more
of the following: Moderate violence (V), some
sexual situations (S), infrequent coarse language
(L), or some suggestive dialogue (D).

• TV-14 - Unsuitable for children under

14:

This type of programming contains one or
more of the following: intense violence (V),
intense sexual situations (S), strong coarse lan­guage (L), or intensely suggestive dialogue (D).

• TV-MA - Mature audience only:

This
type of programming contains one or more of the
following: graphic violence (V), explicit sexual
situations (S), or crude indecent language (L).

• (V) - Violence

• (S) - Sexual situations

• (L) - Language

• (D) - Inappropriate dialogue

4

5

5

6

20

BEGIN

5

6

1

3

V-CHIP SETUP

MASTER DISABLE

TV RATINGS

MOVIE RATINGS
EXIT

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

OFF

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


CH

MUTE

TV RATINGS ALL V S L D

TV-Y
TV-Y7
TV-G

TV-PG

CHANNEL

TV-14
TV-MA
EXIT

[ ]

[ ] [ ]
[ ]
[X ] [ ] [ ] [ ] [ ]
[X ] [ ] [ ] [ ] [ ]
[X ] [ ] [ ] [ ]

4

2

CHANNEL

VOLUME

POWER

VIDEO L AUDIO R

A V SWITCH

POWER

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

TV

VCR

ACC

SMART

SMARTSMART

SOUND


MENU SURF

VOL

CH

MUTE

1

23

4

5

6

7

89
0

TV/VCR

1

3

2

4

MASTER DISABLE
TV RATINGS

MOVIE RATINGS

EXIT

V-CHIP SETUP

OFF

5

G
PG
PG-13

R

NC-17
X
NR
EXIT

MOVIE RATINGS

VIEW

VIEW
VIEW

BLOCKED

BLOCKED
BLOCKED
BLOCKED

USING THE V-CHIP MOVIE RATINGS CONTROL

M

ovie Ratings set viewing

access levels for TV pro­gramming according to current
Motion Picture Association of
America (MPAA) ratings. These
ratings are similar to the cate­gories used with the rated movies
appearing in cinema theaters and
with video rental material.

With the V-CHIP SETUP
Menu onscreen press the Menu
button repeatedly, or use the
Cursor (▲) Up and Down (▼)
buttons, to select MOVIE RAT-

INGS with the TV’s highlight
control bar.

Press the Cursor Right (©) or

Left (§ ) button on the remote

to use the MOVIE RATINGS
selection chart.

Press the Menu button
repeatedly, or use the Cursor
(▲) Up and Down (▼) buttons,

to select the desired MOVIE
RATINGS level. For example, R.

Press the Cursor Right

(©) or

Left (§ ) button on the remote

to BLOCK (or VIEW) the select­ed Movie category.

Note: When a selected Movie
Rating is “BLOCKED” all higher
level ratings are automatically
blocked as well (although each
individual Movie Rating can be
manually selected and turned On
or Off as desired). Programs with
lower than the selected rating
level are allowed for viewing or
unblocked.

Press STATUS/EXITto save

the Movie Ratings settings and
return to the V-CHIP Setup Menu
screen.

1

2

3

STOP

4

5

• G - General Audience: Most parents
would find this program suitable for all
ages. This type of programming contains lit­tle or no violence, no strong language, and
little or no sexual dialogue or situations.

• PG - Parental Guidance:

This program­ming contains material that parents may find
unsuitable for younger children. It may con­tain one or more of the following: Moderate
violence, some sexual situations, infrequent
coarse language, or some suggestive dialogue.

• PG-13:

This programming contains materi­al that parents may find unsuitable for
children under the age of 13. It con­tains one or more of the following: violence,
sexual situations, coarse language, or sugges­tive dialogue.

• R - Restricted:

This programming is
specifically designed for adults. Anyone
under the age of 17 should only view this
programming with an accompanying parent
or adult guardian. It contains one or more of
the following: intense violence, intense sexual
situations, strong coarse language, or intense­ly suggestive dialogue.

• NC-17 - No one under 17 admitted:
This type of programming should be viewed
by adults only. It contains graphic violence,
explicit sex, or crude indecent language.

• X - Mature audience only:

This type of
programming contains one or more of the fol­lowing: very graphic violence, very graphic
and explicit or indecent sexual acts, very
coarse and intensely suggestive language.

• NR - No Rating: Broadcasters can
decide not to encode any kind of content
advisory ratings with their programming.
The NO RATING (NR) Movie category

allows the viewer the option to block any
movie broadcast without content advisory
data included.

21

BEGIN

Y

our TV has an on-screen clock.

During normal use the clock
appears onscreen with every channel
change (and when the STATUS but­ton is pressed).

With the Main Menu onscreen

press the Menu button repeatedly ,
or use the Cursor (▲) Up and
Down (▼) buttons, to select SET

TIME with the TV’s highlight con­trol bar.

Press the Cursor Right

(©) or

Left (§ ) button on the remote to

select the onscreen clock for adjust­ment.

Press the remote's number but-

tons, or use the Cursor (▲) Up and

Down (▼) buttons, to enter the cur­rent time. (Press "0" first for single­digit hour entries.)

Press the STATUS/EXITbutton to
remove the menu and start the clock.

1

2

STOP

USING THE SET TIME & CLOCK DISPLAY CONTROLS

3

Remember,
in order for the
clock to appear on
the TV screen, with
channel changes,
etc., the CLOCK
DISPLAY Menu
control must also be
set to the ON posi­tion.

SMART

HELP

BEGIN

Press the number “1” and
“0”, or use the Cursor
(▲)/(▼), buttons for the
AM/PM clock settings.

CC
V-CHIP SETUP
SLEEPTIMER
SET TIME

CLOCK DISPLAY

EXIT

MAIN MENU

OF F
ON

01:45 PM
ON

SETTING THE SLEEP TIMER

H

ave you ever fallen asleep in

front of the TV, only to have
it wake you up at two in the
morning with a test pattern
screeching in your ears? Well,
your TV can save you all that
trouble by automatically turning
itself off.

With the Main Menu
onscreen press the Menu button
repeatedly, or use the Cursor
(▲) Up and Down (▼) buttons,

to select SLEEPTIMER with the
TV’s highlight control bar.

Press the Cursor Right

(©)

or Left (§ ) button on the
remote to select the amount of

time before you want the TV to
shut itself off (between 15 min­utes and 240 minutes).

Press STATUS/EXITto

remove the menu.

1

2

3

STOP

Remember,
you can refer to the
Sleeptimer Menu
control to see how
many minutes are
left before the TV
shuts itself off.

To cancel a SLEEP
TIMER setting:
select OFF at step
2; or, pressing a
button on the TV or
remote during the
last minute of the
Sleeptimer count­down will cancel a
setting; or, turning
the TV off, then on
again, will also can­cel a setting.

SMART

HELP

An onscreen countdown will
appear on the TV during the last
minute before the set is to shut off.
A “GOODBYE” message will also
show onscreen during the last ten
seconds of the countdown.

22

BEGIN

1

CC
V-CHIP SETUP

SLEEPTIMER

SET TIME
CLOCK DISPLAY
EXIT
LANGUAGE
CHANNEL INSTALL
CABLE TUNING

3

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

OF F
15

12:00 PM
ON

ENGLISH
ON

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5

89

SMARTSMART

0


MUTE

6 WXYZ

GOODBYE

CHANNEL

10 SEC

2

CH

3

1

MAIN MENU

CC
V-CHIP SETUP
SLEEPTIMER

SET TIME

CLOCK DISPLAY
EXIT
LANGUAGE
CHANNEL INSTALL
CABLE TUNING

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4
7

SMART

SOUND

MENU SURF

OF F
ON

01:45 PM

ON
ENGLISH
ON

VOLUME

CHANNEL

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


1

VOL

CH

MUTE

2

EXTERNAL SPEAKERS

88

+ R – – L +

INT

SPEAKERS

EXT

VARIABLE

AUDIO OUT

+

-

+-

2

3

EXTERNAL
SPEAKER

SMART
PLUG

75Ω
ANT/
CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

IN

R AUDIO LOOP L

OUT

IN

R AUDIO LOOP L

OUT

VIDEO

OUT

EXTERNALEXTERNAL SPEAKERS SPEAKERS

88

+ R + R – – L +

INTINT

SPEAKERSSPEAKERS

EXTEXT
VARIABLEARIABLE
AUDIO OUTAUDIO OUT

1

Set the SPEAKERS SWITCH on the
rear of the TV to "EXT" POSITION
(to eliminate sound at the set).

USING THE EXTERNAL SPEAKER TERMINALS

A

set of External Speaker termi-

nals is located on the rear of
the TV. These speaker terminals
allow you to connect optional
external speakers for Right/Left
channel stereo sound.

Connect both external speak-

ers to the correct EXTERNAL

SPEAKER (Left/Right) terminals
on the TV. See Smart Help Note
for additional details on connec­tions.

Place the external speakers to

maximize the Left and Right
channel stereo sound separation
(within current room dimensions).

Set the SPEAKERS switch

(on the rear of the TV) to the
"EXT(ernal)" position.

1

2

STOP

Remember,
be sure the (+) and
(-) speaker wires
are connected to the
correct R(ight) and
L(eft) speaker ter­minals on the TV.
Recommended
speakers are 8 ohm,
15 watt minimum.

Note: Lift up on the
(Red & Black)
Speaker Wire
Clamps when
inserting the speak­er wire into the cor­rect terminal. Press
the Clamp back
down to secure the
wire in place.

SMART

HELP

BEGIN

3

HOW TO USE THE ON-SCREEN LANGUAGE OPTION

F

or our French and Spanish

speaking TV owners, an on­screen LANGUAGE option is
available. You may set the TV's
onscreen menu to appear in either
English, French, or Spanish text.

With the Main Menu
onscreen press the Menu button
repeatedly, or use the Cursor
(▲) Up and Down (▼) buttons,

to select LANGUAGE with the
TV’s highlight control bar.

Press the Cursor Right (©) or
Left (§ ) button on the remote

to select English, French (FRAN­CAIS), or Spanish (ESPANOL).
Text in the onscreen Menu will
appear in the selected language.

Press STATUS/EXITto remove

the menu.

1

2

3

STOP

Remember,
the Language con­trol only makes the
TV's onscreen
Menu items appear
in French or
Spanish text. It does
not change the lan­guage of other
onscreen text fea­tures, such as
Closed Captioning.

SMART

HELP

BEGIN

23

3

1

MAIN MENU
LANGUAGE

CHANNEL INSTALL
CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4
7

SMART

SOUND

MENU SURF

VOL

ENGLISH

ON
34
22
29
40
0
OF F

VOLUME

A V SWITCH

POWER

TV/VCR

23

6

5
89

SMARTSMART

0


MUTE

LANGUE

CHANNEL INSTALL
SYNT. DE BANDE
BRILLANCE
COULEUR

CHANNEL

1

CH

CONTRASTE
NETTETE
TEINTE
REDUCTION DU BRUIT

IDIOMA

INSTAL. CANALES
SINTONIA DE BANDA
BRILLO
COLOR
CONTRASTE
NITIDEZ
TINTE
REDUCCION DE RUIDO

FRANCAIS

MARCHE
34
22
29
40
0
ARRET

ESPANOL

SI
34
22
29
40
0
NO

2

USING THE AUDIO OUTPUT JACKS

W

ould you like to hear TV pro-

grams through your audio hi­fi system? The TV's Audio Output
jacks offer you this sound playback
option.

Connect the R(ight) and L(eft)

VARIABLE AUDIO OUT jacks

on the TV to the R and L Audio
Input jacks on your amplifier or
sound system.

Set the audio system's volume to
normal listening level.

Turn On the TV and the audio

system. You can now adjust the

sound level coming from the audio
system with the Volume ▲▼ but­tons on the TV or remote. (Also
see the Smart Help section for fur­ther audio mode and sound adjust
details.

STOP

1

2

BACK OF TV

AUDIO SYSTEM

AUDIO OUT

(RED/WHITE)

RCA PHONO PLUG

CABLES (NOT

SUPPLIED)

BEGIN

Note: You can
use the TV’s
AUDIO OUT Menu
control to set the
rear Audio Outputs
to operate in either a
Fixed or Variable
sound mode.
“VARIABLE”
allows you to adjust
the playback of pro­gram sound using
TV’s Volume con­trol buttons.
“FIXED” is intend­ed to make sound
adjustments on the
external Audio
System equipment.

SMART

HELP

USING THE FRONT AUDIO/VIDEO INPUT JACKS

CHANNEL

VOLUME

POWER

VIDEO L AUDIO R

A V SWITCH

VIDEO L AUDIO R

CHANNEL

CHANNEL RING

INPUT
LABEL
AUTO PROGRAM
EXIT

CHANNEL INSTALLATION

FRONT

SAVED
FRONT
( )

CHANNEL

CHANNEL RING
INPUT
LABEL
AUTO PROGRAM
EXIT

CHANNEL INSTALLATION

FRONT

DELETED
FRONT
( )

4

2

1

3

F

or more convenient Direct

playback connections the TV's
Front Input jackpanel can be used.
These easily accessed Audio/Video
Inputs allow for quick playback
connections, particularly for view­ing of Camcorder tape recordings.

Connect the VIDEO OUT jack

from the Camcorder to the VIDEO
IN jack on the front of the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the
Camcorder to the AUDIO IN jacks
on the front of the TV.

Select the "FRONT" INPUT

source control on the TV.
Note: You can use the A/V

SWITCH buttons on the front of
the TV. (Or, you can Save the
FRONT Inputs as part of the TV’s
Channel Ring. See Smart Help).

Turn the Camcorder ON and

press PLAY to view the tape on
the TV.

1

2

3

4

STOP

FRONT PANELAUDIO/VIDEO

INPUT JACKS

VIDEO IN

(YELLOW)

AUDIO IN

(RED/WHITE)

If you have a single (monaural)
Audio Output Camcorder, "Y"
connectors are available to
complete your connection.
Contact your dealer, or local
electronic parts supply store, to
order optional accessories.

CAMCORDER

PICTURE AND SOUND FROM PLAYBACK

OF CAMCORDER TAPE

BEGIN

AUDIO/VIDEO

OUTPUT JACKS

ON CAMCORDER

Remember,
if you have added
the FRONT Inputs
to the TV's channel
memory ring (see
page 12), you can
just press the
Channel +,- buttons
to select the
FRONT A/V mode.

SMART

HELP

The audio system may have
to be in AUX(iliary) mode
to play sound from the TV.

Sound from the TV's
internal speakers
may be eliminated
by setting the
SPEAKERS switch
on the rear of the set
to EXT.

24

EXTERNALEXTERNAL SPEAKERS SPEAKERS

SMART

EXTERNAL

PLUG

SPEAKER

75Ω
ANT/
CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

IN

IN

VIDEO

R AUDIO LOOP L

R AUDIO LOOP L

OUT

OUT

OUT

88

+ R + R – – L +

EXTEXT

INTINT

SPEAKERSSPEAKERS

VARIABLEARIABLE

AUDIO OUTAUDIO OUT

1

2

R

VARIABLE

AUDIO OUT

EXTERNAL SPEAKERS

+ R – – L +

L

INT

SPEAKERS

R

AUX/TV INPUT

PHONO INPUT

88

EXT

L

SETTING THE REMOTE CONTROL TO WORK WITH OTHER DEVICES

Y

our remote control is set to

work your TV and many
infrared remote (IR) control
VCRs, Cable Boxes, Satellite
Systems, DBS, DVD, etc.
However, an easy onetime step
may be necessary before the
remote will work your accessory.

Try this initial check to see if
going on to the following section
is necessary.

Place the TV/VCR/ACC

Mode Switch in the proper posi-

tion.

Point the remote control at

the device and press the POWER
button.

Does the remote turn the

device ON?
If YES, stop and try other func-

tion buttons on the remote. If
they also work the device, then
the remote is ready and no fur­ther steps are needed.

If NO, continue...

1

2

3

Cable Converter

SMART HELP

Remember, if more than

one number is listed, you may
have to try more than the first Three­Digit code given in order to locate
your Device’s proper remote code.

BEGIN

Satellite Receiver

First look up a THREE-DIGIT

remote control number for your
brand of Device before going
through the simple steps on the
following page.

Find your Accessory Device
Three-Digit Codes listed on

pages 28-29.

1

VCR

25

SLEEP

1

A/CH STATUS/EXIT CC

RECORD

TV

VCR

1

ACC

4

7

SMART

SOUND

POWER

SLEEP

A/CH

TV

CLOCK

CC

STATUS/EXIT

RECORD

VCR

ACC

SMART

SOUND

23
5

6

8

0

TV/VCR

MENU

2

SMART


SURF

MUTE

VOL CH

SETTING THE REMOTE CONTROL TO WORK WITH OTHER DEVICES

N

ow that you have looked up

the three-digit Remote Code
Number for your brand of device,
you are ready to follow the sim­ple steps shown below.

Please read through steps 1-4
before beginning.

Place the TV/VCR/ACC

Mode Switch in the proper posi-

tion.

Press the (A/CH) • RECORD

button on the remote control and

release.

Press the SmartSound button

on the remote within 30 seconds,
then release.

Enter the THREE-DIGIT

REMOTE CODE NUMBER

for your desired device. The
remote is now ready to send
commands to the unit.

Point the remote at the

Device. Press the POWER button
on the remote to turn the unit
ON.

1

2

3

Cable Converter

SMART HELP

Remember, if this doesn’t

work the first time, repeat steps

using the same remote code number.
After a second try and the remote

does not operate your device, see if
there is another three-digit code num­ber listed for your device and repeat
the steps above using the new num­ber.

If after repeated attempts the code
number method does not work your
device, try the SEARCH METHOD
on the following page.

BEGIN

Satellite Receiver

or DBS, DVD

VCR

4

5

STOP

Direct Access Method

26

1

3

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

TV

VCR

1

ACC

4

7

SMART

SOUND

23
5

89
0

POWER

2

TV/VCR

4

6

SMART


POWER

SLEEP

CC

STATUS/EXIT

A/CH

RECORD

TV

VCR

ACC

MENU SURF

VOL

MUTE

CH

5

CLOCK

TV/VCR

SMART

SMART


SURF

SOUND

MENU

MUTE

VOL CH

SETTING THE REMOTE CONTROL TO WORK WITH OTHER DEVICES

Y

our TV remote can be set to

work various external devices
such as VCRs, Cable Boxes,
Satellite Receivers, DBS, DVD,
etc. by what is called the search
method.

If the “Remote Code” number
method shown on the previous
pages did not set your remote to
work your external device, then
follow the easy steps listed below.

Please read steps 1-4 before
beginning.

Press the POWER button on

the device your are attempting to
program to turn it ON.

Place the TV/VCR/ACC

Mode Switch in the proper posi-

tion.

Press the (A/CH) •
RECORD and the SMART
SOUND buttons simultaneous­ly and hold them down.

The device will begin to

change channels after the

remote identifies the correct
code. When the channels start to
change release the A/CH
RECORD and SMART SOUND
buttons. The remote should be
ready to operate the device.

1

2

3

Cable Converter

SMART HELP

This method can take up to

two minutes to complete.

Don’t let the device scan up more
than five channels. If you do the
remote may pass up the right code,
and another two minute search cycle
will have to be repeated.

If no channel change happens within
two minutes, repeat steps 1-4.
Should a channel change still not
occur, the remote will not work with
the desired device.

BEGIN

Satellite Receiver

VCR

4

STOP

Search Method

27

1

07

08

06

07

09

06

07

08

09

08

2

3

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

TV

VCR

1

ACC

23

4

5
89

7

SMART

0

SOUND PICTURE

MENU SURF

VOL

MUTE

SMART

POWER

TV/VCR

6

3

09

4

CH

REMOTE CONTROL DIRECT ENTRY CODES

REMOTE

VCR

CODE NO.

Admiral . . . . . . . . . . . . . . . . . . . . . . . .048

Advantz . . . . . . . . . . . . . . . . . . . . . . . .358

Adventure . . . . . . . . . . . . . . . . . . . . . .000

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . .278

Aiwa . . . . . . . . . . .000, 037, 307, 348, 352

Akai . . . . . . .041, 049, 053, 061, 106, 315

Alba . . . . . . . . . . . . . . . . . . . . . . . . . . .352

Amercian High . . . . . . . . . . . . . . . . . .035

Amstrad . . . . . . . . . . . . . . . . . . . .325, 332

Asha . . . . . . . . . . . . . . . . . . . . . . . . . .240

Audiovox . . . . . . . . . . . . . . . . . . . . . . .037

Baird . . . . . . . . . . . . . . . . . . . . . . . . . .107

Beaumark . . . . . . . . . . . . . . . . . . . . . .240

Bell & Howell . . . . . . . . . . . . . . . . . . .104

Blaupunkt . . . . . . . . . . . . . . .003, 006, 154

Brandt . . . . . . . . . . . . . . . . .187, 320, 321

Broksonic . . . . . . .121, 184, 211, 295, 361

Bush . . . . . . . . . . . . . . . . . . . . . . . . . .352

CCE . . . . . . . . . . . . . . . . . . . . . . .072, 278

Calix . . . . . . . . . . . . . . . . . . . . . . . . . .037

Canon . . . . . . . . . . . . . . . . . . . . . . . . .035

Capehart . . . . . . . . . . . . . . . . . . . . . . .020

Carver . . . . . . . . . . . . . . . . . . . . .081, 146

Citizen . . . . . . . . . . . . . . . . . . . . .037, 278

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . .072

Combitach . . . . . . . . . . . . . . . . . . . . . .352

Craig . . . . . . . . . . .037, 047, 072, 240, 271

Curtis Mathes . . . . . . . . . . . .035, 041, 060

Cybermax . . . . . . . . . . . . . . . . . .051, 240

Daewoo . . . . . . . . . . . . . . . .020, 045, 276

Daytron . . . . . . . . . . . . . . . . . . . . . . . .020

Denon . . . . . . . . . . . . . . . . . . . . . . . . .042

Dynatech . . . . . . . . . . . . . . . . . . . . . . .000

Electrophonic . . . . . . . . . . . . . . . . . . . .037

Emerex . . . . . . . . . . . . . . . . . . . . . . . .032

Emerson . . . .000, 002, 036, 037, 043, 061

. . . . . . . . . .068, 088, 121, 164, 208, 209,

. . . . . . . . . . .211, 212, 278, 295, 361, 479

Ferguson . . . . . . . . . . . . . . .107, 320, 321

Fisher . . . . . . . . . . . . . .047, 054, 066, 104

Fuji . . . . . . . . . . . . . . . . . . . . . . .033, 035

Funai . . . . . . . . . . . . . . . . . . . . . . . . . .000

GE . . . . . . . . . . . . . . . .035, 060, 065, 202

Garrard . . . . . . . . . . . . . . . . . . . . . . . .000

Go Video . . . . . . . . . . . . . . .232, 279, 432

Gold Star . . . . . . . . . . . . . . . . . . .037, 038

Gradiente . . . . . . . . . . . . . . . . . . .000, 406

Grundig . . . . . . . . . . . .003, 007, 195, 347

HI-Q . . . . . . . . . . . . . . . . . . . . . . . . . .047

Harley Davidson . . . . . . . . . . . . . . . . .000

Harman/Kardon . . . . . . . . . . . . . .038, 075

Harwood . . . . . . . . . . . . . . . . . . .068, 072

Headquarter . . . . . . . . . . . . . . . . . . . . .046

Hinari . . . . . . . . . . . . . . . . . . . . .004, 352

Hitachi . . . . . . . . . . . . .000, 004, 041, 042,

. . . . . . . . . . . . . . . . . . .065, 105, 168, 235

Ingersol . . . . . . . . . . . . . . . . . . . . . . . .004

JVC . . . . . . . .008, 041, 067, 208, 384, 486

Jensen . . . . . . . . . . . . . . . . . . . . . . . . .041

KEC . . . . . . . . . . . . . . . . . . . . . . .037, 278

KLH . . . . . . . . . . . . . . . . . . . . . . . . . .072

Kenwood . . . . . . . . . . .038, 041, 067, 384

Kodak . . . . . . . . . . . . . . . . . . . . .035, 037

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Lloyd’s . . . . . . . . . . . . . . . . . . . . .000, 206

REMOTE

VCR

CODE NO.

Loewe . . . . . . . . . . . . . . . . . . . . . . . . .004

Logik . . . . . . . . . . . . . . . . . . . . . .004, 072

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . .035

MGA . . . . . . . . . . . . . . . . . . . . . .043, 061

MGN Technology . . . . . . . . . . . . . . . .240

MTC . . . . . . . . . . . . . . . . . . . . . .000, 240

Magnavox . . . . . . .000, 035, 081, 146, 181

Marta . . . . . . . . . . . . . . . . . . . . . . . . . .037

Matsui . . . . . . . . . . . . . . . . .004, 348, 352

Matsushita . . . . . . . . . . . . . .035, 162, 454

Memmorex . . . . . . . . . . . . . . . . . . . . .307

Memorex . . . . . . .000, 035, 037, 039, 046,

. . . . . . . . . . .047, 048, 104, 240, 266, 307

Metz . . . . . . . . . . . . . . . . . . . . . .003, 347

Minolta . . . . . . . . . . . . . . . . . . . .042, 105

Mitsubishi . . .043, 061, 067, 075, 173, 443

Motorola . . . . . . . . . . . . . . . . . . .035, 048

Multitech . . . . . . . . . . . . . . . . . . .000, 072

NAD . . . . . . . . . . . . . . . . . . . . . . . . . .058

NEC . . . . . . . . . . .036, 040, 041, 067, 104

Nikko . . . . . . . . . . . . . . . . . . . . . . . . .037

Nikon . . . . . . . . . . . . . . . . . . . . . .034, 253

Noblex . . . . . . . . . . . . . . . . . . . . . . . . .240

Nordmende . . . . . . . . . . . . . .297, 320, 321

Okano . . . . . . . . . . . . . . . . . . . . . . . . .346

Olympus . . . . . . . . . . . . . . . . . . .035, 226

Optimus . . . . . . . . . . . .037, 048, 058, 104,

. . . . . . . . . . . . . . . . . . . . . .162, 432, 454

Optonica . . . . . . . . . . . . . . . . . . . . . . .062

Orion . . . . . . . . . .004, 295, 348, 352, 479

Panasonic . . . . . . . . . .035, 077, 162, 225,

. . . . . . . . . . . . . . . . . . . . . .226, 378, 454

Penney . . . . . . . . . . . . .035, 037, 038, 040,

. . . . . . . . . . . . . . . . . . . . . .042, 065, 105

Pentax . . . . . . . . . . . . . . . . .042, 065, 105

Philco . . . . . . . . . . . . . . . . . . . . . . . . .035

Philips . . . . . . . . . .035, 062, 081, 110, 403

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Pioneer . . . . . . . . . . . . . . . . . . . . .058, 067

Portland . . . . . . . . . . . . . . . . . . . . . . . .020

Profax . . . . . . . . . . . . . . . . . . . . . . . . .322

Profitronic . . . . . . . . . . . . . . . . . . . . . .240

Protec . . . . . . . . . . . . . . . . . . . . . . . . .072

Pulsar . . . . . . . . . . . . . . . . . . . . . .039, 051

Quarter . . . . . . . . . . . . . . . . . . . . . . . .046

Quartz . . . . . . . . . . . . . . . . . . . . . . . . .046

Quasar . . . . . . . . . . . . .035, 077, 162, 454

RCA . . . . . . . . . . . . . .042, 060, 065, 077,

. . . . . . . . . . . . . . . . . . .105, 106, 149, 202

Radio Shack . . . . . . . . . . . . . . . . .000, 037

Radix . . . . . . . . . . . . . . . . . . . . . . . . . .037

Randex . . . . . . . . . . . . . . . . . . . . . . . .037

Realistic . . . . . . . .000, 035, 037, 045, 047

. . . . . . . . . . . . . . . . . . 048, 062, 066, 104

Ricoh . . . . . . . . . . . . . . . . . . . . . .034, 253

Runco . . . . . . . . . . . . . . . . . . . . . . . . .039

SEG . . . . . . . . . . . . . . . . . . . . . . . . . . .322

SEI . . . . . . . . . . . . . . . . . . . . . . . . . . .004

STS . . . . . . . . . . . . . . . . . . . . . . . . . . .042

Saba . . . . . . . . . . . . . . . . . . .297, 320, 321

Saisho . . . . . . . . . . . . . . . . . . . . . . . . .004

Salora . . . . . . . . . . . . . . . . . . . . . . . . .075

Samsung . . . . . . . . . . . .045, 051, 053, 240

Sanky . . . . . . . . . . . . . . . . . . . . . .039, 048

Sansui . . . . . . . . . . . . . .000, 041, 067, 271

REMOTE

VCR

CODE NO.

Sanyo . . . . . . . . . .046, 047, 104, 240, 268

Saville . . . . . . . . . . . . . . . . . . . . . . . . .352

Scott . . . . . . .043, 045, 121, 164, 211, 212

Sears . . . . . . . . . .000, 035, 037, 042, 046,

. . . . . . . . . . . . . . .047, 054, 066, 104, 105

Sharp . . . . . . . . . . . . . . . . . . . . . .046, 062

Shintom . . . . . . . . . . . . . . . . . . . . . . . .072

Shogun . . . . . . . . . . . . . . . . . . . . .051, 240

Shoral . . . . . . . . . . . . . . . . . . . . . . . . .004

Siemens . . . . . . . . . . . . . . . . . . . . . . . .003

Singer . . . . . . . . . . . . . . . . . . . . . . . . .072

Sinudyne . . . . . . . . . . . . . . . . . . . . . . .004

Sony . . . . . . . . . .000, 011, 022, 032, 033,

. . . . . . . . . . . . . . . . . . .034, 035, 253, 275

Sunkel . . . . . . . . . . . . . . . . . . . . . . . . .348

Sunpak . . . . . . . . . . . . . . . . . . . . . . . .253

Sylvania . . . .000, 035, 043, 081, 103, 110

Symphonic . . . . . . . . . . . . . . . . . . . . . .000

TMK . . . . . . . . . . . . . . . . . .036, 208, 240

Tatung . . . . . . . . . . . . . . . . . . . . . . . . .041

Teac . . . . . . . . . . . . . . . . . . . . . . .000, 041

Technics . . . . . . . . . . . . . . . . . . . .035, 162

Teknika . . . . . . . . . . . . . . . .000, 035, 037

Telefunken . . . . . . . . . . . . . .187, 320, 321

Tansal . . . . . . . . . . . . . . . . . . . . . . . . .322

Thomas . . . . . . . . . . . . . . . . . . . . . . . .000

Thomson . . . . . . . . . . . . . . . . . . . . . . .320

Toshiba . . . . . . . . .043, 045, 066, 212, 366

Totavision . . . . . . . . . . . . . . . . . .037, 240

Towada . . . . . . . . . . . . . . . . . . . . . . . .322

Unitech . . . . . . . . . . . . . . . . . . . . . . . .240

Universum . . . . . . . . . . . . . . . . . . . . . .325

Vactor . . . . . . . . . . . . . . . . . . . . . . . . .045

Vactor Research . . . . . . . . . . . . . .038, 040

Video Concepts . . . . . . . . . .040, 045, 061

Videosonic . . . . . . . . . . . . . . . . . . . . . .240

Wards . .000, 035, 042, 047, 048, 060, 062,

. . . . . . . . . . .072, 081, 149, 161, 212, 240

XR-1000 . . . . . . . . . . . . . . .000, 035, 072

Yamaha . . . . . . . . . . . . . . . . . . . . . . . .038

Zenith . . . . . . . . . . . . . .000, 033, 034, 039

CABLE REMOTE
CONVER

TOR CODE NO.

ABC . . . . . . . . . . . . . .001, 003, 007, 008,

. . . . . . . . . . . . . . . . . . .011, 013, 014, 017

Aliegio . . . . . . . . . . . . . . . . . . . . . . . .153

Andover . . . . . . . . . . . . . . . . . . . . . . . .544

Antronix . . . . . . . . . . . . . . . . . . . . . . .022

Archer . . . . . . . . . . . . . . . . . . . . .022, 153

Balcor . . . . . . . . . . . . . . . . . . . . . . . . .056

British Telecom . . . . . . . . . . . . . . . . . .105

Cable Star . . . . . . . . . . . . . . . . . . . . . .056

Cablatenna . . . . . . . . . . . . . . . . . . . . . .022

Cabletime . . . . . . . . . . .161, 271, 377, 448

Cableview . . . . . . . . . . . . . . . . . . . . . .022

Century . . . . . . . . . . . . . . . . . . . . . . . .153

Citizen . . . . . . . . . . . . . . . . . . . . . . . . .153

Clyde . . . . . . . . . . . . . . . . . . . . . . . . . .086

Colour Voice . . . . . . . . . . . . . . . .025, 031

Comtec . . . . . . . . . . . . . . . . . . . . . . . .274

Comtronics . . . . . . . . . . . . . . . . . . . . .040

Contec . . . . . . . . . . . . . . . . . . . . . . . . .019

Cryptovision . . . . . . . . . . . . . . . . . . . .600

Deceat . . . . . . . . . . . . . . . . . . . . . . . . .423

28

REMOTE CONTROL DIRECT ENTRY CODES

CABLE REMOTE
CONVER

TOR CODE NO.

Eastern . . . . . . . . . . . . . . . . . . . . .002, 274

Everquest . . . . . . . . . . . . . . . . . . .015, 040

Filmnet . . . . . . . . . . . . . . . . . . . . . . . .443

Focus . . . . . . . . . . . . . . . . . . . . . . . . . .400

France Telecom . . . . . . . . . . . . . . . . . .451

GC Electronics . . . . . . . . . . . . . . . . . .056

GEC . . . . . . . . . . . . . . . . . . . . . . . . . .086

Ganard . . . . . . . . . . . . . . . . . . . . . . . . .153

Gemini . . . . . . . . . . . . . . . . .015, 070, 242

General Instrument . . . . . . . .011, 276, 476

Gold Star . . . . . . . . . . . . . . . . . . . . . . .040

Grundig . . . . . . . . . . . . . . . . . . . . . . . .529

Hamlin . . . . . . . . . . . . .009, 020, 034, 259

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . .011

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . .007

Jasco . . . . . . . . . . . . . . . . . . . . . . . . . .153

Jerrold . . . . . . . . . . . . .003, 011, 012, 014,

. . . . . . . . . . . . . . . . . . .015, 024, 276, 476

M.N.E. T. . . . . . . . . . . . . . . . . . . . . . . .443

MNet . . . . . . . . . . . . . . . . . . . . . . . . . .443

Macon . . . . . . . . . . . . . . . . . . . . . . . . .033

Magnavox . . . . . . . . . . . . . .027, 032, 334

Memorex . . . . . . . . . . . . . . . . . . . . . . .000

Movie Time . . . . . . . . . . . . . . . . . . . . .063

NSC . . . . . . . . . . . . . . . . . . . . . . .063, 070

Oak . . . . . . . . . . . . . . . . . . . . . . .007, 019

Optimus . . . . . . . . . . . . . . . . . . . . . . . .021

Panasonic . . . . . . . . . . . . . . .000, 021, 107

Paragon . . . . . . . . . . . . . . . . . . . . . . . .000

Philips . .025, 027, 031, 153, 242, 290, 334

Pioneer . . . . . . . . . . . . . . . . . . . . .533, 753

Popular Mechanics . . . . . . . . . . . . . . . .400

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . .000

RCA . . . . . . . . . . . . . . . . . . . . . . . . . .021

Radio Shack . . . . . . . . . . . . . . . . . . . .015

Recoton . . . . . . . . . . . . . . . . . . . . . . . .400

Regal . . . . . . . . . . . . . . . . . . . . . .020, 259

Regency . . . . . . . . . . . . . . . . . . . . . . . .002

Rembrandt . . . . . . . . . . . . . . . . . .011, 070

Runco . . . . . . . . . . . . . . . . . . . . . . . . .000

SL Marx . . . . . . . . . . . . . . . . . . . . . . .040

Salora . . . . . . . . . . . . . . . . . . . . . . . . .382

Samsung . . . . . . . . . . . . . . . . . . . . . . .040

Satbox . . . . . . . . . . . . . . . . . . . . . . . . .375

Scientific Atlanta . . . . . . . . .008, 017, 477

Signal . . . . . . . . . . . . . . . . . . . . .015, 040

Signature . . . . . . . . . . . . . . . . . . . . . . .011

Sprucer . . . . . . . . . . . . . . . . . . . . . . . .021

Star Sight . . . . . . . . . . . . . . . . . . . . . . .542

Starcom . . . . . . . . . . . . . . . . . . . .003, 015

Stargate . . . . . . . . . . . . . . . . . . . .015, 040

Starquest . . . . . . . . . . . . . . . . . . . . . . .015

Sylvania . . . . . . . . . . . . . . . . . . . . . . . .001

TV85 . . . . . . . . . . . . . . . . . . . . . . . . . .063

Tandy . . . . . . . . . . . . . . . . . . . . . . . . .258

Tele+1 . . . . . . . . . . . . . . . . . . . . . . . . .443

Teleservice . . . . . . . . . . . . . . . . . . . . . .281

Teleview . . . . . . . . . . . . . . . . . . . . . . .040

Texscan . . . . . . . . . . . . . . . . . . . . . . . .001

Timeless . . . . . . . . . . . . . . . . . . . . . . .274

Tocom . . . . . . . . . . . . . . . . .012, 013, 059

Toshiba . . . . . . . . . . . . . . . . . . . . . . . .000

Tudl . . . . . . . . . . . . . . . . . . . . . . . . . . .286

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . .015

Unike . . . . . . . . . . . . . . . . . . . . . .022, 153

CABLE REMOTE
CONVER

TOR CODE NO.

United Artists . . . . . . . . . . . . . . . . . . . .007

United Cable . . . . . . . . . . . . . . . . . . . .003

Universal . . . . . . . . . . .022, 056, 153, 191

Videoway . . . . . . . . . . . . . . . . . . . . . .250

Viewstar . . . . . . . . . . . . . . . .027, 063, 258

Visi Cable+ . . . . . . . . . . . . . . . . . . . . .461

Westminster . . . . . . . . . . . . . . . . . . . . .105

Wolsey Gaine . . . . . . . . . . . . . . . . . . .544

Zenith . . . . . . . . . . . . . . . . . .000, 054, 525

Zentek . . . . . . . . . . . . . . . . . . . . . . . . .400

REMOTE

DBS

CODE NO.

Alpha Star . . . . . . . . . . . . . . . . . . . . . .772

Echostar . . . . . . . . . . . . . . . . . . . . . . . .775

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . .775

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . .819

Hughes Network System . . . . . . . . . . .749

Jerrold . . . . . . . . . . . . . . . . . . . . . . . . .627

Magnavox . . . . . . . . . . . . . . . . . .722, 724

Memorex . . . . . . . . . . . . . . . . . . . . . . .724

Panasonic . . . . . . . . . . . . . . . . . . . . . .701

Philips . . . . . . . . . . . . . . . . . . . . .722, 724

Primestar . . . . . . . . . . . . . . . . . . . . . . .627

RCA . . . . . . . . . . . . . . . . . . . . . . . . . .566

Sony . . . . . . . . . . . . . . . . . . . . . . . . . .639

Toshiba . . . . . . . . . . . . . . . . . . . . . . . .790

Uniden . . . . . . . . . . . . . . . . . . . . . . . . .724

REMOTE

Satellite

CODE NO.

AST . . . . . . . . . . . . . . . . . . . . . . . . . . .351

Akai . . . . . . . . . . . . . . . . . . . . . . . . . . .515

Alba . . . . . . . . . . . . . . . . . . .352, 515, 613

Aldea . . . . . . . . . . . . . . . . . . . . . . . . . .288

Amstrad . . . .080, 252, 345, 461, 509, 689

Ankaro . . . . . . . . . . . . . . . . .220, 288, 369

Anitron . . . . . . . . . . . . . . . . . . . . . . . .183

Armstrong . . . . . . . . . . . . . . . . . . . . . .243

Astra . . . . . . . . . . . . . . . . . . . . . . . . . .108

Avalon . . . . . . . . . . . . . . . . . . . . . . . . .396

Axis . . . . . . . . . . . . . . . . . . . . . . . . . . .369

BT . . . . . . . . . . . . . . . . . . . . . . . .515, 668

Beko . . . . . . . . . . . . . . . . . . . . . . . . . .189

Best . . . . . . . . . . . . . . . . . . . . . . . . . . .369

Boca . . . . . . . . . . . . . . . . . . . . . .243, 513

Bush . . . . . . . . . . . . . . . . . . . . . . . . . .067

Cambridge . . . . . . . . . . . . . . . . . .344, 515

Channel Master . . . . . . . . . . . . . . . . . .362

Commlink . . . . . . . . . . . . . . . . . . . . . .288

Connexions . . . . . . . . . . . . . . . . . . . . .396

Conrad . . . . . . . . . . . . . . . . . . . . . . . . .607

Crown . . . . . . . . . . . . . . . . . . . . . . . . .243

DDC . . . . . . . . . . . . . . . . . . . . . . . . . .362

DNT . . . . . . . . . . . . . . . . . . . . . . . . . .396

Echostar . . . . . . . . . . . . . . . . . . . . . . . .396

Farguson . . . . . . . . . . . .067, 183, 189, 336

Fidelity . . . . . . . . . . . . . . . . . . . . . . . .252

Finiux . . . . . . . . . . . . . . . . . . . . .108, 397

Fuba . . . . . . . . . . . . . . . . . . . . . . .369, 396

G-Bat . . . . . . . . . . . . . . . . . . . . . . . . . .183

Galaxis . . . . . . . . . . . . . . . . . . . . . . . .286

Gooding . . . . . . . . . . . . . . . . . . . . . . . .571

Grundig . . . . . . . . . . . .173, 189, 571, 750

Hinari . . . . . . . . . . . . . . . . . . . . . . . . .183

REMOTE

Satellite

CODE NO.

Hirschmann . . . . . . . . . . . . . . . . .397, 573

Houston . . . . . . . . . . . . . . . . . . . . . . . .668

Huth . . . . . . . . . . . . . . . . . . .220, 243, 268

ITT . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Intervision . . . . . . . . . . . . . . . . . . . . . .592

JVC . . . . . . . . . . . . . . . . . . . . . . .515, 571

Kathrein . . . . . . . . . . . .092, 504, 622, 658

La Sat . . . . . . . . . . . . . . . . . . . . .513, 607

Lennox . . . . . . . . . . . . . . . . . . . . . . . .592

Lupus . . . . . . . . . . . . . . . . . . . . . . . . .369

Luxor . . . . . . . . . . . . . . . . . . . . . .108, 573

Manhatten . . . . . . . . . . . . . . . . . . . . . .592

Maspro . . . . . . . . . . . . . . . . .092, 336, 750

Matsui . . . . . . . . . . . . . . . . . . . . . . . . .571

Mediamarkt . . . . . . . . . . . . . . . . . . . . .248

Minerva . . . . . . . . . . . . . . . . . . . . . . . .571

Mintec . . . . . . . . . . . . . . . . . . . . . . . . .576

Morgan’s . . . . . . . . . . . . . . . . . . .243, 513

Newhaus . . . . . . . . . . . . . . . . . . . . . . .220

Nikko . . . . . . . . . . . . . . . . . . . . . .360, 713

Nokia . . . . . . . . . . . . . . . . . .108, 397, 573

Nordmende . . . . . . . . . . . . . . . . . . . . .362

Orbitech . . . . . . . . . . . . . . . . . . . . . . . .501

Pace . . . . . . . . . . .067, 183, 336, 455, 791

Paliadium . . . . . . . . . . . . . . . . . . . . . .571

Palsat . . . . . . . . . . . . . . . . . . . . . . . . . .501

Philips . . . . . . . . . . . . .200, 292, 571, 750

Phonotrend . . . . . . . . . . . . . . . . . .288, 592

Plasmatic . . . . . . . . . . . . . . . . . . . . . . .442

Proset . . . . . . . . . . . . . . . . . . . . . . . . .288

Quadral . . . . . . . . . . . . . . . . . . . .362, 628

RFT . . . . . . . . . . . . . . . . . . . . . . .220, 288

Radix . . . . . . . . . . . . . . . . . . . . . . . . . .396

SAT . . . . . . . . . . . . . . . . . . . . . . .351, 461

SEG . . . . . . . . . . . . . . . . . . . . . . . . . . .369

Saba . . . . . . . . . . . . . . . . . . . . . . . . . . .336

Salora . . . . . . . . . . . . . . . . . . . . . . . . .108

Satec . . . . . . . . . . . . . . . . . . . . . . . . . .183

Schwaiger . . . . . . . . . . . . . . . . . .183, 504

Seemann . . . . . . . . . . . . . . . .396, 578, 626

Skymaster . . . . . . . . . . . . . . . . . .288, 626

Sony . . . . . . . . . . . . . . . . . . . . . . . . . .704

Star Trak . . . . . . . . . . . . . . . . . . . . . . .421

Strong . . . . . . . . . . . . . . . . . . . . . . . . .421

Sunstar . . . . . . . . . . . . . . . . . . . . . . . .513

Tantec . . . . . . . . . . . . . . . . . . . . . . . . .336

Techni Sat . . . . . . . . . . . . . . . . . .262, 501

Teleka . . . . . . . . . . . . . . . . . . . . .243, 613

Tonna . . . . . . . . . . . . . . . . . . . . . . . . .668

Triad . . . . . . . . . . . . . . . . . . . . . . . . . .351

Universum . . . . . . . . . . . . . . . . . . . . . .571

Vtech . . . . . . . . . . . . . . . . . . . . . . . . . .351

Wisi . . . . . . . . . . . . . . . . . . . . . . .351, 396

REMOTE

DVD

CODE NO.

Kenwood . . . . . . . . . . . . . . . . . . . . . . .534

Mitsubishi . . . . . . . . . . . . . . . . . . . . . .521

Panasonic . . . . . . . . . . . . . . . . . . . . . .490

Philips . . . . . . . . . . . . . . . . . . . . . . . . .539

Pioneer . . . . . . . . . . . . . . . . . . . . . . . .550

RCA . . . . . . . . . . . . . . . . . . . . . . . . . .522

Sony . . . . . . . . . . . . . . . . . . . . . . . . . .552

Toshiba . . . . . . . . . . . . . . . . . . . . . . . .503

29

U

SING THE REMOTE’S VCR BUTTONS

W

hen using the TV remote

with a VCR, first make cer­tain it is set to control your VCR
(by the REMOTE CODE or
SEARCH method).

Set the TV/VCR/ACC mode

switch to VCR on the remote.

Point the top of the remote

toward the front of the VCR
(remote sensor window) when
pressing the buttons.

1

2

SMART HELP

Remember, the VCR but-

tons on the remote will not
operate your VCR if those features
are not found on your VCR remote
control.

Note: All VCR functions (particularly
Search, Rewind, Fast Forward, etc.)
will operate the same as with the orig­inal VCR remote control provided
with the VCR.

BEGIN

STOP

POWER BUTTON

Press to turn the VCR ON and
OFF.

TV/VCR BUTTON

Press while in the VCR mode (VCR
indicator on the front of the unit
will light) to view the playback of a
tape. Press again to place in the TV
position (VCR indicator light will
go off) to view one program while
recording another program.

NUMBER BUTTON

Press buttons for direct VCR
channel selections.

P

AUSE BUTTON II

Press to temporarily stop the tape
during a playback or recording.
Press again to release Pause.

FAST FORWARD BUTTON ©©

Press to rapidly advance the tape.
For some VCR’s you may need
to press the STOP button first,
then the FAST FORWARD but­ton. In playback mode hold the
button down to view the picture
moving rapidly in the forward
direction.

CHANNEL +/– BUTTONS

Press to scan up or down through
the VCR channel numbers.

RECORD BUTTON ●

Hold the (A/CH) • RECORD button
down to begin a VCR recording.

VCR SYSTEM SWITCH

Set in the VCR position to send
remote commands to the VCR.

PLAY BUTTON ©

Press to begin playback of a
video tape.

REWIND BUTTON §§

Press to rewind tapes. For some
VCR’s the STOP button may
have to be pressed first, then
REWIND. In playback mode
hold down the button to view
picture moving rapidly in
reverse.

STOP BUTTON ■

Press to stop the motion of a tape
in playback, rewind, fast for­ward, etc.

30

SLEEP

A/CH STATUS/EXIT CC CLOCK

TV

RECORD

VCR

1

ACC

4

7

SMART

SOUND

MENU SURF

VOL

23
5

89
0

MUTE

POWER

TV/VCR

6

SMARTSMART


CH

CHANNEL - When highlighted, enter the desired channel number using the Number but­tons you wish to edit. The following control items, contained within the Channel
Installation menu, will effect the chosen channel.

USER RING - When highlighted, press the Cursor Right (©) or Left (§ ) buttons on the
remote to choose SAVED (or DELETED). When SAVED is selected, the channel will
remain or be added to the TV’s program memory. When DELETED is selected, the channel
will be dropped from the TV’s program memory and will not appear when the TV channels
are scanned (using the Channel +,- buttons).

EVENT RING - When highlighted, press the Cursor Right (©) or Left (§ ) buttons on the
remote to choose SAVED (or DELETED). When SAVED is selected, the channel will
remain or be added to the channels that can be selected during an event.

INPUT - When highlighted, press the Cursor Right (©) or Left (§ ) buttons on the remote
to select ANTENNA, FRONT, AUX, or S-VIDEO input signal options. The Input control
directs the TV to select the specific indicated input whenever this channel is tuned.

LABEL - When highlighted, press the Cursor Right (©) button on the remote to select the
first character space area. Then press the Cursor Up (▲) and Down (▼) buttons to scroll

through the list of available letter characters/numbers/& symbols provided for your labeling use. Press the Cursor Right

(©) button to

highlight the next character space and continue to repeat the process until the complete label or channel title has been entered. The
Channel Label will appear in the corner of the TV screen beside the selected channel number.

VIDEO BLANK - When highlighted, press the Cursor Right (©) or Left (§ ) buttons to turn the VIDEO BLANK control ON (or
OFF). When ON, no video will be shown when this specific channel is tuned. When OFF, normal viewing of video for this specific
channel will take place.

AUDIO BLANK - When highlighted, press the Cursor Right (©) or Left (§ ) buttons to turn the AUDIO BLANK control ON (or
OFF). When ON, no sound will be heard through the TV speakers when the channel is tuned. When OFF, normal sound playback
will be heard for the selected channel.

AUTO PROGRAM - When highlighted, press the Cursor Right (©) or Left (§ ) buttons to begin an automatic channel search for
all available received signal programs. Any channels found will be SAVED i n the TV’s program memory. These channels can then
be selected for viewing by pressing the Channel (+,-) buttons.

DESCRIPTION OF ON-SCREEN CONTROLS (COMMERCIAL MODE)

COMMERCIAL SETUP MENU

TV SETUP MENU
LANGUAGE
CHANNEL INSTALL
PROPLUS SETUP
CABLE TUNING
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
NOISE REDUCTION
SOUND MODE
SAP
AUDIO OUT

ENGLISH

ON
34
22
29
40
0
OF F
STEREO
OF F
FIXED

CHANNEL
USER RING
EVENT RING
INPUT
LABEL
VIDEO BLANK
AUDIO BLANK
AUTO PROGRAM
EXIT

CHANNEL INSTALLATION

TV 1
SAVED
DELETED
ANTENNA
CHAN 001
OF F
OF F

( )

CC
SAVE CC
V-CHIP MENU ITEM
SAVE V-CHIP
V-CHIP SETUP
SLEEPTIMER
SECURITY
EXIT

OFF

OF F
ON
ON
ON
OF F

BALANCE
TREBLE
BASS
ULTRA BASS
INCRED STEREO
AVL
VOLUME BAR
MIN VOLUME
MAX VOLUME
SWITCH ON VOLUME
SWITCH ON CHANNEL
POWER ON
CHANNEL DISPLAY
KEYBOARD LOCK
ESP
AUDIO/VIDEO MUTE
WELCOME MESSAGE
CHANNEL GUIDE
REMINDER
3 DIGIT ENTRY
A/CH A/V SWITCH

0
31
31
ON
OF F
OF F
ON
0

63
STANDARD
STANDARD
STANDARD
AL L
OF F
OF F
BLUE

OF F
ON
OF F
ON

STANDARD

CHANNEL INSTALLATION SUB-MENU

D

epending on the model

and its features, some or
all of the display functions
and features described here
will be valid. Note: Certain

features which are found in
both the Commercial and
Consumer modes may be
selected and adjusted in the
same manner (for example:
Language, Cable Tuning,
Brightness etc.). Many of
these shared onscreen Menu
features are already described
and explained in detail in the
preceding Consumer mode
sections.

To perform setup operations
for the TV Setup Commercial
modes, a T374AH remote with
its TV Setup, Guest, and Data
Communication Mode capa­bilities can be used. To set the
TV to Commercial or
Consumer mode, select a
mode in the ACCESS LEVEL
option of the PROPLUS
SETUP MENU. Note: For
some select Institutional
Television models the buttons
on the front of the TV can also
be used to select Commercial
mode settings. Other
Commercial setup and verifi­cation procedures may also be
performed from the T374AH
remote. (See T374AH Remote
Control Instructions, part #
IB7166E002, for details.)

31

LANGUAGE - See page 23 on the use of the English/Francais/or
Espanol Menu language option control. Note: This control is intend­ed for onscreen Menu items. The language of Labels, Closed
Captioning, and other Channel Guide information will not change.

CHANNEL INSTALL - See previous page for details on Sub­Menu containing Program Channel, Input, Label, A/V Blank, and
Auto Program controls.

PROPLUS SETUP - See page 2 and 33 for detail use of the Sub­Menu containing Access Level (Consumer, Commercial, Locked,
Unlocked) and Event programming controls.

CABLE TUNING - See page 10 on the use of the Cable TV chan­nel selection mode control.

COLOR ADJUST CONTROLS - See page 14 for adjustments of
Brightness, Contrast, Noise Reduction, etc. picture controls.

AUDIO ADJUST CONTROLS - See page 14 for sound control
adjustments (Bass, Balance, etc.). Page 15 for Incredible Stereo.
Page 16 for Automatic Volume Limiter and Volume Bar.

MIN VOLUME (Minimum Volume) - Highlight MIN VOLUME,
then press the Cursor Right (©) or Left (§ ) buttons to set the min­imum allowable volume level for TV sound.

MAX VOLUME (Maximum Volume) - Highlight MAX VOL­UME, then press the Cursor Right (©) or Left (§ ) buttons to set
the maximum allowable volume for TV sound.

SWITCH ON VOLUME - Highlight SWITCH ON VOLUME,
then press the Cursor Right (©) button to select a desired volume
level. The volume will be at the preset level every time you turn on
the TV. If STANDARD is selected, the last volume level will be
used.

SWITCH ON CHANNEL - Use this feature to have the TV tune
to the same channel (or signal source) every time you turn ON the
TV. Highlight SWITCH ON CHANNEL, then press the Cursor
Right (©) or Left (§ ) buttons to select FRONT, AUX, S-VIDEO,
STANDARD, or any channel 1 - 125. (You can also use the
Number buttons to select a channel.) If STANDARD is selected, the
last viewed channel will be used.

POWER ON - Highlight POWER ON, then press the Cursor Right

(©) or Left (§ ) buttons to select FORCED. This disables the

POWER button on the front of the TV. The TV is now activated
when the AC power cord is plugged into an outlet. With a consumer
remote, the TV will not turn ON or OFF. In the STANDARD mode,
The TV will return to normal operation.

CHANNEL DISPLAY - Highlight CHANNEL DISPLAY, then
press the Cursor Right (©) or Left (§ ) buttons to select ALL,
NONE, NUMBER, or LABEL. “NONE” disables any on-screen
displays, except SLEEP TIMER and MUTE. NONE also disables
the consumer remote’s Number or Channel +,- buttons for channel
selection. “ALL” allows the Channel Number, Channel Label, or
Channel Guide to appear. “NUMBER” allows only the Channel
Number to be displayed onscreen. “LABEL” allows the onscreen
Label to appear as set under the Channel Installation Menu control.

KEYBOARD LOCK - Highlight KEYBOARD, then press the
Cursor Right (©) or Left (§ ) buttons to select ON (or OFF).
“OFF” disables all the buttons on the front panel of the TV from
manual operation. “ON” enables all buttons on the front of the TV
to operate.

ESP - Energy Saving Programmability (ESP) allows you to select
an amount of time (in hours) before the TV will automatically turn
OFF. The TV must remain on continuously during the amount of
time you select. If the power is switched off, the ESP timer will be
reinitialized. Highlight ESP, then press the Cursor Right (©) or Left

(§ ) buttons to select the number of hours (1 - 99) before the TV

turns OFF. (You may also use the Number buttons to enter the num­ber of hours).

AUDIO/VIDEO MUTE - See page 17 for details on how the TV
screen color can be set for blanked out channels.

WELCOME MESSAGE - Highlight WELCOME MESSAGE,
then press the Cursor Right (©) or Left (§ ) buttons to display the
Welcome Message sub-menu. Within this Menu the Message can
be turned ON or OFF. Two lines of information (LINE 1, LINE 2)
can be displayed onscreen when the TV is powered ON. Use the
Cursor Up (▲) and Down (▼) buttons to scroll the characters,
symbols, and numbers available for the message. “CLEAR” will
cancel any message written.

CHANNEL GUIDE - Highlight CHANNEL GUIDE, then press
the Cursor Right (©) or Left (§ ) buttons to select OFF, ON, or
POWER ON. If you select POWER ON, the Channel Guide (a list
of channels that are labeled) will appear when you turn the TV ON.
The Channel Guide will appear also when you press the CH GDE
button on the remote. If you select ON, the Channel Guide will
appear only when you press CH GDE. (Also, if you select POWER
ON or ON, make sure DISPLAYS is set to ALL.) If you select OFF,
the Channel Guide will not appear when you press CH GDE.
Remember, only the programmed channels that are Labeled (within
the Channel Installation Menu) will appear in the Channel Guide.

REMINDER - Highlight REMINDER, then press the Cursor Right

(©) or Left (§ ) buttons to select ON. The current channel number,

and Label (if assigned), will appear onscreen at all times. (Make
sure CHANNEL DISPLAY control is set to ALL and Closed
Captioning is set to OFF. The “OFF” position allows the channel
number to appear briefly when the channel is selected, then it will
disappear.

3 DIGIT ENTRY - Highlight 3 DIGIT ENTRY, then press the
Cursor Right (©) or Left (§ ) buttons to select ON (or OFF).
“ON” allows three digit channel number entries in order to select
channels above 99.

A/CH A/V SWITCH - Highlight A/CH A/V SWITCH, then press
the Cursor Right (©) or Left (§ ) buttons to select ON (or OFF).
“ON” allows the A/CH button on the remote to also select signal
input sources (ANTENNA, FRONT, AUX, S-VIDEO). “OFF” sets
A/CH to switch only between the last viewed and current channel
selections.

CC (Closed Captioning) - See page 18 for setup and use of
Closed Caption mode viewing. Note: CC1 is the captioned mode
used most often by broadcasters. CC ON MUTE will automatically
display the Closed Caption mode when the remote’s MUTE button
is pressed.

SAVE CC - Highlight SAVE CC, then press the Cursor Right (©)
or Left (§ ) buttons to select ON (or OFF). “ON” will save the CC
mode you have selected, even if the TV Power is turned OFF.
“OFF” will turn off the selected CC mode when the TV is turned
OFF.

V-CHIP MENU ITEM - Highlight V-CHIPMENU ITEM, then
press the Cursor Right (©) or Left (§ ) buttons to select ON (or
OFF). “ON” allows for V-CHIP control items to be shown in the
Features Menu. “OFF” will not display the V-CHIP control options.

DESCRIPTION OF ON-SCREEN CONTROLS (COMMERCIAL) CONTINUED

32

EVENT 1-7 - Highlight an Event, for example, EVENT 1. Then,
press the Cursor Right (©) or Left (§ ) buttons. You may now set
the ON TIME, OFF TIME, CHANNEL, and DAYS ACTIVE
for the specific Event 1. To adjust the ON/OFF TIME items, use
the Cursor Right (©) or Left (§ ) buttons to highlight the desired
hour and minute number space, then use the Cursor ▲ / ▼ but-
tons to set each item. (Note: The Channel Number buttons on the
remote can also be used to set the time. Press 1 for AM setting,
press 0 for PM setting.) Repeat this procedure to set the ON/OFF
TIME, CHANNEL, and select DAYS for each desired Event.

EVENT ENABLED - Highlight EVENT ENABLED, then press
the Cursor Right (©) or Left (§ ) buttons to place the specific
Event program settings into the TV’s memory (ON). “OFF” will
not allow the Event settings to take place.

CHANNEL - This feature allows you to choose the channel to
which the TV will tune for the Event. Highlight CHANNEL, then
press the Cursor Right (©) or Left (§ ) buttons to select FRONT,
AUX, S-VIDEO, or a channel between 1-125. (You may also use
the Number buttons to select a channel.)

POWER - Highlight POWER, then press the Cursor Right (©)
or Left (§ ) buttons to select FORCED or STANDARD. This
feature is similar to the POWER ON feature in the TV Setup
menu, but this feature only operates during an Event. When
FORCED is selected, the TV will ignore any commands during
an Event. (POWER ON in the Setup menu must be set to STAN­DARD.) When STANDARD is selected, the TV will operate nor­mally.

AVAILABLE RING - Highlight AVAILABLE RING, then press
the Cursor Right (©) or Left (§ ) buttons to select EVENT,
NONE, or USER. This either saves the selected channel number
into either one of the existing CHANNEL INSTALLATION
“EVENT” or “USER” program memory rings (see page 31), or
places the channel as a nonselectable “NONE” category.

EXIT - To return to previous ProPlus Menu Setup screens, high­light EXIT, then press the Cursor Right (©) or Left (§ ) buttons
to move back one Menu screen at a time.

DESCRIPTION OF ON-SCREEN CONTROLS (COMMERCIAL) CONTINUED

SAVE V-CHIP - Highlight SAVE V-CHIP, then press the Cursor

Right (©) or Left (§ ) buttons to select ON (or OFF). “ON”will
save the current V-CHIP control settings within the TV’s memory.

V-CHIP SETUP - Highlight V-CHIP SETUP, then press the Cursor
Right (©) or Left (§ ) buttons to select the V-CHIP sub-menu. Use
the various TV and Movie Ratings system settings to block or cen­sor the viewing of TV programming. See pages 19-21 for further
details on the Ratings settings and their use.

SLEEPTIMER - See page 22 for details on setting the TV to auto­matically shut itself OFF (according to preset time intervals of 15­240 minutes).

SECURITY - Highlight SECURITY, then press the Cursor Right

(©) or Left (§ ) buttons to select STANDARD (or HIGH). Note:

The Security control item will not be in the Menu when using the
Consumer remote, but (when “STANDARD” security level has
been selected) a consumer remote button sequence (31, 97, 53,
MUTE) can be used to access to the SETUP MENU. With “HIGH”
security level selected, access to the SETUP MENU is only allowed
with a commercial Setup Remote.

EXIT - Highlight EXIT, then press the Cursor Right (©) or Left

(§) buttons to select YES. The onscreen menu will disappear. The

onscreen menu also disappears after 60 seconds if there has been no
use of the displays.

PROPLUS SETUP EDIT EVENTS SUB-MENU

EVENT 1

EVENT 2
EVENT 3
EVENT 4
EVENT 5
EVENT 6
EVENT 7
EXIT

EVENT MENU

SET TIME
SET DAY
CLOCK DISPLAY
ACCESS LEVEL

EDIT EVENTS

EXIT

PROPLUS SETUP MENU

3:30 PM

FRIDAY
ON
LOCKED

EVENT ENABLED

ON TIME
OFF TIME
DAYS ACTIVE
CHANNEL
POWER
AVAILABLE RING
EXIT

EVENT 1

ON

11:00 AM
1:00 PM

-MT--F-

TV 10

FORCED
USER

E

VENT MENU - Allows access

to another sub-menu where
event specific settings are made.
The Menu control options set up
and allow for programmed opera­tion of TV controls for up to seven
separate and specific events. Each
of the individual events can be set
for Day(s) of the week, Turn On
time, Turn Off time and preset
channel selection.

33

TIPS IF SOMETHING ISN'T WORKING

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again.

• Check to be sure outlet is not on a wall switch.

• Check MODE access in Setup Menu (see page 2) for correct operation mode. Also
check POWER ON and KEYBOARD controls for commercial users.

• Check antenna connections on the rear of the TV. Are they properly secured to the
antenna plug on the TV?

• Check the CABLE TUNING control for correct position. Check A/V MUTE, ACCESS
LEVEL, VIDEO BLANK, and EVENT MENU controls for correct setting in Setup
Menu for commercial users.

• Check INPUT (under CHANNEL INSTALLATION in CONSUMER mode) for correct
position. FRONT, AUX, or S-VIDEO positions without a supplied video signal source
will result in a blank screen.

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries
if necessary.

• Clean the remote and the remote sensor window on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again.

• Check to be sure TV outlet is not on a wall switch.

• Check the VOLUME buttons. Check AUDIO BLANK and MAX VOLin Setup
Menu for commercial users.

• Check the MUTE button on the remote control.

• Check the SPEAKER on-screen Menu control and EXTERNAL SPEAKER switch on
rear of TV. OFF position will eliminate sound at the set.

• If attempting auxiliary equipment hook-ups, check audio jack connections.

• Repeat channel selection.

• Add desired channel numbers (CHANNEL RING control) into TV memory.

• Check CABLE TUNING ON/OFF control for correct position.

P

lease make these simple

checks before calling for
service. Theses tips can save you
time and money since charges for
TV installation and adjustment of
customer controls are not cov­ered under your warranty.

No Power

No Picture

No Sound

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

This TV is equipped with protective circuitry that shuts the TV off in case of moderate
power surges. Should this occur turn the TV back on by pressing the POWER button
once or twice, or unplug (wait 10 seconds) and then replug the power cord at the AC
outlet. This feature is NOT designed to prevent damage due to high power surges such
as those caused by lightning, which is not covered by your warranty.

Cleaning and Care

• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen, take care not to scratch or damage the screen surface (avoid wearing jewelry or using
anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when
cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean
dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring
of the cabinet finish.

CAUTION: Avideo source (such as a video game, Compact Disc Interactive - CDI, or
TV information channel) which shows a constant non-moving pattern on the TV screen
can cause picture tube damage. When your TV is continuously used with such a source,
the pattern of the non-moving portion of the game (CDI, etc.) could leave an image per­manently on the picture tube. When not in use, turn the video source OFF. Regularly
alternate the use of such video sources with normal TV viewing.

34

GLOSSARY OF TELEVISION TERMS

Coaxial Cable - A single solid antenna wire normally matched with a

metal plug (F-type) end connector that screws (or pushes) directly
onto a 75 Ohm input found on the Television or VCR.

Closed Caption - Broadcast standard which allows you to read the
voice content of television programs on the TV screen. Designed to
help the hearing impaired this feature uses on-screen "text boxes" to
show dialogue and conversations while the TV program is in progress.

BNC Connector - A twist-lock connector for various types of RG­type coaxial cables. Also referred to as Bayonet Nut Coupler.

Display - An on screen message or graphics that helps the user operate
and adjust his Television feature controls. See On Screen Displays
(OSD).

Direct Audio/Video Inputs - Located on the rear of the TV, these
connectors (RCA phono type plug) are used for the input of audio and
video signals. Designed for use with VCRs (or other accessories) in
order to receive higher picture resolution and offer sound connection
options.

Event - Defines operation of the TV control system. Each event can
be programmed for the day(s) of the week; turn ON time; turn OFF
time; and channel.

Multichannel Television Sound (MTS) - The broadcast standard that
allows for stereo sound to be transmitted with the TV picture.

On Screen Displays (OSD) - Refers to the wording or messages gen­erated by the television (or VCR) to help the user with specific feature
controls (color adjustment, programming, etc.).

Menu - An onscreen listing of feature controls shown on the Television
screen that are made available for user adjustments.

Programming - The procedure of adding or deleting channel numbers
into the Television’s memory circuits. In this way the Television “remem­bers’’only the locally available or desired channel numbers and skips
over any unwanted channel numbers.

Remote Sensor Window - Awindow or opening found on the Television
control panel through which infrared remote control command signals are
received.

Second Audio Program (SAP) - Another or additional audio channel
provided for in the Multichannel Television Sound (MTS) broadcast stan­dard. The most frequently proposed use for SAP is the simultaneous
bilingual broadcast of TV program material.

Setup Code - Special sequence of button presses used to access the
Setup Menu when the Setup Remote is not available.

Setup Remote - Remote control transmitter used by installer to set up
commercial functions and modes of operation.

Status - Allows the user to quickly confirm what channel number is cur­rently being viewed. Status can also be used to clear the Television of on
screen displays or information (rather than waiting for the displays to
“time out” or automatically disappear from the screen).

Twin Lead Wire - The more commonly used name for the two strand
300 Ohm antenna wire used with many indoor and outdoor antenna sys­tems. In many cases this type of antenna wire requires an additional
adapter (or balun) in order to connect to the 75 Ohm Input terminals of
more recent Televisions and VCRs.

INDEX

Accessories/Optional...................................................................2, 5, 6

Adapter Connector...................................................................6, 23, 24

Add/Delete Channels..............................................................11-12, 31

Alternate Channel (A/CH) ...................................................................8

Audio/Video Input Jacks.......................................................2, 5, 6, 24

Battery Installation...............................................................................8

Cable TV Connections/Settings....................................................6, 10

Channel Display .....................................................................7, 13, 17

Channel Program Memory.................................................2, 11-12, 31

Channel Reminder .............................................................................17

Closed Captioning..............................................................................18

Clock Set and Display .......................................................................22

Controls/TV .........................................................................................7

Controls/Remote..............................................................................7, 8

Features................................................................................................5

First Time Use.................................................................................7, 8

Glossary TV Terms............................................................................35

Input Control................................................................................13, 24

Inputs/Audio and Video.........................................................2, 5, 6, 24

Language Option................................................................................23

Memory/Program Channels ...............................................2, 11-12, 31

Menu Button....................................................................................8, 9

Minus(-)/Plus (+) Buttons................................................................7, 8

Output (Audio) Jacks .........................................................................24

Precautions/Safety .........................................................................3, 34

Programming Channels......................................................2, 11-12, 31

ProPlus Setup.................................................................................2, 31

Remote Control.....................................................................7-8, 25-30

Requesting Service ......................................................................34, 36

RF Coaxial Cable................................................................................ 6

Safety/Precautions .........................................................................3, 34

Sensor (Remote) ..................................................................................7

Setup Modes ..................................................................................2, 31

Sleep Timer ........................................................................................22

Speaker Terminal Connections..........................................................23

Status Button....................................................................................8, 9

Stereo .................................................................................................14

Tips for Service..................................................................................34

V-Chip Content Advisory .............................................................19-21

VCR/TV Connections..........................................................................6

Volume Bar Control ...........................................................................16

Warranty .............................................................................................36

35

RENEWED

90 DAY

LIMITED WARRANTY
