Mini300

petrol station lighting

lighting solutions that really last

The MASTER Collection – Lighting solutions that make business sense.

Offering best in class energy efficiency, lifetime reliability and lighting quality, Philips

MASTER Collection lamps, luminaires and control gears minimise your lighting

solution’s total cost of ownership. You can start enjoying significant savings and benefits

from day one by replacing your conventional lighting products with Philips MASTER

Collection upgrades. You can achieve even more dramatic savings and improvements

by switching your whole lighting system to the Philips MASTER Collection.

Imagine an oasis of fresh clean light. One that sparkles and

radiates. Welcoming with clarity and space. Imagine moving

freely around, seeing vivid colours, minute details. All while

bathing in the clean white light. Now, imagine that you have

created all these sensations for less cost than anyone thought

possible. Better still, that you’ve actually reduced energy

consumption by a massive 35%.

Now you’re beginning to realise the power of 21st Century

petrol station lighting... with Philips.

the world’s most efficient

under-canopy lighting

In today’s environment of continuous innovation, it’s not often

that a genuine breakthrough in technology is made. But that’s

exactly what the new Mini 300 is. Because instead of reducing

energy consumption by a few valuable percentage points,

the new Mini 300 slashes energy consumption by a massive 35%.

Add to that an unparalleled ‘daylight’ colour

rendering of Ra 96 and you can see just why

everyone is getting excited about the world’s most

efficient under-canopy luminaire yet invented.

Compare the new Mini 300 against the

current market leader, the

MPF series:

35% less energy

Achieved by a special patented optic coating

(which reflects 97% of the light) and by use of a

150W lamp instead of the

Significantly better colour rendering

Achieved by using the new

has a Colour Rendering Index of 96 (compared to

an index of 65 from the

an inviting atmosphere.

Smaller size

Smaller lamp means smaller housing and smaller

cut-out dimensions (36cm instead of 47cm), for a

more compact, stylish installation.

More safety

Specially engineered louvres shield drivers’

eyes from the burner, so even from a fast moving

vehicle drivers can clearly see people on

the forecourt.

More corporate identity

With the high colour rendering and a colour

temperature that creates a daylight impression

(4,200K), people see your true corporate colours

– as you intended.

MPF’s 250/400W.

CDM-TD lamp which

MPF series). This creates

More sparkle

The Mini 300’s minute burners are reflected on

surfaces as tiny pin-points of light. Cars sparkle and

everything looks brighter, cleaner.

Easier cleaning

The luminaire is

sealed. Moreover it is jet and dust proof for easy

hose spray cleaning.

More mounting possibilities

The new Mini 300 can be recessed or surface-

mounted in the canopy, or on poles and walls.

Easy installation

Just one man, just 10 minutes. Simply hang the

luminiare with the provided mounting accessories,

make the electrical connection, and swing the

luminaire into its locking position.

Easy upgrade

Upgrading from the

adapter plate means that the same frames and

canopy cut-outs are used.

IP65, which means that it is well

MPF series is easy. A simple

MINI 300 PETROL STATION LIGHTING

5

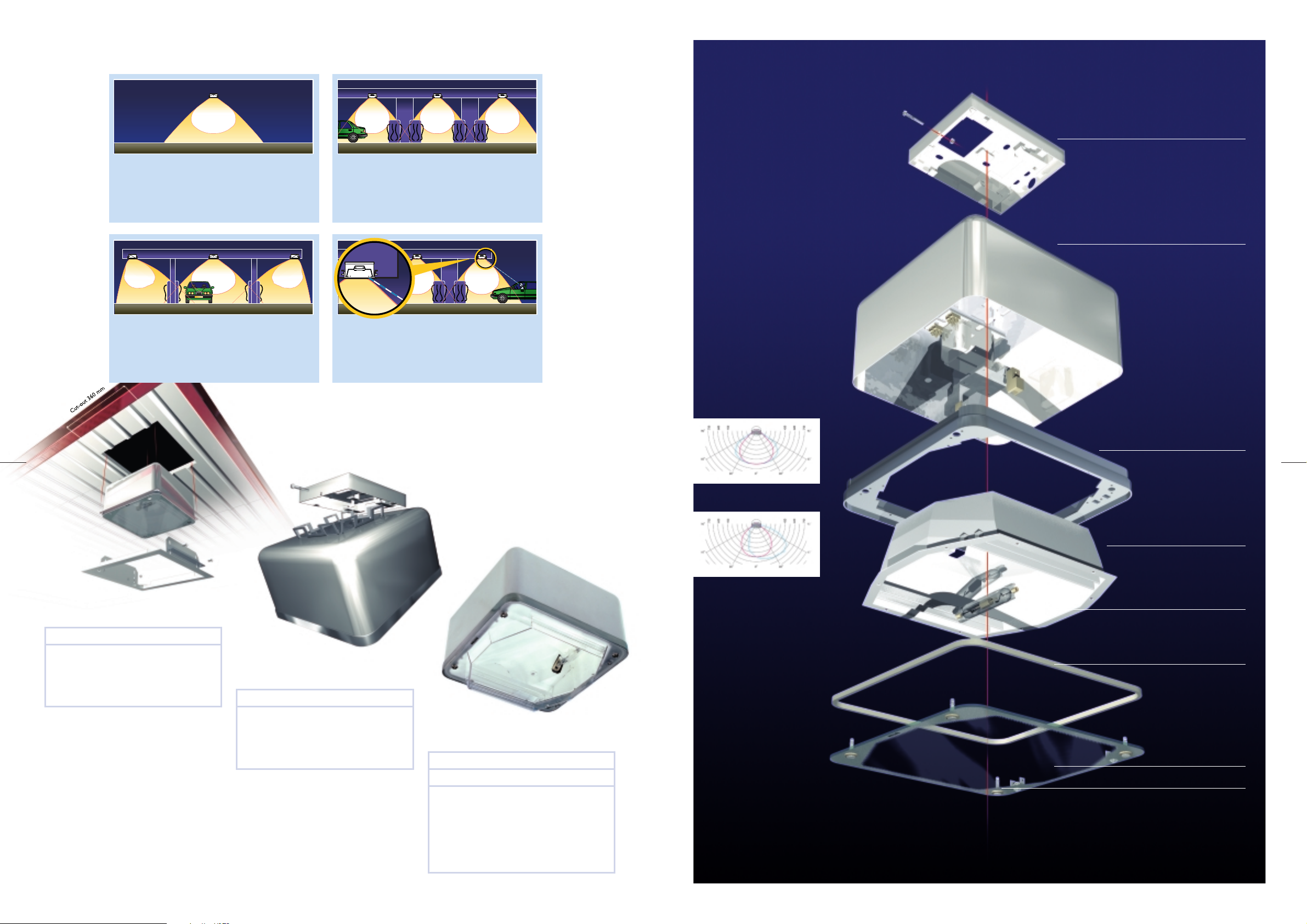

Philips 3D lighting concept

Even though the Mini 300 is

competitively priced, we’ve used only the

best quality materials and manufacturing

processes. This ‘no-compromise’ construction

policy results in easy installation and

long-lasting performance.

Galvanised steel mounting plate

MINI 300 PETROL STATION LIGHTING

6

Unique to Philips, the 3D concept directs light to selected

vertical planes so that fuel pumps and car sides are

illuminated well. Conventional lighting mainly directs light

downwards, without attention to ver tical surfaces.

As your customers approach the fuelling bay asymmetrical

beam spreads keep the light within your station’s

forecourt, accentuating your corporate image.

While at the fuel bay, the ver tical surfaces of the fuel

pumps are clearly illuminated. Everything is visible:

pumps, people, columns and cars.

Deep drawn aluminium housing

Improved safety – thanks to the tightly controlled

beam spread, there’s no glare from the burner

entering the driver’s eye on approach. So even at high

speeds, drivers can clearly see people filling up.

Sym WB

High precision, injection moulded frame

MINI 300 PETROL STATION LIGHTING

7

DBP300 1xCDM-TD 150W

The Mini 300 is bolted into the canopy and

comes with a mounting frame for fast, precision

installation. The frame also sandwiches the

cladding for a very sturdy fitting.

DCP300 1xCDM-TD 150W

For surface mounting, the Mini 300 comes with

a special hinge plate that connects to the bracket

in any direction – making installation fast

and foolproof.

DBP300 1xCDM-TD 150W TB

DCP300 1xCDM-TD 150W TB

The Mini 300 Beacon enhances the identity and

image of petrol stations by capturing the attention

of drivers even from a distance. The tightly controlled

beam spread feature minimizes glare ensuring safety

and visual comfort for drivers when they are

approaching, departing and under the canopy.

A-sym WB

Patented optical system

with precision louvres

Precision reflector with the

Philips patented coating

Highly flexible silicone gasket

Temperature-toughened glass

Stainless steel bolts

Daylight visibility

Even with less energy, the Mini 300 creates a bright

‘sunny’ atmosphere. That’s because the sparkling light

and its high colour rendering are directed to vertical

as well as horizontal surfaces. The result? People feel

more alert and even happier.

Upgrade to 35% less

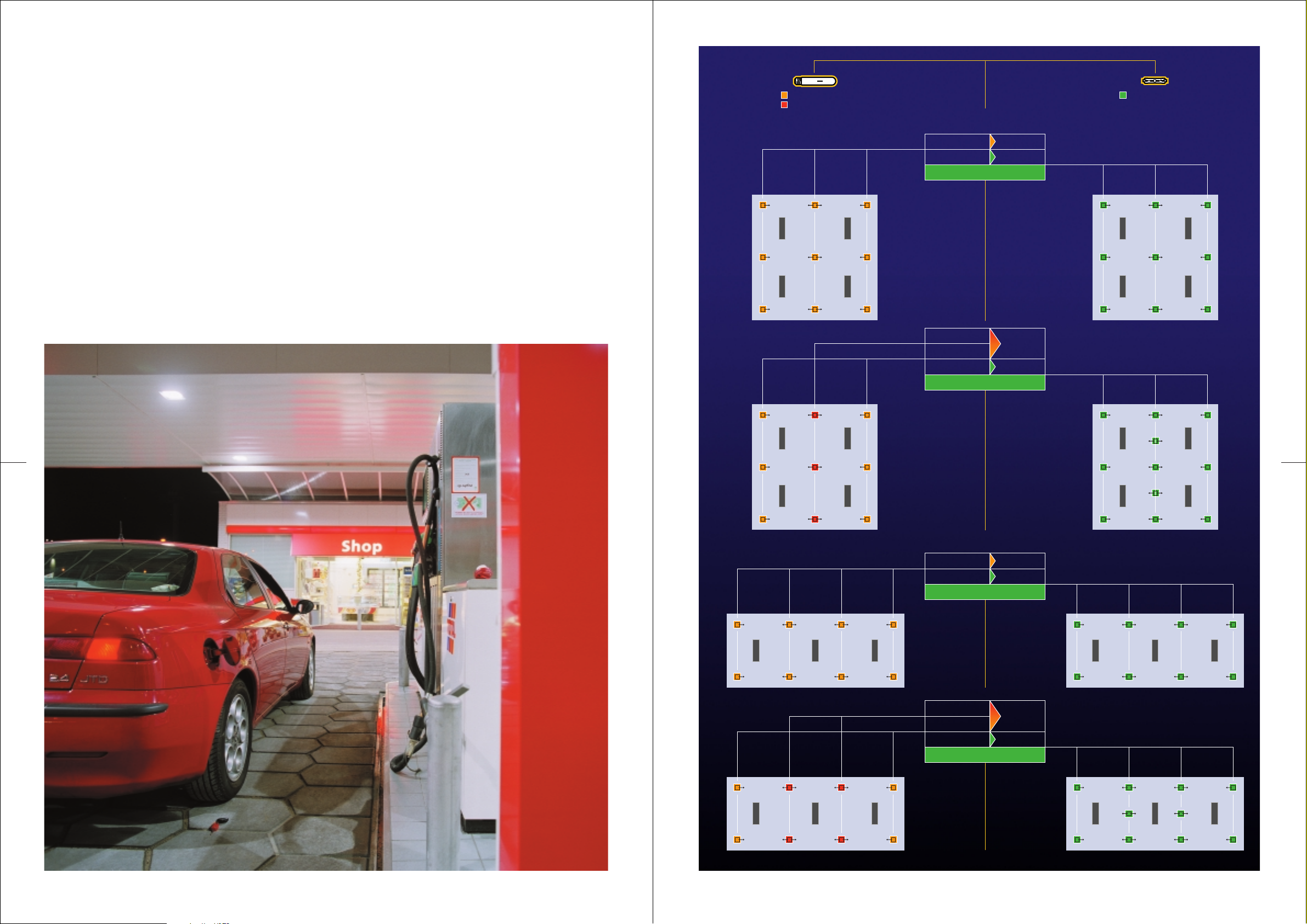

The schemes to the right show how luminaires using

250/400W lamps can be replaced by Mini 300s with

150W lamps. More Mini 300s will be necessary in

some schemes but the dramatic wattage reduction

from 250/400W to 150W always results in an

overall 35+% energy saving.

250W

HPI-T 250W
HPI-T 400W

MPF

250W

250W

Square lay-out

9 X 269 = 2421

9 X 165 = 1485

2421W

1485W

39%Savings

CDM-TD 150W

MINI 300

150W150W150W

MINI 300 PETROL STATION LIGHTING

8

250W

250W

400W

250W

3 X 415 = 1245

6 X 269 = 1614

11 X 165 = 1815

2847W

1815W

150W150W150W

36%Savings

MINI 300 PETROL STATION LIGHTING

9

Starting Gate lay-out

250W250W

250W

8 X 267 = 2136

8 X 165 = 1320

2136W

1320W

38%Savings

150W150W 150W150W

250W

400W400W

250W

4 X 415 = 1660

4 X 269 = 1076

10 X 165 = 1650

2736W

1650W

150W150W 150W150W

40%Savings

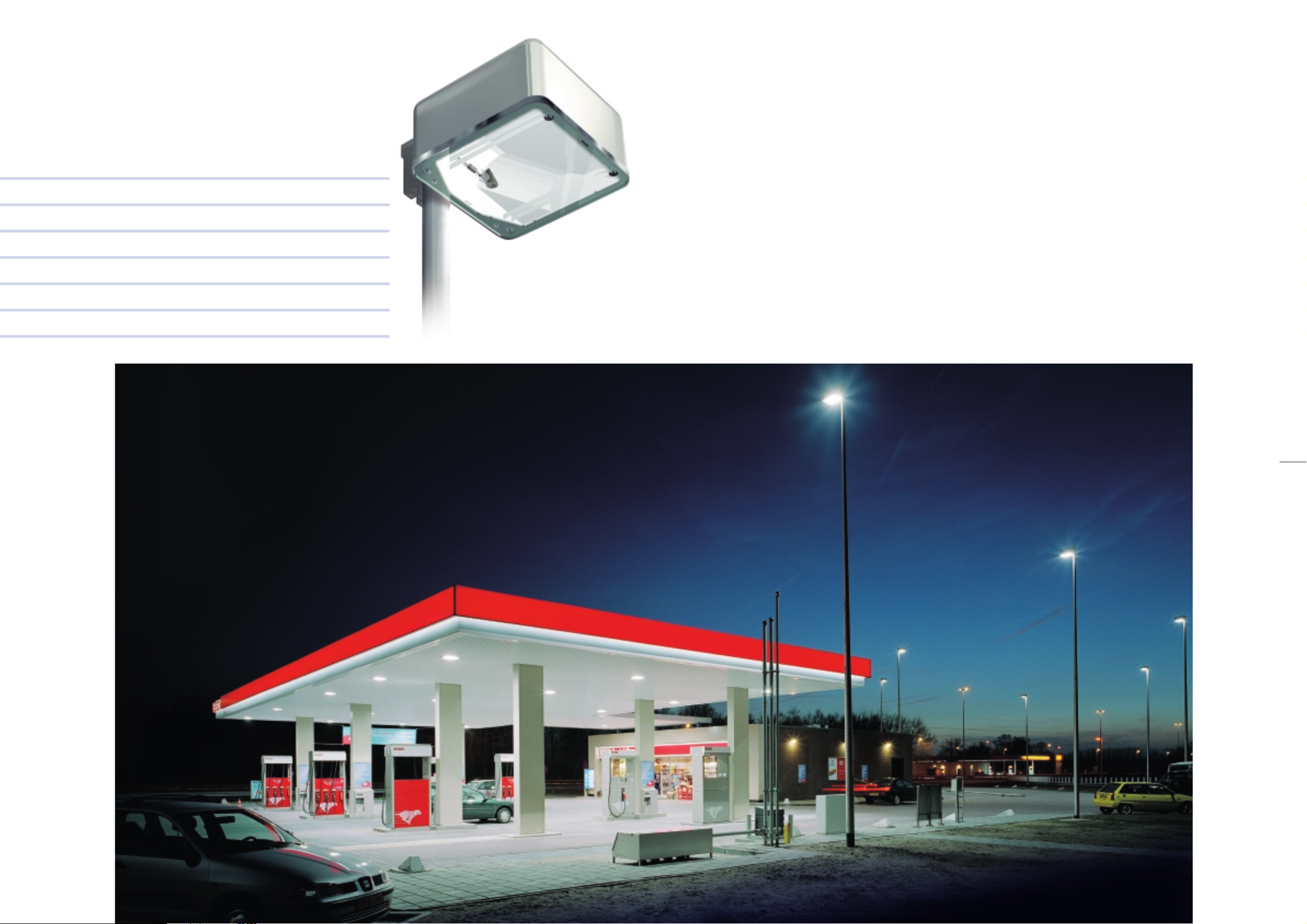

brighten-up your approach areas

and extend your corporate image with

area lighting

The Mini 300 is cost competitive and highly economical

to run – so why not use its superb daylight quality to

brighten up your approach areas and parking lots?

The whole petrol station experience becomes brighter,

cleaner and more enjoyable. And from a distance, the

petrol station becomes a crystal clear landmark.

Improved safety

And it’s not just your corporate image you’ll be

improving. Because, by providing the same type of

light at the approach and departure areas as used

in the forecourt you also improve the visibility and

safety of your customers. Especially when your

lighting schemes gradually adapt the driver’s eye,

helping the driver to adjust from the ‘yellow’ road

lighting. On average lighting levels should be

approximately 10 to 12% of those used in the

forecourt, but depending on a variety of

parameters Philips can advise on the exact levels

to optimise driver comfort and safety.

More inviting, especially for women

Market research shows that up to 95% of all

women feel anxious at nighttime petrol stations,

perceiving them to be dark intimidating places. But

with better, more natural lighting such feelings are

substantially reduced, creating greater customer

loyalty from everyone.

MINI 300 PETROL STATION LIGHTING

11

DGP300 Wall bracket with

Pole T-piece with 2 xDGP300

DGP300

MINI 300 PETROL STATION LIGHTING

12

The choice of beam spreads includes asymmetrical-wide,

-medium and -narrow beams to ensure maximum safety

and optimal comfort.

DGP300 1xCDM-TD 150W/K A NB SI

MINI 300 PETROL STATION LIGHTING

13

Pole T-piece with extended piping and 2xDGP300

Easy-fit modular mountings

DGP300 1xCDM-TD 150W/K A MB SI DGP300 1xCDM-TD 150W/K A WB SI

300

450

450

600

450

600

750

90°

60°

30°0°

30°0°

750

90°

60°

30°0°

600

90°

60°

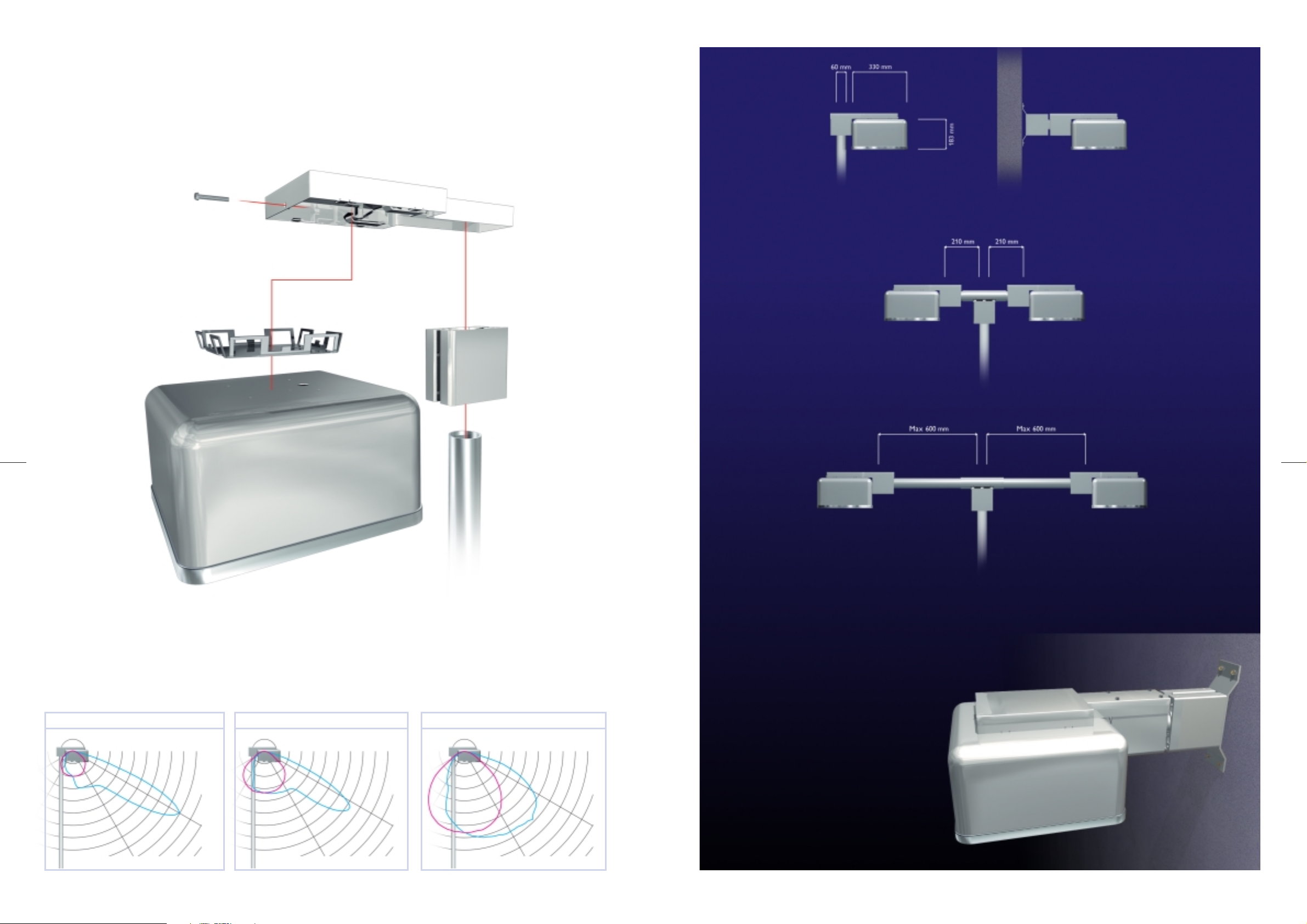

The Mini300 system comes with a standard mounting block for

pole- and wall-mounting solutions.

The result? Easy ordering and easy installation.

The mounting blocks can also be customised. For example, the

standard T-junction that positions two Mini 300’s either side of a

pole can be extended up to 60cm on both sides.

The wall mounting brackets can also be similarly extended.

Together with the choice of beam spreads you are assured of

consistent uniform lighting throughout all areas of your petrol

station experience.

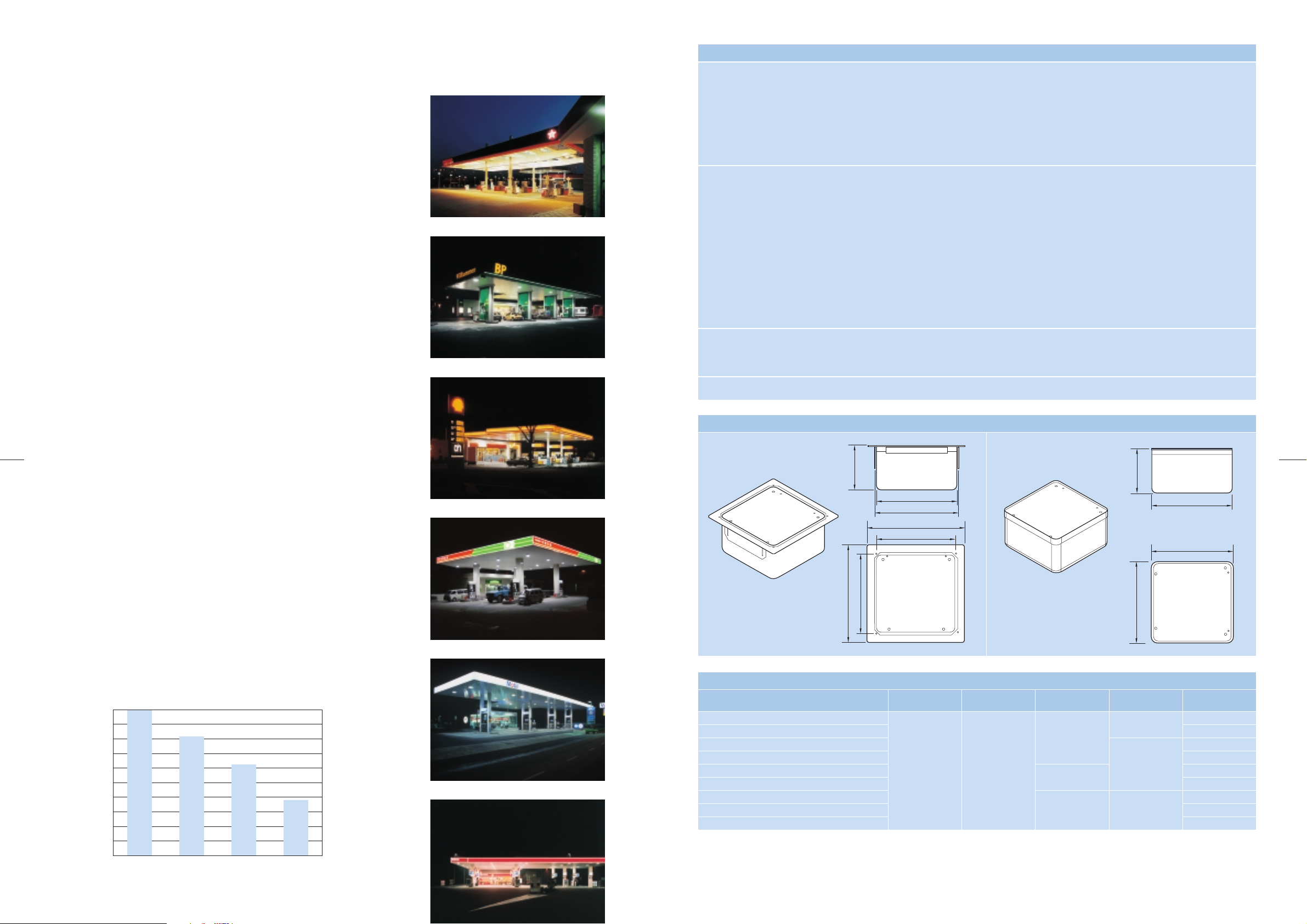

Product specifications

leaders in
petrol station lighting

MINI 300 PETROL STATION LIGHTING

14

For more than a decade, the specialist team of

petrol station lighting professionals at Philips has

pioneered under-canopy lighting. Each year

developing new ways to improve safety, reduce

costs and maximise customer satisfaction. But now

Philips Lighting introduces its most dramatic

innovation yet: the Mini 300. More light and more

quality than ever – for a massive 35% less energy.

Not surprisingly then, that recently one of the

world’s major oil companies chose the Mini 300

for a revolutionary canopy lighting system

powered by thin film solar panels. Read this

brochure and you’ll not only see why, but you’ll

want the Mini 300 for your stations.

Call your local Philips Lighting sales manager and

discover how Philips Lighting solutions will breathe

new life into all areas of your petrol stations.

From the approach roads and parking lots, to the

all-important forecourt and high margin shop

environment.

With Philips on your team, you’ll not only create a

truly welcoming atmosphere you’ll also improve

customer safety too, with better visibility thanks to

less glare and more natural light.

Mechanical

Electrical

Installation

Housing Deep drawn aluminium

Reflector High-quality aluminium with the Philips patented coating, integrated with precision louvres

Front glass Temperature-toughened

Mounting rim and plates Galvanized steel

Operating temperature -20°C – +45°C

Ingress protection IP65

Option Mini 300 Beacon Cover (transparent bowl)

Lamp Ceramic Discharge Metal Halide

Lamp color temperature: 4,200K (3,000K color is available as an option)

Lumen output: 14,200 lumen (13,250 lumen for 3,000K lamp)

Efficacy : 95 lumen/watt

Color rendering index : 96

Average rated lifetime : 15,000 hours

Control gear Electromagnetic ballast: BSN150 L302 ITS (HF ballast is available upon request)

Mains : 220Vac/50Hz (other systems are available upon request)

Watt loss: 17W

Power Factor : >=0.85

Ignitor: SN58 (semi-parallel)

Recessed

Surface-mounted

Pole-mounted

IEC598Product compliance

CDM-TD 150W

Product dimensions

DBP 300 DCP 300 & DGP 300

185

330

344

400

325

183

MINI 300 PETROL STATION LIGHTING

15

330

335

It all makes compelling sense – especially when

you think about the massive energy savings

you’ll be making.

Call today.

Yearly energy cost per typical station

100%

90

80

70

60

50

40

30

20

10

0

1992 1995 1997 2001

400

325

measurements in mm measurements in mm

Ordering Data

Product Description Ordering NumberDimensions

DBP300 1xCDM-TD 150W/942 K A WB MR WH

DBP300 1xCDM-TD 150W/942 K S WB MR WH

DBP300 1xCDM-TD 150W/942 K A WB WH

DBP300 1xCDM-TD 150W/942 K S WB WH

DCP300 1xCDM-TD 150W/942 K A WB WH

DCP300 1xCDM-TD 150W/942 K S WB WH

DGP300 1xCDM-TD 150W/942 K A WB SI

DGP300 1xCDM-TD 150W/942 K A MB SI

DGP300 1xCDM-TD 150W/942 K A NB SI

Notes:
Standard product: 220V/50Hz / Standard lamp color: color temperature 4,200K
Other electrical systems for gears, electronic control gear, and lamp of color temperature 3,000K are available upon request
To replace

MPF9xx luminiares, a recessed adaptor plate (ZBP300IP WH) is available upon request (no further

repairs required to the canopy ceiling).
Specifications subject to modification without prior notice.

DESIGNED BY PHILIPS DESIGN HONG KONG 2003

Lamp

CDM-TD 150W/942

Packing Unit

1

Packing weight

(kg)

8

8.5

10

335

LxWxH (mm)

440x420x255

370x370x255

440x395x255

K = Kombi (luminaire comes complete with lamp)
A = Asymmetrical light distribution
S = Symmetrical light distribution
WB = Wide beam light distribution
MB = Medium beam light distribution
NB = Narrow beam light distribution
WH = White color
SI = Silver color

9104 016 32480

9104 016 32580

9104 016 32680

9104 016 32780

9104 016 32880

9104 016 32980

9104 016 33080

9104 016 33180

9104 016 33280

Hong Kong – Philips Electronics

Hong Kong Ltd.

Lighting Asia Pacific Headquarters

27th Floor, Hopewell Centre
17 Kennedy Road, Wanchai, Hong Kong
Tel: + 852 2821 5300
Fax: + 852 2821 5342
E-mail: [e-mail]

Australia – Philips Lighting

Level 1, Philips House
65 Epping Road, North Ryde
NSW 2113, Sydney, Australia
Tel: + 61 2 9947 0000 or

1300 304 404 (toll free - local only)
Fax: + 61 2 9947 0325
E-mail: [e-mail]

China – Philips Lighting

No. 1805 Hu Yi Road, Malu Town
Jiading District, Shanghai, 201801, P.R.China
Tel: + 86 21 5915 4060
Fax: + 86 21 5915 4064
E-mail: [e-mail]

India – Philips Lighting

Lighting Division
Motorola Excellence Centre, 5th Floor
415/2 Mehrauli-Gurgaon Road
Sector -14, Haryana-122001, India
Tel: + 91 124 509 1900
Fax: + 91 124 509 1912
E-mail: [e-mail]

Indonesia – Philips Lighting

Gedung Philips
J1. Buncit Raya Kav. 99-100
Jakarta 12510, Indonesia
Tel: + 62 31 8491 674 or

0800 10 52678 (hotline - local only)
Fax: + 62 31 8473 240
E-mail: [e-mail]

Japan – Philips Lighting

Philips Building
13-37, Kohnan 2-chome
Minato-ku, Tokyo 108-8507, Japan
Tel: + 81 3 3740 5156
Fax: + 81 3 3740 5163
E-mail: [e-mail]

Korea – Philips Lighting

260-199 Itaewon-dong
Yongsan-ku, Seoul 140-200, Korea
Tel: + 82 2 709 1312
Fax: + 82 2 709 1350
E-mail: [e-mail]

32 2 A42 3 001-01

Malaysia – Philips Lighting

76, Jalan Universiti
46200 Petaling Jaya
Selangor Darul Ehsan, Malaysia
Tel: + 60 3 7957 5511
Fax: + 60 3 7955 2739
E-mail: [e-mail]

New Zealand – Philips Lighting

2 Wagener Place, Mt Albert
PO Box 1041, Auckland, New Zealand
Tel: + 64 9 815 4000 or

0800 454 448 (toll free - local only)

Fax: + 64 9 849 7812 or

0800 160 875 (toll free - local only)

E-mail: [e-mail]

Pakistan – Philips Lighting

F-54, S.I.T.E.
Karachi-75730, Pakistan
Tel: + 92 21 256 0071
Fax: + 92 21 257 8920
E-mail: [e-mail]

Philippines – Philips Lighting

Philips House
106 Valero St. Salcedo Village
1227 Makati City, Philippines

Tel: + 63 2 845 7840
Fax: + 63 2 816 6340
E-mail: [e-mail]

Singapore – Philips Lighting

620A Lorong 1 Toa Payoh
Singapore 319762, Singapore
Tel: + 65 6882 3530
Fax: + 65 6253 2343
E-mail: [e-mail]

Taiwan – Philips Lighting

25B, No.66, Chung Hsiao W. Road
Sec. 1, Taipei, Taiwan
Tel: + 886 2 2382 7666 or

0800 231 099 (toll free - local only)
Fax: + 886 2 2382 4422
E-mail: [e-mail]

Thailand – Philips Lighting

515 Moo 4, Pattana 3 Road
Bangpoo Industrial Estate, Soi 8B
Preaksa, Samutprakarn 10280, Thailand
Tel: + 66 2 709 3300
Fax: + 66 2 740 4960-1
E-mail: [e-mail]

Vietnam – Philips Lighting

99-101 Ham Nghi Street
Ward: Nguyen Thai Binh
District 1, Ho Chi Minh City, Vietnam
Tel: + 84 8 914 2248 Ex.304
Fax: + 84 8 914 2249
E-mail: [e-mail]

www.lighting.philips.com/apr

© 2003 Koninklijke Philips Electronics N.V.

All rights reserved, reproduction in whole or in part without permission is prohibited.
