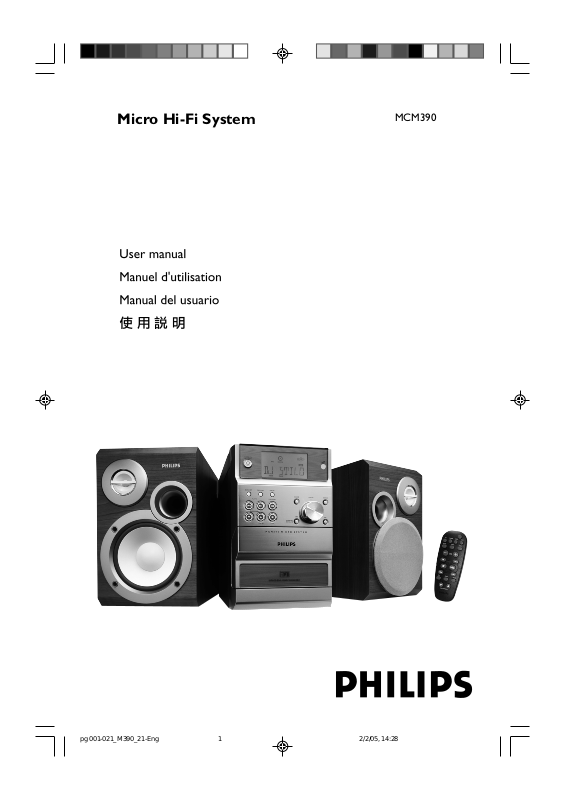

MCM390
Micro Hi-Fi System
Page 2
México
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V. no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación eléctrica y las características que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, inundaciones, incendios, descargas eléctricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas
, etc.).
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Minisistema de Audio Modelo : MCM390/ 21 Alimentación: 110–127 / 220–240V~; 50–60 Hz Consumo: 60 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6
Col. San Fernando La Herradura Huixquilucan
Localidad y Tel: Edo. de México C.P. 52784
Tel.52 69 90 00
Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
2
CAUTION
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Page 3
%
)
$
¡
8
6
# @
7
™
9
≤
∞
£
(
*
DISPLAY/BAND
#
$
%
&
^
@ !
1
9
5
6
7
0
8
4
3
2
3
3
Page 4
Energy Star
As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STARR guidelines for energy efficiency.
4
R
Page 5
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 22
Español --------------------------------------------- 38
-------------------------------------------------------- 54
English
Français
Español
5
Page 6
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety information ................................................ 7
About MP3 disc .................................................... 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Inserting batteries into the remote control ... 9
Controls
Controls on the system and remote
control .................................................................. 10
Basic Functions
Switching the system on ................................... 11
Switching the system to Eco Power standby
mode ..................................................................... 11
Power-saving automatic standby ..................... 11
Volume control ................................................... 11
Sound control ..................................................... 11
Power Antennas connection Speakers connection
Connecting other equipment to your system
Radio Reception
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Automatic programming Manual programming
Tuning to preset radio stations ....................... 15
Changing tuning grid .......................................... 15
Ta pe Operation/Recording
Ta pe playback ...................................................... 16
Rewinding / Fast forwarding ............................ 16
General information on recording ................. 16
Preparation for recording ................................ 17
Synchro start CD recording ............................ 17
One touch recording......................................... 17
Recording timer .................................................. 17
Clock/Timer
Clock setting ....................................................... 18
Timer setting ....................................................... 18
Activating and deactivating timer
Sleep timer setting ............................................. 18
Specifications ........................................... 19
Maintenance.............................................. 20
CD / MP3-CD Operations
Discs for playback .............................................. 12
Playing a disc ........................................................ 12
Text display .......................................................... 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 13
Selecting a desired Album/Track
(MP3 disc only) ................................................... 13
Different play modes: SHUFFLE
and REPEAT ......................................................... 13
Programming the disc tracks ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
6
Troubleshooting ............................. 20–21
Page 7
General Information
MPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE BOTTOM OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM.
Supplied accessories
–2 speaker boxes – remote control – MW loop antenna – FM wire antenna
Environmental Information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or lubricated.
● When the system is switched to Standby
mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
About MP3 disc
Supported formats
– ISO9660, Joliet, Multisession – Max. track number plus album is 300 – Max. nested directory is 8 levels – The max. album number is 30 – The max. MP3 programme track number is
20 – Suppor ted VBR bit-rate – Supported sampling frequencies for MP3 disc
are: 32 kHz, 44.1 kHz, 48 kHz – Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps)
Sound Quality
Ta ke note that MP3-CD compilations should best contain only MP3 tracks (.mp3). To
achieve a good MP3 quality, a bit rate of 128 kbps is recommended.
English
7
Page 8
Preparations
MW
Speaker
Speaker
D
English

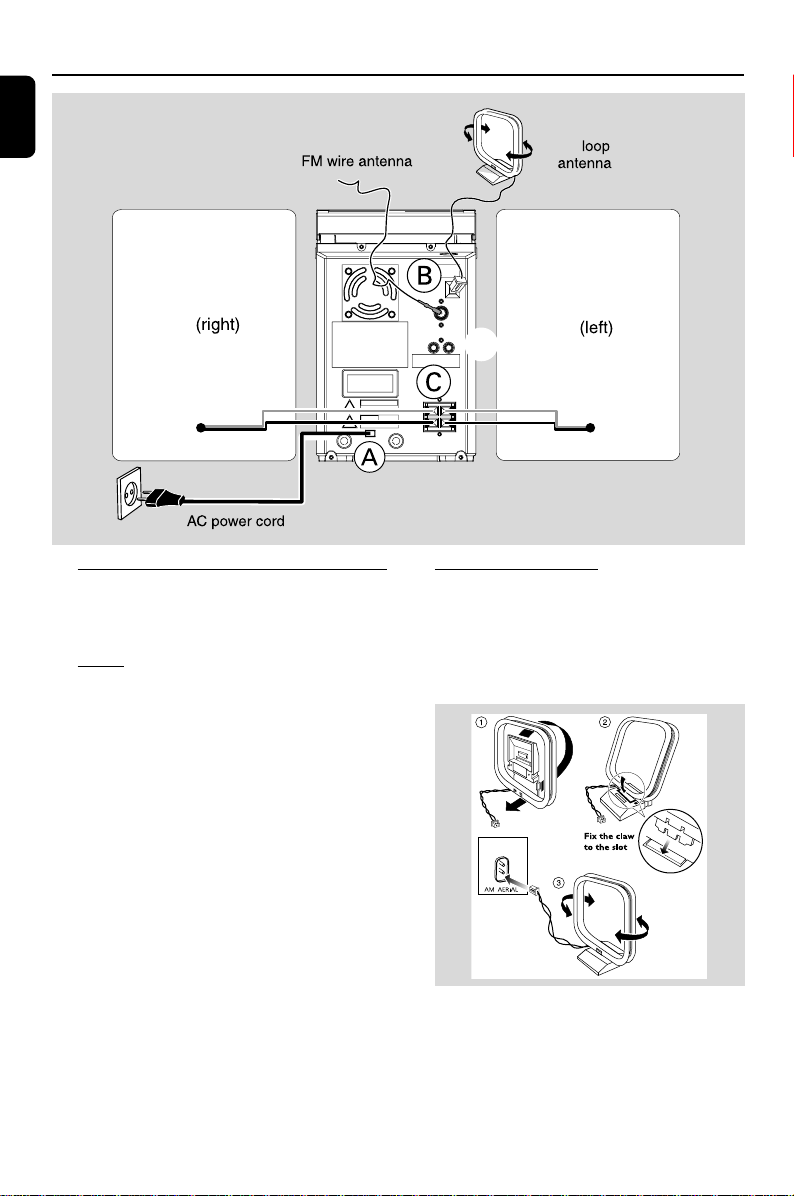

Rear connections
The type plate is located at the rear of the system.
A Powe r
– Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage.
WARNING! –For optimal performance, use only the original power cable. –Never make or change connections with the power switched on.
To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).
8
B Antennas Connection
Connect the supplied MW loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.
MW Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
Page 9
Preparations
1
2
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM ANTENNA) terminal.

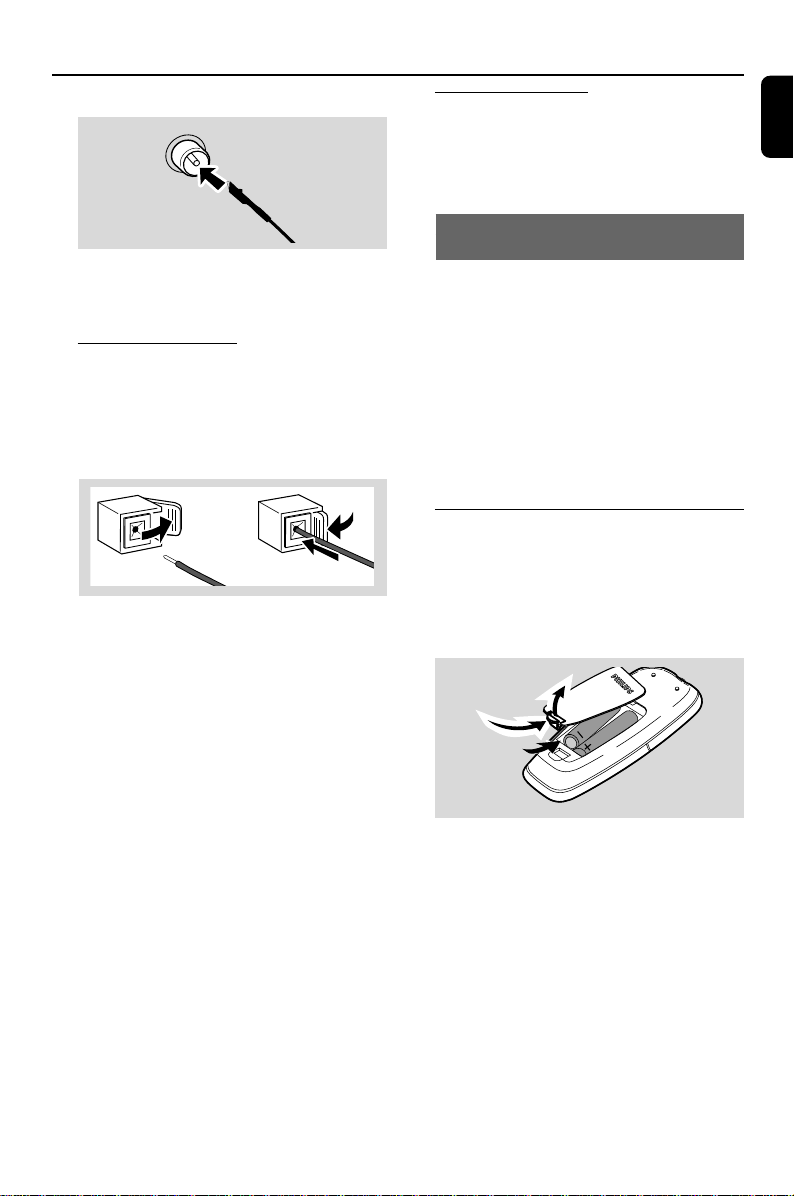

C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", coloured (marked) wire to "+" and black (unmarked) wire to "-".
● Fully inser t the stripped por tion of the speaker
wire into the terminal as shown.
Notes: –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
D Optional connection
The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.
Connecting other equipment to your system
Connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX IN terminals.
Note: – If you are connecting equipment with a monaural output (a single audio out terminal), connect it to the AUX IN left terminal. Alternatively, you can use a “single to double” cinch cable (the output sound still remain monaural).
Inserting batteries into the remote control
Insert two batteries (type R03 or AAA) into the remote control with the correct polarity as indicated by the "+" and "-" symbols inside the battery compar tment.
English
CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.
9
Page 10

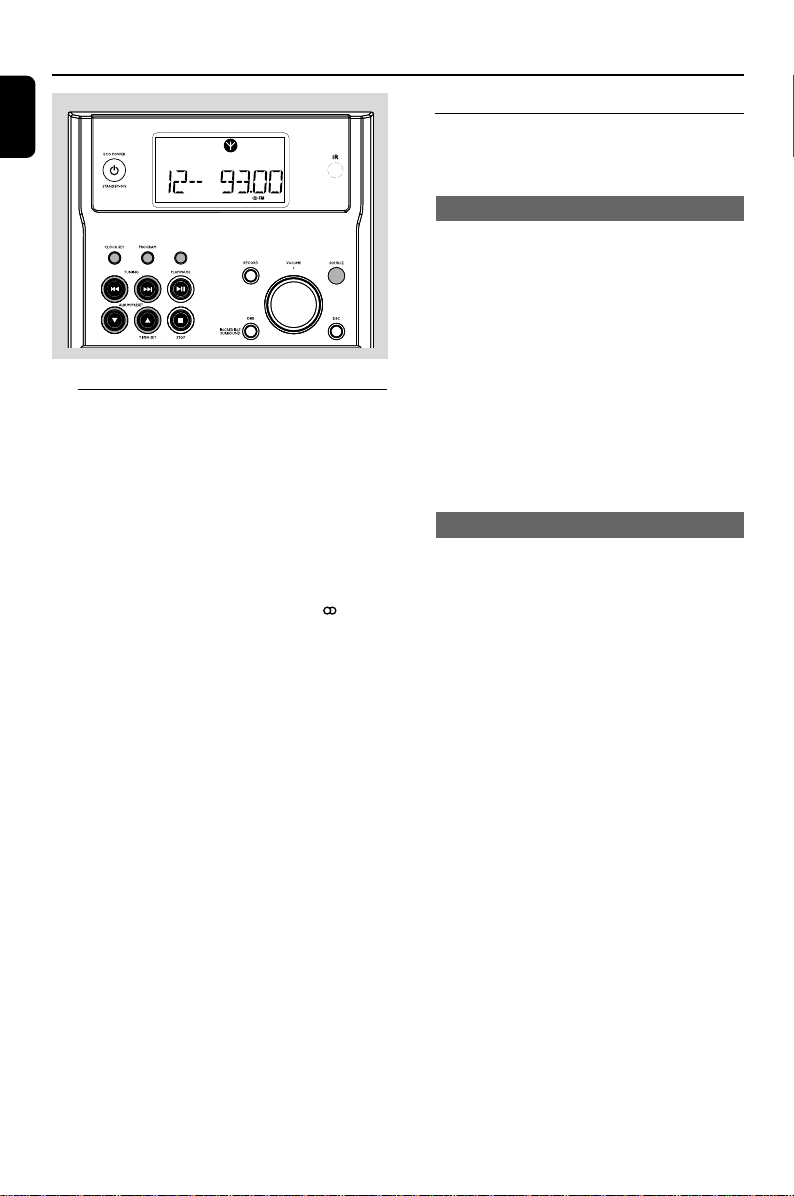

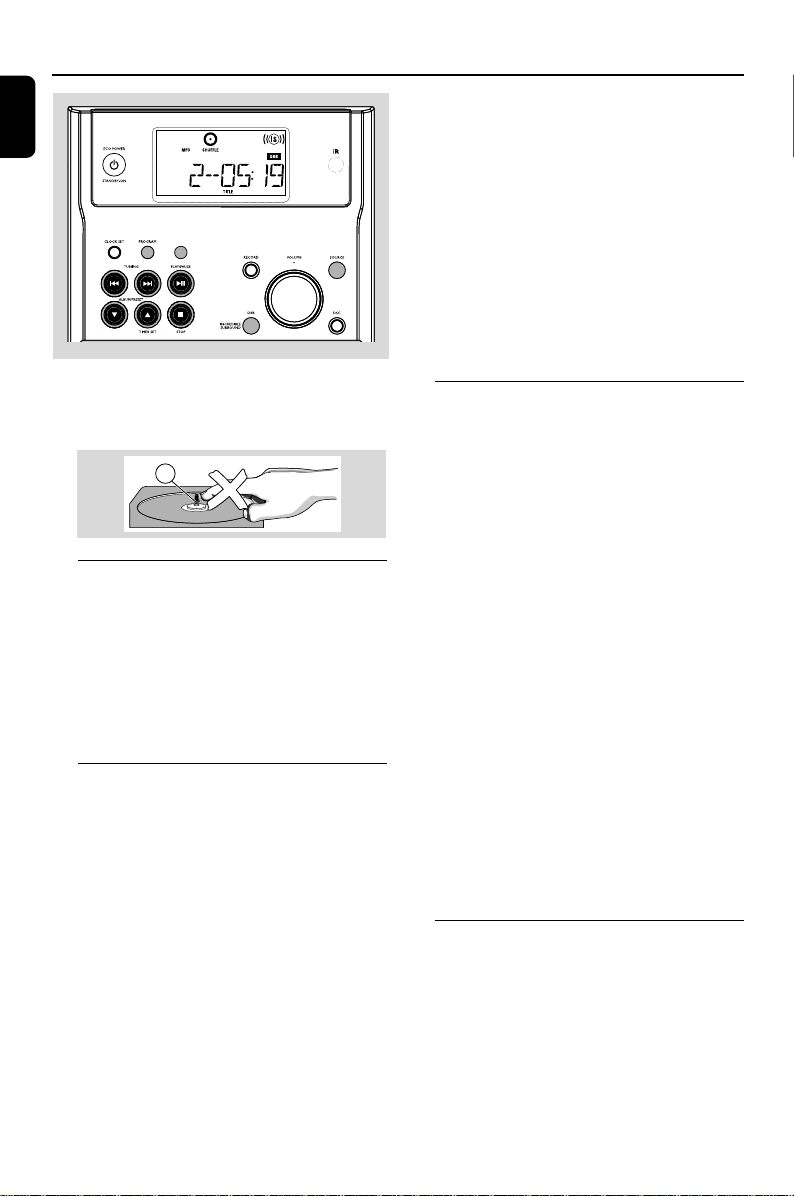

Controls (illustrations on page 3)
English
Controls on the system and remote control
1 Eco Power/STANDBY ON y
– to switch the system on or to Eco Power
standby mode.
2 Display screen
– to view the current status of the system.
3 DISPLAY/BAND
for Tuner ............. to select waveband : FM, MW or
LW.
for CD/MP3-CD…to select disc information
display mode.
4 PROGRAM
for CD/MP3-CD…to programme disc tracks.
for Tuner ............. to programme preset radio
stations.
5 CLOCK SET
for Clock ............ (on the system only) to set the
clock function.
6 S T TUNING ( àá)
for CD ................. to fast reverse/forward the disc.
for CD/MP3 CD…(on the system only) to select
a desired track.
for Tuner ............. to tune to a lower or higher
radio frequency.
for Tape ............... to rewind or fast forward.
7 43 ALBUM/PRESET/TIMER SET
for MP3-CD .....to select previous/next album.
for Tuner ............. to select a preset radio station.
for Timer Set (3) (on the system only) to set the
timer function.
8 9 STOP
for CD/MP3-CD…to stop playback or to clear a
programme.
for Tape ...............to stop playback or recording.
9 PLAY/PAUSE ÉÅ
for CD/MP3 CD…to start or interrupt playback.
for Tape ...............to start playback.
0 Ta pe deck ! OPEN ç
– to open tape compar tment.
@ IS/DBB (Incredible Surround/Dynamic
Bass Boost)
– to create a super-enhanced stereo effect. – to enhance the bass.
# DSC (Digital Sound Control)
– to select the desired sound effect : OPTIMAL/
ROCK/POP/JAZZ.
$ VOLUME (VOL + / -)
– to increase or decrease the volume. – (on the system only) to adjust the hour s and
minutes for the clock/timer functions.
% SOURCE
– to select the respective sound source : CD,
TUNER, TAPE or AUX.
^ RECORD
– to star t recording.
& iR sensor
– infrared sensor for remote control.
* OPEN•CLOSE 3
– to open or close the disc tray.
( n Headphone
– Plugs in the headphones jack. The speakers
output will be cancelled.
) MODE
– to shuffle and repeat a track/disc.
¡ ¡ / ™
– to select a desired track.
™ MUTE
– inter rupts and resumes sound reproduction.
£ TIMER
– to activate/deactivate the timer function.
≤ SLEEP
– to activate/deactivate or set the sleep timer.
∞ B
– to switch the system to standby mode.
Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD, TUNER). – Then select the desired function (for exampleÉ,
í
,
ë
).
10
Page 11
Basic Functions
Power-saving automatic standby
As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 15 minutes after a disc or tape has stopped playing.
English
DISPLAY/BAND
IMPORTANT! Before you operate the system, complete the preparation procedures.
Switching the system on
● Press STANDBY ON 2 or SOURCE. ➜ The system will switch to the last selected
source.
● Press CD, TUNER, TAPE or AUX on the
remote control.
➜ The system will switch to the selected source.
Switching the system to Eco Power Standby mode
● Press STANDBY-ON / 2 in the active mode. ➜ The backlight of clock display is dim in
standby.
● The volume level, interactive sound settings, last
selected mode, source and tuner presets will be retained in the player's memory.
● To view the clock time in Standby mode, press
and hold STANDBY-ON / 2 for 3 seconds or more.
➜ The system enters the normal standby mode
with clock display.
● Press and hold STANDBY-ON / 2 for 3
seconds or more to go back to Eco Power Standby mode.
Volume control
Adjust VOLUME (VOL + / -) to increase or decrease the volume level.
➜ Display shows the volume level "VOL" and a
number from 1-31. “MIN” denotes the minimum volume level and “MAX” denotes the maximum volume level.
To switch off the volume temporarily
● Press MUTE on the remote control. ➜ Playback will continue without sound and
"MUTE" is displayed.
● To restore the volume, press MUTE again or
increase/decrease the volume level.
Sound control

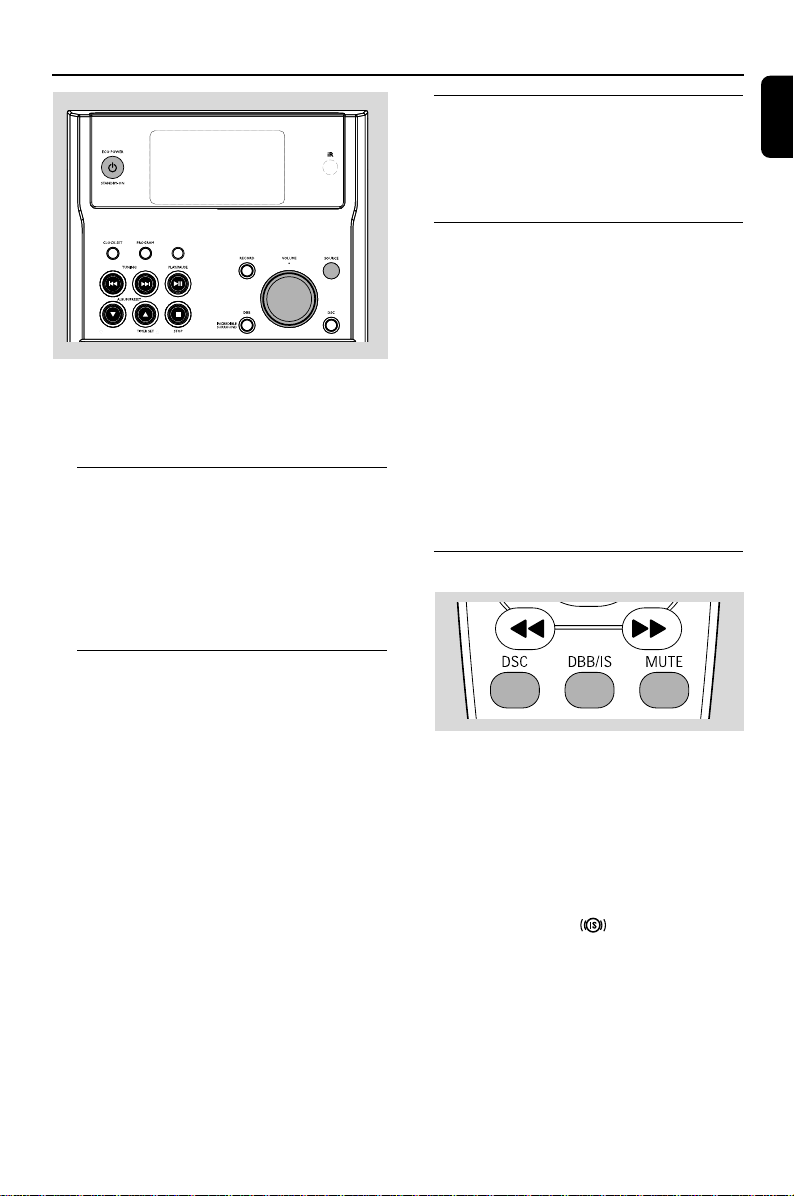

● Press DSC repeatedly to select the desired
sound effect : OPTIMAL, ROCK, JAZZ or POP.
● Press INCREDIBLE SURROUNDS/DBB to
switch on or off the surround sound effect or bass enhancement.
➜ The sequences are as follows :
DBB ™ INCR.SURR. ™ DBB+INCR.SURR.
➜ If the DBB is activated, DBB is shown. ➜ If the IS is activated, is shown.
Note: – The effect of INCREDIBLE SURROUND may vary with different types of music.
11
Page 12
CD/MP3-CD Operations
X
English
DISPLAY/BAND
To interrupt playback
● Press ÉÅ.
● To resume playback, press ÉÅ again.
To stop playback
● Press Ç.
Notes: – Disc play will also stop when you select another source or the disc has reached the end. –For MP3 disc, the disc reading time may exceed 10 seconds due to the large number of songs compiled into one disc.
IMPORTANT! The lens of the CD player should never be touched.
Discs for playback
This system is able to play : – All pre-recorded audio CDs – All finalised audio CDR and audio
CDRW discs
– MP3-CDs (CD-ROMs with MP3 tracks)
● CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
Playing a disc
1 Select CD source. 2 Press OPEN•CLOSE3 on the top of the
system to open the CD compartment.
➜ “CD OPEN” is displayed.
3 Inser t a disc with the printed side facing up and
press OPEN•CLOSE3 to close the CD door.
➜ “READING” is displayed as the CD player
scans the contents of a disc, and then the total number of tracks and album are shown.
4 Press ÉÅ to start playback.
Te xt display
In CD mode
● Press DISPLAY/BAND repeatedly to see the
following information.
➜ Track number and elapsed play time of
current track.
➜ Remaining play time of current track. ➜ Total number of tracks played and total
played-back time.
➜ Total remaining number of tracks and total
remaining play time.
In MP3-CD mode
● Press DISPLAY/BAND repeatedly to select
four display modes : Number, Track, Album and ID3.
Number ➜ Album number, track number and
elapsed play time.
Track ➜ Track name scrolls and elapsed play
time.
Album ➜ Album name scrolls and elapsed play
time.
ID-3 ➜ ID-3 tag scrolls once and elapsed play
time.
Selecting a different track
● Press S or T (¡ or ™) repeatedly until
the desired track number appears in the display.
● If playback is stopped, pressÉÅ to star t
playback.
12
Page 13
CD/MP3-CD Operations
Finding a passage within a track
1 Press and hold down on S or T ( àá
on the remote control).
➜ The disc is played at high speed.
2 When you recognize the passage you want,
release S or T ( àáon the remote control).
➜ Normal playback continues.
Selecting a desired album/track (MP3 disc only)
To select a desired album
● Press 4 or 3 repeatedly.
To select a desired track
● Press S or T (¡ or ™) repeatedly.
Different play modes: SHUFFLE and REPEAT
You can select and change the various play modes before or during playback.
1 Press MODE on the remote control to select :
➜ SHUFFLE – tracks of the entire disc/
programme are played in random order.
➜ SHUFFLE REPEAT ALL – to repeat the
entire disc/ programme continuously in random order.
➜ REPEAT ALL – to repeat the entire disc/
programme.
➜ REPEAT – to repeat the current track.
2 To return to normal playback, press MODE until
the various SHUFFLE/ REPEAT modes are no longer displayed.
● You can also press 9 to cancel your play mode.
Note: – If Shuffle is activated on a MP3-CD, all titles stored in the disc will be played in random order.
Programming the disc tracks
Programming tracks is possible when playback is stopped. Up to 20 tracks can be stored in the memory in any order.
1 Press PROGRAM to enter the programming
mode.
➜ A track number is shown and PROG flashes.
2 Press S or T (¡ or ™) repeatedly to
select your desired track number.
● For MP3 disc, press 4 / 3 and S / T
(¡ or ™) to select the desired album and track for programming.
3 Press PROGRAM to confirm the track number
to be stored.
4 Repeat steps 2-3 to select and store all desired
tracks.
5 To star t playback of your disc programme, press
Ç followed byÉÅ.
● If you attempt to programme more than
20 tracks, “FULL” will appear on the display. In this case :
➜ The system will exit programming mode
automatically.
➜ Pressing Ç button will erase all the
programmed tracks.
➜ Pressing ÉÅ button will start playback the
programmed tracks.
Note: – It is not possible to create a programme with MP3 tracks from multiple CDs.
Reviewing the programme
In stop mode, press and hold PROGRAM until the display shows all your stored track numbers in sequence.
Erasing the programme
● Press Ç once when playback is stopped or
twice during playback.
➜ PROG disappears and “CLEAR” is displayed.
English
13
Page 14
Radio Reception
English
DISPLAY/BAND
Tuning to radio stations
1 Select TUNER source.
➜ “TUNER” is displayed briefly.
2 Press DISPLAY/BAND to select the desired
waveband : FM, MW or LW.
3 Press down on S or T ( àáon the
remote control) and release button.
➜ The display will show "SEARCH" until a radio
station with sufficient signal strength is found.
➜ If a FM station is received in stereo, is
shown.
4 Repeat step 3 if necessar y until you find the
desired station.
● To tune to a weak station, press S or T (
¡ ™ on the remote control) briefly and
repeatedly until you have found optimal reception.
Programming radio stations
You can store up to a total of 40 radio stations in the memory.
Automatic programming
Automatic programming will start with a chosen preset number. From this preset number upwards, former programmed radio stations will be overridden.
1 Press 4 or 3 to select the preset number where
programming should start.
Note: – If no preset number is selected, default is preset (1) and all your presets will be overridden.
2 Press PROGRAM for more than two seconds
to activate programming.
➜ All available stations are programmed.
Manual programming
1 Tune to your desired station (refer to “Tuning to
radio stations”).
2 Press PROGRAM to activate programming.
➜ PROG flashes in the display.
3 Press 4 or 3 to allocate a number from 1 to 40
to this station.
4 Press PROGRAM again to confirm the setting.
➜ PROG disappears, the preset number and
the frequency of the preset station are shown.
5 Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
14
Page 15
Radio Reception
Tuning to preset radio stations
● Press 4 or 3 until the desired preset station is
displayed.
Changing tuning grid (some versions only)
In North and South America the frequency step between adjacent channels in the AM and FM band are 10 kHz and 100 kHz respectively. In the rest of the world this step is 9 kHz and 50 kHz. Usually the frequency step has been preset in the factory for your area if not:
1 Select TUNER source. 2 Press BAND on the system for at least five
seconds.
➜ The display shows either “
GRID 10 kHzGRID 10 kHz
“
GRID 10 kHz”.
GRID 10 kHzGRID 10 kHz
Note: – All preset stations will be lost and need to be reprogrammed.
GRID 9 kHzGRID 9 kHz
GRID 9 kHz” or
GRID 9 kHzGRID 9 kHz
English
15
Page 16

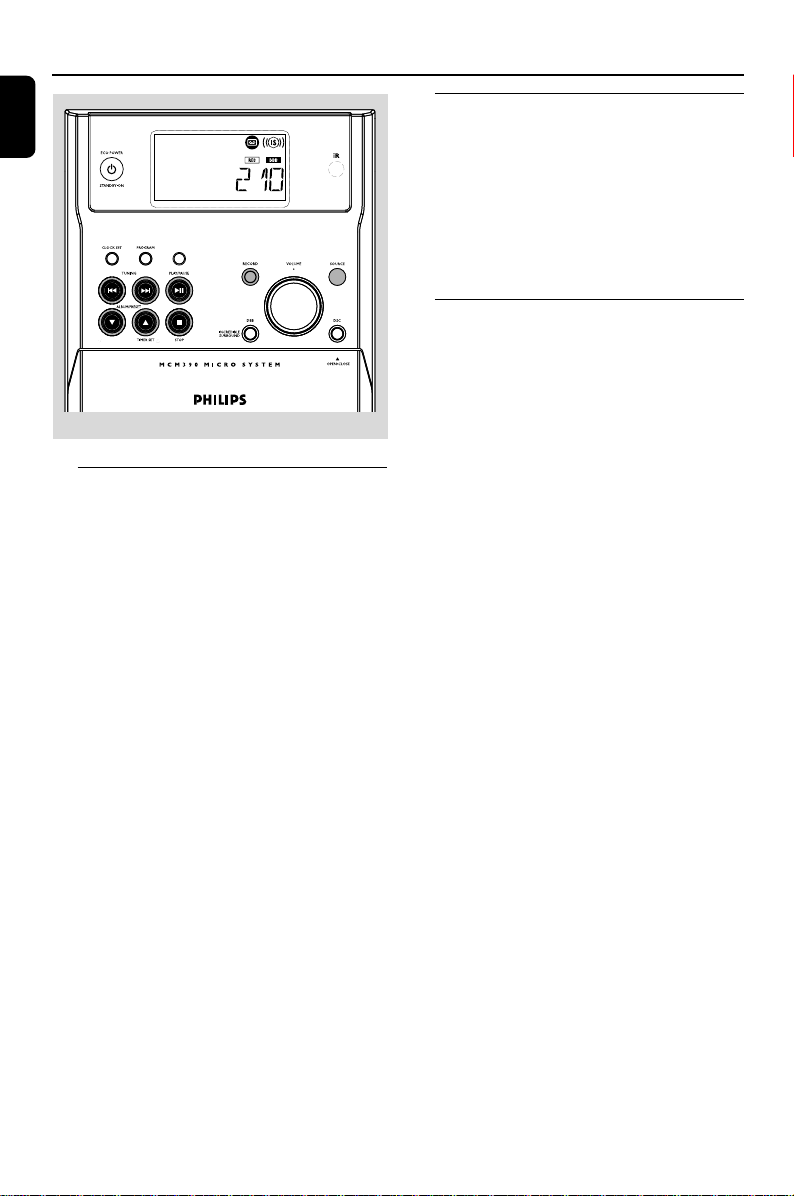

Ta pe Operation / Recording
English
DISPLAY/BAND
Ta pe playback
1 Select TAPE source.
➜ The display shows “
tape counter 000 displayed.
2 Press OPEN ç to open the tape door. 3 Inser t a recorded tape and close the tape door.
● Load the tape with the open side downward and
the full spool to the left.
4 Press ÉÅ to start playback.
To stop playback
● Press Ç.
To reset the tape counter display
● In stop mode, press Ç once.
TAPETAPE
TAPE” briefly, and the
TAPETAPE
Rewinding / Fast forwarding
1 Stop playback, press S or T ( àáon
the remote control).
➜ The tape will stop automatically at the end of
rewinding or fast forwarding.
➜ During fast winding, you can monitor the tape
message with the tape counter.
2 Press Ç to stop rewinding or fast forwarding.
General information on recording
● For recording, use only NORMAL (IEC type I)
tapes on which the tabs have not yet been broken. This deck is not suited for recording on METAL (IEC IV) type tapes.
● The best recording level is set automatically.
Altering the VOLUME, INCREDIBLE SURROUND or DBB will not affect the recording in progress.
● At the very beginning and end of the tape, no
recording will take place during the 7 seconds when the leader tape passes the recorder heads.
● To protect a tape from accidental erasure, have
the tape in front of you and break out the left tab. Recording on this side is no longer possible. If, however, you wish to record over this side again, cover the tabs with a piece of adhesive tape.
IMPORTANT! Recording is permissible if copyright or other rights of third parties are not infringed upon.
16
Page 17
Ta pe Operation / Recording
Preparation for recording
1 Select TAPE source. 2 Load a recordable tape into tape deck with full
spool to the left.
3 Prepare the source to be recorded.
CD – load the disc. TUNER – tune to the desired radio station. AUX – connect external equipment.
When recording is in progress
➜ REC is shown.
● To stop recording, press 9.
● It is not possible to listen to another source.
● It is not possible to activate the timer function.
Synchro start CD recording
1 Select CD source.
● Press S or T (¡ or ™) to select the
desired track to start recording.
● You can programme the tracks in the order you
want them to be recorded (refer to “CD/MP3­CD Operations - Programming the disc tracks”).
2 Press RECORD to star t recording.
➜ Playing of the CD programme starts
automatically from the beginning of the CD. It is not necessary to star t the CD player separately.
One touch recording
1 Select CD, TUNER or AUX source. 2 If necessary, star t playback of the selected
source.
3 Press RECORD to star t recording.
Recording timer
To record from the radio, you will need to use a preset radio station and to set a start (ON) and finish (OFF) time.
1 Select the preset radio station to record from
(refer to “Radio Reception - Tuning to preset radio stations”).
2 In standby mode, press PRESET 3 for more
than two seconds.
➜ The current selected source is displayed.
3 Press SOURCE repeatedly until “REC TUN”
source is displayed.
4 Press PRESET 3 to confirm the source.
➜ “SET ON TIME” is displayed and the clock
digits for the hours flash.
5 Adjust VOLUME on the front pannel to set the
hours.
6 Press PRESET 3 again.
➜ The clock digits for the minutes flash.
7 Adjust VOLUME on the front pannel to set the
minutes.
8 Press PRESET 3 to confirm the recording start
time.
➜ “SET OFF TIME” is displayed and the clock
digits for the hours flash.
9 Repeat steps 5-7 to set the finish time. 0 Press PRESET 3 to confirm the timer settings.
➜ is shown and the recording timer is now
set.
Note: – The recording timer will not be activated if the system is in tape play mode.
English
17
Page 18

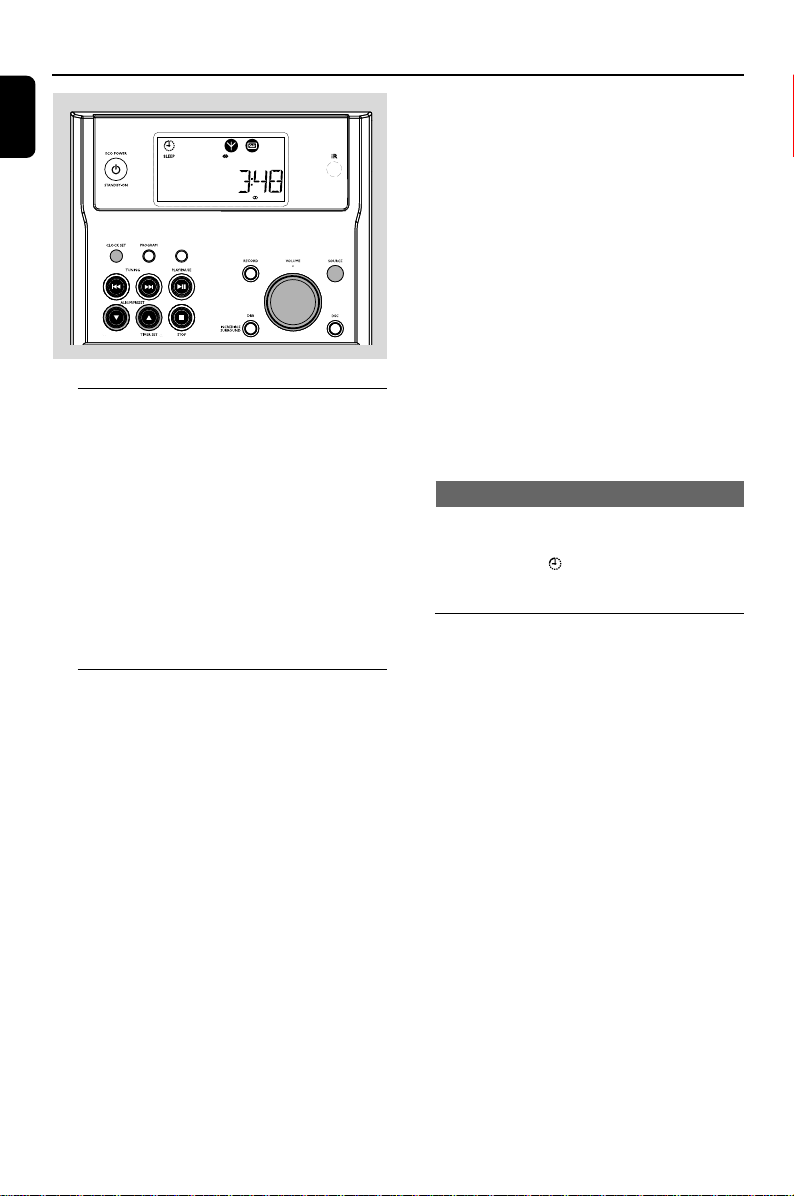

Clock/Timer
English
DISPLAY/BAND
Clock setting
Manual clock setting
1 In standby mode, press and hold
CLOCK SET.
➜ The clock digits for the hours flash.
2 Adjust VOLUME to set the hours. 3 Press CLOCK SET again.
➜ The clock digits for the minutes flash.
4 Adjust VOLUME to set the minutes. 5 Press CLOCK SET to confirm the time.
Timer setting
● The system can be used as an alarm clock,
whereby the CD, TUNER or TAPE is switched on at a set time (one time operation). The clock time needs to be set first before the timer can be used.
● You can also use it to record a favourite tuner
programme at a set period (refer to “Recording timer”)
● During setting, if no button is pressed within 90
seconds, the system will exit timer setting mode automatically.
1 In standby mode, press PRESET 3 for more
than two seconds.
2 Press SOURCE repeatedly to select the sound
source.
➜ “SET TIME” and “SELECT SOURCE” are
displayed.
3 Press PRESET 3 to confirm your desired
mode.
➜ “SET ON TIME” is displayed and the clock
digits for the hours flash.
4 Adjust VOLUME to set the hours. 5 Press PRESET 3 again.
➜ The clock digits for the minutes flash.
6 Adjust VOLUME to set the minutes. 7 Press PRESET 3 to confirm the time.
➜ The timer is now set and activated.
Activating and deactivating timer
● In standby or during playback, press TIMER
once on the remote control.
➜ Display shows if activated, and disappears if
deactivated.
Sleep timer setting
The sleep timer enables the system to switch off by itself after a set period of time.
1 Press SLEEP on the remote control repeatedly
to select a preset time.
➜ The selections are as follows (time in
minutes):
6060
4545
3030
1515
00
60 ™
45 ™
30 ™
6060
4545
➜ "SLEEP XX" or "0" is displayed. "XX" is the
time in minutes.
3030
15 ™
1515
0 ™
00
6060
60 …
6060
2 When you reach the desired length of time, stop
pressing the SLEEP button.
To deactivate the sleep timer
● Press SLEEP repeatedly until "0" is displayed, or
press the STANDBY ON button.
18
Page 19
Specifications
AMPLIFIER
Output power ....................................... 2 x 15 W RMS
......................................................................... 700 W PMPO
Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)
Frequency response ......... 40 – 15000 Hz, ± 3 dB
Impedance loudspeakers ......................................... 4 Ω
Impedance headphones .................... 32 Ω -1000 Ω
CD/MP3-CD PLAYER
Number of programmable tracks ......................... 20
Frequency range .................................. 20 – 20000 Hz
Signal-to-noise ratio ............................................ 75 dBA
Channel separation ..........................≥ 60 dB (1 kHz)
Total harmonic distortion ........................... < 0.003%
MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO
MP3-CD bit rate ....................................... 32-256 kbps
(128 kbps advised)
Sampling frequencies ....................... 32, 44.1, 48 kHz
TUNER
FM wave range ...................................87.5 – 108 MHz
LW wave range ..................................... 153 – 279 kHz
MW wave range (9 kHz) ............. 531 – 1602 kHz
MW wave range (10 kHz) ........... 530 – 1700 kHz
Tuning grid ............................................................ 9/10 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distortion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio ...................................... ≥ 50 dBA
TAPE DECK
Frequency response
Normal tape (type I) ...... 80 – 12500 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 50 dBA
Wow and flutter ......................................... ≤ 0.4% DIN
SPEAKERS
2-way Bass reflex system Dimensions (w x h x d) . 142 x 235 x 212 (mm)
GENERAL INFORMATION
AC Power
For Version /21-21M .. 110 – 127 / 220 – 240 V;
....................................................... 50/60 Hz Switchable
For Version /30 ........................ 230 – 240 V; 50 Hz
Dimensions (w x h x d) .. 148 x 235 x 258 (mm) Weight (with/without speakers)
............................................................... approx. 6.3 / 3.3 kg
Eco Power Standby ............................................... < 1 W
Power consumption Standby .......................... < 3 W
Specifications and external appearance are subject to change without notice.
English
19
Page 20
A A B C

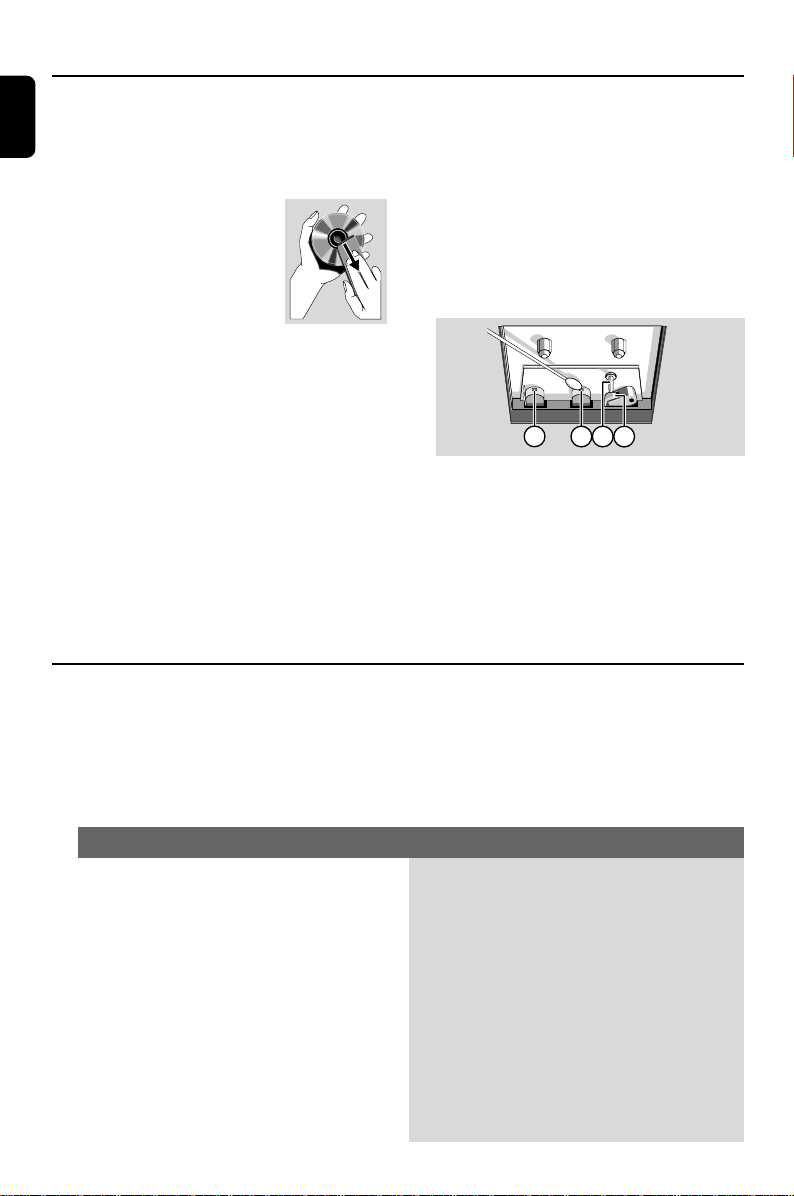

Maintenance
English
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dir ty,
clean it with a cleaning cloth. Wipe the disc from the centre out.
● Do not use solvents such as
benzene, thinner, commercially available cleaners, or antistatic spray intended for analogue records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
Cleaning the Heads and the Tape Paths
● To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.
Caution: Do not rotate the heads during cleaning.
● Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
● You can also clean the heads by playing a
cleaning tape once.
Demagnetizing the heads
● Use a demagnetizing tape available at your
dealer.
Tr oubleshooting
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
“NO DISC” is displayed.
Radio reception is poor.
20
Problem
✔ Insert a disc. ✔ Check if the disc is inserted upside down. ✔ Wait until the moisture condensation at the lens
has cleared.
✔ Replace or clean the disc, see “Maintenance”. ✔ Use a finalised CD-RW or CD-R.
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better reception.
✔ Increase the distance between the Micro HiFi
System and your TV or VCR.
Solution
Page 21
Problem
Recording or playback cannot be made.
Solution
✔ Clean deck parts, see “Maintenance”. ✔ Use only normal (IEC I) tape for recording.
English
“CHK TAPE” is displayed.
The tape deck door cannot open.
The system does not react when buttons are pressed.
Sound cannot be heard or is of poor quality.
The left and right sound outputs are reversed.
The remote control does not function properly.
✔ Apply a piece of adhesive tape over the missing
tab space.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔ Adjust the volume. ✔ Disconnect the headphones. ✔ Check that the speakers are connected correctly. ✔ Check if the stripped speaker wire is clamped. ✔ Make sure the MP3-CD was recorded within
32-256 kbps bit rate with sampling frequencies at 48 kHz, 44.1 kHz or 32 kHz.
✔ Check the speaker connections and location.
✔ Select the source (CD or TUNER, for example)
before pressing the function button (É,í,ë).
✔ Reduce the distance between the remote
control and the system.
✔ Insert the batteries with their polarities
(+/– signs) aligned as indicated.
✔ Replace the batteries. ✔ Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working.
The Clock/Timer setting is erased.
✔ Set the clock correctly. ✔ Press TIMER to switch on the timer. ✔ If a recording is in progress, stop the recording.
✔ Power has been interr upted or the power cord
has been disconnected. Reset the clock/timer.
21
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
