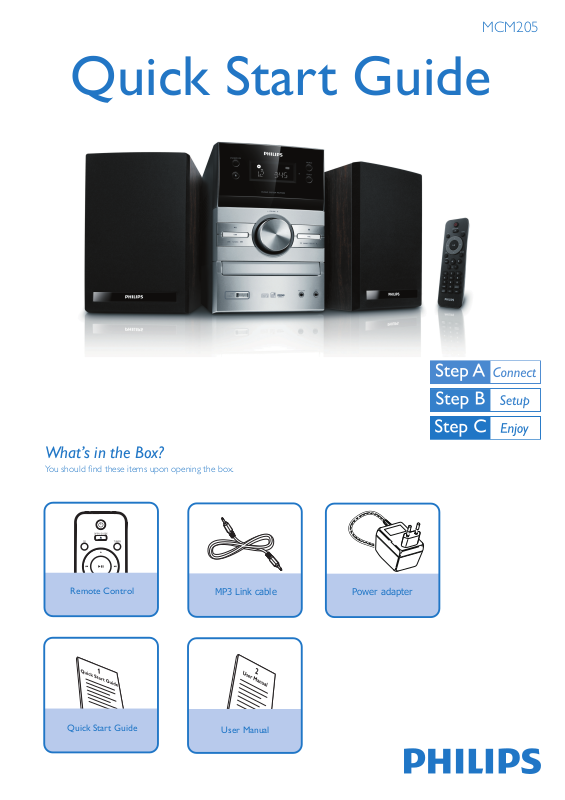

MCM205
Quick Start Guide
What’s in the Box?
You should nd these items upon opening the box.
Remote Control
Quick Start Guide
MP3 Link cable Power adapter
User Manual
1
VOLUME
STANDBY-ON SOURCE
CLOCK
MICRO SYSTEM MCM205
TUNING
DBB DSC
PRESET/ALBUM
MP
3
LINK
USB
DIRECT
Connect the speaker cables.
2
Connect the AC power adapter to the
wall socket.
Tip
See the User Manual for how to
connect other equipment to this
system.
Set clock
Important!
– In Eco Power Standby mode, press CLOCK to show clock rst, then press and
hold CLOCK to proceed clock setting.
1
In standby mode, press and hold CLOCK on the main unit.
2
Press 9 on the main unit to select 12 hour or 24 hour format.
3
Turn VOLUME +/- to set the hour.
4
Press CLOCK to conrm.
The minute digits are displayed and begin to blink.
»
5
Turn VOLUME +/- to set the minute.
6
Press CLOCK to conrm.
Play disc
VOLUME
STANDBY-ON SOURCE
CLOCK
MICRO SYSTEM MCM205
TUNING
DBB DSC
PRESET/ALBUM
MP
3
LINK
USB
DIRECT
1
Press CD to select the disc source
.
2
Press ç to open the disc tray.
3
Insert a disc with the printed side facing up, then close the disc tray.
4
To pause/resume play, press
ÉÅ
.
5
To stop play, press 9 .
Play form USB
With the micro system, you can use USB ash memory (USB 2.0 or USB1.1),
,
memory cards (requires an additional card reader to
on the main unit.
USB ash players (USB 2.0 or USB1.1)
work with this micro system).
1
Insert the USB device’s USB plug into the socket
2
Press USB repeatedly to select the USB device source.
3
Play the USB’s audio les as you do with the albums/tracks on a CD.
Program and tune to radio stations
1
Press TUNER repeatedly to select FM or MW.
2
Press PROG for more than two seconds to program all available stations in order of waveband.
3
Press 34 to select a preset number.
Tip
Detailed playback features and additional functions
are described in the accompany owner's manual.
Royal Philips Electronics N.V. 2009
C
All rights reserved.
http://www.philips.com
MCM205_12_QSG_V2.0
