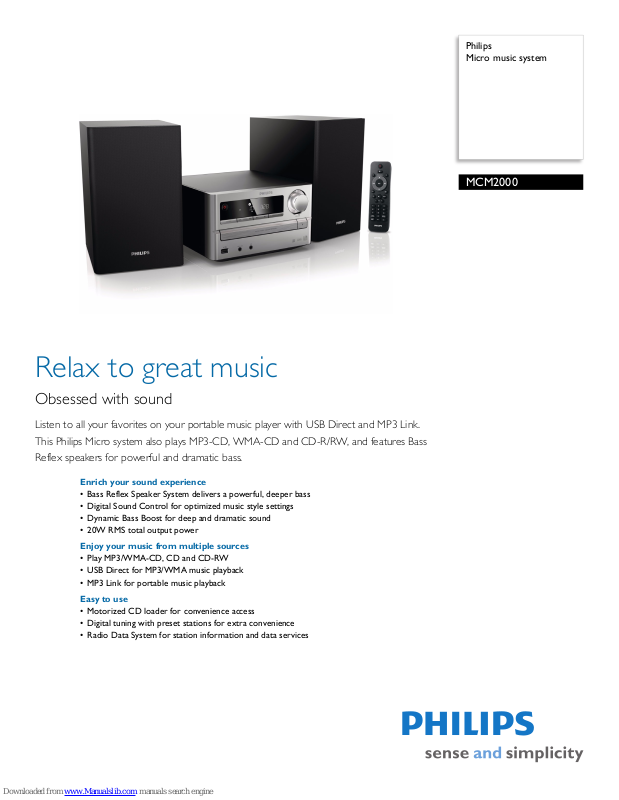

Philips
Micro music system
MCM2000
Relax to great music
Obsessed with sound
Listen to all your favorites on your portable music player with USB Direct and MP3 Link.
This Philips Micro system also plays MP3-CD, WMA-CD and CD-R/RW, and features Bass
Reflex speakers for powerful and dramatic bass.
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control for optimized music style settings
• Dynamic Bass Boost for deep and dramatic sound
• 20W RMS total output power
Enjoy your music from multiple sources
• Play MP3/WMA-CD, CD and CD-RW
• USB Direct for MP3/WMA music playback
• MP3 Link for portable music playback
Easy to use
• Motorized CD loader for convenience access
• Digital tuning with preset stations for extra convenience
• Radio Data System for station information and data services
Micro music system
Highlights
MCM2000/05
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box
system. It differs from a conventional
loudspeaker box system in the addition of a bass
pipe that is acoustically aligned to the woofer to
optimize the low frequency roll-off of the
system. The result is deeper controlled bass and
lower distortion. The system works by
resonating the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Digital Sound Control
Ultimately, Digital Sound Control makes it easy
for you get the most out of your music by
precisely adjusting the sound balance to match
the type of music you are playing.
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually get
lost when the volume is set at a low level. To
counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
USB Direct
MP3 Link
The MP3 link connectivity allows direct playback
of MP3 content from portable media players.
Besides the benefit of enjoying your favorite
music in the superior sound quality delivered by
the audio system, the MP3 link is also extremely
convenient as all you have to do is to plug your
portable MP3 player to the audio system.
Radio Data System (RDS)
The Radio Data System (RDS) lets you tune into
radio
stations without having to remember the
frequencies. In standard mode. RDS displays the
station name instead of the transmission
frequency, facilitating quick and easy tuning. RDS
also allows stations to send text messages such
as news and station information directly to the
radio display. Commonly used in Europe, RDS
text is sent out on the same frequency the radio
station broadcasts on. You can choose either
the basic RDS display (station name) or
subscribe to additional text-based services.
Digital Sound Control offers you a choice of
pre-set Jazz, Rock, Pop and Classic controls you
can use to optimise the frequency ranges for
different musical styles. Each mode uses graphic
equalizing technology to automatically adjust the
sound balance and enhance the most important
sound frequencies in your chosen music style.
With the USB Direct mode, you can simply
select the music on a USB device and playback all
your content. All you have to do is plug in your
USB device to playback music or export content
from the device.
Micro music system
Specifications
MCM2000/05
Sound
• Output power: 2 x 10 W RMS
• Sound enhancement: digital sound control, Dynamic
s Boost
Bas
Loudspeakers
• Speaker drivers: 4" woofer
• Speaker types: bass reflex speaker system
Audio playback
• Disc playback modes: fast forward/backward, next/
previous track search, repeat/shuffle/program
• Playback media: CD, CD-R/RW, MP3-CD, USB flash
rive, WMA-CD
d
• USB Direct playback modes: fast backward/fast
d, play/pause, previous/next, repeat, shuffle,
forwar
stop
• Others: ID3-tag support
Tuner/Reception/Transmission
• Tuner bands: FM mono, FM stereo
• Station presets: 20
• RDS: program type, radio text, RDS clock set,
ation name
st
• Antenna: FM antenna (75 ohm)
• Tuner enhancement: auto digital tuning, auto scan,
asy set (plug & play)
E
Connectivity
• Headphone: 3.5 mm
• MP3 Link: 3.5mm stereo line in
• USB: USB host
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm
• Clock: On main display, sleep timer
• Display type: LCD display
•Loader type: tray
Accessories
• Included accessories: AC Power Cord, FM antenna,
Quick Use Guide
• Remote control: 31-key remote
• User Manual: English
Dimensions
• Main unit width: 200 mm
• Main unit height: 118 mm
• Main unit depth: 210 mm
• Main speaker dimensions (W x D): 140 x 144 mm
• Main speaker height: 224 mm
• Packaging width: 576 mm
• Packaging height: 274 mm
• Packaging depth: 190 mm
• Gross weight: 3.8 kg
• Net weight: 3.24 kg
Power
• Power supply: 220-240V, 50Hz
•
Issue date 2011-08-31
Version: 1.0.6
12 NC: 8670 000 85072
EAN: 87 12581 62641 9
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
