English

Contents

English

General Information

Features .................................................................. 6

Supplied accessories ............................................ 6

Environment information ................................... 6

Installation .............................................................. 7

Maintenance .......................................................... 7

Connections

Step 1: Placing the speakers and subwoofer .. 8 Step 2: Placing the speakers and subwoofer .. 8 Step 3: Connecting speakers and subwoofer . 9

Step 4: Connecting the control cable .............. 9

Step 5: Connecting TV ................................... 9-11

Step 6: Connecting FM/MW antennas ........... 11

Step 7: Connecting the power cord............... 12

Additional: Connecting additional equipment ...

................................................................................ 12

Functional Overview

DVD player and power amplifier .................... 13

Remote control ............................................ 14-15

Getting Started

Step 1: Inserting batteries into the Remote

Control ................................................................. 16

Step 2: Setting up the TV ........................... 16~17

Step 3: Setting the speakers ............................. 18

Step 4: Setting language preference ......... 18~19

Using the Remote Control to operate the Player

Selecting the colour system that corresponds to your TV Setting up Progressive Scan feature To deactivate Progressive manually

Adjusting the delay effect Adjusting volume level of individual speakers

Setting the Audio, Subtitle and Disc Menu language

Disc Operations

Playable Discs ...................................................... 21

Playing discs ......................................................... 21

Using the Disc Menu ......................................... 22

Basic playback controls .............................. 22~24

Pausing playback (DVD/VCD/CD/MP3/WMA) Selecting a track/chapter/title (DVD/VCD/CD/ MP3/WMA) Resuming playback from the last stopped point (DVD/VCD/CD/MP3/WMA) Zoom (DVD/VCD/JPEG) Repeat (DVD/VCD/CD/MP3/WMA) Repeat A-B (DVD/VCD/CD/MP3/WMA) Slow Motion (DVD/VCD) Program (not for Picture CD) Forward/Reverse Searching (DVD/VCD/CD/MP3/ WMA) Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA) Information display during playback (not for Picture CD)

Special disc features ........................................... 24

Playing a Title (DVD) Camera Angle (DVD) Changing the Audio Language (for DVD recorded with multiple languages) Changing the Audio Channel (for VCD/DivX only) Subtitles (DVD)

Playing MP3/WMA/JPEG Picture disc ............ 24

Playing MP3/WMA disc ..................................... 24

General operation Playback selection

Playing JPEG Picture CD................................... 25

General operation Playback selection

Special JPEG features ......................................... 25

Preview function (JPEG) Zoom picture (JPEG) Playback with multi-angles (JPEG)

Playing a DivX disc ............................................. 26

Basic Functions

Switching the system on/off ............................. 20

Volume control ................................................... 20

Sound Control .................................................... 20

DBB (Dynamic Bass Boost) DSC (Digital Sound Control) Selecting surround sound

Dimming the display screen ............................. 20

System Menu Options

Basic Operations ................................................ 27

General Setup Page ..................................... 27~28

TV Display OSD Lang Screen Saver DIVX(R) VOD registration code

Audio Setup Page ........................................ 28~30

Speaker Setup SPDIF Setup Dolby Digital Setup 3D Processing HDCD Night mode

Video Setup Page......................................... 30~31

Component TV Mode Quality

Preference Page ........................................... 31~32

Parental Default

Password Setup Page ......................................... 32

Password mode Password

Other Functions

Radio reception .................................................. 33

Tuning to radio stations Presetting radio stations Listening to preset radio stations

Setting the clock ................................................. 34

Setting sleep/wake-up timer ............................ 34

Sleep timer setting Wak e-up timer setting

Contents

English

Specifications ........................................... 35

Tr oubleshooting ............................. 36~38

Glossary ......................................................... 39

General Information

English

Features

Your DVD Micro Theatre with 5.1-channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology.

Other features include:

Built-in DTS and Dolby Digital decoder, supporting Incredible Surround and DSC sound setting.

Additional Component Connections

Lets you connect other audio and audio/visual components to the DVD micro theatre.

Supplied accessories

– Remote control with two AAA batteries – MW loop antenna – FM wire antenna – Audio (white, red) and composite video

(yellow) cables (2-in-1) – Control cable – Five satellite speakers including speaker wires – One active subwoofer including a DIN cable – Four speaker stands with screws –Two power cords – Stand for the DVD player and power

amplifier – This instruction booklet and a Quick Star t

Guide

Night mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Parental Control (Rating Level)

Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep/Wake-up Timer

Enables the system to switch on/off automatically at a preset time.

Progressive Scan

Provides high quality flicker-free images for film based sources. When a picture refreshes, its ver tical resolution can double to 525 lines.

Note: To fully enjoy the progressive scan feature, you need a progressive scan TV.

If any item is damaged or missing, contact your retailer or Philips.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Installation

● Place the player on a flat, hard, and stable surface.

● In a cabinet, allow about 10cm (4 inches) of free

space all around the player for adequate ventilation.

● Do not expose your player to extreme

temperatures or humidity.

● The apparatus shall not be exposed to dripping

or splashing.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● No naked flame sources, such as lighted candles,

shall be placed on the apparatus.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newpapers, table-cloths, cur tains, et.

Maintenance

● When a disc becomes dirty, clean it with a

cleaning cloth. Wipe the disc from the center out, in a straight line.

● Do not expose the player,

batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.

● Do not use solvents such as benzene, thinner,

commercially available cleaners, or anti-static spray intended for colour discs.

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

General Information

English

Connections

English

IMPORTANT! – The type plate is located at the bottom of the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power switched on. –A separate power switch is provided on the back of the subwoofer. Please switch it on after completing all connections in order to enjoy 5.1-channel sound output.

Step 1: Set up the surround

speakers

1 Before connecting the speakers to the DVD

system, firmly attach the mini speaker stands to the surround speakers as shown in the above diagram.

2 Alternatively, you can choose to mount the

speakers on the wall. Mount a screw (not supplied) on the wall where the speaker is to be hung and hook the speaker securely onto the mounted screw.

Note: – The surround speakers are labeled as REAR L. (left) or REAR R. (right).

Step 2: Placing the speakers and

subwoofer

Center speaker and

DVD system

Front speaker

(Left)

Surround

Speaker (Left)

Subwoofer

Front speaker

(Right)

Surround

Speaker (Right)

For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position.

1 Place the front left and right speakers at equal

distances from the TV and at an angle of approximately 45 degrees from the listening position.

2 Place the center speaker above the TV or the

DVD system so that the center channel's sound is localized.

3 Place the rear speakers at normal listening ear

level facing each other or hang on the wall.

4 Place the subwoofer on the floor near the TV.

Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV. – Allow adequate ventilation around the DVD system.

Connections

Step 3: Connecting speakers

and subwoofer

1 Connect the terminal marked CONNECT TO

SUBWOOFER on the rear of the amplifier to CONNECT TO MAIN SET on the rear of

the subwoofer with the supplied DIN cable by matching the pins.

2 Connect the center and front speakers to the

corresponding terminals on the rear of the amplifier by matching the colors.

Connection to terminals on the

speakers and subwoofer

Step 4: Connecting the control

cable

● Connect the serial port mar ked “CONTROL

CABLE” at the rear of the DVD player to the

same port at the rear of the power amplifier with the supplied flat control cable.

Step 5: Connecting TV

IMPORTANT! –You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV.

Using Composite Video jack

English

2 Connect the rear speakers to the corresponding

terminals on the rear of the subwoofer by matching the colors.

Note: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit.

Option 1

1 Use the composite video connectors (yellow) of

the supplied audio and composite video cables (2-in1) to connect the DVD system's VIDEO OUT jack to the video input jack (or labeled as A/ V In, CVBS, Composite or Baseband) on the TV.

Connections

English

2 To hear the TV channels through this DVD

system, use the audio connectors (white/ red) of the supplied audio and composite video cables (2-in1) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

Using Component Video jacks (Y Pb Pr)

Using S-Video jack

IMPORTANT! – If S-Video is used for DVD playback connection, the system’s VIDEO OUT setting will need to be changed accordingly.

IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required.

Option 2

1 Use component video cables (red/blue/green -

not supplied) to connect the DVD system's Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.

2 To hear the TV channels through this DVD

system, use the audio cables (white/red) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

3 If you are using a Progressive Scan TV (TV must

indicate Progressive Scan or ProScan capability), to activate TV Progressive Scan, please refer to your TV user manual. For DVD system Progressive Scan function, see “Getting StartedSetting up Progressive Scan feature”.

Option 3

1 Use an S-Video cable (not supplied) to connect

the DVD system’s S-VIDEO jack to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.

2 To hear the TV channels through this DVD

system, use the audio cables (white/red) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

Note: – If your TV does not support Progressive Scan, you will not be able to view the picture. Press SYSTEM on the remote to exit the system menu and then DISC and “1” to exit progressive scan.

Connections

antenna

Fix the claw into

the slot

Using an accessory RF modulator

IMPORTANT! – If your TV only has a single Antenna In jack (labeled as 75 ohm or RF In), you will need an RF modulator in order to view DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

ANT IN

RF coaxial cable to TV

AUDIO IN

TO TVINT IN

VIDEO

R L

CH3 CH4

1 Use the composite video cable (yellow) to

connect the DVD system’s VIDEO OUT jack to the video input jack on the RF modulator.

2 Use an RF coaxial cable (not supplied) to

connect ANTENNA OUT or TO TV jack on the RF modulator to the Antenna IN jack on the TV.

3 Connect the Antenna or Cable TV service signal

to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)

Step 6: Connecting FM/MW

antennas

1 Connect the supplied MW loop antenna to the

MW jack. Place the MW loop antenna on a shelf or attach to a stand or wall.

2 Connect the supplied FM antenna to the FM (75

Ω) jack. Extend the FM antenna and fix its end to the wall. For better FM stereo reception, connect an external FM antenna (not supplied).

Note: – Adjust the position of the antennas for optimal reception. –Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.

English

Connections

English

Step 7: Connecting the power

cord

~ AC MAINS

Power Outlet

After everything is connected properly, plug in the AC power cords of the main set, subwoofer and TV set to the power outlet. Make sure to turn on the power switch on the rear of the subwoofer in order to enjoy 5.1-channel output.

Never make or change any connection with the power switched on.

Additional: Connecting additional equipment

IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. –When making connections, make sure the colour of cables matches the colour of jacks. –Always refer to the owner’s manual of the other equipment for complete connection and usage details.

VIDEO IN

AUDIO IN

VCR

AUDIO OUT

Television

Viewing and listening to the playback of other equipment A

● Connect the system's AUX IN (R/L) jacks to

the AUDIO OUT jacks on the other audio/visual device (such as a TV, VCR, Laser Disc player or cassette deck). Before starting operation, press SOURCE on the front panel to select AUX or press AUX on the remote in order to activate the input source.

Recording (digital) B

● Connect the system's COAXIAL or

OPTICAL jack to the DIGITAL IN jack on a

digital recording device (such as DTS-Digital Theatre compatible, with Dolby Digital decoder).

Before starting operation, set the DIGITAL OUT

according to the audio connection. (See "DIGITAL OUT".)

Using the VCR for recording DVDs C

● Connect one of the system's VIDEO jacks to

the corresponding VIDEO IN jack and LINE OUT (R/L) jacks to the AUDIO IN jacks on

the VCR. This will allow you to make analogue stereo (two channel, right and left) recordings.

Functional Overview

1 2 43

9 0 !

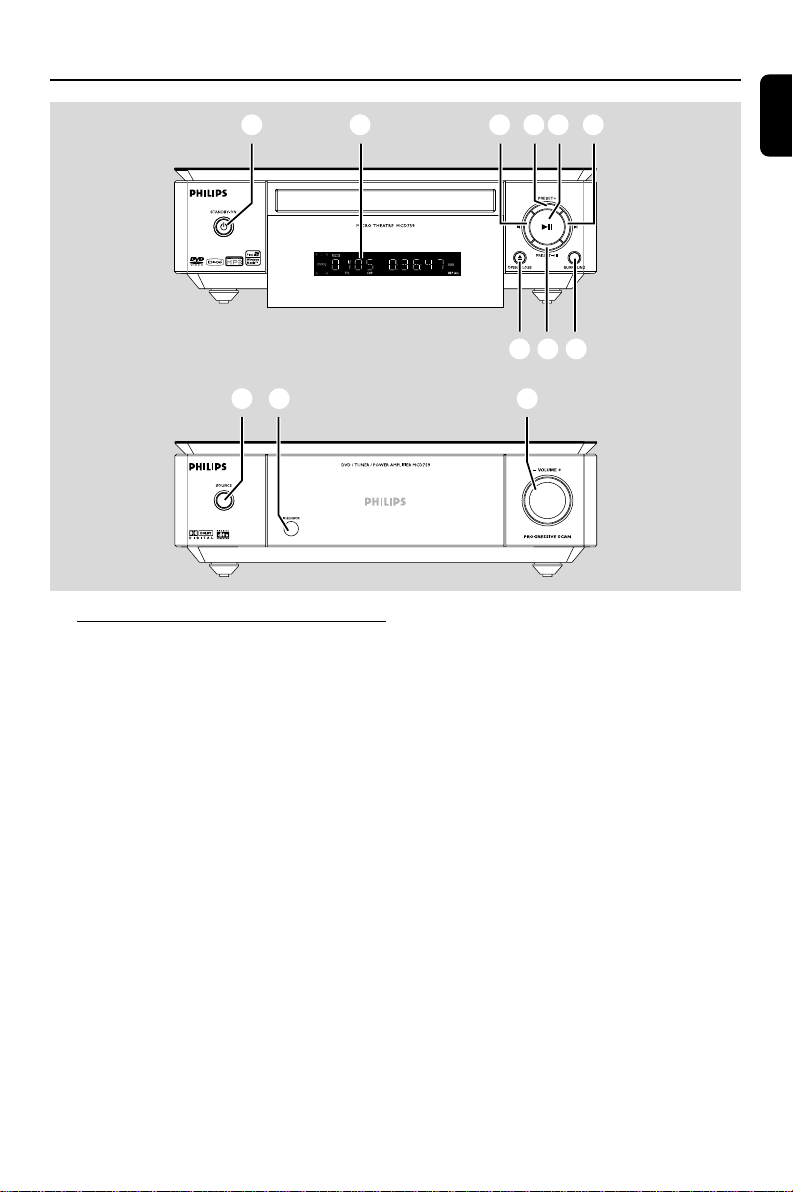

DVD player and power amplifier

1 STANDBY-ON B

– switches the system on or to standby mode.

2 Display

– shows the current status of the DVD player.

3 ÉÅ

– starts or interrupts disc playback.

4 PRESET +

– in tuner mode, selects a preset radio station

forward.

5 PRESET-/9

– stops disc playback or erases a program. – in tuner mode, selects a preset radio station

backward.

6 ¡/™

Disc:

– skips to the previous/next chapter/title/track.

Tuner:

– tunes to a higher/lower radio frequency. – press and hold, then release the key to

start automatic search for a radio frequency downward/upward.

6 6

857

7 OPEN•CLOSE ç

– opens or closes the disc tray.

8 SURROUND

– selects 2.1 channel output (2.1CH) or 5.1

channel output (SUR5.1 or DVD5.1).

9 SOURCE

– selects the respective sound source: DVD/AUX/

TUNER (FM)/TUNER (MW).

– switches the system on.

0 IR SENSOR

– point the remote control towards this sensor.

! VOLUME -/+

– adjusts the volume upward/downward. – adjusts the hours and minutes in clock/timer

setting mode.

– switches the set timer ON or OFF.

English

Functional Overview

English

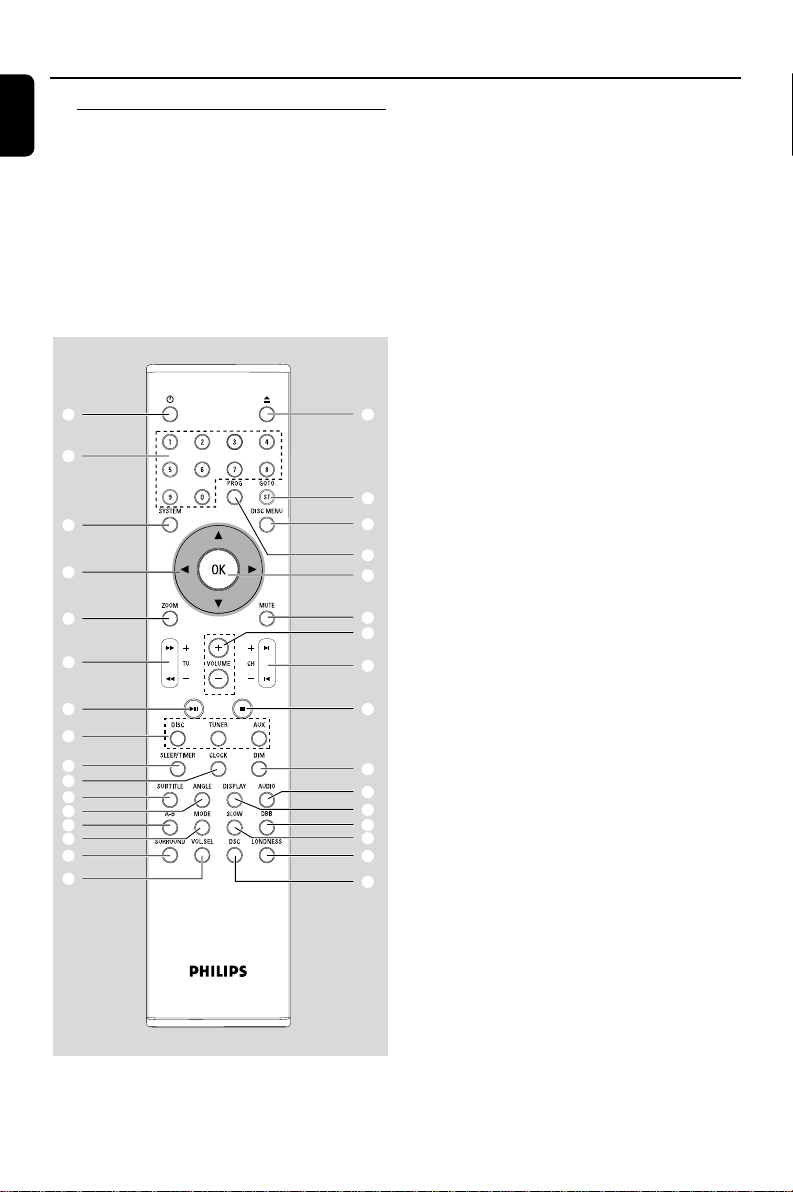

Remote control

1 B

– switches the system on/ off.

2 0

– opens or closes the disc compartment

3 Numeric Keypad (0-9)

– inputs a track/title/chapter number of the disc. – inputs the number of a preset radio station.

* ( ¡ ™ ∞

§ ª

4 PROG

– DVD/VCD/CD: enters the program menu. – MP3/WMA-CD: adds/deletes a programmed

track to/from the program list.

– Picture CD: during playback, to select a slide

show mode.

– Tuner: programs preset radio stations.

5 GOTO/ST

– Disc: fast searches in a disc by entering a time,

title, chapter or track.

– FM: sets stereo or mono sound mode.

6 SYSTEM (disc mode only)

– enters or exits the system menu.

7 DISC MENU (disc mode only)

–DVD/VCD: enters or exits the disc contents

menu.

– VCD2.0: switches the playback control mode on

! #

or off .

– MP3/WMA: switches between Album and Filelist.

8 4 / 3 / 2 / 1

– selects an item in a menu. –moves an enlarged picture up/down/left/right.

9 OK

– confirms a selection.

0 ZOOM

–DVD/VCD/Picture CD: enlarges or reduces a

picture or active image on the TV screen.

! MUTE

– disables or enables sound output.

)

@ TU +/- (à / á )

≤ £

• ≥

⁄

Tuner

– press to tune to a lower/higher radio frequency

gradually.

– press and hold, then release the key to start

automatic search for a radio frequency downward/upward.

Disc

– searches backward/forward in a disc at different

speeds.

# VOLUME +/-

– adjusts the volume upward/downward. – adjusts the hours and minutes in clock/timer

setting mode.

– switches the set timer ON or OFF.

Functional Overview

$ CH +/- (¡ / ™)

– Disc: skips to the previous/next chapter/title/

track

– Tuner: selects a preset radio station.

% ÉÅ

– starts or interrupts disc playback.

^ 9

– stops disc playback or erases a program.

& DISC/TUNER/AUX

– selects the respective sound source for DVD/

AUX/FM/MW.

– For tuner (TUNER): press to switch between

MW and FM.

– exits P-SCAN (progressive scan). (Only for

DISC)

* SLEEP/TIMER

Standby mode

– sets time for switching on the system

automatically.

Power-on mode

– sets the sleep timer function (auto off).

( CLOCK

Standby mode

– sets the system clock.

Playback mode

– displays the system clock.

) DIM

– selects different levels of brightness for the

display screen.

¡ SUBTITLE

– selects a subtitle language.

™ ANGLE

– selects a DVD camera angle.

£ DISPLAY

– displays information on TV screen during

playback

≤ AUDIO

for VCD/DivX

– sets Stereo, Mono-Left or Mono-Right sound

mode.

for DVD

– selects an audio language.

∞ A-B

– repeats playback of a specific section on a disc.

§ MODE

– selects various repeat modes or the shuffle play

mode for a disc.

≥ SLOW

– selects different slow playback modes for a

DivX/VCD/SVCD/DVD.

• DBB

– enables or disables bass enhancement.

ª SURROUND

– selects 2.1 channel output (2.1CH) or 5.1

channel output (SUR5.1 or DVD5.1).

º VOL.SEL (unavailable for this version)

– adjusts volume level for individual speakers.

⁄ DSC

– selects different types of preset sound equalizer

settings (FLAT, POPS, JAZZ, CLASSIC or ROCK).

¤ LOUDNESS (unavailable for this

version)

– enables or disables automatic loudness

adjustment.

Notes for remote control:

– First, select the source you wish to control by pressing one of the source select keys on the remote control (DISC or TUNER, for example). – Then select the desired function ( 2;, í, ë for example).

English

Getting Started

English

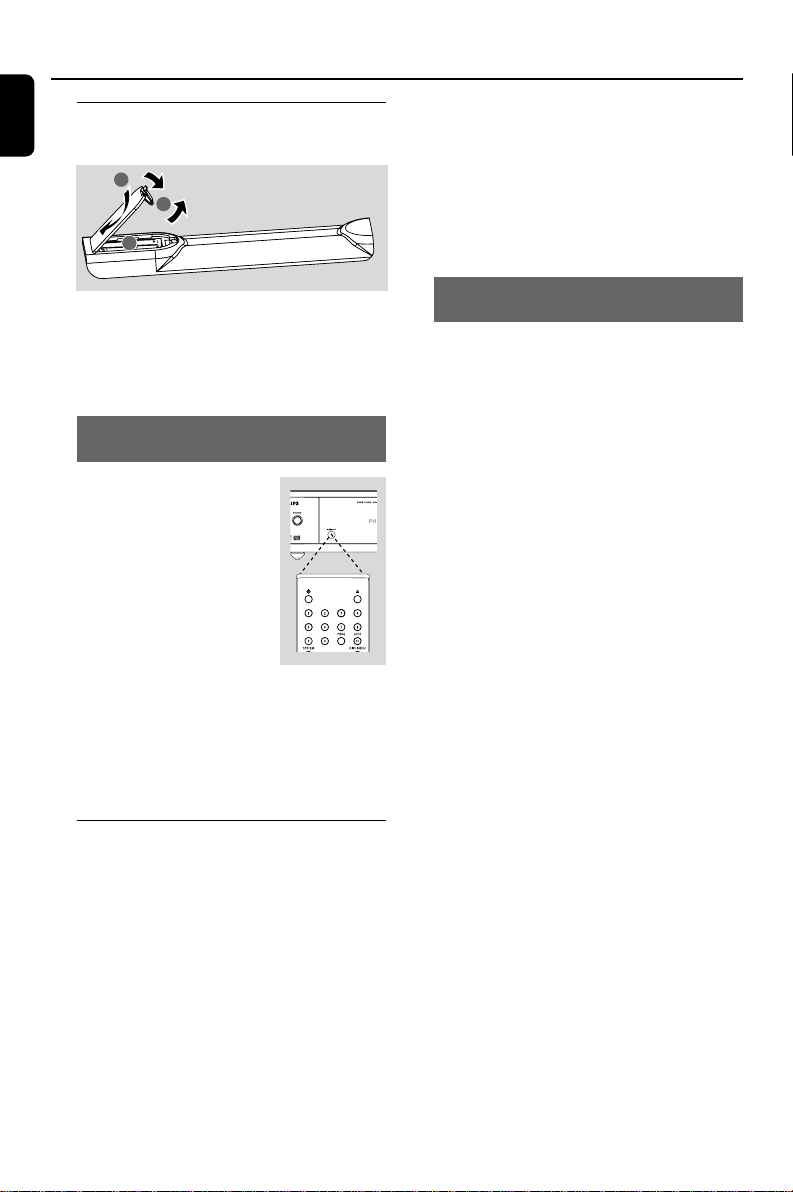

Step 1: Inserting batteries into

the Remote Control

1 Open the battery compar tment. 2 Insert two AAA batteries following the

indications (+/-) inside the compartment.

3 Close the cover.

Using the Remote Control to operate the Player

1 Aim the Remote Control

directly at the remote sensor (IR) on the front panel.

2 Do not put any objects

between the Remote Control and the DVD Player while operating the DVD Player.

CAUTION! – Remove batteries if they are exhausted or if the Remote Control is not being used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.

Step 2: Setting up the TV

IMPORTANT! Make sure you have completed all the necessary connections. (See “Connecting TV”).

1 Switch the DVD system on and then select DISC

source. (See “Switching the system on/off”).

2 Turn on the TV and set to the correct video-in

channel. You should see the blue Philips DVD background screen on the TV.

➜ Usually these channels are between the

lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details.

➜ Or, you may go to channel 1 on your TV, then

press the Channel down button repeatedly until you see the Video In channel.

➜ Or, the TV Remote Control may have a

button or switch that chooses different video modes.

➜ Or, set the TV to channel 3 or 4 if you are

using an RF modulator.

Selecting the colour system that corresponds to your TV

This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match.

1 Press SYSTEM in full stop mode. 2 Press 1 2 to select “Preference Page”. 3 Use 1 2 3 4 on the remote to navigate in

the menu.

Move to “TV Type” and press 2.

➜ PAL : Select this if the connected TV is PAL

system. It will change the video signal of a NTSC disc and output in PAL format.

➜ Auto: Select this if the connected TV is

compatible with both NTSC and PAL (multisystem). The output format will be in accordance with the video signal of the disc.

➜ NTSC: Select this if the connected TV is

NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

4 Select an item and press OK.

Note: – Before changing the current TV Type setting, ensure that your TV supports the selected TV Type.

Getting Started

CONFIRM TO USE P-SCAN, IF PICTURE IS GOOD, PRESS OK BUTTON ON REMOTE.

TIME LAST 01 SECOND

Setting up Progressive Scan feature (for Progressive Scan TV only)

The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

IMPORTANT! Before enabling the progressive scan feature, you must ensure:

1) Your TV can accept progressive signals, a progressive scan TV is required.

2) You have connected the DVD player to your TV using Y Pb Pr (see “Connections-Step 5: Connecting TV- Using Component Video jacks”.)

3) You have selected “Pr/Cr Pb/Cb Y” for “Component” on the “Video Setup Page”. Otherwise, the “P-SCAN” option will be unavailable.

1 Tu rn on your TV. 2 Tu rn off your TV progressive scan mode or turn

on interlaced mode (refer to your TV user manual).

3 Press STANDBY-ON B (B on the remote)

to turn on the DVD player.

4 Select the correct Video Input channel.

➜ The DVD background screen appears on the

TV.

5 Press SYSTEM.

6 Press 1 2 repeatedly to select "Video Setup

Page".

7 Select "TV Mode" to "P-SCAN", then “OK” to

confirm.

➜ The instruction menu appears on the TV.

1. ENSURE TV HAS P-SCAN.

2. CONNECT YPRPB CABLE.

3. IF TV ABNORMAL: WAIT 15 SEC RECOVERY.

8 Press 1 2 to highlight OK in the menu and

press OK to confirm. There will be a distorted picture on your TV at this state until you turn on the progressive scan mode on your TV.

9 Tu rn on your TV progressive scan mode (refer to

your TV user manual).

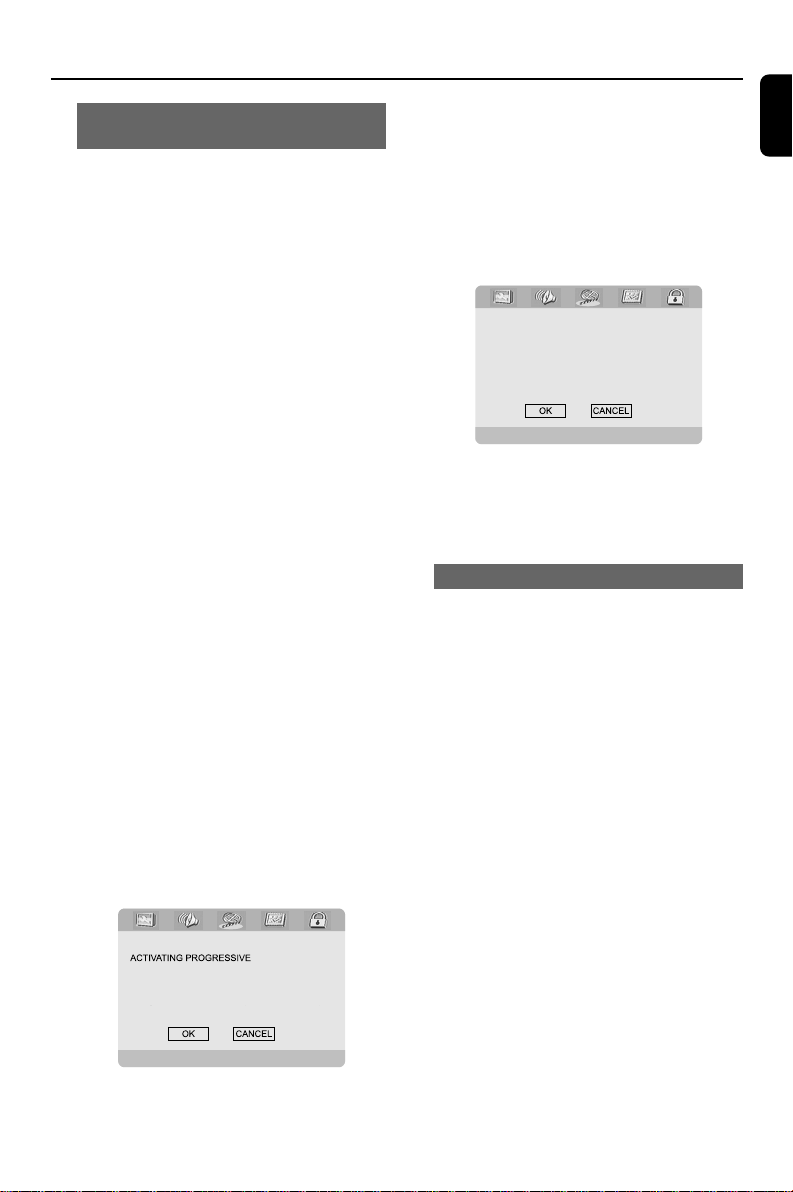

➜ The below menu appears on the TV.

0 Press 1 2 to highlight “OK” in the menu and

press OK to confirm.

➜ The setup is complete now and you can start

enjoy the high quality picture.

To deactivate Progressive manually

● When the distorted sign still appears on

the TV, it may be due to the connected TV

does not accept progressive signals, and progressive is set by mistake. You must reset the unit to interlace format.

1 Tu rn off your TV progressive scan mode or turn

on to interlaced mode (refer to your TV user manual).

2 Press SYSTEM on the remote to exit the

system menu and then DISC and “1” to exit progressive scan.

➜ The DVD blue background screen will appear

on the TV.

Note: – During normal playback in the progressive scan mode, pressing DISC button will exit the progressive scan mode.

English

Getting Started

CODE

English

Step 3: Setting the speakers

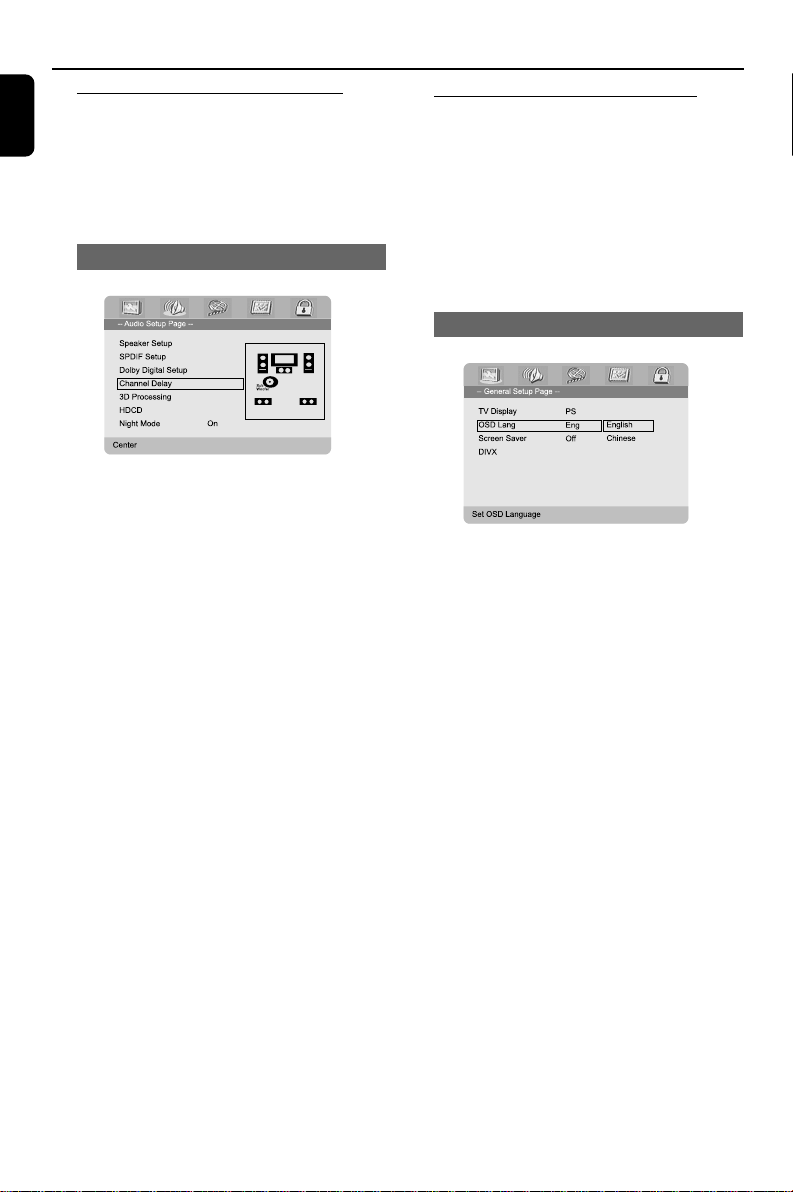

You can adjust the delay effect (center, subwoofer and rear speakers only) and volume level for individual speakers. These adjustments let you optimize the sound according to your surroundings and setup.

Adjusting the delay effect

1 Press SYSTEM. 2 Use 3 4 to select "Audio Setup Page". 3 Use 3 4 on the remote to highlight "Channel

Delay" and then press 2 or OK to enter channel delay setting.

4 Press 3 4 to highlight one speaker icon at a

time to set the listening position/distance from the corresponding speaker.

➜ The options are as follows (distance in

centimeters): For center speaker: 0cm, 10cm, 20cm, 30cm, ..., 170cm. For subwoofer and rear speakers: 0cm, 10cm, 20cm, 30cm, ..., 510cm.

5 Press 1 2 to adjust the settings that best suit

your surround sound needs.

Step 4: Setting language

preference

You can select your own preferred language settings. This DVD system will automatically switch to the selected language whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. The OSD language in the system menu will remain once selected.

Setting the OSD Language

1 Press SYSTEM. 2 Press 1 2 to select “General Setup Page”. 3 Use 1 2 3 4 on the remote to navigate in

the menu.

Move to “OSD Lang” and press 2.

4 Select a language and press OK.

To exit from the menu

● Press SYSTEM again.

To exit from the menu

● Press SYSTEM again.

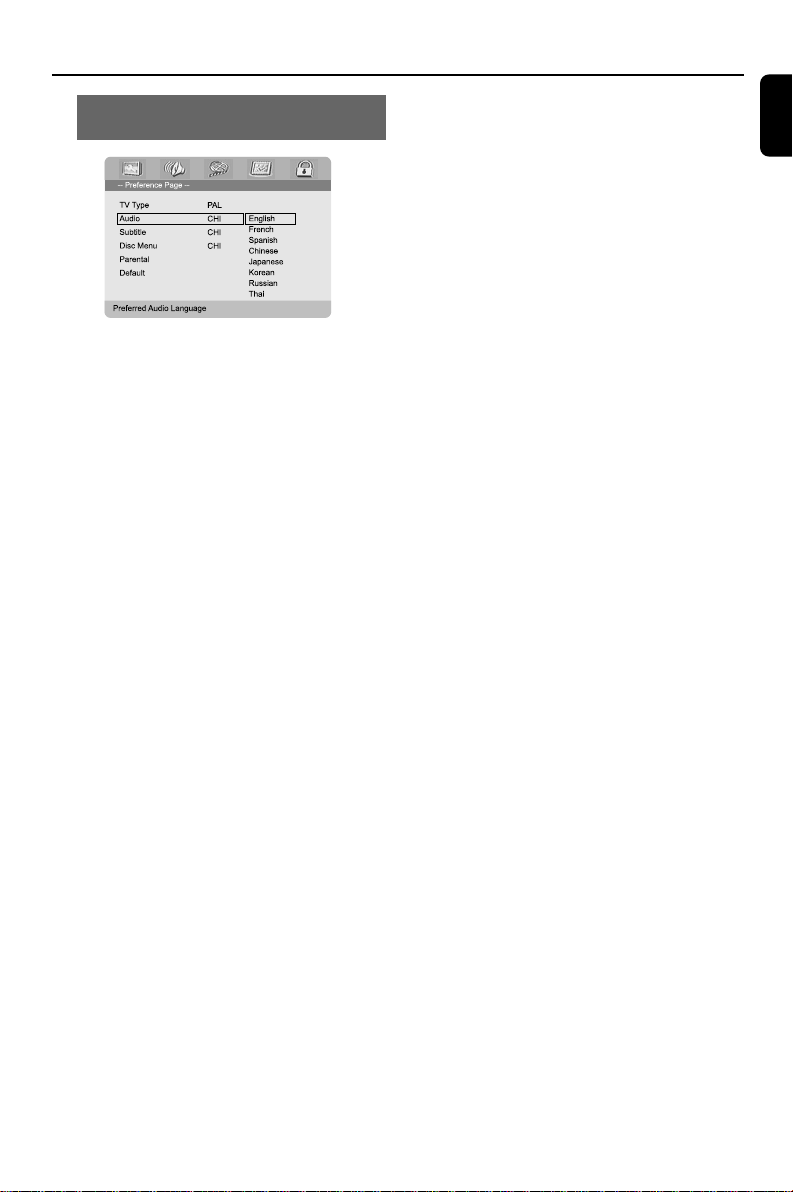

Setting the Audio, Subtitle and Disc Menu language

1 Press SYSTEM in stop mode. 2 Press 1 2 to select “Preference Page”. 3 Press 3 4 to highlight the following in the

Preference Page. – “Audio” (disc’s soundtrack) – “Subtitle” (disc’s subtitles) – “Disc Menu” (disc’s menu)

4 Enter its submenu by pressing 2. 5 Select a language and press OK. 6 Repeat steps 3~5 for other language settings.

To exit from the menu

● Press SYSTEM again.

Getting Started

English

If you choose OTHERS in Audio, Subtitle or Disc Menu,

1 Press 3 4 to highlight “Others”. 2 Press OK.

Basic Operations

English

Switching the system on/off

● Press STANDBY-ONB (B on the remote).

➜ “HELLO” is displayed briefly. The system will

switch to the last selected source.

● Press DISC, TUNER or AUX on the remote. ➜ The system will switch to the selected source.

To switch the system to standby mode

● Press STANDBY-ONB (B on the remote). ➜ “BYE BYE” is displayed briefly. The interactive

sound settings, last selected source and tuner presets will be retained in the player’s memory.

➜ The clock will be displayed. If no clock has

been set, “--:--” will be displayed.

Volume control

Tu rn VOLUME (-/+) clockwise or anticlockwise (or press VOLUME +/- on the remote) to increase or decrease the volume level.

➜ ”VOL XX” is displayed on the display panel.

“XX” denotes the volume level.

To switch off the volume temporarily

● Press MUTE on the remote. ➜ Playback will continue without sound and

“MUTING” flashes.

● To activate sound reproduction, you can:

– press MUTE again; – adjust the volume controls; – change source.

● Press DSC on the remote repeatedly to select:

FLAT, POPS, JAZZ, CLASSIC or ROCK.

Selecting surround sound

IMPORTANT! For proper surround sound, make sure the speakers and subwoofer are connected (see Connections-Step 3: Connecting speakers and subwoofer.)

● Press SURROUND to select surround or

stereo mode.

➜ The availability of the various surround sound

modes depends on the number of speakers used and the sound available on the disc.

➜ The center and surround speakers operate

only in Multi-channel surround mode.

➜ The available output modes for multichannel

include: Dolby Digital, Dolby Pro Logic or Dolby Pro Logic II surround sound.

➜ Stereo broadcasts or recordings will produce

some surround channel effects when played in a surround mode. However, monaural (single channel sound) sources will not produce any sound from the rear speakers.

Dimming the display screen

● Press DIM repeatedly to select different levels

of brightness for the display screen.

Sound Control

DBB and DSC sound features cannot be activated at the same time.

DBB (Dynamic Bass Boost)

DBB enhances the bass response.

● Press DBB on the remote to enable/disable

DBB feature.

➜ Some discs might be recorded in high

modulation, which causes a distortion at high volume. If this occurs, switch off DBB or reduce the volume.

➜ In DBB ON mode, the DBB icon will light up.

DSC (Digital Sound Control)

DSC provides a different type of preset sound equalizer setting.

Disc Operations

ALL

IMPORTANT! – Depending on the DVD or VIDEO CD, some operations may be different or restricted. – Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction. – If the inhibit icon (ø) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.

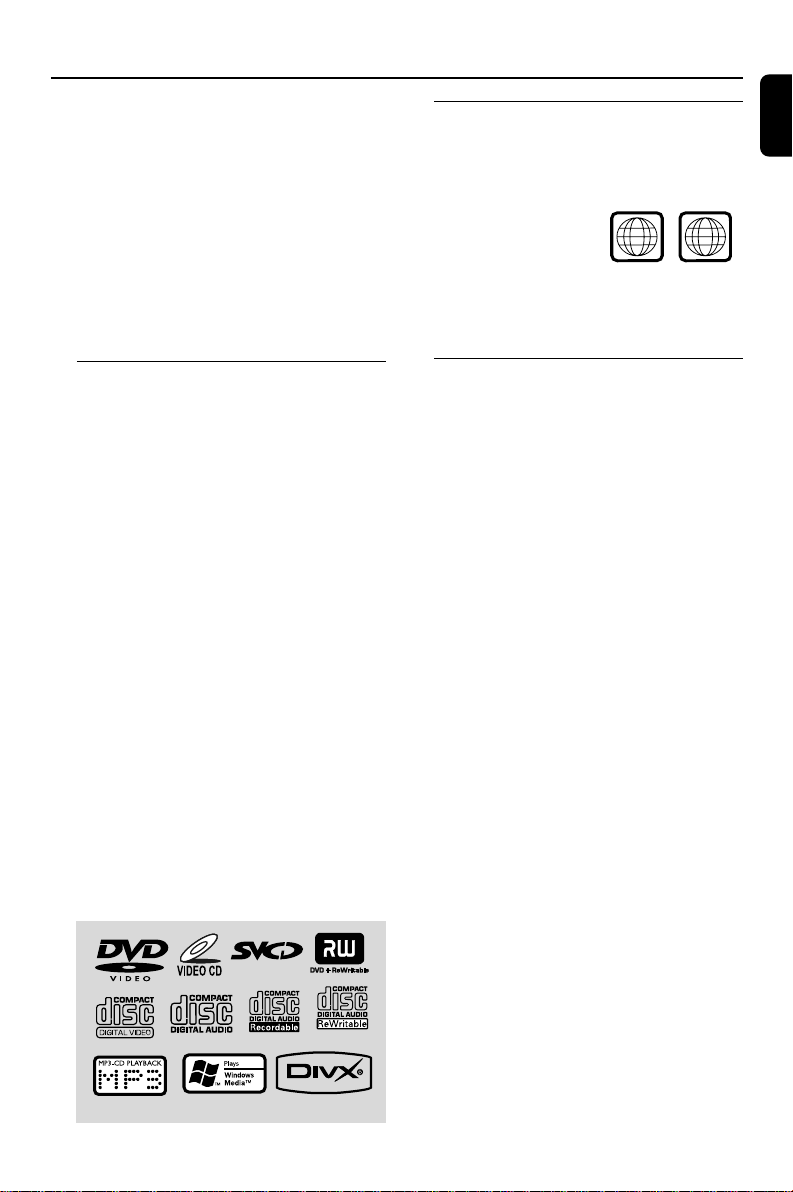

Playable Discs

Your DVD Player will play: – Digital Video Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Digital Video Discs + Rewritable (DVD+RW) – Compact Discs (CDs) – Picture (Kodak, JPEG) files on CDR(W) – DivX(R) disc on CD-R(W): – DivX 3.11, 4.x and 5.x – WMA – Supported MP3-CD format.

• ISO 9660 / UDF format

• Max. title/album name –12 characters

Max. title number plus album is 255.

• Max. nested directory is 8 levels.

• The max. album number is 32.

• The max. MP3 track number is 999.

• Supported sampling frequencies for MP3 disc:

32 kHz, 44.1 kHz, 48 kHz.

• Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

– Following formats can’t be supported

• The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV

• Non-English Album/Title name

• The discs recorded under Joliet format

• MP3 Pro and MP3 with ID3 tag

Region Codes

DVDs must be labeled as shown below in order to play on this DVD system. You cannot play discs that are labeled for other regions.

Note: – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not play on this DVD Player.

Playing discs

1 Connect the power cords of the system and TV

(or any optional stereo or AV receiver) to a power outlet.

2 Tu rn on the TV power and set to the correct

Video In channel. (See “Setting up the TV”).

3 Press STANDBY-ONB on the DVD Player

front panel or B on the remote.

➜ You should see the blue Philips DVD

background screen on the TV.

4 Press OPEN•CLOSE to open the disc tray

and load in a disc, then press the same button again to close the disc tray.

➜ Make sure the label side is facing up. ➜ ”OPEN” or ”CLOSE” followed by “LOAD” will

be displayed respectively when the disc tray is opened or closed.

5 Playback will star t automatically (depending on

the disc type).

➜ If a disc menu appears on the TV, see “Using

the Disc Menu”.

➜ If the disc is locked by parental control, you

must enter your four-digit password. (See “Password Setup Page”).

6 At any time, simply press PRESET-/9 (9 on

the remote) to stop playback.

English

Disc Operations

English

Using the Disc Menu

Depending on the disc, a menu may appear on the TV screen once you load the disc.

To select a playback feature or item

● Use 1 2 3 4 and OK or Numeric Keypad

(0-9) on the remote.

➜ Playback will start automatically.

Resuming playback from the last stopped point (DVD/VCD/CD)

● In stop mode and when a disc has not been

removed, press ÉÅ.

To cancel resume mode

● In stop mode, press PRESET-/9 (9 on the

remote) again.

To access or exit from the menu

● Press DISC MENU on the remote.

For VCD with Playback Control (PBC) feature (version 2.0 only)

PBC playback allows you to play Video CDs interactively, following the menu on the display.

● During playback, press DISC MENU. ➜ If PBC was ON, it will switch to OFF and

continue playback.

➜ If PBC was OFF, it will switch to ON and

return to menu screen.

Basic playback controls

Pausing playback (DVD/VCD/CD/MP3/ DivX/WMA)

1 During playback, press ÉÅ .

➜ Playback will pause and sound will be muted.

2 Press ÉÅ again to resume.

Selecting a track/chapter/title (DVD/ VCD/DivX/CD)

1 Press ™ (CH + ™ on the remote) during

playback to go to the next chapter/track

2 Press ¡ (CH - ¡ on the remote) to go to the

previous chapter/track.

3 To go directly to any chapter/track/title, enter the

chapter/track/title number using the Numeric Keypad (0-9).

Zoom (DVD/VCD/DivX/JPEG)

Zooming allows you to enlarge or reduce the video image during playback.

1 Press ZOOM repeatedly to enlarge or reduce

the playback video image.

2 Press 1 2 3 4 to pan across the TV screen.

Repeat (DVD/VCD/CD/MP3/DivX/ WMA)

For DVD/VCD/CD

● Press MODE repeatedly to choose a repeat

mode during playback.

Chapter (DVD)

– to repeat playback of the current chapter.

Track (CD/VCD)/Title (DVD)

– to repeat playback of the current track (CD/ SVCD/VCD)/title (DVD).

All

– to repeat playback of all the disc.

Shuffle

– to repeat playback at random order.

For MP3/WMA/DivX

● Press MODE continuously to access different

repeat modes.

➜ Repeat One: play an MP3/WMA file

repeatedly.

➜ Repeat Folder: play all files in the current

folder repeatedly.

➜ Shuffle: play all files in the selected folder in

random order.

➜ Off: switches off the shuffle or repeat mode.

Disc Operations

Repeat A-B (DVD/VCD/CD/MP3/DivX/ WMA)

1 Press A-B at your chosen starting point. 2 Press A-B again at your chosen end point.

➜ The section A and B can be set only within

the same chapter/track.

➜ The section will now repeat continuously.

3 To exit the sequence, press A-B again.

Slow Motion (DVD/VCD/DiVX)

1 Press SLOW during playback to select the

required speed: 1/2, 1/4, 1/8 or 1/16 (forward).

➜ Sound will be muted.

2 To return to normal speed, press ÉÅ.

Note: – Slow backward is not possible on VCDs.

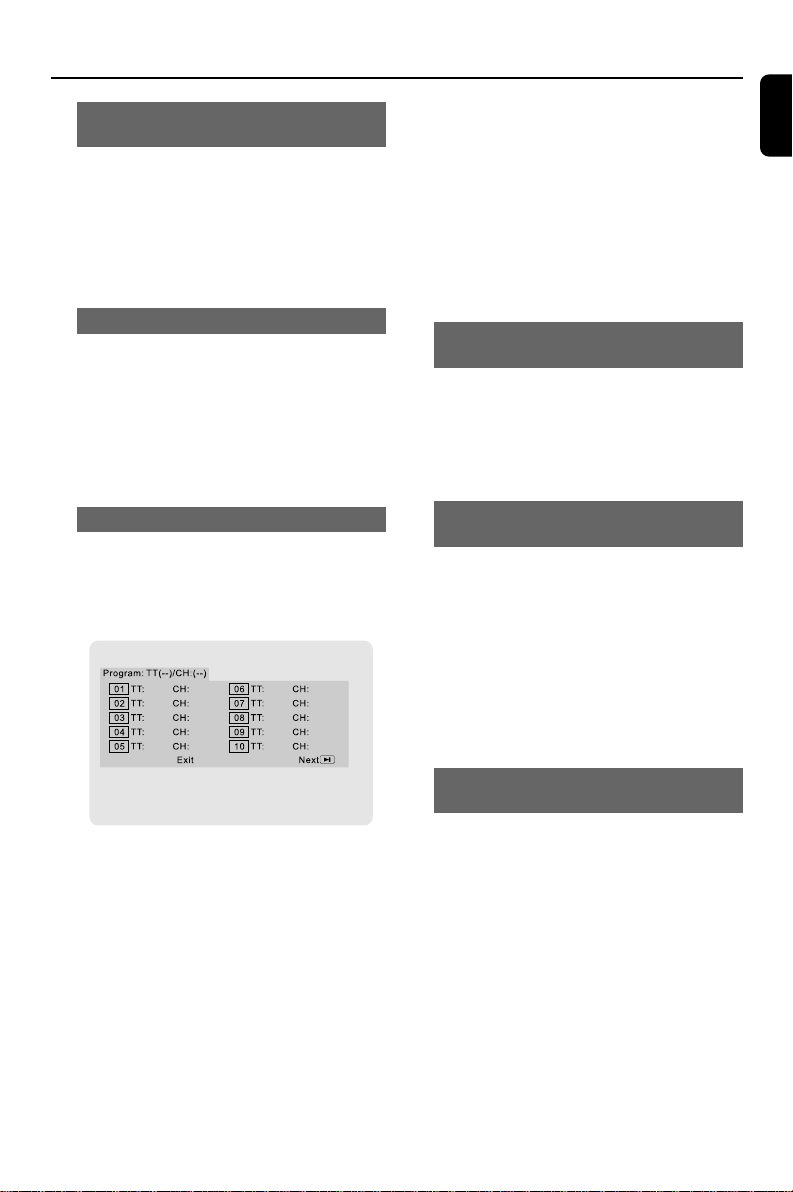

Program (not for Picture CD)

To select favourite tracks/chapters for playback in preferred sequence.

For DVD/VCD/CD

For MP3/WMA

1 In Stop mode, press DISC MENU to switch

the menu between Album and Filelist.

2 When Filelist is on the screen, press 3 4 to

select the files and press PROG to add the files to the program list.

3 Press DISC MENU to display the program list. 4 Press PROG to delete unwanted files from the

program list.

Forward/Reverse Searching (DVD/VCD/ DivX/CD/MP3/WMA)

1 Press TU +/- (à á) during playback to select

the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).

➜ Sound will be muted.

2 To return to normal speed, press ÉÅ.

Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA)

1 Press GOTO/ST until the time or chapter/track

edit box appears.

2 Enter hours, minutes and seconds from left to

right in the time edit box using remote control numerical keypad.

Enter your desired chapter/track number in the chapter/track edit box using remote control numerical keypad.

English

(DVD program for example)

1 Press PROG on the remote to enter the

program mode.

2 Use the Numerical Keypad (0-9) to directly

input the tracks or chapters (single track number with digit “0” in front, for example “05”).

3 Move the cursor by pressing 1 2 3 4 to

select “Start”.

4 Press OK to start playback.

Information display during playback (not for Picture CD)

● During playback, press DISPLAY to show disc

information on the TV screen.

For DVD

➜ Title/Chapter Elapsed: displays the

elapsed time of the current title/chapter.

➜ Title/Chapter Remain: displays the

remaining time of the current title/chapter.

➜ Display Off: switches time display off.

Disc Operations

English

For Super VCD/VCD/DivX/CD

➜ Single/Total Elapsed: displays the elapsed

time of the current single/total track.

➜ Single/Total Remain: displays the

remaining time of the current single/total track.

➜ Display Off: switches time display off.

Special disc features

Playing a Title (DVD)

1 Press DISC MENU.

➜ The disc title menu appears on the TV screen.

2 Use 1 2 3 4 or Numeric Keypad (0-9) to

select a play option.

3 Press OK to confirm.

Camera Angle (DVD)

● Press ANGLE repeatedly to select different

desired angle.

Changing the Audio Language (for DVD recorded with multiple languages)

● Press AUDIO repeatedly to select different

audio languages.

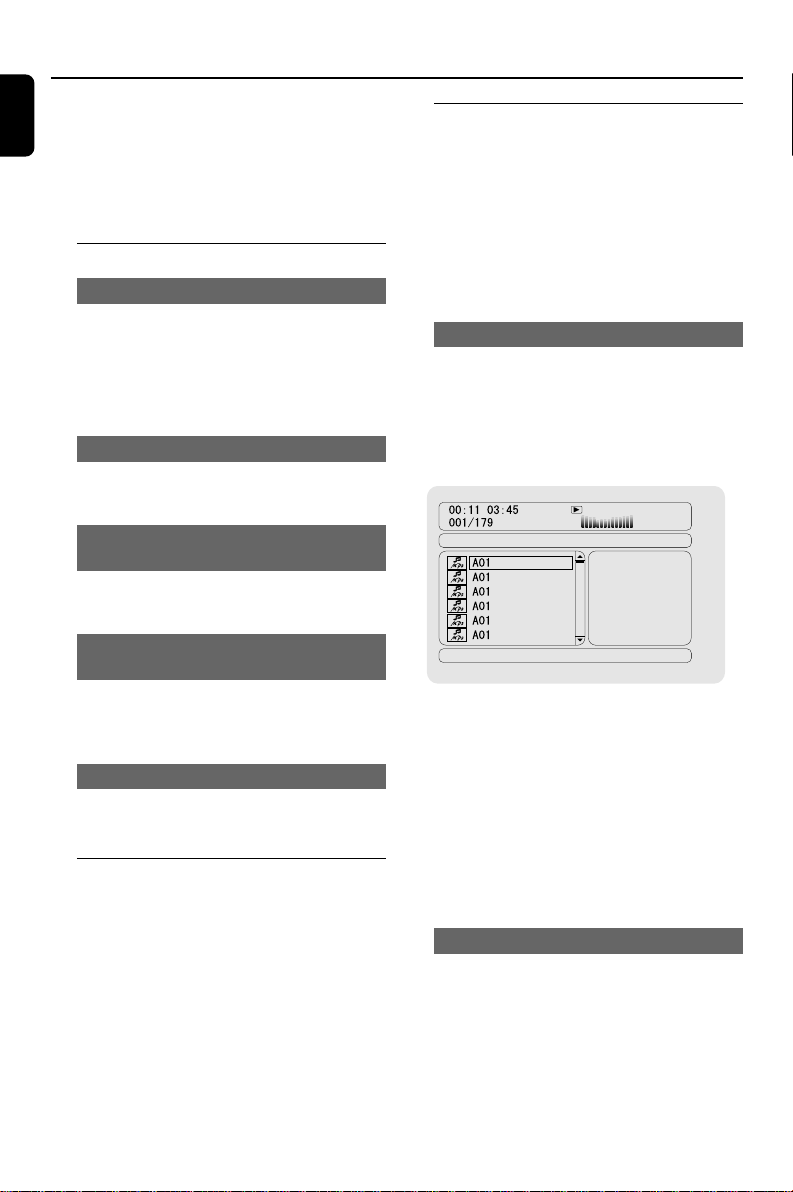

Playing MP3/WMA disc

IMPORTANT! For DRM protected WMA files, use Windows Media Player 10 (or later) for CD burning/conversion. Visit www.microsoft.com for details about Windows Media Player and WM DRM (Windows Media Digital Rights

Management).

General operation

1 Load an MP3/WMA disc.

➜ The data disc menu appears on the TV

screen.

2 Use 3 4 to select an album and press OK to

open the album.

Changing the Audio Channel (for VCD /DivX only)

● Press AUDIO to select the available audio

channels provided by the disc (Mono Left, Mono Right or Stereo).

Subtitles (DVD)

● Press SUBTITLE repeatedly to select different

subtitle languages.

Playing MP3/WMA/JPEG Picture CD

IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See “Setting up the TV”).

3 Press 3 4 or use the Numeric Keypad (0-

9) to highlight a track.

4 Press OK to confirm.

➜ The playback will start from the selected

track to the end of the album.

Note: – The disc reading time may exceed 10 seconds due to large number of songs compiled onto the disc.

Playback selection

During playback, you can:

● Press ¡ / ™ (CH +/- ¡ / ™ on the remote) to

select another track in the current album.

● Press ÉÅ repeatedly to pause/resume

playback.

● Press DISC MENU on the remote to switch

between Album and Filelist.

Disc Operations

Playing JPEG Picture CD

General operation

1 Load a JPEG Picture CD.

➜ The data disc menu appears on the TV

screen.

2 Use 3 4 to select a folder and press OK to

open the folder.

3 Press 3 4 or use the Numeric Keypad (0-

9) to highlight a picture file.

4 Press OK to confirm.

➜ The playback will start from the selected

picture to the end of the folder.

Playback selection

During playback, you can:

● Press ¡ / ™ (CH +/- ¡ / ™ on the remote) to

select another file in the current folder.

● Use 1 2 3 4 on the remote to rotate/flip the

picture files.

● Press ÉÅ repeatedly to pause/resume playback.

● Press DISC MENU on the remote to switch

between Folder and Filelist.

Special JPEG features

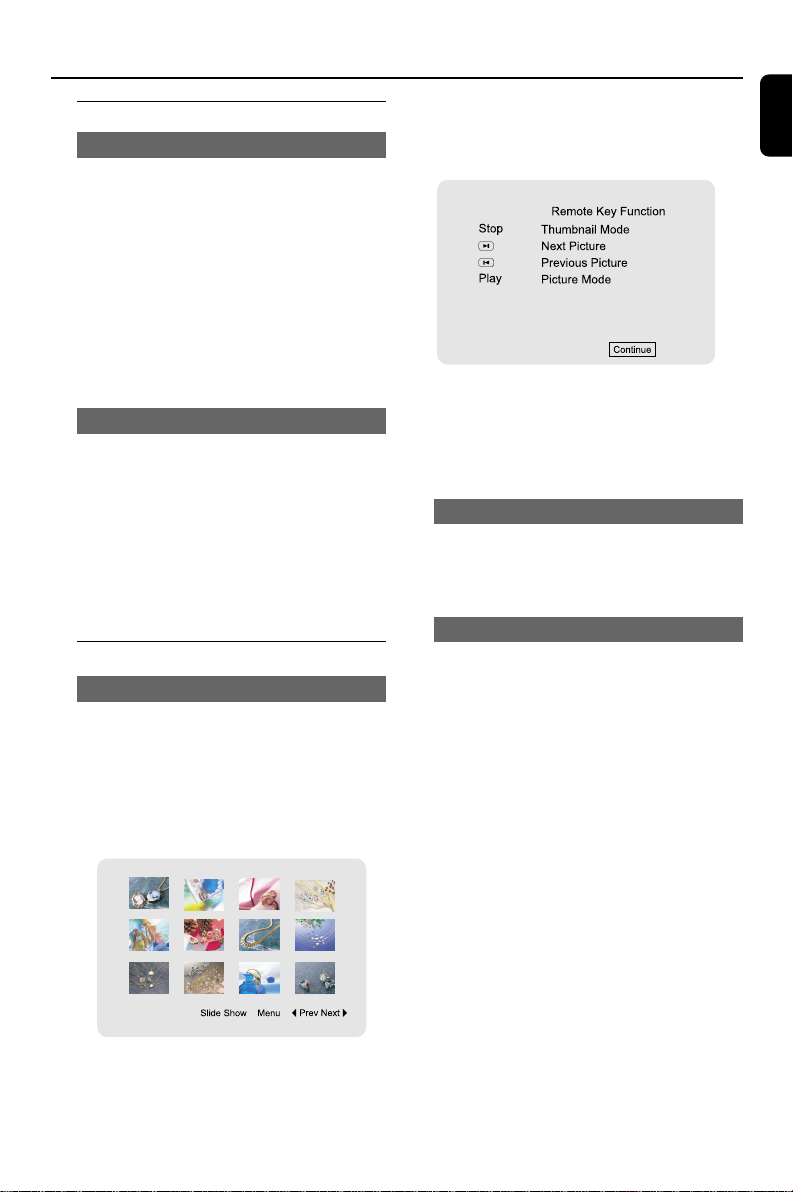

Preview function (JPEG)

This function shows the content of the current folder or the whole disc.

1 Press PRESET-/9 (9 on the remote) during

playback.

➜ Thumbnails of 12 pictures appears on the TV

screen.

To enter the remote key function menu

● Use 1 2 3 4 to highlight “Menu” and press

OK.

To display the other pictures on the previous/next page

● Press ¡ / ™ (CH +/- ¡ / ™ on the remote).

● Use 1 2 3 4 to highlight “Prev” or “Next”

and press OK.

Zoom picture (JPEG)

● During playback, press ZOOM repeatedly to

display the picture with different scales.

● Use 1 2 3 4 to view the zoomed picture.

Playback with multi-angles (JPEG)

● During playback, press 1 2 to rotate the

picture on the TV screen.

1: rotate the picture anti-clockwise. 2: rotate the picture clockwise .

English

2 Use 1 2 3 4 to highlight one of the pictures/

”Slide Show” and press OK to start playback/ slide show.

Disc Operations

English

Playing a DivX disc

This DVD player supports the DivX movie playback that you download from your computer onto a CD-R/RW (see “System Menu Options-DIVX(R) VOD registration code” for more information).

1 Load a DivX disc.

➜ Playback will start automatically. If not press

ÉÅ.

2 If the DivX movie contains external

subtitles, the subtitle menu will appear on the TV screen for your selection.

● In this case, pressing SUBTITLE on the

remote control will turn on or off the subtitle.

● If multilingual subtitles are embedded on

the DivX disc, pressing SUBTITLE will change the subtitle language during playback.

Note: – Subtitle files with the following filename

extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the file navigation menu.

– The subtitle filename have to be the same

as the filename of the movie.

System Menu Options

DIVX CODE

Basic operations

1 Press SYSTEM to enter the Setup Menu. 2 Press 1 2 to select a page to be set. 3 Press 3 4 to highlight an option. 4 Enter its submenu by pressing 2 or OK. 5 Move the cursor by pressing 3 4 to highlight

the selected item.

➜ In cases of value setting, press 1 2 to adjust

values.

6 Press OK to confirm.

To return to the upper-level menu

● Press 1 or OK (in cases of value adjustment).

To exit from the menu

● Press SYSTEM again. ➜ The settings will be stored in the player’s

memory even if the player is switched off.

Note: – Some of the features in the System Menu Options are described in “Getting Started”.

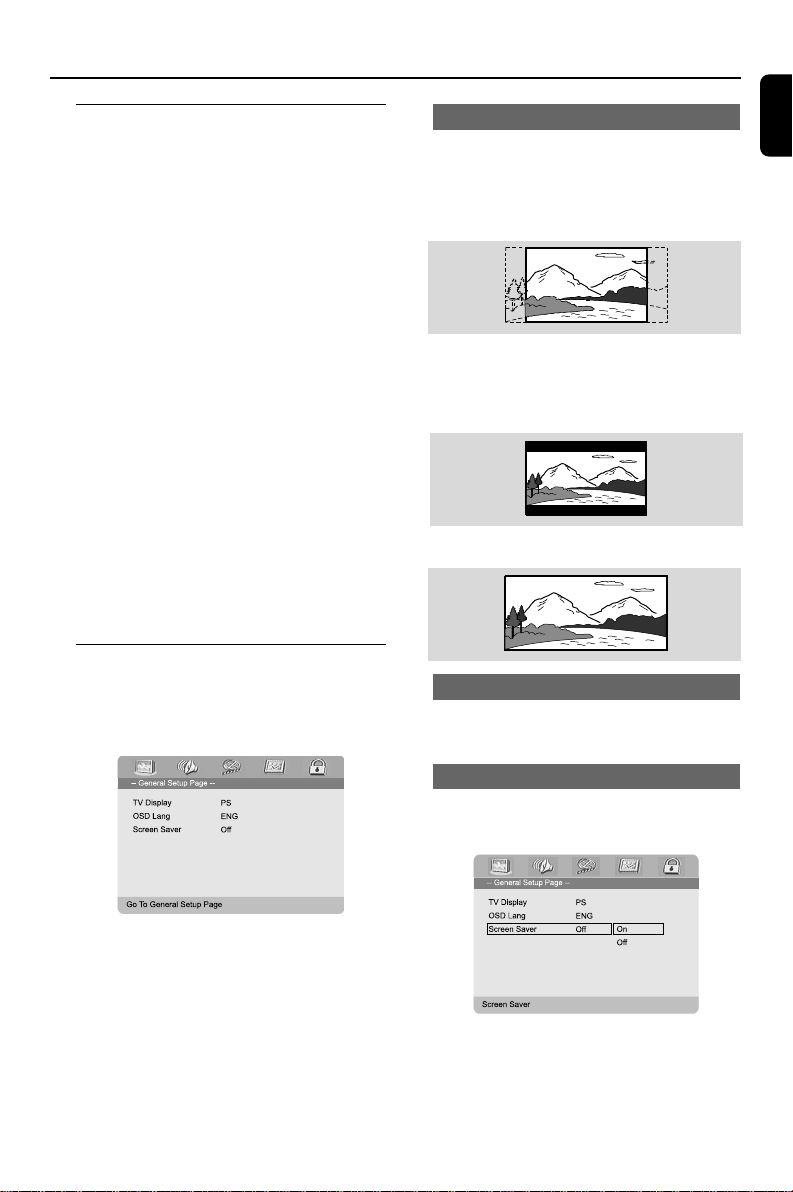

General Setup Page

The options included in General Setup page are: “TV Display”, “OSD Lang”, “Screen Saver”and “DIVX CODE”.

TV Display

Set the aspect ratio of the DVD Player according to the TV you have connected.

➜ Normal/PS (panscan): If you have a normal

TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

➜ Normal/LB (letterbox): If you have a

normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

➜ Wide: If you have a wide-screen TV.

OSD Lang

See “Getting Started-Step 4: Setting language preference”.

English

DIVX MODE

Screen Saver

This function is used to turn the screen saver on or off.

➜ On: In STOP, PAUSE or No DISC mode, if no

actions are performed about 3 minutes, the screen saver will be activated.

➜ Off: Screen saver is disabled.

System Menu Options

English

DIVX(R) VOD registration code

Philips provides you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VO D service. For more information, visit us at www.divx.com/ vod.

1 In ‘General Setup Page’, press 3 4 to highlight

DIVX CODE, then press 2 or OK to ener its submenu and press OK again to confirm.

➜ The registration code will appear.

Divx(R) Video On Demand Registration

Your registration code is: UM48FRPT

To learn more visit WWW.DIVX.COM/VOD

2 Press OK to exit. 3 Use the registr ation code to purchase or rent

the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.

Notes: – All the downloaded videos from DivX® VOD can only be played back on this DVD player. – Time search feature is not available during DivX movie playback.

Audio Setup Page

The options included in Audio Setup page are: “Speaker Setup”, “SPDIF Setup”, “Dolby Digital Setup”, “3D Processing”, “HDCD” and “Night Mode”.

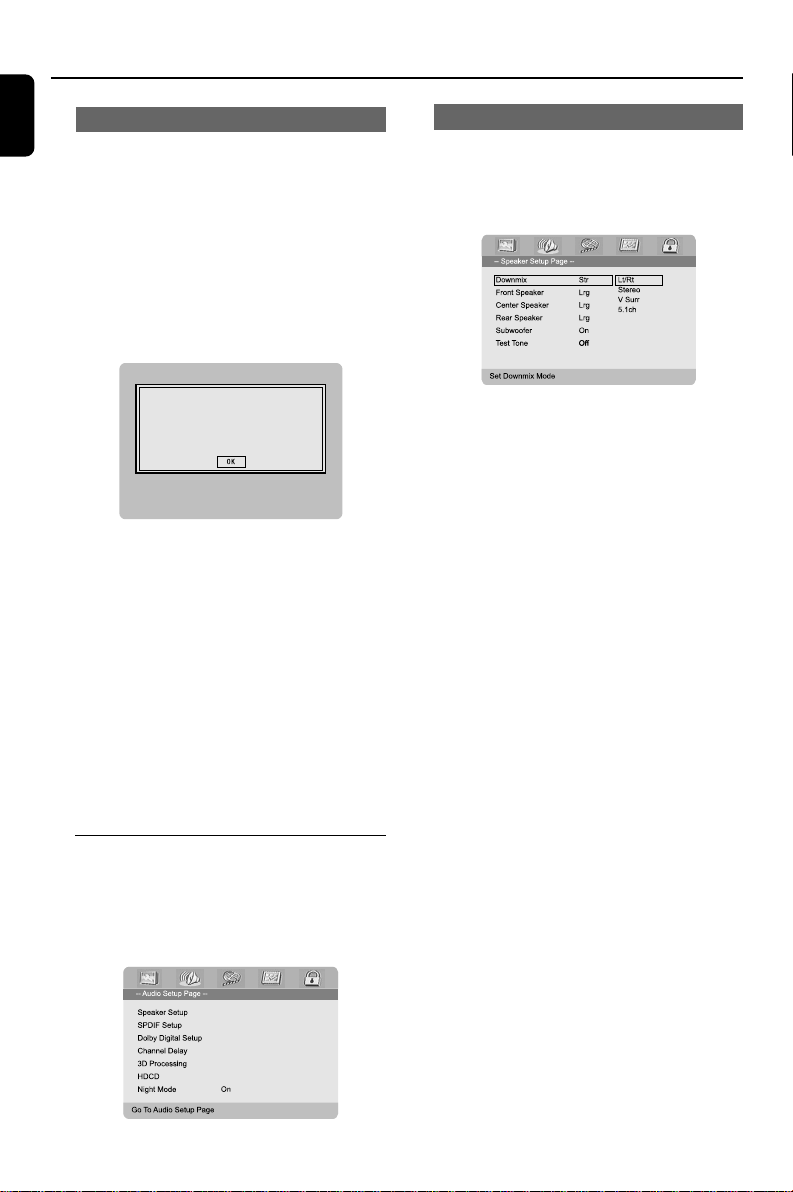

Speaker Setup

The options included in Speaker Setup page are: "Downmix", "Front Speaker", "Center Speaker", "Rear Speaker", "Subwoofer", "Test Tone" and “Dialog”.

Dialog

Downmix

This option allows you to set the stereo analog output of your DVD Player.

● In 'Speaker Setup Page', press 3 4 to highlight

'Downmix', then press 2 or OK.

➜ LT/RT: Select this option if your DVD Player

is connected to a Dolby Pro Logic decoder.

➜ Stereo: Select this option when output

delivers sound from only the two front speakers.

➜ V Surr Allows the DVD player to use virtual

surround sound effects.

➜ 5.1ch: Select this option for 5.1-channel

sound output.

Front Speaker

Adjusts the volume levels for front speakers. Options include "Large" and "Small".

Center Speaker

Adjusts the volume level for the center speaker. Options include "Large", "Small" and "Off".

Note: – This option is available only when you select "5.1CH" under "Downmix".

Rear Speaker

Adjusts the volume levels for rear speakers. Options include Options include "Large", "Small" and "Off".

Note: – This option is available only when you select "5.1CH" under "Downmix".

Subwoofer

Selects ON/OFF for the subwoofer.

Test Tone

The test tone will be automatically generated.

Off Concert Livingroom Hall Bathroom Cave Arena Church

System Menu Options

Note: – This option is available only when you select "5.1CH" under "Downmix" and the disc tray is open.

Dialog

Adjusts the dialog level up or down so that you can hear the dialog more clearly during playback.

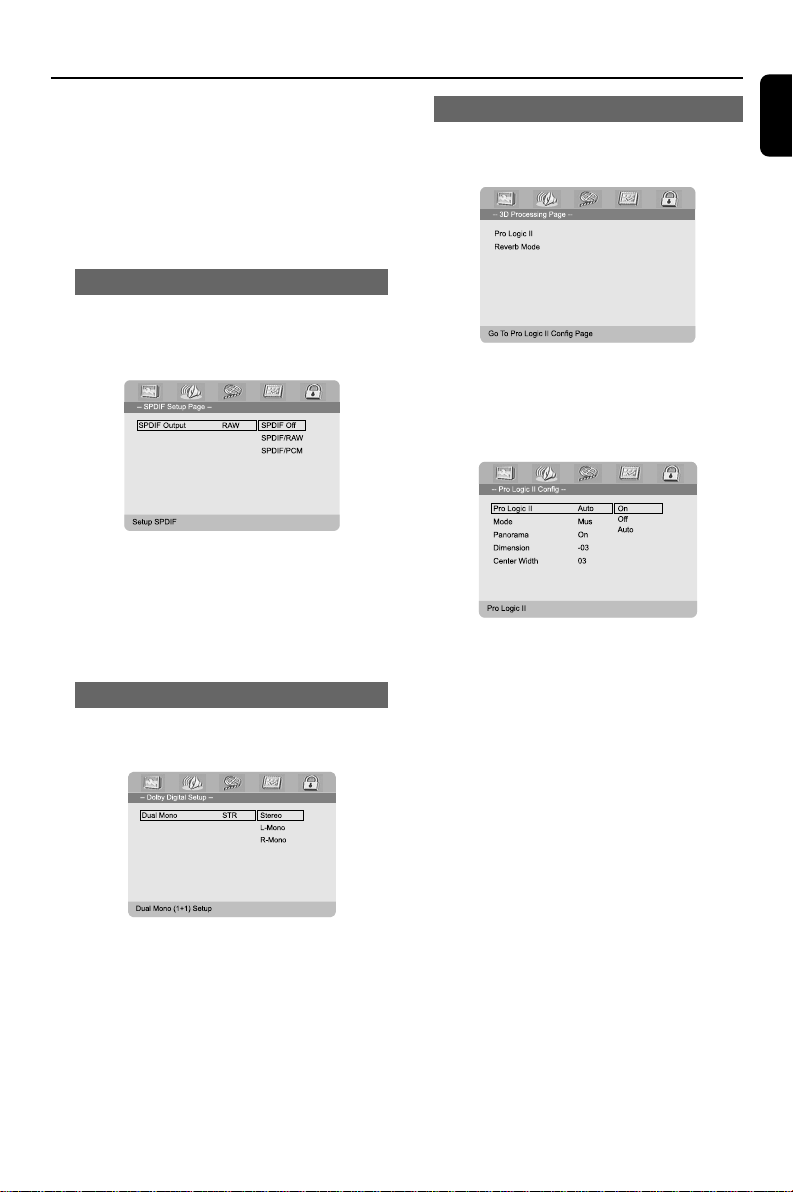

SPDIF Output

The options included in SPDIF (Sony/Phillips Digital Interface Format) Setup Page are: “SPDIF Off ”, “SPDIF/Raw” and “SPDIF/PCM”.

➜ SPDIF Off: Tur ns off the SPDIF output. ➜ SPDIF/Raw: If you have connected your

DIGITAL OUT (COAXIAL or OPTICAL) to a multi-channel decoder/receiver.

➜ SPDIF/PCM: Only if your receiver is not

capable of decoding multi-channel audio.

Dolby Digital Setup

The option included in Digital Audio Setup is: “Dual Mono”.

Dual Mono

Select the setting that matches the number of speakers you have connected.

➜ Stereo: Left mono sound will send output

signals to Left speaker and Right mono sound will send output signals to Right speaker.

➜ L-Mono: Left mono sound will send output

signals to Left speaker and Right speaker.

➜ R-Mono: Right mono sound will send output

signals to Left speaker and Right speaker.

3D Processing

The options included in 3D Processing are: “Pro Logic II” and “Reverb Mode”.

Pro Logic II

The options included in Pro Logic II Config page are: "Pro Logic II", "Mode", "Panorama", "Dimension" and "Center Width".

Pro Logic II

This function provides a convincing threedimensional sound field on conventional stereo music recordings.

➜ On: Tu r ns on the Pro Logic II effect. ➜ Off: Tu r ns off the Pro Logic II effect. In this

case, all options below "Pro Logic II" will be unavailable.

➜ Auto: Allows automatic selection of the Pro

Logic II effect depending on the discs being played back.

Mode

You can select your desired Pro Logic II mode here.

➜ Music: When listening to music, you can

experience sound effects as if you were listening to the actual performance. The options below "Mode" will be available only when this option is selected.

➜ Movie: Is mainly intended for use with DTS

discs. It can add realism to movie sound tracks.

➜ Pro Logic: After selecting this, you will

experience a realistic multi-channel effect even with just the front left and right speakers.

English

System Menu Options

English

➜ Auto: Allows automatic selection of the Pro

Logic II mode depending on the discs being played back.

Panorama

Extends the front stereo image to include the

surround speakers for a wraparound effect.

➜ On: Enables this function. ➜ Off: Disables this function.

Dimension

Incrementally adjusts the sound field either

towards the front or towards the rear speakers. The adjustable range is from -3 (towards the rear) to +3 (towards the front).

Center Width

Adjusts the center image from all front speakers

to varying degrees. A larger value adjusts the center image towards the front left and right speakers. The adjustable range is from 0 (center channel sound is output only from center speaker) to 7 (center channel sound is output only from front left and right speakers).

Reverb Mode

Reverb mode provides a virtual surround sound

experience using just two speakers.

➜ Off, Concert, Living Room, Hall,

Bathroom, Cave, Arena and Church.

HDCD

The option included in HDCD (High Definition

Compatible Digital) is: “Filter”.

Filter

Sets the audio output cutoff frequency point

when playing an HDCD disc.

➜ Off, 44.1K and 88.2K.

Night mode

In this mode, the high volume outputs are

softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night.

➜ On: Select this to level out the volume. This

feature is only available for movies with Dolby Digital mode.

➜ Off: Select this when you want to enjoy the

surround sound with its full dynamic range.

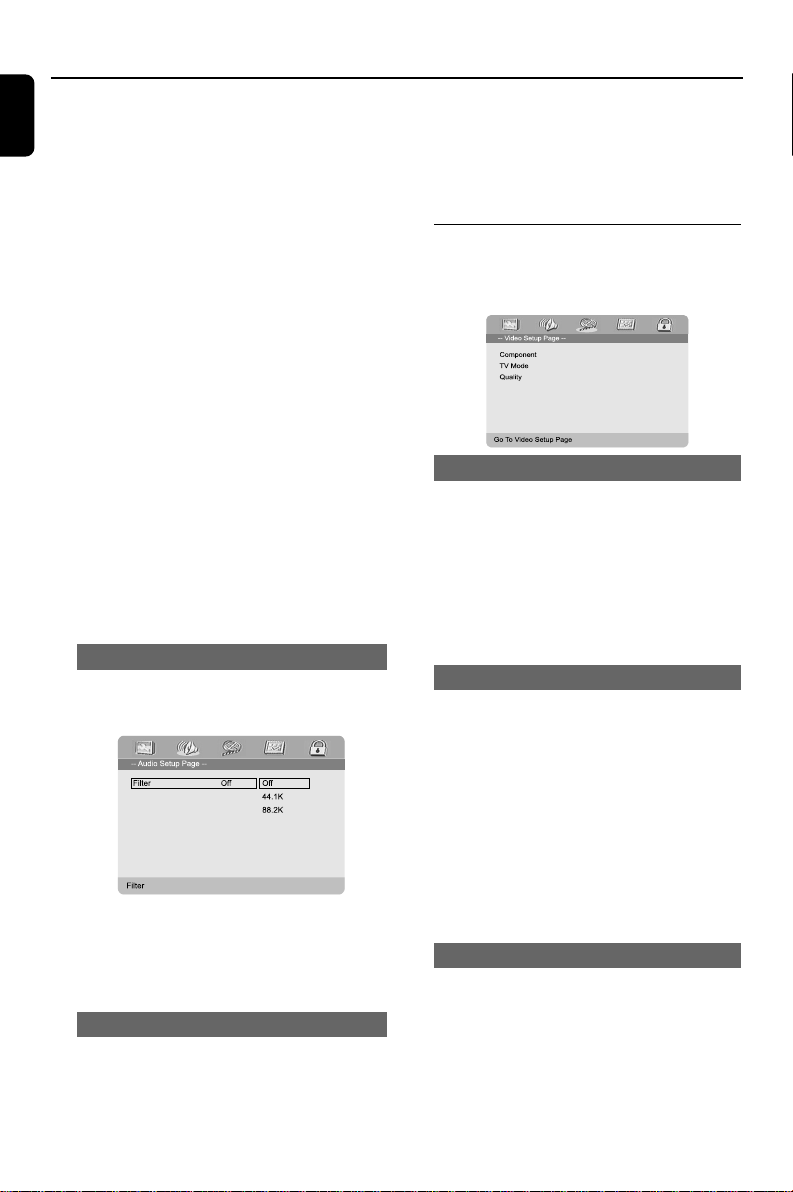

Video Setup Page

The options included in Video Setup page are: “Component”, “TV Mode” and “Quality”.

Component

Sets the video output according to your video connection. This setting is not required if you are using the VIDEO OUTPUT jack (yellow) to connect the DVD micro system to your TV.

➜ S-Video: Select this if you have connected ➜ Pr/Cr Pb/Cb Y: Select this if you have

connected the DVD micro system to your TV using Component video jacks.

TV Mode

Selects interlace or P-SCAN video output mode when Pr/Cr Pb/Cb Y is selected.

➜ P-SCAN and Interlace.

In the progressive scan mode, you can enjoy the high quality picture with less flickers. It only works when you have connected the DVD player's Y Pb Pr jacks to your TV that suppor ts the progressive video input. Otherwise, a distorted picture will appear on the TV. For proper progressive scan set up, see “Getting Started - Setting up Progressive Scan feature”.

Quality

This menu helps you to set the video quality.

1 Press 3 4 to highlight “Quality”. 2 Press 2 or OK to enter Video Quality Setup.

The options included in Video Quality Setup page are: “Sharpness”, “Brightness”, “Contrast”, “Gamma”, “Hue”, “Saturation” and “Luma Delay”.

Sharpness

Adjusts the sharpness level.

➜ High, Medium and Low.

Brightness

Adjusts the brightness level. Range: -20-+20.

Contrast

Adjusts the contrast level. Range: -16-+16.

Gamma

Adjusts the gamma level.

➜ High, Medium, Low and None.

Hue

Adjusts the hue level. Range: -9-+9.

Saturation

Adjusts the saturation level. Range: -9-+9.

Luma Delay

Adjusts the luma delay.

➜ 0 T and 1 T.

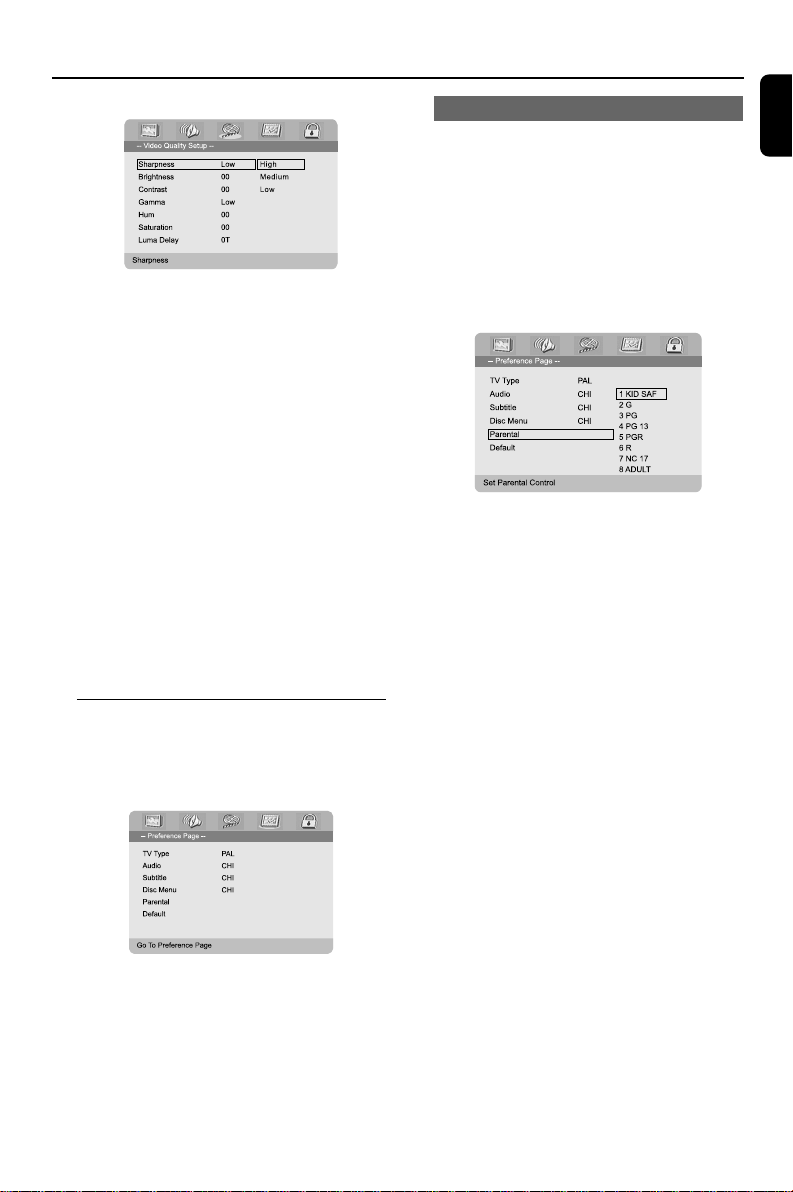

Preference Page

The options included in Preference page are: “TV

Type”, “Audio”, “Subtitle”, “Disc Menu”, “Parental” and “Default”.

System Menu Options

Parental

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level.

The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

● VCD, SVCD and CD have no level indication, so

parental control function has no effect on those kinds of discs. This applies to most illegal DVD discs.

1 Press 3 4 to highlight “Parental”. 2 Enter its submenu by pressing 2. 3 Use 3 4 to highlight a rating level for the disc

inserted.

➜ DVDs that are rated above the level you

selected will not play unless you enter your fourdigit password and choose a higher level rating.

Note: – Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs.

English

Note: –Preference features can be selected only during “No Disc” condition or full STOP mode.

Rating explanations

1 KID SAF – Kids material; recommended especially for children and viewers of all ages.

2 G – General Audience; recommended as acceptable for viewers of all ages.

3 PG –Parental Guidance suggested.

System Menu Options

English

4 PG 13 – Material is unsuitable for children under age

13.

5-6 PGR, R –Parental Guidance - Restricted;

recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

7 NC-17 – No children under age 17; not recommended

viewing for children under age 17.

8 Adult – Mature materials; should be viewed only by

adults due to graphic sexual material, violence or language.

Default

Setting the “Default” function will reset all

options and your personal settings to the factory defaults and all your personal settings will be erased.

Caution! – When this function is activated, all settings will be reset to factory defaults.

Password

Enter your four digit password when a hint is displayed on the screen. The default password is

1234.

1 Press 3 4 to highlight “Password”. 2 Enter its submenu by pressing 2. 3 Press OK to open the page for inputting a new

password.

4 Enter the existing 4-digit code. 5 Enter the new 4-digit code. 6 Enter the new 4-digit code a second time to

confirm.

➜ The new 4-digit code will take effect.

7 Press OK to exit.

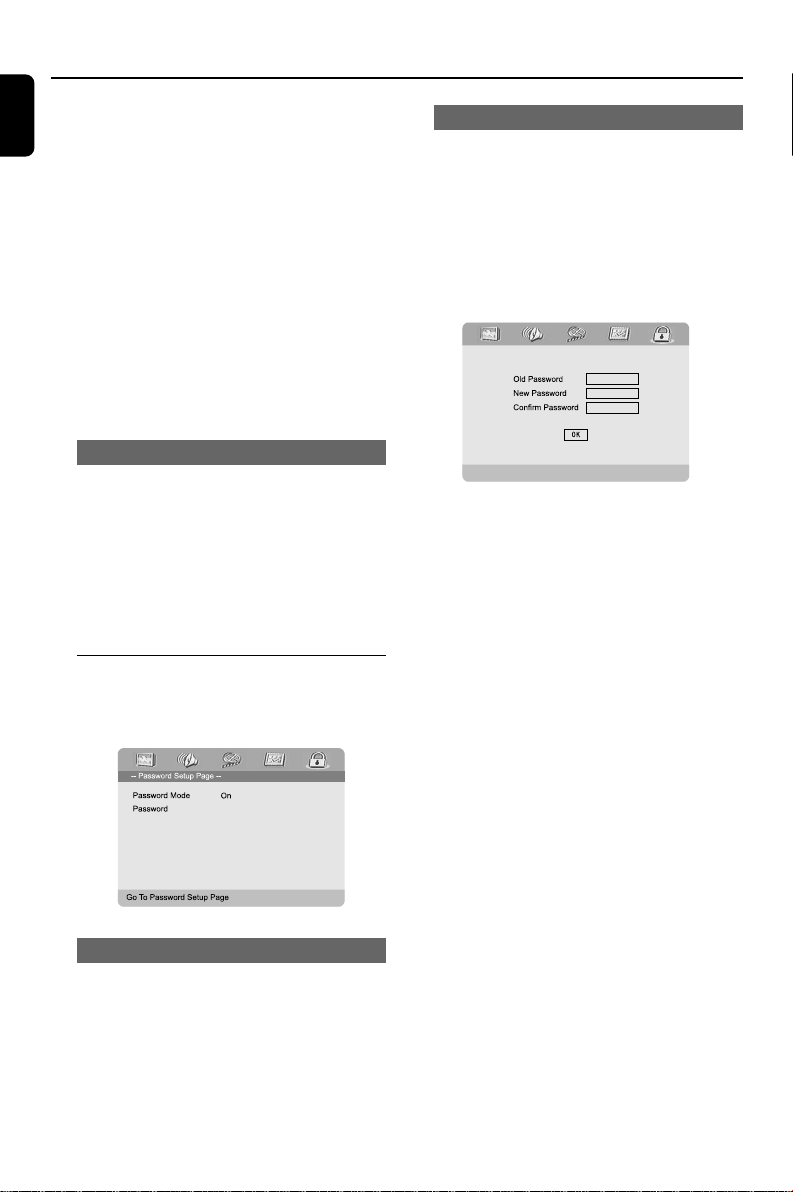

Password Setup Page

The options included in Password Setup page

are: “Password Mode” and “Password”.

Password Mode

This feature is used to enable/disable password

by selecting “ON”/”OFF”.

Notes: – If the password has been changed, the parental and disc lock code will also be changed. – The default password (1234) is always active even the password has been changed.

Other Functions

Radio Reception

Tuning to radio stations

1 Press STANDBY-ONy (or y on the remote)

to switch on the last selected source.

2 Press SOURCE (TUNER on the remote) to

select TUNER mode.

3 Press TUNER on the remote again to select

the desired band: FM or MW.

4 Press and hold ¡ / ™ (TU +/- à / á on the

remote) until the frequency indication starts to change, then release.

➜ “SEARCH” will be displayed. The system

automatically tunes to the next strong radio station.

● To tune to a weak station, press ¡ / ™ (TU +/-

à / á on the remote) briefly and repeatedly until an optimal reception is found.

5 Repeat Step 4 if necessar y until you find the

desired radio station.

Presetting radio stations

You can preset up to 40 stations (20 in each band) regardless of the reception.

Automatic programming

Automatic programming will start with a chosen preset number. From this preset number upwards, former programmed radio stations will be overridden.

● Press PROG on the remote for more than two

seconds to activate programming.

➜ All available stations are programmed.

3 Press PRESET+ or PRESET-/9 (or CH +/-

(¡ / ™) on the remote) to select the desired preset number.

➜ If “PROG” icon goes off before you select the

desired preset number, press PROG on the remote.

4 Press PROG on the remote again to store the

radio station.

● Repeat steps 1-4 to store other radio stations.

Listening to preset radio stations

● In tuner mode, press PRESET+ or PRESET-/9

(or CH +/- (¡ / ™) on the remote) to select the desired preset number.

➜ The preset number, radio frequency, and

waveband are displayed.

English

Manual progamming

1 Tune to your desired radio station (refer to

“Tuning to radio stations”).

2 Press PROG on the remote.

➜ ”PROG” icon flashes.

Other Functions

English

Setting the clock

1 In Standby mode, press and hold CLOCK on

the remote until the time flashes on the display.

➜ ”CLOCK SET” is displayed briefly. Then, the

hour digits flash on the display screen.

2 Tu rn VOLUME -/+ clockwise or anticlockwise

or press VOLUME +/- on the remote to set the hours.

3 Press CLOCK to confirm.

➜ The minute digits flash on the display screen.

4 Tu rn VOLUME -/+ clockwise or anticlockwise

or press VOLUME +/- on the remote to set the minutes.

5 Press CLOCK again to confirm the clock

setting.

Notes: – This system only supports 24-hour mode. – The clock setting will be erased when the system is disconnected from the power supply. – The system will exit clock setting mode if no button is pressed within 30 seconds.

Setting sleep/wake-up timer

Sleep timer setting

In power-on mode, the sleep setting enables

the system to switch to standby mode automatically at a preset time.

1 In power-on mode, press SLEEP/TIMER on

the remote repeatedly to select a preset time.

➜ The selections are as follows (time in

minutes):

SLEEP 00 ➜ SLEEP 10 ➜ SLEEP 20 ... SLEEP 80

➜ SLEEP 90 ➜ SLEEP 00

2 When you reach the desired length of time, stop

pressing SLEEP/TIMER.

➜ appears.

To deactivate the sleep timer

● Press SLEEP/TIMER repeatedly until “00” is

displayed, or press STANDBY ONB (B on the remote).

In standby mode, the timer setting enables the system to switch on automatically at a set time.

Wake-up timer setting

IMPORTANT! – Before setting the timer, ensure that the clock is set correctly.

1 Press and hold SLEEP/TIMER until the time

flashes on the display.

➜ ”TIME SET” scrolls. Then, the hour digits

flash on the display screen.

2 Tu r n VOLUME -/+ clockwise or anticlockwise

or press VOLUME -/+ on the remote to set the hours.

3 Press SLEEP/TIMER to confirm.

➜ The minute digits flash on the display screen.

4 Tu r n VOLUME -/+ clockwise or anticlockwise

or press VOLUME -/+ on the remote to set the minutes.

5 Press SLEEP/TIMER to confirm the time

setting.

➜ ”OFF” flashes on the display screen.

6 Tur n VOLUME -/+ clockwise or anticlockwise

or press VOLUME -/+ on the remote to select “ON”.

➜ icon appear s on the display screen.

To deactivate the timer

● Select “OFF” at Step 6.

Specifications

SYSTEM

Power supply .......................................... 220V / 50 Hz

Total output power ............................................. 1000W

Front .................................................................... 2x100W

Rear ...................................................................... 2x100W

Center ...................................................................... 300W

Subwoofer .............................................................. 300W

AUX input sensitivity ..................................... ≤ 550mV

Channel Separation ............................................. ≥ 40dB

Distortion ....................................................................... 0.7%

DVD

Frequency response ........... 100Hz-20kHz (±2dB)

Video output ................................................................1 V

Horizontal definition................................... ≥ 500 (TV)

Dimensions ...............................................................................

.......................... 232 (W) x 75.5 (H) x 227 (D) mm

Weight ........................................................................ 1.75 kg

AMPLIFIER

Rated output power (THD = 10%) ..........................

...................................... 4x75W (4Ω)+2x150W (8Ω)

Frequency response ........... 100Hz-20kHz (±2dB)

S/N Ratio ...................................................................≥ 60dB

Loaded impedance ........................................... 8 Ω/4 Ω

Dimensions ...............................................................................

.......................... 232 (W) x 75.5 (H) x 235 (D) mm

Weight ............................................................................ 3.8kg

TUNER

FM Frequency range .......................... 87.5-108 MHz

FM Noise limit sensitivity ........................... ≤ 20µ V/M

FM S/N ........................................................................ ≥ 46dB

MW Frequency range ........................ 531-1602 kHz

MW Noise limit sensitivity ....................... ≤ 3.0µ V/m

MW S/N .................................................................... ≥ 40dB

SPEAKERS Front Speakers

System .......................................................... 2-way shielded

English

Impedance.......................................................................... 4 Ω

Speaker drivers ...................... 2x4” woofer, ribbon tw

Dimensions (w x h x d) ......................................................

.................................... 223 mm x 223 mm x 1012 mm

Weight........................................................................ 12.95 kg

Center Speaker

System .......................................................... 2-way shielded

Impedance.......................................................................... 8 Ω

Speaker drivers ..................................... 4” woofer, 2” tw

Dimensions (w x h x d) ......................................................

P-P

........................................... 392mm x 144 mm x 67 mm

Weight........................................................................... 2.45 kg

Surround Speakers

System .......................................................... 2-way shielded

Impedance.......................................................................... 4 Ω

Speaker drivers ............................. 1 x 3” woofer, Pieze

Dimensions (w x h x d) ......................................................

.......................................... 144 mm x 250 mm x 50 mm

Weight.............................................................................. 2.6 kg

SUBWOOFER

Subwoofer (not magnetically shielded design).......

...................................................................................................... 8”

Impedance.......................................................................... 8 Ω

Dimensions (w x h x d) ......................................................

....................................... 255 mm x 336 mm x 426 mm

Weight........................................................................... 12.6 kg

REMOTE

Distance ............................................................................... 6m

Angle ............................................................................... ± 30

Specifications subject to change without prior notice

Troubleshooting

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem

No power.

No picture.

Distorted or poor picture.

Completely distorted picture or black/ white picture.

Solution

✔ Check if the AC power cord is properly

connected.

✔ Press STANDBY ONB on the top of the DVD

micro system or B on the remote to turn on the power.

✔ Check if the TV is switched on. ✔ Check the video connection. ✔ Press SOURCE on the top of the DVD player

repeatedly to select “DVD” or press DISC on the remote.

✔ Set your TV to the correct Video In channel. This

channel is usually near channel 00. Or, you may have a button on the TV remote control that selects Auxiliary or A/V IN channel. See your TV owner’s manual for details. Or, change channels at the TV until you see DVD screen on the TV.

✔ If the progressive scan feature is activated but

the connected TV does not suppor t progressive signals or the cables are not connected accordingly, see “Getting Star ted - Setting up Progressive Scan feature” for proper progressive scan setup or deactivate the progressive scan feature as below:

1) Turn off your TV progressive scan mode or turn on to interlaced mode.

2) Press SYSTEM on the remote to exit the system menu and then DISC and “1” to exit progressive scan.

✔ Sometimes a small amount of picture distortion

may appear. This is not a malfunction.

✔ Clean the disc.

✔ TV has a colour system standard. If the disc’s or

DVD system’s colour system is different than your TV’s colour system, the picture may be distorted or colour less.

Tr oubleshooting

The aspect ratio of the screen cannot be changed even though you have set the TV shape.

No sound or distorted sound.

There is no sound from the center and surround speakers.

The micro DVD player does not start playback.

✔ The aspect ratio is fixed on the DVD disc. ✔ Depending on the TV, it may not be possible to

change the aspect ratio.

✔ Adjust the volume. ✔ Check that the speakers are connected

correctly.

✔ Replace the speaker cables. ✔ Disconnect the headphones. ✔ The system is in pause, slow motion or fast

forward/reverse mode, press PRESET/ÉÅ (or ÉÅ on the remote) to resume normal play

mode.

✔ Make sure the center and sound speakers are

connected correctly.

✔ Press SURROUND to select a correct

surround sound setting.

✔ Make sure the sourdce you are playing is

recorded or broadcast in surround sound (DTS, Dolby Digital, etc.).

✔ Insert a readable disc with the playback side

facing down.

✔ Check the disc type, colour system and regional

code. Check for any scratches or smudges on the disc.

✔ Press SYSTEM MENU to turn off the setup

menu screen.

✔ Cancel the parental control rating function or

change the rating level.

✔ Moisture has condensed inside the system.

Remove the disc and leave the system turned on for about an hour.

English

The DVD micro system does not respond when the buttons are pressed.

Cannot activate some features, such as Angles, Subtitles, or multi-language Audio.

✔ Disconnect the power plug from the outlet and

insert again.

✔ Multi-language sound or subtitle is not recorded

on the DVD.

✔ Changing the language for the sound or subtitle

is prohibited on the DVD.

✔ The features may not be available on the disc.

Troubleshooting

English

Considerable noise in radio broadcasts.

✔ Tune in to the correct frequency. ✔ Connect the antennas. ✔ Fully extend the FM wire antenna. Position for

best reception and secure to a wall.

✔ Connect an outdoor FM or MW antenna. ✔ Adjust the direction and position for best

reception.

✔ Place the antenna farther away from any

equipment that may be causing the noise.

✔ Increase the distance between the system and

your TV or other equipment.

The remote control does not function.

The display is dark.

Low hum or buzz sound.

Low bass response.

Unable to select Progressive Scan

✔ Select the correct source (DISC or TUNER, for

example) before pressing the function button.

✔ Point the remote control at the remote sensor

of the unit.

✔ Reduce the distance to the player. ✔ Remove any possible obstacles. ✔ Replace the batteries with new ones. ✔ Check that the batteries are loaded correctly.

✔ Press DIM again.

✔ Place the DVD micro system as far away as

possible from electrical devices that may be causing interference.

✔ Check all speakers for correct polarity.

✔ Check that the output of the video signal is

switched to 'Pr/Cr Pb/Cb Y'.

Glossary

Analog: Sound that has not been turned into

numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of ver tical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9.

AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV set, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate the better the sound quality. However, higher bit rates use more space on a Disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV set that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).

Disc menu: A screen display prepared for the selection of images, sound, subtitles, multi-angles, etc recorded on a DVD.

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right and center).

DTS: Digital Theater Systems. This is a surround sound system, but different from Dolby Digital. The formats were developed by different companies.

JPEG: A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A file format with a sound data compression system, “MPE” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. Through the MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.

Multichannel: DVD is specified to have all

sound tracks constitute one sound field.

Multichannel refers to a structure of sound

tracks having three or more channels.

Parental control: A function of the DVD to

limit playback of the disc by the age of the users

according to the limitation level in each country.

The limitation varies from disc to disc; when it is

activated, playback will be prohibited if the

software’s level is higher than the user-set level.

PCM (Pulse Code Modulation): A system

for converting analog sound signal to digital

signal for later processing without data

compression.

Playback control (PBC): Refers to the signal

recorded on video CDs or SVCDs for

reproduction control. By using screen menus

recorded on a Video CD or SVCD that suppor ts

PBC, you can enjoy interactive-type software as

well as software having a search function.

Progressive Scan (P-Scan): It displays all the

horizontal lines of a picture at one time, as a

signal frame. This system can convert interlaced

video from DVD into progressive format for

connection to a progressive display. It

dramatically increases the vertical resolution. A

progressive scan TV set is needed to receive

progressive scan output from the system.

Region code: A system allowing discs to be

played only in preset regions. This unit will only

play discs that have compatible region codes. You

can find the region code of your unit from the

product label. Some discs are compatible with

more than one region (or ALL regions).

S-Video: Produces a clear picture by sending

separate signals for luminance and the color. You

can use S-Video only if your TV set has S-Video

In jack.

Sampling Frequency: Frequency of data

sampling when analog data is converted to

digital data. Sampling frequency numerically

represents how many times the original analog

signal is sampled per second.

Surround: A system for users to create

realistic three-dimensional sound fields full of

realism by arranging multiple speakers around

the listener.

Title: The longest section of a picture or music

feature on DVD, music, etc., in video software, or

the entire album in audio software. Each title is

assigned a title number enabling you to locate

the title you want.

VIDEO OUT jack: Jack on the back of the

DVD System that sends video to TV.

English

Meet Philips at the Internet

http://www.philips.com

MCD759

CLASS 1

LASER PRODUCT

Printed in China

PDCC-JS-JW-0644

Philips MCD759 93 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
