Philips MCD288-12 User Manual
MCD 288
Quick Start Guide

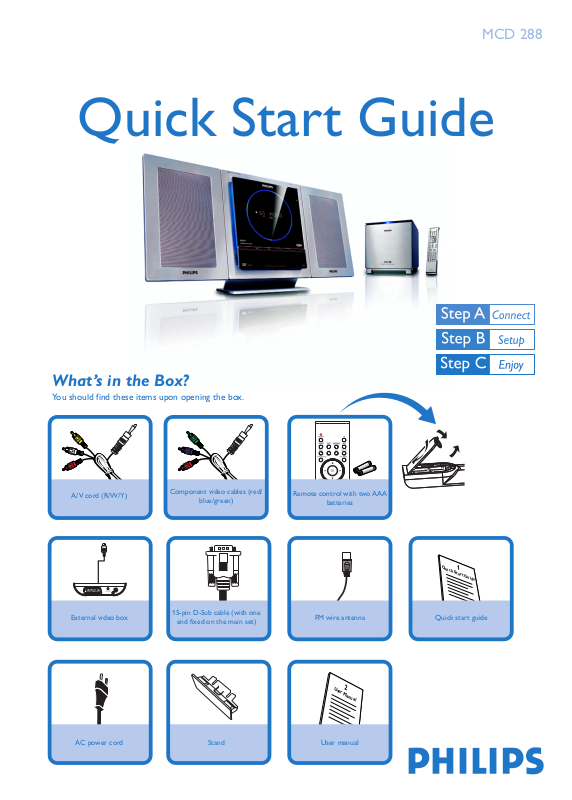

What’s in the Box?
You should find these items upon opening the box.
A/V cord (R/W/Y)
External video box
Component video cables (red/
blue/green)
15-pin D-Sub cable (with one
end fixed on the main set)
Remote control with two AAA
batteries
FM wire antenna
Quick Start Guide
1
Quick start guide
2
User Manual
AC power cord Stand User manual
Tips
– See the User Manual for other TV
connection options.
–For connecting to a Progressive Scan
TV, refer to the user manual for proper
connections and detailed setup.
–Never connect the AC power cord
before connection of the 15-pin Sub cable
to avoid causing any damage to the set.
AC power
4
1
1
Connect the speaker (subwoofer) cables.
2
Connect the FM antenna.
3
Connect the A/V cord to a TV.
4
Connect the power cords of the system and TV.
S-VIDEO
IN
AUDIO
TV IN
IN
VIDEO IN
S-VIDEO
IN
AUDIO
TV IN
IN
VIDEO IN
AC power
3
4
Speaker
(right)
1
2
FM antenna
Speaker
(left)
1
Setting up the TV
1
Press SOURCE (DISC on the remote) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
