Philips MCD196 79 User Manual

DVD Micro Theatre

User manual

MCD196

CAUTION

Visible and invisible laser radiation. If the cover is open, do not look at the beam.

STANDBY-ON

MICRO THEATRE MCD196

SOURCE

1 6

DISPLAY/CLOCK SET

VOLUME

DBB

DSC

PRESET

AUX

TUNING

DVD/WMA-MP3-CD COMPATIBLE

PULL TO OPEN

$ ¡ 5 8

7 9

CLOCK

) ^

8 &

@ #

! ( ™

% ≤

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC. US PAT. NO 5,451,942,5,956,674, 5,974,380, 5,978,762 AND OTHER WORLDWIDE

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.

Windows Media is a trademark of Microsoft Corporation.

Language Code

Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese 7789 Castellano, Español 6983 Catalán 6765 Chamorro 6772 Chechen 6769 Chewa; Chichewa; Nyanja 7889 9072 Chuang; Zhuang 9065 Church Slavic; Slavonic 6785 Chuvash 6786 Corsican 6779 Česky 6783 Dansk 6865 Deutsch 6869 Dzongkha 6890 English 6978 Esperanto 6979 Estonian 6984 Euskara 6985  6976 Faroese 7079 Français 7082 Frysk 7089 Fijian 7074 Gaelic; Scottish Gaelic 7168 Gallegan 7176 Georgian 7565 Gikuyu; Kikuyu 7573 Guarani 7178 Gujarati 7185 Hausa 7265 Herero 7290 Hindi 7273 Hiri Motu 7279 Hrwatski 6779 Ido 7379 Interlingua (International)7365 Interlingue 7365

Inupiaq 7375 Irish 7165 Íslenska 7383 Italiano 7384 Ivrit 7269 Japanese 7465 Javanese 7486 Kalaallisut 7576 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kernewek 7587 Khmer 7577 Kinyarwanda 8287 Kirghiz 7589 Komi 7586 Korean 7579 Kuanyama; Kwanyama 7574 Kurdish 7585 Lao 7679 Latina 7665 Latvian 7686 Letzeburgesch; 7666 Limburgan; Limburger 7673 Lingala 7678 Lithuanian 7684 Luxembourgish; 7666 Macedonian 7775 Malagasy 7771 Magyar 7285 Malayalam 7776 Maltese 7784 Manx 7186 Maori 7773 Marathi 7782 Marshallese 7772 Moldavian 7779 Mongolian 7778 Nauru 7865 Navaho; Navajo 7886 Ndebele, North 7868 Ndebele, South 7882 Ndonga 7871 Nederlands 7876 Nepali 7869 Norsk 7879 Northern Sami 8369 North Ndebele 7868 Norwegian Nynorsk; 7878 Occitan; Provencal 7967 Old Bulgarian; Old Slavonic 6785 Oriya 7982 Oromo 7977 Ossetian; Ossetic 7983 Pali 8073 Panjabi 8065 Persian 7065 Polski 8076 Português 8084

Pushto 8083 Russian 8285 Quechua 8185 Raeto-Romance 8277 Romanian 8279 Rundi 8278 Samoan 8377 Sango 8371 Sanskrit 8365 Sardinian 8367 Serbian 8382 Shona 8378 Shqip 8381 Sindhi 8368 Sinhalese 8373 Slovensky 8373 Slovenian 8376 Somali 8379 Sotho; Southern 8384 South Ndebele 7882 Sundanese 8385 Suomi 7073 Swahili 8387 Swati 8383 Svenska 8386 Tagalog 8476 Tahitian 8489 Tajik 8471 Tamil 8465 Tatar 8484 Telugu 8469 Thai 8472 Tibetan 6679 Tigrinya 8473 Tonga (Tonga Islands) 8479 Tsonga 8483 Tswana 8478 Türkçe 8482 Turkmen 8475 Twi 8487 Uighur 8571 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapuk 8679 Walloon 8765 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 8973 Yoruba 8979 Zulu 9085

Index

English ------------------------------------------------ 8

English

EspañolDeutschNederlandsItalianoSvenskaDansk

Contents

English

General Information

Features ................................................................ 10

Discs for playback .............................................. 10

Supplied accessories .......................................... 10

Environmental information .............................. 11

Care and safety information ............................ 11

Connections

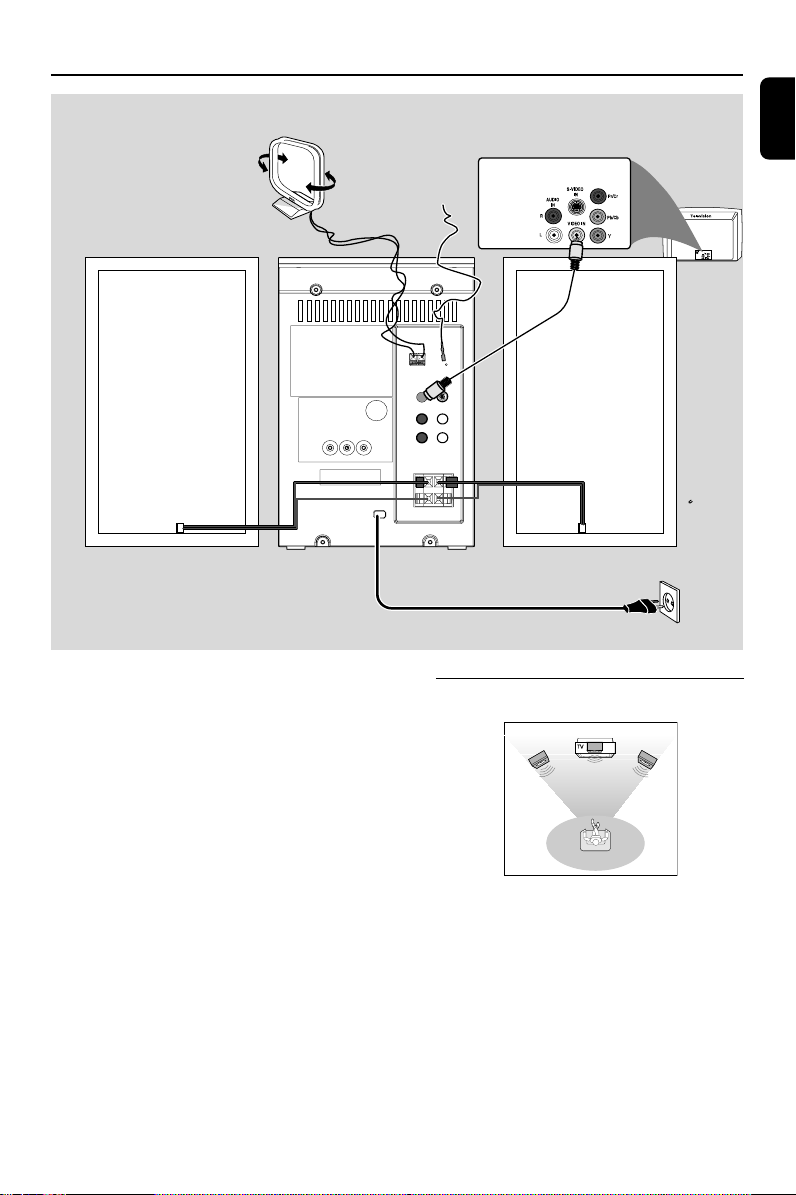

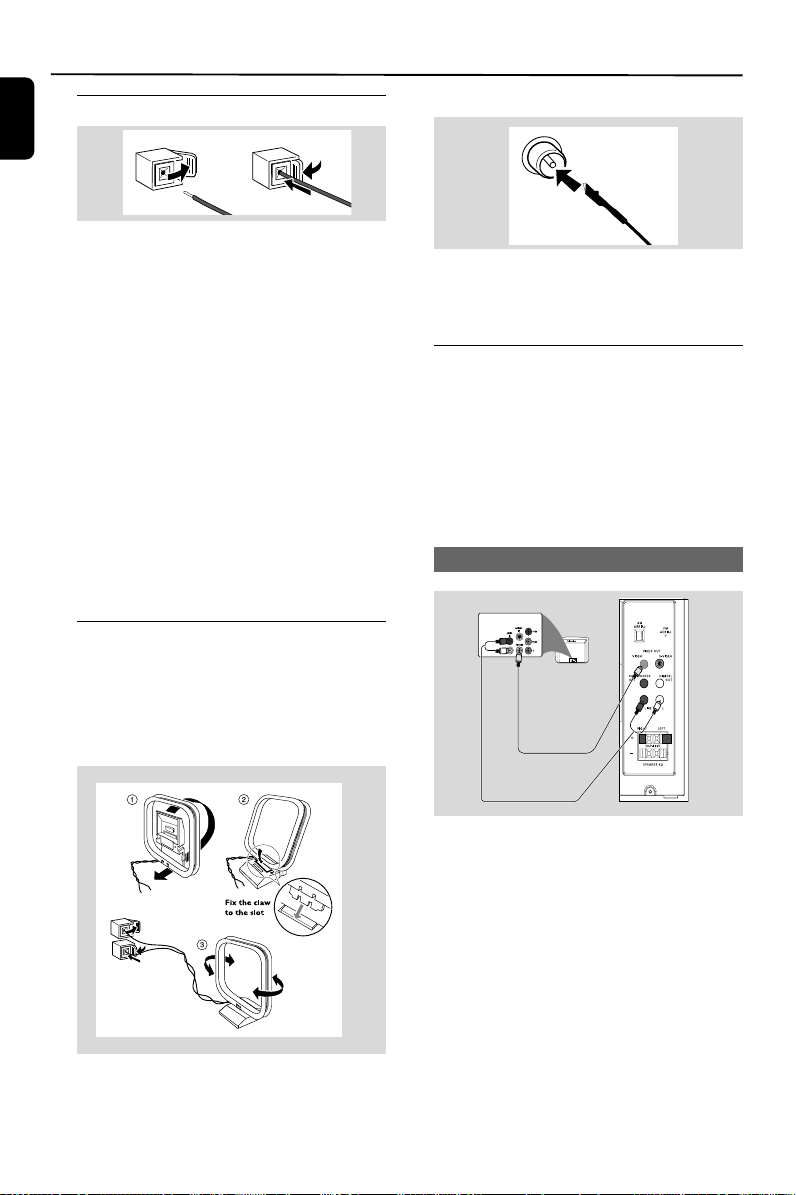

Step 1: Placing speakers .................................... 13

Step 2: Connecting speakers ............................ 14

Step 3: Antenna connection ............................. 14

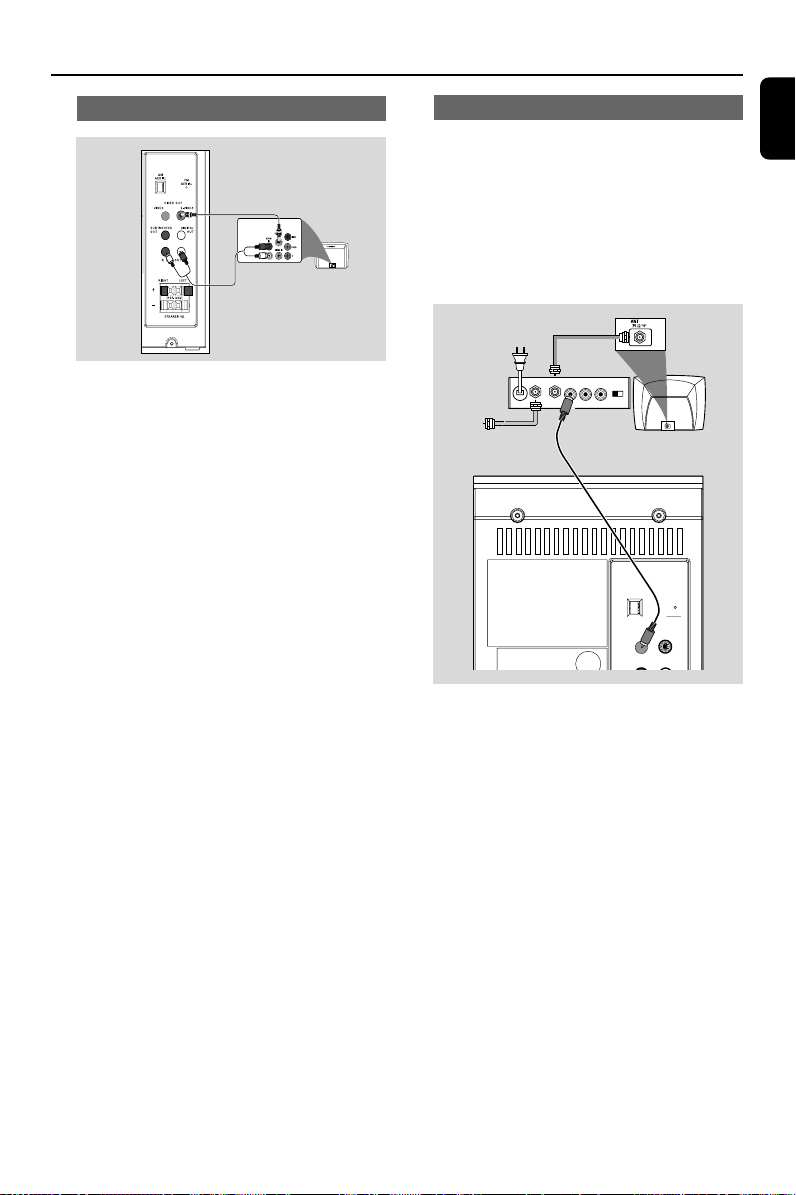

Step 4: Connecting TV ................................. 14-15

Step 5: Connecting the power cord............... 16

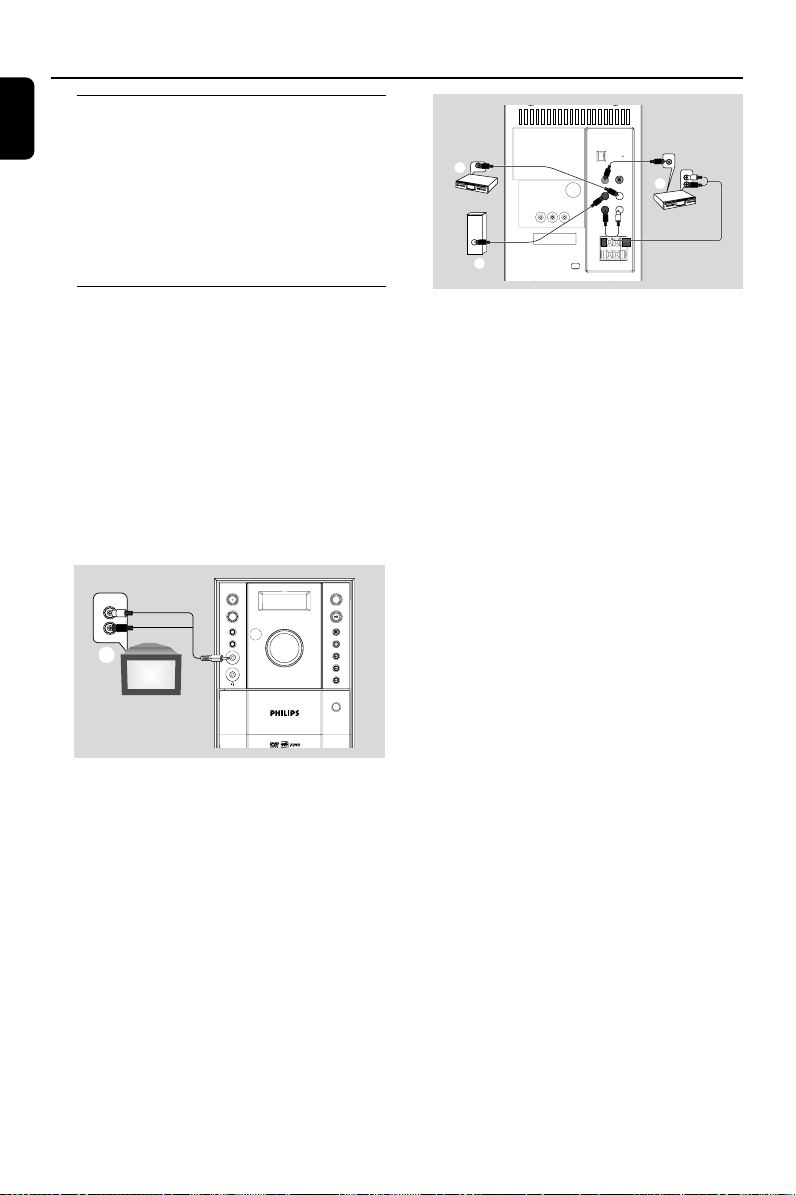

Optional: Connecting additional equipment 16

Controls

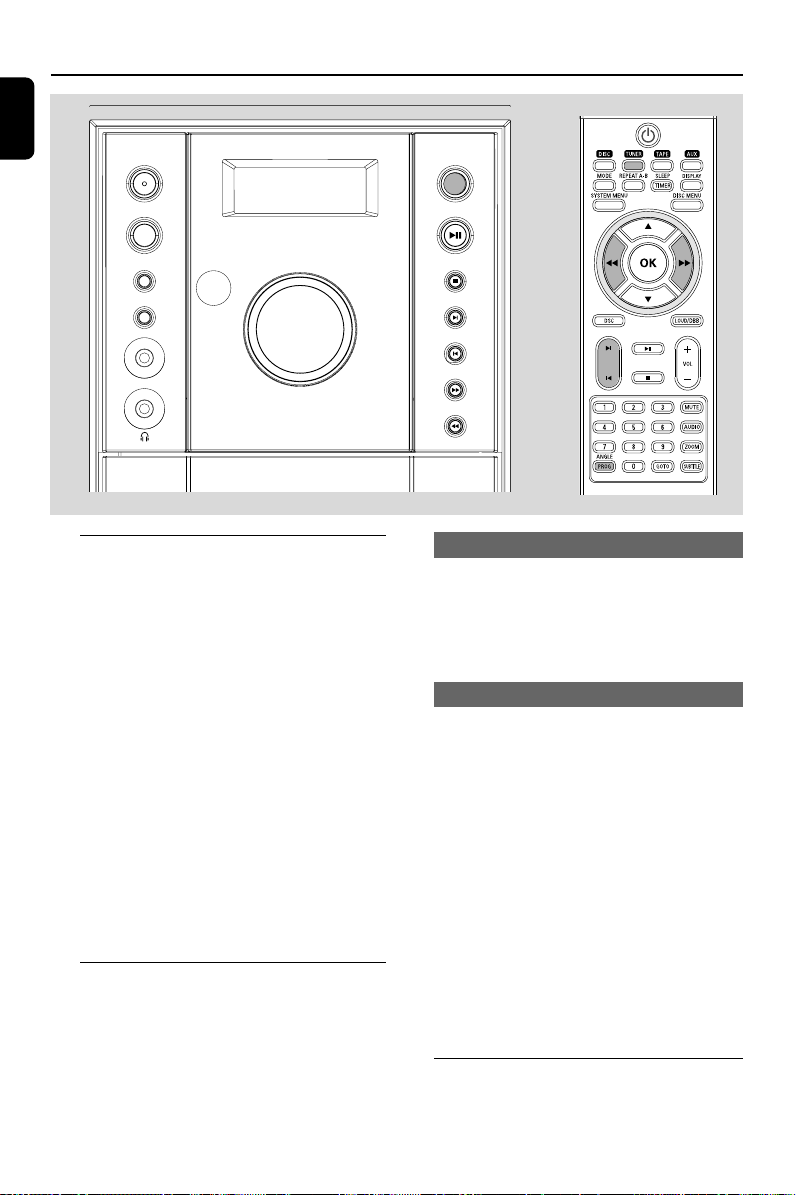

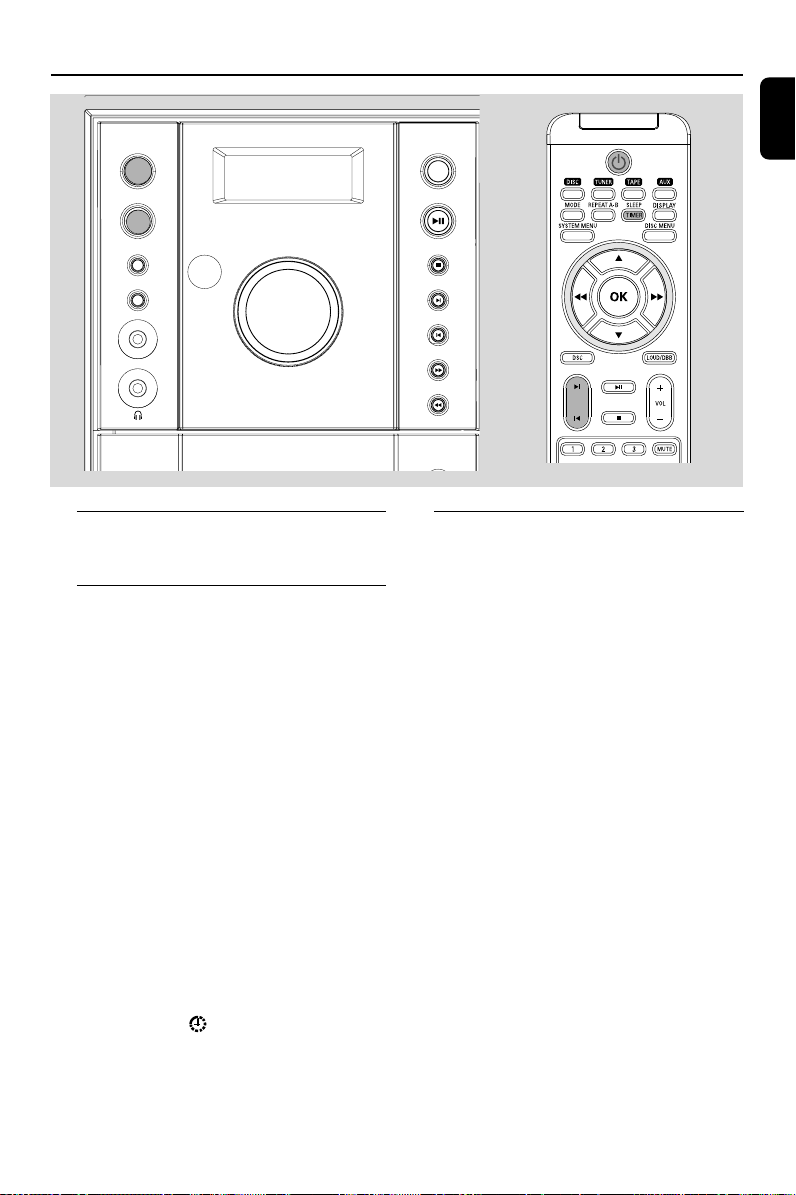

Controls on the system .................................... 17

Controls on the remote control .............. 17-18

Preparations

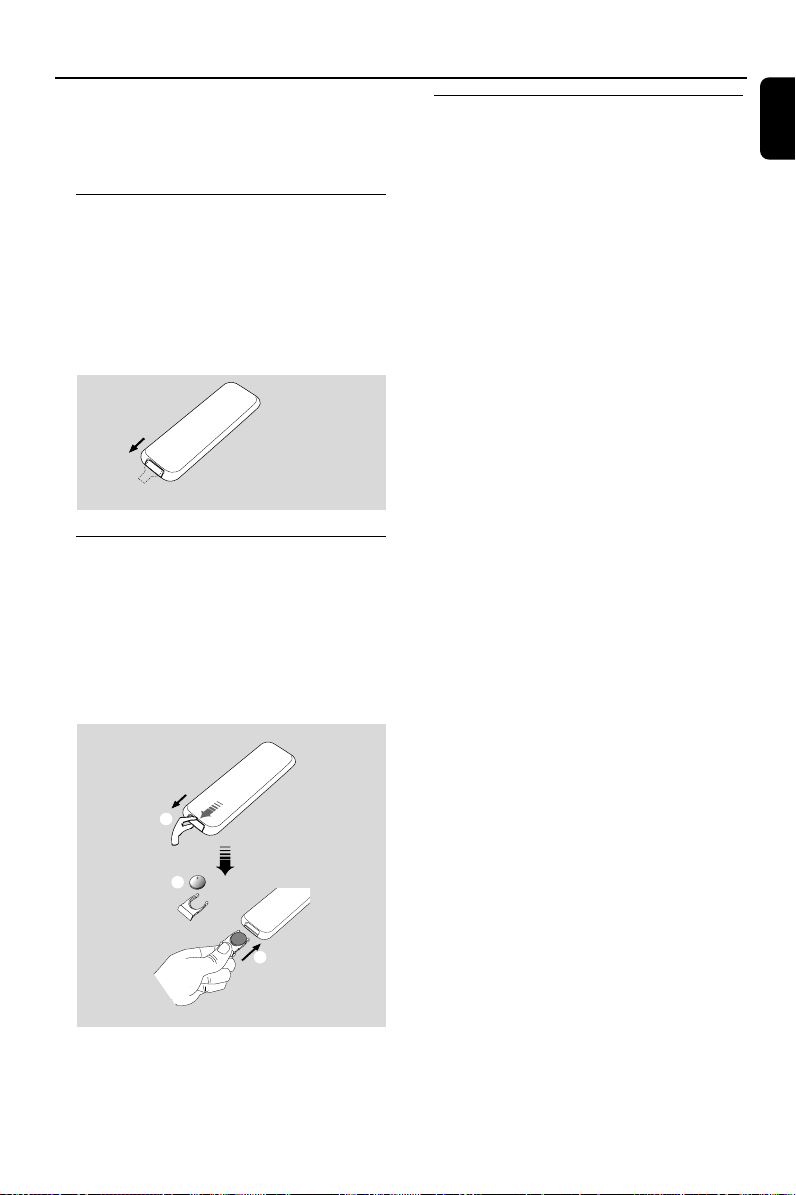

Before using the remote control .................... 19

Replacing battery ................................................ 19

Step 1: Setting the clock ................................... 19

Step 2: Setting video preference ............... 20-21

Step 3: Setting language preference ................ 21

Basic Functions

Switching the system on ................................... 22

Power-saving automatic standby ..................... 22

Sound control ..................................................... 22

Volume control ................................................... 22

Using Video In jack Using S-Video In jack Using an accessory RF modulator

DBB DSC LOUDNESS

Disc Operations

Playing discs ......................................................... 23

Using the disc menu .......................................... 23

Basic playback controls ............................... 23-25

Pausing playback Selecting a track/chapter/title Resuming playback from the last stopped point Zoom Repeat and shuffle modes Repeat A-B Program Forward/Reverse Searching Time search & search by chapter/track number Information display during playback

Special disc features ........................................... 25

Playing a Title Camera Angle Changing the Audio Language Changing the Audio Channel

Subtitles

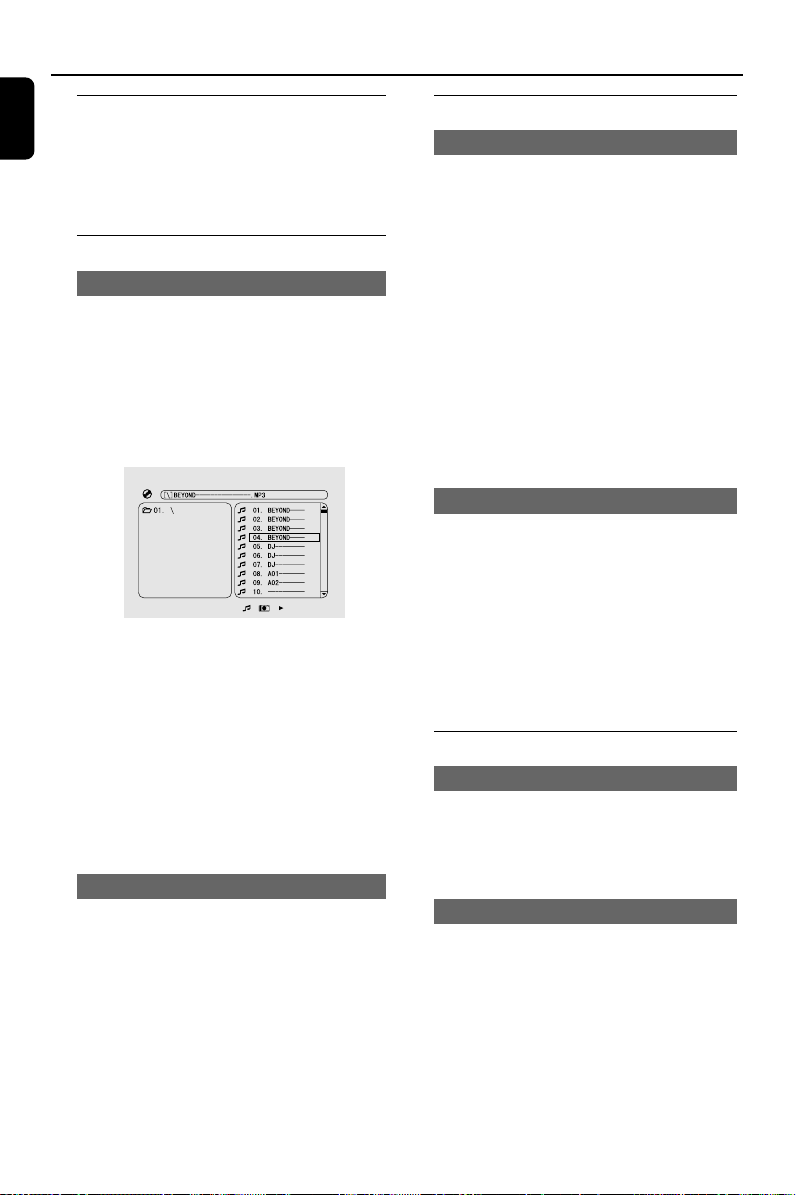

Playing MP3/WMA/JPEG disc .......................... 26

Playing MP3/WMA disc ..................................... 26

General operation

Playback selection

Playing JPEG Picture CD................................... 26

General operation

Playback selection

Special JPEG features ......................................... 26

Zoom picture

Playback with multi-angles

Contents

System Menu Options

Basic operations ................................................. 27

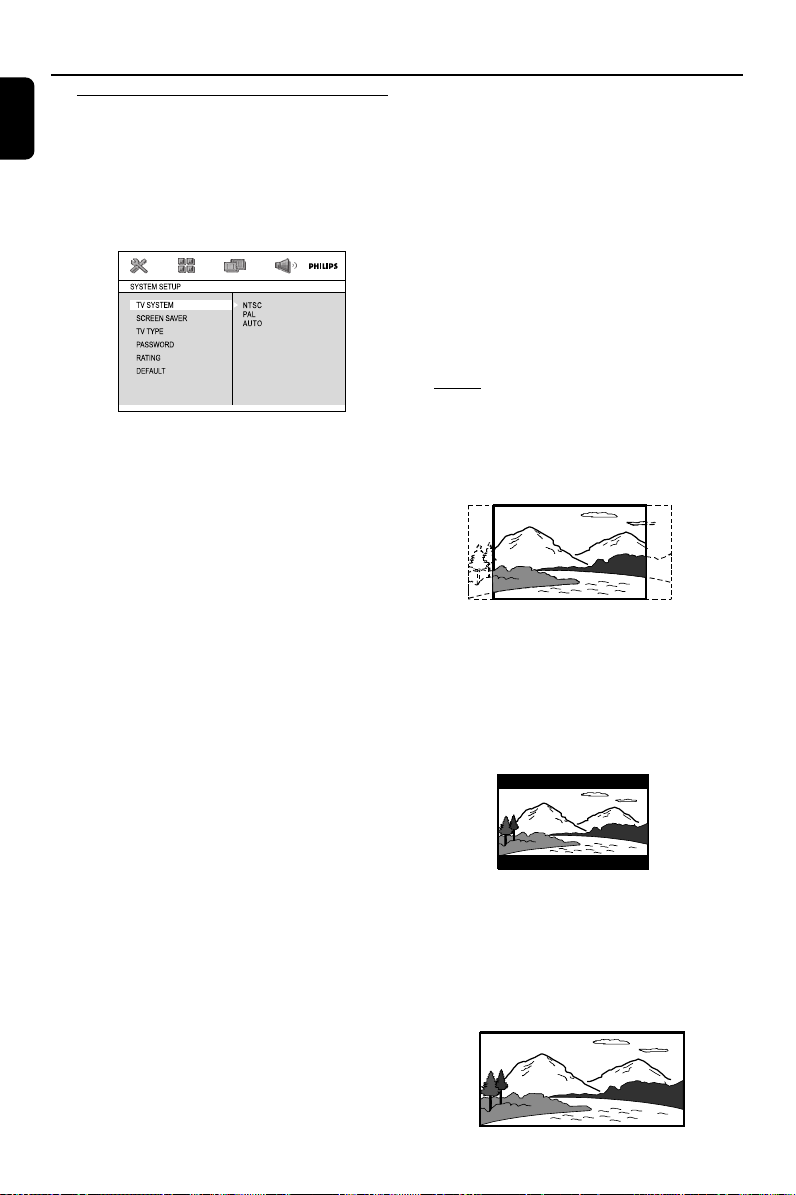

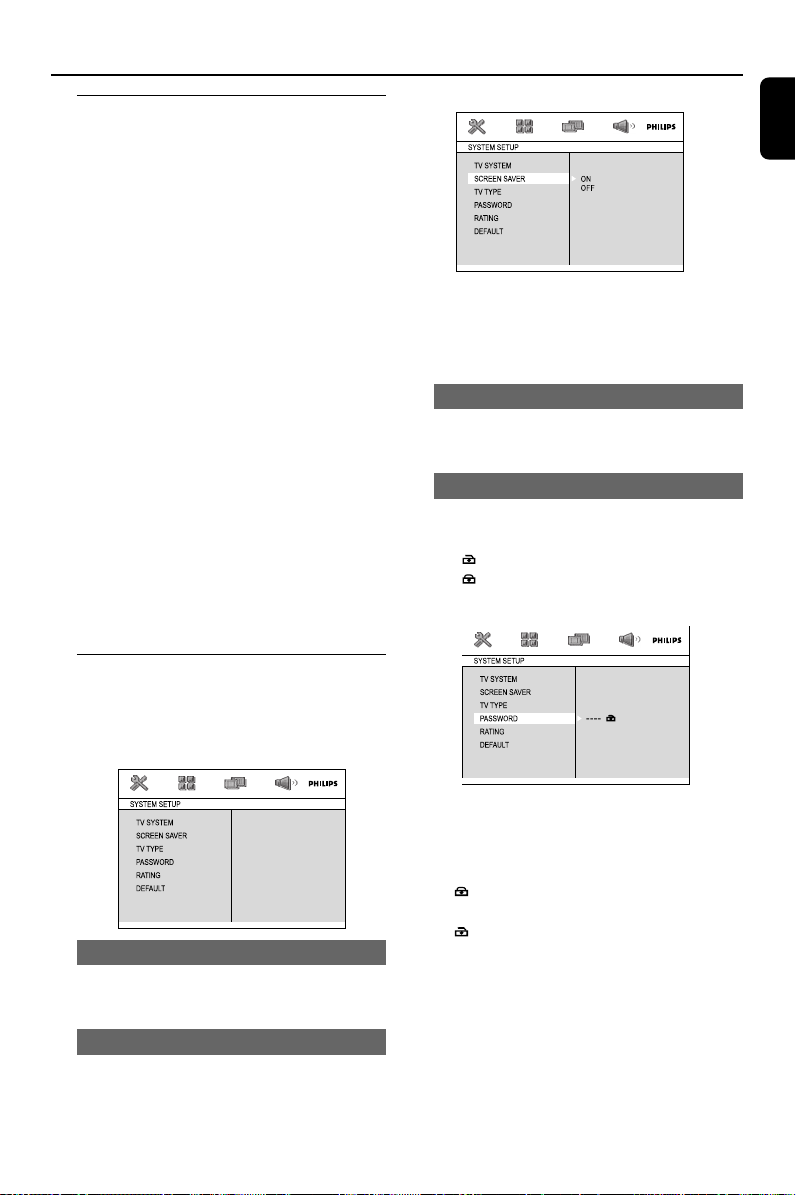

SYSTEM SETUP ............................................ 27-29

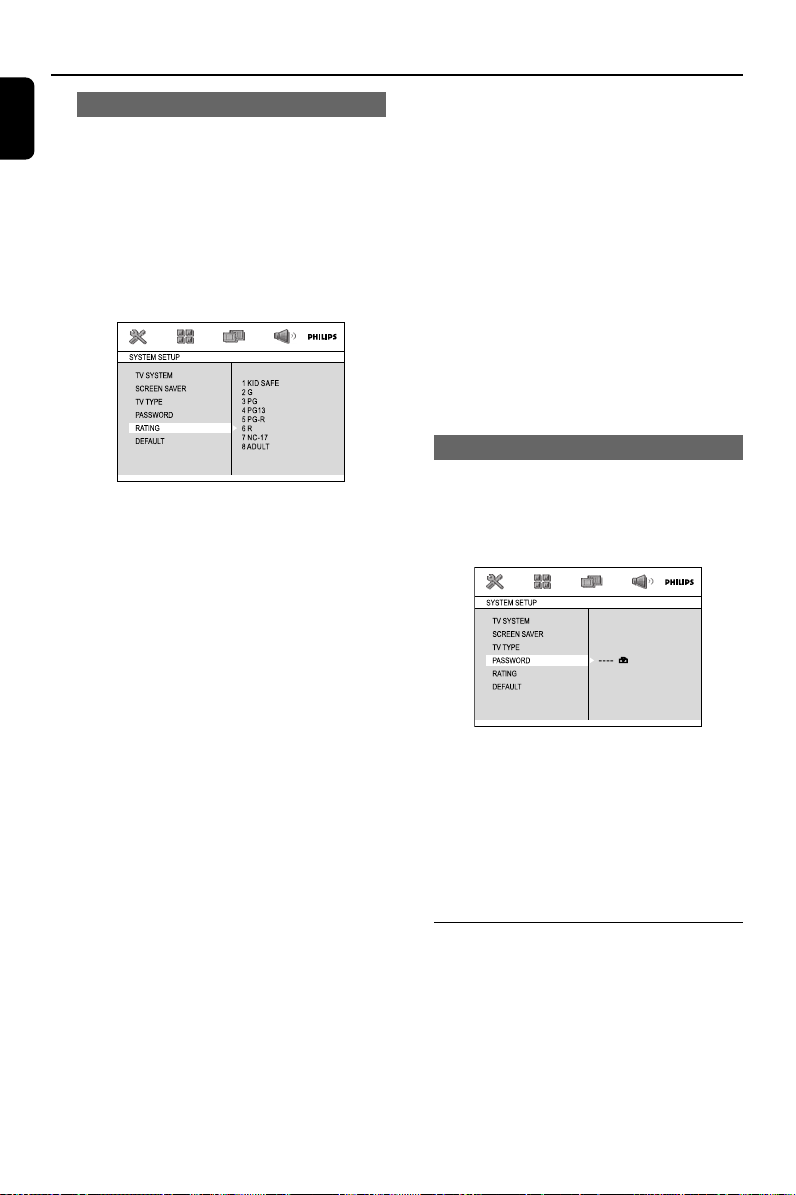

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING

DEFAULT

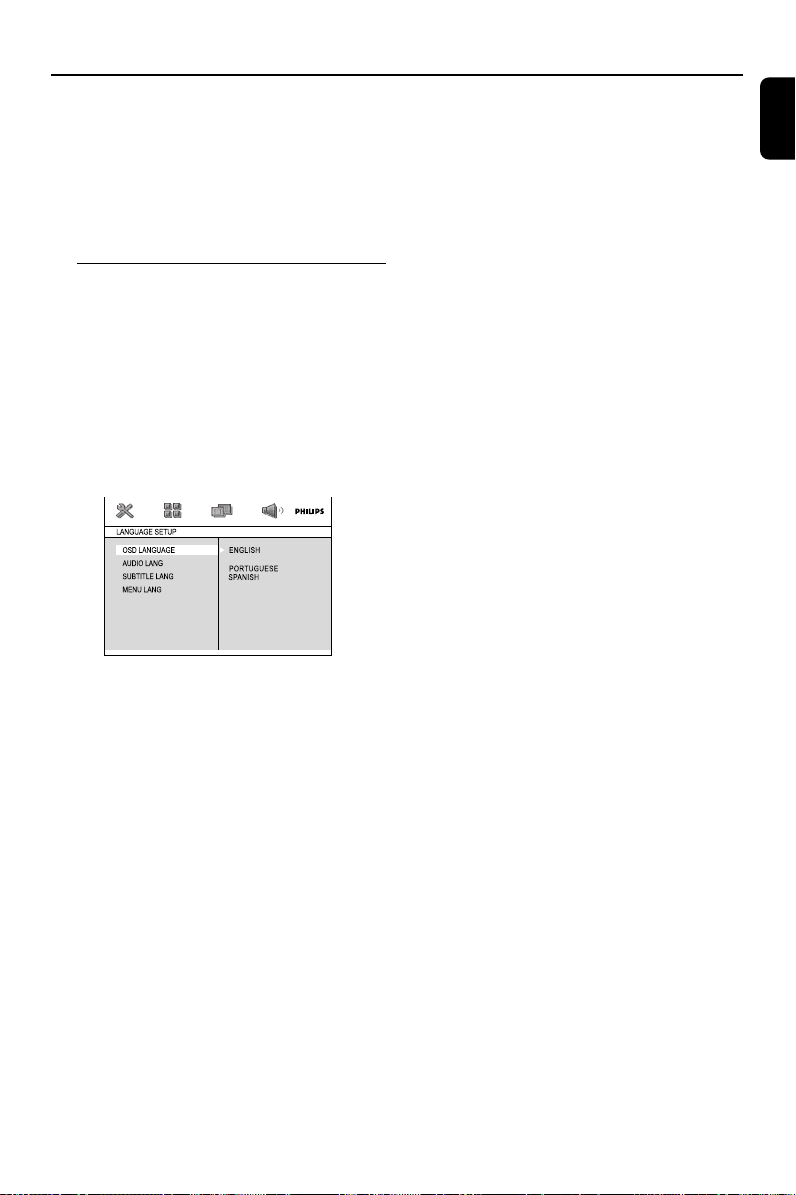

LANGUAGE SETUP .......................................... 28

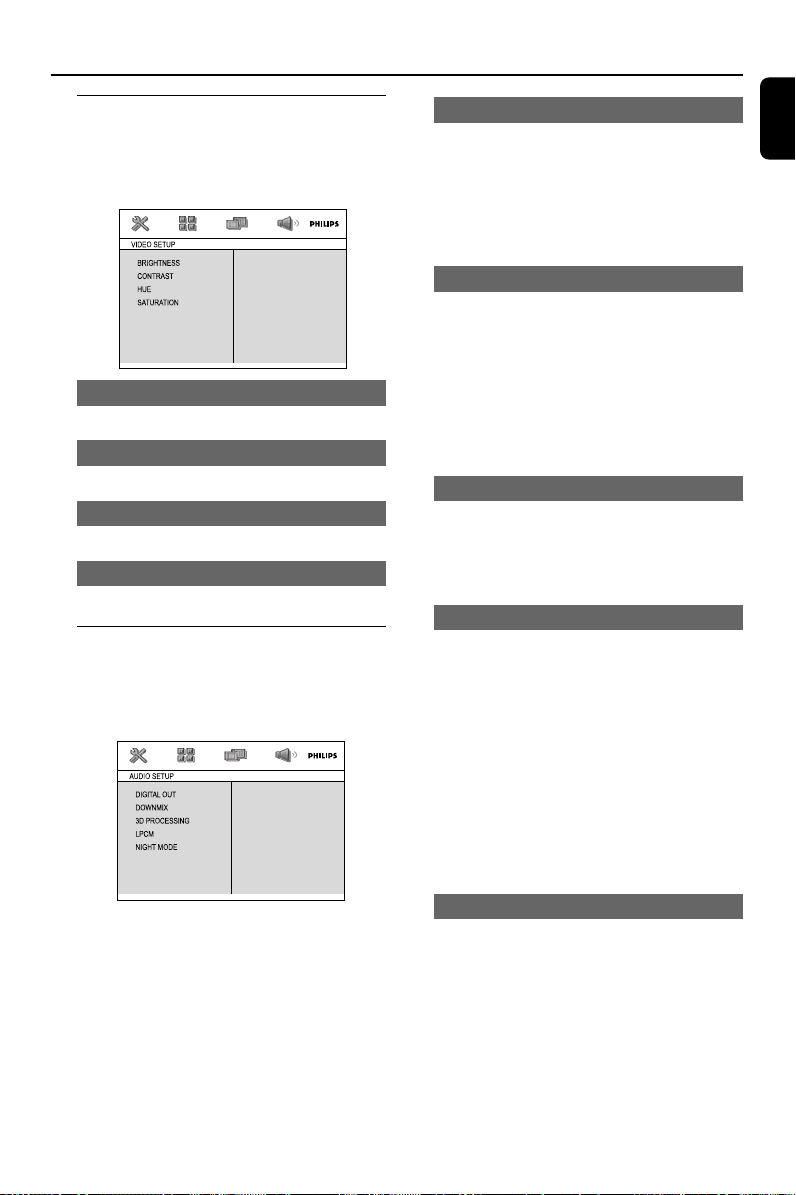

VIDEO SETUP .................................................... 29

BRIGHTNESS

CONTRAST

HUE

SATURATION

AUDIO SETUP ................................................... 29

DOWNMIX

3D PROCESSING

LPCM

NIGHT MODE

Radio Reception

Tuning to radio stations .................................... 30

Programming radio stations ............................. 30

Automatic programming ............................... 30

Manual programming ...................................... 30

Tuning to preset radio stations ....................... 30

Ta pe Operation/Recording

Ta pe playback ...................................................... 31

General information on recording ................. 31

Preparation for recording ................................ 32

Synchro start CD recording ............................ 32

One touch recording......................................... 32

Clock/Timer

Clock setting ....................................................... 33

Timer setting ....................................................... 33

Sleep timer setting ............................................. 33

Specifications ........................................... 34

Tr oubleshooting .............................. 35-36

Glossary ......................................................... 37

English

General Information

ALL

English

Features

Additional Component Connections

Lets you connect other audio and audio/visual components to the system so you can use the system’s surround sound speakers.

Parental control (rating level)

Lets you set a rating level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep timer

Enables the system to switch to standby mode automatically at a preset time.

Night Mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Discs for playback

Your DVD System will play:

– Digital Video Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Digital Video Discs + Rewritable (DVD+RW) – Compact Discs (CDs) – Picture (Kodak, JPEG) files on CDR(W) – Windows Media Audio (WMA) – Supported MP3-CD format.

• ISO 9660 / UDF format

• Max. title/album name –10 characters

• Max. title number plus album is 255.

• Max. nested directory is 8 levels.

• The max. album number is 32.

• The max. MP3 track number is 999.

• Supported sampling frequencies for MP3

disc: 32 kHz, 44.1 kHz, 48 kHz.

• Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

The following formats can’t be supported

• The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV,

• The discs recorded under Joliet format

Region Codes

DVDs must be labeled for ALL regions or Region 4 in order to play on this DVD system. You cannot play discs that are labeled for other regions.

Notes: –For mixed mode discs, only one mode will be selected for playback according to the recording format. – If you are having trouble playing a certain disc , remove the disc and try a different one. Improperly formatted discs will not play on this system. – DTS surround audio output is not available in this DVD player.

Supplied accessories

– Composite video cable (yellow) – MW loop antenna – FM wire antenna – Remote Control with battery

– This instruction booklet and a quick star t guide

General Information/Maintenance

Environmental information

Any unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), paper pulp and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Care and safety information

Avoid high temperatures, moisture, water and dust

● Do not expose the system, batteries or discs to

humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep disc trays closed to avoid dust buildup on the lens.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● The apparatus shall not be exposed to dripping

or splashing.

● Install the unit near the AC outlet and where the

AC power plug can be easily reached.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

Avoid condensation problem

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Do not block the vents

● Do not operate the system in an enclosed

cabinet and allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.

10 cm

(4 inches)

10 cm

(4 inches)

DVD Micro Hi-Fi System

10 cm

(4 inches)

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers table-cloths, curtains, etc.

Cleaning the cabinet

● Use soft cloth slightly moistened

with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning discs

● To clean a CD, wipe it in a straight line from the

center towards the edge using soft and lint-free cloth. A cleaning agent may damage the disc.

● Write only on the printed side of a CDR(W)

and only with a soft felt-tipped pen.

● Handle the disc by its edge. Do not touch the

surface.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

English

General Information/Maintenance

English

Finding a suitable location

● Place the player on a flat, hard, stable surface.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

Cleaning the head and the tape paths

● To ensure good recording and playback quality,

clean the head A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You also can clean the head by playing a

cleaning tape once.

CBABC

Demagnetising the head

● Use a demagnetising tape available at your

dealer.

Hearing Safety

Listen at a moderate volume.

● Using headphones at a high volume can impair

your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.

● Sound can be deceiving. Over time your hearing

"comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

● Set your volume control at a low setting.

● Slowly increase the sound until you can hear it

comfortably and clearly, without distortion.

Listen for reasonable periods of time:

● Prolonged exposure to sound, even at normally

"safe" levels, can also cause hearing loss.

● Be sure to use your equipment reasonably and

take appropriate breaks.

Be sure to observe the following guidelines when using your headphones.

● Listen at reasonable volumes for reasonable

periods of time.

● Be careful not to adjust the volume as your

hearing adapts.

● Do not turn up the volume so high that you

can't hear what's around you.

● You should use caution or temporarily

discontinue use in potentially hazardous situations.

● Do not use headphones while operating a

motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
