Philips MCD190 55 User Manual

DVD Micro Theatre

MCD190

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Microsistema de Audio Modelo : MCD190/55 Alimentación: 110–127 / 220–240V~; 50–60 Hz Consumo: 25 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6

Localidad y Tel: Edo. de México C.P. 52784

Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________

ATENCIÓN

Col. San Fernando La Herradura Huixquilucan

Tel.52 69 90 00

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C .V. no se hace

responsable por daños o desperfectos causados por:

– Maltrato, descuido o mal uso, presencia de

insectos o roedores (cucarachas, ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación eléctrica y las características que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores, in eléctricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas

undaciones, incendios, descargas

, etc.).

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

5 4 3

DISPLAY/ST

! 0

5 8

0 @

$ ∞ %

§ ^

9 7

8 0

ª £ 3

• ™

)

(

Index

English ------------------------------------------------ 6

Por tuguês ------------------------------------------ 36

Español --------------------------------------------- 68

English

Français

Español

Contents

English

General Information

Features .................................................................. 8

Discs for playback ................................................ 8

Supplied accessories ............................................ 8

Environmental information ................................ 9

Care and safety information .............................. 9

Connections

Step 1: Placing speakers .................................. 100

Step 2: Connecting speakers ............................ 11

Step 3: Antenna connection ............................. 11

Step 4: Connecting TV ................................. 11-12

Step 5: Connecting the power cord ............... 13

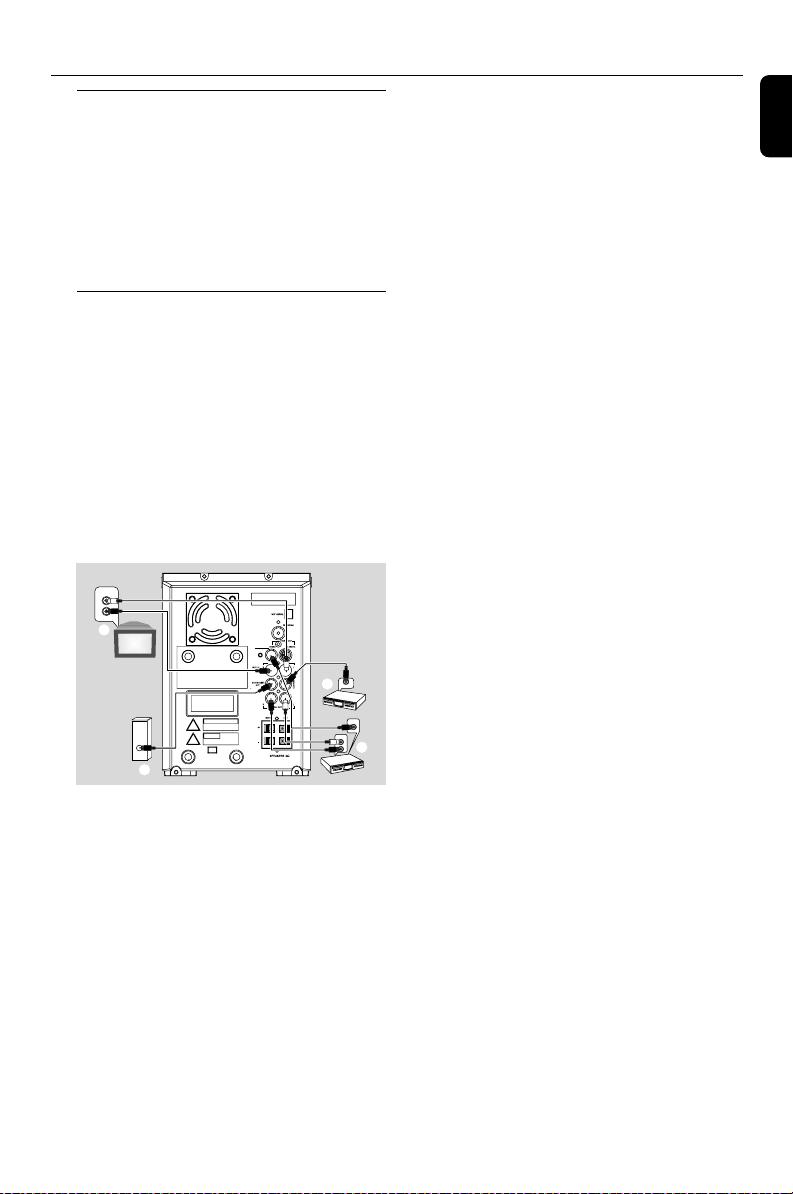

Optional: Connecting additional equipment 13

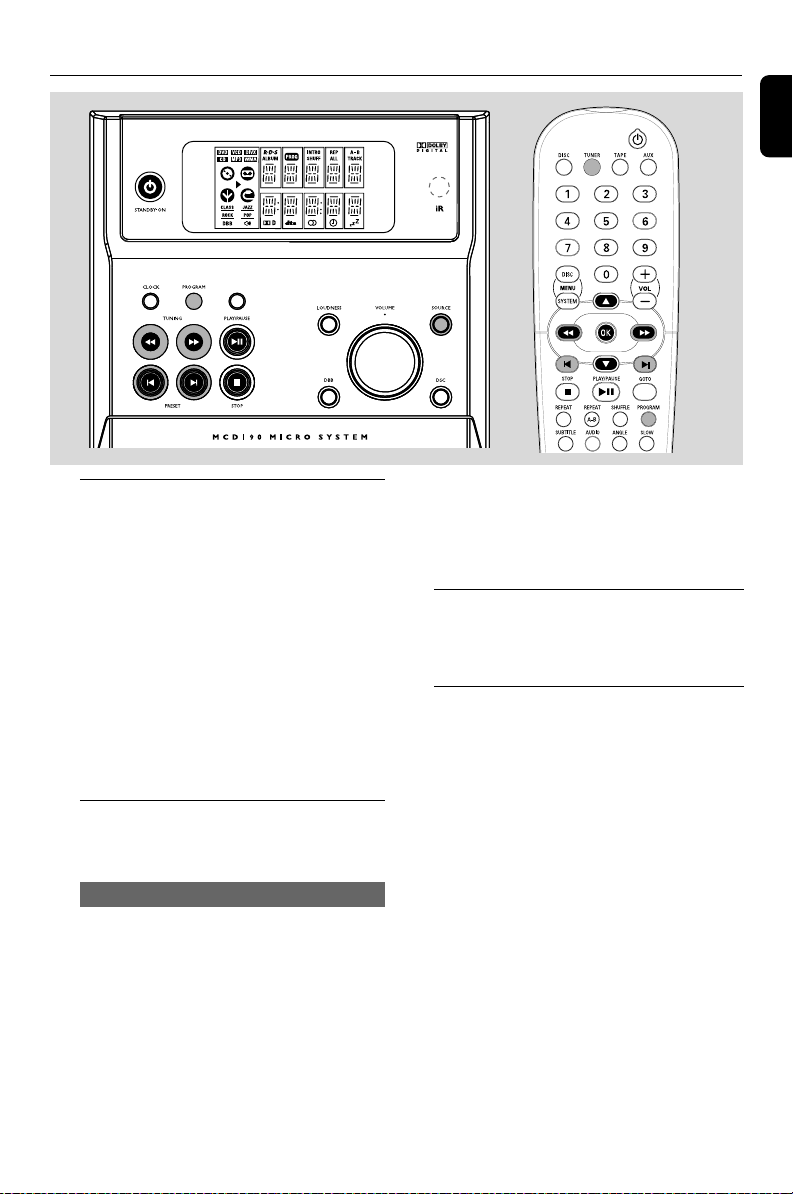

Controls

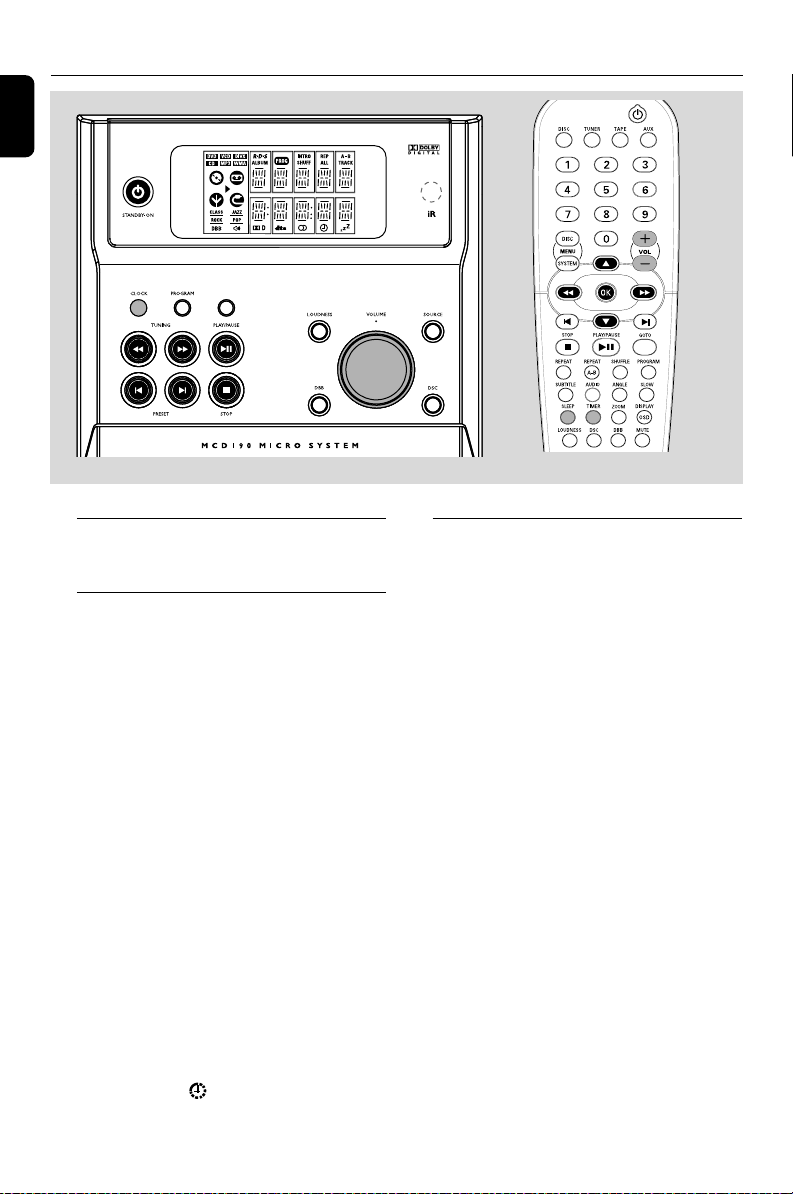

Controls on the system .................................... 14

Controls on the remote control .............. 14-15

Preparations

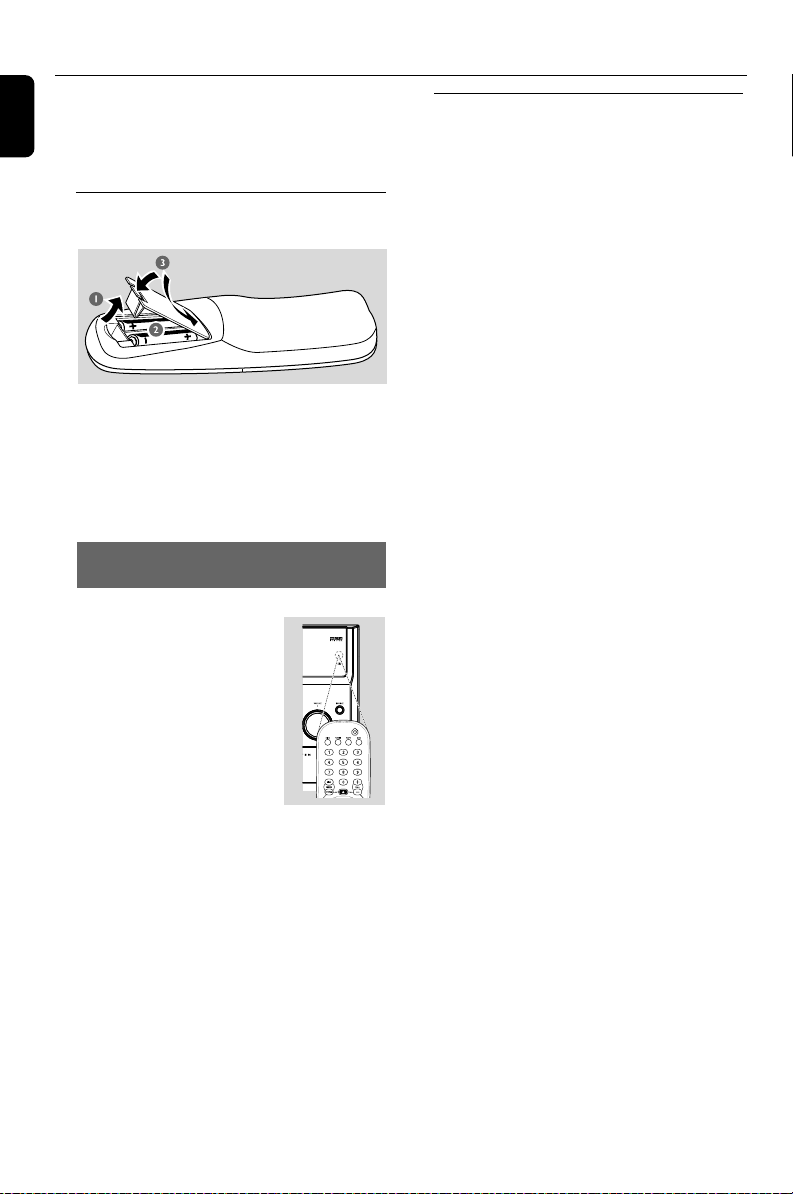

Step 1: Inserting batteries into the remote

control .................................................................. 16

Step 2: Setting the clock ................................... 16

Step 3: Setting video preference ..................... 17

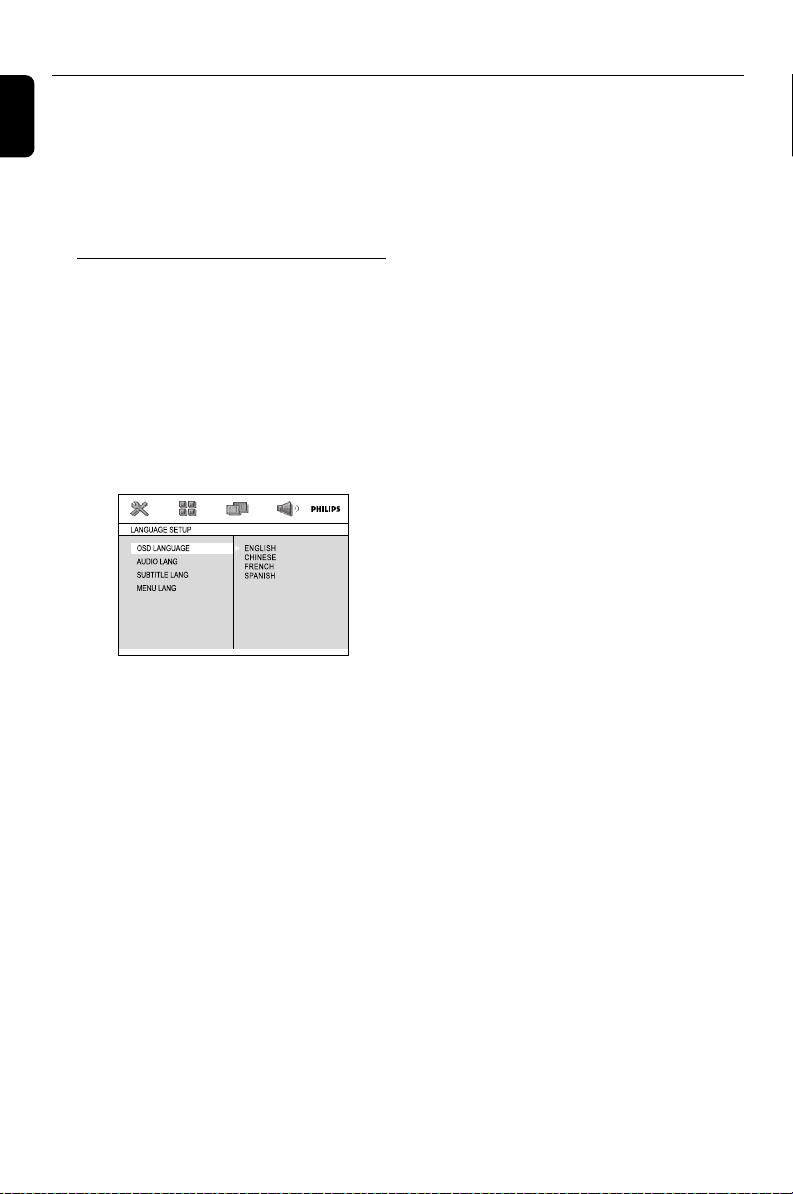

Step 4: Setting language preference ................ 18

Disc Operations

Playing discs ......................................................... 19

Using the disc menu .......................................... 19

Basic playback controls ............................... 19-21

Special disc features ........................................... 21

Using Video In jack Using S-Video In jack Using an accessory RF modulator

Using the remote control to operate the system

Pausing playback Selecting a track/chapter/title Resuming playback from the last stopped point Zoom Repeat Repeat A-B Slow Motion Program Forward/Reverse Searching Time search & search by chapter/track number Information display during playback

Playing a Title Camera Angle

Changing the Audio Language Changing the Audio Channel Subtitles

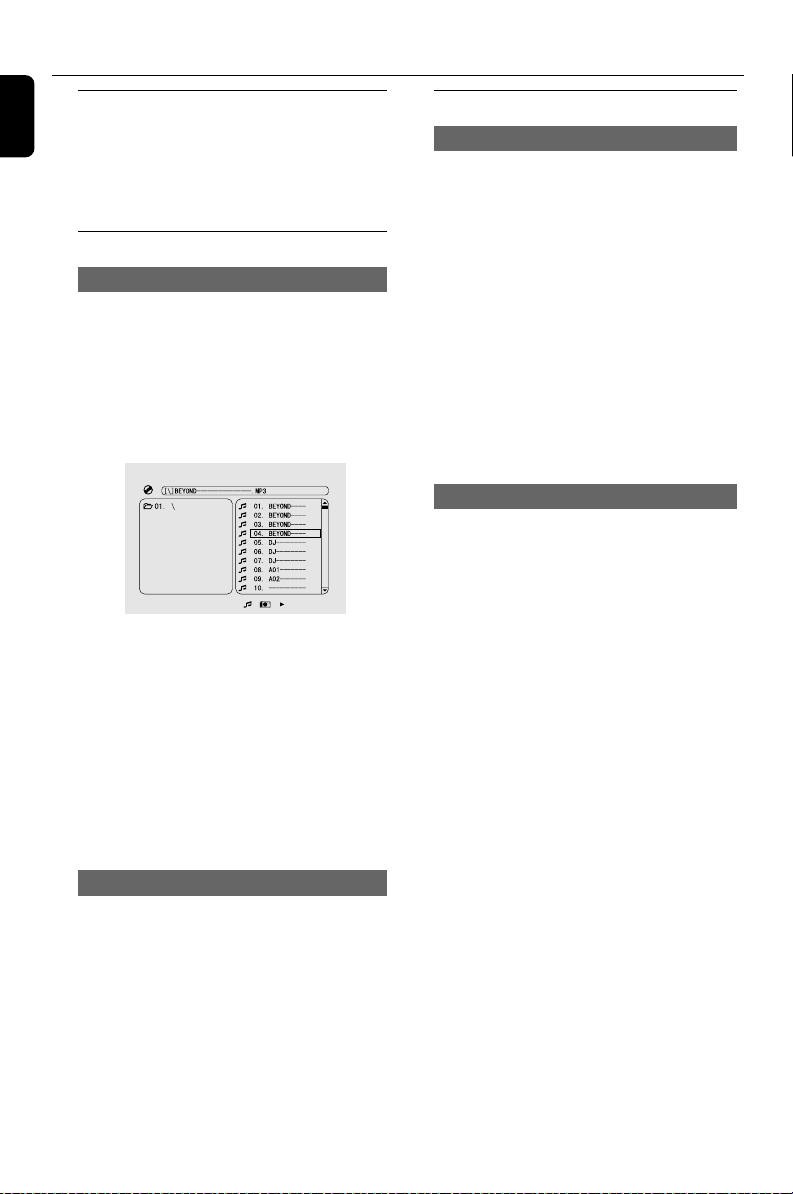

Playing MP3 disc.................................................. 22

General operation Playback selection

Playing JPEG Picture CD................................... 22

General operation Playback selection

Special JPEG features ......................................... 23

Zoom picture Slide show playback modes Playback with multi-angles

System Menu Options

Basic operations ................................................. 24

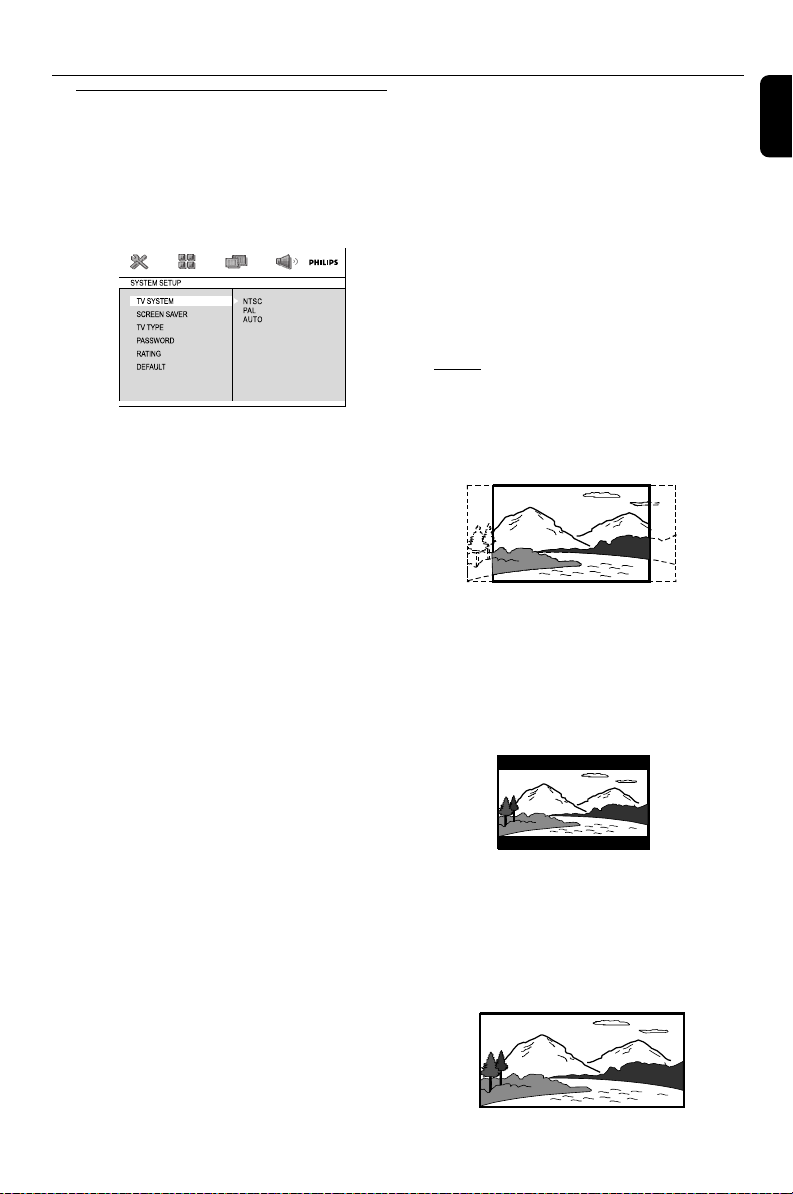

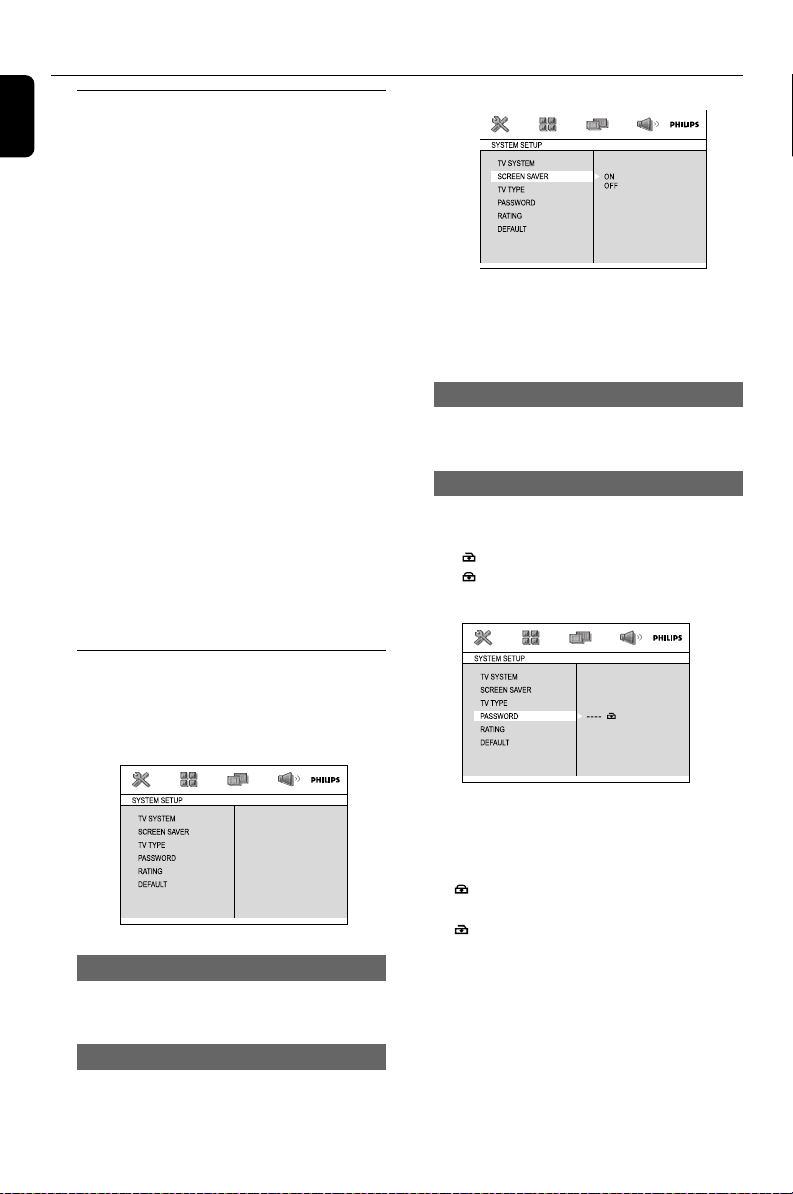

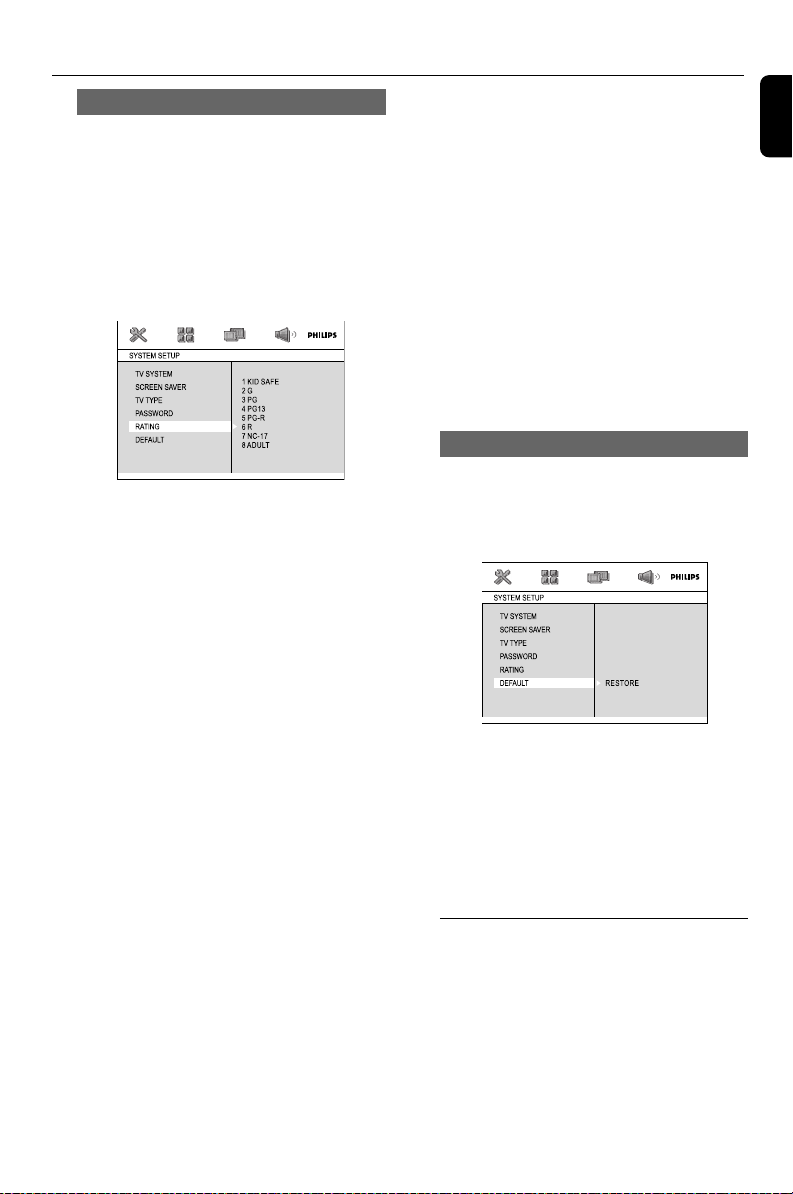

SYSTEM SETUP ............................................ 24-25

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING

DEFAULT

LANGUAGE SETUP.......................................... 25

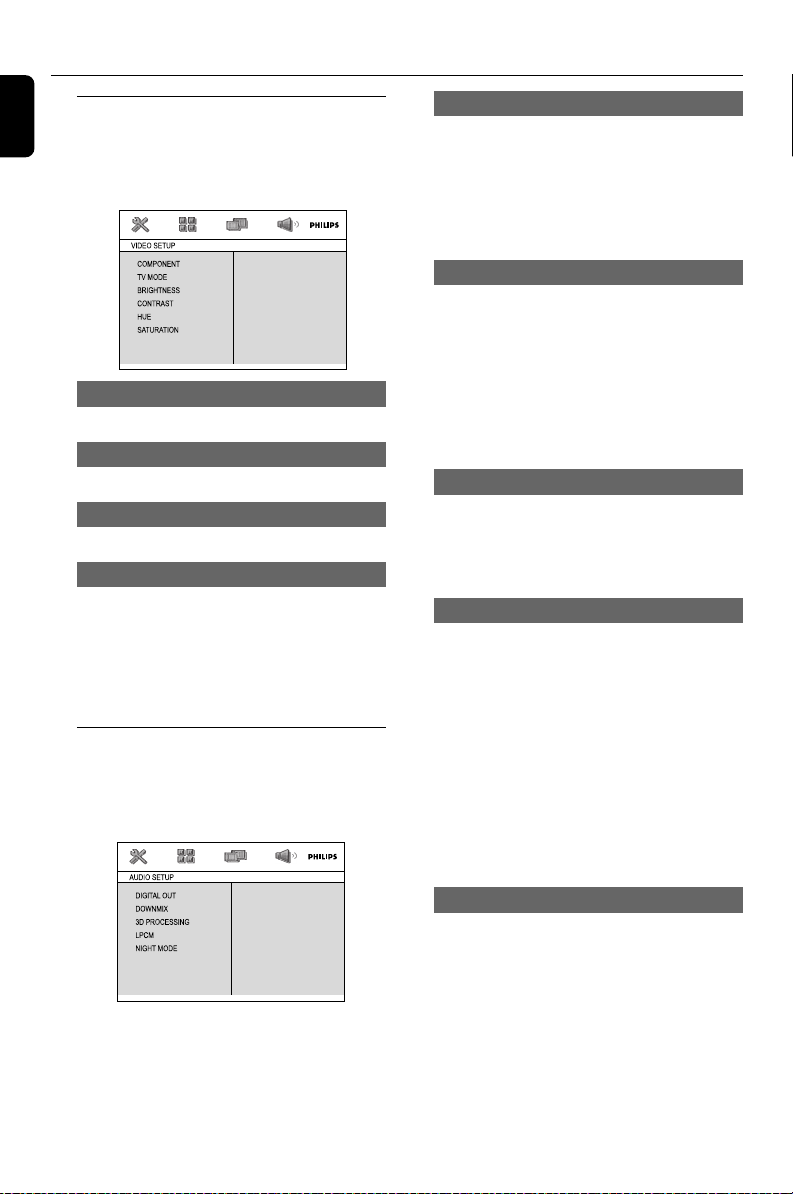

VIDEO SETUP .................................................... 26

BRIGHTNESS

CONTRAST

HUE

SATURATION

AUDIO SETUP ................................................... 26

DIGITAL OUT

DOWNMIX

3D PROCESSING

LPCM

NIGHT MODE

Radio Reception

Tuning to radio stations .................................... 27

Programming radio stations ............................. 27

Manual programming ...................................... 27

Tuning to preset radio stations ....................... 27

Changing tuning grid .......................................... 27

Ta pe Operation/Recording

Ta pe playback ...................................................... 28

General information on recording ................. 28

Preparation for recording ................................ 29

Synchro start CD recording ............................ 29

One touch recording......................................... 29

Clock/Timer

Clock setting ....................................................... 30

Timer setting ....................................................... 30

Sleep timer setting ............................................. 30

Sound and Volume Controls

Sound control ..................................................... 31

DBB

DSC

LOUDNESS

Volume control ................................................... 31

Contents

English

Specifications ........................................... 32

Tr oubleshooting .............................. 33-34

Glossary ......................................................... 35

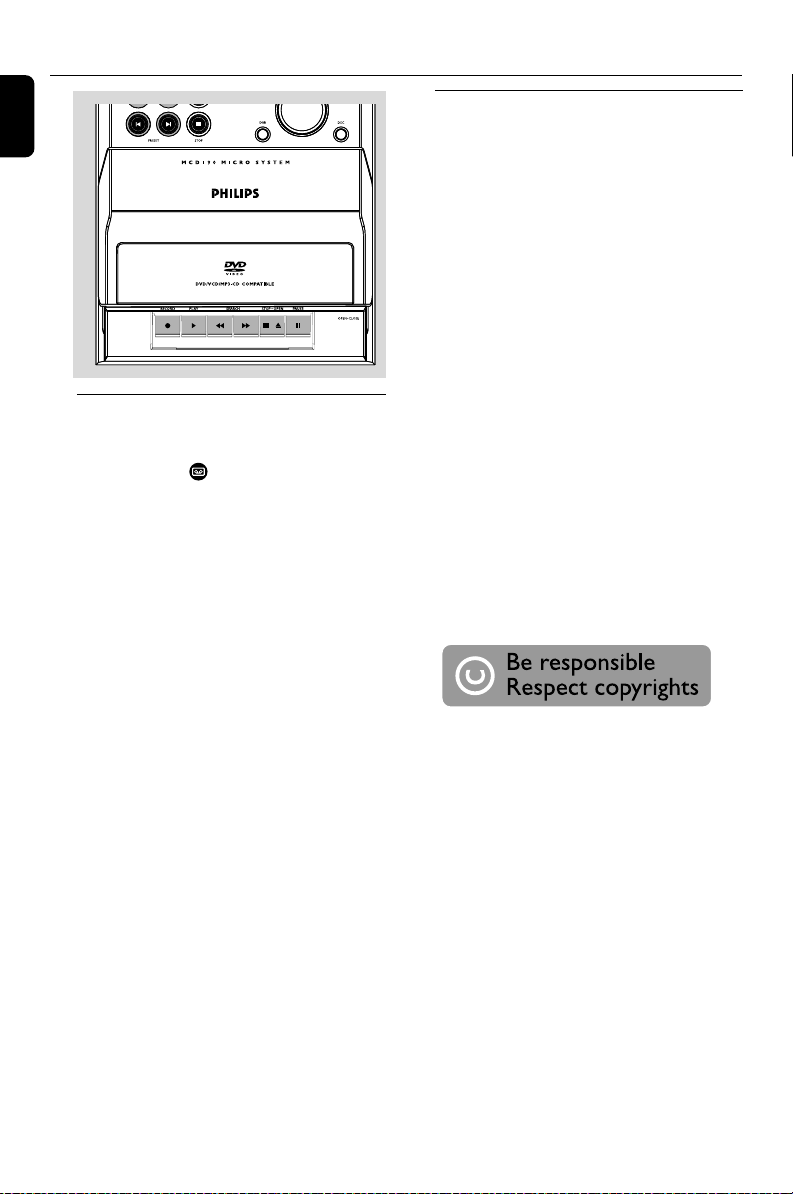

General Information

ALL

English

Features

Additional Component Connections

Lets you connect other audio and audio/visual components to the system so you can use the system’s surround sound speakers.

Parental control (rating level)

Lets you set a rating level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep timer

Enables the system to switch to standby mode automatically at a preset time.

Night Mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Discs for playback

Your DVD System will play:

– Digital Video Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Digital Video Discs + Rewritable (DVD+RW) – Compact Discs (CDs) – Picture (Kodak, JPEG) files on CDR(W) – Supported MP3-CD format.

• ISO 9660 / UDF format

• Max. title/album name –10 characters

• Max. title number plus album is 255.

• Max. nested directory is 8 levels.

• The max. album number is 32.

• The max. MP3 track number is 999.

• Supported sampling frequencies for MP3

disc: 32 kHz, 44.1 kHz, 48 kHz.

• Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

Region Codes

DVDs must be labeled for ALL regions or Region 4 in order to play on this DVD system. You cannot play discs that are labeled for other regions.

Notes: –For mixed mode discs, only one mode will be selected for playback according to the recording format. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this system. – DTS surround audio output is not available in this DVD player.

Supplied accessories

– Composite video cable (yellow) – MW loop antenna – Remote Control and two AA batteries

– This instruction booklet and a quick star t guide

The following formats can’t be supported

• The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV,

• Non-English Album/Title name

• The discs recorded under Joliet format

General Information/Maintenance

CBABC

Environmental information

Any unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Care and safety information

Avoid high temperatures, moisture, water and dust

● Do not expose the system, batteries or discs to

humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep disc trays closed to avoid dust buildup on the lens.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● The apparatus shall not be exposed to dripping

or splashing.

Avoid condensation problem

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Do not block the vents

● Do not operate the system in an enclosed

cabinet and allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers table-cloths, curtains, etc.

Cleaning the cabinet

● Use soft cloth slightly moistened with a mild

detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning discs

● To clean a CD, wipe it in a

straight line from the center towards the edge using soft and lint-free cloth. A cleaning agent may damage the disc.

● Write only on the printed side

of a CDR(W) and only with a soft felt-tipped pen.

● Handle the disc by its edge. Do not touch the

surface.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Finding a suitable location

● Place the player on a flat, hard, stable surface.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

Cleaning the head and the tape paths

● To ensure good recording and playback quality,

clean the head A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You also can clean the head by playing a

cleaning tape once.

English

10 cm

(4 inches)

10 cm

(4 inches)

DVD Micro Hi-Fi System

10 cm

(4 inches)

Demagnetising the head

● Use a demagnetising tape available at your

dealer.

Connections

Front

speaker

( left )

Front speaker ( right )

VIEWING AREA

English

FM wire

antenna

MW loop

antenna

speaker

(right)

IMPORTANT! – The type plate is located at the rear of the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power switched on. – The voltage selector located at the bottom of this system is preset at 220V-240V from the factory. For countries that operate at 110V-127V, please adjust to 110V-127V before you switch on the system.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available

for all versions).

speaker

(left)

AC power cord

Step 1: Placing speakers

Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position.

Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV set. – Allow adequate ventilation around the DVD System.

Connections

Step 2: Connecting speakers

Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", coloured (marked) wire to "+" and black (unmarked) wire to "-". Fully inser t the stripped portion of the speaker wire into the terminal as shown.

Notes: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Step 3: Antenna connection

MW Antenna

Connect the supplied MW loop antenna to the "MW AERIAL" terminal. Adjust the position of the antenna for optimal reception.

FM Antenna

It is unnecessary to connect the FM pigtail

antenna since it is fixed to the main unit.

● Adjust the FM antenna for optimal FM stereo

reception.

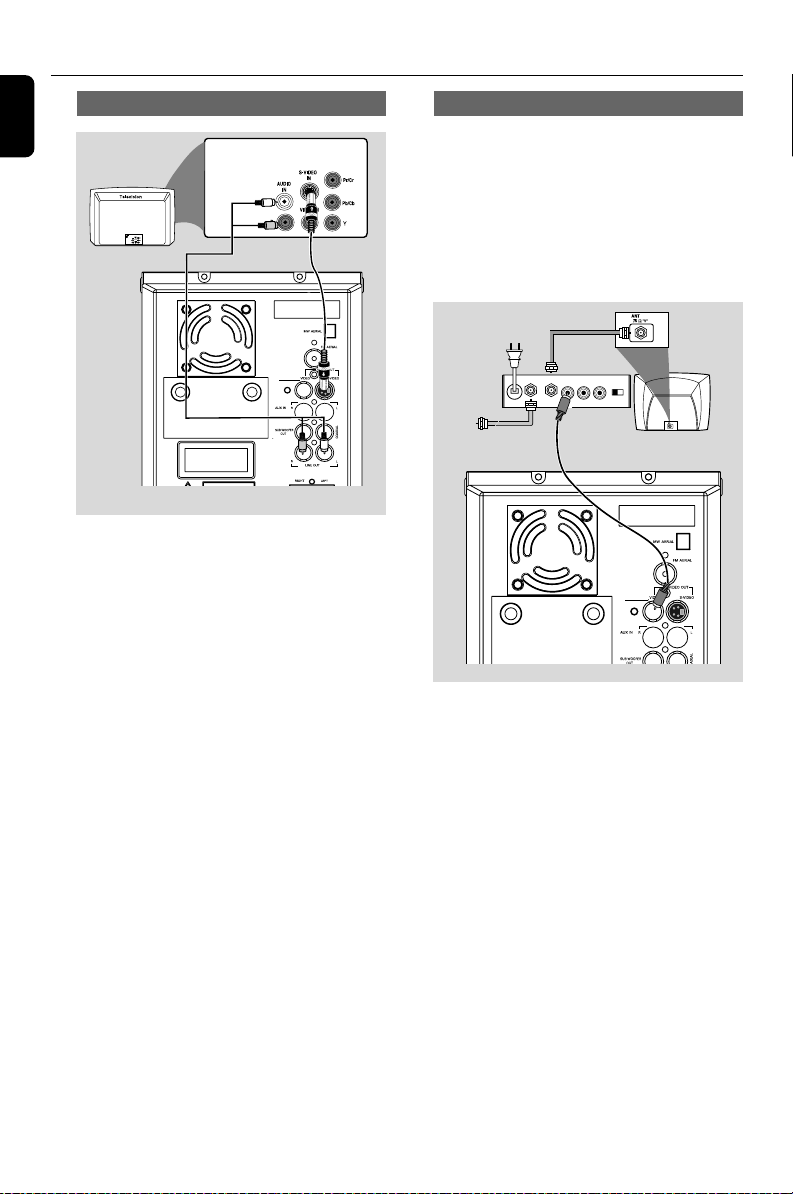

Step 4: Connecting TV

IMPORTANT! –You only need to make one video connection from the following options, depending on the capabilities of your TV system. – Connect the DVD system directly to the TV.

Using Video In jack (CVBS)

English

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

● Use the composite video cable (yellow) to

connect the system's VIDEO jack to the video input jack (or labelled as A/V In, Video In, Composite or Baseband) on the TV set.
