Philips MCD177-58 User Manual

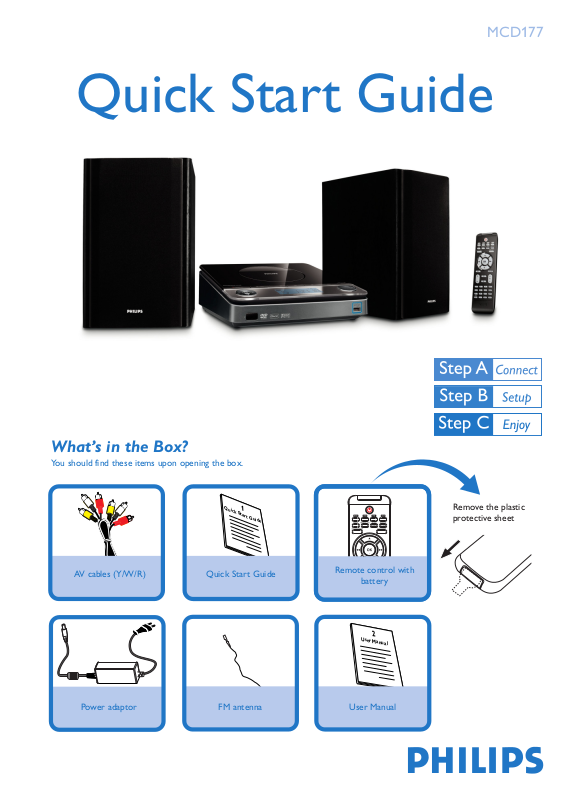

Quick Start Guide

MCD177

What’s in the Box?

You should find these items upon opening the box.

Quick Start Guide

Quick Start GuideAV cables (Y/W/R)

Power adaptor FM antenna

1

Remote control with

battery

2

User Manual

User Manual

Remove the plastic
protective sheet

1

Connect the speaker cables.

Tip

See the User Manual for other TV
connection options.

Notes for the remote control:

– First, select the source you wish to control by
pressing one of the source select keys on the
remote control (DISC or FM for example).
– Then select the desired function ( 2;, í,
ë for example).

FM wire antenna

speaker

(right)

2

Connect the FM antenna.

3

Connect the composite video cable (yellow, supplied) to a TV.

4

Connect the power cords of the system and TV.

A

Y PB PR

A To hear the sound of this DVD Player
through your TV, use the audio cables (white/
red, supplied) to connect LINE OUT (L/R)
jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV.

Power adaptor

speaker

(left)

Setting up the TV

1

Press SOURCE (DISC on the remote control) to select disc source.

2

Turn on the TV and set it to the correct Video In channel.

Y PB PR

B To listen to TV through this system, use a
cinch cable (not supplied) to connect AUX
IN jack (3.5mm) to the corresponding
AUDIO OUT jacks on the TV set.
