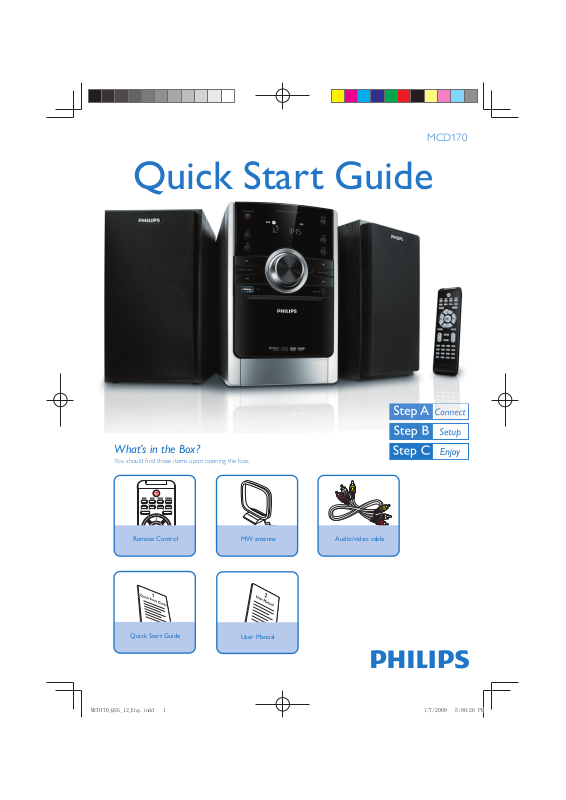

Page 1
Quick Start Guide
MCD170
What’s in the Box?
You should fi nd these items upon opening the box.
Remote Control
Quick Start Guide
MW antenna Audio/video cable
User Manual
Page 2
1
Connect the speaker cables.
2
Connect the AC power cord to the wall
socket.
MW antenna
Tip
See the User Manual for how to connect
other equipment to this apparatus.
Speaker
(right)
Setting the clock
1
In standby mode, press and hold CLOCK/DISPLAY.
2
Press PROG repeatedly to select 12 hour or 24 hour format.
3
Press CLOCK/DISPLAY to confi rm.
4
When the hour digits fl ash, press 5 / 6 to set the hours.
Speaker
(left)
AC power
5
Press CLOCK/DISPLAY again and the minute digits fl ash. Then press 5 / 6 to set the
minutes.
6
Press CLOCK/DISPLAY again to confi rm the time setting.
Page 3
Playing a disc
1
Press DISC to select DISC.
2
Lift the disc door on the top of the unit.
3
Insert a disc with the printed side facing up, then close the disc door.
4
Playback will start automatically. If not, press ÉÅ.
5
To stop playback, press 9 .
Playing a USB mass storage device
With the apparatus, you can use USB fl ash memory (USB 2.0 or USB1.1),
USB fl ash players (USB 2.0 or USB1.1)
work with this apparatus).
1
Insert the USB device’s USB plug into the socket
,
memory cards (requires an additional card reader to
on the main unit.
2
Press USB to select USB.
3
Play the USB’s audio fi les as you do with the albums/tracks on a CD.
Page 4
Programming and tuning to radio stations
1
Press TUNER to select tuner source.
2
Press PROG/ANGLE for more than two seconds to program all available stations in order of waveband.
3
Press ¡ or ™ until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the accompanied
owner's manual.
Royal Philips Electronics N.V. 2009
C
All rights reserved.
http://www.philips.com
PDCC-EY/ZYL-00902
