MCD135
EN User manual 3
ES Manual del usuario 25
PT-BR Manual do Usuário 51
Page 2
Contents
1 Congratulations 4
Feature introduction 4
What’s in the box 5
Overview of the main unit 6
Overview of the remote control 7
2 Important 8
Safety 8
Notice 8
3 Before use 10
Place the product 10
Install/replace the battery of
remote control 10
4 Connect 11
Connect speakers 11
Connect TV 11
Connect a USB storage device 12
Connect power 12
5 Get started 13
Turn on 13
Set the clock 13
Find the correct viewing channel 13
Select the correct TV system 13
Select a language for on-screen-display
messages 13
8 Setup 19
Interface for setup menu 19
Change a setting 19
System setup 19
Language setup 20
Audio setup 20
Video setup 20
9 Product information 20
Specifications 20
Supported disc formats 21
USB playability information 21
10 Troubleshooting 22
English
6 Play 14
Basic operation 14
Play a disc 14
Play recored files 14
Play control 16
7 Other features 17
Listen to FM radio 17
Play audio from an external device 18
Listen through headphone 18
Turn on/off automatically 18
EN
3
Page 3
1 Congratulations
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Feature introduction
This product can play videos and audios, and
display pictures from discs and USB storage
devices.
For the details of supported media, refer to
“Specifications”.
Recordable
ReWritable
This apparatus includes this label:
Class II equipment symbol:
This symbol indicates that this product has a
double insulation system.
4
EN
DVD region code Countries
Latin America
Sound effect
This product supports the sound output by
DSC (Digital Sound Effect) and DBB (Dynamic
Bass Boost).
Page 4
What’s in the box
Check and identify the contents of your
package:
Main unit•
2 speakers•
Remote control•
Audio and video cables (white, red and •
yellow connectors)
USB cable (100 mm)•
MP3 link cable (3.5 mm plug)•
Power cord•
Power plug adaptor•
User manual•
Quick star t guide•
To fully enjoy the features of this product, you
need the following cables.
Component video cables •
Contact local retailers to purchase these
additional cables.
English
EN
5
Page 5
Overview of the main unit
g
o
n
m
l
k
j
i
h
a
b
c
d
e
f
a
Eject or close the disc compartment. •
b IR sensor
c VFD display
d Disc compartment
e VOLUME
Increase/decrease the volume level. •
f Pull to open
g
Connect a USB storage device. •
h MP3 LINK
Connect an MP3 link cable (3.5 mm plug). •
6
EN
i
Socket for headphones. •
j
Start, pause or resume the play. •
k
/
Skip to the previous or next title, •
chapter, track, or file.
Search fast backward or forward. •
l
Stop the play.•
m SOURCE
Select a media source (disc, USB •
storage device, FM tuner, or external
device connected through MP3 link
cable).
Page 6
n DBB
w
t
s
q
r
o
p
u
v
Enable or disable the DBB (Dynamic •
Bass Boost) feature.
o
Turn on or off the unit.•
Switch to standby mode. •
Overview of the remote control
a
b
x
OK
DSC
VOL
1
PROG
2
4
5
7
8
0
MUTE
3
6
9
c
d
e
f
g
h
i
j
k
l
m
n
e SLEEP/TIMER
f
/
g /
h DBB
i VOL +/j MUTE
k AUDIO
l ZOOM
m SUBTITLE
n GOTO
o ANGLE/PROG
p Numeric buttons
q
r /
s
t DSC
u OK
v REPEAT A-B
w SYSTEM MENU
x MODE
English
a
b Source selection keys
c DISPLAY/CLOCK
d DISC MENU
EN
7
Page 7
2 Important
Safety
Know these safety symbols
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
8
EN
Notice
This product complies with the radio
interference requirements of the European
Community.
Page 8
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment
and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Copyright notice
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Trademark notice
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
‘DVD Video’ is a trademark of DVD Format/
Logo Licensing Corporation.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official DivX
Certified
com for more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified
in order to play purchased DivX Videoon- Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD
section in your device setup menu. Go to vod.
divx.com for more information on how to
complete your registration.
DivX
are trademarks of DivX, Inc. and are used
under license.
DivX Certified
premium content.
®
device that plays DivX video. Visit divx.
®
device must be registered
®
, DivX Certified® and associated logos
®
to play DivX video, including
English
EN
9
Page 9

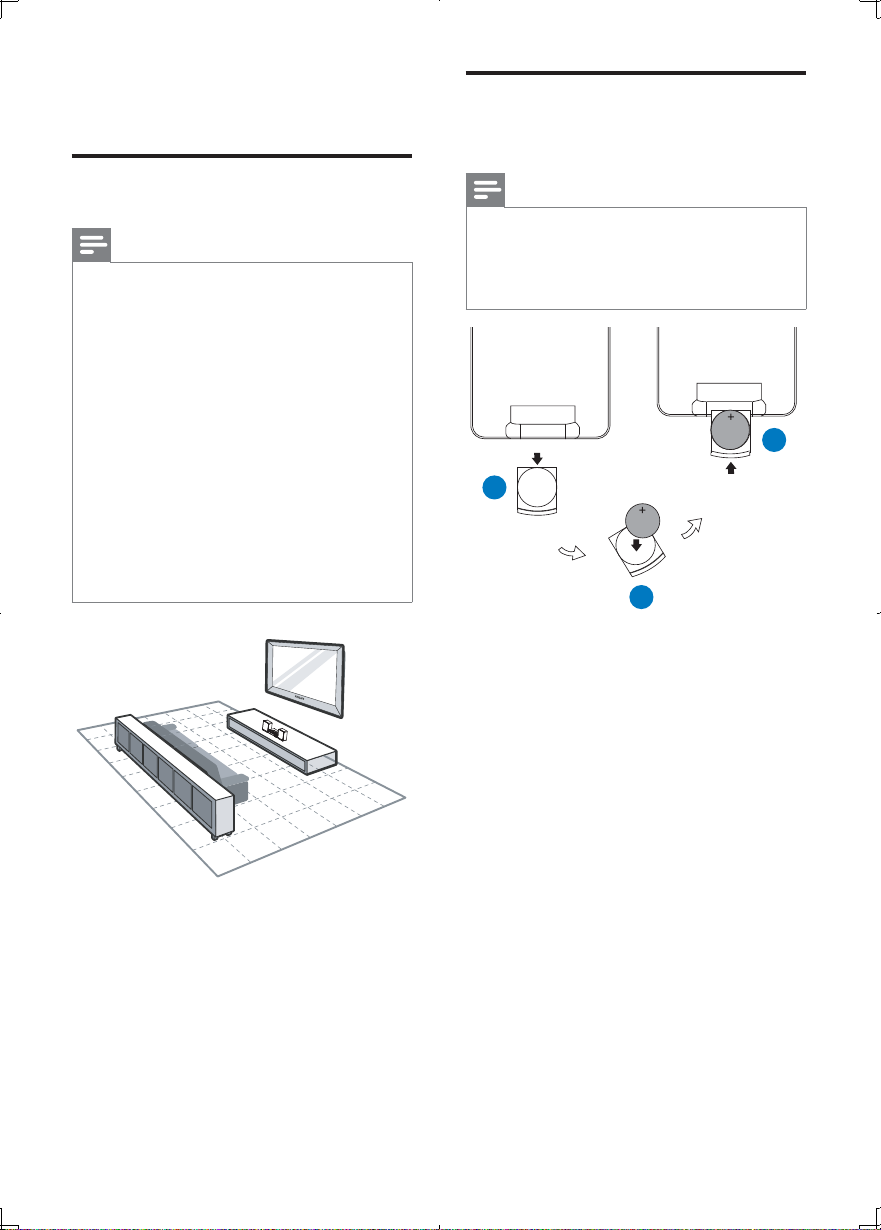

3 Before use
Install/replace the battery of
remote control
Place the product
Note
Place this product on a flat, hard, and stable •
surface.
Never place this product in an enclosed
•
cabinet.
Never place this product on other electrical
•
equipment.
Keep this product away from direct sunlight,
•
naked flames, or heat.
Do not block any ventilation openings.
•
Apparatus shall not be exposed to dripping or •
splashing.
Do not place any sources of danger on the
•
product (for example, liquid filled objects,
lighted candles).
Install this product near the AC outlet where
•
the AC power plug can be easily reached.
To avoid magnetic interference or unwanted
•
noise, never place the main unit and speakers
too close to any radiation devices.
Note
Risk of explosion! Keep batteries away from •
heat, sunshine or fire. Never discard batteries
in fire.
If you are not going to use the remote control
•
for a long time, remove the battery.
3
1
2
1 Open the battery compartment.
2 Insert one lithium CR2025 battery with
correct polarity (+/-) as indicated.
3 Close the battery compartment.
1 Place the product near to the TV.
2 Place the left and right speakers at equal
distance from the TV and at an angle
of approximately 45 degrees from the
listening position.
10
EN
Page 10

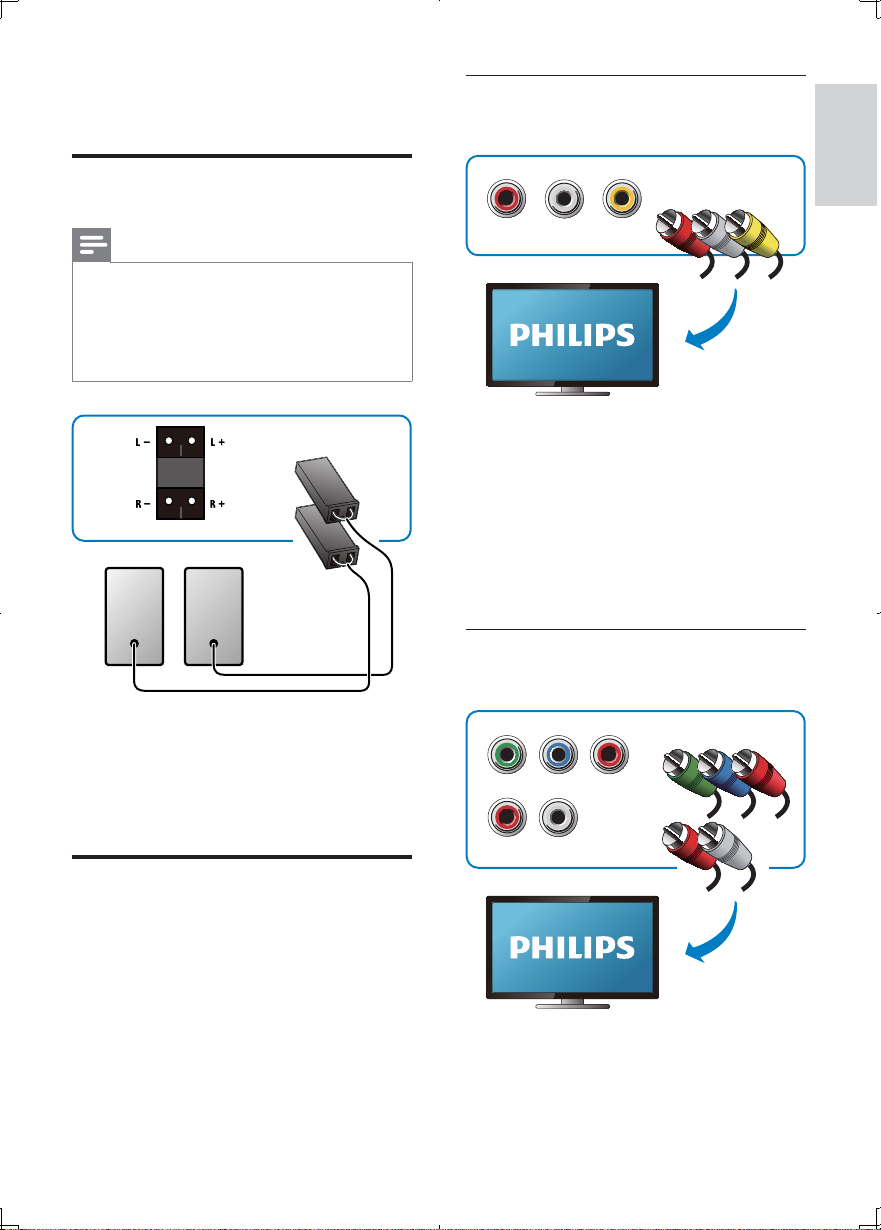

4 Connect
Option 1: Connect through a
composite video cable
Connect speakers
Note
For the best sound quality, use the supplied •
speakers only.
Connect only speakers with the same
•
or higher impedance. Refer to “Product
information” > “Specifications” for the
impedance of the supplied speakers.
VIDEO R
L
1 Connect the composite video cable to:
the • VIDEO socket on this product.
the video input socket on the TV.•
2 Connect the audio cables to:
the • L and R sockets on this product.
the audio input sockets grouped •
with the video input socket that is
mentioned in step 1.
Option 2: Connect through
component video cables
English
1 Connect the speaker plugs to the main
unit:
the plug of left speaker to • L+ and L-.
the plug of right speaker to • R+ and R-.
Connect TV
To enjoy audio only from the supplied
speakers, connect the video cables only.
Select the best video connection that your TV
supports.
• Option 1: Connect through a composite
video (CVBS) cable (for a standard TV).
• Option 2: Connect through component
video cables (for a Progressive Scan TV).
Pb/Cb
Pr/CrY
R
L
Connect a progressive scan TV through
component video cables for higher quality
video.
EN
11
Page 11
1 Connect the component video cables to:
the • Y Pb/Cb Pr/Cr sockets on this
product.
the component input sockets on the •
TV.
2 Connect the audio cables to:
the • L and R sockets on this product.
the audio input sockets grouped with •
the component input socket that is
mentioned in step 1.
Connect a USB storage device
Note
For the best data transmission, use the •
supplied USB cable only.
1 Connect the supplied USB cable to:
the •
jack on this product.
the plug of your USB storage device. •

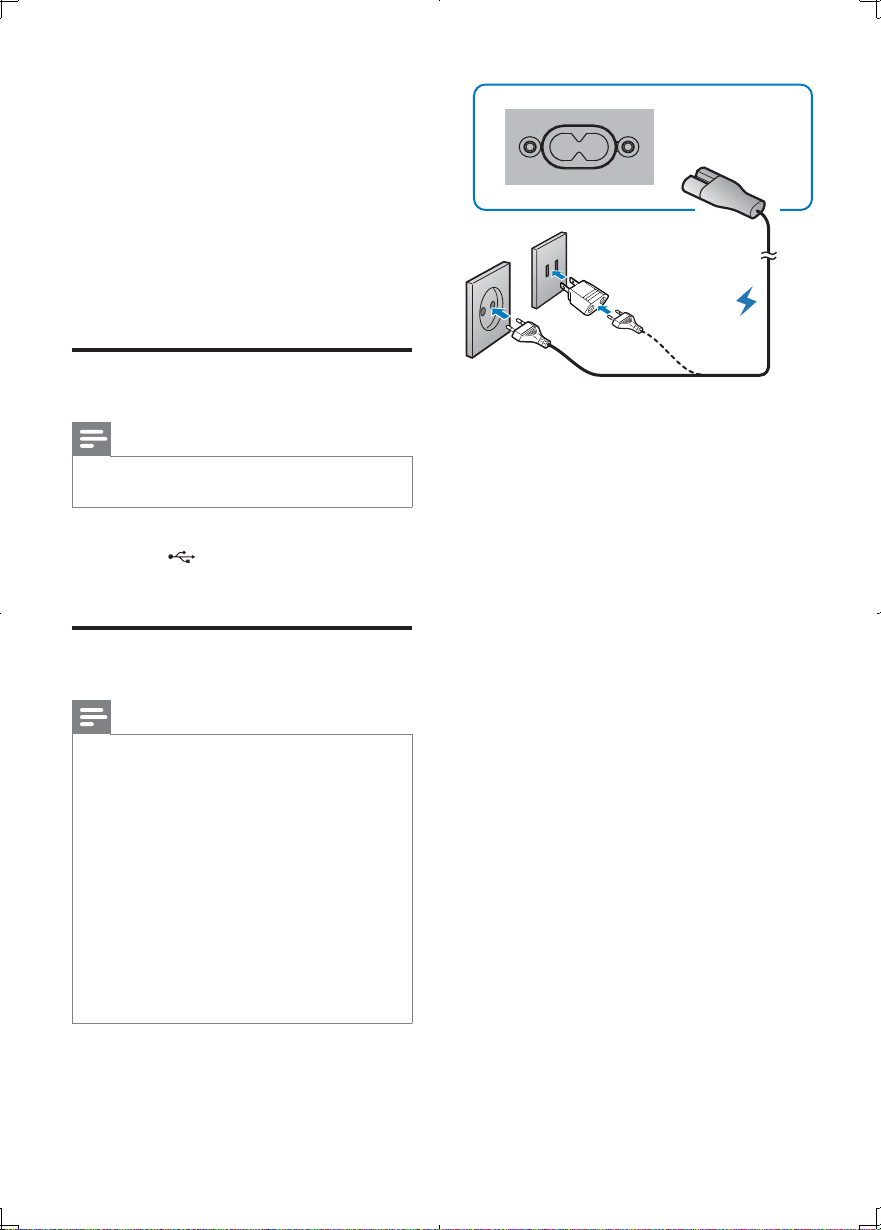

Connect power
Note
Where the MAINS plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Risk of product damage! Make sure that the
•
power supply voltage corresponds to the
voltage printed on the back of the main unit.
Before you connect the AC power cord,
•
make sure that you have complete all other
connections.
Protect the power cord from being walked on
•
or pinched, particularly at plugs, convenience
receptacles, and the points where they exit
from the apparatus.
Unplug this apparatus during lightning storms
•
or when unused for long periods of time.
A round-to-flat power plug adaptor is
supplied. If the wall power sockets are for flatpin plugs, connect the adaptor tightly to the
power plug first.
1 Connect the AC power cord to
the • AC MAINS socket on this
product.
the power supply.•
EN
12
Page 12
5 Get started
Find the correct viewing
channel
Turn on
Press .
1
The unit switches to the last selected »
source.
Switch to standby mode
If no source is played within 15 minutes, the
product switches to standby mode.
If no operation is performed within 15
minutes in standby mode, the product
switches to Eco-power standby mode.
To manually switch the product to standby
mode, press
.
Set the clock
The unit uses the 24-hour time format.
1 In standby mode, press and hold
DISPLAY/CLOCK for 2 seconds.
The hour digits blinks. »
2 Press / to set the hour.
3 Press DISPLAY/CLOCK.
The minute digits blinks. »
4 Press / to set the minute.
5 Press DISPLAY/CLOCK.
Press to turn on the unit.
1
2 Press DISC to switch to disc mode.
3 Turn on the TV and switch to the correct
video-in channel in one of the following
ways:
Go to the lowest channel on your •
TV, then press the Channel Down
button until you see the blue screen.
Press the source button repeatedly •
on the remote control of your TV.
Tip
The video-in channel is between the lowest •
and highest channels and may be called
FRONT, A/V IN, VIDEO etc. See the TV user
manual on how to select the correct input on
the TV.
Select the correct TV system
This product is compatible with both NTSC
and PAL. If the picture is abnormally displayed
with the default setting, select a TV system that
matches your TV.
See “Setup” > “System setup” > [TV SYSTEM]
for details.
Select a language for onscreen-display messages
English
English, Portuguese and Spanish are optional for
this setting. See “Setup” > “Language setup” >
[OSD LANGUAGE] for details.
13
EN
Page 13
6 Play
Caution
Risk of damage to the unit! During play, never •
move the unit.
Never put any objects other than discs into
•
the disc compartment.
Never look at the laser beam inside the unit.
•
Never play discs with accessories such as disc •
stabilizer rings or disc treatment sheets.
When “[INVALID KEY]” is displayed after
an operation, it indicates that this operation
is unavailable for the current media or at the
current time.
Basic operation
The listed operations are applicable for all
supported media.
Function Action
Stop play Press .
Pause or resume play Press
Skip to the previous/next
title, chapter, track, or file
Press
.
/ .
Play recored files
You can play DivX/MP3/WMA/JPEG picture
files copied onto a CD-R/RW, recordable DVD
or USB storage device.
Note
You can only play DivX videos rented or •
purchased through the DivX registration code
of this unit.
Subtitle files with the following filename
•
extensions (.sr t, .smi, .sub, .ssa, .ass) are
supported but do not appear on the file
navigation menu.
The subtitle filename has to be the same as
•
the file name of the video.
1 Select a source.
For a USB storage device, press • USB.
For a disc, press • DISC.
2 Insert the USB storage device or disc.
The play starts automatically. »
The play interface is displayed. »
You can see from the interface
On the top: the name of current file •
and the name of current folder
On the left: the folder list •
On the right: the file list •
At the bottom: the category icons (•
for music,
videos)
for photos, and for
Play a disc
1
Press DISC to select the disc source.
2 Press to open the disc compartment.
3 Place a disc onto the tray with the printed
side upward, and then press
.
4 Play starts automatically.
To start play manually, press •
To play a DVD that you set a rating •
level, enter the 4-digit parental
control password first (Refer
to “Setup” > “System setup” >
[PASSWORD] and [RATING]).
14
EN
.
Access a category
1 Press (or ) repeatedly until a
category icon is highlighted.
when a certain category of files •
are not included, the category icon
cannot be highlighted.
2 Press (or ) to highlight the wanted
category icon.
3 Press OK to confirm.
The folders that contain the files of this »
category are listed.
The files of this category in the first »
folder are listed.
Page 14
Access a folder
1 Press repeatedly until a folder name is
highlighted.
2 Press / to highlight the wanted folder
name.
3 Press OK to confirm.
The files of the selected category in »
the folder are listed.
Play a file
1 Access a folder.
2 Press to highlight a file name.
3 Press / to highlight the wanted file
name.
4 Press OK to confirm.
The selected file starts play. »
The play stops automatically at the end »
of the last file of same category.
Play slideshow and music
simultaniously
English
Note
Make sure that the USB storage device or the •
disc contains both WMA/MP3 files and JPEG
photos.
See “Setup” > “System setup” for slideshow
•
settings.
1 Play a WMA/MP3 file.
2 Access the photo category.
3 Access a photo folder.
4 Select a photo file.
5 Press OK to start the slideshow.
The slideshow stops after all photos •
are displayed for one time.
To stop the slideshow, press •
.
15
EN
Page 15
Play control
During play, follow the control instructions.
Function Applicable Media Action
Return to the disc menu DVD Press MENU repeatedly.
Enable/disable the PBC
(playback control)
feature
Select an audio language DVD with multiple
Select a subtitle language DVD, DivX video Press SUBTITLE repeatedly.
Select a camera angle DVD recorded with
Select a play mode
(repeat and random play)
Repeat a specific section
within a chapter or track
Display the play
information
Zoom in or out Video images, photos Press ZOOM repeatedly.
Slow down the play Video Press
Search backward/
forward fast
Preview photos Photos Press
Rotate a photo Photos Press
SVCD, VCD 2.0 Press MENU repeatedly.
Disable the PBC feature to display the PBC •
menu, and then use the numeric buttons to
enter your choice.
Press AUDIO repeatedly.
sound tracks, VCD
with multiple audio
channels
Press ANGLE repeatedly.
multiple camera
angles
All supported Press MODE repeatedly.
Audio, video
1 Press REPEAT A-B to select the start point.
2 Press REPEAT A-B again to select the end
point.
The selected section starts play repeatedly. »
To resume normal play, press • REPEAT
A-B until [REP OFF] is displayed.
All supported Press DISPLAY.
To pan through an enlarged image, •
press
/ / / .
repeatedly to select a play speed.
Audio, video Press and hold
speed.
/ to highlight a file name in the file list.
/ / / .
/ for 2 seconds to select a
16
EN
Page 16
Search by time or title/chapter/track
number
1 During play, press GOTO.
2 Press / to highlight the title number,
chapter number, track number, or time
field.
3 Use the numeric buttons to enter the
number or time digits.
4 Press OK to confirm.
» [GOTO] is displayed.
Play starts automatically. »
Adjust sound
You can adjust the volume level and select
sound effects.
Function Action
Increase/decrease the
volume level
Select a preset sound
effect (FLAT, POP,
ROCK, JAZZ, and
CLASSIC)
Enable/disable the DBB
(Dynamic Bass Boost)
feature
Mute/unmute the
speakers
Press + VOL -; turn
VOLUME clockwise
or anti-clockwise.
Press DSC
repeatedly.
Press DBB.
When DBB is •
disabled, FLAT
is selected
automatically.
Press MUTE.
7 Other features
Listen to FM radio
Note
A maximum of 20 radio stations can be stored. •
Fully extend the FM antenna for better •
reception.
Program radio stations automatically
1 Press TUNER.
2 Press and hold ANGLE/PROG for 2
seconds.
AUTO
»
blinks.
Available stations are programmed. »
The first programmed radio station is »
broadcast automatically.
Program radio stations manually
1 Press TUNER.
2 Press / repeatedly to tune to a radio
station.
3 Press ANGLE/PROG.
The sequence number blinks with the »
current frequency displayed.
4 Press / to allocate a sequence number
from 01 to 20 to this radio station.
5 Press ANGLE/PROG to confirm.
The sequence number and the current »
frequency are displayed.
6 Repeat steps 2-5 to program more stations.
English
Note
To overwrite a programmed station, store •
another station with its sequence number.
EN
17
Page 17
Tune to a stored radio station
1 Press TUNER.
2 Press / (or / ) repeatedly to select
your radio station.
Play audio from an external
device
You can use this unit to play audio from an
external device.
1 Connect the MP3 link cable to
the • MP3 LINK jack of this unit
the audio output jack (usually •
headphone jack) of the external
device.
2 Press MP3-LINK.
3 Play the external device (see the user
manual of this device for details).
6 Press SLEEP/TIMER.
ON TIME
»
7 Press / to select
blinks.
If you want to set the power-off time, »
press
/ to select
power off), and then repeat steps 2-6.
OFF TIME
SOURCE
(time for
.
8 Press SLEEP/TIMER.
9 Press / to select a media source
(DISC, TUNER or USB).
For the tuner source, you still •
need to press
programmed radio station.
/ to select a
10 Press SLEEP/TIMER.
The clock time is displayed. »
11 Press SLEEP/TIMER to activate the timer.
A clock icon is displayed. »
The product turns on/off at the set »
time.
To deactivate the timer, press • SLEEP/
TIMER again.
Listen through headphone
Plug a headphone into the socket.
1
Turn on/off automatically
You can set a time for automatic power on and
another time for power off.
Before the setup, make sure that you have set
the clock.
1 In standby mode, press and hold
SLEEP/TIMER.
ON TIME
»
(time for power on) blinks.
2 Press SLEEP/TIMER.
The hour digits blink. »
3 Press / to set the hour.
4 Press SLEEP/TIMER.
The minute digits blink. »
5 Press / to set the minute.
18
EN
Use the sleep timer
The unit can also turn off automatically after a
preset period (10-90 minutes with an interval
of 10 minutes).
1 During play, press SLEEP/TIMER
repeatedly to select a period.
SLEEP
» is displayed.
To deactivate the sleep timer, press •
SLEEP/TIMER repeatedly until
SLEEP OFF
is displayed.
Page 18
8 Setup
System setup

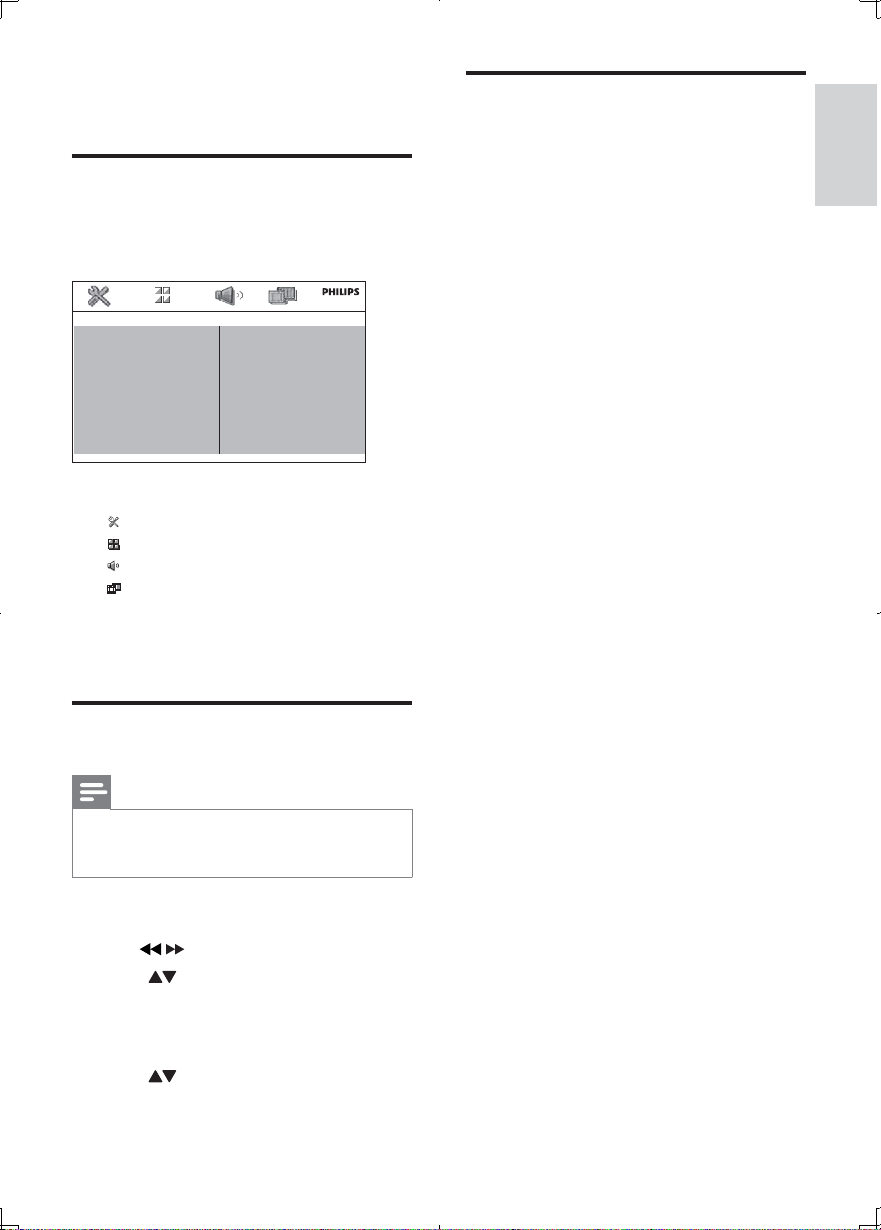

Interface for setup menu
After you press SETUP, the interface for setup
menu is displayed as follows.
SYSTEM SETUP
SCREEN SAVER
PICTURE MUSIC
SLIDE TIME
SLIDE EFFECT
PASSWORD
RATING
DEFAULT
On the top: Icons for main menus
•
for [SYSTEM SETUP] menu
•
for [LANGUAGE SETUP] menu
•
for [AUDIO SETUP] menu
•
for [VIDEO SETUP] menu
In the middle: Name of the current main menu
On the left: Items under the current menu
On the right: Setting options
Change a setting
Note
If a menu item or setting option is grayed out, •
it means that the setting cannot be changed at
the current state.
1 Press SETUP.
To access another main menu, press •
/ to select its icon.
2 Press to select a menu item.
3 Press OK.
If a dialog box is displayed, follow the •
instructions to operate.
4 Press to select your setting option.
5 Press OK to confirm.
To exit the menu, press • SETUP.
[SCREEN SAVER]
Protect the TV screen from damage due to
over exposure to static image.
• [ON] - Enable the screen saver.
• [OFF] - Disable the screen saver.
[PICTURE MUSIC]
The product can play a slideshow and music
simultaneously.
• [ON] - Enable this feature.
• [OFF] - Disable this feature.
[SLIDE TIME]
Set the time interval (15 seconds, 30 seconds,
or 45 seconds) between two slides.
[SLIDE EFFECT]
Select an effect for slide display.
[PASSWORD]
Set a password to restrict the play of rated
discs to children. The default password is
“0000”. You can change the 4-digit password.
1 Press SETUP.
2 Select [SYSTEM SETUP] >
[PASSWORD], and then press OK.
3 Enter the current password with the
numeric keys (0-9), and then press OK.
If you forget the password, enter •
“0000”.
4 Enter the new password.
5 Press OK to confirm.
[RATING]
Set the rating level for a disc. Restrict the play
of the disc to children. These discs must be
recorded with rating levels.
[DEFAULT]
Reset all settings to factory default, except for
the settings of [PASSWORD] and [RATING].
EN
English
19
Page 19
Language setup
9 Product
[OSD LANGUAGE]
Select a language for on-screen-display messages.
[MENU LANG]
Select a language for disc menu.
[DIVX SUBTITLE]
Select a character set that supports the
subtitle of your DivX video.
[DIVX[R] VOD]
Display the registration code. Use the code
behind [REGISTER CODE] to register your
product on the website http://VOD.DivX.com.
Audio setup
[DOWNMIX]
Compress multi-channel Dolby digital sound
to 2-channel surround sound ([LT/RT]) or
stereophonic sound ([STEREO]).
[NIGHT MODE]
Equalize loud sound and soft sound. Enable
this feature to watch DVD movies at a low
volume at night.
[DYNAMIC RANGE]
Set a dynamic range for sound output.
Video setup
[TV SYSTEM]
Select a TV system that matches your TV.
[TV TYPE]
Select a display ratio that matches your TV
screen.
information
Note
Product information is subject to change •
without prior notice.
Specifications
Amplifier
Rated Output
Power
Frequency
Response
Signal to Noise
Ratio
Aux Input 500 mV RMS 600 ohm
Disc
Laser Type Semiconductor
Disc Diameter 12 cm/8 cm
Video Decoding MPEG-1 / MPEG-2 / DivX
Video DAC 12 Bits
Signal System PAL / NTSC
Video Format 4:3 / 16:9
Video S/N > 48 dB
Audio DAC 24 Bits / 96 kHz
Total Harmonic
Distortion
Frequency
Response
S/N Ratio > 65 dBA
Video resolution 720 X 480 X 30;
2 X 25 W RMS
40 Hz - 20000 Hz, ±3 dB
> 65 dB
< 0.8% (1 kHz)
4 Hz - 20 kHz (44.1 kHz)
4 Hz - 22 kHz (48 kHz)
4 Hz - 24 kHz (96 kHz)
720 X 576 X 25
20
EN
Page 20
Tuner (FM)
Tuning Range 87.5 - 108MHz
Tuning grid 50KHz
Sensitivity - Mono,
26dB S/N Ratio
Sensitivity - Stereo,
46dB S/N Ratio
Search Selectivity >28dBf
Total Harmonic
Distortion
Signal to Noise Ratio >55dB
<22 dBf
<43 dBf
<2%
Speakers
Speaker Impedance 6 ohm
Speaker Driver Full range speaker
Sensitivity > 80 dB/m/W±4dB/
m/W
General information
AC power 110 - 240 V, 50/60 Hz
Operation Power
Consumption
Eco Standby Power
Consumption
Composite Video
Output
Headphone output 2 X 15 mW, 32 ohm
USB Direct Version 2.0
Dimensions
- Main Unit
(W x H x D)
- Speaker Box
(W x H x D)
Weight
- With Packing
- Net weight
25 W
< 1 W
1.0 Vp-p, 75 ohm
152 X 170 X 210 mm
152 X 170 X 200 mm
5.3 kg
3.9 kg
Supported disc formats
Digital Video Discs (DVDs)•
Video CDs (VCDs)•
Super Video CDs (SVCDs)•
Digital Video Discs + Rewritable •
(DVD+RW)
Compact Discs (CDs)•
Picture (Kodak, JPEG) files on CDR(W)•
DivX(R) disc on CD-R(W):•
DivX 3.11•
WMA•
Supported MP3-CD formats:
ISO 9660•
Max. title/album name: 24 characters•
Max. title number plus album: 255.•
Max. nested directory: 8 levels•
Max. album number: 130•
Max. MP3 track number: 5000•
Supported sampling frequencies for MP3 •
disc: 32 kHz, 44.1 kHz, 48 kHz
Supported Bit-rates of MP3 disc are: 32, •
64, 96, 128, 192, 256 (kbps)
The following formats are not supported:•
Files like *.VMA , *.AAC, *.DLF, *.M3U•
*.PLS, *.WAV•
Discs recorded in Joliet format•
MP3 Pro and MP3 with ID3 tag•
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1)•
USB flash players (USB 2.0 or USB1.1)•
memory cards (requires an additional •
card reader to work with this apparatus)
English
EN
21
Page 21
Supported formats:
USB or memory file format FAT12, •
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 or later•
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an •
album that does not contain MP3/WMA
files, and is not be shown in the display.
Unsupported file formats are skipped. For •
example, Word documents (.doc) or MP3
files with extension .dlf are ignored and not
played.
AAC, WAV, PCM audio files•
DRM protected WMA files •
(.wav, .m4a, .m4p, .mp4, .aac)
WMA files in Lossless format•
10 Troubleshooting
Caution
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
Philips.com/support). When you contact Philips,
ensure that your apparatus is nearby and the
model number and serial number are available.
No power
Ensure that the AC cord of the apparatus •
is connected properly.
Ensure that there is power at the AC •
outlet.
As a power-saving feature, the system •
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
No disc detected
Insert a disc. •
Check if the disc is inserted upside down. •
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc. •
Use a finalized CD or correct format disc. •
No picture
Check the video connection. •
Turn on the TV to the correct Video-In •
channel.
Progressive scan is activated but the TV •
does not suppor t progressive scan.
Black and white or distorted picture
The disc does not match the TV color •
system standard (PAL/NTSC).
Sometimes a slight picture distortion may •
appear. This is not a malfunction.
Clean the disc. •
22
EN
Page 22
A distorted picture may appear during •
progressive scan setup.
The aspect ratio of the TV screen cannot be
changed even though you have set the TV
display format.
The aspect ratio is fixed on the loaded •
DVD disc.
The aspect ratio may not be changed for •
some TV systems.
No sound or poor sound
Adjust the volume. •
Disconnect the headphones. •
Check that the speakers are connected •
correctly.
Remote control does not work
Before you press any function button, •
first select the correct source with the
remote control instead of the main unit.
Reduce the distance between the remote •
control and the unit.
Inser t the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the battery. •
Aim the remote control directly at the •
sensor on the front of the unit.
Disc does not play
Inser t a readable disc with the label side •
facing you.
Check the disc type, color system and •
regional code. Check for any scratches or
smudges on the disc.
Press •SYSTEM MENU to exit the system
setup menu.
Disable the password for parental control •
or change the rating level.
Moisture has condensed inside the •
system. Remove the disc and leave the
system turned on for about an hour.
Disconnect and reconnect the AC power
plug, and then turn on the system again.
As a power-saving feature, the system •
turns off automatically 15 minutes after
disc play reaches the end and no control
is operated.
DivX video files cannot be played.
Ensure that the DivX video file is •
complete.
Ensure that the file extension is correct. •
Due to Digital Rights issue, the DRM- •
protected video files cannot be played
through an analog video connection
(e.g. composite, component and scar t).
Transfer the video content onto the Disc
Media and play these files.
Poor radio reception
Increase the distance between the •
apparatus and your TV or VCR.
Fully extend the FM antenna. •
Connect an outdoor FM antenna instead. •
Audio or subtitle languages cannot be set
The disc is not recorded with sound or •
subtitles in multiple languages.
The audio or subtitle language setting is •
prohibited on the disc.
Cannot display some files in USB device
The number of folders or files in the USB •
device has exceeded a cer tain limit. This
phenomenon is not a malfunction.
The formats of these files are not •
supported.
USB device not supported
The USB device is incompatible with the •
unit. Try another one.
Timer does not work
Set the clock correctly. •
Switch on the timer. •
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer. •
English
EN
23
Page 23
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
MCD135_55_UM_V1.1
Loading...
