English

7 Tune to FM radio stations 20

Program radio stations automatically 20 Program radio stations manually 20 Tune to a preset radio station 20

8 Adjust volume level and sound effect 21

Adjust volume level 21 Select a sound effect 21 Mute sound 21

9 Other features 22

Activate demonstration mode 22 Adjust brightness of display panel 22 Set the alarm timer 22 Set the sleep timer 22 Listen through headphone 22 Listen to an audio player 22 Record to a digital recorder 23

10 Product information 23

Speciﬁcations 23 Supported disc formats 24 USB playability information 24

11 Troubleshooting 25

Contents

1 Important 4

Safety 4 Notice 5

2 Your DVD Micro Theater 6

Introduction 6 What’s in the box 7 Overview of the main unit 7 Overview of the remote control 8

3 Connect 10

Place the unit 10 Connect speakers 10 Connect FM antenna 10 Connect TV 10 Connect power 12

4 Get started 12

Prepare the remote control 12 Set clock 13 Turn on 13 Find the correct viewing channel 13 Select the correct TV system 13 Change system menu language 14 Turn on Progressive Scan 14

5 Play 14

Play a disc 14 Play from USB 15 Play DivX video 15 Play MP3/WMA/picture ﬁles 16 Play control 16 Play options 17 Picture view options 17

6 Adjust settings 18

General setup 18 Audio setup 18 Video setup 18 Preferences 19

Page 4

convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories speciﬁed by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, + and - as

marked on the unit.

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

• Apparatus shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the apparatus (e.g. liquid ﬁlled objects, lighted candles).

• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1 Important

Safety

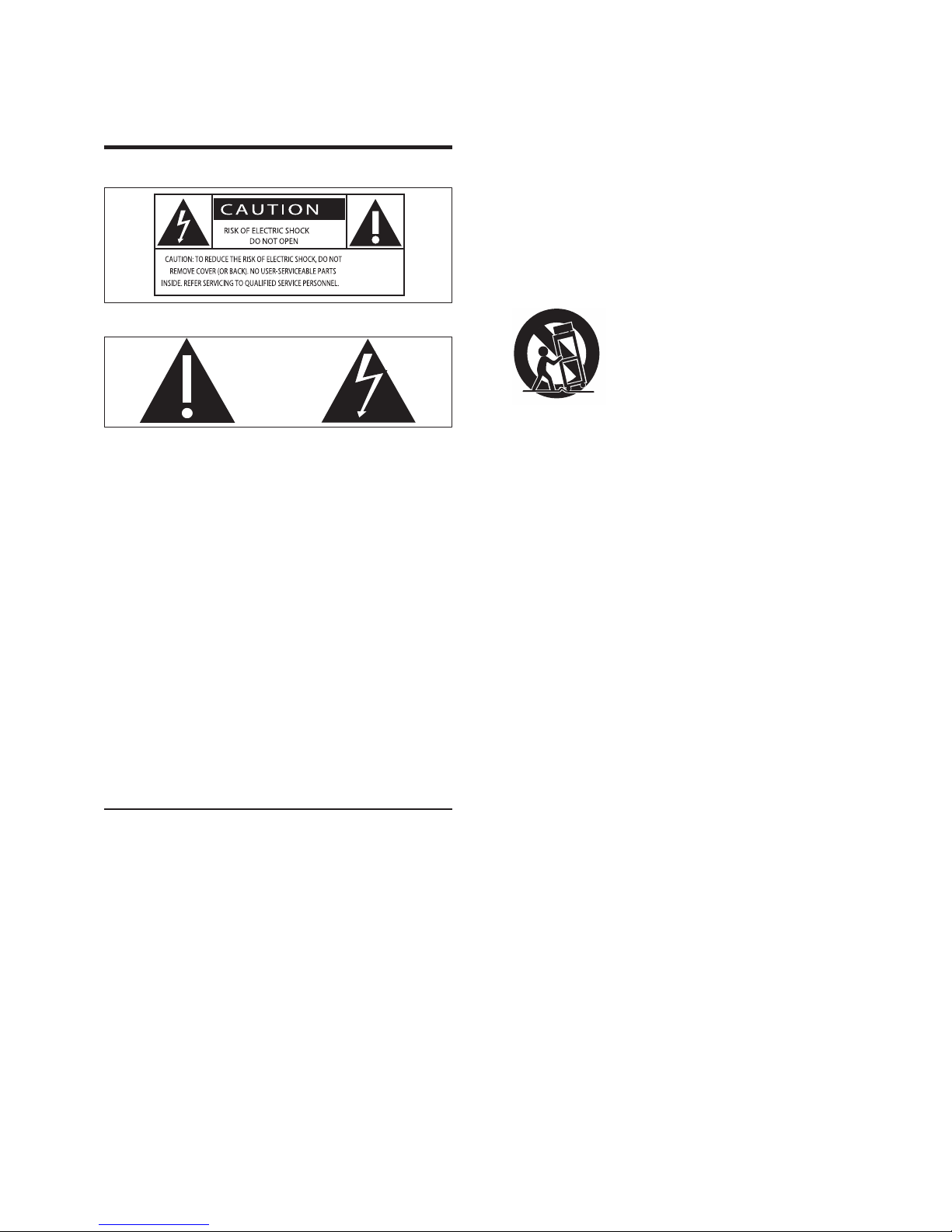

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Important Safety Instructions

• Follow all instructions.

• Heed all warnings.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

• Protect the power cord from being walked on or pinched, particularly at plugs,

Page 5

English

Be sure to observe the following guidelines when using your headphones.

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can’t hear what’s around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a trafﬁc hazard and is illegal in many areas.

Notice

Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

This product complies with the radio interference requirements of the European Community.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Warning

• Never remove the casing of this apparatus.

• Never lubricate any part of this apparatus.

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked

ﬂames or heat.

• Never look into the laser beam inside the apparatus.

• Ensure that you always have easy access to the power

cord, plug or adapter to disconnect the apparatus from the power.

Caution

• Use of controls or adjustments or performance of

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Hearing safety

Listen at a moderate volume.

• Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.

• Sound can be deceiving. Over time your hearing ‘comfort level’ adapts to higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally ‘safe’ levels, can also cause hearing loss.

• Be sure to use your equipment reasonably and take appropriate breaks.

Page 6

2 Your DVD

Micro Theater

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can:

• watch video from DVD/VCD/SVCD or USB devices

• enjoy audio from discs or USB devices

• view pictures from discs or USB devices

• Listen to FM radio

You can enrich sound output with these sound effects:

• Digital Sound Control (DSC)

• Dynamic Bass Boost (DBB)

The unit supports these media/disc formats:

You can play DVD with the following region codes:

DVD region code Countries

Argentina

Recordable

ReWritable

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copyprotected material, including computer programs, ﬁles, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

‘DVD Video’ is a trademark of DVD Format/ Logo Licensing Corporation.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

This apparatus includes this label:

Note

• The type plate is located on the bottom of the apparatus.

Page 7

English

c SOURCE

• Select a source.

Display panel

• Display current status.

• Open or close the disc compartment.

What’s in the box

Check and identify the contents of your package:

• Main unit

• 2 speakers

• Remote control with battery

• Composite video cable (yellow)

• Power cord

• FM wire antenna

• User manual

• Quick start guide

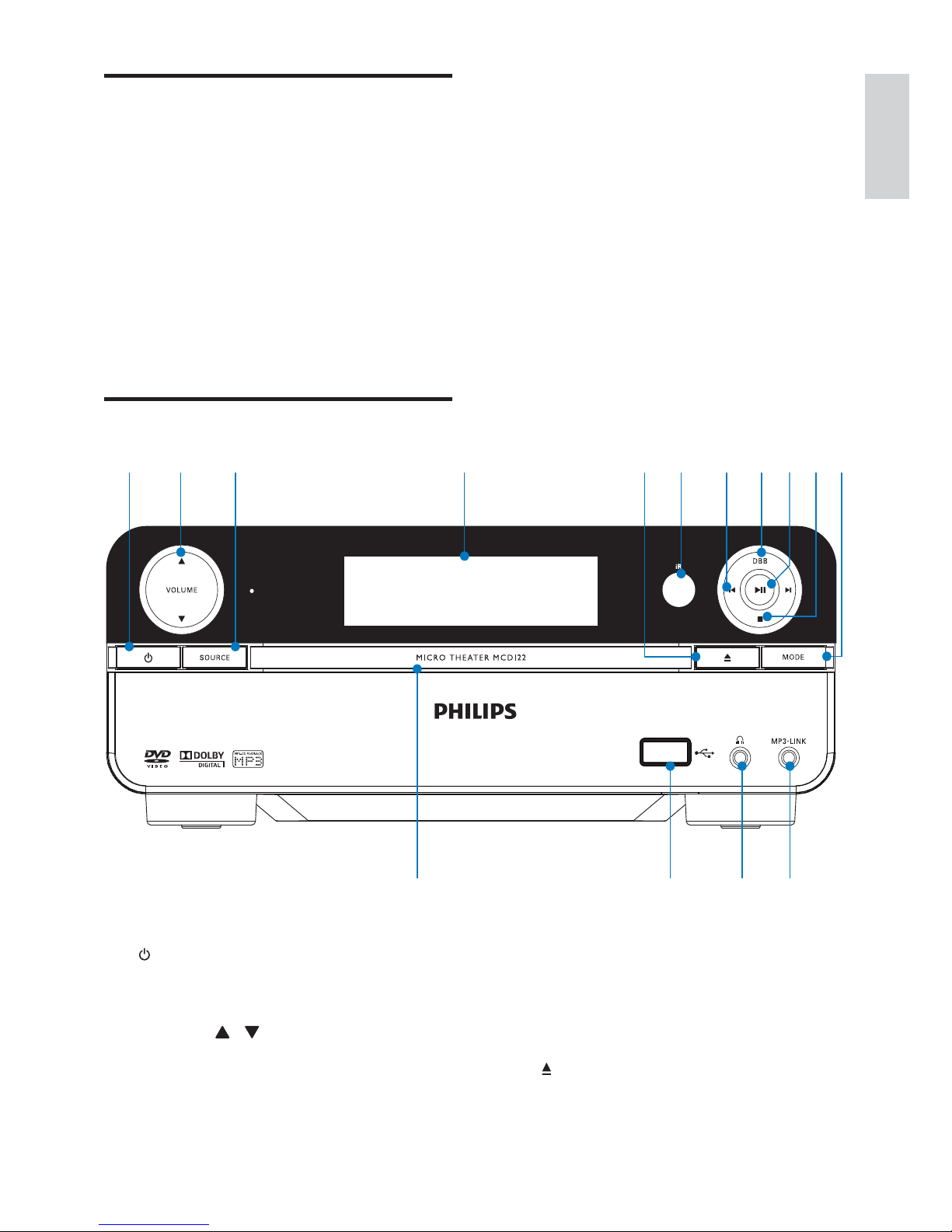

Overview of the main unit

• Turn on the apparatus or switch to the Eco Power standby mode.

VOLUME

• Adjust volume.

• Adjust time.

a b c d fe g kh ij

lmno

Page 8

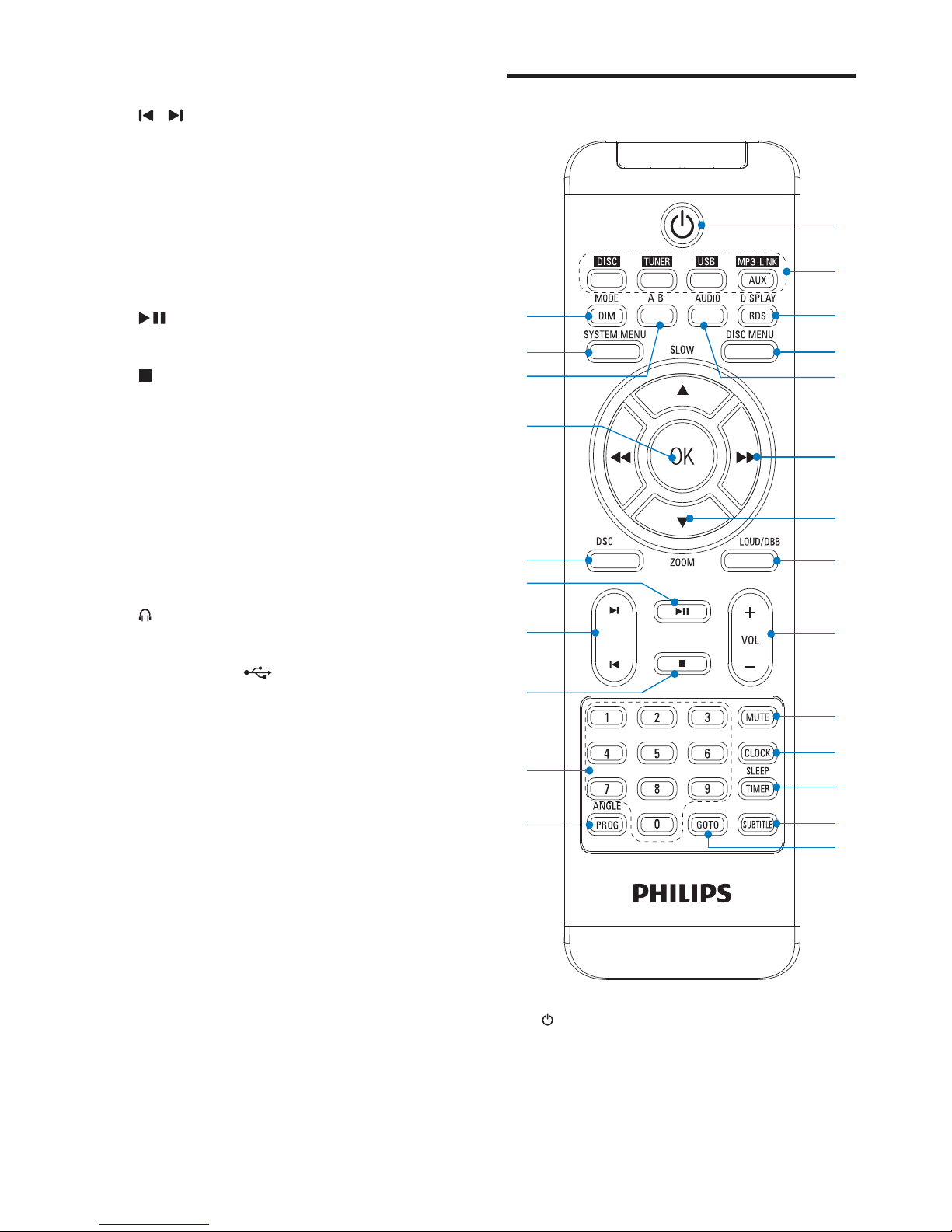

Overview of the remote control

• Turn on the apparatus or switch to the Eco Power standby mode.

Source selection keys

• Select a source.

t s

m n

f Remote control sensor g

• Skip to the previous/next track.

• Skip to the previous/next title or chapter.

• Select a preset radio station.

DBB

• Turn on or off dynamic bass enhancement.

• Start or pause play.

• Stop play.

• In demo mode, activate or deactivate demonstration.

MODE

• Select repeat play modes.

• Select shufﬂe play modes.

MP3-LINK

• Jack for an external audio device.

• Headphone socket.

USB DIRECT

• USB socket.

Disc compartment

Page 9

English

m SUBTITLE

• Select a subtitle language.

GOTO

• During disc play, specify a position to start play.

ANGLE/PROG

• Select a DVD camera angle.

• Program radio stations.

Numeric keypad

• Select a title/chapter/track directly.

• Stop play.

• Skip to the previous/next track.

• Skip to the previous/next title or chapter.

• Select a preset radio station.

• Start or pause play.

DSC

• Select a preset sound setting.

• Conﬁrm a selection.

A-B

• Repeat a speciﬁc section within a track/disc.

SYSTEM MENU

• Access or exit the system setup menu.

MODE/DIM

• Select repeat play modes.

• Select shufﬂe play modes.

• Select a brightness level for the display screen.

c DISPLAY/RDS (RDS is not applicable to

this model.)

• Display play information on a connected TV.

DISC MENU

• For video discs: access or exit the disc menu.

• For video discs with playback control(PBC): turn on/off PBC.

AUDIO

• For VCD, select stereo, mono-left or mono-right channel.

• For DVD/DivX video, select an audio language.

• Search within a track.

• Tune to a radio station.

• For menus, navigate left/right.

• Move an enlarged image left/right.

• Rotate or invert pictures.

SLOW/ ZOOM

• For menus, navigate up/down.

• Rotate or invert pictures.

• (

SLOW) For video: select a slow

play mode.

• (

ZOOM) For video: zoom in/out.

LOUD/DBB

• Turn on or off automatic loudness adjustment.

• Turn on or off dynamic bass enhancement.

VOL +/-

• Adjust volume.

• Adjust time.

MUTE

• Mute or restore volume.

CLOCK

• Set the clock.

SLEEP/TIMER

• Set the sleep timer.

• Set the alarm timer.

Page 10

2 Insert the stripped part of the wire

completely.

• Insert the right speaker wires to “R”, left speaker wires to “L”.

• Insert the red wires to “+”, black wires to “-”.

3 Release the socket ﬂap.

Connect FM antenna

Tip

• For optimal reception, fully extend and adjust the

position of the antenna.

• For better FM stereo reception, connect an outdoor

FM antenna to the FM AERIAL jack.

• The unit does not support MW radio reception.

Connect the supplied FM antenna to the FM

AERIAL socket on the unit.

Connect TV

Connect video cables

With this connection, you can watch video from the unit on the TV screen.

abc

3 Connect

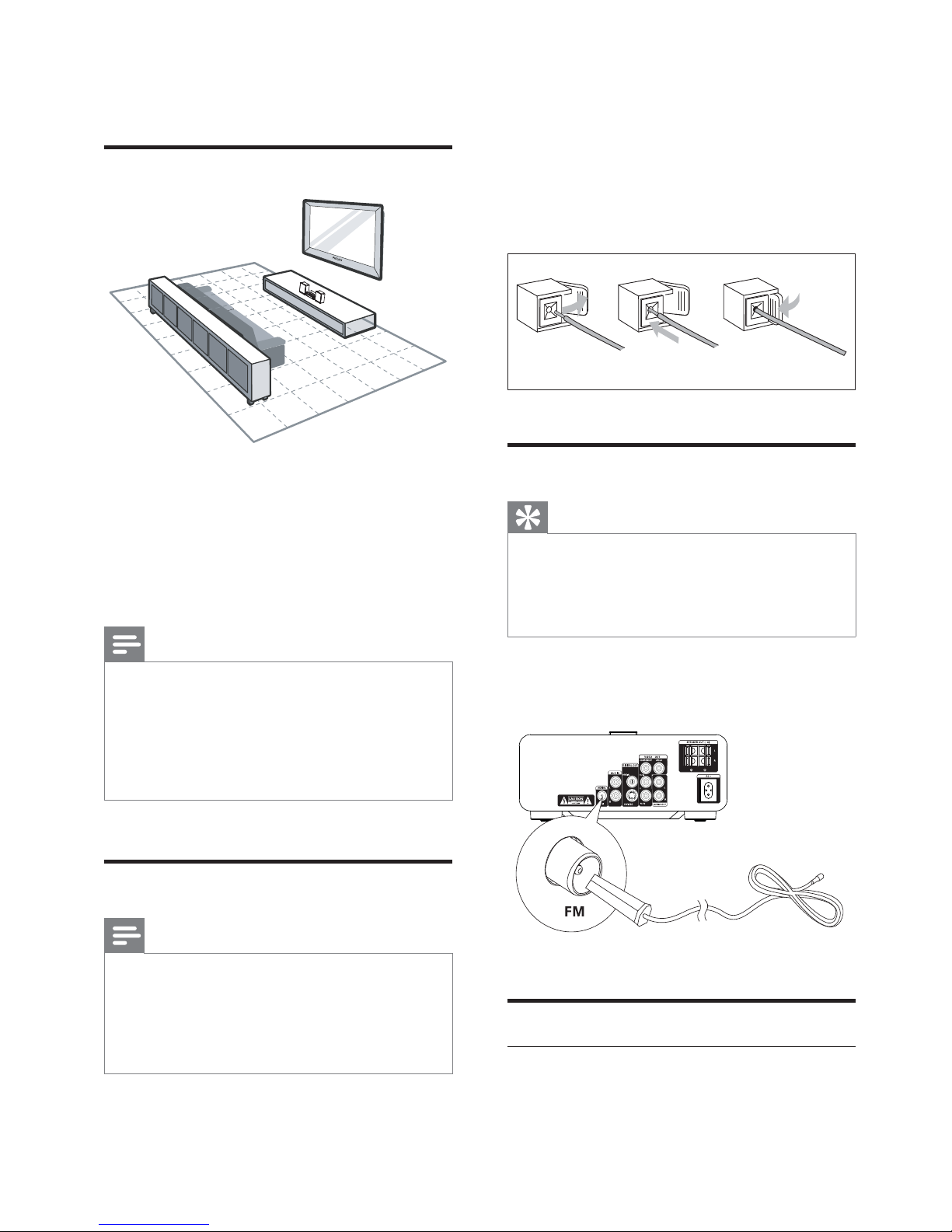

Place the unit

1 Place the DVD micro theater near TV. 2 Place the left and right speakers at equal

distance from the TV and at an angle of approximately 45 degrees from the listening position.

Note

• To avoid magnetic interference or unwanted noise,

never place this apparatus and speakers too close to any radiation devices.

• Place this unit on top of a table or mount it on the wall.

• Never place this unit in an enclosed cabinet.

• Install this unit near the AC outlet where the AC power

plug can be easily reached.

Connect speakers

Note

• Ensure that the colors of the speaker wires and

terminals are matched.

• For optimal sound, use the supplied speakers only.

• Connect only speakers with impedance that is the

same or higher than the supplied speakers. Refer to the Speciﬁcations section of this manual.

1 Hold down the socket ﬂap.

Page 11

English

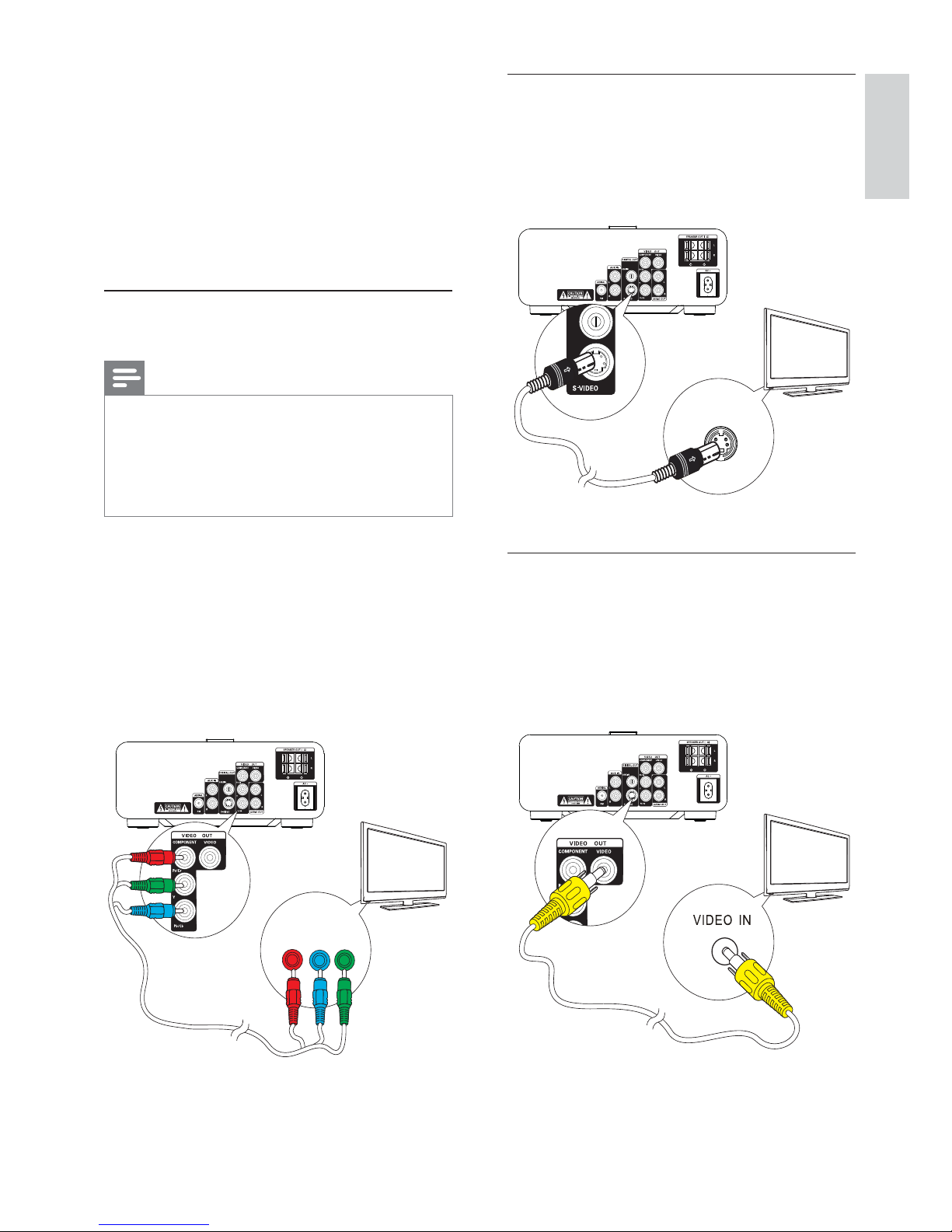

Option 2: Connect through S-Video

Connect an S-video cable (not supplied) to:

• the S-Video socket on the back of the unit.

• the S-Video socket on the TV.

Option 3: Connect through composite video

Connect the supplied composite video cable to:

• the VIDEO OUT socket on the back of the unit.

• the video input socket on the TV.

S-VIDEO IN

You can select the best video connection that your TV supports.

• Option 1: connect through component video (for a standard TV or Progressive Scan TV).

• Option 2: connect through S-Video (for a standard TV).

• Option 3: connect through composite video (CVBS) (for a standard TV).

Option 1: Connect through component video

Note

• The progressive scan video quality is only available

when a progressive scan TV is connected.

• If your TV does not support progressive scan, you

cannot view the picture.

• For how to activate progressive scan on your TV, refer

to the TV user manual.

Connect a progressive scan TV through component video for higher quality video.

Connect component video cables (red/blue/ green - not supplied) to:

• the VIDEO OUT (Pr/Cr Pb/Cb Y) sockets on the back of the unit.

• the component input sockets on the TV.

Pr/Cr Pb/Cb Y

COMPONENT VIDEO IN PUT

Page 12

4 Get started

Caution

• Use of controls or adjustments or performance of

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

Prepare the remote control

Caution

• Risk of explosion! Keep batteries away from heat,

sunshine or ﬁre. Never discard batteries in ﬁre.



1 Remove the protective tab to activate the

remote control battery.

To replace the remote control batteries:

1 Open the battery compartment.

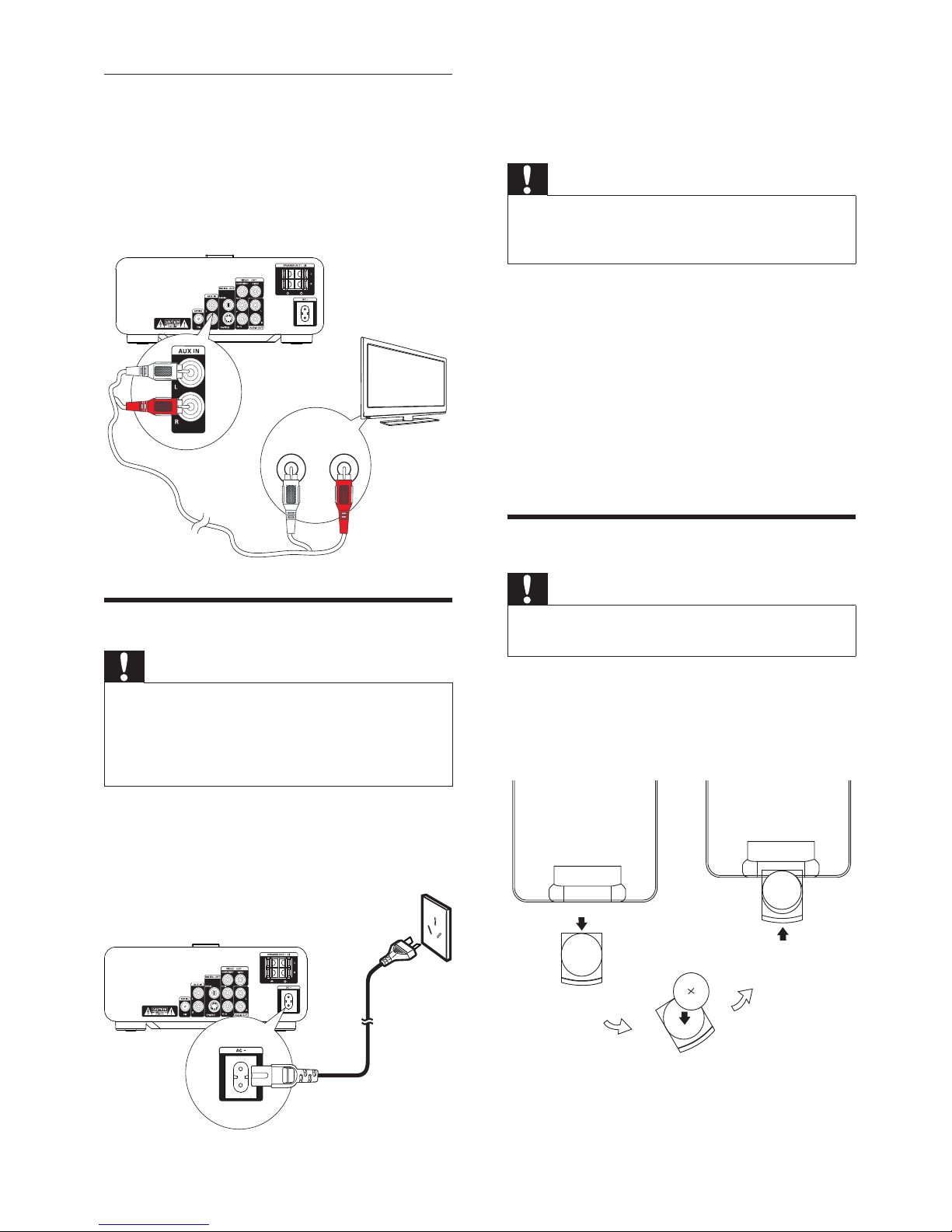

Connect audio cables

To play sound from the TV through this unit, connect audio cables (red/white - not supplied) to:

• the AUX IN L/R sockets on the back of the unit.

• the audio output sockets on the TV.

Connect power

Caution

• Risk of product damage! Ensure that the power supply

voltage corresponds to the voltage printed on the back or the underside of the unit.

• Before connecting the AC power cord, ensure you have

completed all other connections.

Connect the AC power cord to:

• the power socket on the back of the unit

• the wall outlet

L AUDIO OUT R

Page 13

English

Tip

• In the Eco Power mode, you can press CLOCK to

switch to the standby mode and view the clock (if set).

• If the system remains in the standby mode for more

than 90 seconds, it switches to the Eco Power mode automatically.

Find the correct viewing channel

Press to turn on the unit.

2 Press DISC to switch to disc mode. 3 Turn on the TV and switch to the correct

video-in channel in one of the following ways:

• Go to the lowest channel on your TV, and then press the Channel Down button until you see the blue screen.

• Press the source button repeatedly on the remote control of your TV.

Tip

• The video-in channel is between the lowest and highest

channels and may be called FRONT, A/V IN, VIDEO etc. See the TV user manual on how to select the correct input on the TV.

Select the correct TV system

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

1 Press SYSTEM MENU. 2 Select [Video Setup]. 3 Select [TV System] and then press . 4 Select a setting and then press OK.

• [NTSC] - For TV with NTSC color system.

• [PAL] - For TV with PAL color system.

• [Multi] - For TV that is compatible with both PAL and NTSC.

5 To exit the menu, press SYSTEM MENU.

2 Insert one lithium CR2025 battery with

correct polarity (+/-) as indicated.

3 Close the battery compartment.

Note

• Before you press any function button on the remote

control, ﬁrst select the correct source with the remote control.

• If you are not going to use the remote control for a

long time, remove the batter y.

Set clock

In the Eco Power standby mode, press and

hold CLOCK to activate the clock setting mode.

» The hour digits are displayed and begin

to blink.

» If the hour digits are not displayed,

press and hold

for 3 seconds to switch to standby mode, and then repeat step 1.

2 Press + VOL - to set the hour, and then

press CLOCK again.

» The minute digits are displayed and

begin to blink.

3 Press + VOL - to set the minute. 4 Press CLOCK to conﬁrm the clock setting.

Turn on

Press .

» The unit switches to the last selected

source.

Switch to Eco Power standby mode

Press to switch the unit to Eco Power Standby mode.

» The backlight on the display panel

turns off.

» The blue Eco Power indicator turns on.

Page 14

5 Play

Note

• With some disc/ﬁle types, play may differ.

Play a disc

Caution

• Never look at the laser beam inside the unit.

• Risk of product damage! Never play discs with

accessories such as disc stabilizer rings or disc treatment sheets.

• Never put any objects other than discs into the disc

compartment.

1 Press DISC to select the DISC source. 2 Press on the front panel to open the disc

tray.

3 Insert a disc with the printed side facing

upward.

4 Press to close the disc tray.

» Play starts automatically.

• To stop play, press

• To pause or resume play, press

• To skip to the previous/next title/ chapter/track, press

/ .

If play does not start automatically:

1 Select a title/chapter/track and then press

Tip

• To play a locked DVD, enter the 4-digit parental control

password.

Change system menu language

Press SYSTEM MENU.

2 Select [General Setup]. 3 Select [OSD language] and then press . 4 Select a setting and then press OK. 5 To exit the menu, press SYSTEM MENU.

Turn on Progressive Scan

Progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. Before you turn on this feature, ensure that:

• The TV suppor ts progressive scan signals.

• You have connected this unit with the TV through component video.

1 Turn on the TV. 2 Ensure that the TV progressive scan mode

is deactivated (see the TV user manual).

3 Switch the TV to the correct viewing

channel for this unit.

4 Press DISC. 5 Press SYSTEM MENU. 6 Press / to select [Video Setup] in the

menu, and then press

7 Select [Component Video], and then press

8 Select [P-Scan], and then press OK.

» The progressive setup is complete.

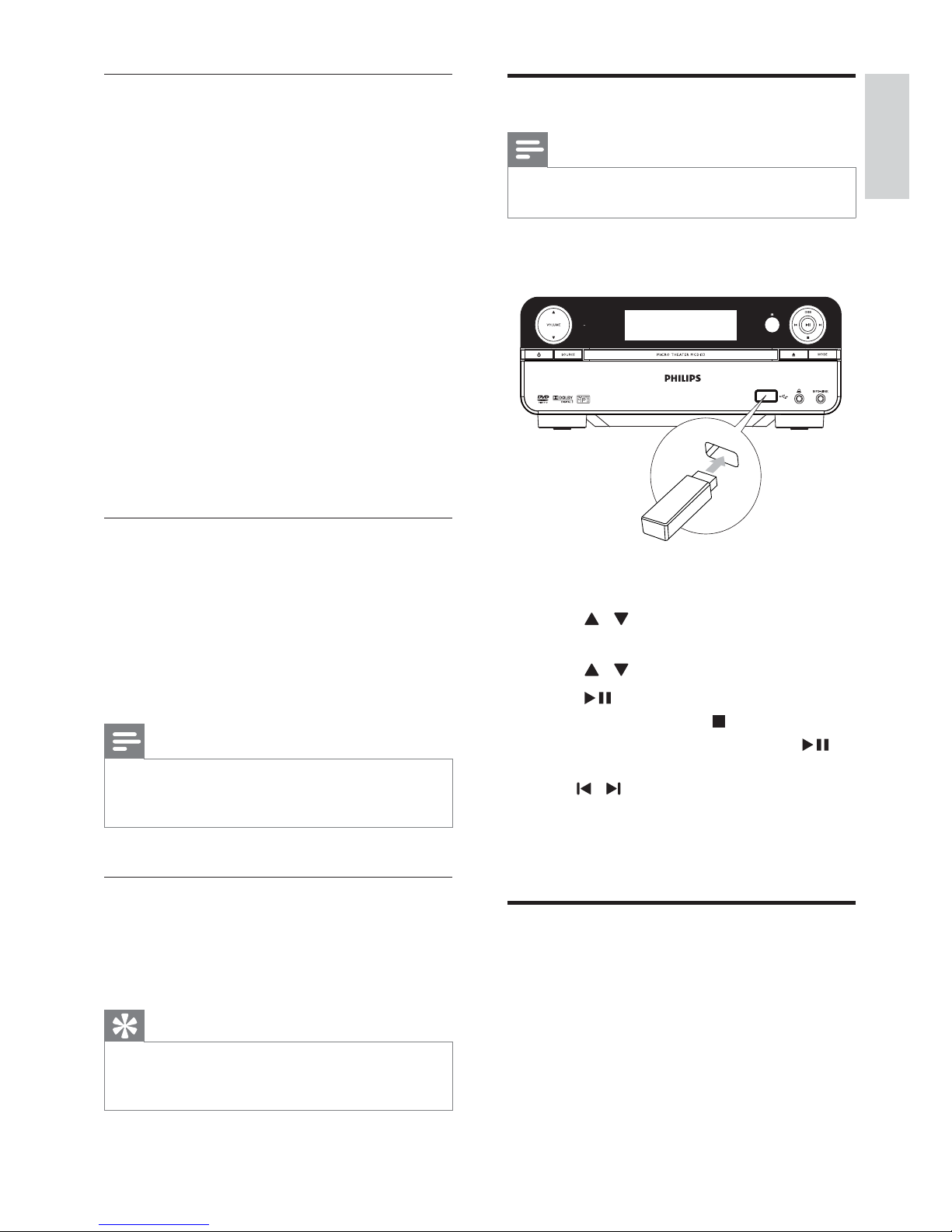

Page 15

English

Play from USB

Note

• Ensure that the USB device contains playable music,

pictures, or video.

1 Insert the USB device.

2 Press USB to select the USB source. 3 Press / to select a folder, and then

press OK to conﬁrm.

4 Press / to select a ﬁle from the folder. 5 Press to start play.

• To stop play, press

• To pause or resume play, press

• To skip to the previous/next ﬁle, press / .

• To return to the upper-level menu,

press DISC MENU, and then press

OK to conﬁrm.

Play DivX video

You can play DivX ﬁles copied onto a CD-R/ RW, recordable DVD, or USB device.

1 Insert a disc or connect a USB device. 2 Select a source:

• For discs, press DISC.

• For USB devices, press USB.

Use the disc menu

When you load a DVD/(S)VCD disc, a menu may be displayed on the TV screen.

To access or exit the menu manually:

1 Press DISC MENU.

For VCD with PlayBack Control (PBC) feature (version 2.0 only):

With the PBC feature, you can play VCD interactively according to the menu screen.

1 During play, press DISC MENU to enable/

disable PBC.

» When PBC is enabled, the menu

screen is displayed.

» When PBC is disabled, normal play is

resumed.

Select an audio language

You can select an audio language on DVDs or DiVx video.

1 During disc play, press AUDIO.

» The language options appear. If the

selected audio channels is unavailable, the default disc audio channel is used.

Note

• For some DVDs, the language can only be changed

from the disc menu. Press DISC MENU to access the menu.

Select a subtitle language

You can select a subtitle language on DVDs or DivX® discs.

1 During play, press SUBTITLE.

Tip

• For some DVDs, the language can only be changed

from the disc menu. Press DISC MENU to access the menu.

Page 16

• To resume normal play, press MODE/

DIM repeatedly until no option is displayed.

Repeat A-B (DVD/VCD/CD/MP3/ WMA)

1 During music or video play, press A-B at

the start point.

2 Press A-B at the end point.

» The selected section starts to play

repeatedly.

• To cancel repeat play, press A-B again.

Note

• The section A and B can be set only within the same

track/title.

Search forward/backward

During play, press / repeatedly to select a search speed.

• To resume play at normal speed, press

Search by time or chapter/track number

During video/audio play, press GOTO until a time ﬁeld or chapter/track ﬁeld is displayed.

• For the time ﬁeld, enter the play

position in hours, minutes, and seconds.

• For the chapter/track ﬁeld, enter the

chapter/track.

» Play starts automatically at your

selected point.

Resume video play from last stopped point

Note

• This feature is only available for DVD/VCD play.

3 Select a ﬁle to play and press .

• To stop play, press

• To pause or resume play, press

• To change a subtitle language, press

SUBTITLE.

Note

• You can only play DivX videos rented or purchased

through the DivX registration code of this unit.

• Subtitle ﬁles with the following ﬁlename extensions (.srt,

.smi, .sub, .ssa, .ass) are supported but do not appear on the ﬁle navigation menu.

• The subtitle ﬁlename has to be the same as the ﬁle

name of the video.



You can play MP3/WMA/picture ﬁles copied onto a CD-R/RW, recordable DVD, or USB device.

1 Insert a disc or connect a USB device. 2 Select a source:

• For discs, press DISC.

• For USB devices, press USB.

3 Press / to select a folder, and then

press OK to conﬁrm.

4 Press / to select a ﬁle from the folder. 5 Press to start play.

• To stop play, press

• To pause or resume play, press

• To skip to the previous/next ﬁle, press / .

• To return to the upper-level menu,

press DISC MENU, and then press

OK to conﬁrm.

Play control



During play, press MODE/DIM repeatedly to select a repeat option or the shufﬂe play mode.

Page 17

English

Select a camera angle

Note

•

This feature is only available for DVDs recorded with multiple camera angles.

During play, press ANGLE/PROG repeatedly to select a camera angle.

Picture view options

Preview pictures

1 During play, press .

» The pictures in current folder are

displayed.

2 Press / to select a picture from the

folder.

» A thumbnail of the selected picture is

displayed in the right pane.

3 Press OK to start slideshow from the

selected picture.

Rotate picture

During play, press / / / to rotate the picture anti-clockwise/clockwise.

In stop mode and when the disc has not been removed, press

To cancel resume mode and stop play completely:

In stop mode, press

Play options

Display play information

During play, press DISPLAY/RDS repeatedly to display play information.

Zoom in/out image

During video play, press (ZOOM) repeatedly to zoom in/out the image.

• When the image is zoomed in, you can press

/ to pan through the

image.

Slow-motion play

During video play, press (SLOW) repeatedly to select a slow play option.

» The sound is muted.

• To resume play at normal speed, press

Change the audio channel

Note

•

This feature is only available for VCD/DivX play.

During play, press AUDIO repeatedly to select an audio channel available on the disc:

• Mono Left

• Mono Right

• Stereo

ＭＣＤ１２２＿ＵＭ＿７７．ｉｎｄｂ　　　１７２０１１－７－１５　　　１６：０７：１３

Page 18

• [All] – If the connected device supports multi-channel audio formats, select this option.

[Night Mode]

Make loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others.

• [On] – enjoy quiet viewing at night (DVDs only).

• [Off] – enjoy surround sound with its full dynamic range.

Video setup

On the [Video Setup] page, you can set the following options:

[TV System]

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

• [NTSC] - For TV with NTSC color system.

• [PAL] - For TV with PAL color system.

• [Multi] - For TV that is compatible with both PAL and NTSC.

[TV Display]

The TV format determines the aspect ratio of display according to the type of TV you have connected.

• [4:3 Pan Scan] – For 4:3 screen TV: full-height display with the trimmed sides.

• [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen.

• [Wide Screen] – For wide-screen TV: display ratio 16:9.

[Picture Setting]

Customize picture color settings.

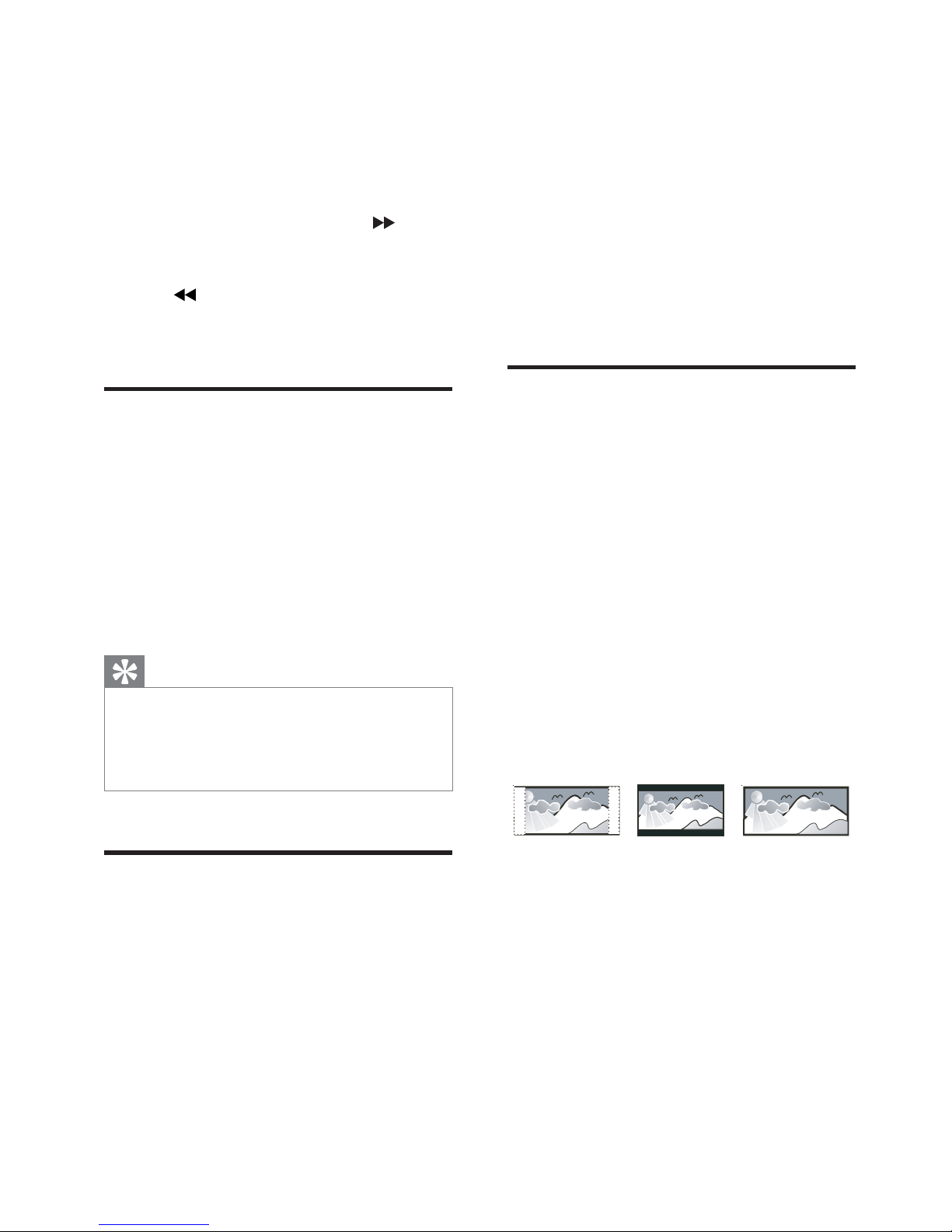

4:3 Letter Box (LB)

4:3 Pan Scan (PS)

16:9 (Wide Screen)

6 Adjust settings

1 Press SYSTEM MENU. 2 Select a setup page. 3 Select an option and then press . 4 Select a setting and then press OK.

• To return to the previous menu, press .

• To exit the menu, press SYSTEM

MENU.

General setup

On the [General Setup] page, you can set the following options:

[OSD language]

Select the preferred language for on-screen display.

[DivX® VOD Code]

Display the DivX® registration code.

Tip

• Enter this DivX registration code when you rent or

purchase video from http://vod.divx.com/. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered.

Audio setup

On the [Audio Setup] page, you can set the following options:

[Digital Output]

Select audio formats supported by the connected device.

• [Off] – Turn off the digital output.

• [PCM] – If the connected device

cannot decode multichannel audio, select this option.

Page 19

English

[Parental Control]

Restricts access to discs that are unsuitable for children. These types of discs must be recorded with ratings.

Press OK. Select a rating level, then press OK. Press the numeric keys to enter the password.

Note

•

Rated discs above the level you set in [Parental Control] require a password to be played.

• The ratings are countr y-dependent. To allow all discs to

play, select [8. Adult].

• Some discs have ratings printed on them but are not

recorded with ratings. This function has no effect on such discs.

[Password]

This setting allows you to change the password for parental control. The default password is

0000.

1) Press the numeric keys to enter ‘0000’ or your last set password at [Old Password]

2) Enter the new password at [New

Password]

3) Enter the new password again at

new password]

4) Press OK to exit the menu.

Note

•

If you forget the password, enter ‘0000’ before you set a new password.

[Version Info]

Display the software version of this apparatus.

[Default]

Reset all the settings to factory default, except for the password and parental settings.

[Component Video]

Set the video output according to the video connection. If the composite connection is used, this setting is not required.

• [S-VIDEO] – If the S-Video connection is used, select this option.

• [Interlaced] – For ordinary TV: turn on the interlace mode.

• [P-Scan] – For progressive scan TV: turn on the progressive scan mode.

Preferences

On the [Preferences] page, you can set the following options:

[Audio]

Select the preferred audio language for disc play.

[Subtitle]

Select the preferred subtitle language for disc play.

[Disc Menu]

Select the preferred disc menu language.

Note

•

If the language you have set is not available on the disc, the disc uses its own default language.

• For some discs, the subtitle/audio language can only be

changed from the disc menu.

[DivX Subtitle]

Select a character set that supports the DivX subtitle.

Note

•

the movie is ‘Movie.avi’, then you will need to name the

ＭＣＤ１２２＿ＵＭ＿７７．ｉｎｄｂ　　　１９２０１１－７－１５　　　１６：０７：１６

Page 20

Program radio stations manually

Note

• You can program a maximum of 20 preset radio

stations.

1 Tune to a radio station. 2 Press ANGLE/PROG to activate

programming.

3 Press / to allocate a number from 1

to 20 to this radio station, and then press ANGLE/PROG to conﬁrm.

» The preset number and the frequency

of the preset station are displayed.

4 Repeat the above steps to program other

stations.

Note

• To overwrite a programmed station, store another

station in its place.

Tune to a preset radio station

Press / to select a preset number that you want.

Tip

• You can also use the numerical keypad to select a

preset station directly.

7 Tune to FM

radio stations

Note

• Ensure that you have connected and fully extended the

supplied FM antenna.

1 Press TUNER. 2 Press and hold / . 3 When the frequency indication starts to

change, release the button.

» The FM tuner tunes to a station with

strong reception automatically.

4 Repeat steps 2-3 to tune to more stations.

To tune to a weak station:

Press

/ repeatedly until you ﬁnd optimal

reception.

Program radio stations automatically

Note

• You can program a maximum of 20 preset radio

stations.

1 In tuner mode, press / to select a

preset number to start programing.

2 Press and hold ANGLE/PROG for

2 seconds to activate automatic programming.

» [AUTO] (auto) is displayed brieﬂy. » All available stations are programmed

in the order of waveband reception strength.

» The ﬁrst programed radio station is

broadcast automatically.

Page 21

English

1 To turn on automatic loudness control,

press LOUD/DBB during play until the loudness icon is displayed.

• To turn off automatic loudness control, press LOUD/DBB until the loudness icon disappears.

Mute sound

During play, press MUTE to mute or restore sound.

8 Adjust volume

level and sound effect

Adjust volume level

During play, press VOL +/- to increase/decrease the volume level.

Select a sound effect

Note

• You cannot use different sound effects at the same

time.

Select a preset sound effect

During play, press DSC repeatedly to select:

• [Classic] (classic)

• [Rock] (rock)

• [Jazz] (jazz)

• [Pop] (pop)

• [FLAT] (ﬂat)

Enhance bass

To turn on bass enhancement, press LOUD/ DBB repeatedly during play until the DBB icon

is displayed.

• To turn off bass enhancement, press LOUD/DBB repeatedly until the DBB icon disappears.

Select automatic loudness control

Automatic loudness control increases the treble and bass effect at low volume levels (the higher the volume, the lower the treble and bass levels).

Page 22

» The unit turns on automatically at

the set time and switches to the last selected source.

• To deactivate the alarm timer, select

[OFF] (off) in step 4.

Set the sleep timer

When the unit is turned on, press SLEEP/ TIMER repeatedly to select a set period of time

(in minutes).

» The unit turns off automatically after

the set period of time.

Listen through headphone

Plug a headphone into the socket on the unit.

Listen to an audio player

You can listen to an external device through this unit.

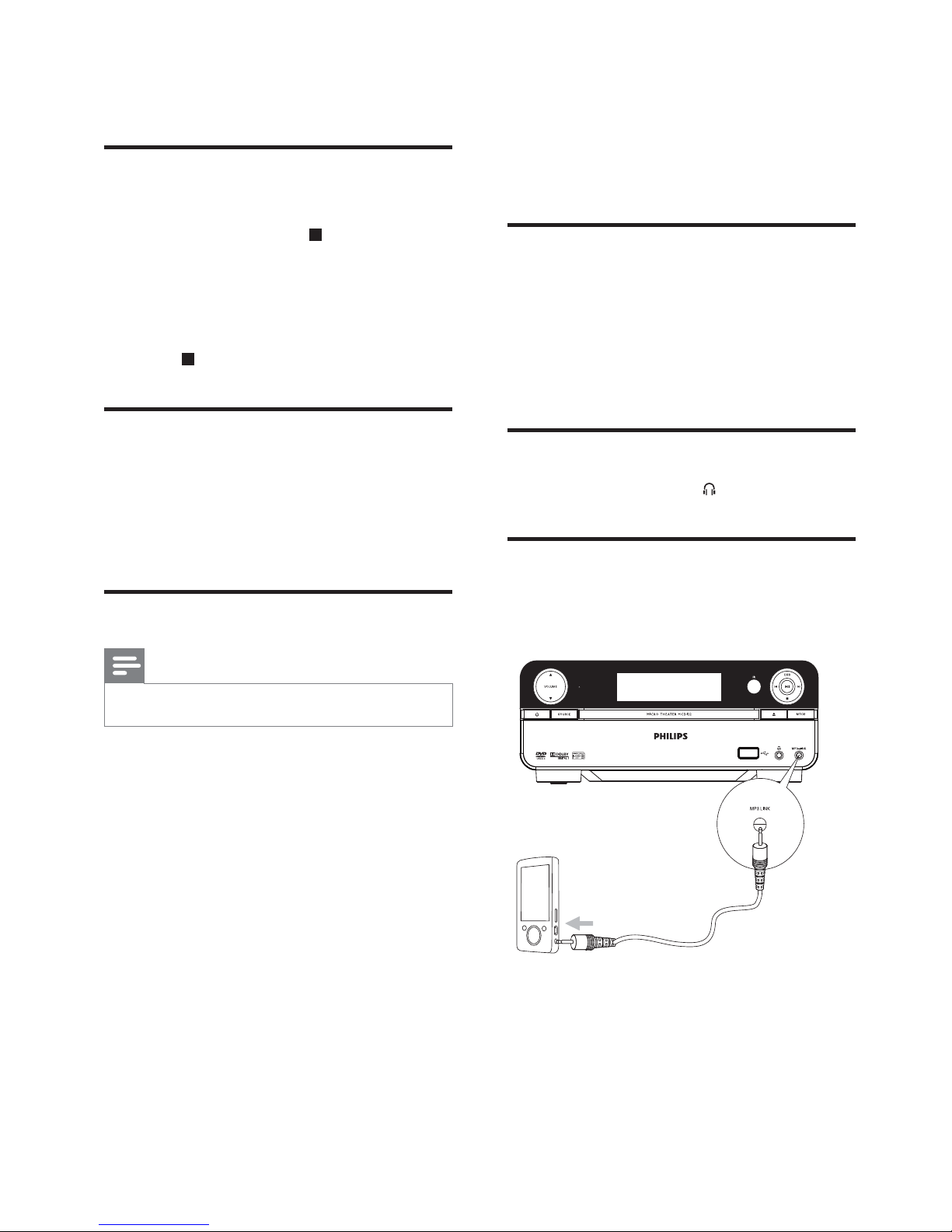

1 Connect an external device.

• For the external device with red/white audio output sockets:

Connect a red/white audio cable (not supplied) to the AUX IN L/R sockets

9 Other features

Activate demonstration mode

You can see an overview of all features.

1 In standby mode, press on the main unit

to activate the demonstration mode.

» A demonstration of major available

features starts.

To deactivate the demonstration mode:

1 Press on the main unit again.

Adjust brightness of display panel

In standby mode, press MODE/DIM repeatedly to select different levels of brightness for the display panel.

Set the alarm timer

Note

• Ensure that you have set the clock correctly.

1 In standby mode, press and hold SLEEP/

TIMER.

» The hour digits are displayed and begin

to blink.

2 Press + VOL - to set the hour, and then

press SLEEP/TIMER again.

» The minute digits are displayed and

begin to blink.

3 Press + VOL - to set the minute, and then

press SLEEP/TIMER to conﬁrm.

» [OFF] (off) begins to blink.

4 To activate the wake-up timer, press + VOL

- to select [ON] (on) while [OFF] (off) is

blinking.

» A clock icon is displayed.

Page 23

English

10 Product

information

Note

• Product information is subject to change without prior

notice.





Rated Output Power 2 x 20 W RMS Frequency Response 20 -20000 Hz, ±3 dB Signal to Noise Ratio >67 dB Aux Input 1 V RMS 20 kohm

Disc

Laser Type Semiconductor Disc Diameter 12 cm/8 cm Video Decoding MPEG-1 / MPEG-2 / DivX Video DAC 12 Bits Signal System PAL / NTSC Video Format 4:3 / 16:9 Video S/N >48 dB Audio DAC 24 Bits / 96 kHz Total Harmonic

Distortion

<1% (1 kHz)

Frequency Response

4 Hz - 20 kHz (44.1 kHz) 4 Hz - 22 kHz (48 kHz) 4 Hz - 24 kHz (96 kHz)

S/N Ratio >67 dBA

and to the audio output sockets on the external device.

• For the external device with headphone socket:

Connect the MP3 Link cable (not supplied) to the MP3 LINK socket and to the headphone socket on the audio player.

2 Select the MP3 Link/AUX source. 3 Start play on the external device.

Record to a digital recorder

You can record audio from this unit to a digital recorder.

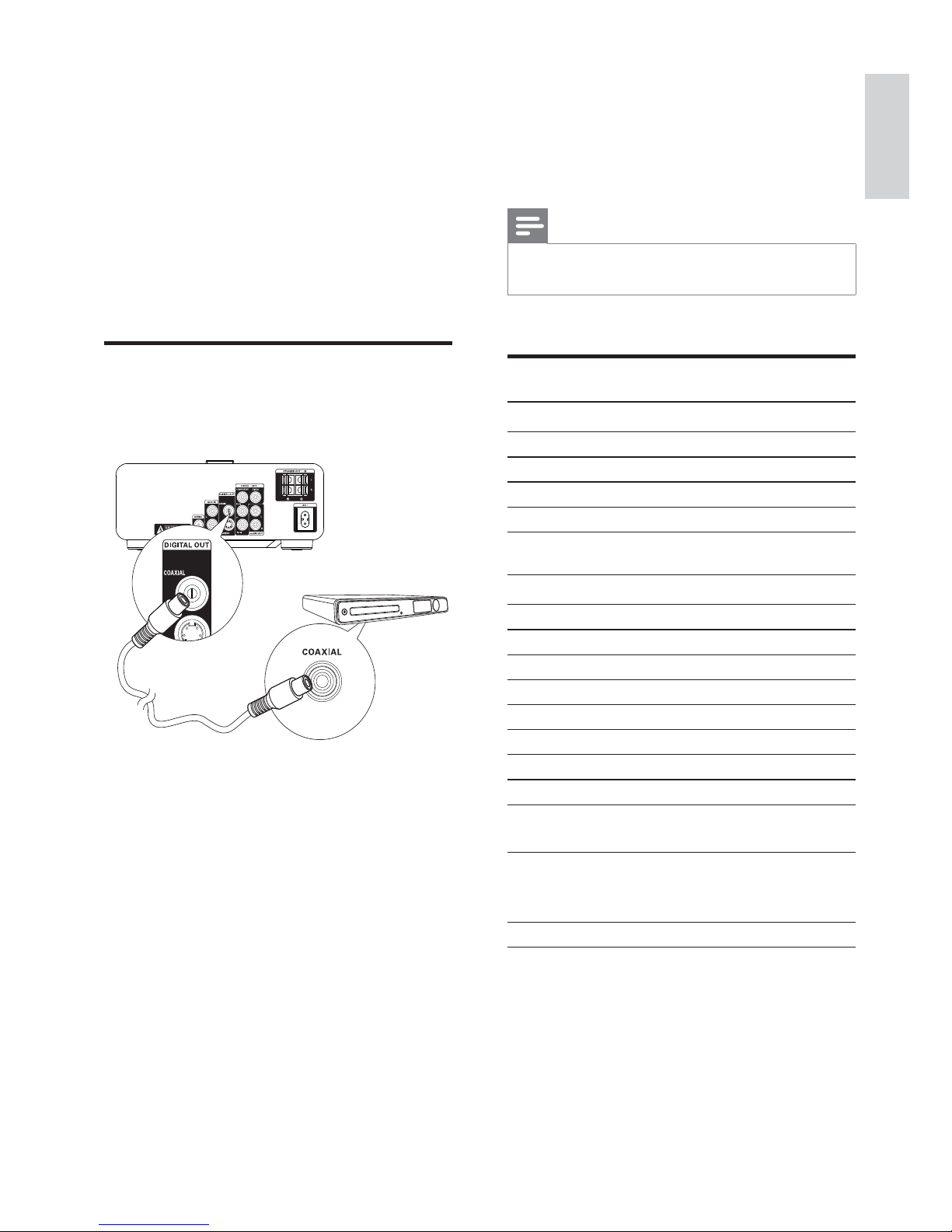

1 Connect a coaxial cable (not supplied) to:

• the COAXIAL socket

• the digital input socket on the digital recorder

2 Play audio to be recorded. 3 Begin to record on the digital recorder

(see the digital recorder user manual).

Page 24

Supported disc formats

• Digital Video Discs (DVDs)

• Video CDs (VCDs)

• Super Video CDs (SVCDs)

• Digital Video Discs + Rewritable (DVD+RW)

• Compact Discs (CDs)

• Picture (Kodak, JPEG) ﬁles on CDR(W)

• DivX(R) disc on CD-R(W):

• DivX 3.11, 4.x and 5.x

• WMA

Supported MP3-CD formats:

• ISO 9660

• Max. title/album name: 12 characters

• Max. title number plus album: 255.

• Max. nested directory: 8 levels.

• Max. album number: 32.

• Max. MP3 track number: 999.

• Supported sampling frequencies for MP3 disc: 32 kHz, 44.1 kHz, 48 kHz.

• Supported Bit-rates of MP3 disc are: 32, 64, 96, 128, 192, 256 (kbps).

• The following formats are not supported:

• Files like *.VMA, *.AAC, *.DLF, *.M3U,

• *.PLS, *.WAV

• Non-English Album/Title name

• Discs recorded in Joliet format

• MP3 Pro and MP3 with ID3 tag

USB playability information

Compatible USB devices:

• USB ﬂash memory (USB 2.0 or

USB1.1)

• USB ﬂash players (USB 2.0 or USB1.1)

• memory cards (requires an additional

card reader to work with this apparatus)

Supported formats:

• USB or memory ﬁle format FAT12,

FAT16, FAT32 (sector size: 512 bytes)

• MP3 bit rate (data rate): 32-320 Kbps

and variable bit rate

Tuner (FM)

Tuning Range 87.5 - 108 MHz Tuning grid 50 KHz Sensitivity - Mono, 26dB

S/N Ratio

<22 dBf

Sensitivity - Stereo, 46dB S/N Ratio

>43 dBf

Search Selectivity >28 dBf Total Harmonic Distortion <3% Signal to Noise Ratio >50 dB

Speakers

Speaker Impedance 8 ohm Speaker Driver 4” Full range Sensitivity >82 dB/m/W

General information

AC power 110 - 240 V, 50/60

Operation Power Consumption

25 W

Eco Standby Power Consumption

0.8 W

Composite Video Output 1.0 Vp-p, 75 ohm Coaxial Output 0.5 Vpp ± 0.1 Vpp

75 ohm

Headphone Output 2 x 15 mW 32

ohm USB Direct Version 2.0 Dimensions

- Main Unit (W x H x D)

- Speaker Box (W x H

x D)

220 x 90 x

240 mm

140 x 220 x

160 mm Weight

- With Packing

- Main Unit

- Speaker Box

6 kg

1.65 kg

2 x 1.5 kg

Page 25

English

11 Troubleshooting

Caution

• Never remove the casing of this unit.

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/suppor t). When you contact Philips, ensure that your unit is nearby and the model number and serial number are available.

No power

 Ensure that the AC cord of the apparatus

is connected properly.  Ensure that there is power at the AC outlet.  As a power-saving feature, the system

switches off automatically 15 minutes after

track play reaches the end and no control

is operated.

No disc detected

 Insert a disc.  Check if the disc is inserted upside down.  Wait until the moisture condensation at

the lens has cleared.  Replace or clean the disc.  Use a ﬁnalized CD or correct format disc.

No picture

 Check the video connection.  Turn on the TV to the correct Video-In

channel.  Progressive scan is activated but the TV

does not support progressive scan.

Black and white or distorted picture

 The disc does not match the TV color

system standard (PAL/NTSC).  Sometimes a slight picture distortion may

appear. This is not a malfunction.  Clean the disc.  A distorted picture may appear during

progressive scan setup.

• WMA v9 or earlier

• Directory nesting up to a maximum of 8 levels

• Number of albums/ folders: maximum 99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/ WMA ﬁles, and is not be shown in the display.

• Unsupported ﬁle formats are skipped. For example, Word documents (.doc) or MP3 ﬁles with extension .dlf are ignored and not played.

• AAC, WAV, PCM audio ﬁles

• DRM protected WMA ﬁles (.wav, .m4a, .m4p, .mp4, .aac)

• WMA ﬁles in Lossless format

Page 26

Poor radio reception

 Increase the distance between the unit and

your TV or VCR.  Fully extend the FM antenna.  Connect an outdoor FM antenna instead.

Audio or subtitle languages cannot be set

 The disc is not recorded with sound or

subtitles in multiple languages.  The audio or subtitle language setting is

prohibited on the disc.

!"#$"%

 The number of folders or ﬁles in the USB

device has exceeded a certain limit. This

phenomenon is not a malfunction.  The formats of these ﬁles are not

supported.

USB device not supported

The USB device is incompatible with the unit. Try another one.

Timer does not work

 Set the clock correctly.  Switch on the timer.

Clock/timer setting erased

 Power has been interrupted or the power

cord has been disconnected.  Reset the clock/timer.

The aspect ratio of the TV screen cannot be changed even though you have set the TV display format.

 The aspect ratio is ﬁxed on the loaded

DVD disc.

 The aspect ratio may not be changed for

some TV systems.

No sound or poor sound

 Adjust the volume.  Disconnect the headphones.  Check that the speakers are connected

correctly.

 Check if the stripped speaker wires are

clamped.

Remote control does not work

 Before you press any function button, ﬁrst

select the correct source with the remote control instead of the main unit.

 Reduce the distance between the remote

control and the unit.

 Insert the battery with its polarities (+/–

signs) aligned as indicated.  Replace the battery.  Aim the remote control directly at the

sensor on the front of the unit.

Disc does not play

 Insert a readable disc and ensure that the

label side faces up.  Check the disc type, color system and

regional code. Check for any scratches or

smudges on the disc.

 Press SYSTEM MENU to exit the system

setup menu.  Disable the password for parental control

or change the rating level.  Moisture has condensed inside the system.

Remove the disc and leave the system

turned on for about an hour. Disconnect

and reconnect the AC power plug, and

then turn on the system again.  As a power-saving feature, the system

turns off automatically 15 minutes after

disc play reaches the end and no control is

operated.

Page 27

Page 28

MCD122_UM_77_V2.0
