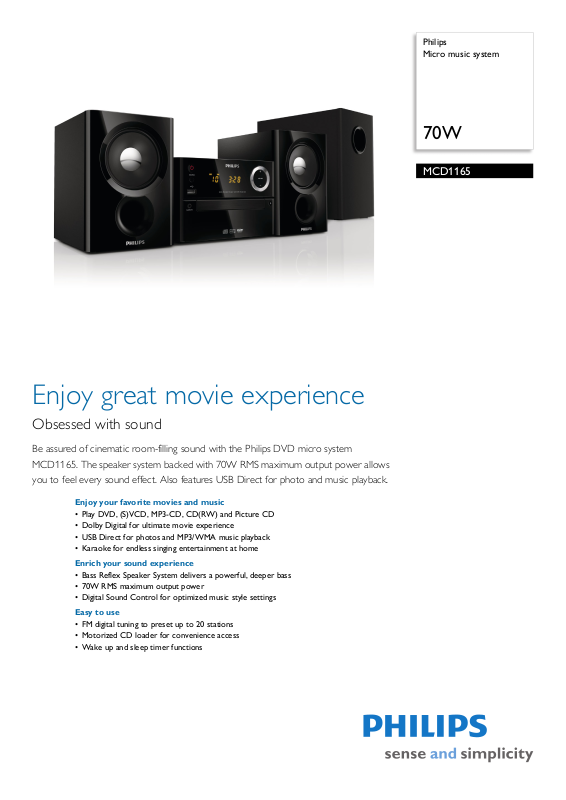

Page 1
Philips
Micro music system
70W
MCD1165
Enjoy great movie experience
Obsessed with sound
Be assured of cinematic room-filling sound with the Philips DVD micro system
MCD1165. The speaker system backed with 70W RMS maximum output power allows
you to feel every sound effect. Also features USB Direct for photo and music playback.
Enjoy your favorite movies and music
• Play DVD, (S)VCD, MP3-CD, CD(RW) and Picture CD
• Dolby Digital for ultimate movie experience
• USB Direct for photos and MP3/WMA music playback
• Karaoke for endless singing entertainment at home
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• 70W RMS maximum output power
• Digital Sound Control for optimized music style settings
Easy to use
• FM digital tuning to preset up to 20 stations
• Motorized CD loader for convenience access
• Wake up and sleep timer functions
Page 2
Micro music system
70W
Highlights
MCD1165/55
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimize the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by resonating the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Karaoke for endless singing
Karaoke for endless singing entertainment at
home
Digital Sound Control
Digital Sound Control offers you a choice of
pre-set Balance, Clear, Powerful, Warm and
Bright controls you can use to optimise the
frequency ranges for different musical styles.
Each mode uses graphic equalizing technology
to automatically adjust the sound balance and
enhance the most important sound
frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it
easy for you get the most out of your music by
precisely adjusting the sound balance to match
the type of music you are playing.
Page 3
Micro music system
70W
Specifications
MCD1165/55
Sound
• Sound Enhancement: Digital Sound Control
• Sound System: Dolby Digital
• Maximum output power (RMS): 70W
Loudspeakers
• Speaker drivers: 3.5"
• Subwoofer types: passive
Video Playback
• Playback Media: DivX, DVD-Video, Picture CD,
Video CD/SVCD, DVD+R/+RW, DVD-R/-RW
• Disc Playback Modes: A-B Repeat, Angle, PBC,
w Motion, Zoom, Parental control, Disc Menu,
Slo
Fast Backward, Fast Forward, OSD, Resume
Playback from Stop
•DVD Region.: 4
• Video Enhancement: Progressive Scan
Audio Playback
• Playback Media: MP3-CD, CD, CD-R, CD-RW
• Disc Playback Modes: 20-Track Programmable,
eat/one/all/program, Shuffle Play, Fast Forward/
Rep
Backward, Next/Previous Track Search
• Loader Type: Motorised, Tray
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
Shuffle, Stop
s/Next, Program Play, Repeat,
Still Picture Playback
• Picture Compression Format: JPEG
• Picture Enhancement: Slideshow with MP3
back
play
• Playback Media: Picture CD, CD-R/RW, DVD+R/
+RW
• Auto digital tuning
• Tuner Enhancements: Auto Store
• Station presets: 20
Connectivity
• Video Output - Analog: Composite CVBS (yellow
cinch), Component Y Pb Pr (cinch)
• Audio Connections: Analogue Audio In (L/R)
• USB: USB host
• Microphone: Microphone socket
Convenience
• Alarms: CD Alarm, Sleep timer, Radio Alarm, USB
alarm
• Clock: On main display
• Indications: DIM mode
Accessories
• Included accessories: Composite video cable (Y),
AC Power Cord
• User Manual: Multi-languages
•Remote control
Dimensions
•Gross weight: 7.5 kg
• Main unit depth: 220.4 mm
• Main unit height: 119 mm
• Main unit width: 180 mm
• Main speaker dimensions (W x D): 127 x 160 mm
• Main speaker height: 170 mm
• Subwoofer dimensions (W x H x D):
0 x 265 x 250 mm
17
• Packaging depth: 557 mm
• Packaging height: 244 mm
• Packaging width: 557 mm
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
Power
• Power supply: 100-240V, 50/60 Hz
•
Issue date 2013-04-15
Version: 1.0.2
12 NC: 8670 001 02907
EAN: 87 12581 68751 9
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
