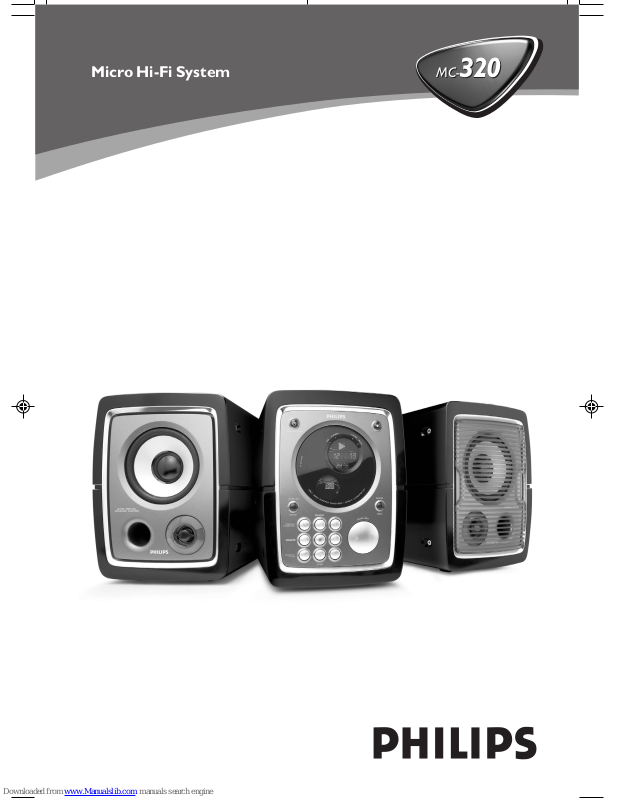

Micro Hi-Fi System
MC-
MC-
320
320
1
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio MC-320 Philips
risponde alle prescrizioni dell’ar t. 2 comma 1 del
D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
2
0
9
5
4
9
8
7
!
@
6
2
#
$
3
*
&
^
%
1
6
5
4
3
2
3
3
DK
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen
muulla kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina
silloin, kun pistoke on pistorasiassa.
4
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 22
Español --------------------------------------------- 38
Deutsch --------------------------------------------- 54
Nederlands ---------------------------------------- 70
English
Français
EspañolDeutschNederlandsItalianoSvenskaDanskSuomi
Italiano ---------------------------------------------- 86
Svenska ------------------------------------------- 102
Dansk --------------------------------------------- 118
Suomi --------------------------------------------- 134
Português ---------------------------------------- 150
EППЛУИО¿ ----------------------------------------- 166
Português
EППЛУИО¿
5
Contents
English
General Information
Environmental information ................................ 7
Supplied accessories ............................................ 7
Safety information ................................................ 7
Preparations
Rear connections .......................................... 8 – 9
Optional connection ........................................... 9
Before using the remote control ...................... 9
Replacing battery (lithium CR2025) into the
remote control ..................................................... 9
Controls
Controls on the system and remote
control .................................................................. 10
Basic Functions
Switching the system on ................................... 11
Switch the system to
Eco Power Standby mode ................................ 11
Power Saving Automatic Standby.................... 11
Adjusting volume and sound............................ 11
Clock/Timer
Setting the clock ................................................. 18
Setting the timer ................................................. 18
Activating and deactivating TIMER ................. 18
Activating and deactivating SLEEP .................. 19
Specifications ........................................... 19
Maintenance.............................................. 20
Troubleshooting ............................. 20–21
CD Operation
Playing a disc ........................................................ 12
Display CD play time ......................................... 12
Selecting a different track ................................. 13
Finding a passage within a track ...................... 13
Different play modes: Shuffle and Repeat ..... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
Radio Reception
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Tuning to preset radio stations ....................... 15
RDS ....................................................................... 15
Searching programme type (PTY) .................. 15
Tape Operation / Recording
Tape playback ...................................................... 16
Switching tape sides ........................................... 16
Reverse mode options ...................................... 16
General information on recording ................. 16
Synchro start CD recording ............................ 17
Recording from the radio................................. 17
Recording from the Aux ................................... 17
Recording timer .................................................. 17
6
General Information
This product complies with the radio
interference requirements of the European
Community.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
– 2 speaker boxes
– remote control (with battery)
– AM loop antenna
– FM wire antenna
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
7
Preparations
English
FM wire antenna
speaker
(right)
AC power cord
AM loop
antenna
speaker
B
(left)
C
A
Rear connections
The type plate is located at the rear of the
system.
A Power
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
B Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
8
Preparations
A
C
R
2
0
2
5
L
I
T
H
I
U
M
B
➠
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) terminal.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", colored (marked) wire to
"+" and black (unmarked) wire to "-".
● Fully inser t the stripped portion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Before using the remote control
1 Pull out the plastic protective sheet.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3 Then select the desired function (for example
, , ).
plastic
protective
sheet
Replacing battery (lithium
CR2025) into the remote control
1 Pull out the knob A slightly to the left.
2 Pull out the battery compartment B .
3 Replace a new battery and fully insert the
battery compartment back to the original
position.
English
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX left terminal. Alternatively, you can use a
“single to double” cinch cable (the output sound
still remain mono).
CAUTION!
Batteries contain chemical substances, so
they should be disposed off properly.
9
Controls (illustrations on page 3)
English
Controls on the system and
remote control
1 Display
– shows the status of the system.
2 PROG/ REV
for CD ................. programmes tracks and reviews
the programme.
for TUNER ........ programmes tuner stations
manually or automatically.
for TAPE.............. sets tape reverse modes
3 CLOCK SET • RDS /
for CLOCK ....... set the clock function.
for CD ................. starts or interrupts CD playback
for TAPE.............. starts the tape playback
4 Mode Selection
VOLUME (-/+)
– adjusts the volume level.
– on the system only - adjusts the hour and minutes
for the clock/ timer functions.
PRESET/ TIMER SET /
for TUNER ........ selects a preset radio station.
for CD ................. skips to the beginning of a
current track/previous/
subsequent track
for Timer ( only) to set timer under standby
SEARCH/ TUNE /
for TUNER ........ Tune to a station
for CD ................. fast searches back and forward
within a track/CD.
for TAPE.............. fast rewind/ wind tape
STOP 9
................................. stops CD playback or erase a
CD programme.
................................. stops tape playback/recording.
REC ● ............... starts recording.
5 SOURCE ●
– selects the respective sound source for CD/
TUNER/ TAPE /AUX.
– switches on the system.
6 DISPLAY-BAND (on the remote control
DISPLAY A/B)
for TUNER ........ change the tuner radio
band.(FM/ MW/ LW)
for CD ................. change the CD display mode
for TAPE.............. switches tape direction
7 iR SENSOR
– infrared sensor for remote control.
8 ECO POWER indicator
9 STANDBY ON2
– switches the system to standby.
0 PHONES - connects to headphone.
! - open/ close the cassette door.
@ CD OPEN
– open the CD door.
# INTERACTIVE SOUND controls:
DBB .................... (Dynamic Bass Boost) enhances
the bass.
DSC ..................... (Digital Sound Control) selects
sound characteristics: CLASSIC/
JAZZ/ ROCK/ OPTIMAL.
INCREDIBLE SURR.
(IS) ....................... creates a super-enhanced stereo
effect.
$ REPEAT
– repeats a track/ CD programme/ entire CD.
% SHUFFLE
– plays CD tracks in random order.
^ MUTE
– interrupts and resumes sound reproduction.
& SLEEP
– activates/deactivates or selects the sleeper time.
* TIMER ON / OFF
– activates/deactivates the timer function.
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD,
TUNER).
– Then select the desired function (for
example ,
, ).
10
IMPORTANT!
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press 2 STANDBY ON.
➜ The system will switch to the last selected
source.
● Press CD, TUNER, TAPE or AUX on the
remote control.
➜ The system will switch to the selected source.
Switch the system to Eco Power
Standby mode
● Press 2 STANDBY ON.
➜ "ECO PWR" will be displayed, then the display
screen will go blank.
➜ The ECO POWER LED will be lighted.
Basic Functions
Power Saving Automatic Standby
As a power-saving feature, the system
automatically switches to Eco standby 15
minutes after a tape or CD has reached the end
and no control is operated.
Adjusting volume and sound
1 Press VOLUME-/+ to decrease to increase
volume on the system.
➜ Display shows the volume level VOL and a
number from MIN1, 2, ...38, 39 MAX.
2 Press DSC repeatedly to select the desired
sound effect: CLASSIC/ JAZZ/ ROCK/
OPTIMAL.
3 Press DBB to switch bass enhancement on or
off.
➜ Display shows: DBB ON or DBB OFF.
4 Press IS on the remote control
to switch the surround sound
effect on or off.
➜ Display shows: IS ON or IS
OFF.
Note:
– The effect of INCREDIBLE SURROUND may
vary with different types of music.
5 Press MUTE on the remote control to
interrupt sound reproduction instantly.
➜ Playback will continue without sound and the
display shows MUTE.
● To activate sound reproduction you can:
– press MUTE again;
– adjust the volume controls;
– change source.
English
Note:
– To view clock time in standby mode. Press and
hold STANDBY ON for more than 3 seconds, the
clock time is displayed dimly.
➜
The Eco Power indicator goes off.
● If in recording mode, press STOP 9 first.
➜ The volume level(up to a maximum volume
level of 20), interactive sound settings, last
selected source and tuner presets will be
retained in the player's memory.
11
CD Operation
English
IMPORTANT!
The lens of the CD player should never be
touched.
4 Press to start playback.
➜ Current track number and elapsed playing
time of the track are displayed during disc
playback.
5 To interrupt playback press . Press again
to resume play.
6 To stop disc playback, press STOP 9.
Note: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TAPE, TUNER or AUX.
Displaying CD play time
Normal CD playback mode
● Press DISPLAY repeatedly, the following
information will be displayed consecutively.
– Track number and elapsed play time of current
track
– Track number and remaining play time of current
track
– Track number and total elapsed play time of the
disc
– Total remaining number of tracks and total
remaining time.
Playing a disc
● CD-ROM, CD-I, CDV, VCD, MP3, DVD or
computer CDs, however, are not possible.
1 Select CD source.
2 Press CD OPEN on the top
of the system to open the CD compartment.
➜ CD OPEN is displayed when you
open the CD compartment.
3 Put a disc with the printed side facing up and
press down. Push the front panel to close.
➜ READING is displayed as the CD player
scans the contents of a disc, and then the total
number of tracks and playing time are shown.
CD SHUFFLE and REPEAT playback mode
● Press DISPLAY repeatedly, following
information will be displayed consecutively.
– Track number and elapsed play time of current
track
– Track number and remaining play time of current
track
CD PROGRAM playback mode
● Press DISPLAY repeatedly, following
information will be displayed consecutively
– Track number and elapsed play time of current
track
– Track number and remaining play time of current
track
– Current program number and track number
12
CD Operation
Selecting a different track
● Press or once or repeatedly until the
desired track number appears in the display.
● If you have selected a track number shortly after
loading a disc or in the PAUSE position, you will
need to press to start playback.
Finding a passage within a track
1 Press and hold down on or
➜ The disc is played at high speed and low
volume.
2 When you recognise the passage you want,
release or .
➜ Normal playback continues.
Note:
– During a disc programme or if SHUFFLE/
REPEAT active, searching is only possible within the
same track.
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The REPEAT
modes can also be combined with PROGRAM.
SHUFFLE ......... tracks of the entire disc are
played in random order
SHUFFLE and REPEAT ALL…to repeat the
entire disc continuously in
random order
REPEAT ALL ... repeats the entire disc/ program
REPEAT ............plays the current track
continuously
1 To select your play mode, press the SHUFFLE
or REPEAT on the remote control before or
during playback until the display shows the
desired function. (SHUF, REPEAT, REPEAT ALL)
Programming track numbers
Program in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
40 tracks can be stored in the memory.
1 Press PROG / REV (or PROGRAM / REV on
remote control) to enter the programming
mode.
➜ A track number is shown and PROGRAM
flashes.
2 Use the or to select your desired track
number.
3 Press PROG / REV (or PROGRAM / REV on
remote control) to confirm the track number to
be stored.
➜ The number of tracks programmed is shown.
4 Repeat steps 2-3 to select and store all desired
tracks.
➜ MEMORY FULL is displayed if you attempt to
program more than 40 tracks.
5 To star t playback of your disc program, press
STOP 9 followed by or press directly.
Reviewing the program
In STOP mode, press and hold PROG / REV.
Until the display shows all your stored track
number in sequence.
Erasing the program
You can erase the program by:
● pressing STOP 9 twice during playback;
● opening the CD compar tment;
➜ PROGRAM disappears from the display.
English
2 Press to start playback if in the STOP
position.
➜ If you have selected SHUFFLE, playback starts
automatically.
3 To return to normal playback, press the
respective SHUFFLE or REPEAT button until
the various SHUFFLE / REPEAT modes are no
longer displayed.
● You can also press STOP 9 to cancel your play
mode.
13
Radio Reception
English
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
Automatic programming
Automatic programming will start with a chosen
preset number. From this preset number
upwards, former programmed radio stations will
be overridden. The system will only program
stations which are not in the memory already.
1 Press PRESET or to select the preset
number where programming should start.
Note:
– If no preset number is selected, default is preset
(1) and all your presets will be overridden.
Tuning to radio stations
1 Select TUNER source.
➜ TUNER is displayed briefly.
2 Press BAND (or DISPLAY on remote control)
once or more to select your waveband (FM/
MW/ LW).
3 Press down TUNE or and release
button.
➜ The radio automatically tunes to a station
with sufficient reception. Display indication during
automatic tuning: SEARCH.
➜ If a FM station is received in stereo, is
shown.
4 Repeat step 3 if necessary until you find the
desired station.
● To tune to a weak station, press TUNE or
briefly and repeatedly until you have found
optimal reception.
2 Press PROG / REV (PROGRAM on remote
control) for more than 2 seconds to activate
programming.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength: FM followed by MW, LW. The last
preset automatically stored will then be played.
Manual programming
1 Tune to your desired station (see “Tuning to
radio stations”).
2 Press PROG / REV (PROGRAM on remote
control) to activate programming.
3 Press PRESET or to allocate a number
from 1 to 40 to this station.
4 Press PROG / REV (PROGRAM on remote
control) again to confirm the setting.
➜ The preset number and the frequency of the
preset station are shown.
5 Repeat the above four steps to store other
stations.
14
● You can override a preset station by storing
another frequency in its place.
Radio Reception
Tuning to preset radio stations
● Press PRESET or until the desired preset
station is displayed.
RDS
Radio Data System is a service that allows
FM stations to show additional information. If
you are receiving a RDS station, RDS and the
station name are displayed.
Scrolling through different CLOCK SET
• RDS / information
● Press CLOCK SET • RDS / briefly and
repeatedly to scroll through the following
information (if available):
– Station name
– Programme type such as NEWS, SPORT,
POP M ...
– Radio text messages
Note:
– If you press CLOCK SET • RDS / and the
signal is not available NO TYPE is displayed.
Searching programme type
(PTY)
PTY helps you find a desired programme type.
To enable PTY, first programme RDS stations
into the tuner memory (see “Programming radio
stations”)
1 While receiving an RDS station, press CLOCK
SET • RDS / briefly until the programme
type is displayed.
2 Press PRESET or (on the remote
control or ) until the desired programme
type is displayed.
3 Press and hold down on TUNE or
(on the remote control or ) to start
searching.
➜ The radio tunes to a RDS station
broadcasting this programme type. If the
programme type is not available TYPE NOT
FOUND is displayed.
RDS Programme types
NO TYPE .......... No programme type or
undefined
NEWS .................... News
AFFAIRS .......... Current Affairs
INFO .................... Information
SPORT ................ Sport
EDUCATE .......... Education
DRAMA ................ Drama
CULTURE .......... Culture
SCIENCE .......... Science
VARIED ............. Varied
POP M ................. Pop Music
ROCK M .............. Rock Music
EASY M .............. Easy Listening Music
LIGHT M .......... Light classical Music
CLASSICS ...... Serious Classical Music
OTHER M .......... Other Music
WEATHER .......... Weather
FINANCE .......... Finance
CHILDREN ...... Children’s programmes
SOCIAL ............. Social Affairs
RELIGION ...... Religion
PHONE IN ....... Phone In
TRAVEL ............. Travel
LEISURE .......... Leisure
JAZZ .................... Jazz Music
COUNTRY .......... Country Music
NATION M ....... National Music
OLDIES ............. Oldies Music
FOLK M .............. Folk Music
DOCUMENT ...... Documentary
TEST .................... Alarm Test
ALARM ................ Alarm
English
15
Tape Operation / Recording
English
Tape playback
Switching tape sides
The tape side can be switched manually or
automatically before or during tape playback.
● Press DISPLAY BAND or A/B on remote
control.
➜ The display shows SIDE A or SIDE B.
Reverse mode options
● Press PROG / REV repeatedly to select your
option;
PLAY 1 SIDE : playback or record stops at
the end of the tape.
PLAY A AND B : both sides are or recorded
played once.
REPEAT A AND B : both sides are played
repeatedly, up to 5 times
each side.
1 Select TAPE source.
2 Press to open the tape door on the top of the
system.
3 Insert a recorded tape and close the tape door.
● Load the tape with the open side downward
and the full spool to the right.
➜ The display shows TAPE briefly. The tape
counter 0000 display with the SIDE A or SIDE B.
4 Press to start playback.
5 By pressing or , fast winding of tape is
possible in both directions.
● During fast winding, you can monitor the tape
message with the tape counter.
6 To stop the tape, press STOP 9 .
● To reset the tape counter, press STOP 9 again.
Note:
– The sound source cannot be changed while
recording a tape.
– “NO TAPE” will be shown if no tape inserted.
General information on
recording
● Recording is permissible insofar as copyright or
other rights of third parties are not infringed.
● For recording, use only NORMAL (IEC type I)
tapes on which the tabs have not yet been
broken. This deck is not suited for recording on
METAL (IEC IV) type tapes.
● The best recording level is set automatically.
Altering the VOLUME, INCREDIBLE
SURROUND, DBB or INTERACTIVE SOUND
controls will not affect the recording in progress.
● At the very beginning and end of the tape, no
recording will take place during the 7 seconds
when the leader tape passes the recorder heads.
● To protect a tape from accidental erasure, have
the tape in front of you and break out the left
tab. Recording on this side is no longer possible.
If, however, you wish to record over this side
again, cover the tabs with a piece of adhesive
tape.
16
Tape Operation / Recording
Synchro start CD recording
1 Select CD source.
2 Insert a disc and if desired, program track
numbers.
3 Press to open the tape door.
4 Insert a suitable tape into the deck and close the
tape door.
5 Press REC to start recording.
➜ REC is shown during recording.
➜ Playing of the CD program starts
automatically from the beginning of the CD
after 7 seconds. It is not necessary to start the
CD player separately.
6 To stop recording, press STOP 9.
Recording from the radio
1 Select TUNER SOURCE and tune to the
desired radio station (see “Tuning to radio
stations”).
2 Press to open the tape door.
3 Insert a suitable tape into the deck and close the
tape door.
4 Press REC to start recording.
➜ REC is shown during recording.
Recording timer
To record from the radio, you will need to use a
preset radio station and to set a start (ON) and
finish (OFF) time.
1 Insert a suitable tape into the deck.
➜ If desired, press PROG / REV to select tape
reverse mode option.
PLAY 1 SIDE : for recording one side only
PLAY A AND B : for recording on both sides
REPEAT A AND B : for recording on both sides
2 Select TUNER SOURCE and the preset radio
station to record from.
3 Press STANDBY ON to switch the system to
standby mode. Press TIMER SET / for more
than 2 seconds.
➜ flashes and a source is displayed.
4 Press SOURCE repeatedly or press VOLUME
–/+ until REC TUN source is displayed.
5 Press TIMER SET / to confirm the source.
➜ SET ON TIME is displayed, and the clock
digits for the hours flash.
6 Press VOLUME –/+ to set the hours.
7 Press TIMER SET / again.
➜ The clock digits for the minutes flash.
8 Press VOLUME –/+ to set the minutes.
English
5 To stop recording, press STOP 9.
Recording from Aux
1 Select AUX source.
2 If necessary, prepare the additional appliance for
recording.
3 Press REC to start recording.
➜ REC is shown during recording.
4 To stop recording, press STOP 9.
9 Press TIMER SET / to confirm the ON star t
time.
➜ SET OFF TIME is displayed, and the
clock digits for the hours flash.
10 Repeat steps 6-8 to set the finish time.
11 Press TIMER SET / to confirm the timer
settings.
➜ is shown and the recording timer is now
set.
17
Clock/Timer
English
Setting the clock
1 In standby, press and hold CLOCK SET • RDS
/ .
➜ The clock digits for the hours flash.
2 Press VOLUME –/+ to set the hours.
3 Press CLOCK SET • RDS / again.
➜ The clock digits for the minutes flash.
4 Press VOLUME –/+ to set the minutes.
5 Press CLOCK SET • RDS / to confirm
the time.
Setting the timer
● The system can be used as an alarm clock,
whereby the CD, TUNER or TAPE is switched on
at a set time. The clock time needs to be set first
before the timer can be used.
● You can also use it to record a favourite tuner
programme at a set period (see “Recording
timer”)
● During setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
1 In standby mode, press TIMER SET / on the
system for more than 3 seconds.
2 Press SOURCE or VOLUME –/+ to select
sound source.
➜ Display sequence shows CD, TUNER, TAPE or
REC TUN.
3 Press TIMER SET / to confirm your desired
mode.
➜ Display sequence scrolls SET ON TIME and
flashes. The clock digits for the hours flash.
4 Press VOLUME –/+ to set the hours.
5 Press TIMER SET / again.
➜ The clock digits for the minutes flash.
6 Press VOLUME –/+ to set the minutes.
7 Press TIMER SET / to confirm the time.
➜ The timer is now set and activated.
Note:
– The backlight for clock display is dim in standby.
18
Activating and deactivating
TIMER
● In standby or during playback, press
TIMER ON / OFF on the remote control
once.
➜ Display shows if activated, and disappears
if deactivated.
Clock/Timer
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time.
● Press SLEEP on the remote
control once or more.
➜ Display shows SLEEP and
one of the sleep time options
in sequence: 90, 80, 70, 60,...,
20,10, OFF, 90. if you have
selected a time. Once SLEEP is activated, SLEEP
is display.
● To deactivate, press SLEEP on the remote
control once or more until OFF is shown, or
press STANDBY ON on the system or
remote control.
➜ OFF is displayed.
English
AMPLIFIER
Output power ....................................... 2 x 20 W RMS
............................................................ 40 W + 40 W MPO
Signal-to-noise ratio ....................................... ≥ 62 dBA
Frequency response ......... 63 – 16000 Hz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers ......................................... 6 Ω
Impedance headphones .................... 32 Ω -1000 Ω
......................................................................................... <0.5W
CD PLAYER
Frequency range .................................. 30 – 16000 Hz
Signal-to-noise ratio ............................................ 75 dBA
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range ................................ 531 – 1602 kHz
LW wave range ..................................... 153 – 279 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distortion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio ...................................... ≥ 50 dBA
Specifications
TAPE DECK
Frequency response
Normal tape (type I) ...... 80 – 12500 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 50 dBA
Wow and flutter ......................................... ≤ 0.4% DIN
SPEAKERS
Bass reflex system
Dimensions (w x h x d) .. 166 x 225 x 244(mm)
GENERAL INFORMATION
AC Power .....................................220 – 240 V / 50 Hz
Dimensions (w x h x d) ... 166 x 225 x 274(mm)
Weight(with/without speakers) ........... 9.4 / 4.8 kg
Standby power consumption ............................ <6W
Eco power standby .............................................. <0.5W
Subject to modification
19
Maintenance
English
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dir ty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic
spray intended for analogue records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
Cleaning the Heads and the Tape Paths
● To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and
pressure roller(s) C after every 50 hours of
tape operation.
Caution: Do not rotate the heads during
cleaning.
● Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
● You can also clean the heads by playing a
cleaning tape once.
Demagnetising the heads
● Use a demagnetising tape available at your
dealer.
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or service center.
Problem Solution
CD OPERATION
“NO DISC” is displayed. – Insert a disc.
20
– Check if the disc is inserted upside down.
– Wait until the moisture condensation at the lens
has cleared.
– Replace or clean the disc, see “Maintenance”.
– Use a finalised CD-RW or CD-R.
Troubleshooting
RADIO RECEPTION
Radio reception is poor. – If the signal is too weak, adjust the antenna or
connect an external antenna for better reception.
– Increase the distance between the Micro HiFi
System and your TV or VCR.
TAPE OPERATION / RECORDING
Recording or playback cannot be made. – Clean deck parts, see “Maintenance”.
– Use only normal (IEC I) tape for recording.
“CHECK TAPE” is displayed. – Apply a piece of adhesive tape over the missing
tab space.
The tape deck door cannot open. – Remove and reconnect the AC power plug and
switch on the system again.
GENERAL
The system does not react when buttons – Remove and reconnect the AC power plug and
are pressed. switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume.
quality. – Disconnect the headphones.
– Check that the speakers are connected correctly.
– Check if the stripped speaker wire is clamped.
The left and right sound outputs are – Check the speaker connections and location.
reversed.
The remote control does not function – Select the source (CD or TUNER, for example)
properly. before pressing the function button ( , , ).
– Reduce the distance between the remote control
and the system.
– Insert the battery with its polarities
(+/– signs) aligned as indicated.
– Replace the battery.
– Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working. – Set the clock correctly.
– Press TIMER ON / OFF to switch on the timer.
– If a recording is in progress, stop the recording.
The Clock/Timer setting is erased. – Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
English
21
English
Français
Español Deutsch
Nederlands
Meet Philips at the Internet
http://www.philips.com
Italiano
Svenska
Dansk Suomi
Português
EППЛУИО¿
MC-320
CLASS 1
LASER PRODUCT
hk-313
Loading...
