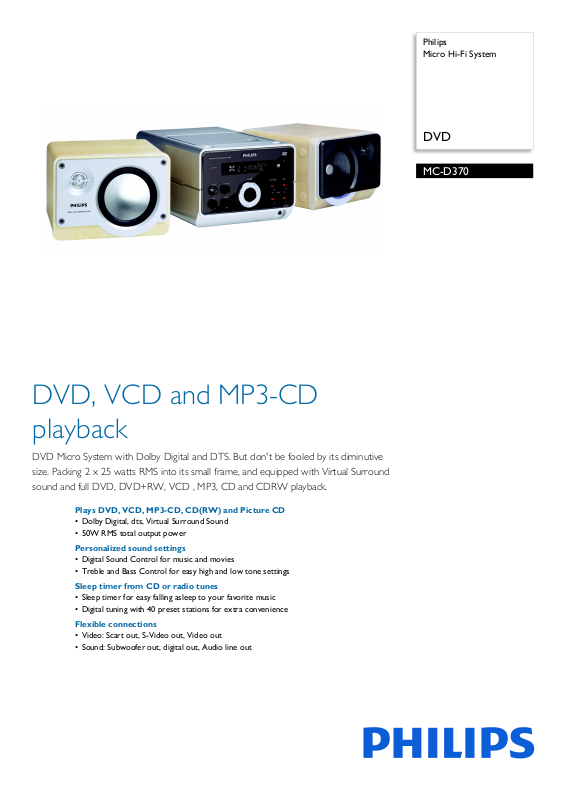

Philips MC-D370/30 leaflet

Page 1

Philips Micro Hi-Fi System

DVD

MC-D370

DVD, VCD and MP3-CD playback

DVD Micro System with Dolby Digital and DTS. But don't be fooled by its diminutive size. Packing 2 x 25 watts RMS into its small frame, and equipped with Virtual Surround sound and full DVD, DVD+RW, VCD , MP3, CD and CDRW playback.

Plays DVD, VCD, MP3-CD, CD(RW) and Picture CD

• Dolby Digital, dts, Virtual Surround Sound

• 50W RMS total output power

Personalized sound settings

• Digital Sound Control for music and movies

• Treble and Bass Control for easy high and low tone settings

Sleep timer from CD or radio tunes

• Sleep timer for easy falling asleep to your favorite music

• Digital tuning with 40 preset stations for extra convenience

Flexible connections

• Video: Scart out, S-Video out, Video out

• Sound: Subwoofer out, digital out, Audio line out

Page 2

Micro Hi-Fi System

DVD

MC-D370/30

Specifications

Sound

• Output Power: 2x25 watts RMS 2x25 watts RMS

• Sound Enhancement: Digital Sound Control, eble and Bass Control, Virtual Surround Sound

•Sound System: Dolb

Loudspeakers

• Main Speaker: 2 way, Bass Reflex Speaker System,

4" woofer, 1.75" Tweeter, Speaker grilles detachable

Video Playback

• Playback Media: DVD+RW, DVD-Video, Video

CD/SVCD, Picture CD

• Disc Playback Modes: A-B Repeat, Angle, Night

de, PBC, Repeat, Resume Playback from Stop,

mo Screen Saver, Slow Motion, Zoom

•DVD Region.: 4

• Loader Type: Motorised, Top

Audio Playback

• Playback Media: CD, CD-R, CD-RW, MP3-CD

• Disc Playback Modes: A-B Repeat, 99-Track

grammable, Repeat one/album/all

Pro

Tuner/Reception/Transmission

• Station presets: 40

• RDS: Station Name

• Tuner Bands: FM Stereo, MW

y Digital, DTS

Connectivity

• Aux in: Line in

• Headphone: 3.5 mm

• Video Output - Analog: S-Video (on Hosiden), ART, Video (3.5mm jack) 1x

• Other connections: Active subwoofer Pre-out,

Digital au MW Antenna

dio coaxial out, Line out, FM Antenna,

Convenience

• Alarms: Sleep timer

• Child Protection: Parental Control

• Display Type: On Screen (OSD), White FTD

• Eco Power Standby: 1 watt

• Indications: DIM mode

• OSD Languages: English, Fr

Spanish

ench, German, Italian,

Accessories

• Included accessories: Audio Cable, Scart Cable,

Composite video cable (Y), FM/MW Antenna

• Remote control: 45-key with 2xAA batteries

Dimensions

• Set dimensions (W x H x D): 180 x 135 x 300 mm

• Main speaker dimensions (W x H x D):

0 x 135 x 208 mm

• Packaging dimensions (W x H x D):

0 x 276 x 384 mm

• Weight incl. Packaging: 10 kg

•

Highlights

Dolby Digital, dts, VSS

Dolby Digital, dts, Virtual Surround Sound

50W RMS

This Philips speaker has 50W RMS total output power. RMS refers to Root Mean Square which is a typical measurement of audio power, or rather, the electrical power transferred from an audio amplifier to a loudspeaker, which is measured in watts. The amount of electrical power delivered to the loudspeaker and its sensitivity determines the sound power that is generated. The higher the wattage, the better the sound power emitted by the speaker.

DSC for music and movies

(Optimal, Classic, Jazz, Rock or Drama, Action, SciFi Concert) Digital Sound Control (or DSC) offers different sound settings tailored for specific musical styles and movie environment.

Treble and Bass Control

Treble and bass are equalizer features that control the high and low frequency sound levels of your audio respectively. Treble specifically regulates the amplification of the high tones in the music while bass controls the amplification level of the low tones. Using the up and down keys, the listener can conveniently place more or less emphasis on the low and high tones, or leave treble and bass flat to playback music according to its original recorded setting. Treble and Bass Control lets you listen to your music the way you like it.

Sleep Timer

Sleep timer lets you decide how long you want to listen to music or a radio station of your choice before falling asleep. Simply set a time limit (up to 1 hour) and choose a CD or radio station to listen to while you drift off to sleep. The set will continue to play for the selected duration and then automatically switch off to a power-efficient, silent stand-by mode. Sleep Timer lets you fall asleep to your favorite CD or radio DJ without counting sheep or worrying about wasting power.

40-preset digital tuning

Digital radio offers you additional music options to your music collection on your Philips audio system. Simply tune into the station that you want to preset, press and hold the preset button to memorize the frequency. With preset radio stations that can be stored, you can quickly access your favorite radio station without having to manually tune the frequencies each time.

Video connections

Video: Scart out, S-Video out, Video out

Sound connections

Sound: Subwoofer out, digital out, Audio line out

Issue date 2014-02-11

Version: 3.0.4

12 NC: 9073 100 11799 EAN: 87 10895 80169 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
