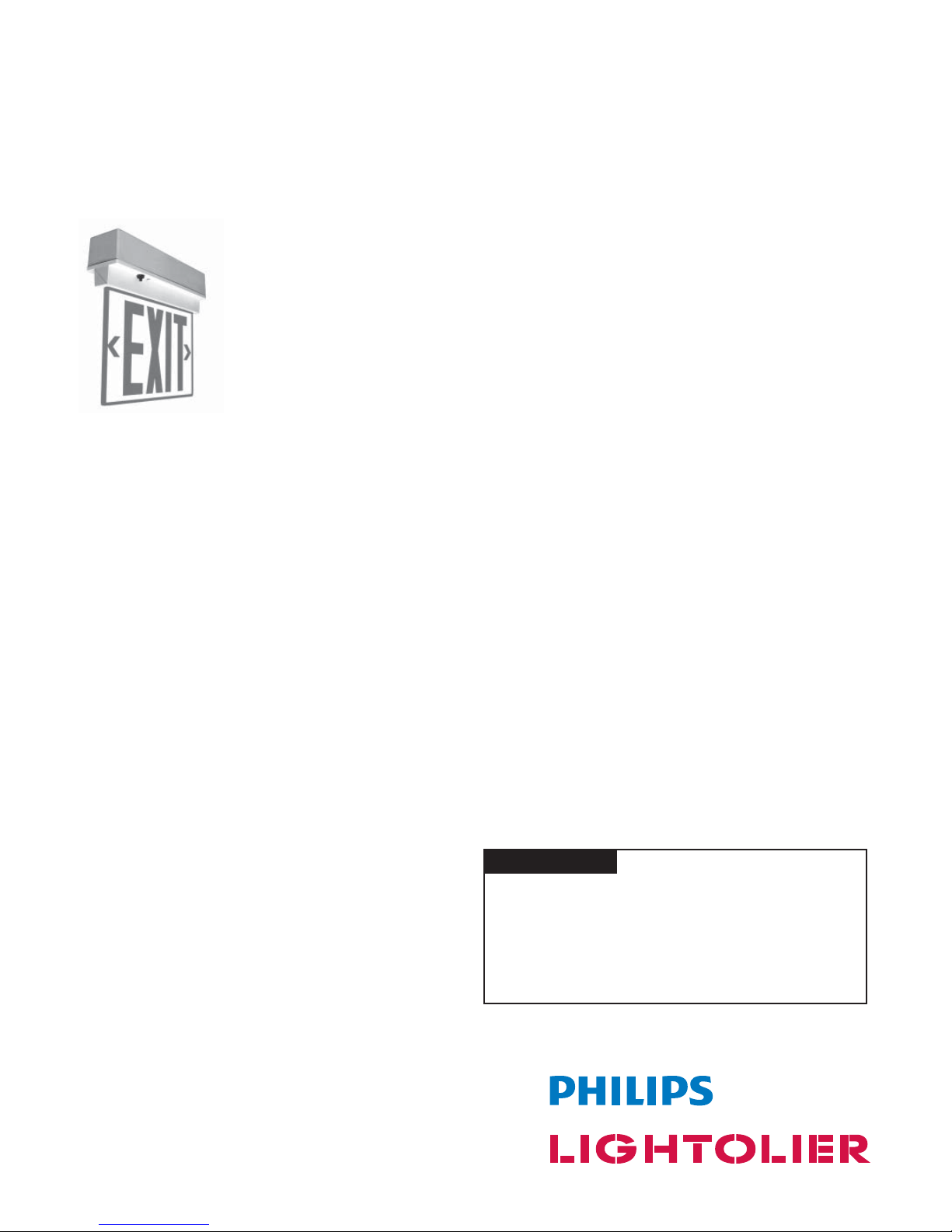

LU Series
THERMOPLASTIC EDGE-LIT LED EXIT
Page 1 of 2
LUNW1R
Features
Illumination: Illumination
of the LU Series edge-lit exit
panel is accomplished with the
use of high-brightness LEDs
offering even illumination.
LEDs offer low maintenance
replacement costs and long life.
Housing: Impact-resistant,
UL 94 V-0, 5 VA thermoplastic
housing/backbox can be used
for both recessed and surface
mount applications. White
housing is standard, with an
optional black housing. The
LU Series exit stencil panel
includes customer-installable
NFPA-compliant directional
chevrons, and is manufactured
from high-impact clear acrylic
and silk-screened computer
generated artwork. All
artworks meet UL and NFPA
standards for exit signage.
All models are supplied with
white and mirrored inserts to
complement the standard clear
panel.
Operating Temperature
Range: Standard Location
65°F (19°C) to 85°F (30°C)
Damp Location
50°F (10°C) to 104°F (40°C)
Electronics: AC Only -
120/277 VAC dual voltage
input with surge protection.
Self-Powered - 120/277 VAC
dual voltage input with surge-
protection, solid-state charging
circuitry provides for a reliable
charging system. Charging
system is complete with low
voltage disconnect, brownout
protection, AC indicator LED
and test switch.
Electrical Specifications:
AC Only (120 VAC):
Red - 5.16 W
Green - 4.80 W
Self-Powered (120 VAC):
Red - 8.4 W
Green - 5.4 W
Code Compliance
UL 924 and optional UL damp
location listed. NFPA 101,
NEC, BOCA, OSHA and IBC
illumination standards
Warrant y
Three year full electronics
warranty. Five year full plus
five year prorated battery
warranty.
Job Information Type:
Job Name:
Cat. No.:
Notes:
THERMOPLASTIC EDGE-LIT LED EXIT
Ordering Information
LU
Series
LU = LED
Edge-Lit Exit
Accessories (order as a separate item)
SEPKIT12W
SEPKIT12B
SL-KIT = Bar Hanger Kit
Note
1) Some option combinations may impact UL listing. Consult factory for specifics.
2) Custom pendant lengths and colors available, consult fac tory.
3) Required for recessed installations.
Battery
Blank = AC Only
N = Nickel Cadmium
2
= Pendant Kit, 12” White Finish
2
= Pendant Kit, 12” Black Finish
3
Housing Color
W = White
B = Black
# of Faces
1 = Single
2 = Double
Letter Color
R = Red
G = Green
LU Series
Page 2 of 2
Factory Installed Options
2CKT1 = Two circuit, 120 VAC
2CKT2 = Two circuit, 277 VAC
BF = Buzzer/Flasher (emergency oper ation only)
BZ = DC Buzzer (emergency operation only)
DL = UL Damp Location Listing
EX = Special Input Transformer (specify voltage & frequency)
FA = Fire Alarm Flasher
FL = Emergency Flasher
1
Surface End Mount
12.1"
(30.7 cm)
11.8"
(20.0 cm)
Recessed Top Mount Recessed Back Mount Hole Dimensions for
8.5"
(21.6 cm)
(24.3 cm)
Surface Top Mount Surface Back Mount
4.8"
(12.2 cm)
11.0"
(27.9 cm)
Recessed Mount
3.4"
(8.6 cm)
9.6"
13.0"
(33.0 cm)
1.5"
(3.8 cm)
12. 2"
(31.0 cm)
3.2"
(8.1 cm)
Philips Lightolier
e: lol.webmaster@philips.com
t: (508) 679-8131
w: www.lightolier.com
LU Series August 15, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011. All rights reserved.
