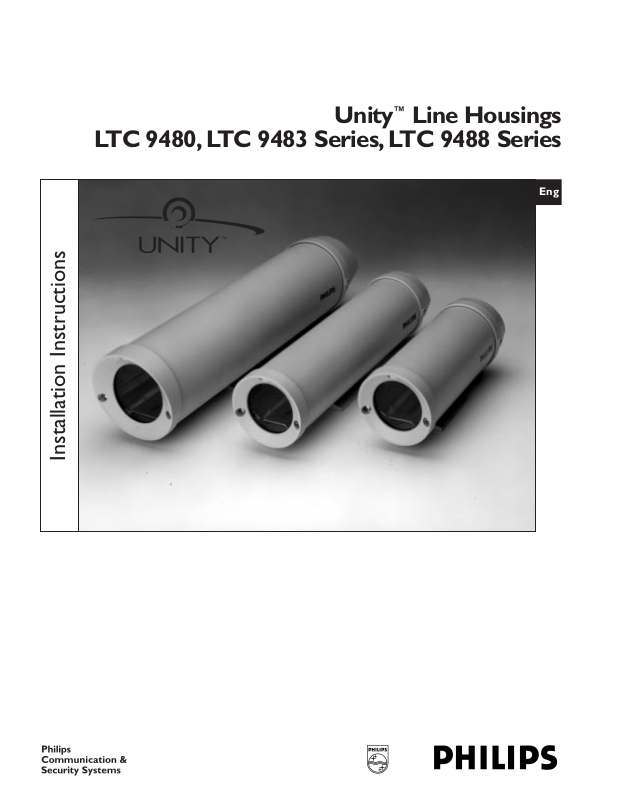

Philips LTC9483/50, LTC9483/00 User Manual

Unity™Line Housings
LTC 9480, LTC 9483 Series, LTC 9488 Series
Installation Instructions
Eng
2
1. Read Instructions - All the safety and operating instructions should be read before the unit is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury to a person and serious damage to the unit. Use only with a stand, tripod, bracket, or mount recommended by the manufacturer or sold with the product. Any mounting of the unit should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
8. Ventilation - Openings in the enclosure, if any, are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. This unit should not be placed in a built-in installation unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
9. Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply you plan to use, consult your appliance dealer or local power company. For units intended to operate from battery power or other sources, refer to the operating instructions.
10. Grounding or Polarization - This unit may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternately, this unit may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
11. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
12. Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outdoor system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. U.S.A. models only - refer to the National Electrical Code Article 820 regarding installation of CATV systems.
13. Overloading - Do not overload outlets and extension cords as this can result in a risk of fire or electric shock.
14. Object and Liquid Entry - Never push objects of any kind into this unit through openings, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.
15. Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the unit to its normal operation. e. If the unit has been dropped or the cabinet has been damaged. f. When the unit exhibits a distinct change in performance--this indicates
a need for service.
17. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
18. Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
19. Coax Grounding - If an outside cable system is connected to the unit, be sure the cable system is grounded. U.S.A. models only--Section 810 of the National Electrical Code, ANSI/NFPA No.70-1981, provides information with respect to proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
20. Lightning - For added protection of this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the unit due to lightning and power line surges.
3
SAFETY PRECAUTIONS
This label may appear on the bottom of the unit due to space limitations.
The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
SECURITE
En raison de limitation de place, cette étiquette peut être placée sur le dessous de l'appareil.
L'éclair fléché dans un triangle équilatéral, avertit l'utilisateur de la présence d'une "tension dangereuse" non isolée à l'intérieur de l'appareil et d'une valeur suffisante pour constituer un risque d'électrocution.
Le point d'exclamation contenu dans un triangle équilatéral, avertit l'utilisateur de la présence, dans la documentation qui accompagne l'appareil, de consignes d'utilisation et de maintenance importantes.
SICHERHEITSVORKEHRUNGEN
Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes angebracht sein.
Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte "Hochspannung" im Gehäuse aufmerksam machen, die eventuell stark genug ist, um einen elektrischen Schlag zu verursachen.
Das Ausrufezeichen im gleichseitigen Dreieck soll den Benutzer auf wichtige Bedienungs- und Wartungsanleitungen in der dem Gerät beigefügten Literatur aufmerksam machen.
PRECAUCIONES DE SEGURIDAD
Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior de la unidad.
El símbolo representado por un relámpago con punta de flecha dentro de un triángulo equilátero, se muestra con el objetivo de alertar al usuario que existen "voltages peligrosos" sin aislamiento, dentro de la cubierta de la unidad. Dichos voltages pueden ser de tal magnitud que constituyen un riesgo de choque eléctrico a personas.
El símbolo de exclamación dentro de un triángulo equilátero, se muestra con el objetivo de alertar al ususario de que instrucciones de operación y mantenimiento importantes acompañan al equipo.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR.
ATTENTION
DANGER: POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. IL N'Y A PAS DE PIÈCES REMPLAÇABLES À L'INTÉRIEUR. POUR TOUTE RÉVISION, S'ADRESSER À UN TECHNICIEN SPÉCIALISÉ.
RISIKO EINES ELEKTRISCHEN
SCHLAGES NICHT ÖFFNEN!
VORSICHT
VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU VERMEIDEN, ABDECKUNG NICHT ENTFERNEN. WARTUNGEN ALLER ART QUALIFIZIERTEM PERSONAL ÜBERLASSEN.
PRECAUCION
RIESGO DE CHOQUE
ELECTRICO. ¡NO ABRIR!
PRECAUCION: PARA REDUCIR EL RIESGO DE CHOQUE ELÉCTRICO, FAVOR NO ABRIR LA CUBIERTA. ESTE EQUIPO NO CONSTA DE PIEZAS O PARTES QUE REQUIEREN SERVICIO O MANTENIMIENTO. PARA REPARACIONES FAVOR REFERIRSE A UN TÉCNICO CALIFICADO.
4
CONTENTS
1 UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 Sunshields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.2 Tamper Proof Kit . . . . . . . . . . . . . . . . . . . . . . . . .4
3 SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
4 CARE AND MAINTENANCE . . . . . . . . . . . . . . .4
5 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . .4
6 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . .4
6.1 Model Designation . . . . . . . . . . . . . . . . . . . . . . . .5
6.2 Maximum Camera/Lens Size . . . . . . . . . . . . . . . . .5
6.3 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6.4 Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . .5
6.5 Housing Mounting . . . . . . . . . . . . . . . . . . . . . . . .5
6.6 Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6.7 Camera/Lens Installation . . . . . . . . . . . . . . . . . . . .6
6.8 Camera/Lens Wiring . . . . . . . . . . . . . . . . . . . . . . .7
6.9 Video Coax Connection . . . . . . . . . . . . . . . . . . . . .9
6.10 Lens Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.11 Camera/Lens Adjustment . . . . . . . . . . . . . . . . . . . .9
6.12 Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.13 Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . .10
7 RECOMMENDED APPLICATIONS . . . . . . . . .10
8 EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . .11
8.1 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1 UNPACKING
Unpack carefully. This is mechanical equipment and should be handled with care.
Check for the following:
Housing (with correct model number).
Hardware Kit - LTC 9480 & LTC 9483 Series Models:
1 1/4-20 x 3/8-in Button Head Screw. 2 1/4-20 x 1/2-in Button Head Screw. 2 1/4-in Spring Washers. 1 5/16-in Flat Washer. 2 Fittings, 3/8-in NPT. 2 Rubber Plug, 1/2-in NPT. 1 Nut, 3/8-in NPT. 2 Fittings, 1/2-in NPT. 2 Nut, 1/2-in NPT. 1 Spacer Block.
Hardware Kit - LTC 9488 Series Models:
1 1/4-20 x 3/8-in Button Head Screw. 3 1/4-20 x 1/2-in Button Head Screw. 1 1/4-20 x 5/8-in Button Head Screw. 1 1/4-20 x 3/4-in Button Head Screw. 1 1/4-20 x 7/8-in Button Head Screw. 2 1/4-in Spring Washers. 1 5/16-in Flat Washer. 2 Fittings, 3/8-in NPT. 2 Rubber Plug, 1/2-in NPT.
1 Rubber Plug, 3/8-in NPT. 1 Nut, 3/8-in NPT. 2 Fittings, 1/2-in NPT. 2 Nut, 1/2-in NPT. 4 Spacer, 0.4 mm. 4 Spacer, 3.2 mm.
If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, notify your Philips Communication & Security System Inc. Sales Representative or Customer Service.
The shipping carton is the safest container in which the unit may be transported. Save it for possible future use.
2 ACCESSORIES
2.1 Sunshields
Provides protection from the direct rays of sun and promotes cooling to reduce internal housing temperatures. Strongly recommended for housing to be used outdoors.
LTC 9083/00: For LTC 9483 Series Housings. LTC 9088/00: For LTC 9488 Series Housings.
2.2 Tamperproof Kit
Contains tamper resistant screws and bit key to tamperproof up to five housings.
LTC 9080/00: For all LTC 9480 Series Housings.
3 SERVICE
If the unit ever needs repair service or parts, the customer should contact Philips Communication & Security System Service Center for authorization to return and shipping instructions.
4 CARE AND MAINTENANCE
Regularly scheduled maintenance will help prolong the operation life of this unit. Clean the viewing window as needed with a mild, nonabrasive detergent in water and a soft cloth.
5 DESCRIPTION
The Unity Series Housings are smart stylized housings for indoor and outdoor use. These housings meet customers' demands for an attractive housing that is both cost competitive and easy to install. They are available in three sizes to fit a wide range of cameras and lenses.
6 INSTALLATION
This installation should be made by qualified service personnel and conform to the National Electrical Code and applicable local codes.
