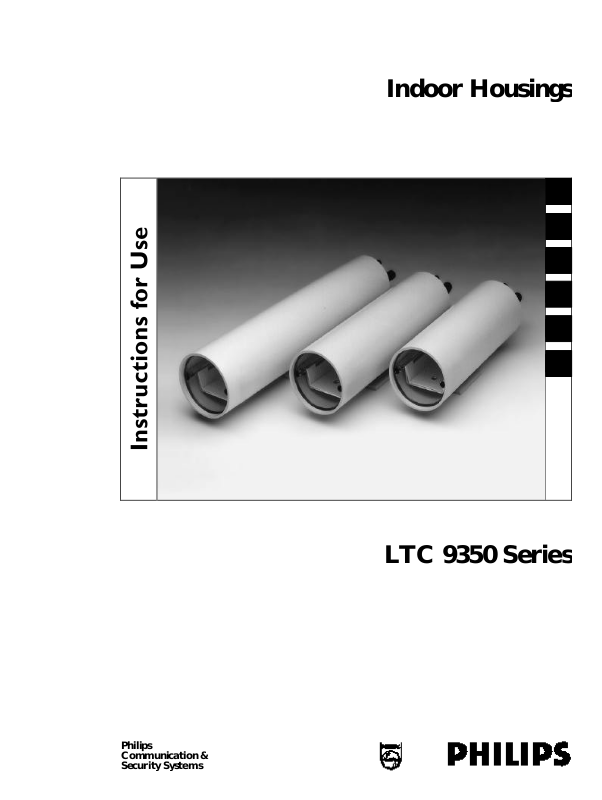

Philips LTC9353/00 User Manual

Eng

F

Indoor Housings

LTC 9350 Series

Security Systems

D

E

NL

I

Philips
Communication &

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions should be
read before the unit is operated.

2. Retain Instructions - The safety and operating instructions should be
retained for future reference.

3. Heed Warnings - All warnings on the unit and in the operating
instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be
followed.

5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this unit near water - for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classified as a wet location.

8. Accessories - Do not place this unit on an unstable stand, tripod,
bracket, or mount. The unit may fall, causing serious injury to a person
and serious damage to the unit. Use only with a stand, tripod, bracket,
or mount recommended by the manufacturer, or sold with the product.
Any mounting of the unit should follow the manufacturer's instructions,
and should use a mounting accessory recommended by the
manufacturer.

An appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.

9. Ventilation - Openings in the enclosure, if any, are provided
for ventilation and to ensure reliable operation of the unit and to
protect it from overheating. These openings must not be blocked or
covered. This unit should not be placed in a built-in installation unless
proper ventilation is provided or the manufacturer's instructions have
been adhered to.

10. Power Sources - This unit should be operated only from the type of
power source indicated on the marking label. If you are not sure of the
type of the power supply you plan to use, consult your appliance dealer
or local power company. For units intended to operate from battery
power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This unit may be equipped with a polarized
alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.

Alternately, this unit may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are unable
to insert the plug into the outlet, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.

12. Power-Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the
appliance.

13. Power Lines - An outdoor system should not be located in the vicinity
of overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing an
outdoor system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be fatal. U.S.A.
models only - refer to the National Electrical Code Article 820
regarding installation of CATV systems.

14. Overloading - Do not overload outlets and extension cords as this can
result in a risk of fire or electric shock.

15. Object and Liquid Entry - Never push objects of any kind into this unit
through openings as they may touch dangerous voltage points or short­out parts that could result in a fire or electric shock. Never spill liquid
of any kind on the unit.

16. Servicing - Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.

17. Damage Requiring Service - Unplug the unit from the outlet and refer
servicing to qualified service personnel under the following conditions:

a. When the power-supply cord. or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the
operating instructions, as an improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the unit to its normal

operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance--this

indicates a need for service.

18. Replacement Parts - When replacement parts are required, be sure the
service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other
hazards.

19. Safety Check - Upon completion of any service or repairs to this unit,
ask the service technician to perform safety checks to determine that
the unit is in proper operating condition.

20. Coax Grounding - If an outside cable system is connected to the unit,
be sure the cable system is grounded. U.S.A. models only--Section 810
of the National Electrical Code, ANSI/NFPA No.70-1981, provides
information with respect to proper grounding of the mount and
supporting structure, grounding of the coax to a discharge unit, size of
grounding conductors, location of discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.

21. Lightning - For added protection of this unit during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system. This will prevent
damage to the unit due to lightning and power-line surges.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN!

CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT OPEN
COVERS. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This label may appear on the bottom of the unit due to
space limitations.

The lightning flash with an arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.

Warning
To prevent fire or shock hazard, do not expose

this unit to rain or moisture.

CONTENTS

1 UNPACKING................................................................3

3 DESCRIPTION.............................................................3

4 INSTALLATION..........................................................3

4.1 Models.............................................................................................3

4.2 Low Voltage Operation.............................................................3

4.3 Camera/Lens Installation............................................................3

5 ILLUSTRATION...........................................................6

6 RECOMMENDED APPLICATIONS.........................7

7 PARTS LIST..................................................................8

1 UNPACKING

Unpack carefully. This is electro-mechanical equipment and
should be handled with care.

Check for the following items:

-- Model number of unit.

-- Installation and Operating Instructions.
If an item appears to have been damaged in shipment,

replace it properly in its carton and notify the shipper. If any
items are missing, notify your Philips Communication &
Security Systems Inc. Sales Representative or Customer
Service.

The shipping carton is the safest container in which the unit
may be transported. Save it for possible future use.

2 SERVICE

If the unit ever needs repair service, the customer should
contact the nearest Philips Communication & Security
Systems Inc. Service Center for return authorization and
shipping instructions.

Service Centers

U.S.A. & Canada: 800-366-2283
Mexico & Central America: 52-5-564-2726
Europe & Middle East: 44-1932-765666
South America: 54-1-956-0837
Australia: 61-2-888-9000
New Zealand: 64-4-237-7297

3 DESCRIPTION

The LTC 9350 Series of environmental housings are
attractive aluminum enclosures designed for indoor CCD
camera installations. Slim and compact, the LTC 9350 Series
are available in three lengths.

4 INSTALLATION

THIS INSTALLATION SHOULD BE MADE
BY QUALIFIED SERVICE PERSONNEL AND
SHOULD CONFORM TO ALL LOCAL
CODES.

4.1 Models

LTC 9352/00:

Accepts cameras up to 64 W x 54 H mm (2.5 x 2.1 in),
lenses up to 58 W x 64 H mm (2.3 x 2.5 in), and
camera/lens combinations up to 190 mm L (7.5 in).

LTC 9352/01:

Accepts cameras up to 64 W x 54 H mm (2.5 x 2.1 in),
lenses up to 58 W x 64 H mm (2.3 x 2.5 in), and
camera/lens combinations up to 216 mm (8.5 in).

Caution: For UL and cUL Approved
LTC 9352/01 Models, Use only Class 2 power
source with this unit.

LTC 9353/00:

Accepts cameras up to 64 W x 54 H mm (2.5 x 2.1 in),
lenses up to 58 W x 64 H mm (2.3 x 2.5 in), and
camera/lens combinations up to 224 mm L (8.8 in).

LTC 9358/00:

Accepts cameras up to 64 W x 54 H mm (2.5 x 2.1 in),
lenses up to 58 W x 64 H mm (2.3 x 2.5 in), and
camera/lens combinations up to 325 mm L (12.8 in).

See RECOMMENDED APPLICATIONS.

4.2 Low Voltage Operation

Do not exceed 30 VAC input on 24 VAC model cameras.
Operation above 30 VAC violates low voltage operation
(Class 2 Specifications). Normal operation is 24 VAC.

4.3 Camera/Lens Installation

Note: LTC 9352/01 Models do not contain a wiring
terminal block.

1. Remove the two (2) 6-32 x 1/2-inch long Phillips head
screws from the end cap. See Figure 1.

6-32 x 5/8 Long Phillips Head Screws

Figure 4: Camera/Fixed Lens Mounting Position

Zoom Lens Cameras: Use same procedure as fixed

lens cameras. All hardware shown below must be
used. See Figure 4a.

W9407400BE

Figure 1: Remove Phillips Head Screws

2. Remove the end cap from the housing by pulling out the
cradle assembly. See Figure 2.

W9407401AE

Figure 2: Remove Cradle Assembly

3. Place the camera/lens on the cradle assembly. The
correct positioning for mounting either a camera with a
fixed lens or a camera with a zoom lens is shown in
Figure 3.

W9407402AE

Figure 3: Camera/Lens Mounting Positions

4. Fixed Lens Cameras: Secure the camera/lens to the
cradle with the 1/4-20 x 1/2-inch screw, nylon bushing,
5/16-inch flat washer, and 2.5 mm (0.100 inch) plastic
washer. Make sure the thermoplastic shield is under the
camera in the correct position. Be sure that the nylon
bushing is in place. All hardware shown below must be
used. For LTC 0240 Series cameras, use 1/4-20 x 7/8
inch BHCS, nylon bushing, 5/16-inch flat washer, and 9.8
mm (0.385 inch) plastic spacer. See Figure 4.

Mounting Position For
Cameras With TC9948 6X
Zoom Lens. Use 1/4-20 x 1/2-Inch
Screw Provided. Be Sure Plastic
Washer Is In Place.

Mounting Position For
TC9948 6X Zoom Lens.
Use 1/4-20 Screw Provided.

W9407404AE

Figure 4a: Camera/Zoom Lens Mounting Positions

LTC 9353/00 and LTC 9358/00 Only

Note: Refer to section 5a for LTC 9352/01 model power

wiring instructions.

5. When installing 120 or 220 volt cameras, the camera
power cord must be cut leaving enough cable to strip
and attach to the terminal block. Strip no less than 6
mm (1/4 in) and no more than 8 mm (5/16 in) of
insulation away from the wires, making sure not to nick
the wires. Attach the wires to the terminal block. See
Figure 5 and Figure 6.

Insert the loose end of the power supply cable or the
remainder of the camera power cord through the lower
right fitting. The fitting accepts cables with diameters
from 1.8 mm (0.07 in) to 6.6 mm (0.26 in). Tie a figure­eight knot in the wire to prevent strain on internal
circuits. Repeat the same procedure for stripping the
wires. Attach the wires to the opposite side of the
terminal block. Crimp the ground wire to the ground
lug located on the reverse side of the cradle. See
Figure 5 and Figure 6.

Rear Cap

W9407405AE

Cradle

CCD Camera

2000
Max.

250 Min.

250
Min.

Figure 5: Cut Camera Power Cord

Note: If power is supplied from a pan/tilt feed thru,

follow the same instructions as above for wiring
procedures. Figure 6 shows the relationship with
color codes.

Hint: For ease of wiring, remove the terminal block
from its mounted position. Wire accordingly and
remember to maintain polarity. Remount the terminal
block with the wires in place. See Figure 6.

W9407403AE

Plastic Washer

5/16 Inch Flat Washer
Nylon Bushing

1/4-20 x 1/2 Screw

Mounting Position For
Camera With Fixed Lens.
Use 1/4-20 x 1/2 Screw

Neutral

Groumd

Location

Camera Power Cord

Line

Lower Right Fitting

International

Brown
Blue
Green/Yellow

Camera Power Cord

W9407406BE

CCD Camera

Wiring Color Codes
Wire Designation

Line
Neutral
Ground

N. America

Black
White
Green

Figure 6: Terminal Block Wiring

Pull excess wire out of the cradle assembly. Tighten the
fitting around the cable to create a liquid tight fit.

Note: LTC 9352/01 models do not contain a wiring
terminal block.

5a. LTC 9352/01 Models Only: Strip the power supply

cable ends by removing no less than 6 mm (0.25 in) and
no more than 8 mm (5/16 in) of insulation away from
the wires, making sure not to nick the wires. Insert the
loose end of the power supply cable through the lower
right fitting. Tie a figure-eight knot in the wire to
prevent strain on internal circuits. Connect the cable
directly to the terminal block located on the rear of the
camera. Crimp the ground wire to the ground lug
located on the reverse side of the cradle (if available).

6. Pull the video cable through the top fitting on the end
cap. The fitting accepts cables with diameters from 2.9
mm (0.11 in) to 6.4 mm (0.25 in).

Attach a BNC connector to the video cable and connect
it to the camera. See Figure 7. Pull excess cable out of
the cradle assembly. Tighten the fitting around the cable
to create a liquid tight fit. Use the tie wrap (included)
to provide strain relief on the video cables at the exit
point.

available, connect directly to the lens cables. Pull any
excess wire out of the cradle assembly. Tighten the
fitting around the cable to create a liquid tight fit. See
Figure 8. Use the tie wrap to provide strain relief on
the lens control cable at the exit point.

If installing a fixed lens, go to step 9.

Lens Control Cable
Lens Drive Connectors
(See Lens Specifications
For Proper Lens Connections)

TOP VIEW

Lower Left Fitting

Tie
wraps

Breather Vent

P/T Feed-Thru Cable

REAR VIEW

Small Top Fitting

Lower Right Fitting

W9407408AE

Figure 8: Completed Wiring Diagram

8. If using a pan/tilt with a feedthru cable, insert the
camera/lens function cable through the lower left fitting
of the end cap. The fitting accepts cables with diameters
from 1.8 mm (0.07 in) to 6.6 mm (0.26 in).

Wire the functions, as described above (steps 5-7), or as
needed. Pull any excess wire out of the cradle assembly.
Tighten the fitting around the cable to create a liquid
tight fit. See Figure 8. Use the tie wrap to provide
strain relief on cable at the exit point.

9. Adjust the camera focus and iris if necessary.

10. Replace the cradle into the side rails and slide the
assembly into the housing until the end cap is securely
closed.

11. Replace the two (2) Phillips head screws and tighten.

12. Attach the housing to the appropriate mount or pan/tilt
using the instructions provided.

Rear Cap

Small Top Fitting

W9407407AE

Cradle

BNC
Connector

CCD Camera

Terminal
Block

Figure 7: BNC Connection

7. If installing a zoom lens, insert the lens control cable
through the lower left fitting of the end cap. Attach the
lens wiring to the lens mating connector (if supplied),
and connect to the lens. If a mating connector is not

5 ILLUSTRATION

9.5

0.37

Thick

Front View

Side View

274

10.8

TC9352

330

13.0

TC9353

433

17.0

TC9358

111

4.4

51

2.0

95

3.8

mm

in

Bottom View

333

13.1

TC9352

76

3.0

38

1.5

391

15.4

TC9353

25

2x

1.0

493

19.4

TC9358

W9406400BE

Figure 9: Dimensional Outline

6 RECOMMENDED APPLICATIONS

The LTC 9350 Series are UL Listed to Standard 1409. The following cameras must be used in these housings to maintain the UL Listing.

Camera Models Rated Operating Suggested Lenses
60 Hz Cameras Voltage LTC 9352/00 Housing LTC 9352/01 Housing LTC 9353/00 Housing LTC 9358/00 Housing

LTC 0142/60 120 VAC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0143/60 120 VAC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens

LTC 0142/20 24 VAC or 12 VDC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0143/20 24 VAC or 12 VDC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens

LTC 0242/60 120 VAC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0243/60 120 VAC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens

LTC 0242/20 24 VAC or 12 VDC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0243/20 24 VAC or 12 VDC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens
LTC 0330/20 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0330/60 120 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0350/20 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0350/60 120 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0430/20 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0430/60 120 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0450/20 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0450/60 120 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC351A 120 VAC --- --- Fixed Fixed, TC9948A
TC352A 24 VAC --- --- Fixed Fixed, TC9948A
TC355AC 12 VDC --- --- Fixed Fixed, TC9948A
TC360 Series 120 VAC, 24 VAC, 12 VDC --- Fixed Fixed Fixed, TC9948A
TC370 Series 120 VAC, 24 VAC, 12 VDC --- Fixed Fixed Fixed, TC9938, TC9948A
TC380 Series 120 VAC, 24 VAC, 12 VDC --- Fixed Fixed Fixed, TC9948A
TC390 Series 120 VAC, 24 VAC, 12 VDC --- Fixed Fixed Fixed, TC9938, TC9948A
TC551A 120 VAC --- --- Fixed Fixed, TC9938, TC9948A
TC552A 24 VAC Fixed Fixed Fixed, TC9938, TC9948A Fixed, TC9938, TC9948A
TC590 Series 120 VAC, 24 VAC, 12 VDC --- Fixed Fixed Fixed, TC9938, TC9948A
TC652BT 24 VAC --- --- Fixed Fixed, TC9948A
TC652B 24 VAC Fixed Fixed Fixed, TC9948A Fixed, TC9948A
TC952 24 VAC Fixed Fixed Fixed Fixed
TC972 24 VAC Fixed Fixed Fixed Fixed

50 Hz Cameras

LTC 0142/50 220 VAC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0143/50 220 VAC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens
LTC 0142/10 24 VAC or 12 VDC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0143/10 24 VAC or 12 VDC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens
LTC 0242/50 220 VAC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0243/50 220 VAC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens
LTC 0242/10 24 VAC or 12 VDC with 3 mm lens with 3 mm lens with 3 mm lens with 3 mm lens
LTC 0243/10 24 VAC or 12 VDC with 6 mm lens with 6 mm lens with 6 mm lens with 6 mm lens
LTC 0330/10 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0330/50 220 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0350/10 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0350/50 220 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0430/10 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0430/50 220 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0450/10 24 VAC or 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
LTC 0450/50 220 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC352AX 24 VAC --- --- Fixed Fixed, TC9948A
TC355ACX 12 VDC --- --- Fixed, TC9948A Fixed, TC9948A
TC362X 24 VAC Fixed Fixed Fixed Fixed, TC9948A
TC365X 12 VDC Fixed Fixed Fixed Fixed, TC9948A
TC372X 24 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC375X 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC382X 24 VAC Fixed Fixed Fixed Fixed, TC9948A
TC385X 12 VDC Fixed Fixed Fixed Fixed, TC9948A
TC392X 24 VAC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC395X 12 VDC Fixed Fixed Fixed Fixed, TC9938, TC9948A
TC552AX 24 VAC Fixed Fixed Fixed, TC9938, TC9948A Fixed, TC9938, TC9948A
TC592X 24 VAC --- Fixed Fixed Fixed, TC9938, TC9948A
TC595X 12 VDC --- Fixed Fixed Fixed, TC9938, TC9948A
TC652BX 24 VAC Fixed Fixed Fixed, TC9948A Fixed, TC9948A
TC952X 24 VAC Fixed Fixed Fixed Fixed
TC972X 24 VAC Fixed Fixed Fixed Fixed

The following cameras are to be used only with housings that require 220-240 volt power supplies. Contact your local Philips
Communication & Security Systems Inc. Sales Representative for correct camera/lens combinations.

50 Hz Cameras Voltage LTC 9352/00 Housing LTC 9353/00 Housing LTC 9358/00 Housing

TC354AX 220-240 VAC --- Fixed Fixed, TC9948A
TC364X 220-240 VAC Fixed Fixed Fixed, TC9948A

TC374X 220-240 VAC Fixed Fixed Fixed, TC9938, TC9948A
TC384X 220-240 VAC Fixed Fixed Fixed, TC9948A
TC394X 220-240 VAC Fixed Fixed Fixed, TC9948A, TC9938
TC554AX 220-240 VAC --- Fixed Fixed, TC9948A, TC9938
TC594X 220-240 VAC Fixed Fixed Fixed, TC9938, TC9948A
TC654BX 220-240 VAC --- Fixed Fixed, TC9948A

Suggested CS Mount Auto-Iris Fixed and Zoom Lenses:

TC9902: 1/3-inch 2.8 mm, f/1.2, fixed TC9904: 1/3-inch 4 mm, f/1.2, fixed TC9908: 1/3-inch 8 mm, f/1.2, fixed
TC9903A: 1/2-inch 3.7 mm, f/1.6, fixed TC9906A: 1/2-inch 6 mm, f/1.4, fixed TC9907: 1/2-inch 6 mm, f/1.4, fixed
TC9912A: 1/2-inch 12 mm, f/1.4, fixed TC9913A: 1/2-inch 12 mm, f/1.4, fixed
TC9938: 1/3-inch 6.38-38 mm, f/1.2, 6X zoom TC9948A: 1/2-inch 8-48 mm, f/1.4, 6X zoom

Suggested CS Mount, Manual Iris, Fixed Lenses (1/3-inch Cameras):

TC9702: 1/3-inch 2.8 mm, f/1.3 TC9704: 1/3-inch 4 mm, f/1.2 TC9708: 1/3-inch 8 mm, f/1.2 TC9712: 1/2-inch 12 mm, f/1.4

Rated Operating Suggested Lenses

7 PARTS LIST

Figure 10: Exploded View

Hardware Kit - 315 1715 001

No. Quan. Part Number Description

- 2 - Cable Tie
1 2 - Nylon Bushing
2 1 - 2.5 mm (0.100-inch) Plastic Washer
2 1 - 9.8 mm (0.385 inch) Plastic Washer
3 1 - 1/4-20 x 1/2-inch Screw
3 1 - 1/4-20 x 7/8-inch BHCS
4 2 - 5/16-inch Flat Washer
5 1 - 1/4-20 x 3/8-inch Screw

Replacement Part Kits

No. Quan. Part Number Description

11-inch Cradle Assembly Kit - 315 2790 001

7 1 - 11-inch Cradle Assembly

1

15

1

16

1

18
19 1 - 11-inch Plastic Shield
21 1 - #8 Ring Tongue Terminal
22 1 - #8 Lock Washer
23 1 - M4 x 8 Screw

13-inch Cradle Assembly Kit - 315 2791 001

7 1 - 13-inch Cradle Assembly Kit

1

15

1

16

1

18
19 1 - 13-inch Plastic Shield
21 1 - #8 Ring Tongue Terminal
22 1 - #8 Lock Washer
23 1 - M4 x 8 Screw

17-inch Cradle Assembly Kit - 315 2792 001

7 1 - 17-inch Cradle Assembly

1

15

1

16

1

18
19 1 - 17-inch Plastic Sunshield
21 1 - #8 Ring Tongue Terminal
22 1 - #8 Lock Washer
23 1 - M4 x 8 Screw

End Cap Kit - 315 2793 001

8 1 - End Cap
10 2 - #8-32 x 5/8 Screw
11 1 315 1740-900 O-Ring
12 1 315 1741 900 Small Flex Fitting
14 2 315 1743 900 Large Flex Fitting
17 1 - Breather Vent
20 1 - Caution Label

Faceplate Kit - 315 2794 001

9 1 - Faceplate
10 2 - #8-32 x 5/8 Screws
11 1 315 1740-900 O-Ring

11-inch Housing Kit - 315 2795 001

6 1 - ID Label
13 1 - 11-inch Housing
24 1 - #6-32 x 1/4-inch Brass Screw

13-inch Housing Kit - 315 2796 001

6 1 - ID Label
13 1 - 13-inch Housing
24 1 - #6-32 x 1/4-inch Brass Screw

17-inch Housing Kit - 315 2797 001

6 1 - ID Label
13 1 - 17-inch Housing
24 1 - #6-32 x 1/4-inch Brass Screw

1 - Terminal Block
1 - M2.5 x 12 Screw
1 - M2.5 PEM Nut

1 - Terminal Block
1 - M2.5 x 12 Screw
1 - M2.5 PEM Nut

1 - Terminal Block
1 - M2.5 x 12 Screw
1 - M2.5 PEM Nut

1. Terminal block not included on LTC 9352/01 Models.
