Page 1

LTC 2600 Series

Video Multiplexers

Installation Instructions

Eng

Philips Communication, Security & Imaging

Page 2

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions should be read before the unit is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this unit near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; near a swimming pool; in an unprotected outdoor installation; or any area which is classified as a wet location.

8. Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount.The unit may fall, causing serious injury to a person and serious damage to the unit. Use only with a stand, tripod, bracket, or mount recommended by the manufacturer or sold with the product.Any mounting of the unit should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation - Openings in the enclosure, if any, are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating.These openings must not be blocked or covered. This unit should not be placed in a built-in installation unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply you plan to use, consult your appliance dealer or local power company. For units intended to operate from battery power or other sources, refer to the operating instructions.

11. Grounding or Polarization - This unit may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternately, this unit may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin.This plug will only fit into a grounding-type power outlet.This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

13. Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits.When installing an outdoor system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. U.S.A. models only - refer to the National Electrical Code Article 820 regarding installation of CATV systems.

14. Overloading - Do not overload outlets and extension cords as this can result in a risk of fire or electric shock.

15. Object and Liquid Entry - Never push objects of any kind into this unit through openings, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

16. Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled or objects have fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by following the operating

instructions.Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or the cabinet has been damaged.

f. When the unit exhibits a distinct change in performance--this

indicates a need for service.

18. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

19. Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

20. Coax Grounding - If an outside cable system is connected to the unit, be sure the cable system is grounded. U.S.A. models only--Section 810 of the National Electrical Code, ANSI/NFPA No.70-1981, provides information with respect to proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

21. Lightning - For added protection of this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.This will prevent damage to the unit due to lightning and power line surges.

FCC & ICES INFORMATION

(U.S.A. and Canadian Models Only)

WARNING - This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Intentional or unintentional changes or modifications not expressly approved by the party responsible for compliance shall not be made. Any such changes or modifications could void the user's authority to operate the equipment.

If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action .The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No.004-000-00345-4.

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Page 3

Safety Precautions

This label may appear on the bottom of the unit due to space limitations.

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Attention: Installation should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes.

Power Disconnect. Units with or without ON-OFF switches have power supplied to the unit whenever the power cord is inserted into the power source; however, the unit is operational only when the ON-OFF switch is in the ON position. The power cord is the main power disconnect for all units.

SECURITE

En raison de limitation de place, cette étiquette peut être placée sur le dessous de l'appareil.

L'éclair fléché dans un triangle équilatéral, avertit l'utilisateur de la présence d'une "tension dangereuse" non isolée à l'intérieur de l'appareil et d'une valeur suffisante pour constituer un risque d'électrocution.

Le point d'exclamation contenu dans un triangle équilatéral, avertit l'utilisateur de la présence, dans la documentation qui accompagne l'appareil, de consignes d'utilisation et de maintenance importantes.

Attention: L'installation doit être effectuée uniquement par du personnel de service qualifié conformément à la réglementation du Code Electrique National ou à la réglementation locale.

Disjonction de l'alimentation. Les appareils avec ou sans commutateurs ON-OFF sont alimentés à chaque fois que le cordon d'alimentation est branché à la source d'alimentation; toutefois, les appareils disposant de commutateurs ON-OFF ne fonctionnnent que lorsque le commutateur ON-OFF est sur la position ON. Le cordon d'alimentation est la disjonction d'alimentation principale pour tous les appareils.

Warning:To prevent fire or shock hazard, do not expose units not specifically designed for outdoor use to rain or moisture.

Attention: Pour éviter le risque d'électrocution ou d'incendie, ne pas exposer à la pluie ou à l'humidité un appareil non conçu pour une utilisation extérieure.

C A U T I O N

R I S K O F E L E C T R I C

S H O C K . D O N O T O P E N !

Caution: To reduce the risk of electrical shock, do not open covers. No user serviceable parts inside. Refer servicing to qualified service personnel

A T T E N T I O N

R I S Q U E D E C H O C E L E C T R I Q U E .

N E P A S O U V R I R .

Danger: Pour ‚éviter tout risque d'électrocution, ne pas ouvrir le boîtier. Il n'y a pas de pièces remplaçables à l'intérieur. Pour toute révision, s'adresser à un technicien spécialisé.

Page 4

SICHERHEITSVORKEHRUNGEN

Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes angebracht sein.

Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte “Hochspannung” im Gehäuse aufmerksam machen, die eventuell stark genug ist, um einen elektrischen Schlag zu verursachen.

Das Ausrufezeichen im gleichseitigen Dreieck soll den Benutzer auf wichtige Bedienungs- und Wartungsanleitungen in der dem Gerät beigefügten Literatur aufmerksam machen.

Achtung! Die Installation sollte nur von qualifiziertem Kundendienstpersonal gemäß jeweilig zutreffender Elektrovorschriften ausgeführt werden.

Netzanschluß. Geräte mit oder ohne Netzschalter haben Spannung am Gerät anliegen, sobald der Netzstecker in die Steckdose gesteckt wird. Das Gerät ist jedoch nur betriebsbereit, wenn der Netzschalter (EIN/AUS) auf EIN steht. Wenn man das Netzkabel aus der Steckdose zieht, dann ist die Spannungszuführung zum Gerät vollkommen unterbrochen.

PRECAUCIONES DE SEGURIDAD

Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior de la unidad.

El símbolo representado por un relámpago con punta de flecha dentro de un triángulo equilátero, se muestra con el objetivo de alertar al usuario que existen "voltages peligrosos" sin aislamiento, dentro de la cubierta de la unidad. Dichos voltages pueden ser de tal magnitud que constituyen un riesgo de choque eléctrico a personas.

El símbolo de exclamación dentro de un triángulo equilátero, se muestra con el objetivo de alertar al ususario de que instrucciones de operación y mantenimiento importantes acompañan al equipo.

Atención: La instalación de este equipo debe ser realizada por personal capacitado, solo en acuerdo, y en cumplimiento de normas del "National Electric Code" (Código Eléctrico Nacional) ó las normas del Gobierno Nacional Local.

Para Desconectar la Alimentación: Unidades no equipadas con interruptores ON/OFF, son alimentadas cuando el cable de alimentación es conectado a la corriente eléctrica. Las unidades equipadas con interruptores son alimentadas de igual forma, pero adicionalmente requieren que el interruptor esté posicionado en ON. El cable de alimentación es el medio principal de desconexión del equipo.

Warnung

Um Feuer oder elektrische Schläge zu vermeiden, setzen Sie das Gerät niemals Regen oder Feuchtigkeit aus.

Peligro

Para evitar el peligro de incendio ó choque eléctrico, no exponga a la lluvia ó humedad, equipos que no han sido para uso exterior.

WARNING: Electrostatic-sensitive device. Use proper CMOS/MOSFET handling precautions to avoid electrostatic discharge.

NOTE: Grounded wrist straps must be worn and proper ESD safety precautions observed when handling the electrostatic-sensitive printed circuit boards.

Page 5

LTC 2600 Series Contents

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SECTION 1: INTRODUCTION TO THE LTC 2600 SERIES

VIDEO MULTIPLEXERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

1.1 Guide to This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

1.2 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

1.3 Understanding Video Multiplexers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

SECTION 2: INSTALLING THE VIDEO MULTIPLEXER . . . . . . . . . . . . . . . . . . . . . .9

2.1 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.2 Connecting the Video Multiplexer System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.3 Guide to the Multiplexer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SECTION 3: PROGRAMMING – QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.1 Using QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

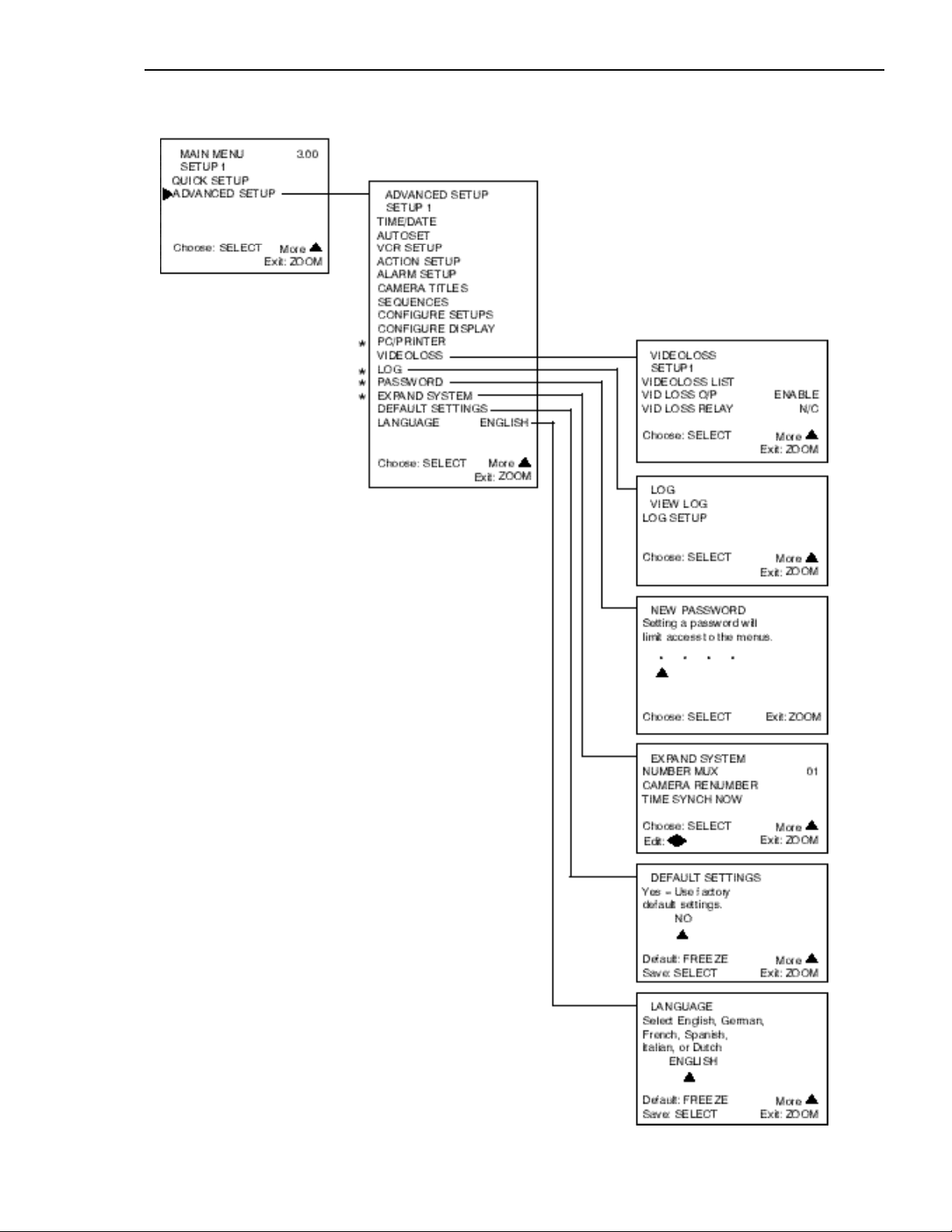

SECTION 4: PROGRAMMING – ADVANCED SETUP . . . . . . . . . . . . . . . . . . . . . . .17

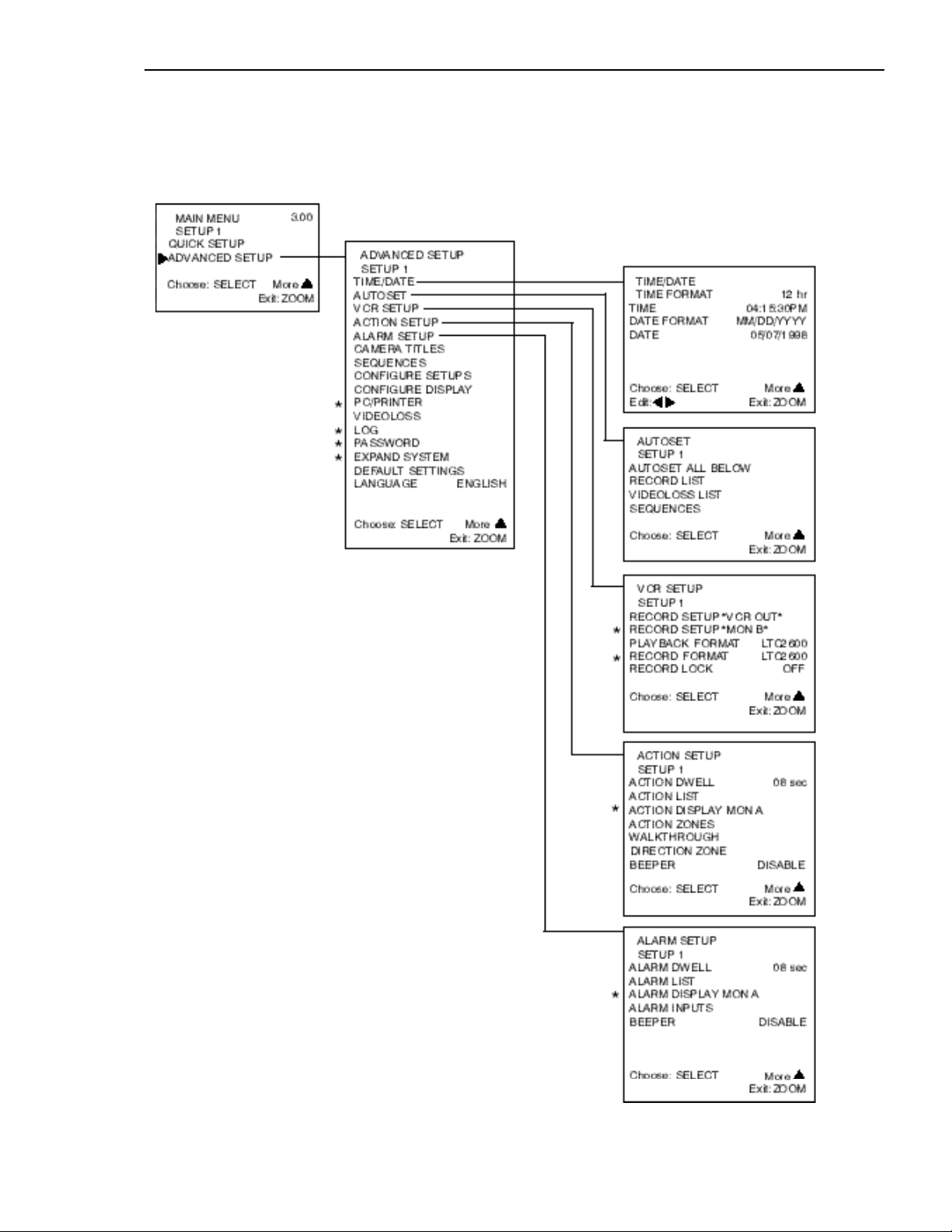

4.1 Using ADVANCED SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

SECTION 5: System4®PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

5.1 System4 Advanced Setup: VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

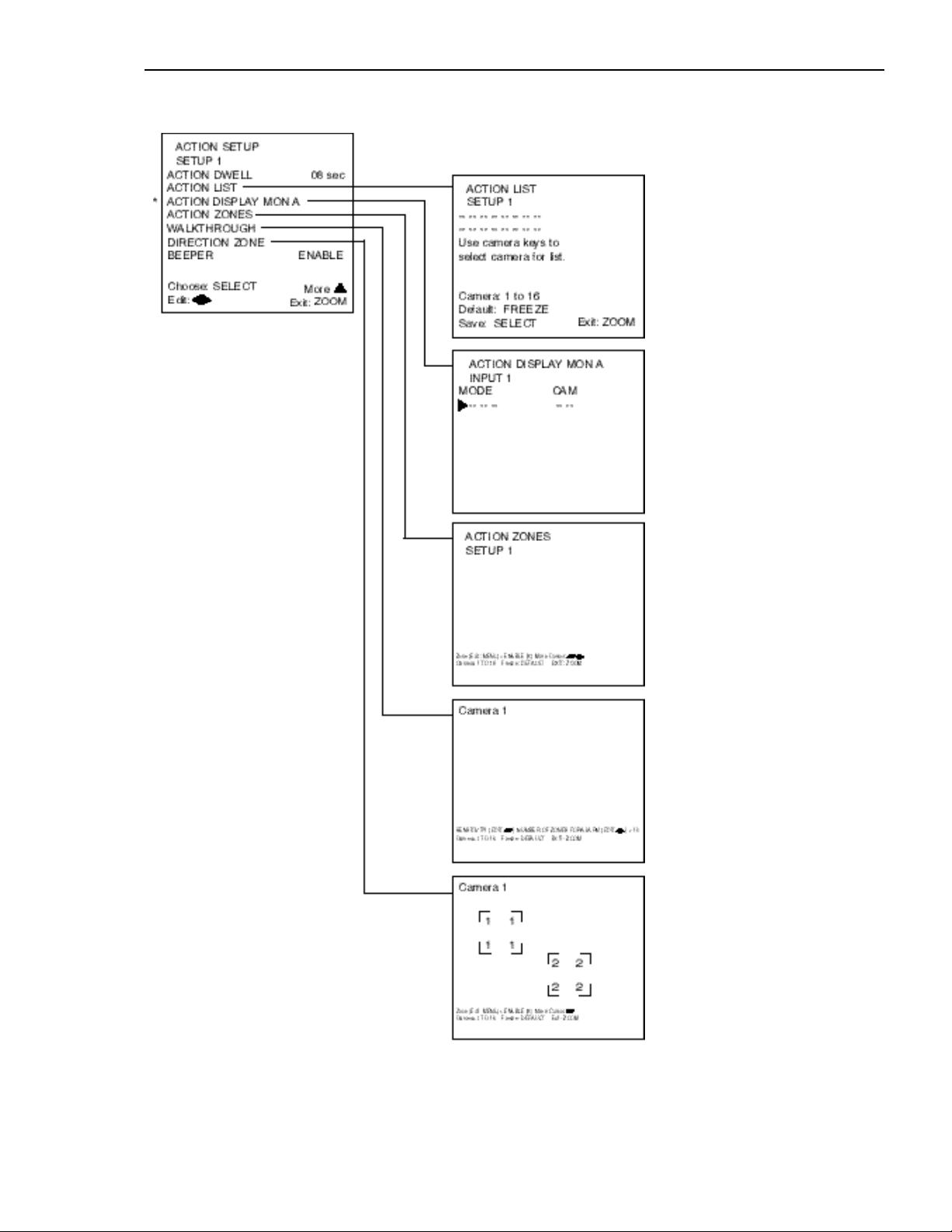

5.2 System4 Advanced Setup: Action Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

5.3 System4 Advanced Setup: Alarm Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

5.4 System4 Advanced Setup: Configure Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

5.5 System4 Advanced Setup: Camera Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

5.6 System4 Advanced Setup: PC Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

5.7 System4 Advanced Setup: Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

5.8 System4 Advanced Setup: Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

5.9 System4 Advanced Setup: Expand System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

5.10 System4 Advanced Setup: Remote System4 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

SECTION 6: OPERATING THE LTC 2600 SERIES

VIDEO MULTIPLEXER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.1 Live Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.2 Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

6.3 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

6.4 Combined Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

6.5 Security Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

6.6 VCR Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

SECTION 7: System4 ENHANCED OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

7.1 System4 Special Operating Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

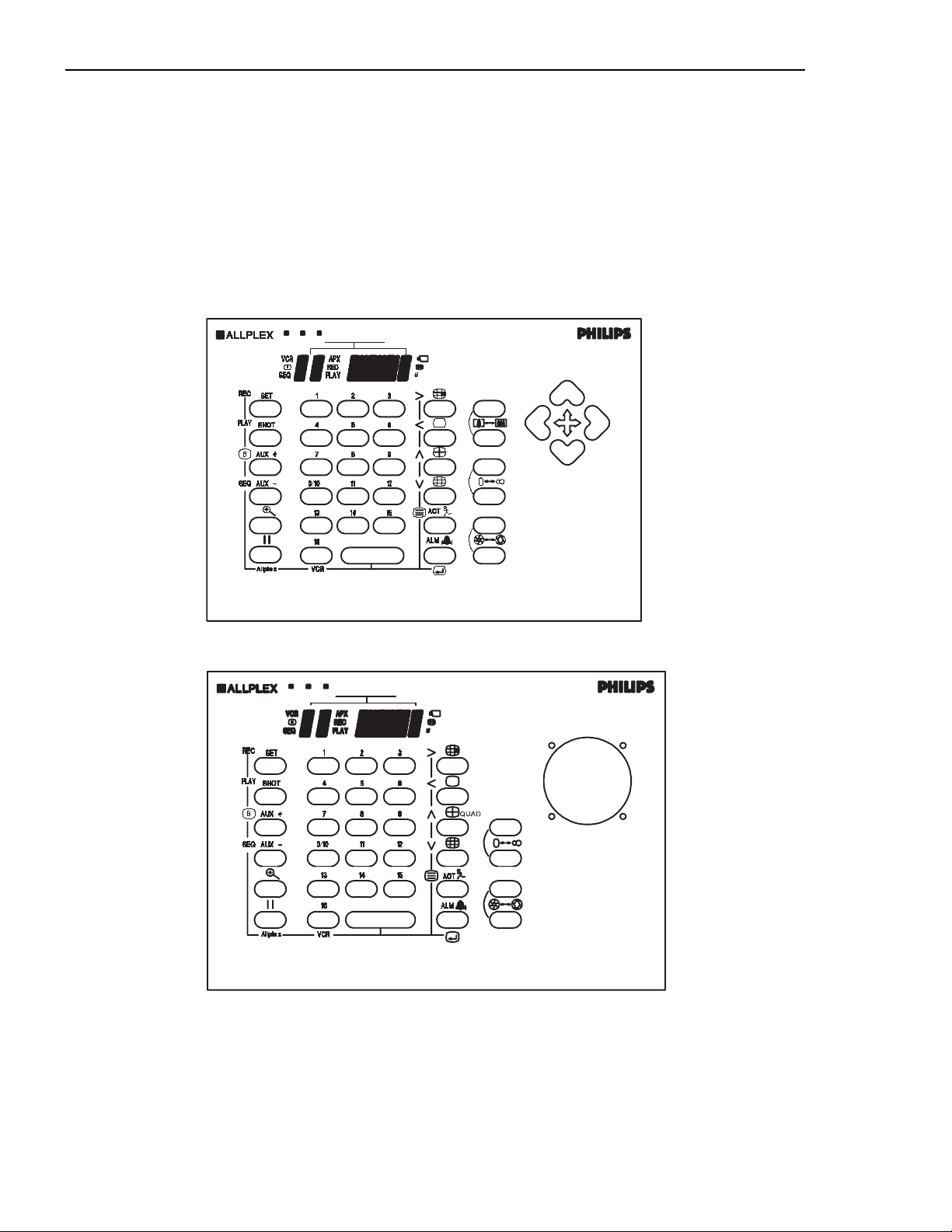

7.2 System Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Appendix A: FEATURES AND SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

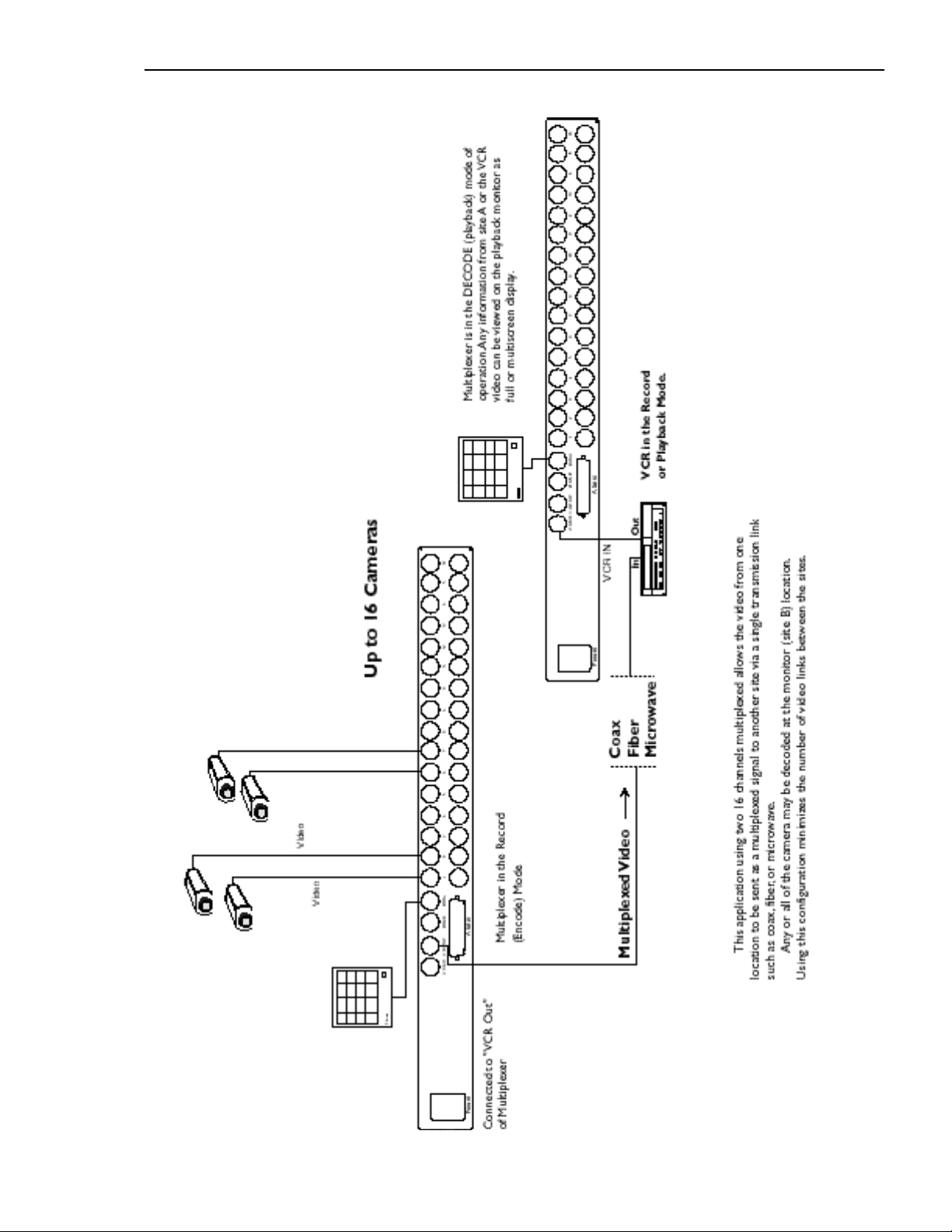

Appendix B: SPECIAL APPLICATIONS/SYSTEM CONFIGURATIONS . . . . . . . . . .41

Appendix C: FACTORY DEFAULT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Appendix D: PROGRAMMING REFERENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Appendix E: QUICK FUNCTION KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

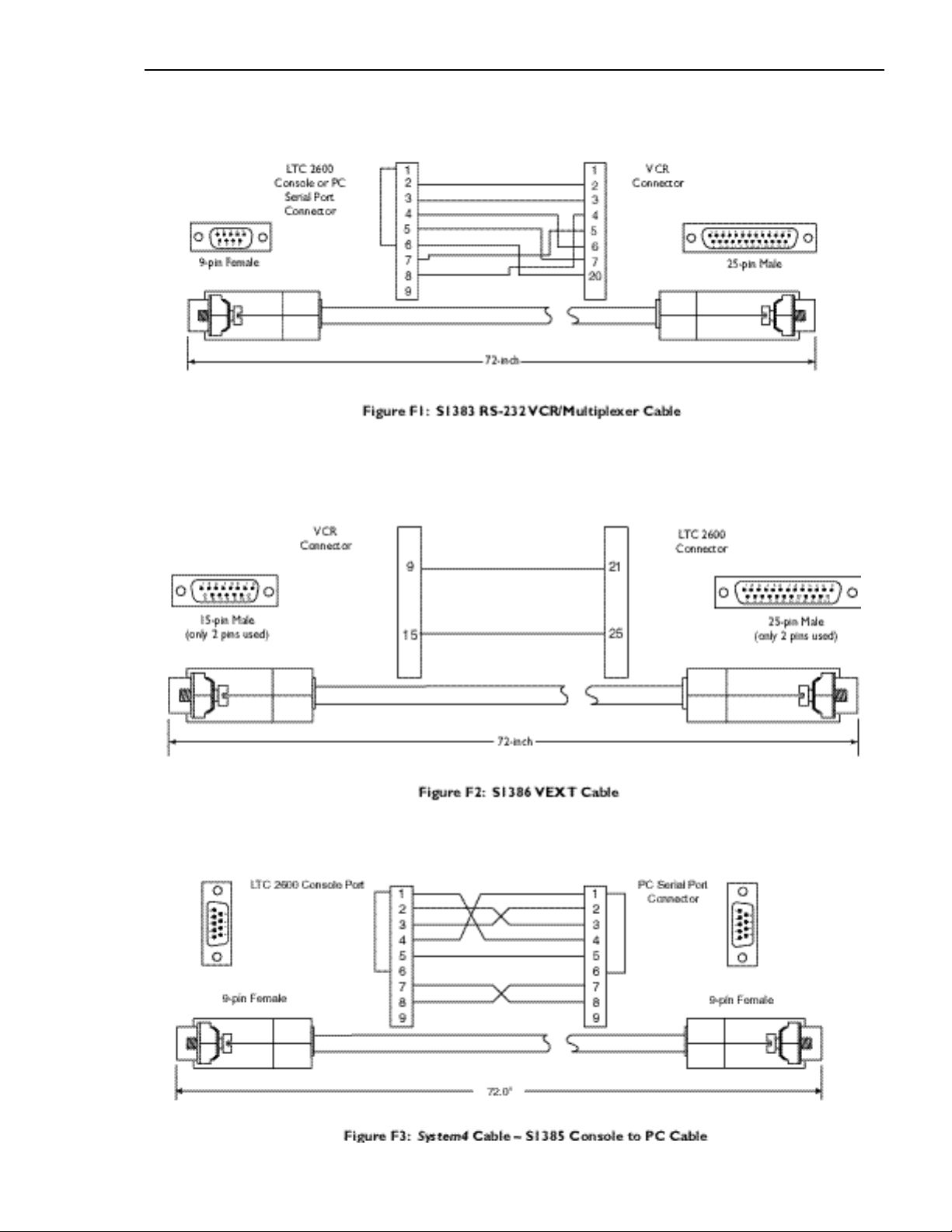

Appendix F:ACCESSORY CABLES FOR THE

LTC 2600 SERIES MULTIPLEXERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Page 6

LTC 2600 Series Section 1 Introduction

SECTION 1: INTRODUCTION TO THE LTC 2600 SERIES

VIDEO MULTIPLEXERS

1.1 Guide to This Manual

This manual contains all the information necessary to safely install, program, and operate the LTC 2600 Series Video Multiplexer. Consult the Table of Contents for a detailed list of topics covered. Step-by-step procedures and sample menus guide you through each phase of multiplexer setup and programming.

Installation of the multiplexer includes mounting, connecting the multiplexer to system peripherals (i.e. monitors, cameras,VCRs), and learning the multiplexer controls.

Instructions for programming the multiplexer are divided into three sections for easy reference and understanding:

• QUICK SETUP: provides complete instructions for the QUICK SETUP programming menus which allow set

up of all basic, general multiplexer functions.

• ADVANCED SETUP: provides complete instructions for the ADVANCED programming menus which allow

set up of all basic, general multiplexer functions plus special operations including Action Setup, Alarm Setup, etc.

• System4 PROGRAMMING: provides specific programming instructions pertaining only to the additional

operating functions offered by System4 multiplexer models.

Operating instructions cover all basic and enhanced (combined) operating modes. Those operating functions specific only to System4 models are detailed in a separate section. Firmware version 3.02 or greater.

This manual also contains detailed technical reference materials, including programming menu trees and

sample system configuration diagrams, which are located in the Appendixes.

1.2 Unpacking

Unpack carefully. This is electronic equipment and should be handled with care to prevent damage to the unit. Check for the following items:

■■✓ LTC 2600 Series Video Multiplexer

■■✓ Installation Instructions (manual)

■■✓ Quick Reference Guide

■■✓ One 25-pin D-type connector with screw terminal (used for Alarm/Accessory connections to include

biphase connections when the LTC 2622/90 is used)

■■✓ Rack mount kit

■■✓ One 15-pin D-type connector with screw terminal (used for Biphase output – LTC 2672 and LTC 2682

only)

■■✓ Tw o power cords

If any items appear to have been damaged in shipment, replace the item(s) properly in the shipping carton and notify the shipping company. If any items are missing, notify your Philips Communication, Security & Imaging Sales Representative or Customer Service Representative.

NOTE: The shipping carton is the safest container in which to transport the unit. Save it and all packing materials for future use.

1.3 Understanding Video Multiplexers

The LTC 2600 Series Video Multiplexers are designed to control multichannel recording and playback with the added capability of multiscreen viewing. The units allow monitoring of multiple camera sites without the need for multiple monitors and VCRs. They can be programmed easily via front panel control keys and on-screen display menus.

Page 7

Video multiplexers are available in the following main categories:

• Standard Models provide high quality multiplexing. They are designed to be plug-and-play, therefore

simplifying installation.

• System4 Triplex Models provide a variety of advanced system features such as control via remote keypad, PC

control, system camera control (i.e. Pan/Tilt/Zoom control for controllable cameras), as well as enhanced multiplexing (e.g. two multiscreen outputs and two VCRs to increase recording speed).

And, each type of multiplexer may operate in one of the following modes:

• Simplex Models allow live multiscreen monitor viewing or playback or VCR recording.

• Duplex Models allow live multiscreen monitor viewing or playback and at the same time record all video.

• Triplex Models allow live multiscreen monitor viewing and playback and at the same time record all video.

To identify your specific LTC 2600 Series Video Multiplexer model, refer to the following chart which also provides basic operating specifications:

Model No. Mode Rated Voltage Voltage Range Power

6-channel: Color LTC 2622/90 Duplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

9-channel: Monochrome Duplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

LTC 2632/90

9-channel: Universal LTC 2642/90 Duplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

9-channel: System4 LTC 2672/90 Triplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

16-channel: Monochrome Duplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

LTC 2652/90

16-channel: Universal LTC 2661/90 Simplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

16-channel: Universal LTC 2662/90 Duplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

16-channel: System4 LTC 2682/90 Triplex 120/230 VAC, 50/60 Hz 108 to 253 30 W

LTC 2600 Series Section 1 Introduction

Page 8

LTC 2600 Series Section 2 Installation

SECTION 2: INSTALLING THE VIDEO MULTIPLEXER

2.1 Mounting

The multiplexer is supplied as a desktop unit. If desired, the unit may be rack mounted using the included rack mount kit.

2.2 Connecting the Video Multiplexer System

1. Refer to Figures 2A, 2B, and/or 2C for details on the input/output connections supplied by the multiplexer. (Be sure to reference the appropriate drawing for your multiplexer model.)

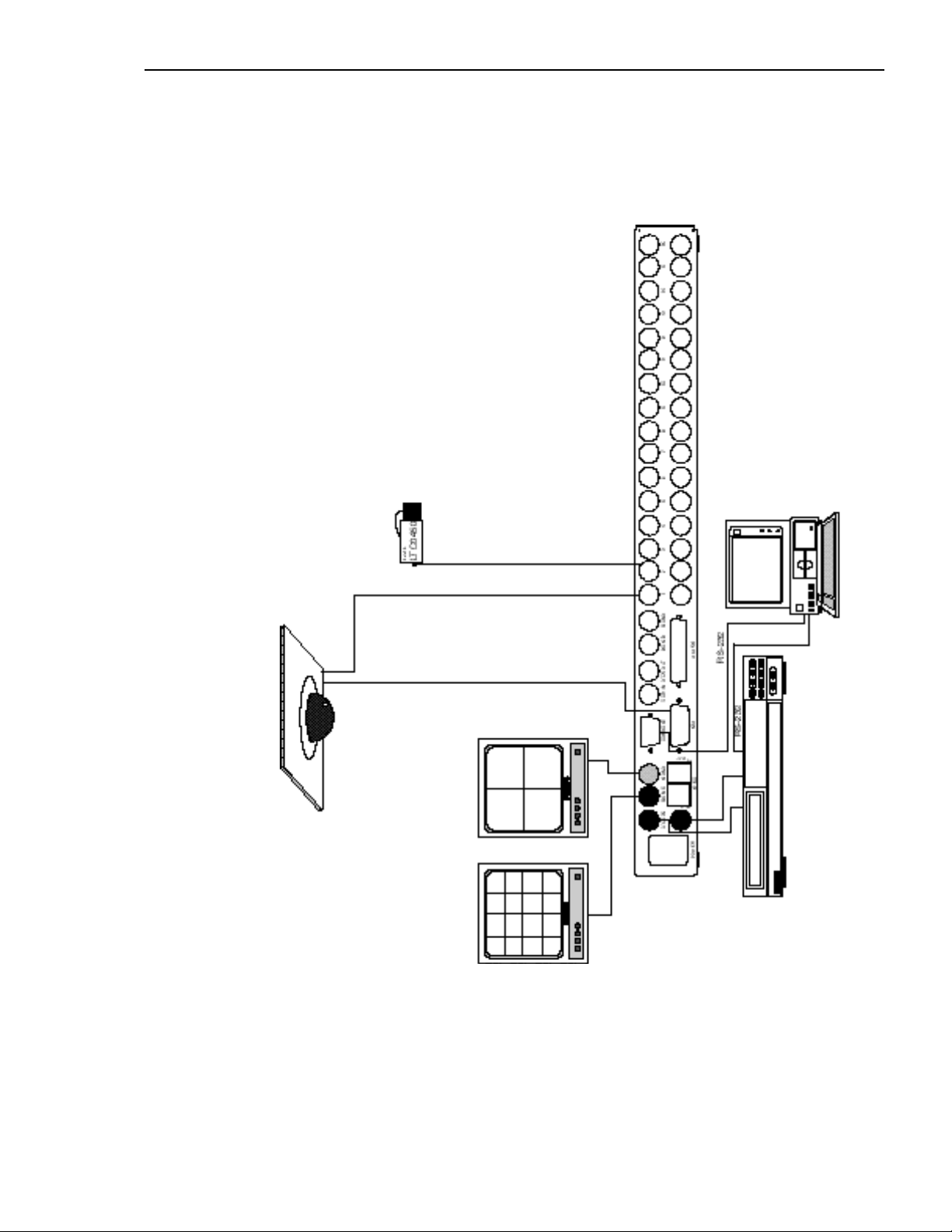

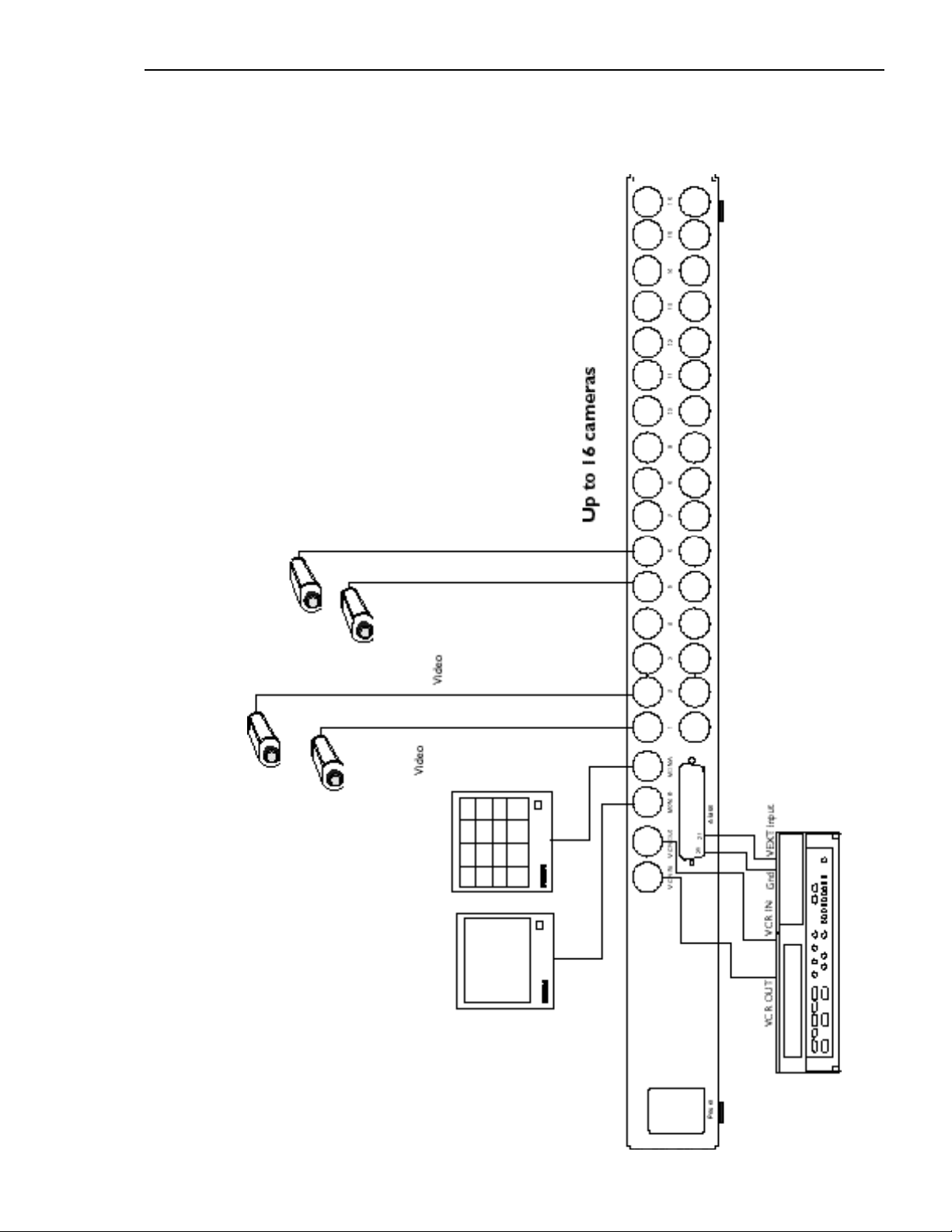

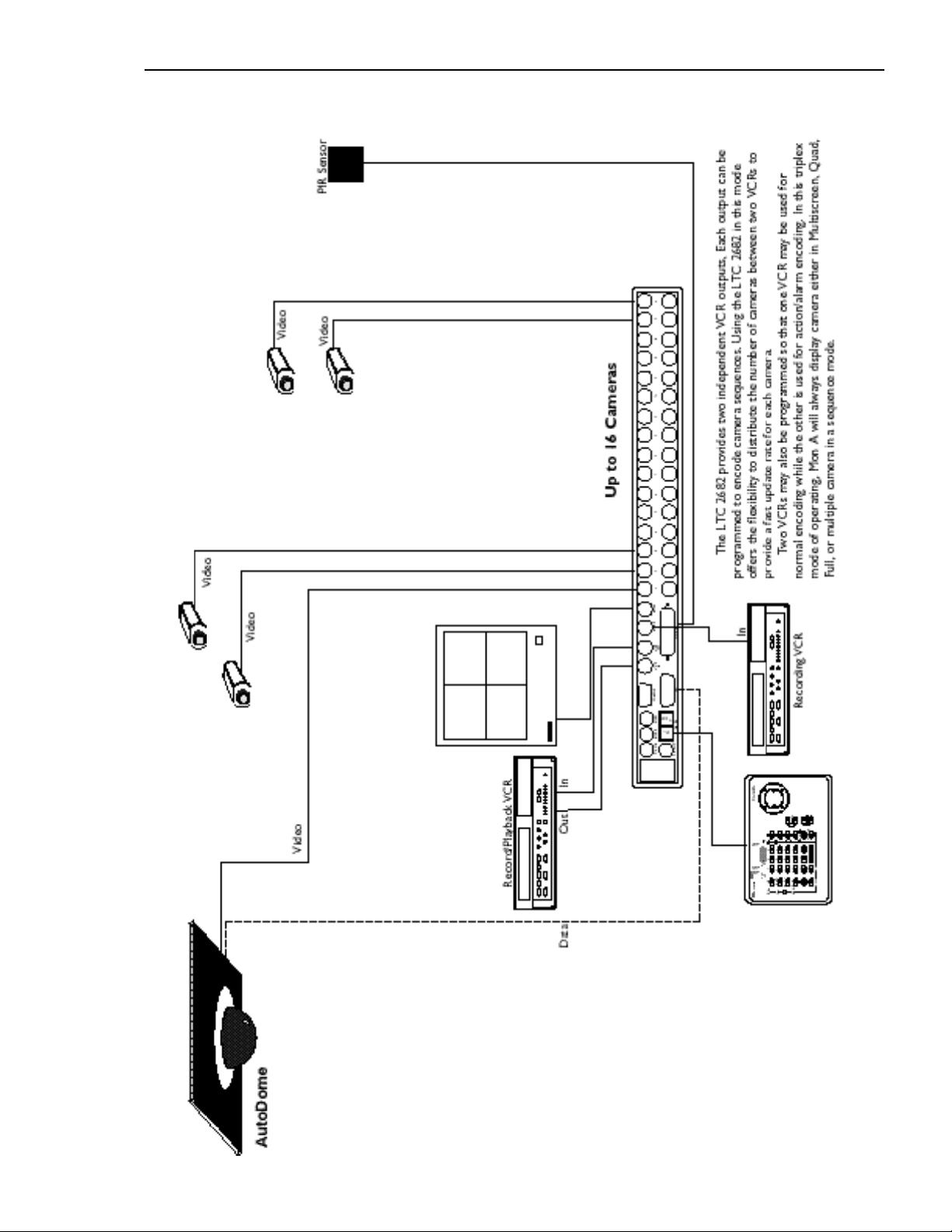

2. Review the typical installation diagrams provided in Appendix B at the back of the manual, and determine the number of cameras, monitors, and VCRs to be incorporated into the system.

3. Connect all peripherals (e.g. cameras, monitors,VCRs) to the corresponding inputs/outputs on the multiplexer rear panel.

NOTE: The Quick Reference Guide supplied with your multiplexer provides additional easy-to-follow instructions and diagrams for completing system connections.

4. When all connections have been completed, apply power to the system.

Figure 2A: 16-channel Back Panels

Figure 2B: 6-channel Back Panels

Page 9

LTC 2600 Series Section 2 Installation

POWER

VCR IN

VCR OUT

MON B MON A CONSOLE

O U T

KYBD

VCR OUT MON B MON AVCR IN

SDA ALARM

12345678910111213141516

Figure 2C: 16-channel System4 Back Panels

**From Console port of System4 to RS-232 port of Philips VCRs.

9-pin D sub to 25-pin D sub 22 33 46 57 620 75 84 Jumper 1+6

or purchase a S1383 cable.

* S-VHS (IN/OUT)

Limited distance need S-VHS Monitor, S-VHS VCR, and S-VHS tape.

** Please refer to Appendix F for cable details.

Page 10

2.3 Guide to the Multiplexer Controls

Before attempting any multiplexer programming, you should become familiar with the function of the multiplexer controls. This section provides a summary of the front panel controls and indicators. Refer to Figures 2D, 2E, and/or 2F for the appropriate front panel illustration.

LTC 2600 Series Section 2 Installation

Figure 2D: 16-channel Front Panel

Figure 2E: 9-channel Front Panel

Figure 2F: 6-channel Front Panel

Page 11

LTC 2600 Series Section 2 Installation

Front Panel Indicators

LED Indication

POWER Power supplied to unit

ALT Primary indication:Alternate

functions (Flashing): Camerato-cameo mode (ALT + SELECT)

RECORD Record mode enabled (LED LIT)

PLAYBACK Playback mode enabled (LED LIT)

VCR Test VCR Test enabled (LED LIT)

MON B Monitor B enabled (Front panel keys

control monitor B display) (LED LIT)

SEQ Sequence mode enabled (LED LIT)

CAMEO Cameo mode enabled

(Camera keys control cameo images)

CAMERA Camera mode enabled

(Camera keys control camera images)

KEYPAD Numeric mode enabled

(Camera keys act as numeric keys)

ZOOM Enlarge/zoom mode enabled

ACT Steady:Action is enabled

Flashing:Action has occurred Off: Action Disabled

ALM Steady: Alarm is enabled

Flashing:Alarm has occurred Off: Action Disabled

Controls

Primary Selections Secondary Selections

Description Icon Description Icon

FULL UP

QUAD DOWN

MULTI LEFT

CAMEO RIGHT

ZOOM

FREEZE

ALT

ACTION CLEAR ACT MENU

ALARM CLEAR ALM SELECT

Page 12

SECTION 3: PROGRAMMING – QUICK SETUP

NOTE: The programming section of this manual is divided into 3 parts: QUICK SETUP,ADVANCED SETUP, and

System4 ADVANCED SETUP. Programming of all Philips LTC 2600 Series multiplexers is included in the QUICK SETUP and ADVANCED SETUP sections. Additional setup parameters for the System4 version multiplexers only are included in the System4 ADVANCED SETUP section.

3.1 Using QUICK SETUP

For typical multiplexer system operation, QUICK SETUP allows quick and easy programming of vital system data and operating parameters. The QUICK SETUP program includes the following:

• Time/Date

•AutoSet (automatic programming of system cameras)

• VCR Setup

The following programming information applies to all LTC 2600 Series multiplexer models. If you need help at any point in the programming, consult the built-in HELP feature by pressing the ALT key.

NOTE: Upon power up, the multiplexer will be using the factory-set default parameters. (See Appendix C for complete listing of the Factory Default Settings.) During QUICK SETUP programming, the menus will be

displayed on Monitor A in the system.

1. To access the menu screens, press the ALT key followed by the MENU key. The Main Menu (as shown below) displays both programming setup options: QUICK SETUP and ADVANCED SETUP.

Choose the QUICK SETUP option by using the direction (arrow) keys, then press SELECT .

LTC 2600 Series Section 3 Programming - Quick Setup

MAIN MENU 3.00 SETUP 1

>QUICK SETUP

ADVANCED SETUP

Choose:SELECT More v

Exit:ZOOM

Page 13

2. Select TIME/DATE from the QUICK SETUP menu. Enter the time format (12 or 24 hours), time, date format

(dd/mm/yyyy; mm/dd/yyyy; yyyy/mm/dd), and date information as requested. (Refer to the following sample menus which correspond to the on-screen Time/Date menus—read each row from left to right.) When you have finished programming all time/date parameters, use the ZOOM key to return to the QUICK SETUP menu.

3. Select AUTOSET from the QUICK SETUP menu to automatically configure the video multiplexer for the

number of cameras connected. (See the following sample menus.) Recording, camera sequence, and video loss list are also configured in this menu.

4. Selecting AUTOSET ALL BELOW will automatically set the record list, sequence, and video loss list

(according to the number of camera inputs detected by the multiplexer). Selecting any of the other options in this menu will set only the selected option.

5. When AUTOSET is completed, a message will be displayed for nine seconds. The camera inputs detected in the setup process are displayed as shown in this sample screen. Return to the QUICK SETUP menu by pressing the ZOOM key.

LTC 2600 Series Section 3 Programming - Quick Setup

QUICK SETUP 3.00 SETUP 1

TIME/DATE

>AUTOSET

VCR SETUP

Choose:SELECT More^v

Exit:ZOOM

AUTOSET SETUP1

>AUTOSET ALL BELOW

RECORD LIST VIDEO LOSS LIST SEQUENCES

Choose:SELECT More^v

Exit:ZOOM

AUTOSET ALL SETUP 1

01 02 03 04 05 06 07 -- -- -- --

-- -- -- -- -- -- -- -- -- -- -- -- -- -the above cameras were included inselected system list(s)

Hit any Key to Continue

QUICK SETUP 3.00 SETUP 1

>TIME/DATE

AUTOSET VCR SETUP

Choose:SELECT More v

Exit:ZOOM

TIME

Set system time for display and recording

01:15:45AM

MOVE CURSOR: <>

Edit: ^v

Save:SELECT Exit:ZOOM

TIME/DATE TIME FORMAT 12hr

>TIME 04:57:30AM

DATE FORMAT MM/DD/YYYY DATE 01/01/2000

Choose:SELECT More v Edit:<> Exit:ZOOM

DATE FORMAT

Select Date MM/DD/YYYY

Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

TIME FORMAT

Set the time format to 12 hr or 24 hr clock

12 hr

Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

DATE

Set system date for display and recording 01/01/2000

MOVE CURSOR: <>

Edit:^v

Save:SELECT Exit:ZOOM

Page 14

6. From the QUICK SETUP menu, select VCR SETUP (sample menus are shown below). Then select RECORD SETUP to specify the VCR model and time-lapse mode.

7. From the RECORD SETUP menu, select the SELECT VCR option. Select the appropriate VCR model by scrolling through the different selections listed with the TYPE parameter until you find your VCR model.

NOTE: If your VCR type is not listed in the SELECT VCR menu, refer to the ADVANCED SETUP programming section for instructions on setting a custom VCR model.

8. Once the VCR has been selected, press the SELECT key followed by the ZOOM key to return to the RECORD SETUP menu. Select TIME LAPSE from the menu. Scroll through the time-lapse speeds until you find the appropriate recording speed of your VCR.

NOTE: After you specify the VCR model, the multiplexer will present the time-lapse settings available for the selected VCR. Ensure the same setting is entered in the VCR time-lapse menu as selected on the VCR for recording.

LTC 2600 Series Section 3 Programming - Quick Setup

VCR SETUP SETUP 1

>RECORD SETUP *VCR OUT*

PLAYBACK FORMAT LTC2600 RECORD LOCK OFF

Choose:SELECT More v

Exit:ZOOM

QUICK SETUP 3:00

SETUP 1 TIME/DATE AUTOSET

>VCR SETUP

Choose:SELECT ^ More

Exit:ZOOM

RECORD SETUP *VCR OUT* SETUP 1

>VEXT INPUT OFF

SELECT VCR TIME LAPSE 2hr SP RECORD LIST VCR OUT

Choose:SELECT More v Edit: <> Exit:ZOOM

SELECT VCR *VCR OUT* SETUP 1

>TYPE LTC3991

EDIT CUSTOM VCR

Choose:SELECT More v

Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF

>SELECT VCR

TIME LAPSE 2hr SP RECORD LIST VCR OUT

Choose:SELECT ^ More

Exit:ZOOM

TIMELAPSE *VCR OUT* SETUP 1

Set the time lapse speed

2 hr - SP

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR

>TIME LAPSE 2hr SP

RECORD LIST VCR OUT

Choose:SELECT ^ More Edit: <> Exit:ZOOM

SELECT VCR

*VCR OUT* SETUP 1 Match VCR type with the VCR connected to optimize recording speeds.

LTC3991

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

Page 15

9. Optional VCR SETUP Programming: PLAYBACK FORMAT

To play back a tape that has been previously recorded on a nonPhilips multiplexer, use the PLAYBACK FORMAT option to program the unit accordingly. From the VCR Setup menu, select the PLAYBACK FORMAT option, then select the appropriate tape format. (The factory-set default for this option is LTC 2600 format.)

PLAYBACK FORMAT options:

• LTC 2600 (Same as TC82XXC,TC825X-X Series)

• TC8298B Series (Same as TC82XXA Series)

• DM (Same as Uniplex II, Sprite Series)

• Robot (Same as MV90X Series)

• Pelco

• Vicon

10. Optional VCR SETUP Programming: RECORD LOCK

When enabled (ON), this feature locks the multiplexer in the record mode; recording cannot be stopped from the front panel or keyboard unless the lock option is turned OFF in the VCR Setup menu.

LTC 2600 Series Section 3 Programming - Quick Setup

Page 16

LTC 2600 Series Section 4 Programming - Advanced Setup

SECTION 4: PROGRAMMING – ADVANCED SETUP

NOTE: Please refer to Page 13 for details.

4.1 Using ADVANCED SETUP

For specialized multiplexer system operation, use the ADVANCED SETUP programming menus to customize your system configuration. The ADVANCED SETUP program includes the following:

•Time/Date (as described in QUICK SETUP)

• Auto Set (as described in QUICK SETUP)

• VCR Setup

• Action Setup

• Alarm Setup

• Camera Titles

• Camera Sequences

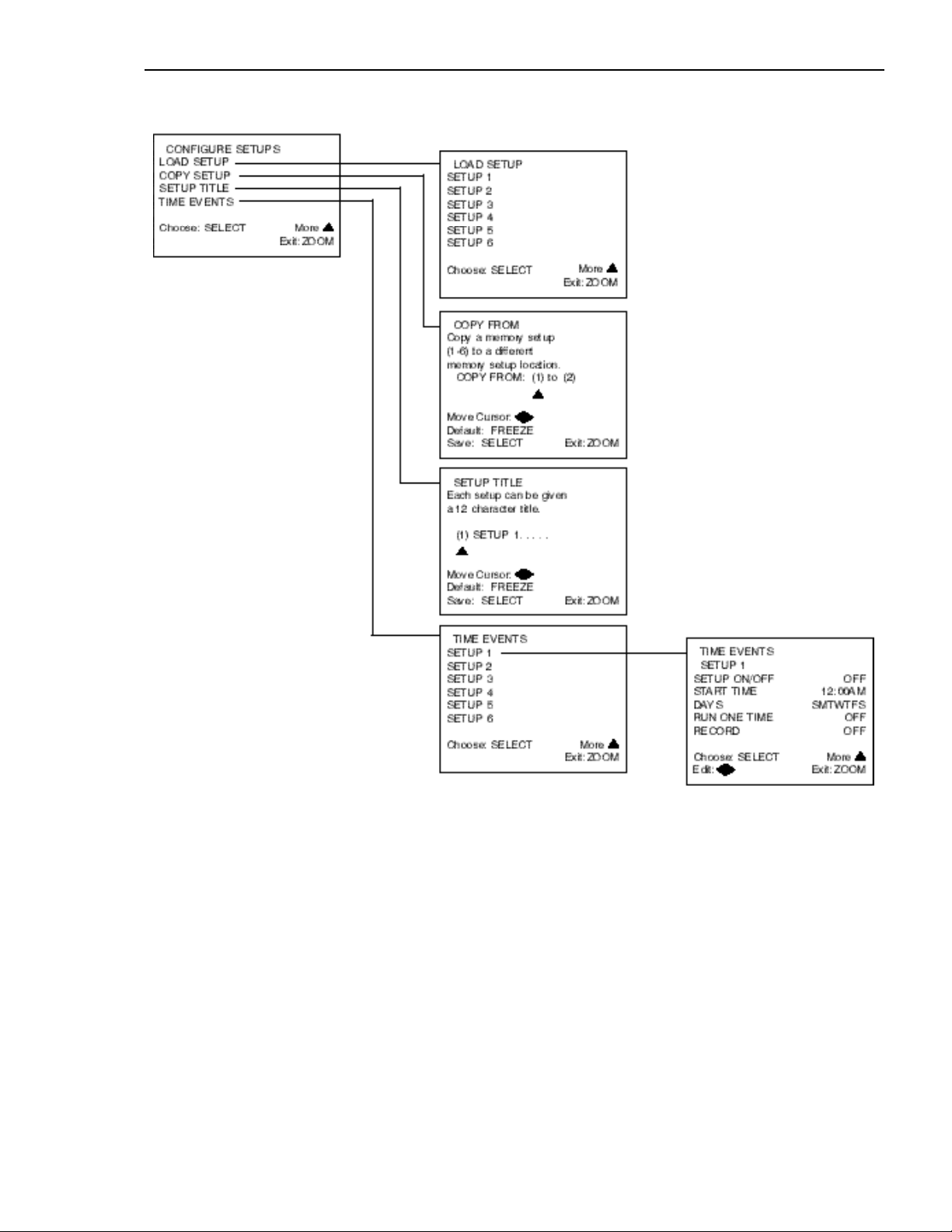

• Configure Setups (in which preconfigured modes of operation are stored in memory for use at a specified time)

• Configure Displays (in which the format of the information shown on the displays is configured)

• Video Loss (in which the system functioning is set for when a video loss occurs)

• Default Settings (enables changes to the factory-set default parameters)

• Languages (allows the menu language to be changed)

NOTE:For information regarding QUICK FUNCTION KEYS enabling “instant access” to the programming lists on the LTC 2600 Video Multiplexer, please refer to Appendix E at the back of this manual.

IMPORTANT! The following procedure assumes that all options will be programmed (all options, however, are not necessarily required for your system configuration). If you do not wish to program any particular ADVANCED SETUP feature, simply skip over that step and move on to the next one (as applies to your system configuration).

1. To access the menu screens, press the ALT key followed by the MENU key. The Main Menu (as shown below) displays both programming setup options: QUICK SETUP and ADVANCED SETUP.

Choose the ADVANCED SETUP option by using the direction (arrow) keys, then press SELECT .

MAIN MENU 3.00 SETUP 1

QUICK SETUP

>ADVANCED SETUP

Choose:SELECT ^ More

Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 TIME/DATE AUTOSET

>VCR SETUP

ACTION SETUP ALARM SETUP CAMERA TITLES

Choose:SELECT More ^

Exit:ZOOM

Page 17

LTC 2600 Series Section 4 Programming - Advanced Setup

2. For TIME/DATE programming, please refer to the information provided in the QUICK SETUP section of this

manual. Programming this parameter is identical for both ADVANCED SETUP and QUICK SETUP.

3. For AUTOSET programming, please refer to the information provided in the QUICK SETUP section of this

manual. Programming this parameter is identical for both ADVANCED SETUP and QUICK SETUP.

4. The LTC 2600 Series multiplexers are configured to record and playback from a wide range of VCRs.The VCR provides a pulse (VEXT) each time a video field is recorded to tape.This signal lets the multiplexer know that it can switch to a new camera.This feature also simplifies installation by synchronizing the normal and alarm recording speeds.You will need to decide how you are going to synchronize the multiplexer and the VCR. Either accomplish the following steps for synchronization using the VEXT input (recommended), or perform the alternate method (programming the VCR model and corresponding time-lapse speed).

NOTE: VCR SETUP is an involved programming sequence with many options. Please read through the information in this section carefully to understand all the options available.

Synchronizing the VCR using the VEXT Signal

If provided by the VCR, use of a VEXT signal is the preferred method of synchronizing the Multiplexer and the VCR. The VEXT pulse is a signal provided by the VCR that causes the Multiplexer to sequence to the next camera. It is highly recommended to use this method if supported by the VCR as it will ensure optimal update rate and performance of the Multiplexer. Select VCR SETUP (menu shown below).

• Connect and enable the VEXT output from the VCR, then choose the recording speed of the VCR.

• Connect the VEXT output from the VCR (CAM SW Out or Record Out) to Pin 21 and Ground to Pin 25 of the Alarm In/Out.

•From the VCR SETUP menu, select the RECORD SETUP option.

•From the RECORD SETUP menu, select VEXT INPUT. Switch it to the ON setting (the factory default is OFF). Using this feature will bypass the time-lapse setting in the multiplexer VCR selection menu (i.e. programming SELECT VCR and TIMELAPSE are not required.)

VCR SETUP SETUP 1

>RECORD SETUP *VCR OUT

PLAYBACK FORMAT LTC2600 RECORD LOCK OFF

Choose:SELECT More v

Exit:ZOOM

VEXT INPUT

*VCR OUT* SETUP 1 Select ‘ON’ to synchronize the mux with the VCR recording speed

OFF

Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR

>TIME LAPSE 2 hr SP

RECORD LIST VCR OUT

Choose:SELECT More ^ Edit: <> Exit:ZOOM

QUICK SETUP 3.00

SETUP 1 TIME/DATE AUTOSET

>VCR SETUP

Choose:SELECT ^ More

Exit:ZOOM

Page 18

LTC 2600 Series Section 4 Programming - Advanced Setup

Alternate Method for Synchronizing the VCR

The alternate method for synchronization of the multiplexer and the VCR requires selecting the appropriate VCR model, then selecting the identical setting in the VCR time-lapse menu.

•From the VCR SETUP menu, select RECORD SETUP.

•From the RECORD SETUP menu, select the SELECT VCR option.

• Scroll through the different selections listed with the TYPE parameter (using the arrow keys) until you find

your VCR model.

• Return to the RECORD SETUP menu, and select the TIME LAPSE option.

Scroll through the time-lapse speeds (using the arrow keys) until you find the corresponding recording speed of your VCR.

RECORD SETUP *VCR OUT* SETUP 1

VEXT INPUT OFF

>SELECT VCR

TIME LAPSE 2 hr SP RECORD LIST VCR OUT

Choose:SELECT More v Edit : <> Exit:ZOOM

SELECT VCR *VCR OUT* SETUP 1

|Match VCR type with the VCR

connected to optimize recording speeds.

LTC3991

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

SELECT VCR *VCR OUT* SETUP 1

>TYPE LTC3991

EDIT CUSTOM VCR

Choose:SELECT More ^ Edit: <> Exit:ZOOM

TIMELAPSE *VCR OUT* SETUP 1

Set the time lapse speed

2 hr - SP

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR

>TIME LAPSE 2 hr SP

RECORD LIST VCR OUT

Choose:SELECT More v Edit: <> Exit:ZOOM

VCR SETUP

SETUP 1

>RECORD SETUP *VCR OUT

PLAYBACK FORMAT LTC2600 RECORD LOCK OFF

Choose:SELECT More v

Exit:ZOOM

Page 19

LTC 2600 Series Section 4 Programming - Advanced Setup

Custom VCR Option

If Vext option will not be used and programming VCR cannnot be accomplished through Quick Setup, choose the Custom VCR option. Up to six custom set ups can be stored in the VCR list.The field rate must be determined for each of the VCR time-lapse modes. Field rates are available in the VCR’s instruction manual or may be obtained by contacting the VCR manufacturer’s technical support. Enter this information in the time-lapse menu. All video recording rates must be in fps (fields per second).All available recording rates for the VCR must be included.

•From the VCR SETUP menu, select RECORD SETUP.

•From the RECORD SETUP menu, select the SELECT VCR option.

•From the SELECT VCR menu, select the EDIT CUSTOM VCR option.

• Select CUSTOM VCR 1, and program the VCR SETUP TITLE and TIME LAPSE SETTING as shown in

the menus below.

Record List Option

The RECORD LIST option (in the RECORD SETUP menu) is used to customize the list of cameras to be recorded. Enter the information as requested in the sample menus shown below.

EDIT CUSTOM VCR

>CUSTOM VCR 1

CUSTOM VCR 2 CUSTOM VCR 3 CUSTOM VCR 4 CUSTOM VCR 5 CUSTOM VCR 6

Choose:SELECT More v

Exit:ZOOM

SELECT VCR *VCR OUT* SETUP 1

TYPE LTC3991

>EDIT CUSTOM VCR

Choose:SELECT ^ More

Exit:ZOOM

RECORD LIST *VCR OUT* SETUP 1

01 02 03 04 -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- -- -- -- -- -Use camera keys to select camera for list

Camera: 1 to 16 Default:FREEZE Save:SELECT Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR TIME LAPSE 2 hr SP

>RECORD LIST

VCR OUT

Choose:SELECT ^ More

Exit:ZOOM

VCR SETUP TITLE

CUSTOM VCR 1 Each VCR setup can be given a 12-character name.

CUSTOM.VCR. 1 ^

Move Cursor: <> Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

EDIT CUSTOM VCR CUSTOM VCR 1

>VCR SETUP TITILE

TIMELAPSE SETTING

Choose:SELECT More v

Exit:ZOOM

TIME LAPSE SETTINGS

CUSTOMER VCR 1 HOUR FIELD SP/HD 01-003 50.00 SP 02-012 12.50 SP 03-024 06.25 SP 04-048 03.10 SP

Move Cursor:<> Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

Page 20

VCR OUT Option

The VCR OUT option (in the RECORD SETUP menu, as shown below) is used to program the function of the VCR output relay. The VCR OUTPUT relay controls external devices such as changing the recording speed when an action and/or alarm occurs. The VCR output relay will remain active while there are active alarms or action. The following functions can be programmed:

• Output:The output relay can be activated on an action, alarm, action and alarm, or off, enabling the installer to

prioritize the recording of camera pictures.

• Alarm speed:The VCR recording speed can be set to match the alarm recording speed of the VCR for an

action/alarm input, ensuring that no part of any incident is missed.

• Output relay:The output relay can be set to operate as normally closed (N/C) or normally open (N/O)

contacts.Typical VCR inputs are normally open contacts.

(This completes the VCR SETUP programming.)

5. Return to the ADVANCED SETUP menu. Select the ACTION SETUP option.The LTC 2600 Series multiplexer includes a Digital Motion Detection feature that detects movement within the camera scene. When this feature is programmed and motion is detected, the record/display rates will increase. Using the ACTION LIST facility, the priority of recording can be changed to include recording of camera pictures and at the same time prioritize picture display on the monitor.

LTC 2600 Series Section 4 Programming - Advanced Setup

VCR OUTPUT SETUP 1

>OUTPUT OFF

ALM/ACT SPEED 3 HR - SP ALARM REC INTERLEAVE ACTION REC INTERLEAVE OUPUT RELAY N/O

Choose:SELECT More v Edit: <> Exit:ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR TIME LAPSE 2 hr SP RECORD LIST

>VCR OUT

Choose:SELECT ^ More v

Exit:ZOOM

ACTION SETUP SETUP 1

>ACTION DWELL 08 sec

ACTION LIST ACTION ZONES WALKTHROUGH DIRECTION ZONE

Choose:SELECT More v Edit:<> Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 TIME/DATE AUTOSET VCR SETUP

>ACTION SETUP

ALARM SETUP CAMERA TITLES

Choose:SELECT ^ More v

Exit:ZOOM

Page 21

The parameters in the ACTION SETUP menu are defined and programmed as follows:

ACTION DWELL: The action will be held for monitor display (full video on monitor B, when applicable) and

recording for the programmed duration (3 to 60 seconds). Press the <left / >right keys to increment/decrement.

NOTE:For 6-channel models only (LTC 2622/90).

ACTION LIST: Selects cameras to have motion detection. Entering the ACTION LIST menu enables this list to

be customized to a specific configuration.

ACTION DISPLAY: Action display is available for MON A and MON B.Action display MON A setting will allow customized action viewing. Multiple actions will override programmed setting(s) and display a 5+1 multiscreen with ACTION flashing in the text display area. MON B will show full screen on action and at 2 second intervals when multiple actions are sensed.

ACTION ZONES:The screen is divided into a 14 X 16 grid (224 zones). Enabling or Disabling zones will allow the installer to specify which areas of the scene will detect action. For example, for an outdoor application, some of the scene includes a view of the sky. In this case, the grid areas covering the sky can be disabled.

• Once in the ACTION ZONE setup, select the camera requiring setup by depressing the corresponding camera number.

•To enable zones, select the MENU key, and ensure ZONE (EDIT:MENU) = ENABLE (X) is displayed. Move the cursor using the up, down, left, and/or right arrow keys to enable zones. Enabled zones will display an X.

•To disable zones, select the MENU key, and ensure ZONE (EDIT:MENU) = DISABLE (O) is displayed. Move the cursor using the up, down, left, and/or right arrow keys to disable zones. Disabled zones will be blank.

•To select the Default Enabled Zones, select the FREEZE key (12 X 14 grid, 168 zones).

•To exit the Action Zone setup, select the ZOOM key.

LTC 2600 Series Section 4 Programming - Advanced Setup

x x x x x x x x x x x x x x Camera 1 x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

Zone [Edit: MENU] =ENABLE (x) Move Cursor:^v Camera: 1 to 16 Freeze: DEFAULT Exit:ZOOM

ACTION SETUP

SETUP 1 ACTION DWELL 08 sec ACTION LIST

>ACTION ZONES

WALKTHROUGH DIRECTION ZONE

Choose:SELECT More v Edit:<> Exit:ZOOM

Page 22

LTC 2600 Series Section 4 Programming - Advanced Setup

WALKTHROUGH: The walkthrough section of the Action Setup is used to set action zone sensitivity and target

size within the scene to provide greater accuracy in defining the target (i.e. eliminating nuisance alarms).

• Once in the WALKTHROUGH setup, select the camera requiring setup by depressing the corresponding camera number.

• Set the Sensitivity parameter by using the up/down arrow keys to increase/decrease the zone sensitivity.

•Program the Object Size by using the cursor keys to select the desired target size (corresponding to the number of zone coordinates covering the target size/area—from 1x1 up to 5x5).

•Press SELECT to store the information, and press ZOOM to exit.

DIRECTION ZONES:A dual set of action areas to be programmed such that both areas must be activated in sequence for an action alarm to occur.

•To program this feature, select the DIRECTION ZONE option from the ACTION SETUP menu.

•Press the MENU key to enable the Zone 1. Use the cursor keys to position the Zone 1 brackets in the desired screen area.

• Repeat these steps for Zone 2.

•Press SELECT to store the information, and press ZOOM to exit.

6. Return to the ADVANCED SETUP menu. Select the ALARM SETUP option. Depending on your multiplexer model, up to 9 or 16 alarm inputs can be connected to the multiplexer and are associated with their corresponding video input. Alarm inputs can be configured as normally open or normally closed. These inputs correspond to the camera inputs so that when an alarm input is initiated, the respective camera picture is displayed or recorded.

ACTION SETUP

SETUP 1 ACTION DWELL 08 sec ACTION LIST ACTION ZONES

>WALKTHROUGH

DIRECTION ZONE

Choose:SELECT ^ More v

Exit:ZOOM

ALARM SETUP

SETUP 1 ALARM DWELL 08 sec ALARM LIST ALARM INPUT BEEPER DISABLE

Choose:SELECT More v Edit:<> Exit:ZOOM

ACTION SETUP

SETUP 1 ACTION DWELL 08 sec ACTION LIST ACTION ZONES WALKTHROUGH

>DIRECTION ZONE

Choose:SELECT ^ More v

Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 TIME/DATE AUTOSET VCR SETUP ACTION SETUP

>ALARM SETUP

CAMERA TITLES

Choose:SELECT ^ More v Edit: <> Exit:ZOOM

Camera 1

Sensitivity [Edit: v^] =MED Object Size [Edit: <>] =3x3 Camera: 1 to 16 Freeze: DEFAULT Exit: ZOOM Status:NO ACTION

Camera 1

Zone [Edit: MENU]=ENABLE (1’s) Move Cursor:^v Camera: 1 to 16 Freeze: DEFAULT Exit: ZOOM

2 2 2

1 1 1

Page 23

The parameters in the ALARM SETUP menu are defined and programmed as follows:

ALARM DWELL: The alarm will be held for monitor display (full video on monitor B, when applicable) and recording for the programmed duration (3 to 60 seconds). Individual alarms will be recorded for the programmed ALARM DWELL time or until the alarm is cleared. If two or more alarms are active at the same time, video is alternately recorded until the dwell time expires or the alarm conditions are cleared.

NOTE: If Alarm Dwell is set to FOLLOWS, alarms will follow the alarm input.These alarms cannot be cleared until the alarm contact is reset.

ALARM LIST:The ALARM LIST defines which alarm inputs are enabled and will follow programming as established in the VCR OUT option if applicable. Alarming camera numbers are selected by pressing the corresponding camera # key on the front panel or keyboard.

NOTE: For 6-channel models only (LTC 2622/90).

ALARM DISPLAY: Alarm display is available for MON A and MON B. Alarm display MON A settings will allow

customized alarm viewing and camera pre-position showing. MON B will show full screen on alarm and at 2 second intervals when multiple alarms are activated.

ALARM INPUT:The Alarm Input menu sets the type of input to Normally Open or Normally Closed for an individual alarm input.

BEEPER:The LTC 2600 Series provides an audible alarm. If the beeper is enabled, the beeper will sound for the duration of the alarm. Press any key to turn the beeper off once it has sounded. Setting the beeper to disable will prevent the beeper from sounding.

NOTE:The multiplexer has one alarm output relay. This relay can be programmed to switch ON for alarms.

7. Return to the ADVANCED SETUP menu. Select the CAMERA TITLES option. Each camera can be

designated with a 16-character name, if desired. The factory-set default name for each camera is simply a numerical designation (e.g. camera 01).

LTC 2600 Series Section 4 Programming - Advanced Setup

ALARM LIST SETUP 1

-- -- -- -- -- -- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- -- -- -- -- -Use camera keys to select camera for list Camera: 1 to 16

Default:FREEZE Save:SELECT Exit:ZOOM

Page 24

8. Return to the ADVANCED SETUP menu. Select the SEQUENCES option. Camera sequencing on Monitor A

and Monitor B is a function available to all multiplexer models.

• Quad sequencing is a function available on Monitor A.There are four Quad screens available and each Quad page can be customized to suit each application.

• Camera sequencing is programmable for cameo 1 of the 5+1 multiscreen display mode of the 6-channel models LTC 2622/90 (as shown below).

9. Return to the ADVANCED SETUP menu. Select the CONFIGURE SETUPS option.The LTC 2600 Series multiplexer has the capability to provide up to six individually configured setups that are retained in the multiplexer memory. By using these setups, the multiplexer can be programmed to automatically change its mode of operation based on a timer setting. This allows different configurations to be used (e.g. day, night, weekend and holidays).The Record option allows recording to be accomplished during a timed event.

The following options can be programmed for each setup:

• Load Setup: The setup can be configured and then loaded into memory, making it the current operating configuration.

• Copy Setup:A setup can be copied and then saved as another setup.

• Setup Title: Each setup can have an individual title of 12 characters. (This title will displayed on line two of the multiplexer menus).

• Time Events: The Time Event function allows each of the six setups to be programmed for several parameters including start time, duration, and frequency (daily schedule) of recording. A sample menu is shown below. Note that these parameters must be set for each setup (1-6).

NOTE: RUN ONE TIME allows for individual events to be programmed and then run only one time. After the event, the multiplexer reverts to its “normal” programmed setup(s).

LTC 2600 Series Section 4 Programming - Advanced Setup

CONFIGURE SETUP

>LOAD SETUP

COPY SETUP SETUP TITLE TIME EVENTS

Choose:SELECT More v

Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 ACTION SETUP ALARM SETUP CAMERA TITLES SEQUENCES

>CONFIGURE SETUP

Choose:SELECT ^ More v

Exit:ZOOM

Sequencing

TIME EVENTS

>SETUP 1

SETUP 2 SETUP 3 SETUP 4 SETUP 5 SETUP 6

Choose:SELECT More ^

Exit:ZOOM

CONFIGURE SETUP

LOAD SETUP 1 COPY SETUP SETUP TITLE

>TIME EVENTS

Choose:SELECT More v

Exit:ZOOM

TIME EVENTS SETUP 1

>SETUP ON/OFF OFF

START TIME 00:00 DAYS SMTWTFS RUN ONE TIME ON RECORD OFF

Choose:SELECT More ^ Edit:<> Exit:ZOOM

Page 25

10. Return to the ADVANCED SETUP menu. Select the CONFIGURE DISPLAY option. The monitor displays

can be configured to show time/date and camera titles.The format of the text can be changed, as well as the border of the cameo picture. The CONFIGURE DISPLAY parameters are defined and programmed as follows:

• Time/Date: Each monitor can have the time/date display selected on or off. Note that the time and date are

only displayed per screen and not per cameo picture.

• Cameo Borders:The cameo border format can be selected, enabling easy definition of the picture. The

border can be set to white, gray, or black.

• VCR Status: On/Off for on-screen display of VCR status.

• Display Lock List:For security purposes, designated cameras can be programmed to be blocked out on the

display (i.e. NOT displayed). Note that recording of those specified cameras will continue.When enabled,VCR test mode is disabled.

•Keypad Assign:Up to 4 with keyboard port expander.Allows operation of MON A or MON B or Both from

the respective keyboard.

• Screen Position: Use the position command to select top, middle, or bottom of display for the location of the

time/date/camera title information. In the cameo mode, only the time/date position will change; camera titles will remain at the bottom of each cameo image.

• Menu Timeout: 15 minute timer/inactivity exits program menu.

•Auto Gain Control: Video levels of camera inputs may vary.To maintain constant video quality, each camera

input has individual automatic gain circuits that are suitable for most applications. Each input can be manually adjusted to optimize performance when desired (to access this function, switch Auto Gain to OFF).

•Text: Each monitor can have the camera title display selected on or off.This ensures that the text can be

viewed regardless of what type of background is shown, (i.e. very dark backgrounds can have white text displayed). The text can be displayed in a number of formats as shown in the following chart.

11. Return to the ADVANCED SETUP menu. Select the VIDEO LOSS option.The LTC 2600 Series detects loss

of video from any camera input by monitoring the camera sync signal. When a loss of video input occurs, the multiplexer provides an output which can be used to activate a warning device (e.g. buzzer, warning light, videoloss message on screen) to alert the operator that a video signal from one of the system cameras has been lost. The VIDEO LOSS function contains the following parameters which can be programmed as described:

• Video Loss List: Enable/disable individual cameras for the video loss list.

• Video Loss Output:The video loss output can be enabled or disabled.

• Video Loss Relay:The video loss output relay can be set to operate as normally closed contacts or

normally open contacts.

LTC 2600 Series Section 4 Programming - Advanced Setup

CONFIGURE DISPLAY SETUP 1

>TIME DATE MON A ON

TIME DATE MON B ON SCREEN POSITION BOTTOM CAMERA TITLE MON A ON CAMERA TITLE MON B ON TEXT WHITE/BLACK

Choose:SELECT More v Edit:<> Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 ACTION SETUP ALARM SETUP CAMERA TITLES SEQUENCES CONFIGURE SETUP

>CONFIGURE DISPLAY

Choose:SELECT ^ More v

Exit:ZOOM

VIDEOLOSS SETUP 1

>VIDEOLOSS LIST

VIDEOLOSS O/P ENABLE VID LOSS RLAY N/O

Choose:SELECT More ^

Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 ALARM SETUP CAMERA TITLES SEQUENCES CONFIGURE SETUP CONFIGURE DISPLAY

>VIDEOLOSS

Choose:SELECT ^ More v

Exit:ZOOM

Page 26

LTC 2600 Series Section 4 Programming - Advanced Setup

12. Return to the ADVANCED SETUP menu. Select the DEFAULT SETTINGS Option. The multiplexer is

supplied with default parameters that are set up at the factory (see Appendix at the back of this manual). These settings allow normal operation of the multiplexer, enabling easy installation, setup, and use. However, any parameter can be changed to suit local conditions or customized configurations. If changes are made, you always have the option of returning to the default settings by selecting this command from the ADVANCED SETUP menu.

13. Return to the ADVANCED SETUP menu. Select the LANGUAGES option. To simplify the setup process,

the menus of the LTC 2600 Series can be displayed in any one of six different languages.These languages are as follows:

English French

German Spanish

Dutch Italian

Polish

DEFAULT SETTINGS

Yes = use factory default settings.

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

ADVANCED SETUP

SETUP 1 CAMERA TITLES SEQUENCES CONFIGURE SETUP CONFIGURE DISPLAY VIDEOLOSS

>DEFAULT SETTINGS

Choose:SELECT More ^ Edit:<> Exit:ZOOM

LANGUAGE

Select English, German French, Spanish, Italian, Dutch, or Polish

ENGLISH

Default:FREEZE Edit: ^v Save:SELECT Exit:ZOOM

ADVANCED SETUP

SETUP 1 SEQUENCES CONFIGURE SETUP CONFIGURE DISPLAY VIDEOLOSS DEFAULT SETTINGS

>LANGUAGE ENGLISH

Choose:SELECT ^ More ^ Edit:<> Exit:ZOOM

Page 27

SECTION 5: System4 PROGRAMMING

The System4 multiplexers offer additional programming options for greater system customization. System4 multiplexer initial programming requirements are outlined in the QUICK SETUP and/or ADVANCED SETUP sections of this manual. Additional features outlined in this section: VCR SETUP, ACTION SETUP, ALARM SETUP, CONFIGURE DISPLAY, CAMERA SEQUENCES, PC PRINTER SETUP, LOG, PASSWORD, and EXPAND SYSTEM are accessed through the ADVANCED SETUP menu as shown below.

5.1 System4 Advanced Setup: VCR Setup

System4 multiplexers provide several additional options for VCR SETUP programming. These options are shown in the sample menus below and include two separate RECORD SETUPS (VCR OUT and monitor B as an alternate VCR output) and two RECORD LISTS (accessed through each RECORD SETUP menu). VCR

REMOTE SETUP is an added bonus for quick and easy system setup. Optional programming for RECORD FORMAT is also provided.

VCR REMOTE SETUP,when selected, will configure the VCR recording speed and format of the remote VCR

automatically (provided the RS232 connections have been established) based on information contained in the RECORD SETUP menu.This option is not available for RECORD SETUP Mon B (see following menus) as there is only one serial port on the multiplexer.

LTC 2600 Series Section 5 System4 Programming

ADVANCED SETUP SETUP 1

>TIME/DATE

AUTOSET VCR SET UP ACTION SETUP ALARM SETUP CAMERA TITLES SEQUENCES CONFIGURE SETUP CONFIGURE DISPLAY PC/PRINTER VIDEOLOSS LOG PASSWORD EXPAND SYSTEM DEFAULT SETTING REMOTE SYSTEM4 SETUP LANGUAGE Choose: SELECT More ^ Edit: <> Exit: ZOOM

Please refer to the ADVANCED SETUP programming section in this manual for the standard ADVANCED SETUP programming features available to all multiplexer models. The following sections describe those programming options unique to System4 multiplexers—this information is intended to be supplemental to the information provided in the ADVANCED SETUP section.

RECORD SETUP

*VCR OUT* SETUP1 VEXT INPUT OFF SELECT VCR TIME LAPSE 2 hr -SP RECORD LIST VCR OUT

>VCR REMOTE SETUP

Choose: SELECT v More ^

Exit:ZOOM

VCR SETUP SETUP 1

>RECORD SETUP *VCR OUT*

RECORD SETUP *MON B* PLAYBACK FORMATLTC2600 RECORD FORMAT LTC2600 RECORD LOCK OFF

Choose: SELECT v More ^

Exit:ZOOM

VCR REMOTE SETUP

YES

Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

Page 28

RECORD SETUP MON B is similar to the RECORD SETUP VCR OUT programming.

Optional VCR SETUP Programming for System4: RECORD FORMAT

System4 provides the capability of recording in three types of teletext (Recording) formats:

• TC8298B (Includes TC82XXA,TC82XXB Series)

•LTC 2600 (Includes TC82XXC Series)

• VITC

5.2 System4 Advanced Setup: Action Setup

In System4 models, Monitor A has the capability of displaying a customized view during ACTION detection. Camera selection will be completed by selecting the corresponding camera # key on the front panel or the keyboard. Program the ACTION DISPLAY MON A menu as follows:

• Full: If Full is selected, the selected camera will be displayed in the full screen format.

• Quad: If Quad is selected, any combination of up to 4 separate cameras may be displayed as selected. There must be a camera selected for the first position.

• Multi: If Multi is selected, such as 4+3, 3x3, 8+2, 12+1, or 4x4, it will display the multiscreen view as it was originally programmed in the live view setup. Individual cameras may not be selected from this menu.

NOTE:When multiple cameras are selected in the Quad or Multi Action Display Options and when the action is active, the selected cameras become a group and the group will be included in the exclusive or interleave recording function as programmed in the ACTION SETUP menu.

5.3 System4 Advanced Setup: Alarm Setup

In System4 models, Monitor A has the capability of displaying a customized view during ALARM input. Camera selection will be completed by selecting camera # key on the front panel or the keyboard. Program the ALARM DISPLAY MON A menu as follows:

• Full: If Full is selected, the selected camera will be displayed in the full screen format. If the camera call-up is a pan/tilt unit with pre-position option or AutoDome®,pre-position call up may also be programmed from 1-16.

• Quad: If Quad is selected, any combination of up to 4 separate cameras may be displayed as selected. There must be a camera selected for the first position. If the camera selected is a pan/tilt unit with pre-position option or AutoDome, pre-position call up may also be programmed for each selected camera from 1-16.

LTC 2600 Series Section 5 System4 Programming

VCR SETUP SETUP1

RECORD SETUP *VCR OUT*

>RECORD SETUP *MON B*

PLAYBACK FORMATLTC2600 RECORD FORMAT LTC2600 RECORD LOCK OFF

Choose: SELECT ^ More

Exit: ZOOM

RECORD SETUP *MON B* SETUP 1

>VEXT INPUT OFF

SELECT VCR TIME LAPSE 2 hr - SP RECORD LIST VCR OUT

Choose:SELECT More ^ Edit:<> Exit:ZOOM

ACTION SETUP

SETUP1 ACTION DWELL 08 sec ACTION LIST

>ACTION DISPLAY MON A

ACTION ZONES WALKTHROUGH DIRECTION ZONE

Choose:SELECT More v Edit:<> Exit:ZOOM

ADVANCED SETUP

SETUP 1 TIME/DATE AUTOSET

VCR SETUP

>ACTION SETUP

ALARM SETUP CAMERA TITLES

Choose:SELECT ^ More v

Exit:ZOOM

ACTION DISPLAY MON A INPUT 1

MODE CAM

>QUAD 01

Input: 1 to 16 Default: FREEZE Save:SELECT Exit:ZOOM

Page 29

• Multi: If Multi is selected, it will display the multiscreen view as it was originally programmed in the live view

setup. Four separate cameras may be selected for pre-position activation during alarm input. Pre-positions programmed for selected cameras may be from 1-16 if the camera selected is a pan/tilt unit with pre-position option or an AutoDome.

NOTE:When multiple cameras are selected in the Quad or Multialarm Display Options and the alarm is active, the selected cameras become a group and the group will be included in the exclusive or interleave recording function as programmed in the ALARM SETUP menu.When multiple alarms are detected, Monitor A will automatically display a multiscreen view (3x3 for the nine channel and 4x4 on the 16 channel model).

5.4 System4 Advanced Setup: Configure Display

System4 multiplexers provide an additional option for programming through the CONFIGURE DISPLAY menu.To access this option, you must scroll (arrow key) beyond TEXT in the menu.

5.5 System4 Advanced Setup: Camera Sequences

The System4 models allow sequential display of cameras on the monitor in FULL or QUAD viewing modes. Cameras can be repeated in sequencing displays to enable important scenes to be viewed at greater frequency.

LTC 2600 Series Section 5 System4 Programming

ALARM SETUP

SETUP1 ALARM DWELL 08 sec ALARM LIST

>ALARM DISPLAY MON A

ALARM INPUT BEEPER DISABLE

Choose:SELECT More v Edit:<> Exit:ZOOM

ADVANCED SETUP 3.00

SETUP 1 TIME/DATE AUTOSET VCR SETUP ACTION SETUP

>ALARM SETUP

CAMERA TITLES

Choose:SELECT ^ More v

Exit:ZOOM

ALARM DISPLAY MON A INPUT 1

MODE CAM PP

>----

Input: 1 to 16 Default: FREEZE Save:SELECT Exit:ZOOM

ALARM DISPLAY MON A INPUT 1

MODE CAM PP

>QUAD 01 16

-- -- -- -- -- --

Input: 1 to 16 Default: FREEZE Save:SELECT Exit:ZOOM

ALARM DISPLAY MON A

INPUT 1 MODE CAM PP

>FULL 01 16

Input: 1 to 16 Default: FREEZE Save:SELECT Exit:ZOOM

ALARM DISPLAY MON A INPUT 1

MODE CAM PP

>8+2 01 16

---- -- -- -- --

Input: 1 to 16 Default: FREEZE Save:SELECT Exit:ZOOM

CONFIGURE DISPLAY

SETUP 1 CAMERA TITLE MON A ON CAMERA TITLE MON B ON TEXT WHITE/BLACK CAMERA BORDERS BLACK

> VCR STATUS ON

DISPLAY LOCK LIST

Choose:SELECT More v Edit:<> Exit:ZOOM

VCR STATUS

Set to ON for VCR status to be shown on MON A

Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

Page 30

LTC 2600 Series Section 5 System4 Programming

Sequences can be set for monitor A and monitor B as shown in the sample menu.

• FULL screen display can be set for sequencing with programmable dwell time from 1 to 60 seconds. The

camera pictures can be sequenced in any order in 16 sequence steps, for example 1, 5, 8, 4, 1, 2, 3, 1, 6, 8, 1. In this sequence, camera 1 is viewed every fourth time of the sequence.

• QUAD screen display can be set for sequencing with programmable dwell time from 1 to 60 seconds. Note

that each quadrant can be programmed to show any individual camera(s). And, the camera(s) (programmed for each quad) can be sequenced in any order. For example, the following sequences could be set up for monitor A:

CAMEO 1: 01, 05, 09, 13

CAMEO 2: 02, 06, 10, 14

CAMEO 3: 03, 07, 11, 15

CAMEO 4: 04, 08, 12, 16

NOTE: If this feature is not programmed for a custom configuration, the factory default setting takes the cameras in order (e.g. first quad - cameras 1,2,3,4; second quad - cameras 5,6,7,8, etc.)

5.6 System4 Advanced Setup: PC Printer Setup

(RS-232 Setup for PC/Printer/VCRs)

The System4 multiplexer has a console port which can be configured for a PC, CCL, printer, or connected to a VCR.

• PC:When connected to a PC, new software can be downloaded to the multiplexer.Additionally, the LTC 2650

Graphical User Interface software and a PC running Windows 95, 98, or NT can be used to control the multiplexer.

• CCL:When connected to a PC, CCL commands may be used for programming and controlling the multiplexer.

• VCR:When connected to selected Philips VCRs, LTC 2601/00 or LTC 2602/00 keyboard will control primary

VCR functions (Record, Play, Stop, Fast Forward, Rewind).

• Printer:When a printer is connected, a copy of the logged events can be printed.

• Autoprint:When enabled, will automatically print log events as they occur. The print commands are not

displayed in the PC/Printer menu until the CONNECT TO parameter is set to PRINTER.

SEQUENCES SETUP 1

>SEQ DWELL B FULL 08 sec

SEQ DWELL B QUAD 08 sec MON A FULL MON A QUAD MON B FULL MON B QUAD

Choose:SELECT More v Edit:<> Exit:ZOOM

PC/PRINTER

>CONNECT TO VCR

SERIAL PORT 96,N,8,1

Choose:SELECT More v Edit:<> Exit:ZOOM

ADVANCED SETUP

SETUP 1 ALARM SETUP CAMERA TITLES SEQUENCES CONFIGURE SETUPS CONFIGURE DISPLAY

>PC/PRINTER

Choose:SELECT ^ More v

Exit:ZOOM

Page 31

5.7 System4 Advanced Setup: Log

The LOG option allows the operator to view a history of action, recording, and alarm activity. Up to 300 events are retained in the log. The AUTOPRINT command will automatically print log events, therefore providing a larger event history. When the log is full, the oldest events are overwritten.

The LOG option includes:

• View Log:View the list of logged events.

• Log Setup: Select which events are recorded to the log—these can be alarm, action, event, and video loss.

5.8 System4 Advanced Setup: Password

In System4 multiplexers, access to the multiplexer setup menus can be password protected to prevent unauthorized entry. If the first number of the password is between 5 and 9, the Quick Edit Key operation will be disabled (see Appendix E for more information on the Quick Function keys).

5.9 System4 Advanced Setup: Expand System Setup

The EXPAND SYSTEM SETUP feature provides the ability to program the system for operation with numerous interconnected multiplexers. Expanded camera identification is also provided, as well as automatic time synchronization which is necessary for the proper operation of an expanded multiplexer system.

NUMBER MUX:To ensure proper operation with multiple multiplexers, the following steps are recommended:

• Use the LTC 2609/00 black cable kit when making a connection between multiplexers.

•Program the Mux ID for each multiplexer from the front panel only. To properly control multiple multiplexers from a system keyboard, a unique number from 1 to 30 must be assigned to each multiplexer. This number is then used to select the multiplexer from any system keyboard.

NOTE: In installations requiring multiple video multiplexers, the LTC 2601 and LTC 2602 system keyboards can control up to 30 interconnected System4 multiplexers. See Appendix B for illustrations of these special system configurations.

CAMERA RENUMBER:To provide unique identification of cameras in a large installation, camera numbering can be redesignated up to 999. Regardless of camera renumbering, cameras are selected using camera numbers 1 to 16 via the front panel or system keyboard. Selected monitors will show the redesignated camera number.

TIME SYNCHRONIZATION: Expanded systems may require internal clock synchronization providing identical time information across each of the interconnected System4 multiplexers. For this purpose,TIME SYNC NOW must be enabled.The multiplexer will send a broadcast command to synchronize the clock every day.

5.10 System4 Advanced Setup: Remote System4 Setup

When using the System4 multiplexer with a System4 Server for digital recording and network access, this setup parameter is used. Select YES only if used with the System4 Server. Default is NO.

LTC 2600 Series Section 5 System4 Programming

ADVANCED SETUP

SETUP 1 PC/PRINTER VIDEOLOSS LOG PASSWORD

>EXPAND SYSTEM

DEFAULT SYSTEM

Choose:SELECT ^ More v

Exit:ZOOM

EXPAND SYSTEM

>NUMBER MUX 01

CAMERA RENUMBER TIME SYNC NOW

Choose:SELECT More v Edit:<> Exit:ZOOM

Page 32

LTC 2600 Series Section 6 Operation

SECTION 6: OPERATING THE LTC 2600 SERIES

VIDEO MULTIPLEXER

Operating the LTC 2600 Series Video Multiplexer requires a general knowledge of basic and combined operating modes as described in this section. Basic operating modes are LIVE (Display), RECORD, and PLAYBACK.

Duplex multiplexer models provide combinations of the basic modes (e.g. simultaneous recording plus playback when two VCRs are used). When operating access is a concern, the multiplexer’s security lockout feature can be enabled. Three levels of access are provided as described at the end of this section.

6.1 Live Display Mode

Live camera pictures can be displayed on monitors A and B.

• Monitor A is the main functional monitor and can be displayed in FULL, QUAD, or MULTI. Alarm, action, and

video loss warnings are displayed on this monitor.

• Monitor B will display the selected camera in full screen or sequencing under normal operating (recording)

modes. When an alarm or action input is detected, the corresponding camera picture with the flashing Alarm/Action indicator will be displayed on Monitor B for the programmed dwell time. When multiple alarms or actions occur, camera pictures will be sequenced on Monitor B at the two-second dwell time.

• Multiscreen display modes can be displayed on both Monitors (A and B). All alarm action and video loss

warnings are displayed on both monitors.The alarm/action call-up will occur only when Monitor B is in full screen mode. Multiscreen will not be available on Monitor B during recording operations.

Displaying Live Camera Pictures

Full Screen Display: Shows one camera, full screen on one monitor. Press the FULL SCREEN key on the front

panel, then press the appropriate camera number key for the camera you wish to be displayed.

Quad Screen Display: Divides the screen into four separate areas. Press the QUAD key once to enable the feature. Press the key repeatedly to toggle through different viewing configurations. Pressing ALT , then SEQ will sequence through all quad screens available with model in use.

Multiscreen Display: Enabling this feature shows different multiscreen configurations.

6 channel: 5+1

9 channel: 4+3, 3X3

16 channel: 4+3, 8+2, 12+1, 3X3, and 4X4

Press the MULTI key repeatedly to toggle through the different multiscreen display options.

Cameo Mode: When in MULTI or QUAD modes, the screen area where a camera is displayed is called a CAMEO. Note that the numbered front panel keys can refer to either cameras or cameos. Press the CAMEO key to enable the operation of these keys in the cameo function. (The CAMEO LED is illuminated when the multiplexer is in the CAMEO mode.) Press the CAMEO key again to revert to the camera function.

Cameras can be assigned to any selected cameo and can be changed as often as required. This can be done by one of the following:

•Assigning all cameras:Press the ALT key.The ALT LED will illuminate, then press the SELECT key. The

first cameo will be selected and show a flashing camera title. By pressing the desired camera key, that camera will be assigned to the cameo, and the next cameo is automatically selected (shown by the flashing camera titles). Again press the selected camera key; this is assigned and the process repeated until all cameos have been assigned a camera. Press the ALT key to exit.

• Individual assignments: In the MULTI or QUAD mode, the Camera keys are assigned as Cameo keys

automatically. Select relevant cameo key, 1 to 16. The relevant cameo is selected. Press the CAMEO key. The cameo keys revert back to selecting cameras. Press camera key to assign the selected camera to cameo. Press CAMEO to exit.

Zoom: Enables the active camera display (a cameo in multi or quad display) to be digitally enlarged by a factor of 4:1. “Zoom” will be displayed on the monitor screen. Selecting any other camera (using the camera keys) will display that camera image in full screen enlarged mode. The arrow keys allow closer inspection of any part of the selected image.

Page 33

Freeze: Holds the selected camera picture on either full screen or cameo. The currently selected camera image will be frozen, and “FREEZE” will be displayed on the screen. This feature allows closer inspection of any part of the selected image. Press the FREEZE key again to release the image from this function. Changing the display screen mode releases the freeze mode from all cameos.

Alarms and Actions: The ALM or ACT LED will flash when an alarm or action condition occurs. If viewing in a mulitscreen view or quad view, “ALARM”/“ACTION” will flash in the corresponding cameo if the affected camera is in view. When an alarm or action is detected, the corresponding camera picture is displayed in full screen on Monitor B only when Monitor B is in the full screen viewing mode. Clearing an Alarm/Action will stop any recording associated with that function.

Clearing Alarm/Action:Press the ALM or ACT key, and all alarms/actions will be reset.

6.2 Record

To r ecord live pictures:

1. Press the green ALT key, then press the camera number key above the REC LED. This key combination toggles (ON/OFF) the RECORD mode.

2. Ensure the REC LED is illuminated for proper recording functions.

NOTE: If the REC LOCK has been enabled in system programming, the REC LED cannot be disabled. When the REC LED is illuminated, there will be no multiscreen viewing capability on Monitor A if a simplex unit is used or on Monitor B if a duplex unit is used.

6.3 Playback

To playback the recorded pictures:

1. Press the green ALT key, then press the camera number key above PLAY LED.This key combination toggles (ON/OFF) the PLAYBACK mode.

2. Ensure the PLAY LED is illuminated for proper recording functions.

NOTE: Recorded video will be played back on Monitor A only allowing FULL, QUAD, or MULTI screen viewing capabilities.

6.4 Combined Modes

The Duplex multiplexer models also provide combinations of the basic modes of operation as described in this section.

Record Plus Multiscreen Display (See Appendix B):

Allows live pictures to be displayed on Monitor A in either FULL, QUAD, or MULTI screen mode. FULL screen or sequencing of all cameras can be displayed on Monitor B while recording selected cameras onto the VCR.

Simultaneous Record plus Playback (See Appendix B):

Allows recorded camera pictures to be played back and displayed on Monitor A in either FULL, QUAD, or MULTI screen mode; live FULL screen display of the selected camera picture or sequencing all cameras on Monitor B; and at the same time, record the selected live camera pictures onto the VCR.Two VCRs are required for this operation.

When not recording, the following mode can be programmed:

Live Multiscreen on Monitor A and Monitor B: The duplex unit provides two independent output monitors, each with the capability to provide FULL, QUAD, or MULTI screen display.

Simultaneous Playback plus Multiscreen Display: The Duplex units allow live pictures to be displayed on monitor B in either FULL, QUAD, or MULTI screen mode and playback recorded camera pictures to be displayed on monitor A in either FULL, QUAD, or MULTI screen mode.

LTC 2600 Series Section 6 Operation

Page 34

LTC 2600 Series Section 6 Operation

6.5 Security Lockout

The LTC 2600 Series Multiplexer provides three levels of access for operation: (1) Full Access, (2) Limited Access, and (3) Lockout (i.e. No access/no front panel manipulation possible).

The key commands controlling this feature are as follows:

•QUAD + ZOOM + ALM All user functions and menus.

•QUAD + CAMEO + ALT All user functions except menus.

•QUAD + CAMEO + FREEZE Lock out the front panel.

6.6 VCR Test Mode

Toggles between viewing the output of the VCR (the VCR monitor mode) and viewing a camera input. Press ALT , then VCR key and the VCR LED will light.The VCR mode is used to examine the video which will be recorded by the VCR during recording or to adjust the tracking for optimal playback picture of the VCR. This function will also be required for on-screen programming of VCR units. It should only be used if both the input and output of a single VCR are connected to the multiplexer.

Page 35

SECTION 7: System4 ENHANCED OPERATION

NOTE: The following information pertains to System4 multiplexer models only.

System4 multiplexers provide special operating modes which enable enhanced operation and special customized system configurations, including expanded systems with control from system keyboards. This section describes the operating features/modes specific to System4 models. Keyboard descriptions and operating functions are also provided.

7.1 System4 Special Operating Features

Please refer to the OPERATING THE LTC 2600 MULTIPLEXER section in this manual for the standard operating features available to all multiplexer models. The following sections describe those operating features/modes unique to System4 multiplexers—this information is intended to be supplemental to the information provided in the OPERATING THE LTC 2600 section.

Tw o Output Relays for Actions/Alarms

System4 triplex multiplexers provide two output relays for actions or alarms. These relays may be programmed through the ACTION SETUP or ALARM SETUP menus in ADVANCED SETUP.

Simultaneous Record to Two VCRs (See Appendix B for an illustration of this system configuration):

System4 triplex models allow the following:

• Display of full screen live video on Monitor A.

• Record the selected camera pictures (as defined in the VCR1 RECORD LIST) to VCR 1.

• Record the selected camera pictures (as defined in the VCR2 RECORD LIST) to VCR 2.

Tw o VCRs are required for this operation—one to record the output from the VCR OUT connector and one to record the output from the MON B connection (Monitor B becomes a VCR output for VCR 2). By using two recorders, customized record lists can be generated for each VCR. For example, while the first VCR is recording normally, the second VCR can be set up to record only alarm or action video pictures.

To program the unit to operate in this mode, press ALT , then 2, then the REC key. This will engage the multiplexer to send video to both VCRs. Pressing ALT , then REC will disable this option. Normal viewing modes will not be available on MON B if being used as an alternate VCR OUTPUT.

Simultaneous Playback plus Multiscreen Display:The System4 triplex models allow live pictures to be displayed on Monitor B in either FULL, QUAD, or MULTI screen mode and playback recorded camera pictures to be displayed on Monitor A in either FULL, QUAD, or MULTI screen mode.

Simultaneous Playback on Monitor A and Monitor B: The System4 triplex models allow simultaneous playback on both Monitors A and B of multiple recorded images. Monitor A is selectable for any screen display mode, while Monitor B can select any of the recorded cameras in full screen display only. To perform simultaneous playback, press ALT , then 2, then PLAY.

Time/Date Search on VCR Analog Tapes: Select the quick key sequence “ALT-1-VCR-PLAY,” and the playback search menu window will be displayed.

NOTE: If playback is not selected or a VCR is not connected to the RS232 port, a “NO PLAYBACK” error message will be displayed and the playback search menu will not start.

The search time and date will reflect the last time and date read from the previously recorded tape.

LTC 2600 Series Section 7 Enhanced Operation

PLAYBACK SEARCH

>SEARCH TIME 00:00

SEARCH DATE 02/03/1999 START SEARCH

Choose:SELECT More v Edit:<> Exit:ZOOM

Page 36

LTC 2600 Series Section 7 Enhanced Operation

Set the Search Time as shown below:

Set the Search Date as shown below:

To start the search:

• Select the quick key sequence “ALT-1-VCR-PLAY,” and the playback search window menu will be displayed.

• Set the required date/time (Note the current playback time will appear as a default).

• Select START SEARCH. The search display window will appear showing the desired time, the last date and time read from the recorded tape, and the VCR status.

• The multiplexer will automatically forward/rewind the tape to the required time/date.

• When the required time/date is found, the message “Search Completed” will be displayed.The beeper will sound, and after 3 seconds, the initial playback screen will be displayed on MON A.

• If the multiplexer cannot find the required time/date, it will prompt the user and discontinue the search, returning to the initial playback screen.

•To abort the search at any time, press the ZOOM key.

SEARCHING…

11:30:00 07/16/99

CANCEL SEARCH: ZOOM 10:35:26 07/16/99 PB

SEARCH DATE

This is the date of the Picture to be viewed from the VCR tape.

12/11/2001

Move Cursor:<> Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

SEARCH TIME

SETUP 01 This is the time of the picture to be viewed from the VCR tape.

23:06:00 ^

Move Cursor:<> Default:FREEZE Edit:^v Save:SELECT Exit:ZOOM

Page 37

7.2 System Keyboards

The LTC 2601/00 and LTC 2602/00 are full function keyboards designed for system control, programming, and Pan/Tilt/Zoom (Philips Allegiant R/D or AutoDome) operation with the System4 Model multiplexers. By using the keyboard port expander LTC 2604 Series unit, purchased separately, up to four keyboards may be connected. Optional hardware for remote location of keyboards includes the following:

• LTC 8558/00 Keyboard Extension Cable: Six conductor extension cable provides data/power for remote

LTC 2601 and LTC 2602 keyboards to 30 meters (100 feet) away from the multiplexer unit.

• LTC 8557 Series Keyboard Extension Kits: Interface kits used to permit remote LTC 2601 and LTC 2602

keyboards up to 1.6 km (5000 ft) away from the multiplexer. Customer supplied 24-gauge shielded twisted pair (Belden 9841 or equivalent) required between the multiplexer and the keyboard. Kits provide two junction boxes, interface cable, and appropriate power supply (in each version).

LTC 2601/00 Keyboard

LTC 2602/00 Keyboard

Keyboard Operation

Numeric Display: The numeric display is a three-digit display that shows the number of the multiplexer that the

keyboard is currently controlling.There are two modes for this display.

•The first mode displays the multiplexer number (default mode).

• The second mode is called the keyboard test mode which displays the key code for the individual key pressed.

LTC 2600 Series Section 7 Enhanced Operation

Note: Italic Font for VCR Functions

STATUS DISPLAY

REC

PLAY

FREEZE

CAMEO

FULL

QUAD

MULTI

ACTION CLEAR

SELECT

ALT

ALARM CLEAR

STATUS DISPLAY

FAST FORWARD

CAMEO

FULL

REWIND

MULTI

ZOOM

FOCUS

IRIS

FOCUS

STOP

PAUSE

FREEZE

ALT

ALARM/ CLEAR

ACTION CLEAR

IRIS

SELECT

Page 38

LTC 2600 Series Section 7 Enhanced Operation

Status Display: The status display indicators are located on either side of the numeric display at the top of the

keyboard. On the right side of the numeric display, there are three status display indicators: Camera, Cameo, and Pound. On the left side of the numeric display, there are six status display indicators:VCR, Monitor B, Sequence, Allplex, Record, and Playback.

LED Display: Certain keys have an LED indicator to light up or flash to indicate that the function is either enabled or in the alarm state.The keys that are tied to an LED are: Cameras 1 – 16,ALT, ACT, and ALM.The operation of these LEDs is identical to those on the front panel of the multiplexer.

Numeric Keypad:The numeric keypad is designed to serve three purposes: selecting cameras, selecting cameos, and numeric entry.The operation of the numeric keypad keys is identical to the multiplexer front panel.

Additional Function Keys:The system keyboards contain additional function keys not available on the front panel of the multiplexer.They are as follows:

Allplex Selection - (Requires two-key combination:“Allplex”) then #, then SELECT key to select new Allplex number. The system accepts only valid Allplex numbers 1 through 30.

SET - Set is a pre-position function of an AutoDome or Pan/Tilt and Zoom lens. Press SET to record a preset scene at remote camera site. (Up to 99 presets can be recorded for Philip’s R/D or AutoDome.) Set a preset function of a camera: Press “Full” then camera numbers (1-16). Use the joystick to move the camera to the scene that you want to store, then press SET, # (1-99), then SELECT .

SHOT - Press SHOT to call up a preset scene at remote camera site. Call up a preset function of a camera: Press SHOT, # (1-99), then SELECT .

AUX+ - Press AUX+ to select a receiver/driver auxiliary function at the camera location.

AUX- - Press AUX- to deselect any receiver/driver auxiliary functions currently in the “ON” state.

(Note: Refer to Philip’s R/D or AutoDome Instruction Manual for Auxiliary function)

Multikey Access Functions: Simultaneously press the multiple keys listed to enable the function as described.

QUAD + CAMEO + Allplex: Set the keyboard user level to NO ACCESS. QUAD + CAMEO + ALT: Set the keyboard user level to LIMITED ACCESS. QUAD+ ENTER+ ENLARGE: Set the keyboard user level to FULL ACCESS.

VCR Control

VCR + SELECT - To toggle the VCR CONTROL mode ON and OFF.

Use the following keys for VCR functions:

VCR Function Press Key

RECORD REC/SET

PLAYBACK PLAY/SHOT

STOP ZOOM

PAUSE FREEZE

FAST FORWARD CAMEO/>

FAST REWIND FULL/<

Allplex + SELECT:To switch control to another multiplexer. Allplex + ALT:To Enter and Exit the keyboard TEST mode.

Pan/Tilt Control:For Pan/Tilt controllable units, operation of the joystick (LTC 2602) or four directional keys

(LTC 2601) will make the selected camera tilt up or down, pan left or right, or move diagonally.

Lens Control:The joystick of the LTC 2602 keyboard is used to provide zoom control by rotating the knob in either a clockwise or counterclockwise direction.The LTC 2601 provides two additional keys required to operate the zoom functions. Push buttons are included with both keyboards to control focus near or far and to open or close the iris (on applicable lenses).

Page 39

LTC 2600 Series Appendix A: Features and Specifications

Appendix A: FEATURES AND SPECIFICATIONS

LTC 2600 Series Model Features

FEATURES LTC 2622/90 LTC 2632/90 LTC 2642/90 LTC 2652/90 LTC 2661/90 LTC 2662/90 LTC 2672/90 LTC 2682/90

Camera inputs 6 9 9 16 16 16 9 16

Color Simplex Ye s No Ye s No Yes Yes Yes Yes

operation

Monochrome Yes Yes Yes Yes Yes Yes Yes Yes Simplex operation

Color Duplex Ye s N o Ye s No Yes Yes Yes Yes

operation

Monochrome Yes Yes Yes Yes Yes Yes Yes Yes Duplex operation

Color Triplex No No No No No No Yes Yes

operation

Simultaneously Yes Yes Yes Yes No Yes Yes Yes

record and display live multiscreen

Simultaneously record Yes Yes Yes Yes No Yes Yes Yes

and play back

Simultaneously play Yes Yes Yes Yes No Yes Yes Yes

back and display live multiscreen

Simultaneously record No No No No No No Yes Yes

and play back and display live multiscreen

Camera display Yes Yes Yes Yes Yes Yes Yes Yes

lock-out

Digital motion Yes Yes Yes Yes Yes Yes Yes Yes

detection with direction sensing

Programmable VCR 1 1 1 1 1 1 2 2

outputs

Monitor outputs 2 2 2 2 2 2 2 2

Remote keyboard Yes (4) No No No No No Yes (5) Yes (5)

with P/T/Z (biphase outputs for P/T/Z)

Video loss detection Yes Yes Yes Yes Yes Yes Yes Yes

Custom alarm display No No No No No No Yes Yes

on Mon A with multiple preset call-up

Vext inputs (5 Volt to 1 1 1 1 1 1 2 2

12 Volt)

Alarm inputs 6 9 9 16 16 16 9 16

Alarm output relays 1 1 1 1 1 1 2 2

S-VHS for Monitor No No No No No No Yes Yes

A and B

S-VHS for VCR In/Out No No No No No No Yes Yes

Auto-terminating Yes Yes Yes Yes Yes Yes Yes Yes BNCs

PC programmable No No No No No No Yes Yes

Page 40

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B1: Record Plus Multiscreen Display

Appendix B: SPECIAL APPLICATIONS/SYSTEM CONFIGURATIONS

Page 41

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B2: Simultaneous Record Plus Playback

1615141312

10987

MON AMON B

VCR

OUT

VCR

ALARM

VCR OUT

Video

Up to 16 Cameras

VCR IN

Recorded VCRPlayback VCR

Page 42

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B3: Simultaneous Record to Two VCRs (Triplex Operation)

Page 43

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B4: System4 Triplex Typical Operation

PHILIPS

∞

)

ACT

ALM (

PHILIPS

LTC0450

Data

Video

Terminated

Resistor

S-VHS Video

123456789101112 13 14 1516

VCR OUT MON B MON AVCR IN

VCR IN MON B MON A Console

APX

REC

PLAY

7 8 9

4 5 6

1 2 3

13 14 15

0/10 11 12

VCRBSEQ

SET

SHOT

AUX+

AUX-

PLAY

SEQ

S-VHS Type VCR

ALLPLEX VCR

ALLPLEX

REC

ALARM

VEXT Connection

21 to 11 & 25 to 15 (GND)

DB-15

ALARM ACC.

SDA

S1383

S-VHS IN

RS-232

S-VHS OUT

KYBD

Power

Page 44

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B5: LTC 2672 and LTC 2682 Series with LTC 2650 GUI

Page 45

LTC 2600 Series Appendix B: Special Applications/System Configurations

PHILIPS

LTC0450

POWER

VCR IN MON B MON A CONSOLE

KYBD

VCR OUT MON B MON AVCR IN

SDA AL ARM

12345678910111213141516

PHILIPS

LTC0450

POWER

VCR IN MON B MON A CONSOLE

KYBD

VCR OUT MON B MON AVCR IN

SDA AL ARM

123456789101112 13141516

REC

PLAY

SEQ

SET

SHOT

AUX+

AUX-

ALLPLEX VCR

ACT

ALM ( %)

ALLPLEX

VCRBSEQ

APX

REC

PLAY

1 2 3

4 5 6

7 8 9

0/10 11 12

13 14 15

∞

PHILIPS

VCR out

VCR in

RS-232

terminate

resistor

S-VHS

LTC 2609/00

LTC 8557 Series Up to 5000 Feet

Figure B6: Control of Multiple Multiplexers from a Single Keyboard

Page 46

LTC 2600 Series Appendix B: Special Applications/System Configurations

Figure B7:Transmitting 16 Videos over One Single Coax

Page 47

Appendix C: FACTORY DEFAULT SETTINGS

ITEM DEFAULT OPTIONS

DATE/TIME:

Date 01/01/1998 Time 12/00/00 Time Format 24 hr 12 hr, 24 hr Date Format dd/mm/yy (PAL) mm/dd/yy dd/mm/yy yy/mm/dd

mm/dd/yy (NTSC)

VCR SETUP:

Time-lapse 3 hr (PAL) PAL: 3 to 720 hrs or as programmed

2 hr (NTSC) NTSC: 2 to 720 hrs or as programmed

Record List 01-16 01-16. Any camera in a 16 camera sequence

i.e. 1, 5,8,4,2,3,4 Playback Format LTC 2600 LTC 2600,TC8298B, Robot, DM, Pelco,Vicon Record Format LTC 2600 LTC 2600,TC8298B,VITC Record Lock Off Off, On

VEXT Off Off, On for both VCR OUT and MON B

Remote VCR Setup On (Sys4 models) Off, On

CREATE VCR SETUP:

VCR Title Custom VCR 1 VCR/Field Table 3 hrs (PAL) PAL: 3 to 720 hrs or as programmed

2 hrs (NTSC) NTSC: 2 to 720 hrs or as programmed

VCR OUTPUT

Output Off Off, ACT, ALM, ACT/ALM Output Relay N/O N/O, N/C ALM/ACT Speed 3 hrs (PAL) 3 to 720 hrs

2 hrs (NTSC) 2 to 720 hrs Alarm Record INTERLEAVE INTERLEAVE, Exclusive Action Record INTERLEAVE INTERLEAVE, Exclusive

ALARM SETUP:

Alarm Dwell 8 sec 1 - 60 sec FOLLOWS Alarm Display Mon A Full Full, Quad, 4+3, 8+2, 3x3,12+1,4x4

(Sys4 models only) Alarm List All off Select any camera Alarm Inputs N/O N/O, N/C Beeper Disable Enable, disable

ACTION SETUP:

Action Dwell 8 sec 1 - 60 sec Action Display Mon A Full Full, Quad, 4+3, 8+2, 3x3,12+1,4x4

(Sys4 models only) Action List All off Action Zones On Except Outer On/Off (All Zones) Direction Sensing Walkthrough MED MIN, LOW, MED, HI Beeper Disable Enable, disable

LTC 2600 Series Appendix C: Factory Default Settings

Page 48

LTC 2600 Series Appendix C: Factory Default Settings

ITEM DEFAULT OPTIONS

CAMERA TITLE:

Camera Title CAMERA 1

SEQUENCES:

Seq Dwell Full A 8 sec 1 - 60 sec Seq Dwell Quad A 8 sec 1 - 60 sec Seq Dwell Full B 8 sec 1 - 60 sec Seq Dwell Quad B 8 sec 1 - 60 sec Mon A Full 1-16 1-16. Any camera in a 16 camera sequence

i.e.1, 5, 8, 4, 2, 3, 4

Mon A Quad 1-4, 5-8, 9-12, 13-16 Any camera to cameo assignment is allowed

NOTE: 9-channel product has only 3

Quads instead of 4

Mon B Full 1-16 1-16. Any camera in a 16 camera sequence

i.e.1, 5, 8, 4, 2, 3, 4

Mon B Quad 1-4, 5-8, 9-12, 13-16 Any camera to cameo assignment is allowed

NOTE: 9-channel product has only 3

Quads instead of 8

CONFIGURE SETUPS:

Setup Title SETUP 1 Any 12 character title

System4 Models ONLY:

PC/PRINTER/VCR:

Connect to VCR Printer; GUI, CCL,VCR Serial Port 96, n, 8, 1 Baud: 6, 12, 24, 48, 96, 192

Parity: o(odd), e(even), n(none) Data bits: 7, 8 Stop bit 1

Autoprint Disable Enable, disable

LOG:

Log Setup All off ACT,ALM, EVT,VL,ERR - All can be either

selected or not selected

PASSWORD:

Password 1111 1111 - 9999, where 1111 = no password

EXPAND SYSTEM:

Number Mux 01 01 to 30

TIME EVENTS:

Setup on/off Off On, off Start Time 00:00 Days SMTWTFS SMTWTFS - Any day or days of the week Run One Time Off On, off Record Off On, off

Page 49

ITEM DEFAULT OPTIONS

CONFIGURE DISPLAY:

Time/Date Mon A On On, off Time/Date Mon B On On, off Show Text Mon A On On, off Show Text Mon B On On, off Text White:Black Clear:White, Clear:Gray, Clear:Black

White:Clear, White:Gray,White:Black Gray:Clear, Gray:White, Gray:Black

Black:Clear, Black:White, Black:Gray Cameo Borders Black White, Gray Black VCR Status Off On/off Display Lock List 1-16 1-16. Any camera in a camera sequence Menu Timeout On On, off

Auto Gain Control On On, off

VIDEO LOSS:

Video Loss o/p Enable Enable, disable Video Loss Relay N/O N/C, N/O Video Loss List No Cameras Selected Any Camera or Cameras

LANGUAGE:

Language English English, French, German, Spanish,

Italian, Dutch

LTC 2600 Series Appendix C: Factory Default Settings

Page 50

LTC 2600 Series Appendix D: Programming Reference

Appendix D: PROGRAMMING REFERENCE

Menu Trees:Advanced Setup

The following menu trees are provided for reference in locating advanced programming functions. Descriptions of all these functions are located in the ADVANCED SETUP programming section.

* System4 only

Page 51

Menu Trees:Advanced Setup (continued)

LTC 2600 Series Appendix D: Programming Reference

* System4 only

† LTC 2622 only

MAIN MENU 3.00 SETUP 1

QUICK SETUP

ADVANCED SETUP

Choose: SELECT

Exit:

ZOOM

ADVANCED SETUP

SETUP 1 TIME/DATE AUTOSET VCR SETUP ACTION SETUP ALARM SETUP CAMERA TITLES SEQUENCES CONFIGURE SETUPS CONFIGURE DISPLAY PC/PRINTER VIDEOLOSS LOG

PASSWORD

EXPAND SYSTEM

DEFAULT SETTINGS LANGUAGE ENGLISH

Choose: SELECT

Exit:

ZOOM

CAMERA TITLES

SETUP 1 Each camera can be given a 16 character title.

(1) CAMERA.1 ..............

MOVE CURSOR:<> Default: FREEZE Edit: Save: SELECT

SEQUENCES

SETUP 1 SEQ DWELL A FULL 08 sec SEQ DWELL A QUAD 08 sec SEQ DWELL A 5+1 SEQ DWELL B FULL 08 sec SEQ DWELL B QUAD 08 sec MON A FULL MON A QUAD MON A 5+1 MON B FULL MON B QUAD

Choose: SELECT Edit:

Exit:



Exit:

ZOOM

08 sec

ZOOM

CONFIGURE SETUPS

LOAD SETUP COPY SETUP SETUP TITLE TIME EVENTS

Choose: SELECT

CONFIGURE DISPLAY

SETUP 1 TIME/DATE MON A ON TIME/DATE MON B ON SCREEN POSITION BOTTOM CAM TITLE MON A ON CAM TITLE MON B ON TEXT WHITE:BLACK CAMEO BORDERS BLACK

Exit:

* VCR STATUS

DISPLAY LOCK LIST

KEYPAD ASSIGN MENU TIMEOUT

AUTO GAIN CONTROL

Choose: SELECT Edit:

PC/PRINTER

CONNECT TO VCR SERIAL PORT 96,N,8,1

Exit:

ZOOM

ON ON

ZOOM

Choose: SELECT Edit:

Exit:

ZOOM

Page 52

LTC 2600 Series Appendix D: Programming Reference

Menu Trees:Advanced Setup (continued)

* System4 only

Page 53

Menu Trees:Advanced Setup - VCR SETUP

LTC 2600 Series Appendix D: Programming Reference

* System4 only

VCR SETUP

SETUP 1 RECORD SETUP *VCR OUT* RECORD SETUP *MON B*

PLAYBACK RECORD FORMAT

RECORD LOCK OFF Choose: SELECT

FORMAT L

LTC2600

Exit:

TC2600

ZOOM

RECORD SETUP

*VCR OUT* SETUP 1 VEXT INPUT OFF SELECT VCR TIMELAPSE 2 hr - SP RECORD LIST VCR

OUT

VCR REMOTE SETUP

Choose: SELECT

Exit:

ZOOM

SELECT VCR

*VCR OUT* SETUP 1 TYPE PHILIPS TC3990A EDIT CUSTOM VCR

Choose: SELECT

Edit:

RECORD LIST

*VCR OUT* SETUP 1 CAMERA 1 01 02 03 04 05 06 07 08 09 10 11 12 13 14 1 5 16

Camera: 1 to 16 Default: FREEZE Save: SELECT

Exit:

ZOOM

VCR OUTPUT

SETUP 1 OUTPUT OFF ALM/ACT SPEED 2 hr - SP ALARM REC INTERLEAVE ACTION REC INTERLEAV E OUTPUT RELAY N/C

Choose: SELECT

Edit:

Exit:

ZOOM

Page 54

LTC 2600 Series Appendix D: Programming Reference

Menu Trees:Advanced Setup - ACTION SETUP

* System4 only

Page 55

Menu Trees:Advanced Setup - ALARM SETUP

LTC 2600 Series Appendix D: Programming Reference

* System4 only

ALARM SETUP

SETUP 1 ALARM DWELL 05 sec ALARM

* ALARM DISPLAY ON MON A

LIST

ALARM INPUTS BEEPER DISABLE

Choose: SELECT Edit:

Exit:

ZOOM

ALARM LIST SETUP 1

-- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -Use camera keys to select camera for list.

Camera: 1 to 16 Default: FREEZE Save: SELECT

ALARM DISPLAY MON A INPUT

MODE CAM PP

-- -- -- -- -- -- -- --

Input: 1 to 16 Default: FREEZE Save: SELECT Exit: ZOOM

Exit:

-- -- -- --

-- --

ZOOM

ALARM INPUTS SETUP 1

-- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -Use camera keys to select normally closed inputs.

Camera: 1 to 16 Default: FREEZE Save: SELECT

Exit:

ZOOM

Page 56

LTC 2600 Series Appendix D: Programming Reference

Menu Trees:Advanced Setup - CONFIGURE SETUPS

Page 57

Appendix E: QUICK FUNCTION KEYS

The LTC 2600 Series Video Multiplexer provides Quick Function Keys which enable “instant access” to the programming lists critical for multiplexer operation.To access the list commands, you will have to press a sequence of keys.

First, press the ALT key, followed by 1, and then one of these additional keys to select the required list:

ALM To access the Alarm List

ACT To access the Action List

ZOOM To access the Video loss List

RECORD To access the Record List

FULL To access the Sequence List for monitor A in Full Screen mode

QUAD To access the Sequence List for monitor A in Quad mode

MON B ,FULL To access the Sequence List for monitor B in Full Screen mode

PLAY To access the Playback Format selection

System4 models provide additional quick function key combinations which apply to the operation of the second record list. Press ALT followed by 1, (MON B).

RECORD To access the VCR2 Record List

MON B , QUAD To access the Sequence List for monitor B in Quad mode

MON B , REC To access the Record List on Monitor B

LTC 2600 Series Appendix E: Quick Function Keys

Page 58

Appendix F: ACCESSORY CABLES FOR THE LTC 2600 SERIES MULTIPLEXERS

LTC 2600 Series Appendix F: Accessory Cables for the LTC 2600 Series Multiplexers

Page 59

is a registered trademark of Philips Electronics N.V. Updated September 04, 2002. Data subject to change without notice. Refer to www.philipscsi.com for latest information.

________________________

Windows®and Windows NT®are registered trademarks of Microsoft Corporation.

Philips LTC 2600 installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
