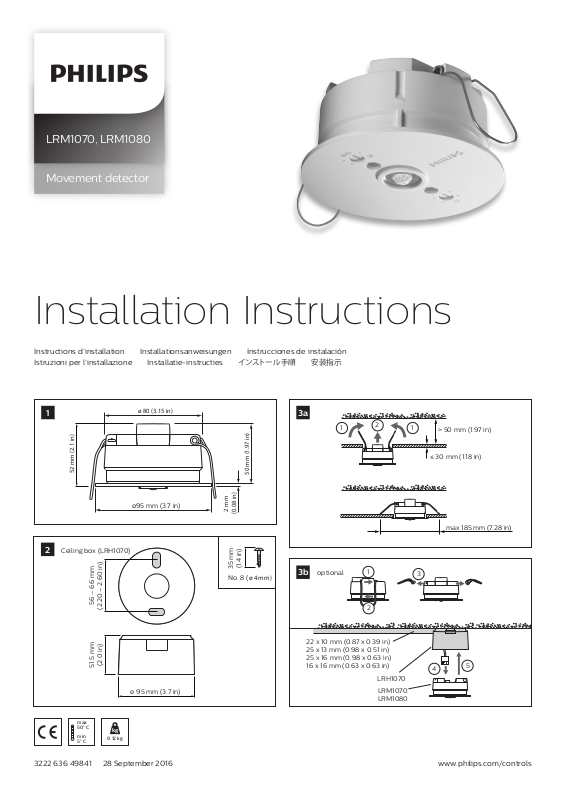

Philips LRM1080, LRM1070 User Manual
LRM1070, LRM1080
2 mm
(0.08 in)
Movement detector
Installation Instructions
Instructions d’installation Installationsanweisungen Instrucciones de instalación
Istruzioni per l’installazione Installatie-instructies インストール手順 安装指示
1
52 mm (2.1 in)
2
Ceiling box (LRH1070)
56 – 66 mm
(2.20 – 2.60 in)
(2.0 in)
51.5 mm
ø 80 (3.15 in)
ø95 mm (3.7 in)
ø 95 mm (3.7 in)
50 mm (1.97 in)
(1.4 in)
35 mm
No. 8 (ø 4 mm)
3a
1 1
optional
3b
22 x 10 mm (0.87 x 0.39 in)
25 x 13 mm (0.98 x 0.51 in)
25 x 16 mm (0.98 x 0.63 in)
16 x 16 mm (0.63 x 0.63 in)
1
2
2
LRH1070
LRM1070
LRM1080
> 50 mm (1.97 in)
≤ 30 mm (1.18 in)
max 185 mm (7.28 in)
3
4
5
max
50° C
min
5° C
kg
0.12 kg
www.philips.com/controls3222 636 49841 28 September 2016
4
1
Ls L N
3
2
5
Ls L N
H05VV-F
- +
4
5
Wieland cable (LCC1070)
L
N
6
LRM1070
LRM1080
L
N
LsL N
LsL N
L3
L2
L1
N
LsL N
-+
+
-
LsL N
-+
7
2.7 m (8.86 ft)
6.0 m (19.69 ft)
8 m (26,25 ft)
8 9
Time = (a) Lux = (b)
Min. = 1 min.
Max. = 30 min.
MIN
Hazardous Substances
Type LRM1070 LRM1080
Lead (Pb) x x
Mercury (Hg) 0 0
Cadmium (Cd) 0 0
Hexavalent Chromium (Cr (VI)) 0 0
Polybrominated biphenyls (PBB) 0 0
Polybrominated diphenyl ethers (PBDE) 0 0
Min. = 250 lux
Max. = 1000 lux
(max)
(min)
ON
1 2
on
o
LRM1070
and
ON
1 2
Auto on
IR on
LRM1080
only
LRM1080
This table is prepared in accordance with the provisions of
SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the
homogeneous materials for this part is below the limit requirement
of GB/T 26572.
X: Indicates that said hazardous substance contained in at least
one of the homogeneous materials used for this part is above the
limit requirement of GB/T 26572.
B Warning
The connector of the OccuSwitch is capable of accepting a
wide range of cables (1.5 to 2.5mm2), but when heavy ridged
cables (especially single core) are used it is strongly advised to
make use of the LCC1070 to prevent the OccuSwitch of being
pushed out of the ceiling due to the weight of these ridged
cables.
© 2016 Philips Lighting Holding B.V., all rights reserved.
Specications are subject to change without notice.
Trademarks are the property of Philips Lighting Holding B.V.
or their respective owners.
3222 636 49841 28 September 2016 www.philips.com/controls
