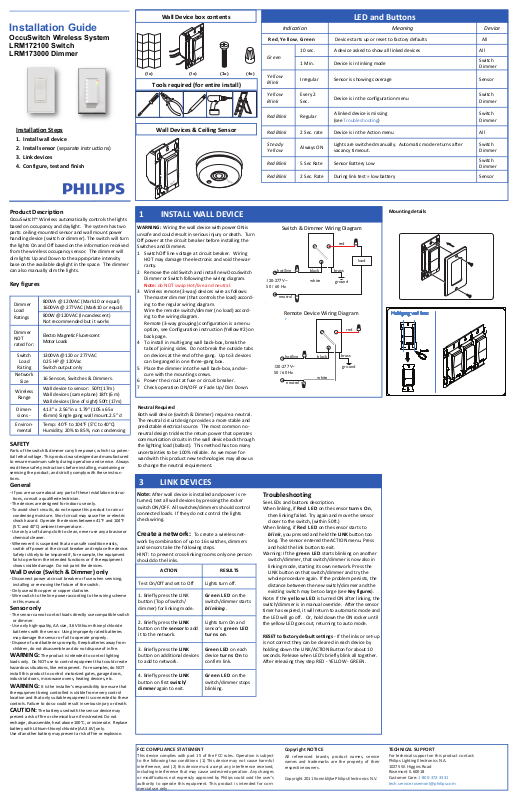

Philips LRD1730, LRA1721 User Manual

Installation Guide

OccuSwitch Wireless System

LRM172100 Switch

LRM173000 Dimmer

Installation Steps

1.Install wall device

2.Install sensor (separate instructions)

3.Link devices

4.Configure, test and finish

Product Description

OccuSwitch™ Wireless automatically controls the lights based on occupancy and daylight. The system has two parts: ceiling mounted sensor and wall mount power handling device (switch or dimmer). The switch will turn the lights On and Off based on the information received from the wireless occupancy sensor. The dimmer will dim lights Up and Down to the appropriate intensity base on the available daylight in the space. The dimmer can also manually dim the lights.

Key figures

	Dimmer	800VA @ 120VAC (Mark10 or equal)
		1600VA @ 277VAC (Mark10 or equal)
	Load
		800W @120VAC (Incandescent)
	Ratings
		Not recommended but it works
	Dimmer	Electro Magnetic Fluorescent
	NOT
		Motor Loads
	rated for:
	Switch	1300VA @120 or 277VAC
	Load	0.25 HP @ 120Vac
	Rating	Switch output only
	Network	16 Sensors, Switches & Dimmers.
	Size
	Wireless	Wall device to sensor: 50ft (17m)
		Wall devices (same plane) 18ft (6 m)
	Range
		Wall devices (line of sight) 50ft (17m)
	Dimen	4.13” x 2.56”in x 1.79” (105 x 65x
	sions	45mm) Single gang wall mount.2.5” d
	Environ	Temp: 40°F to 104°F (5°C to 40°C)
	mental	Humidity: 20% to 85%, non condensing

SAFETY

Parts of the switch & dimmer carry line power, which is a poten tial lethal voltage. This product was designed and manufactured to ensure maximum safety during operation and service. Always read these safety instructions before installing, maintaining or servicing the product, and strictly comply with these instruc tions.

General

If you are unsure about any part of these installation instruc tions, consult a qualified electrician.

The devices are designed for indoor use only.

To avoid short circuits, do not expose this product to rain or condensing moisture. Short circuit may cause fire or electric shock hazard. Operate the devices between 41°F and 104°F (5°C and 40°C) ambient temperature. .

Use only a soft damp cloth to clean, never use any abrasive or chemical cleaner.

Whenever it is suspected that an unsafe condition exists, switch off power at the circuit breaker and replace the device. Safety is likely to be impaired if, for example, the equipment fails to perform the intended functions or if the equipment shows visible damage. Do not paint the devices.

Wall Device (Switch & Dimmer) only

Disconnect power at circuit breaker or fuse when servicing, installing or removing the fixture of the switch.

Only use with copper or copper clad wire.

Wire switch to the line power according to the wiring scheme in this manual.

Sensor only

The sensor cannot control loads directly use compatible switch or dimmer.

Use only high quality, AA size, 3.6V lithium thionyl chloride batteries with the sensor. Using improperly rated batteries may damage the sensor or fail to operate properly.

Dispose of used batteries promptly. Keep batteries away from children, do not disassemble and do not dispose of in fire.

WARNING: The product is intended to control lighting

loads only. Do NOT use to control equipment that could create hazardous situations, like entrapment. For examples, do NOT install this product to control motorized gates, garage doors, industrial doors, microwave ovens, heating devices, etc. WARNING: It is the installer’s responsibility to ensure that

the equipment being controlled is visible from every control location and that only suitable equipment is connected to these controls. Failure to do so could result in serious injury or death. CAUTION: The battery used with the sensor device may

present a risk of fire or chemical burn if mistreated. Do not recharge, disassemble, heat above 100°C, or incinerate. Replace battery with Lithium thionyl chloride (AA 3.6V) only.

Use of another battery may present a risk of fire or explosion.

	Wall Device box contents					LED and Buttons
				Indication		Meaning	Device
				Red, Yellow, Green		Device starts up or reset to factory defaults	All
				Green	10 sec.	A device asked to show all linked devices	All
	PHILIPS						Switch
					1 Min.	Device is in linking mode
							Dimmer
(1x)	(1x)	(2x)	(4x)	Yellow
					Irregular	Sensor is showing coverage	Sensor
Tools required (for entire install)				Blink
				Yellow	Every 2	Device is in the configuration menu	Switch
				Blink	Sec.		Dimmer
				Red Blink	Regular	A linked device is missing	Switch
						(see Troubleshooting)	Dimmer
	Wall Devices & Ceiling Sensor			Red Blink	2 Sec. rate	Device is in the Action menu	All
				Steady	Always ON	Lights are switched manually. Automatic mode returns after	Switch
				Yellow		vacancy timeout.	Dimmer
				Red Blink	5 Sec Rate	Sensor Battery Low	Switch
							Dimmer
				Red Blink	2 Sec. Rate	During link test = low battery	Sensor
	PHILIPS	PHILIPS

1 INSTALL WALL DEVICE

WARNING: Wiring the wall device with power ON is unsafe and could result in serious injury or death. Turn Off power at the circuit breaker before installing the Switches and Dimmers.

1Switch Off line voltage at circuit breaker. Wiring HOT may damage the electronic and void the war ranty.

2Remove the old Switch and install new OccuSwitch Dimmer or Switch following the wiring diagram. Note: do NOT swap Hot/live and neutral.

3Wireless remote (3 way) devices wire as follows: The master dimmer (that controls the load) accord ing to the regular wiring diagram.

Wire the remote switch/dimmer (no load) accord ing to the wiring diagram.

Remote (3 way grouping) configuration is a menu option, see Configuration instruction (Yellow #2) on back page.

4To install in multi gang wall back box, break the tabs of joining sides. Do not break the outside tabs on devices at the end of the gang. Up to 3 devices can be ganged in one three gang box.

5Place the dimmer into the wall back box, and se cure with the mounting screws.

6Power the circuit at fuse or circuit breaker.

7Check operation ON/OFF or Fade Up/ Dim Down.

Switch & Dimmer Wiring Diagram

		red
		load
hot/live	black	brass
120-277 V~	white	ground
50 / 60 Hz
neutral
Remote Device Wiring Diagram
		red
hot/live	black	brass
120-277 V~		ground
50 / 60 Hz

white

neutral

Neutral Required

Both wall device (switch & Dimmer) require a neutral. The neutral circuit design provides a more stable and predictable electrical source. The most common no neutral design trickles the return power that operates communication circuits in the wall device back through the lighting load (ballast). This method has too many uncertainties to be 100% reliable. As we move for ward with this product new technologies may allow us to change the neutral requirement.

Mounting details

PHILIPS

3 LINK DEVICES

Note: After wall device is installed and power is re turned, test all wall devices by pressing the rocker switch ON/OFF. All switches/dimmers should control connected loads. If they do not control the lights check wiring.

Create a network: To create a wireless net work by combination of up to 16 switches, dimmers and sensors take the following steps.

HINT: to prevent cross linking rooms only one person should do the links.

ACTION	RESULTS
Test On/Off and set to Off	Lights turn off.
1. Briefly press the LINK	Green LED on the
button (Top of switch/	switch/dimmer starts
dimmer) for linking mode.	blinking.
2. Briefly press the LINK	Lights turn On and
button on the sensor to add	sensor’s green LED
it to the network.	turns on.
3. Briefly press the LINK	Green LED on each
button on additional devices	device turns On to
to add to network.	confirm link.
4. Briefly press the LINK	Green LED on the
button on first switch/	switch/dimmer stops
dimmer again to exit.	blinking.

Troubleshooting

See LEDs and buttons description.

When linking, if Red LED on the sensor turns On, then linking failed. Try again and move the sensor closer to the switch, (within 50ft.)

When linking, if Red LED on the sensor starts to blink, you pressed and held the LINK button too long. The sensor entered the ACTION menu. Press and hold the link button to exit.

Warning: If the green LED starts blinking on another switch/dimmer, that switch/dimmer is now also in linking mode, starting its own network. Press the LINK button on that switch/dimmer and try the whole procedure again. If the problem persists, the distance between the new switch/dimmer and the existing switch may be too large (see Key figures).

Note: If the yellow LED is turned ON after linking, the switch/dimmer is in manual override. After the sensor timer has expired, it will return to automatic mode and the LED will go off. Or, hold down the ON rocker until the yellow LED goes out, returning to auto mode.

RESET to factory default settings If the links or set up is not correct they can be cleared in each device by holding down the LINK/ACTION Button for about 10 seconds. Release when LED’s briefly blink all together. After releasing they step RED YELLOW GREEN.

FCC COMPLIANCE STATEMENT	Copyright NOTICE	TECHNICAL SUPPORT
This device complies with part 15 of the FCC rules. Operation is subject	All referenced brands, product names, service	For technical support on this product contact:
to the following two conditions: (1) This device may not cause harmful	names and trademarks are the property of their	Philips Lighting Electronics N.A.
interference, and (2) this device must accept any interference received,	respective owners.	10275 W. Higgins Road
including interference that may cause undesired operation. Any changes		Rosemont IL 60018
or modifications not expressly approved by Philips could void the user’s	Copyright 2011 Koninklijke Philips Electronics N.V.	Customer Care: 1 800 372 3331
authority to operate this equipment. This product is intended for com		[e-mail]
mercial use only.

Configuration and set up

One to One SET UP

Combined Device SET UP

After successfully installing and linking the sensors and wall devices you can change settings to customize the system to the needs of the user.

To dim up, press and hold the ON button	LED response Signals
To dim down , press and hold the OFF button	Spike Very short blinks
Menu operations use CONFIG and LINK/ACTION but	Blink LED switching On and Off
tons as described in the Configuration (YELLOW) and
Action/RED menus below.

SET UP hint

Use a small screw drive or similar device to push the Menu buttons.

Short button press : < 1 second Long button press: > 2 seconds

Manual Mode Manual mode is entered when the rock switch is pressed and the Yellow LED comes On. After sensors are linked, the system will return to auto mode when the room if vacant and the delay timer expire. To return to Auto Mode Hold down the On rocker until the Yellow LED goes out.

4	CONFIGURE, TEST & FINISH
Configure		Test sensor coverage	Finish
When all sensors and wall devices are linked, you can		Once all devices are installed, linked and configured,	OccuSwitch Sensors and Wall Devices do not need any
change the operation settings. This is done at any wall		you can test the installation to ensure that:	regular maintenance. You may find as people change
device; the settings are automatically sent to the other		The sensor detects motion in the workspace. Test to	space and future is re arranged that you need to re
devices in the rooms network. You can select the fol		make sure sensor does not pick up motion from adja	calibrate the daylight functions. This can easily be
lowing options in the Configuration and Action menus.		cent areas, e.g. the hallway. This can be done at any	done at floor level from the wall device.
		time, see ACTION Menu for steps.

CONFIGURATION (Yellow) Menu for both Wall Devices Press CONFIG button (Long to enter) (Short for next item)

										Store
Item			Indicator					Description	Action	Setting
Start			Yellow Spike (…/…)			Exist			Long Press CONFIG to exit	N/A
1			Yellow Blinks (…1…)			Manual ON/ Auto OFF (Title 24)			Long CONFIG = Manual ON	Automatic
									Long ACTION = Auto ON
2			Yellow Blinks (…1..1…)			Multi Way Configuration			Long CONFIG to create multi way group	Long CONFIG
3			Yellow Blinks (…1..1..1…)			Dimmer Response Curve			Long CONFIG to change response curve	Long CONFIG
						(Dimmer Only)
4			Yellow Blinks (…1..1..1..1…)			Set High End Level (Task Tuning)			Long CONFIG = Sets maximum dim level	Automatic
						(Dimmer Only)			Long ACTION = Return to 100%
								(Config #3)
			Dimmer Response Curve
								Dimmer Response Curve If
1		Blink Top LED			50%
								the Daylight dimming response
2		Blink 2nd LED			20%
								is too aggressive the Dimmer
3		Blink 3rd LED			10%
								can be set to respond less to
4		Blink 4th LED (default)			Straight Line			daylight. If the response is too
								low the dimmer can be set to
5		Blink 5th LED			+10%
								react more to additional day
6		Blink 6th LED			+20%
								light.
7		Blink Bottom LED			+50%

ACTION (Red) Menu for Sensors and Wall Devices Press LINK/ACTION button (Long to enter) (Short for next item)

				Wall	Wall	Multi	Occ.
	Item	Indicator	Description	Switch	Dimmer	Sensor	Sensor	Action	Results
	Start	Red Spike (…/…)	Exit	X	X	X	X	Long LINK/ACTION to exit
	1	Red Blinks (…1…)	Show Linked Device	X	X	X	X	Long LINK/ACTION to start	Automatic
	2	Red Blinks (…1..1…)	Test Sensor Coverage	X	X	X	X	Long LINK/ACTION to Start
								Short LINK/ACTION on sensor to Finish
	3	Red Blinks (…1..1..1…)	Calibrate Daylight dimming	N/A	X	X	X	Long LINK/ACTION to Start	Automatic
			set point (< 1 min. process)
	4	Red Blinks (…1..1..1..1…)	Daylight Hold Back	X	N/A	X	X	Long LINK/ACTION to Start	Automatic
	5	Red Blinks (…1..1..1..1..1…)	Channel Change	X	X	X	X	Long LINK/ACTION to Start	Automatic

Maintenance

	IL	IP	S
PH

Routine lamp replacement

To safely do a routine lamp replacement, on all switches, firmly press the OFF side until the rocker clicks into the position where a yellow band with “OFF” becomes visible.

The load is now temporarily separated from the line voltage by an air gap switch, so you can safely replace the lamp. WARNING: If the air gap function is not used, the power may be switched ON unintentionally by the sensor while replac ing the lamp. This could result in serious injury or death.

WARNING: For any procedure other than lamp replacement, power must be disconnected at the main electric panel. Use approved LOCK OUT/TAG OUT proce dures to insure that the circuit is not acti vated accidently. Working with power ON is unsafe and can result in serious injury or death.

Replacing the sensor battery

CAUTION: You must have read the SAFETY section before replacing the battery.

To replace the battery of the sensor:

1.Rotate the sensor counterclockwise to remove from mounting plate.

2.In a safe and dry place, remove the old battery and insert the new battery.

CAUTION: Use only high quality AA size 3.6 V DC lithium thionyl chlo ride batteries with the sensor. Using improperly rated batteries may damage the sensor.

3.Place the sensor back on the mounting plate and rotate clock wise to fix it.

4.Dispose of used battery properly. DO NOT throw in trash. Keep away from children. Do not disassemble and do not dispose of in fire.

Troubleshooting System

The lights turn off too quickly: The system has a smart timer that adjust the off delay time automati cally. To change, set sensor’s minimum timeout dial to a higher value.

The system is set to Manual ON, but lights turn on automatically: When entering the area within 5 min utes after lights turning off, the system assumes that turning off was undesired and turn ON the lights.

The system shows that a linked device is missing:

When a device is missing, use the ACTION #1 menu to show all linked devices. If a sensor does not show as linked, its battery may need to be replaced. If this does not resolve the error, reset all devices and link them again.

The lights immediately turn ON after being turned off

The sensor may be placed too close to a (heat generat ing) light source. Move the sensor to a better location.

Reset the device to factory defaults

To reset the device to its factory default configuration: Press and hold the link button on the device for more than 10 seconds. Release the button when the red, yellow and green LEDs light briefly.

SET UP OPTIONS

For best result set each desirable option in the order listed below.

(Config #1)

Manual ON / AUTO OFF (Title 24 mode) This is a popular setting for maximum energy savings. It force the occupant to manual activate the lights when they enter the space and automatically turn OFF the light when they leave. This save energy by keep the lights OFF until they are actually needed.

(Config #2)

Multi Way Configuration Several switches and dimmers can be put in a group that control each oth ers load when operated manually.

You can create several independent control groups linked to the ceiling sensors.

1.Use CONFIG menu item 2 All wall devices will start to blink: GREEN is included, RED is excluded.

2.Tap the ON button to include, OFF bottom, to exclude.

3.Long CONFIG button press will save the settings.

4.Repeat from step 1 on different wall devices to form more groups.

(Config #4)

Set High End Level If you want to limit the maxi mum output from a dimmer set the desired high end level and run through Configuration Menu (Yellow) #4.

(Action #3)

Daylight Calibration (FIRST TIME) Only one sensor can be linked to one Switch (Hold back) or one Dimmer (continuous dimming) for Daylight Regulation. The first time the daylight Action Menu is activate the system unlocks and links the senor to the wall device for Daylight regulation. This can be done from the floor before mounting the sensor.

Next time After the first activation and calibration the daylight menu can be run from the wall device to recalibrate the daylight settings.

Calibration process When the sensor and the wall device enter calibration mode the

Tip: It is important that the daylight is constant and is not too bright (no need to calibrate in the dark).

1.Use dimmer to dim to the required light level using light meter on the work surface.

2.Go into action menu on the sensor to select

Calibration daylight regulation set point menu item. (Yellow LED starts Blinking)

3.Clear the area under the light sensor (walk away).

4.Automatic Configuration will start in about a minute. All dimmers in the system go to 100%, then switch off. The green LED on the device turns on. Sensor confirms new setpoint using green LED. The system enters automatic light

regulation mode.

Note: This process can be repeated anytime after the first time from the wall device without touching the

(Action #4)

Daylight Hold Back Similar to Daylight calibration but results is to set the level at which the light will not turn ON automatically (Hold Back level)

(Action #5)

Channel Changing In some building environments the radio signal used for OccuSwitch Wireless may encounter interference from another radio device. Channel changing activate the system automatic radio analysis function toe reset the channel. Use this func tion if you are having communications issues.

WARRANTY STATEMENT

The Philips OccuSwitch™ Wireless products, when properly installed and under normal conditions of use (without over load, abuse or alteration), is warranted to you, the original user, for a period of two (2) years from the date of original purchase, to be free from defects in materials and workman ship. If during the warranty period you believe the purchased product or any part thereof has such a defect, you must return the product (or part) at your cost during such period, with proof of purchase (or if installed by a third party a written explanation of installation transaction with proof of date), to Philips Lighting Electronics N.A (1 800 372 3331 / www.philips.com/advance), for repair or replacement (or to an authorized Philips Lighting Electronics N.A. supplier which agrees in advance to handle the return and replacement by factory authorization). If the product or part is found by Philips to have been defective in material or workmanship it will be repaired or replaced (as deemed necessary by Philips Lighting Electronics N.A.), and the replacement will be returned to you free of charge. The original user is solely responsible for any costs associated with removal and re installation of the prod uct and shipping to Philips Lighting Electronics N.A. or its authorized supplier.
