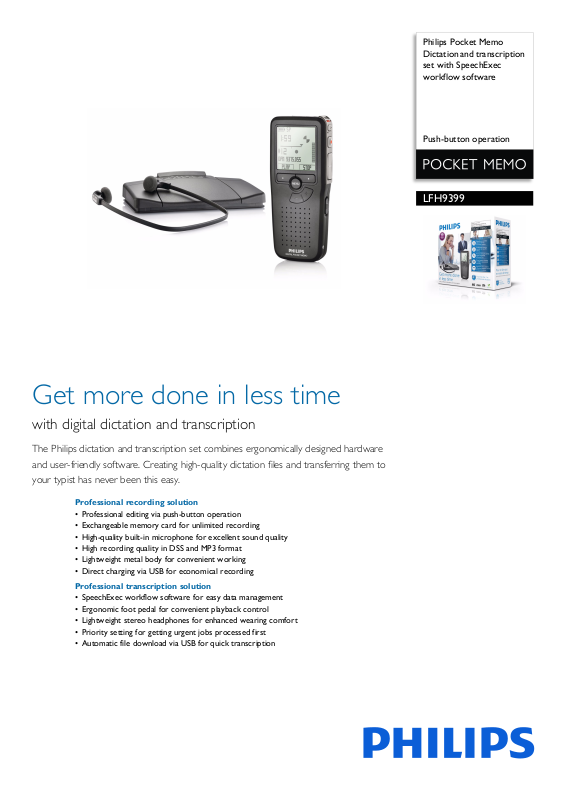

Page 1
Philips Pocket Memo
Dictation and transcription
set with SpeechExec
workflow software
Push-button operation
LFH9399
Get more done in less time
with digital dictation and transcription
The Philips dictation and transcription set combines ergonomically designed hardware
and user-friendly software. Creating high-quality dictation files and transferring them to
your typist has never been this easy.
Professional recording solution
• Professional editing via push-button operation
• Exchangeable memory card for unlimited recording
• High-quality built-in microphone for excellent sound quality
• High recording quality in DSS and MP3 format
• Lightweight metal body for convenient working
• Direct charging via USB for economical recording
Professional transcription solution
• SpeechExec workflow software for easy data management
• Ergonomic foot pedal for convenient playback control
• Lightweight stereo headphones for enhanced wearing comfort
• Priority setting for getting urgent jobs processed first
• Automatic file download via USB for quick transcription
Page 2
LFH9399/00
Dictation and transcription set with SpeechExec workflow software
Push-button operation
Highlights
Exchangeable memory card
Virtually unlimited recording capacity thanks to
an exchangeable memory card.
DSS and MP3 recording
The DSS format was developed for use in
digital voice recorders, allowing a high
compression ratio with little loss of quality.
The DSS format also allows you to store
additional information in the file header, which
facilitates the organisation and the
transcription of dictation files. The MP3 format
is the common audio format for consumer
audio storage, as well as a de facto standard
encoding for the transfer and playback of music
on digital audio players.
Priority setting
With the included priority setting option,
urgent recordings get processed first.
Ergonomic foot pedal
Slim, ergonomic design guarantees hands-free
control of all playback functions with minimal
physical strain.
High-quality microphone
Lightweight metal body
The ergonomically shaped lightweight metal
body is ideal for convenient working over
longer periods of time.
Professional editing functions
Easy and fast file editing (insert, overwrite,
append) via convenient push-button operation.
Professional headphones
Automatic download via USB
When plugged in, the Pocket Memo dictation
recorder automatically downloads your audio
files directly onto the computer.
The high-quality microphone delivers
increased recording sensitivity and excellent
sound quality.
Lightweight under-the-chin-style stereo
headphones designed to deliver excellent
sound quality, with soft ear cushions for
enhanced wearing comfort.
Page 3
LFH9399/00
Dictation and transcription set with SpeechExec workflow software
Push-button operation
Specifications
What is included?
• Digital recorder LFH9375
• USB foot control
• Stereo headphones LFH0334
• SpeechExec Transcribe software
• SpeechExec Dictate software
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
• USB: Mini-USB 2.0
• Docking connector
•Memory card slot
Display
•Type: LCD
• Diagonal screen size: 44 mm/1.7 in.
• Backlight: white
Storage media
• Exchangeable memory card
• Memory card types: Secure Digital (SD), Secure
Digital (SDHC)
• Mass storage class compliant
Audio recording
• Recording formats: Digital speech standard (DSS),
MPEG1 layer 3 (MP3)
• Built-in microphone: mono
• Recording modes: XHQ (MP3/stereo), HQ (MP3/
eo), QP (DSS/mono), SP (DSS/mono)
ster
• Bit rate: 13.5, 28, 64, 128 kbps
• Recording time (2 GB card): 349 hours (SP), 170
urs (QP), 72 hours (HQ), 36 hours (XHQ)
ho
• Sample rate: 44.1 (XHQ), 32 kHz (HQ), 16 kHz
(QP), 12 kHz (SP)
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 30 mm
• Speaker output power: 200 mW
• Frequency response: 300–8,000 (XHQ), 300–
0 (HQ), 300–7,000 (QP), 300–5,700 (SP) Hz
8,00
• Rechargeable: yes, via USB
• Battery lifetime: up to 23
mode
• Batteries included: rechargeable
hours in SP recording
Foot pedal
• Connectivity: USB plug
• Product dimensions (W × H × D): 19.5 x 13 x 3.5
/7.7 x 5.1 x 1.4 in.
cm
• Weight: 0.660 kg/1.5 lb.
Headphones
• Style: under chin
• Acoustic system: open
• Magnet type: neodymium
• Diaphragm: PET dome
• Voice coil: copper
• Sound quality: optimised for voice playback
• Impedance: 2 × 32 Ohm
• Maximum power input: 2 × 10 mW
• Sensitivity: 103 dB
• Speaker diameter: 14 mm/0.6 in.
• Cable connection: one-sided
• Cable length: 3.0 m/10 ft.
• Connector: 3.5 mm, right-angled, stereo
• Connector finish: Go
• Product dimensions (W × H × D): 16 x 15 x 1.8
/6.3 x 5.9 x 0.7 in.
cm
• Weight: 0.660 kg/1.5 lb.
ld-plated
System requirements
• Processor: Pentium IV 1GHz recommended
•RAM memory: 1 GB (2 GB recommended)
• Hard disk space: 100 MB for SpeechExec, 850 MB
r Microsoft .NET 4
fo
• Headphone output or speakers
• Operating system: Windows 7 (32/64-bit),
indows Vista (32/64-bit), Windows XP (32-bit)
W
• Free USB port
•DVD-ROM drive
• Graphics card: DirectX-compliant graphics card
hardware acceleration recommended
with
• Sound device: Windows-compatible sound device
Convenience
• Professional editing functions
• Multiple language support: 5 languages (EN, FR, DE,
T)
ES, I
•2 smart buttons
• Author ID setting
• Control via push buttons
• File lock
• One-thumb operation
• Priority setting
• Voice-activated recording
• Automatic software updates
Power
• Battery type: AAA/LR03 Alkaline, Philips AAA Ni-
MH LFH9154
• Number of batteries: 2
Issue date 2016-04-22
Version: 5.2.8
12 NC: 8735 939 90011
UPC: 6 09585 19344 4
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Accessories
• SpeechExec Dictate software
• SpeechExec Transcribe software
•USB cable
• Secure Digital memory card
•Pouch
• 2 × AAA Ni-MH batteries
•Quick start guide
Design and finishing
• Colour(s): Digital dictation recorder: silver/black
• Material: Digital dictation recorder: full metal body
•
© 2016 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
