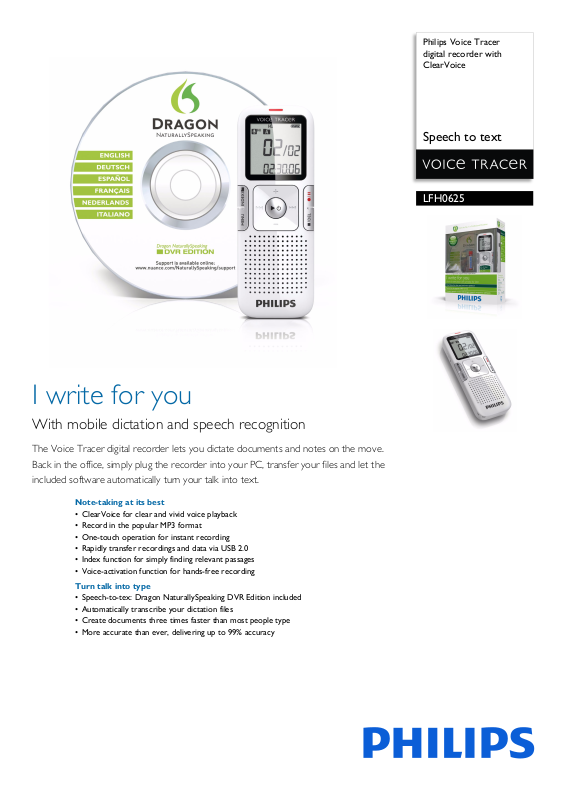

Philips LFH0625-27 User Manual

Philips Voice Tracer
digital recorder with
ClearVoice

Speech to text

LFH0625

I write for you

With mobile dictation and speech recognition

The Voice Tracer digital recorder lets you dictate documents and notes on the move.
Back in the office, simply plug the recorder into your PC, transfer your files and let the
included software automatically turn your talk into text.

Note-taking at its best

• ClearVoice for clear and vivid voice playback

• Record in the popular MP3 format

•One-touch operation for instant recording

• Rapidly transfer recordings and data via USB 2.0

• Index function for simply finding relevant passages

• Voice-activation function for hands-free recording

Turn talk into type

• Speech-to-tex: Dragon NaturallySpeaking DVR Edition included

• Automatically transcribe your dictation files

• Create documents three times faster than most people type

• More accurate than ever, delivering up to 99% accuracy

Digital recorder with ClearVoice

Speech to text

Highlights

LFH0625/27

ClearVoice

Recording with good audio quality at lectures
or presentations can be a challenge. Especially
if you do not sit in the front row, the voice of
the speaker may be to quiet too record in
acceptable quality. The ClearVoice feature
adjusts quiet passages dynamically, thus
improving the intelligibility of quieter voices.

MP3 recording

Speech-to-text

Turn talk into type with the Dragon
NaturallySpeaking software delivering more
accurate results than ever.

Automatic transcription

Up to 99% accuracy

The powerful software solution now more
accurate than ever! Delivering up to 99%
accuracy for an efficient workflow.

Rapidly transfer recordings

The MP3 format is the common audio format
for consumer audio storage, as well as a de
facto standard encoding for the transfer and
playback of recordings.

One-touch operation

Press and hold the record button for a
moment to switch the Voice Tracer on and
start recording instantly.

With our state-of-the-art software just plug
the recorder into the PC, transfer your file and
let it turn your talk into text.

Create documents faster

With the innovative speech recognition
software you can now convert your dictation
files into text files automatically and avoid
time-consuming retyping.

Thanks to the fast data transfer of a hi-speed

2.0 USB connection, transfering recordings to
your PC is up to 40 time s faster com pared with
the original USB standard.

Index function

The index function helps and eases finding
relevant passages in an instant.

Digital recorder with ClearVoice

Speech to text

Specifications

LFH0625/27

Connectivity

• Headphones: 3.5 mm

• Microphone: 3.5 mm

•USB: High-speed USB 2.0

Display

•Type: LCD

• Diagonal screen size: 34.5

• Backlight: no

mm/1.4 in.

Storage media

• Built-in memory capacity: 2 GB

• Buit-in memory type: NAND Flash

• Mass storage class compliant

Audio recording

• Recording formats: MPEG1 layer 3 (MP3)

• Built-in microphone: mono

• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono), SLP (MP3

• Bit rate: 8, 32, 48, 64 kbps

• Recording time: 22 days (SL
(SP), 2.7 days (HQ)

• Sample rate: 22 kHz (HQ), 16 kHz (SP/LP/SLP)

/mono)

P), 5.5 days (LP), 4 days

Sound

• Speaker type: built-in round dynamic speaker

• Speaker diameter: 23 mm

• Speaker output power: 110 mW

• Sound enhancement: ClearVoice

• Frequency response: 250-2000 Hz (SLP), 60-3500

60-5500 Hz (SP), 60-7000 Hz (HQ)

Hz (LP),

Speech recognition

• Language support: Dutch, English, French, German,
Italian, Spanish

• Software edition: Dragon Naturall
Digital Voice Recorder Edition (supports portable
recorders only)

ySpeaking 11

Convenience

• Instant one-touch recording

• Voice-activated recording

•Keypad lock

• Firmware upgradeable

• Variable playback speed

• Optimized for notes

Power

• Battery type: AAA/LR03 Alkaline

• Number of batteries: 1

• Rechargeable: no

• Battery lifetime: up to 15
mode

•Battery included

hours in SLP recording

System requirements

• Operating system: Microsoft Windows 7, 32-Bit or
64-Bit, Windows Vista (SP 1 or SP 2), 32-Bit or 64­Bit, Windows XP (SP2 or SP3), 32-Bit, Windows
Server 2003 or 2008 (SP1, SP2 or R2), 32-Bit or
64-Bit

• Microsoft Internet Explorer: 6 or higher

• Processor: Intel Dual Core or equivalent AMD-

cessor with 1.8 GHz recommended (SSE2

pro
instruction set required), processor cache 2 MB

• RAM Memory: 2 GB Windows XP, Vista, 4 GB for

ws 7, 2003/2008

Windo

• Hard disk space: 2.8 GB, 4 GB for all languages

• Sound device: Creative® Labs Soundblaser® 16 or

al

equ

•DVD-ROM drive

• Free USB port

Green specifications

• Lead-free soldered product

Accessories

•USB cable

• 1 × AAA battery

•Quick start guide

Design and finishing

• Color(s): clear white/platinum chrome

Product dimensions

• Product dimensions (W x H x D):

3.8 x 10.5 x 1.64 cm

• Product dimensions (W x H x D):

1.5 x 4.1 x 0.6 inch

• Weight: 0.042 kg

• Weight: 0.093 lb

•

Issue date 2014-03-14

Version: 4.1.6

12 NC: 8670 000 76319
UPC: 6 09585 21335 7

© 2014 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com
