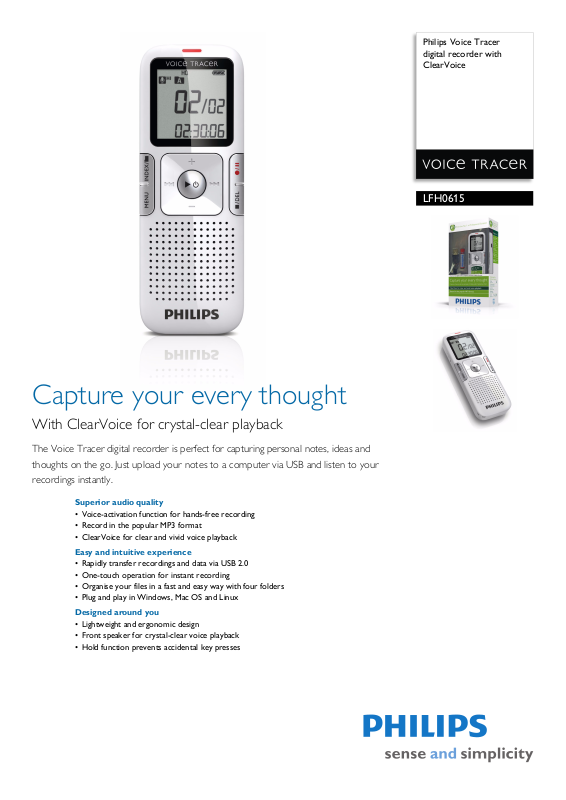

Page 1
Philips Voice Tracer
digital recorder with
ClearVoice
LFH0615
Capture your every thought
With ClearVoice for crystal-clear playback
The Voice Tracer digital recorder is perfect for capturing personal notes, ideas and
thoughts on the go. Just upload your notes to a computer via USB and listen to your
recordings instantly.
Superior audio quality
• Voice-activation function for hands-free recording
• Record in the popular MP3 format
• ClearVoice for clear and vivid voice playback
Easy and intuitive experience
• Rapidly transfer recordings and data via USB 2.0
•One-touch operation for instant recording
• Organise your files in a fast and easy way with four folders
• Plug and play in Windows, Mac OS and Linux
Designed around you
• Lightweight and ergonomic design
• Front speaker for crystal-clear voice playback
• Hold function prevents accidental key presses
Page 2
Digital recorder with ClearVoice
Highlights
LFH0615/00
ClearVoice
Recording with good audio quality at lectures
or presentations can be a challenge. Especially
if you do not sit in the front row, the voice of
the speaker may be to quiet too record in
acceptable quality. The ClearVoice feature
adjusts quiet passages dynamically, thus
improving the intelligibility of quieter voices.
MP3 recording
ergonomic design will make you want to carry
it everywhere you go.
Crystal-clear voice playback
The more powerful front speaker offers a
potent, rich and crystal clear sound
experience.
Hold function
Easy file organisation
The Digital Voice Tracer supports up to 99
recordings in each of four available folders to
organise your files in a fast and easy way.
Rapidly transfer recordings
The MP3 format is the common audio format
for consumer audio storage, as well as a de
facto standard encoding for the transfer and
playback of recordings.
Plug and play
Your VoiceTracer just works - Plug and Play in
Windows, Mac OS and Linux.
Ergonomic and lightweight
Small and lightweight, you'll hardly notice it's
w
ith you. Pop it in your pocket or bag and take
it anywhere. The durable casing and attractive,
When the hold switch is in the hold position,
all buttons on the device are inactive.
One-touch operation
Press and hold the record button for a
moment to switch the Voice Tracer on and
start recording instantly.
Thanks to the fast data transfer of a hi-speed
2.0 USB connection, transferring recordings to
your PC is up to 40 time s faster com pared with
the original USB standard.
Voice-activation function
Voice-activated recording is a convenience
feature for hands-free recording. When
enabled, recording will start automatically
when you start speaking. Recording stops
automatically after you stop speaking and
restarts automatically when you start speaking
again.
Page 3
Digital recorder with ClearVoice
Specifications
LFH0615/00
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
•USB: High-speed USB 2.0
Display
•Type: LCD
• Diagonal screen size: 34.5
• Backlight: No
mm/1.4 in.
Storage media
• Built-in memory capacity: 2 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
Audio recording
• Recording formats: MPEG1 layer 3 (MP3)
• Built-in microphone: mono
• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono), SLP (MP3
• Bit rate: 8, 32, 48, 64 kbps
• Recording time: 22 days (SL
(SP), 2.7 days (HQ)
• Sample rate: 22 kHz (HQ), 16 kHz (SP/LP/SLP)
/mono)
P), 5.5 days (LP), 4 days
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 23 mm
• Speaker output power: 110 mW
• Sound enhancement: ClearVoice
• Frequency response: 250-2000 Hz (SLP), 60-3500
60-5500 Hz (SP), 60-7000 Hz (HQ)
Hz (LP),
Convenience
• Instant one-touch recording
• Voice-activated recording
•Keypad lock
• Firmware upgradeable
• Variable playback speed
• Optimised for notes
Power
• Battery type: AAA/LR03 Alkaline
• Number of batteries: 1
• Rechargeable: No
• Battery lifetime: up to 15
mode
•Battery included
hours in SLP recording
System requirements
• Operating system: Linux, Mac OS X, Windows 7/
Vista/XP/2000
• Free USB port
Green specifications
• Lead-free soldered product
Accessories
•USB cable
• 1 × AAA battery
•Quick start guide
Design and finishing
• Colour(s): clear white/platinum chrome
Product dimensions
• Product dimensions (W x H x D):
3.8 x 10.5 x 1.64 cm
• Product dimensions (W x H x D):
1.5 x 4.1 x 0.6 inch
• Weight: 0.044 kg
• Weight: 0.097 lb
•
Issue date 2013-01-10
Version: 2.1.8
12 NC: 8735 061 50011
UPC: 6 09585 21334 0
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
