Philips Indoor Luminaires User Manual

Recessed luminaires

•

Selection guide – Recessed luminaires

Luminaire

family

Savio

Rotaris

Celino

SmartForm

Product

range

TBS760/770 2.10

TBS740 2.18

TBS741 2.22

TBS690 2.26

TBS692 2.28

TBS460 2.32

TBS461/471 2.38

Page Light distribution Module

Symmetric

•

•

•

•

•

•

•

Asymmetric Double

asymmetric

Air

Number

dimension (mm)

In length In width Fluorescent Compact

300 300 2,3,4,6

n.a. n.a.

600 600

300 none

none none

300 300

300 300 2,3,4,6

handling

•

•

•

•

•

of lamps

1

1

1

1

1,2,3,4

TL5

•

•

•

•

Lamps

fluorescent

TL5-C TL-D PL-L

•

•

TBS490

TBS600

Indolight

EFix

TBS257

TBS490 2.52

TBS600 2.56

TBS315 2.62

TBS318 2.68

TBS330 2.86

TBS340 2.72

TBS260 2.74

TBS257 2.80

•

• • •

• • •

• • •

• • •

• • •

•

•

300 none 1,2

300 none

300 150

300 185

300 300

300 150

300 300

300 300 2,3,4

•

•

•

•

•

•

1,2

1,2

1,2

1,2,3,4

1,2

2,3,4

•

•

• •

• •

•

• •

•

•

TBS288

TBS288 2.84

•

300 300 2,3,4

•

Philips indoor luminaires2.2 Recessed luminaires

Selection guide – Recessed luminaires

Luminaire

family

FBS330

Impala

TBS147

TBS047

Product

range

FBS330 2.92

TBS160 2.98

FBS160 2.104

TBS147 2.108

TBS047 2.112

Page Light distribution Module

Symmetric

•

•

•

•

•

Asymmetric Double

asymmetric

Air

Number

dimension (mm)

In length In width Fluorescent Compact

300 300

300 300

300 300 2,3

300 300 2,4

300 300 2,4

handling

•

•

of lamps

TL5

2,3

2,3,4

Lamps

fluorescent

TL5-C TL-D PL-L

•

•

•

•

•

Recessed luminaires

FBS163

TBS105 Series

FBS163 2.114 indirect 300 300 2

TBS105 2.116

FBS105 2.118

•

•

300 none

300 none

•

•

•

1

1

•

•

Philips indoor luminaires 2.3Recessed luminaires

Philips indoor luminaires2.4

MASTER TL5 lamps

Recessed luminaires

Philips MASTER TL5 – the perfect

t every time

Philips invented the T5 uorescent concept in the 1990s, making Philips MASTER

TL5 lamps the original 16 mm lamps. Philips has MASTER TL5 lamps to suit

every application, as well as an extensive portfolio of MASTER TL5 luminaires,

gear and controls.

MASTER TL5 lamps are operated on HF gear and offer the following benets:

• up to 28% less energy consumption than T8 lamps on electromagnetic gear

• maximum energy efciency: up to 104 lm/W

• very good color rendering

• long life of 19,000 hours (10% failure rate).

MASTER TL5 lamps

Best environmental choice

Environmentally, Philips MASTER TL5 lamps and gear offer the highest energy

efciency for uorescent lighting, resulting in the lowest CO2 emissions. All

products are RoHS-compliant. MASTER TL5 lamps use less glass, metal and

packaging, and their lower weight offers transport and recycling benets.

www.philips.com/mastertl5

Recessed luminaires

Innovative luminaires

Philips has a history of innovative advances in optic design, including the renowned

OLC (Omni-directional Luminance Control) optics introduced at the time of the

launch of the MASTER TL5 lamp. Continuing this tradition, our latest luminaires

feature OLC micro optics. These allow luminaires to be miniaturist in design, with

optimum performance in terms of light distribution, visual comfort and efciency.

Lighting controls for MASTER TL5 lamps

Philips offers control systems that switch the lights off when an area is vacated

and/or react to the level of daylight by adjusting the articial light.

MASTER TL5 lamps with Philips electronic (HF) gear

By using Philips TL5 electronic (HF) gear you can be sure that the lamp and gear

work perfectly together, because they have been designed, developed, tested and

optimized for each other. (HF) gear maximizes energy savings, improves user

comfort by eliminating start-up icker and strobe effects, improves safety with

over-voltage detection and extends lamp life.

Philips indoor luminaires 2.5

Recessed luminaires

Philips indoor luminaires2.6

MASTER TL5 lamps

Recessed luminaires

Philips MASTER TL5 High Efciency – optimal energy savings

MASTER TL5 HE lamps combine maximum energy efciency with good light output.

• Luminous efcacy of up to 104 lm/W

• HE lamps are up to 10% more efcient than HO lamps

Philips MASTER TL5 High Output – optimum light output

MASTER TL5 High Output lamps are ideal for applications where you need more light, e.g.:

• Luminaires bounce light off the ceiling

• Indirect lighting effects such as wall-washing

• High-ceiling applications

Philips MASTER TL5 HO 90 De Luxe – best for showing true colors

These lamps have a color rendering index of more than 90. This means that colors appear rich and deep as

they do in natural daylight. Moreover, objects are shown in their true, natural colors. Therefore these lamps

are the best choice for color-critical applications.

Philips MASTER TL5 ActiViva – best for energizing people

Philips MASTER TL5 ActiViva lamps contain an optimized amount of blue light and in this way not only

provide high-quality lighting, but also directly affect the way people feel. People indicate that they feel more

active, vital and alert when working under Philips ActiViva lamps.

MASTER TL5 lamps

Recessed luminaires

Philips MASTER TL5 HO Optiview – best for medical diagnosis

• Optimally tuned to support medical staff in visual clinical patient observation

• Improves early diagnosis of pathophysiological conditions that can be detected by changes in skin color

• Simplies medical tasks that require good color discrimination, such as visibility of veins when taking

blood samples

Philips MASTER TL5 Secura – best protection against breakage

• A unique protective coating makes the lamp shatterproof

• The Philips Secura coating does not degrade under the inuence of temperature or UV light

• Cost-effective way to meet the relevant safety standards in the food industry

(ISO22000 and HACCP)

Philips MASTER TL5 Circular lamps – best for circular forms

These lamps enable stylish luminaires for corridors, lobbies and reception areas. Unlike other

T5 circular lamps, Philips MASTER TL5 Circular lamps use Amalgam technology, which helps

ensure:

• More light, thanks to the wider operating temperature range

• Optimal light performance for long operation per switch-on

• Best performance in hot or cold-temperature applications

Philips MASTER TL5 HE and HO Colored lamps – best for colored applications

For areas where special color effects and/or color ambiances must be created, there is a range

of red, green and blue MASTER TL5 lamps.

Philips MASTER TL5 Xtra lamps and HF-P Xtreme gear for

TL5 – longest and most reliable life

• Extra-long, reliable life

• Lamp and ballast are designed for each other for maximum performance

Philips indoor luminaires 2.7

Recessed luminaires

ActiViva

Philips ActiViva – get activated

Good lighting doesn’t only enable us to see, it also affects how we feel. On dull, dark days, the

absence of bright light can dampen our mood and make us feel as miserable as the weather.

But a ray of sunshine is sometimes all it takes to lift our spirits and make us feel invigorated.

For several years now we’ve been working with leading universities to understand the highly

complex relationship between light and well-being.

This has led to the development of Philips ActiViva lamps. These revolutionary new lamps

contain an optimized amount of blue light and in this way make people feel more energized.

So instead of feeling tired, people are able to stay alert and focused to concentrate on the

task at hand..

Recessed luminaires

Philips indoor luminaires2.8

ActiViva Natural lamps

provide natural, cool light that contains 25% more blue light than existing cool-

daylight lamps, and combine well with other light sources in existing installations.

They are available in TL5 and TL-D versions.

ActiViva Active lamps

are available in TL5 and provide extremely cool light with 85% more blue light than

current cool-daylight lamps. Due to the high blue light content, these lamps can

create a real sky effect.

All types are retro-ttable into existing ttings, making them quick and easy to

install.

www.philips.com/activiva

ActiViva

Recessed luminaires

With Philips ActiViva lamps With traditional lamps

MASTER TL5 ActiViva

Active and Natural

• 24 W, 49 W and 54 W

• Colour Rendering Index >80

• Lumen output:

24 W: 1650

49 W: 4100

54 W: 4250

MASTER TL-D ActiViva

Natural

• 18 W, 36 W and 58 W

• Colour Rendering Index >80

• Lumen output:

18 W: 1300

36 W: 3250

58 W: 5000

Philips indoor luminaires 2.9

Recessed luminaires

Savio TBS760/770

Philips indoor luminaires2.10 Recessed luminaires

Savio – pure light

Featuring Philips’ patented micro-lens optic technology, Savio is a complete

luminaire range that offers the ideal combination of stylish design and optimum

performance for both task and general lighting.

Savio has an edge-to-edge lighting appearance with a uniform and comfortable brightness

impression – a real ‘surface of light’. The micro-lens optic consists of a single plate and is

embedded in a housing made of high-quality natural anodized aluminum. Savio ensures optimum

light distribution and full glare control in compliance with the latest ofce-lighting norm (EN

12464-1).

Savio luminaires with Dynamic Lighting keep us feeling active by creating dynamic articial light

that varies over the course of the day or is set according to personal preference.

Savio is available as a full range: suspended, surface-mounted, recessed, free-standing and wall-

mounted.

www.philips.com/lighting

Recessed luminaires

Savio recessed

Savio suspendedSavio surface-mountedSavio wall-mountedSavio free oor-standing

Philips indoor luminaires 2.11Recessed luminaires

Savio - Recessed luminaires

Savio – surface of light

Besides outstanding lighting performance, aesthetic appeal and architectural

integration were key drivers in the development of Savio. The patented micro-

lens optic provides a uniform light distribution, ensuring an even and

comfortable brightness impression. Completing the effect of an edge-to-edge

‘surface of light’, the micro-lens optic is secured by a translucent rim around the

luminaire.

Philips indoor luminairesRecessed luminaires2.12

Savio - Recessed luminaires

Micro-lens optic

With the new patented micro-lens optic (MLO), the lamps are not directly visible and full glare control

from all viewing angles is a reality (Omnidirectional Luminance Control, OLC). The micro-lens optic is highly

efcient and meets the latest ofce standards: Lm<1000 cd/m2 in all viewing directions at γ ≥ 65º and

UGRR<19 (EN 12464-1).

This means no disturbing glare on PC or laptop screens, regardless of where they are positioned in the room.

The micro-lens optic provides a uniform light distribution, ensuring an even and comfortable brightness

impression – a real ‘surface of light’. The micro-lens optic is secured by a translucent rim around the luminaire.

The patented micro-lens optic design uses conical lenses with inverted tops that are positioned in a square

array for the best possible glare control. The optic fully justies the designation ‘micro’ since there are over

35 high-precision lenses per square centimeter.

Recessed luminaires

Edge-to-edge lighting The principle The cone

Philips indoor luminaires Recessed luminaires 2.13

Savio TBS760/770

Savio

Type TBS760 (standard version)

Ceiling grid Module size: 300 / 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Fluorescent:

2 x or 4 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,

54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

High Frequency Regulator, touch and DALI

(HFD-T)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Connection Wieland connector (W4)

Option Emergency lighting: 3 hours (EL3)

Lighting controls: ActiLume multi controller (ACL)

Cable with CEE 7 plug (CCE)

Euro fuse (FU) included

Safety cable (SC)

Material Housing: anodized aluminum

Micro-lens optic: PMMA (optional is

polycarbonate)

Rim: polycarbonate (translucent)

Mounted in a white zinc-coated sheet-steel

housing

Installation Individual; lay-in in exposed ceiling grids or with

ceiling brackets in concealed ceiling grids and

plasterboard ceilings

Accessory Suspension bracket set

Remarks MLO optic ensures optimum light distribution and

full glare control in all viewing directions compliant

with the current norm for indoor working places

(EN12464-1, UGR

, 19, Lm < 1000 cd/m2 at γ >

r

65º)

Luminaires delivered without diffuser (ND)

Dedicated ready to install versions available (KIT)

Main applications Ofce, department stores

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

28W, 54W 1197

35W, 49W, 80W 1497

TBS760 2 x TL5

TBS760 4 x TL5 14W/24W

Recessed luminaires

Philips indoor luminaires2.14

Savio TBS760/770

Savio TBS760/770 recessed luminaire

with acrylate or polycarbonate micro-

lens optic (AC-MLO/PC-MLO); Savio

TBS770 with Dynamic Lighting facility

Savio TBS760/770 recessed luminaire

with acrylate or polycarbonate micro-

lens optic (AC-MLO/PC-MLO); Savio

TBS770 with Dynamic Lighting facility

Preferred selection

Product ID Weight

(kg)

TBS760 2x28W/840 HFP AC-MLO 8.80 749938 00

TBS760 2x35W/840 HFP AC-MLO 10.70 749945 00

TBS760 2x49W/840 HFP AC-MLO 10.70 749952 00

TBS760 2x54W/840 HFP AC-MLO 8.80 749969 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS760 4x14W/840 HFP AC-MLO 8.20 749976 00

TBS760 4x14W/840 HFP ND-AC-MLO 7.20 757100 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

The micro-lens optic provides a

uniform and comfortable light

distribution

Philips indoor luminaires 2.15

Recessed luminaires

Savio TBS760/770

Savio

Type TBS770 (Dynamic Lighting version)

Material Housing: anodized aluminum

Ceiling grid Module size: 300 / 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Fluorescent:

3 x or 6 x MASTER TL5 / G5 / 14, 28, 35, 49,

54 W

Installation Individual; lay-in in exposed ceiling grids or with

Lamp included Yes (lamp color 827/865, 827/451, 827/452)

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Regulator, DALI (HFD)

Optical cover Acrylate micro lens optic (AC-MLO)

Accessory Suspension bracket set, remote control, control KIT

Remarks MLO optic ensures optimum light distribution and

Polycarbonate micro lens optic (PC-MLO)

Connection Wieland connector, 4 poles (W4)

Option Emergency lighting: 3 hours (EL3)

Lighting controls: Color Variation Controller (CVC)

Euro fuse (FU) included

Safety cable (SC)

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

Main applications Ofce, department stores

Micro-lens optic: PMMA (optional is

polycarbonate)

Rim: polycarbonate (translucent)

Mounted in a white zinc-coated sheet-steel

housing

ceiling brackets in concealed ceiling grids and

plasterboard ceilings

full glare control in all viewing directions compliant

with the current norm for indoor working places

(EN12464-1, UGR

, 19, Lm < 1000 cd/m2 at γ >

r

65º)

Dedicated ready to install versions available (KIT)

TBS770 3 x TL5

TBS770 6 x TL5 14W

A

28W, 54W 1197

35W, 49W 1497

Recessed luminaires

Philips indoor luminaires2.16

Savio TBS760/770

Accessories

Savio TBS760/770 recessed luminaire

with acrylate or polycarbonate micro-

lens optic (AC-MLO/PC-MLO) and

CVC; Savio TBS770 with Dynamic

Lighting facility

Savio TBS760/770 recessed luminaire

with acrylate or polycarbonate micro-

lens optic (AC-MLO/PC-MLO) and

CVC; Savio TBS770 with Dynamic

Lighting facility

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Preferred selection

Product ID Weight

(kg)

TBS770 3x28W/827/865 HFD AC-MLO 7.60 759258 00

TBS770 3x28W/827/865 HFD AC-MLO CVC 7.60 759265 00

TBS770 3x35W/827/865 HFD AC-MLO 9.90 759296 00

TBS770 3x35W/827/865 HFD AC-MLO CVC 9.90 759302 00

TBS770 3x49W/827/865 HFD AC-MLO 9.90 751733 00

TBS770 3x49W/827/865 HFD AC-CVC 9.90 751740 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS770 6x14W/827/865 HFD AC-MLO 8.90 751719 00

TBS770 6x14W/827/865 HFD AC-MLO CVC 8.90 751726 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

Savio TBS760/770 recessed luminaire

with ActiLume lighting control

Philips indoor luminaires 2.17

Recessed luminaires

Rotaris TBS740/741

Philips indoor luminaires2.18 Recessed luminaires

Rotaris – the perfect form

The dening visual characteristic of the Rotaris product range, which is based

on the innovative TL5 Circular lamp, is its concentric circles. The semi-high-gloss

aluminum centerpiece is surrounded by an opal or clear lamp cover, the inside of

which has a prismatic structure, again in concentric circles. Continuing outwards,

the high-reectance optic is made of the same semi-high-gloss aluminum.

With the TBS740, the outer rim of the luminaire, which forms one piece with the optic,

interfaces with the ceiling, ensuring the smooth visual integration of Rotaris in the space. Glare

is controlled in all viewing directions by Omnidirectional Luminance Control technology.

Within the Rotaris family, a complete range of surface-mounted, recessed and suspended

luminaires is available.

www.philips.com/lighting

Recessed luminaires

Rotaris recessed, 600 x 600 TBS741

Philips indoor luminaires 2.19Recessed luminaires

Rotaris suspendedRotaris surface-mountedRotaris recessed TBS740

Rotaris TBS740/741

Rotaris

Type TBS740

Ceiling grid Plasterboard ceilings

Light source Compact uorescent:

1 x MASTER TL5 Circular / 2GX13 / 60 W

Lamp included Yes (lamp color 830 or 840)

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optical cover Opal cover (O)

Prismatic cover (P)

Inll plate / center piece Standard (IP)

Enlarged (IPL)

Options Emergency lighting: 3 hours (EL3)

Material Frame: steel

Installation Individual

Accessory Blue inlay sheet

Main applications Ofce, retail

Lighting controls: ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Dedicated center pieces: prepared for Fugato

Micro, Fugato Mini, Fugato Compact or smoke

detector

Components: polycarbonate

Reector: anodized aluminum, semi-high-gloss

Perforated (IPP)

Connection Wieland connector (W)

Color White (WH)

Aluminum (ALU)

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS740

Rotaris TBS740 recessed luminaire with

opal prismatic lamp cover

Rotaris TBS740 recessed luminaire with

clear prismatic lamp cover

Preferred selection

Product ID Weight

(kg)

TBS740 TL5C60W/830 HFP O IP WH 3.00 634845 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS740 TL5C60W/840 HFP P IP WH 3.00 635569 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.20

Rotaris TBS740/741

Recessed luminaires

Philips indoor luminaires 2.21

Recessed luminaires

Rotaris TBS741

Rotaris

Type TBS741

Ceiling grid Module size: 600 mm

Exposed tee ceilings

Light source Compact uorescent:

1 x MASTER TL5 Circular / 2GX13 / 60 W

Lamp included Yes (lamp color 830 or 840)

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optical cover Opal cover (O)

Prismatic cover (P)

Inll plate / center piece Standard (IP)

Enlarged (IPL)

Perforated (IPP)

Options Emergency lighting: 3 hours (EL3)

Material Frame: steel

Installation Individual; lay-in in exposed ceiling grids or with

Accessory Blue inlay sheet

Main applications Ofce, retail

Lighting controls: ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Dedicated centre pieces: prepared for Fugato

Micro, Fugato Mini, Fugato Compact or smoke

detector

Components: polycarbonate

Reector: anodized aluminum, semi-high-gloss

ceiling brackets (option BR) in concealed ceiling

grids

Connection Wieland connector (W)

Color White (WH)

Aluminum (ALU)

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS741

Rotaris TBS741 recessed luminaire with

opal prismatic lamp cover

Rotaris TBS741 recessed luminaire with

clear prismatic lamp cover

Preferred selection

Product ID Weight

(kg)

TBS741 TL5C60W/840 HFP O FU BR IP WH 3.00 635064 00

TBS741 TL5C60W/840 HFP O IP WH 3.00 639161 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS741 TL5C60W/840 HFP P FU IP WH 3.00 635019 00

TBS741 TL5C60W/840 HFP P FU IPL WH 3.00 635033 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.22

Rotaris TBS741

Accessories

Rotaris TBS741 recessed luminaire

with opal prismatic lamp cover with

enlarged centerpiece (option IPL)

Blue inlay sheet

Product ID EOC

ZBS740 F-BL 633145 00

Preferred selection

Product ID Weight

(kg)

TBS741 TL5C60W/840 HFP O FU IPL WH 3.00 635040 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Rotaris integrated in a square metal tile

Central smoke detector unit

Philips indoor luminaires 2.23

for lay-in installation

Ceiling bracket for mounting in

concealed ceiling grids (option BR)

Opal prismatic lamp cover with

enlarged centerpiece (option IPL)

Recessed luminaires

Celino TBS690/692

Philips indoor luminaires2.24 Recessed luminaires

Celino – for slender light beams

Celino recessed luminaires are extremely slender, with high-quality aluminum rim

detailing and highly efcient micro-optics for different ceiling systems.

The luminaire-based controls (ActiLume) and high-efciency optics deliver signicant energy

savings. A range of optics is available, including an optic for more aesthetic lighting of non-task

areas. A oating optic provides the airhandling option, while the micro-lens optic provides a

soft-light solution. With dedicated versions for exposed ceiling systems, Celino recessed is very

easy to install, and the stylish aluminum rim provides the perfect nish.

www.philips.com/lighting

Recessed luminaires

Celino recessed TBS692Celino recessed TBS690

Celino suspendedCelino surface-mountedCelino wall-mountedCelino free oor-standing

Philips indoor luminaires 2.25Recessed luminaires

Celino TBS690/692

Celino

Type TBS690

Ceiling grid Module size: 300 mm

Exposed tee ceiling

Light source Fluorescent:

1 x MASTER TL5 / G5 / 28, 35, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural), 452

(ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

High Frequency Regulator, touch and DALI

(HFD-T)

Optic High-gloss optic, 3D micro-lamellae, very high-

reective (C8-VH)

High-gloss optic, 3D micro-lamellae (C8)

Semi-high-gloss optic, 3D micro-lamellae, very

high-reective (D8-VH)

High-gloss optic, 3D micro-lamellae (D8)

Matt mirror, ribbed cross louvers (M2)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Connection Wieland connector (W)

Push-in connector (PI)

Option Emergency lighting: 3 hours (EL3)

Lighting controls:

Luxsense daylight controller micro (LXM)

ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Material Housing: zinc-coated steel, white

Housing frame: natural anodized aluminum, white

Optic: aluminum

Cover: AC-MLO: PMMA, PC-MLO: polycarbonate

Installation Individual; lay-in in exposed ceiling grids

Remarks MLO optic ensures optimum light distribution and

full glare control in all viewing directions compliant

with the current norm for indoor working places

(EN12464-1, UGR

, 19, Lm< 1000 cd/m2at γ > 65º)

r

Dedicated luminaires available with air-handling

functionality (AIR), 50 m

3

/ hour / luminaire

Main applications Ofces, education, healthcare, retail

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A B

28W PI, 54W PI 87 1190

28W W 98 1190

35W PI, 49W PI 87 1490

35W W, 49W W 98 1490

TBS690

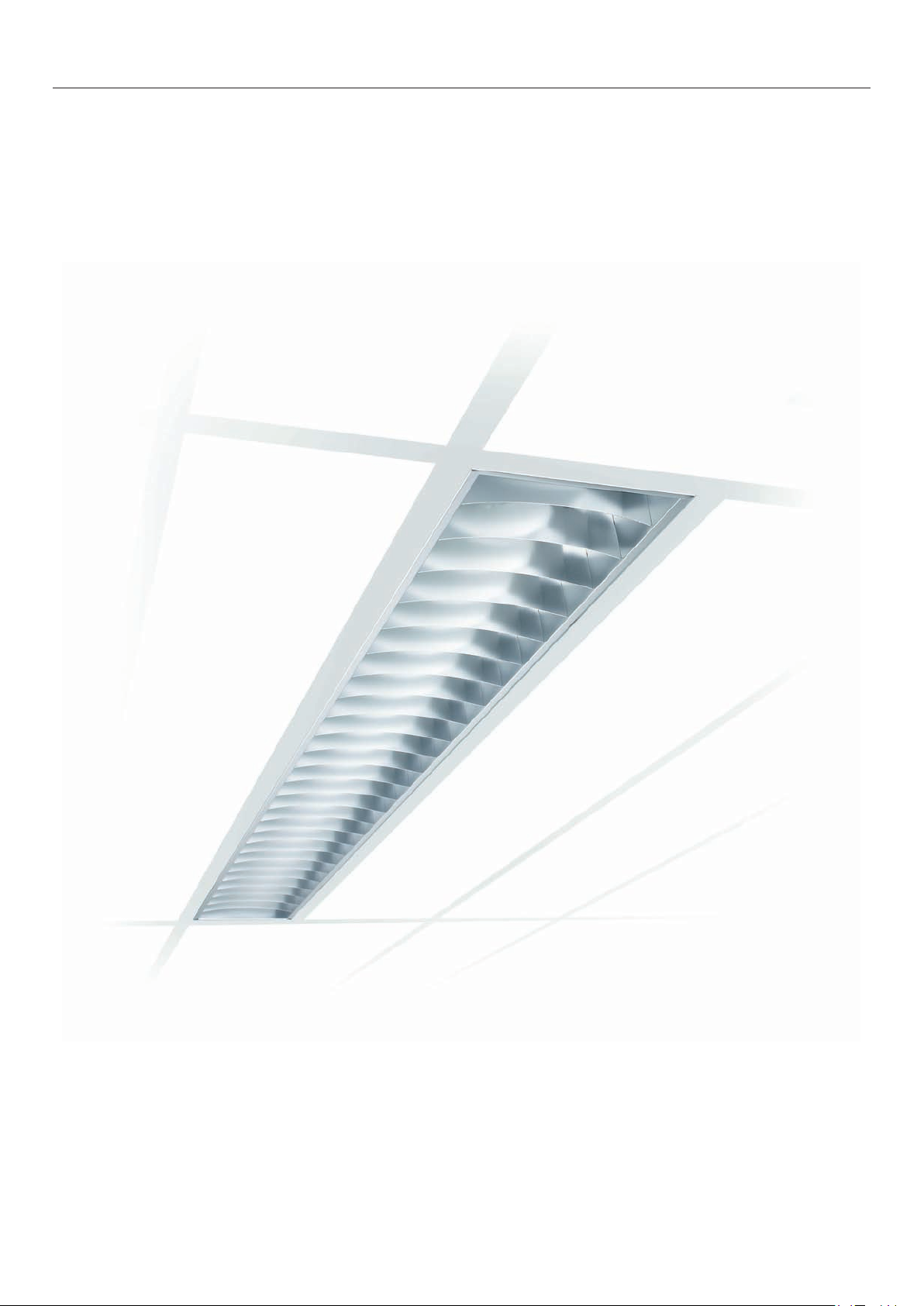

Celino TBS690 recessed luminaire with

high-gloss optic with 3D micro-lamellae

(C8) or very high-reectance 3D

micro-lamellae (C8-VH)

Preferred selection

Product ID Weight

(kg)

TBS690 1x28W/840 HFP C8-VH EL3 PI ALU 4.60 495026 00

TBS690 1x28W/840 HFP C8 PI ALU 3.60 795232 00

TBS690 1x35W/840 HFP C8 PI ALU 4.50 795270 00

TBS690 1x49W/840 HFP C8 PI ALU 4.50 795317 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.26

Celino TBS690/692

Celino TBS690 recessed luminaire with

semi-high-gloss optic with 3D micro-

lamellae (D8) or very high-reectance

3D micro-lamellae (D8-VH)

Celino TBS690 recessed luminaire with

matt high-quality aluminum optic with

proled lamellae (M2)

Celino TBS690 recessed luminaire with

acrylate or polycarbonate micro-lens

optic (AC-MLO/PC-MLO)

Preferred selection

Product ID Weight

(kg)

TBS690 1x28W/840 HFP D8 PI ALU 3.60 795225 00

TBS690 1x35W/840 HFP D8 PI ALU 4.50 795263 00

TBS690 1x49W/840 HFP D8 PI ALU 4.50 795300 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS690 1x28W/840 HFP M2 PI ALU 3.60 795249 00

TBS690 1x35W/840 HFP M2 PI ALU 4.50 795287 00

TBS690 1x49W/840 HFP M2 PI ALU 4.50 795324 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS690 1x28W/840 HFP AC-MLO PI ALU 3.60 795256 00

TBS690 1x35W/840 HFP AC-MLO PI ALU 4.50 795294 00

TBS690 1x49W/840 HFP AC-MLO PI ALU 4.50 795331 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

The aluminum rim integrates

seamlessly and securely into different

ceiling systems, e.g. exposed ceilings

Philips indoor luminaires 2.27

Emergency lighting option with LEDs

for efcient maintenance and energy

saving

Recessed luminaires

Celino TBS692

Celino

Type TBS692

SB1: standaard bandraster

SB2: GPS100

SB3: C/U-prole metal ceiling

Ceiling grid Bandraster ceiling (with exible length up to 2100

mm)

Light source Fluorescent:

1 x MASTER TL5 / G5 / 28, 35, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Naturel),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

High Frequency Regulator, touch and DALI

(HFD-T)

Optic High-gloss optic, 3D micro-lamellae, very high-

reective (C8-VH)

High-gloss optic, 3D micro-lamellae (C8)

Semi-high-gloss optic, 3D micro-lamellae, very

high-reective (D8-VH)

High-gloss optic, 3D micro-lamellae (D8)

Matt mirror, ribbed cross louvers (M2)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Connection Wieland connector (W)

Push-in connector (PI)

Option Emergency lighting: 3 hours (EL3)

Lighting controls:

Luxsense daylight controller micro (LXM)

ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Material Housing: zinc-coated steel, white

Housing frame: natural anodized aluminum, white

Optic: aluminum

Cover: AC-MLO: PMMA, PC-MLO: polycarbonate

Installation Lay-in in bandraster ceiling grids

Remarks MLO optic ensures optimum light distribution and

full glare control in all viewing directions compliant

with the current norm for indoor working places

(EN12464-1, UGR

, 19, Lm < 1000 cd/m2 at γ >

r

65º)

Dedicated luminaires available with air-handling

functionality (AIR), 50 m

3

/ hour / luminaire

Main applications Ofces, education, healthcare, retail

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS692

Celino TBS692 recessed luminaire with

high-gloss optic with 3D micro-lamellae

(C8) or very high-reectance 3D

micro-lamellae (C8-VH)

Preferred selection

Product ID Weight

(kg)

TBS692 1x80W/830 HFP C8 W AIR ALU SB2 4.70 495071 00

TBS692 1x49W/830 HFR C8 LX W AIR ALU SB2 4.70 495088 00

TBS692 1x35W/840 HFD C8-VH ACL W WH SB1 4.70 495095 00

TBS692 1x35W/830 HFR C8 LX W AIR ALU SB2 4.70 567076 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.28

Celino TBS692

Celino TBS692 recessed luminaire with

semi-high-gloss optic with 3D micro-

lamellae (D8) or very high-reectance

3D micro-lamellae (D8-VH)

Celino TBS692 recessed luminaire with

matt high-quality aluminum optic with

proled lamellae (M2)

Celino TBS692 recessed luminaire with

acrylate or polycarbonate micro-lens

optic (AC-MLO/PC-MLO)

Preferred selection

Product ID Weight

(kg)

TBS692 1x35W/830 HFP D8 W ALU SB2 4.70 795539 00

TBS692 1x35W/830 HFP D8-VH W ALU SB2 4.70 795546 00

TBS692 1x49W/830 HFP D8 W ALU SB2 4.70 795553 00

TBS692 1x49W/830 HFP D8-VH W ALU SB2 4.70 795560 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS692 1x35W/830 HFP M2 EL3 PI ALU SB3 5.70 495101 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS692 1x35W/830 HFP PC-MLO W ALU SB2 4.70 495118 00

TBS692 1x35W/830 HFP AC-MLO W ALU SB2 4.70 495125 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

ActiLume provides daylight regulation,

occupancy control and personal

regulation for maximum visual comfort

and automatic energy saving

Philips indoor luminaires 2.29

The aluminum rim integrates

seamlessly and securely into different

ceiling systems, e.g. standard bandraster

ceilings

Recessed luminaires

Philips indoor luminaires2.30 Recessed luminaires

SmartForm

SmartForm – the new standard for
ofce lighting

Reecting Philips’ drive for simplicity, SmartForm recessed is a complete family of

TBS460

highly versatile modular luminaires. These luminaires are available with MASTER

TL5 lamps in square and rectangular, standard and Dynamic Lighting versions

and have been designed to t in a wide range of modular ceiling types

(600-mm-module grids) and plaster ceilings. They can fulll the majority of

project requirements in most applications.

Energy efciency

As well as incorporating energy-efcient TL5 lamps and a range of Philips electronic ballasts, the

SmartForm recessed family can be equipped with lighting controls for presence detection and

daylight regulation (ActiLume) or daylight regulation only (Luxsense) in order to reduce energy

consumption (W/m2 is very low). In this way, this Green Flagship range also reduces the overall

cost of ownership as well as CO2 levels, making SmartForm an environmentally friendly choice.

SmartForm – ultra-at ‘light beam’

SmartForm recessed TBS460 is a combination of ‘light beams’. The luminaire is built around

superior micro optics and has a build-in height of a mere 45 mm. The very at ttings make

them ideal for applications where there is little space above false ceilings, e.g. in refurbishment

projects where ceiling space may be especially limited.

SmartForm – a real ‘light surface’

SmartForm recessed TBS461/471 ‘light surface’ luminaires are equipped with a micro-lens

optic (MLO) to create a homogeneous edge-to-edge lighting appearance with a comfortable

brightness impression, as is often required in healthcare, education or architectural lighting

projects where visual quality is very important. The housing of these luminaires has a build-in

height of 95 mm. The TBS471 version has also Dynamic Lighting.

Recessed luminaires

SmartForm – attractive ‘light effect beam’

SmartForm recessed TBS464 is a combination of light beams and decorative panels. With an

innovative way of guiding the light towards the inll panels, while ensuring a high quality ofce

beam, this result in crispy and homogenous decorative light effects.

SmartForm – attractive ‘light effect cover’

SmartForm recessed TBS464 with a selection of optical covers: opal-satinized and micro-lens

optics, combined with top-reectors, create linear lighting effects of different levels within a

surface of light: – medium and intense – for different applications.

www.philips.com/lighting

Recessed luminairesPhilips indoor luminaires

2.31

Philips indoor luminaires2.32 Recessed luminaires

SmartForm

Range architecture for SmartForm

‘light beam’ TBS460

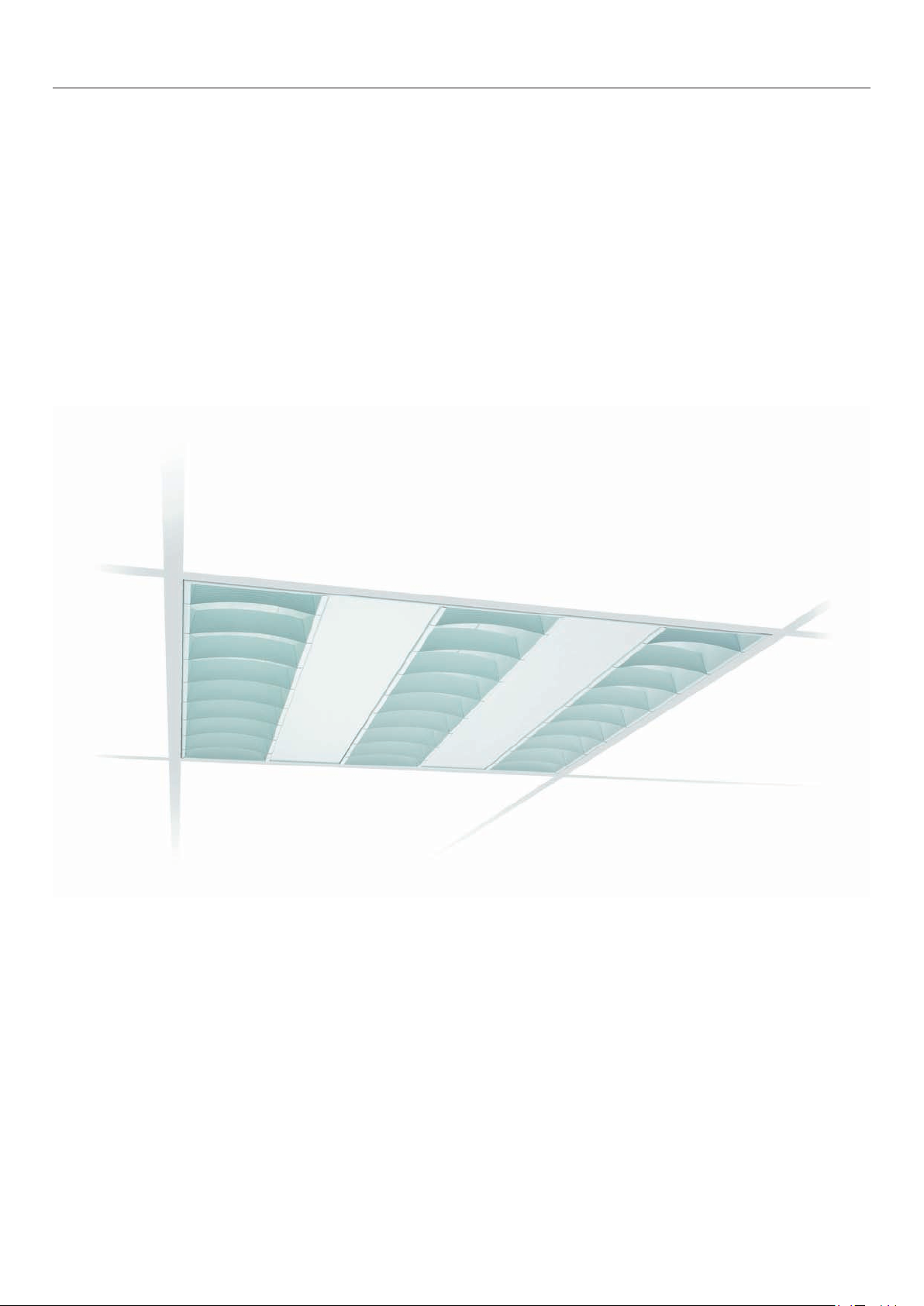

The SmartForm recessed range TBS460 is a concept with a combination of

SmartForm TBS460

‘light beams’ for ceilings with modular grids of 600 x 600, 300 x 1200 and

300 x 1500 mm and for plaster ceilings. The luminaires are very at, measuring

only 45 mm (Push-in versions), and are easy to install.

• Square luminaires have 2, 3 or 4 lamps of 14 or 24 W.

• Rectangular luminaires have 1 or 2 lamps of 28 or 54 W and 35, 49 or 80 W.

The housings are lled symmetrically with ‘light beam’ micro optics, which are available in

different quality levels and with closed or perforated inll plates.

The high-quality nishing and the seamless rim with a height of only 5 mm ensure the luminaire

blends in with every ceiling.

The TBS460 luminaires have closed or perforated inll plates and are painted white or silver-

gray. The attractive perforated pattern makes the luminaire appear richer when it is mounted in

the ceiling.

Recessed luminaires

Ultra-at housing, with Push-in

connection, is only 45 mm

Micro-Lens-Optic with Personal and

Dynamic Lighting options

Rim detailing is seamless and with only

5 mm height

ActiLume for energy saving Air-handling slots beside optics

Very High efcient OLC optic

(C8/D8–VH), LOR up to 94%

Very Comfortable OLC optic

(C8/D8-C), glare control 200 cd/m²

Silver-gray color (RAL9006 based) and,

as option, perforated inll panels

Recessed luminairesPhilips indoor luminaires

2.33

SmartForm TBS460

SmartForm

Type TBS460 (standard version)

Ceiling grid Module size: 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Fluorescent:

2 x, 3 x or 4 x MASTER TL5 / G5 / 14, 24 W

(square version)

1 x or 2 x MASTER TL5 / G5 / 28, 35, 49, 54,

80 W (rectangular version)

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

High Frequency Regulator, touch-switch (HFR-T)

Optic High-gloss optic, 3D micro-lamellae, very high-

reective (C8-VH)

High-gloss optic, 3D micro-lamellae (C8)

High-gloss optic, 3D micro-lamellae, comfort

(C8-C)

Semi-high-gloss optic, 3D micro-lamellae, very

high-reective (D8-VH)

Semi-high-gloss optic, 3D micro-lamellae (D8)

Semi-high-gloss optic, 3D micro-lamellae, comfort

(D8-C)

Matt mirror, ribbed cross louvers (M2)

Optical cover Opal cover (O)

Connection (outside

housing)

Push-in connector (PI) or with pull relief (PIP)

Wieland connector GST 18, 3 or 4 poles (W, W4

respectively)

Wago connector, 3 or 4 poles (WA, WA4

respectively)

Cable, length 200 cm, with plug CEE7 (CCE)

Option Emergency lighting: 1 hour (EL1), 3 hours (EL3)

Lighting controls:

Luxsense daylight controller (LX)

ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Separate switching (SW)

Inll plates Inll plate closed (IP)

Inll plate perforated (IPP)

Material Housing: zinc-coated steel, rim post lackered, white

RAL9016 based

Optional white RAL9010 or silver grey RAL9006

based

Optic: aluminum

Installation Exposed ceilings: in lay, no brackets needed

Concealed ceilings: bracket ZBS460 SMB (4 pcs)

reach is 25 - 45 or 65 mm

Concealed ceiling with T-bar 38 mm: bracket

ZBS460 SMB-TPM (4 pcs)

Plaster ceilings: bracket ZBS460 SMB-PLC (24 pcs),

reach is 10 - 20 mm

Accessory Suspension bracket sets

Remarks Protection foil to protect the optic during

installation

Dedicated luminaires available with air-handling

functionality (AIR), 50 m

3

/ hour / luminaire

Main applications Ofce, education, healthcare, recreation, retail,

industry

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

28W 1197

35W 1497

TBS460 1 x TL5 PI

A

28W, 54W 1197

35W 1497

TBS460 2 x TL5 PI

Recessed luminaires

Philips indoor luminaires2.34

28W, 54W 1197

35W, 49W 1497

TBS460 1, 2 x TL5 W

TBS460 2, 3, 4 x TL5 W TBS460 2, 3, 4 x TL5 PI

SmartForm TBS460

A

Recessed luminaires

SmartForm TBS460 recessed modular

with micro optic with at, proled

lamellae (M2) and inll plate closed (IP)

SmartForm TBS460 recessed modular

with micro OLC very high efciency

high-gloss optic (C8) and very-high-

gloss optic (C8-VH) and inll plate

perforated (IPP)

SmartForm TBS460 recessed modular

with micro optic with at, proled

lamellae (M2) and inll plate closed (IP)

Preferred selection

Product ID Weight

(kg)

TBS460 1x28W/840 HFP M2 PI IP 4.80 002747 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS460 2x28W/840 HFP C8 PI IPP 4.80 003416 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS460 2x28W/840 HFP M2 PI IP 4.80 003942 00

TBS460 2x54W/840 HFP M2 PI IP 4.80 004352 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.35

Recessed luminaires

SmartForm TBS460

SmartForm TBS460 recessed modular

with micro optic with at, proled

lamellae (M2) and inll plate closed (IP)

SmartForm TBS460 recessed modular

with opal beam cover (O) and inll

plate closed (IP)

SmartForm TBS460 recessed modular

with micro OLC very high efciency

high-gloss optic (C8) and very-high-

gloss optic (C8-VH) and inll plate

closed (IP)

Preferred selection

Product ID Weight

(kg)

TBS460 2x14W/840 HFP M2 PI IP 4.60 003010 00

TBS460 2x24W/840 HFP M2 PI IP 4.60 003133 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS460 2x24W/830 HFP O W IP 4.60 003089 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS460 3x14W/840 HFP C8 PI IP 4.60 004734 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

SmartForm TBS460 recessed modular

with micro OLC very high efciency

semi-high-gloss optic (D8) and very-

high-gloss optic (D8-VH) and inll plate

perforated (IPP)

SmartForm TBS460 recessed modular

with micro OLC very high efciency

semi-high-gloss optic (D8) and very-

high-gloss optic (D8-VH) and inll plate

closed (IP)

Preferred selection

Product ID Weight

(kg)

TBS460 3x14W/840 HFP D8 PI IPP 4.60 004932 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS460 4x14W/840 HFP D8 PI IP 4.60 006011 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.36

SmartForm TBS460

Accessories

SmartForm TBS460 recessed modular

with opal beam cover (O) and inll

plate closed (IP)

Brackets for concealed ceilings with

T-bar 38 mm

Product ID EOC

ZBS460 SMB-TPM (4PCS) 493039 99

Preferred selection

Product ID Weight

(kg)

TBS460 4x14W/840 HFP O PI IP 4.60 006295 00

TBS460 4x24W/840 HFP O PI IP 4.60 006455 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Brackets for concealed ceilings

Product ID EOC

ZBS460 SMB (4PCS) 493077 99

Recessed luminaires

Brackets for plaster ceilings

Product ID EOC

ZBS460 SMB-PLC (24PCS) 493053 99

Philips indoor luminaires 2.37

Recessed luminaires

Philips indoor luminaires2.38 Recessed luminaires

SmartForm

SmartForm TBS461/471

Range architecture for SmartForm

‘light surface’ TBS461/471

The SmartForm recessed range TBS461 is a ‘light surface’ concept which

incorporates the superior micro-lens optics (MLO). The range is for ceilings with

modular grids of 600 x 600, 300 x 1200 and 300 x 1500 mm and for plaster

ceilings. The luminaires are designed for edge-to-edge homogeneous light

surfaces and have a height of 95 mm (push-in version). The luminaires offer the

full TL5 range:

• The square luminaires have 4 lamps of 14 or 24 W

• The rectangular luminaires have 2 lamps of 28 or 54 W and 35, 49 or 80 W.

The SmartForm TBS471 is the Dynamic Lighting version with the color variation controller

(CVC). The luminaries offer the full TL5 range:

• The square luminaires have 6 lamps of 14 or 24 W and

• The rectangular luminaires have 3 lamps of 28 or 54 W and 35, 49 or 80 W.

Due to the low height of the rim (5 mm), the luminaire ts ush with the ceiling.

Recessed luminaires

The height is 95 mm and the rim is

seamless with a height of only 5 mm

The luminaire is available with a silver-

gray (RAL9006-based) painted rim

Recessed luminairesPhilips indoor luminaires

2.39

SmartForm TBS461/471

SmartForm

Type TBS461 (standard version)

TBS471 (Dynamic Lighting version)

Ceiling grid Module size: 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Fluorescent:

Square TBS461: 4 x MASTER TL5 / G5 /

14, 24 W

Square TBS471: 6 x MASTER TL5 / G5 /

14, 24 W

Rectangular TBS461: 2 x MASTER TL5 / G5 /

28, 35, 49, 54, 80 W

Rectangular TBS471: 3 x MASTER TL5 / G5 /

28, 35, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural), 452

(ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

TBS461: High Frequency Performer (HFP)

TBS461/471: High Frequency Regulator, DALI

(HFD)

TBS461: High Frequency Regulator (HFR)

TBS461: High Frequency Regulator, touch-switch

(HFR-T)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Diffuser, standard MLO’s have diffuser (DF)

Connection (outside

housing)

Push-in connector (PI) or with pull relief (PIP)

Wieland connector GST 18, 3 or 4 poles (W, W4

respectively)

Wago connector, 3 or 4 poles (WA, WA4

respectively)

Cable, length 200 cm, with plug CEE7 (CCE), for

TBS461 only

Option Emergency lighting: 1 hour (EL1), 3 hours (EL3)

Lighting controls:

TBS461: ActiLume multi controller (ACL)

TBS471: Color Variation Controller (CVC)

Euro fuse (FU) included

Safety cable (SC)

Separate switching (SW), TBS461 only

Material Housing: zinc-coated steel, rim post lackered, white

RAL9016 based

Optional white RAL9010 or silver grey RAL9006

based

Optical cover: AC-MLO: PMMA, PC-MLO:

polycarbonate

Installation Exposed ceilings: in lay, no brackets needed

Concealed ceilings: bracket ZBS460 SMB (4 pcs)

reach is 25 - 45 or 65 mm

Plaster ceilings: bracket ZBS471 SMB-PLC (4 pcs),

reach is 10 - 20 mm

Accessory Suspension bracket sets

Remarks Protection foil to protect the optic during

installation

Main applications Ofce, education, healthcare, recreation, retail,

industry

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS461/471 28, 54 W W

TBS461/471 35, 49, 80 W PI

Recessed luminaires

TBS461/471 35, 49, 80 W W

Philips indoor luminaires2.40

TBS461/471 14, 24 W W TBS461/471 14, 24 W PI

SmartForm TBS461/471

Accessories

SmartForm TBS461/471 recessed

modular luminaire with PMMA or

polycarbonate micro-lens optic (AC-

MLO, PC-MLO); SmartForm TBS471

with Dynamic Lighting facility

SmartForm TBS461/471 recessed

modular luminaire with PMMA or

polycarbonate micro-lens optic (AC-

MLO, PC-MLO); SmartForm TBS471

with Dynamic Lighting facility

Suspension bracket set

Preferred selection

Product ID Weight

(kg)

TBS461 2x28W/840 HFP AC-MLO PI 7.80 006462 00

TBS461 2x49W/840 HFP AC-MLO PI 9.00 006509 00

TBS461 2x54W/840 HFP AC-MLO PI 7.80 006516 00

TBS471 3x28W/827/865 HFD AC-MLO W 7.80 008503 00

TBS471 3x28W/827/865 HFD AC-MLO CVC W 7.80 008510 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS471 6x14W/827/865 HFD AC-MLO CVC W 7.80 008572 00

TBS461 4x14W/840 HFP AC-MLO PI 7.80 006561 00

TBS471 6x14W/827/865 HFD AC-MLO W 7.80 008565 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Product ID EOC

ZBS461 SMB-PLC (4PCS) 641776 99

Philips indoor luminaires 2.41

Recessed luminaires

Philips indoor luminaires2.42 Recessed luminaires

SmartForm

The deco-inll panels have square holes of 4 mm.

The colored foils generate light effects in white, blue, green or yellow. The customized panels are also available in standard colors

2.42

SmartForm TBS464

SmartForm TBS464 – attractive
‘light effect beam’

SmartForm recessed TBS464 is a combination of light beams and decorative panels. With

an innovative way of guiding the light towards the inll panels, while ensuring a high quality

ofce beam, this result in crispy and homogenous decorative light effects.

Range architecture for SmartForm ‘light effect beam’ TBS464

SmartForm recessed TBS464 range is a concept that offers comfortable ‘light effects’ thanks to the

combination of ‘light beams’ and decorative perforated inll panels (IPD-xx). The attractive way of guiding

light towards the inll panels, ensuring high quality light beam, results in crispy and homogenous decorative

light effects. With additional foils color accents can be made.

This range is available as standard for ceilings with modular grids of 600 x 600 mm (3- and 4-lamps) and

300 x 1200 mm (2-lamps) and for plaster ceilings. The luminaires are very at, height only 47 mm, are

suitable for use with TL5 lamps, offer quick connection facilities and are easy to install. The housings are

lled symmetrically with ‘light beam’ micro optics, which are available in different qualities. To facilitate

maintenance, all these elements are easily to remove. The high-quality nishing and the at seamless rim

ensure the luminaires blend in with any ceiling.

The SmartForm TBS464 with customized inll panels (IPC-xx) has a frame construction which can be

adapted for use with different cover materials. A few standard choices are made for color effects but there

is also a lot of freedom to use other transparent materials which ensure an appealing light effect on the

ceiling. The dimensions, material weight and recommended transparency are specied.

Optics

SmartForm concepts incorporate the latest optic technology: the aluminum micro optic with 3D lamellae

ensures optimum visual comfort and efciency compliant with the latest ofce-lighting norm (EN 12464-1).

Recessed luminaires

www.philips.com/lighting

C/D8-C (IPD)

Excellent comfort mico optic made of

high-quality very high reecting

aluminum in high gloss (C) or semi-high

gloss (D).

C/D8-VH (IPC)

Very efcient micro optic made of

high-quality very high reecting silver

aluminum in high gloss (C) or

semi-high gloss (D).

C/D8 (IPD)

Performer micro optic made of

high-quality aluminum in high gloss (C)

or semi-high gloss (D).

Recessed luminairesPhilips indoor luminaires

2.43

Philips indoor luminaires2.44

SmartForm TBS464

Recessed luminaires

SmartForm

Type TBS464

Ceiling grid Module size: 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Fluorescent:

Square: 3 x or 4 x MASTER TL5 / G5 / 14, 24 W

Rectangular: 2 x MASTER TL5 / G5 / 28, 54 W

Lamp included Yes, (lamp color 451(ActiViva Natural),

452 (ActiViva Active), 827, 830,840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator, 1-10V (HFR)

High Frequency Regulator, touch and

DALI (HFD-T)

Optic Micro OLC Performer high-gloss optic (C8)

Micro OLC Performer semi-high-gloss optic (D8)

Micro OLC excellent comfort high-gloss optic

(C8-C)

Micro OLC excellent comfort semi-high-gloss

optic (D8-C)

Micro OLC very high efcient high-gloss optic

(C8-VH)

Micro OLC very high efcient semi-high-gloss

optic (D8-VH)

Inll plates

(beam version)

Inll plate deco (IPD) with colored foil, white

(WH), blue (BL), green (GN), yellow (YE)

Inll plate customized (IPC) empty frame, with

opal and colored foil, white (WH), blue (BL), green

(GN), yellow (YE), Teaser 1 (IPC-T1)

Controls (optional) Luxsense daylight controller micro (LXM)

ActiLume multi controller (ACL)

Emergency Lighting Emergency lighting, 1 hour (EL1), 3 hours (EL3)

Connections (outside

housing)

Push in connection (PI) or with pull relief (PIP)

Wieland connector 3 or 4 pole GST 18 (W, W4)

Wago connector 3 or 4 pole (WA, WA4)

Ensto connector 3 or 4 pole (EN, EN4)

Cord white, 2 m and plug CEE7 (CCE)

Other options Euro fuse (FU), Safety cable (SC),

Separate switching (SW),

Separate switching EL-versions (SW-EL)

Material and colors Housing: zinc-coated steel, rim post lackered,

white RAL9016 based

Optional white RAL9010 or Silver grey RAL9006

based

Deliveries Luminaires are packed with mounting instructions

and optics are protected with foil

Accessories Exposed ceilings (in lay): no brackets needed

Concealed ceilings: bracket ZBS460 SMB (4 pcs)

Concealed ceiling with T-bar 38 mm:

ZBS460 SMB-TPM (4 pcs)

Plaster ceilings: bracket ZBS460 SMB-PLC (24 pcs)

Main applications Ofce, education, healthcare, recreation, retail,

industry

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS464 2 x TL5 TBS464 2 x TL5 with connector

TBS464 3,4 x TL5 TBS464 3,4 x TL5 with connector

SmartForm TBS464

SmartForm TBS464 recessed modular

luminaire with micro OLC excellent

comfort semi-high-gloss optic (D8-C)

customized inll plate

SmartForm TBS464 recessed modular

luminaire with micro OLC excellent

comfort semi-high-gloss optic (D8-C)

customized inll plates

Preferred selection

Product ID Weight

(kg)

SmartForm 2-lamp TBS464, customized panels

TBS464 2x28W/840 HFP D8 W IPC 5.40 009883 00

TBS464 2x28W/840 HFP D8-C W IPC-WH 5.40 009890 00

TBS464 2x28W/840 HFR D8 LXM PI IPD-WH 5.40 009951 00

TBS464 2x28W/840 HFR D8 LXM W IPD-WH SI 5.40 009968 00

TBS464 2x54W/840 HFP D8-C W IPD-BL 5.40 980048 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

SmartForm 3-lamp TBS464, customized panels

TBS464 3x14W/840 HFP D8 W IPC 5.50 980147 00

TBS464 3x14W/840 HFP D8-C W IPC-WH SI 5.50 980178 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

SmartForm 4-lamp TBS464, customized panels

TBS464 4x14W/840 HFP C8 W IPC-GN 5.60 980345 00

TBS464 4x14W/840 HFP D8 W IPC 5.60 980413 00

TBS464 4x14W/840 HFP D8-C W IPC-BL SI 5.60 980437 00

TBS464 4x14W/840 HFP D8-VH W IPC-WH 5.60 980451 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

SmartForm TBS464 recessed modular

luminaire with micro OLC excellent

comfort semi-high-gloss optic (D8-C)

and decorative panels

SmartForm TBS464 recessed modular

luminaire with micro OLC excellent

comfort semi-high-gloss optic (D8-C)

and decorative panels

Preferred selection

Product ID Weight

(kg)

SmartForm 3-lamp TBS464, decorative panels

TBS464 3x14W/840 HFP C8 W IPD-WH SC 5.50 980116 00

TBS464 3x14W/840 HFP C8-C W IPD-WH SC 5.50 980123 00

TBS464 3x14W/840 HFP D8 W IPD-WH SI 5.50 980154 00

TBS464 3x14W/840 HFP D8-C W IPD-BL 5.50 980185 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

SmartForm 4-lamp TBS464, decorative panels

TBS464 4x14W/840 HFP C8 PI IPD-YE 5.60 980338 00

TBS464 4x14W/840 HFP C8 W IPD-WH SC 5.60 980352 00

TBS464 4x14W/840 HFP C8-C W IPD-WH 5.60 980383 00

TBS464 4x14W/840 HFP D8-C W IPD-GN 5.60 980444 00

TBS464 4x14W/840 HFR D8 LXM W IPD-WH 5.60 980666 00

TBS464 4x24W/840 HFP C8-VH PI IPD-WH 5.60 980772 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminairesPhilips indoor luminaires

2.45

Philips indoor luminaires2.46 Recessed luminaires

SmartForm

2.46

TBS464, 2 and 3-lamp with opal

satinized cover (O-SAT)

TBS464, 2 and 3-lamp with AC-MLO

and top reector with very high-

reectance aluminum (T-VH AC-MLO)

SmartForm TBS464 – attractive
‘light effect cover’

SmartForm recessed TBS464 with a selection of optical covers: opal-satinized

SmartForm TBS464

and micro-lens optics, combined with top-reectors, create linear lighting effects

of different levels within a surface of light: – medium and intense – for different

applications.

SmartForm ‘light effect’ luminaire with opal satinized cover or micro lens optic

(MLO)

The SmartForm recessed TBS464 range is a concept that offers comfortable ‘light effects’. The

combination comprises a very at luminaire and special transparent covers. Excellent results

can be achieved for a variety of applications using additional top reectors to create linear

lighting effects of different levels: medium or intense. MASTER TL5 lamps with color 840 are

recommended to produce clear brightness effects.

This range is available as standard for ceilings with modular grids of 600 x 600 mm (3- and 4-

lamp) and 300 x 1200 mm (2-lamp), and for plaster ceilings.

The luminaires are very at, measuring only 47 mm, can be used with TL5 lamps, offer quick

connection facilities and are easy to install. The high-quality nishing and the at seamless rim

ensure clean and superior visual appearance on the ceiling.

Optics

Recessed luminaires

Two cover qualities

• Opal satinized acrylate cover optic (O-SAT). This optic creates a diffuses light distribution.

• Mirco Lens Optic made of acrylate (AC-MLO) or polycarbonate (PC-MLO). Droplet shaped

light distribution and all around glare control. The patented Micro Lens Optic is optimized for

the best balance between efciency and low brightness at viewing angles above 65 degrees.

Options

• White lacquered metal reector (T-WH) behind cover for medium linear lighting effects.

• Aluminum top reector made of high quality, very high reective optimum silver-coated

aluminum (T-VH), reection ≥ 97% for intense linear effects.

www.philips.com/lighting

AC/PC-MLO Micro Lens OpticO-Sat opal satinized acrylate cover

Recessed luminairesPhilips indoor luminaires

2.47

Philips indoor luminaires2.48

SmartForm TBS464

Recessed luminaires

Smartform

Type TBS464

Light source Fluorescent TL5:

Square: 3 x or 4 x MASTER TL5 / G5 / 14, 24 W

Rectangular: 2 x MASTER TL5 / G5 / 28, 54 W

Lamp included Yes, (lamp color 451(ActiViva Natural),

452 (ActiViva Active), 827, 830,840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator, 1-10V (HFR)

High Frequency Regulator, touch and

DALI (HFD-T)

Optic Micro OLC lens optic cover of acrylate material

(AC-MLO)

Micro OLC lens optic cover of polycarbonate

material (PC-MLO)

Opal satinized cover of acrylate material (O-SAT)

Top-reector of white metal (T-WH), optional

Top-reector of very high reectance aluminum

(T-VH), optional

Controls (optional) Luxsense micro daylight controller (LXM)

ActiLume multi controller (ACL)

Emergency Lighting Emergency lighting, 1 hour (EL1)

Emergency lighting, 3 hours (EL3)

Connections (outside

housing)

Push in connection (PI) or with pull relief (PIP)

Wieland connector 3 or 4 pole GST 18 (W, W4)

Wago connector 3 or 4 pole (WA, WA4)

Ensto connector 3 or 4 pole (EN, EN4)

Cord white, 2 m and plug CEE7 (CCE)

Other options Euro fuse (FU), Safety cable (SC),

Separate switching (SW),

Separate switching EL-versions (SW-EL)

Material and colors Housing: zinc-coated steel, rim post lackered,

white RAL9016 based

Optional white RAL9010 or Silver grey RAL9006

based

Deliveries Luminaires are packed with mounting instructions

and optics are protected with foil

Accessories Exposed ceilings (in lay): no brackets needed

Concealed ceilings: bracket ZBS460 SMB (4 pcs)

Concealed ceiling with T-bar 38mm:

ZBS460 SMB-TPM (4 pcs)

Plaster ceilings: bracket ZBS460 SMB-PLC (24 pcs)

Main applications Ofce, education, healthcare, recreation, retail,

industry

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS464 2 x TL5 TBS464 2 x TL5 with connector

TBS464 3,4 x TL5 TBS464 3,4 x TL5 with connector

SmartForm TBS464

Smartform TBS464 recessed modular

luminaire with opal satinized cover

(O-SAT)

Smartform TBS464 recessed

modular luminaire with acrylate or

polycarbonate microlens optic

(AC-MLO/PC-MLO)

Smartform TBS464 recessed modular

luminaire with with acrylate or

polycarbonate microlens optic

(AC-MLO/PC-MLO)

Preferred selection

Product ID Weight

(kg)

SmartForm 2-lamp TBS464, O-SAT cover

TBS464 2x28W/840 HFP O-SAT PI 5.40 009906 00

TBS464 2x54W/840 HFP O-SAT PI 5.40 980055 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

SmartForm 2-lamp TBS464, AC/PC-MLO cover 5.40 009821 00

TBS464 2x28W/840 HFD AC-MLO ACL W 5.40 009937 00

TBS464 2x28W/840 HFP PC-MLO W 5.85 980017 00

TBS464 2x54W/840 HFD T-VH AC-MLO W 5.40 980048 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

SmartForm 3-lamp TBS464, AC/PC-MLO cover

TBS464 3x14W/840 HFD AC-MLO ACL W 5.50 980109 00

TBS464 3x14W/840 HFP PC-MLO W 5.50 980222 00

TBS464 3x14W/840 HFP T-WH AC-MLO PI 6.80 980239 00

SmartForm 4-lamp TBS464, AC/PC-MLO cover

TBS464 4x14W/840 HFD AC-MLO ACL W 5.60 980260 00

TBS464 4x14W/840 HFP T-VH PC-MLO W SI 5.60 980574 00

TBS464 4x14W/840 HFP T-WH AC-MLO W 6.90 980598 00

TBS464 4x24W/840 HFD AC-MLO W 5.60 980734 00

TBS464 4x24W/840 HFD T-VH AC-MLO W 5.60 98075 800

TBS464 4x14W/840 HFR D8 LXM W IPD-WH 5.60 980666 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Smartform TBS464 recessed modular

luminaire with opal satinized cover

(O-SAT)

Preferred selection

Product ID Weight

(kg)

SmartForm 3-lamp TBS464, O-SAT cover

TBS464 3x14W/840 HFP O-SAT W 5.50 980208 00

TBS464 3x24W/840 HFP O-SAT PI 5.50 980246 00

SmartForm 4-lamp TBS464, O-SAT cover

TBS464 4x14W/840 HFD T-VH O-SAT ACL W SI 5.60 980307 00

TBS464 4x14W/840 HFP T-WH O-SAT W 6.90 980611 00

TBS464 4x24W/840 HFP O-SAT PI 5.60 980789 00

TBS464 4x14W/840 HFP D8-VH W IPC-WH

Please contact your local Philips representative for additional congurations

Recessed luminairesPhilips indoor luminaires

European Order

Code (EOC)

2.49

TL5 ‘light beam’ Luminaires

2.50 Philips indoor luminairesRecessed luminaires

TL5 ‘light beam’ concepts –
slender and semi-modular

Reecting the market trend towards miniaturization and architectural

integration, Philips has developed a number of semi-modular luminaire

ranges designed around the slim TL5 uorescent lamp.

Creating the appearance of a slender beam made of light, these luminaires – most

incorporating a single lamp – combine outstanding light distribution, glare control

and visual comfort with high levels of efciency, in compliance with the latest

ofce-lighting norm (EN 12464-1).

Modular in length only, these ‘light beam’ luminaires are typical project solutions.

Featuring state-of-the-art micro, mini or midi optics, they cover the full high- to

mid-end specication spectrum and are designed to t in a variety of ceiling types

– e.g. exposed, concealed, bandraster and plaster. A number of versions can easily

be extended in length, while others (can be congured to) form a light-line.

Most of the types have ventilation slots and are easy to install.

www.philips.com/lighting

TL5 light beam concepts

Indolight Indolight Indolight

Main characteristics TBS490 TBS600 TBS315 TBS318 TBS340

Appearance: Smallest beam concept

in metal housing

Width 1 lamp: 90.5 mm 114.5 mm 147.5 mm 185.0 mm 147.5 mm

Width 2 lamps: 150.5 mm 200 mm 147.5 mm 185.0 mm 147.5 mm

Beam optic: micro-beam mini-beam midi-beam midi-beam midi-beam

Ceiling type: exposed and concealed exposed and concealed exposed and concealed metal strip exposed and concealed

Beam concept in metal

housing

Beam concept in metal

housing

Beam concept in metal

housing

Continuous lightline

beam concept in metal

housing

Recessed luminaires

Modularity: modular in length flexible in length flexible in length flexible in length flexible in length

TBS490 TBS600 TBS315

Philips indoor luminaires Recessed luminaires

2.51

TBS490

Philips indoor luminaires2.52 Recessed luminaires

TBS490 – for slender light beams

TBS490 is a range of TL5 recessed luminaires for exposed ceilings. Modular in

length only, they are designed for 300 mm modules.

Featuring a very slim housing and highly efcient micro-optics, TBS490 creates the impression

of a slender strip of light. The miniaturized luminaire-based controls (ActiLume) and high-

efciency optics deliver signicant energy savings. A range of optics is available, including an

optic for more aesthetic lighting of non-task areas. TBS490 is easy to install.

www.philips.com/lighting

Recessed luminaires

TBS490 recessed luminaire with

ActiLume lighting control

Philips indoor luminaires 2.53Recessed luminaires

TBS490

TBS490

Type TBS490

Ceiling systems Module size: 300 mm

Exposed tee ceilings

Light source Fluorescent:

1 x or 2 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,

54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator, touch and DALI

(HFD-T)

High Frequency Regulator (HFR)

Optic Semi-high-gloss optic, 3D micro-lamellae (D8)

Semi-high-gloss optic, 3D micro-lamellae, very

high-reective (D8-VH)

High-gloss optic, 3D micro-lamellae (C8)

High-gloss optic, 3D micro-lamellae, very high-

reective (C8-VH)

Matt mirror, ribbed cross louvers (M2)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Connection Wieland connector (W)

Push-in connector (PI)

Option Emergency lighting: 3 hours (EL3)

Lighting controls:

Luxsense daylight controller micro (LXM)

ActiLume multi controller (ACL)

Euro fuse (FU) included

Safety cable (SC)

Material Housing: zinc-coated steel

Housing frame: natural anodized aluminum

Optic: aluminum

Cover: AC-MLO: PMMA, PC-MLO: polycarbonate

Installation Individual or in line; lay-in in exposed ceiling grids

Accessory Suspension bracket set

Main applications Ofces, education, healthcare, retail

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

14W 597

28W, 54W 1197

35W, 49W, 80W 1497

TBS490 1 x TL5

A

14W, 24W 597

28W 1197

35W, 49W 1497

TBS490 2 x TL5

Recessed luminaires

Philips indoor luminaires2.54

TBS490

TBS490 recessed luminaire with TL5

uorescent lamp(s) and semi-high-gloss

optic with 3D micro-lamellae (D8)

or very high-reectance 3D micro-

lamellae (D8-VH)

TBS490 recessed luminaire with TL5

uorescent lamp(s) and high-gloss

optic with 3D micro-lamellae (C8)

or very high-reectance 3D micro-

lamellae (C8-VH)

TBS490 recessed luminaire with TL5

uorescent lamp(s) and matt high-

quality aluminum optic with proled

lamellae (M2)

Preferred selection

Product ID Weight

(kg)

TBS490 1x28W/840 HFP D8 PI 2.60 795898 00

TBS490 1x54W/840 HFP D8 PI 2.60 795935 00

TBS490 1x35W/840 HFP D8 PI 3.10 795973 00

TBS490 1x49W/840 HFP D8 PI 3.10 796000 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS490 1x28W/840 HFP C8 PI 2.60 795904 00

TBS490 1x54W/840 HFP C8 PI 2.60 795942 00

TBS490 1x35W/840 HFP C8 PI 3.10 795980 00

TBS490 1x49W/840 HFP C8 PI 3.10 796017 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS490 1x28W/840 HFP M2 PI 2.60 795928 00

TBS490 1x54W/840 HFP M2 PI 2.60 795966 00

TBS490 1x49W/840 HFP M2 PI 3.10 796031 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

TBS490 recessed luminaire with TL5

uorescent lamp(s) and semi-high-gloss

optic with 3D micro-lamellae (D8)

or very high-reectance 3D micro-

lamellae (D8-VH)

Preferred selection

Product ID Weight

(kg)

TBS490 2x14W/830 HFP D8 PI 1.90 493381 00

TBS490 2x28W/830 HFP D8 PI 3.50 493398 00

TBS490 2x35W/830 HFP D8 PI 4.40 493404 00

TBS490 2x49W/830 HFP D8 PI 4.40 493411 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.55

Recessed luminaires

TBS600

Philips indoor luminaires2.56 Recessed luminaires

TBS600 – wide choice of light
beams

TBS600 is an innovative miniature luminaire for 1 or 2 TL5 (16 mm) uorescent

lamps with a choice of different optics, including Omnidirectional Luminance

Control (OLC) optics. TBS600 offers a choice of standard symmetrical light

distributions or special distributions like asymmetric, bi-directional and wide

beams. It has an integrated top reector with sleeves for air exhaust, making it

suitable for integration in air-handling installations. A dedicated version is available

for extended air handling. TBS600 can be mounted individually or in line. Extra-

long versions are available.

www.philips.com/lighting

Recessed luminaires

TBS600 recessed luminaire with

Luxsense lighting control

Philips indoor luminaires 2.57Recessed luminaires

TBS600

TBS600

Type TBS600

Ceiling grid Module size: 300 mm

Strip and plasterboard ceilings

Light source Compact uorescent:

1 x, 2 x MASTER TL5 / G5 / 14, 21, 24, 28, 35,

39, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optic High-gloss optic, 3D mini-lamellae (C7)

High-gloss optic, 3D mini lamellae (C6)

Semi-high-gloss optic, 3D mini lamellae (D7)

Semi-high-gloss optic, 3D mini lamellae (D6)

Matt optic, 3D mini lamellae (M6)

Matt optic, double parabolic louvers, asymmetric

(M6-A)

Matt optic, double parabolic louvers, bi-directional

beam (M6-BD)

Matt optic, double parabolic louvers, wide beam

(M6-WB)

Matt mirror, ribbed cross louvers (M2)

Matt mirror, ribbed louver, asymmetric (M2-A)

Matt mirror, ribbed louver, bi-directional beam

(M2-BD)

Matt mirror, ribbed louver, wide beam (M2-WB)

Mirror with decorative green louvers (M-DGN)

Optical cover Decorative opal cover (OD)

Connection Wieland connector (W)

Push-in connector (PI)

Option Emergency lighting: 3 hours (EL3)

Lighting controls:

Luxsense daylight controller (LX)

ActiLume multi controller (ACL)

Separate switching of lamps (SW)

Euro fuse (FU) included

Protection foil (FL) to protect the optic during

installation

Material Housing: zinc-coated sheet steel, white

Installation Individual or in-line: with ceiling brackets in strip or

plasterboard ceilings

Through-wiring possible

Accessory Suspension bracket set

Remarks Extensions in length of housing possible

Housing has safety suspension points for chain

The luminaire offers air-handling functionality via

the housing (not with OD cover)

All luminaires have an integrated top reector

Main applications Ofce, recreational, healthcare, education, retail

for optical cover

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

14W 597

28W, 54W 1197

35W, 49W 1497

TBS600 1 x TL5

A

14W 597

28W 1197

35W 1497

TBS600 2 x TL5

Recessed luminaires

Philips indoor luminaires2.58

TBS600

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC high-

gloss high-efciency aluminum optic

with 3D lamellae (C7)

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC high-

gloss high-quality aluminum optic with

3D lamellae (C6)

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC semi-

high-gloss high-efciency aluminum

optic with 3D lamellae (D7)

Preferred selection

Product ID Weight

(kg)

TBS600 1xTL5-28W/840 HFP C7 PI 3.50 063171 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS600 1xTL5-28W/840 HFP C6 PI 3.50 590899 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS600 1xTL5-28W/840 HFP D7 PI 3.50 594156 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC semi-

high-gloss high-quality aluminum optic

with 3D lamellae (D6)

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC matt

high-quality aluminum optic with 3D

lamellae (M6)

Preferred selection

Product ID Weight

(kg)

TBS600 1xTL5-28W/840 HFP D6 PI 3.50 590905 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS600 1xTL5-28W/840 HFP M6 PI 3.50 590912 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.59

Recessed luminaires

TBS600

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC semi-

high-gloss high-efciency aluminum

optic with 3D lamellae (D7)

TBS600 recessed luminaire with TL5

uorescent lamp(s) and OLC semi-

high-gloss high-quality aluminum optic

with 3D lamellae (D6)

TBS600 recessed luminaire with TL5

uorescent lamp(s) and decorative

opal cover (OD)

Preferred selection

Product ID Weight

(kg)

TBS600 2xTL5-28W/840 HFP D7 W 4.50 058092 00

TBS600 2xTL5-28W/840 HFP D7 PI 4.50 594170 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS600 2xTL5-28W/830 HFP D6 W 4.50 591124 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS600 2xTL5-28W/840 HFP OD PI 4.50 590394 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Accessories

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

Recessed luminaires

Philips indoor luminaires2.60

TBS600

Recessed luminaires

Philips indoor luminaires 2.61

Recessed luminaires

Indolight TBS315/318/340 TL5

Philips indoor luminaires2.62 Recessed luminaires

Indolight – extensive functionality

Indolight TBS315, 318 and 340 is a recessed luminaire for 1 or 2 TL5 uorescent

lamps with a choice of different high-performance covers and optics, some

of which feature Omnidirectional Luminance Control (OLC). The luminaire is

suitable for concealed or exposed ceiling systems (modular 600 mm in length

only). It offers air-handling functionality via the housing and is supplied ready for

use, including extra features such as emergency lighting and electronic lighting

controls. Extended versions can be ordered.

This luminaire range is also available with TL-D lamps.

Project solution with Dynamic Lighting: Indolight TBS375 offers the possibility to change the

color temperature of the light between warm white (2700 K) and cool white (6500 K). For

more information, please visit www.dynamiclighting.philips.com.

www.philips.com/lighting

Recessed luminaires

Indolight light line TBS340Indolight TBS318Indolight TBS315

Philips indoor luminaires 2.63Recessed luminaires

Indolight TBS315/318/340 TL5

Indolight

Type TBS315

Ceiling grid Module size: 300 mm

Exposed tee and concealed xed ceilings

Light source Fluorescent:

1 x or 2 x MASTER TL5 / G5 / 14, 21, 24, 28, 35,

39, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optic High-gloss optic, high-reective (C6-H)

High-gloss optic, double parabolic 50° (C6)

Semi-high-gloss optic, high-reective (D6-H)

Semi-high-gloss optic, bi-directional 30° (D6-BD30)

Semi-high-gloss optic, double parabolic (D6)

Matt optic, high-reective (M6-H)

Matt optic, double parabolic louvers, closed (M6)

Matt optic, double parabolic louvers, asymmetric

(M6-A)

Matt optic, double parabolic, bi-directional 45°

(M6-BD45)

Matt mirror, ribbed cross louvers (M2)

Matt mirror, ribbed louvers, wide beam (M2-WB)

Matt mirror, ribbed louvers, asymmetric (M2-A)

Matt mirror, ribbed louvers, bi-directional 45°

(M2-BD45)

Lamellae louvers, at cross louvers (L1)

Mirror with decorative green louvers (M-DGN)

Asymmetrical mirror (A)

Optical cover Decorative opal cover (OD)

Opal cover (O)

Prismatic cover (P)

Connection (outside

housing)

Wieland connector (W)

Push-in connector (PI)

Option Top refelector (T) in combination with high-

reective optics

Emergency lighting: 3 hours (EL3)

Lighting control:

Luxsense daylight controller (LX)

ActiLume multi controller (ACL)

Separate switching (SW)

Euro fuse (FU) included

Protection foil (FL) to protect the optic during

installation

Safety cable (SC)

Material Housing: zinc-coated steel, white

Installation Individual; lay-in in exposed ceiling grids or with

ceiling brackets in concealed ceiling grids

Accessory Suspension bracket set

Remarks Dedicated luminaires with Dynamic Lighting

functionality availabe (TBS375 types)

The luminaire offers air-handling functionality via

the housing

Extra-long version of housing can be ordered

Also available with TL-D lamps

Main applications Ofce, education, healthcare, recreation, retail,

industry

for optical cover

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

14W 597

28W, 54W 1197

35W, 49W 1497

TBS315

Recessed luminaires

Philips indoor luminaires2.64

Indolight TBS315/318/340 TL5

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and

OLC high-gloss high-quality aluminum

optic with 3D lamellae (C6) or high-

reectance 3D lamellae (C6-H)

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and OLC

semi-high-gloss high-quality aluminum

optic with 3D lamellae (D6) or high-

reectance 3D lamellae (D6-H)

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and OLC

matt high-quality aluminum optic with

3D lamellae (M6)

Preferred selection

Product ID Weight

(kg)

TBS315 1xTL5-28W/840 HFP C6 PI FL 4.80 627885 00

TBS315 2xTL5-28W/840 HFP C6 PI FL 3.10 627939 00

TBS315 1xTL5-35W/840 HFP C6 PI FL 5.70 627984 00

TBS315 2xTL5-35W/840 HFP C6 PI FL 5.70 628035 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS315 1xTL5-28W/840 HFP D6 PI FL 4.80 627892 00

TBS315 2xTL5-28W/840 HFP D6 PI FL 4.80 627946 00

TBS315 1xTL5-35W/840 HFP D6 PI FL 5.70 627991 00

TBS315 2xTL5-35W/840 HFP D6 PI FL 5.70 628042 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS315 1xTL5-35W/840 HFR M6 FU W FL 5.70 614816 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and

matt high-quality aluminum optic with

proled lamellae (M2)

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and

white painted aluminum optic with at

lamellae (L1)

Preferred selection

Product ID Weight

(kg)

TBS315 1xTL5-35W/840 HFP M2 FU W FL 5.70 614809 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS315 2xTL5-49W/830 HFP L1 W FL 5.70 624242 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.65

Recessed luminaires

Indolight TBS315/318/340 TL5

Accessories

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and

asymmetric beam

Indolight TBS315 recessed luminaire

with TL5 uorescent lamp(s) and

decorative opal cover (OD)

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Preferred selection

Product ID Weight

(kg)

TBS315 2xTL5-14W/840 HFP A W 2.10 635446 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS315 1xTL5-28W/830 HFP OD W 4.80 743059 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

ZBS300 SMB 598161 99

Indolight TBS315 recessed luminaire

with Luxsense lighting control

Indolight TBS315 recessed luminaire

with ActiLume lighting control

Recessed luminaires

Philips indoor luminaires2.66

Indolight TBS315/318/340 TL5

Recessed luminaires

Philips indoor luminaires 2.67

Recessed luminaires

Indolight TBS318 TL5

Indolight

Type TBS318

Ceiling grid/system Module size: 300 mm

Exposed tee and concealed xed ceilings

Light source Fluorescent:

1 x or 2 x MASTER TL5 / G5 / 14, 21, 24, 28, 35,

39, 49, 54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optic High-gloss optic, high-reective (C6-H)

High-gloss optic, double parabolic 50° (C6)

Semi-high-gloss optic, high-reective (D6-H)

Semi-high-gloss optic, double parabolic (D6)

Matt optic, high-reective (M6-H)

Matt optic, double parabolic louvers, closed (M6)

Matt optic, double parabolic louvers, asymmetric

(M6-A)

Matt optic, double parabolic, bi-directional 30°

(M6-BD30)

Matt optic, double parabolic, bi-directional 45°

(M6-BD45)

Matt mirror, ribbed cross louvers (M2)

Matt mirror, ribbed louvers, wide beam (M2-WB)

Matt mirror, ribbed louvers, asymmetric (M2-A)

Matt mirror, ribbed louvers, bi-directional 30°

(M2-BD30)

Matt mirror, ribbed louvers, bi-directional 45°

(M2-BD45)

Optical cover Opal cover (O)

Prismatic cover (P)

Decorative opal cover (OD)

Connection (outside

housing)

Wieland connector (W)

Push-in connector (PI)

Option Top refelector (T) in combination with high-

reective optics

Emergency lighting: 3 hours (EL3)

Lighting control:

Luxsense daylight controller (LX)

ActiLume multi controller (ACL)

Separate switching (SW)

Euro fuse (FU) included

Protection foil (FL) to protect the optic during

installation

Safety cable (SC)

Material Housing: zinc-coated steel, white

Installation Individual; lay-in in exposed ceiling grids or with

ceiling brackets in concealed ceiling grids

Accessory Suspension bracket set, longitudinal suspension

strip

Remarks Dedicated luminaires available with air-handling

functionality (TBN types)

Extra-long version of housing can be ordered

Also available with TL-D lamps

Main applications Ofce, education, healthcare, recreation, retail,

industry

for optical cover

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

14W 597

28W, 54W 1197

35W, 49W 1497

TBS318

Recessed luminaires

Philips indoor luminaires2.68

Indolight TBS318 TL5

Indolight TBS318 recessed luminaire

with TL5 uorescent lamp(s) and

OLC high-gloss high-quality aluminum

optic with 3D lamellae (C6) or high-

reectance 3D lamellae (C6-H)

Indolight TBS318 recessed luminaire

with TL5 uorescent lamp(s) and OLC

semi-high-gloss high-quality aluminum

optic with 3D lamellae (D6) or high-

reectance 3D lamellae (D6-H)

Indolight TBS318 recessed luminaire

with TL5 uorescent lamp(s) and

matt high-quality aluminum optic with

proled lamellae (M2)

Preferred selection

Product ID Weight

(kg)

TBS318 1xTL5-28W/840 HFP C6-H FU W FL 5.00 614601 00

TBS318 1xTL5-28W/840 HFP C6 FU W FL 5.00 614618 00

TBS318 1xTL5-28W/830 HFD C6 ACL W FL 5.00 561111 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS318 2xTL5-28W/830 HFP D6 W FL 5.00 605524 00

TBS318 2xTL5-35W/830 HFP D6 W FL 5.90 605531 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS318 1xTL5-35W/840 HFP M2 FU W FL 5.90 614625 00

TBS318 2xTL5-35W/840 HFP M2 FU W FL 5.90 614656 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Indolight TBS318 recessed luminaire

with TL5 uorescent lamp(s) and OLC

matt high-quality aluminum optic with

3D lamellae (M6)

Preferred selection

Product ID Weight

(kg)

TBS318 1xTL5-35W/840 HFP M6 FU W FL 5.90 614632 00

TBS318 2xTL5-28W/840 HFP M6 FU W FL 5.00 614663 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.69

Recessed luminaires

Indolight TBS318 TL5

Accessories

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

Adaptor bracket for strip ceilings for

TL-D 18W/TL5 14/24W (LP18),

TL-D 36W/TL5 28/54W (LP36) and

TL-D 58W/TL5 35/49/80W (LP58).

Adjustment (all sites): 9-94 mm

Product ID EOC

ZBS318 LP18 706092 99

ZBS318 LP36 706559 99

ZBS318 LP58 706719 99

Recessed luminaires

Indolight TBS318 recessed luminaire

with suspension strip, longitudinal

Indolight TBS318 recessed luminaire

with Luxsense lighting control

Indolight TBS318 recessed luminaire

with ActiLume lighting control

Philips indoor luminaires2.70

Indolight TBS318 TL5

Recessed luminaires

Philips indoor luminaires 2.71

Recessed luminaires

Indolight TBS340 TL5

Indolight

Type TBS340 (for line arrangements)

Ceiling system Module size: 300 mm

Concealed xed ceilings

Light source Fluorescent:

1 x or 2 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,

54, 80 W

Lamp included Yes (lamp color 451 (ActiViva Natural),

452 (ActiViva Active), 827, 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optic High-gloss optic, double parabolic 50° (C6)

Semi-high-gloss optic, double parabolic (D6)

Connection (outside

housing)

Option Emergency lighting: 3 hours (EL3)

Material Zinc-coated steel, white

Accessory Suspension bracket set, end caps

Remarks Housing has safety suspension points for chain,

Main applications Ofce, education, healthcare, recreational

Push-in connector (PI)

Through-wiring: 1-phase (TW1), 3-phase (TW3)

Protection foil (FL) to protect the optic during

installation

Safety cable (SC)

Installation in line; with ceiling brackets in concealed

ceiling grids

cable or threaded rod

Also available with TL-D lamps

Matt mirror, ribbed cross louvers (M2)

Lamellae louvers, at cross louvers (L1)

for optical cover

Optical cover Decorative opal cover (OD)

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A

28W, 54W 1178

35W, 49W 1478

TBS340

Recessed luminaires

Philips indoor luminaires2.72

Indolight TBS340 TL5

Indolight TBS340 recessed continuous-

line luminaire with TL5 uorescent

lamp(s) and OLC high-gloss high-

quality aluminum optic with 3D

lamellae (C6) or high-reectance 3D

lamellae (C6-H)

Indolight TBS340 recessed continuous-

line luminaire with TL5 uorescent

lamp(s) and OLC semi-high-gloss

high-quality aluminum optic with 3D

lamellae (D6) or high-reectance 3D

lamellae (D6-H)

Indolight TBS340 recessed continuous-

line luminaire with TL5 uorescent

lamp(s) and matt high-quality aluminum

optic with proled lamellae (M2)

Preferred selection

Product ID Weight

(kg)

TBS340 1xTL5-28W/840 HFP C6 PI 2.15 639574 00

TBS340 1xTL5-35W/840 HFP C6 PI 3.30 639604 00

TBS340 2xTL5-28W/840 HFP C6 PI 2.15 639666 00

TBS340 2xTL5-35W/840 HFP C6 PI 3.30 639697 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS340 1xTL5-28W/840 HFP D6 PI 2.15 639581 00

TBS340 1xTL5-35W/840 HFP D6 PI 3.30 639611 00

TBS340 2xTL5-28W/840 HFP D6 PI 2.15 639673 00

TBS340 2xTL5-35W/840 HFP D6 PI 3.30 639703 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS340 1xTL5-28W/840 HFP M2 PI 2.15 639567 00

TBS340 1xTL5-35W/840 HFP M2 PI 3.30 639598 00

TBS340 2xTL5-28W/840 HFP M2 PI 2.15 639659 00

TBS340 2xTL5-35W/840 HFP M2 PI 3.30 639680 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Accessories

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

A set of two end-caps

Product ID EOC

ZBS340 EP 704326 99

Philips indoor luminaires 2.73

Recessed luminaires

EFix TBS260

Philips indoor luminaires2.74 Recessed luminaires

EFix – simple mounting

EFix recessed TBS260 is a modular recessed luminaire for TL5 uorescent lamps.

Measuring only 55 mm in overall height and featuring a very at rim, it ts in 600

mm grids in exposed, concealed and plaster ceilings.

EFix recessed TBS260 offers a choice of mini-optics and has been optimized for general lighting

applications and offers standard slots for ventilation.

The optional Luxsense control delivers automatic energy savings. By reacting to the level of

daylight the articial light will be adjusted, enabling signicant savings on energy costs. The

luminaire comes with an external connection system enables the mains connection to be

made without opening the luminaire and lamps included, making it extremely easy to mount

in position. The EFix recessed TBS260 range comprises square 3- and 4-lamp and rectangular

2-lamp versions.

EFix surface-mounted TCS260 and EFix suspended TPS260 complete Philips’ range of luminaires

for general lighting applications in ofces and shops.

www.philips.com/lighting

Recessed luminaires

4-lamp3-lamp2-lamp

Philips indoor luminaires 2.75Recessed luminaires

EFix TBS260

EFix recessed TBS260

Type TBS260

Ceiling grid/system Module size: modules 600 x 600, 300 x 1200,

optional 600 x 1200 mm

Exposed tee, concealed tee and plasterboard

ceilings

Light source Fluorescent:

rectangular: 2 x MASTER TL5 / G5 / 28, 54 W,

optional 3 x or 4 x

square: 3 x or 4 x MASTER TL5 / G5 / 14, 24 W

Lamp included Yes (lamp color 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator (HFR)

Optic High-gloss optic, double parabolic (C6)

Semi-high-gloss optic, double parabolic (D6)

Matt optic, double parabolic optic (M6)

Matt mirror, ribbed cross louvers (M2)

Optical cover (only for

Prismatic cover (P)

14 W square version)

Connection Wieland-like push-in connector 3 poles (W)

or Wieland 5 poles (W5)

Push-in connector (PI)

Option Emergency lighting: 1 hour (EL1), 3 hours (EL3)

Lighting controls: Luxsense daylight controller (LX)

Separate switching of lamps (SW)

Safety cable (SC)

Material Housing: pre-lacquered steel, white

Optic: aluminum

Optical cover: PET

Installation Individual; lay-in in exposed ceiling grid or with

ceiling brackets in concealed ceiling grids or

plasterboard ceilings (plaster thickness 13, 15, 18

or 26 mm)

Accessory Bracket ZBS160 MB (4 pcs) for concealed ceiling,

clip ZGS260 PLA (40 pcs) for plaster ceiling, T-

connector M/F: ZBS160 TC3 (4 pcs)

Remarks The luminaire offers air-handling functionality via

the housing (not with P cover)

Main applications Ofce, education, retail

for prismatic versions

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS260 28, 54 W TBS260 14, 24 W

EFix TBS260 recessed luminaire with

Luxsense lighting control

Recessed luminaires

Philips indoor luminaires2.76

EFix TBS260

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and OLC high-

gloss aluminum optics with 3D lamellae

(C6)

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and matt

aluminum optics with proled lamellae

(M2)

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and OLC high-

gloss aluminum optics with 3D lamellae

(C6)

Preferred selection

Product ID Weight

(kg)

TBS260 2xTL5-28W/840 HFR C6 LX PI 3.20 699073 00

TBS260 2xTL5-28W/840 HFP C6 PI 3.27 699479 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS260 2xTL5-54W/840 HFP M2 W 3.21 698519 00

TBS260 2xTL5-28W/840 HFP M2 PI 3.21 699967 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS260 3xTL5-14W/840 HFP C6 PI 3.11 698601 00

TBS260 3xTL5-14W/840 HFR C6 PI 3.36 699516 00

TBS260 3xTL5-14W/840 HFR C6 LX PI 3.33 699523 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and OLC semi-

high-gloss aluminum optics with 3D

lamellae (D6)

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and matt

aluminum optics with proled lamellae

(M2)

Preferred selection

Product ID Weight

(kg)

TBS260 3xTL5-14W/840 HFP D6 PI 3.11 698595 00

TBS260 3xTL5-14W/840 HFR D6 PI 3.36 699714 00

TBS260 3xTL5-14W/840 HFR D6 LX PI 3.33 699738 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS260 3xTL5-14W/840 HFP M2 PI 3.06 699684 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.77

Recessed luminaires

EFix TBS260

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and prismatic

cover (P)

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and OLC high-

gloss aluminum optics with 3D lamellae

(C6)

EFix TBS260 recessed luminaire with

TL5 uorescent lamps and OLC matt

aluminum optics with 3D lamellae (M6)

Preferred selection

Product ID Weight

(kg)

TBS260 3xTL5-14W/840 HFP P PI 3.42 571622 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS260 4xTL5-14W/840 HFP C6 PI 3.10 698779 00

TBS260 4xTL5-14W/840 HFR C6 PI 3.34 698854 00

TBS260 4xTL5-14W/840 HFR C6 LX PI 3.37 698861 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS260 4xTL5-14W/840 HFP M6 PI 3.13 698762 00

TBS260 4xTL5-14W/840 HFR M6 PI 3.34 699530 00

TBS260 4xTL5-14W/840 HFR M6 LX PI 3.37 699554 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Accessories

Brackets for plaster ceilings (ZGS260

PLA)

Product ID EOC

ZGS260 PLA (40PCS) 570960 99

Recessed luminaires

Philips indoor luminaires2.78

EFix TBS260

Recessed luminaires

Philips indoor luminaires 2.79

Recessed luminaires

Philips indoor luminairesRecessed luminaires

TBS257

2.80

TBS257 – the at performer

TBS257 is a modular low-height (only 53 mm) recessed luminaire for

TL5 uorescent lamps for ofce and retail applications. It features

high-performance miniature optics which combine high efciency

(up to 70%), optimized delta-shaped light beam and OLC all-around

glare control (L

conjunction with electronic gear they reduce energy consumption

to give a very low W/m

<1000cd/m2 at γ ≥ 65° and UGRR < 19). Used in

m

2

.

TBS257 recessed luminaire with

2x28W TL5 uorescent lamps and

OLC high-gloss aluminum optics with

3D lamellae (C6)

TBS257

TBS257

Type TBS257

Ceiling grid Module size: modules 600 x 600, 300 x 1200

Exposed tee, concealed tee, and plasterboard

ceilings

Light source Fluorescent:

2 x MASTER TL5 / G5 / 28 W

(rectangular version)

3 x or 4 x MASTER TL5 / G5 / 14 W

(square version)

Lamp included No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

Electronic Ballast Standard (EBS)

Electronic Ballast Economy (EBE),

28 W version only

Optic High-gloss optic, double parabolic, closed (C6)

Semi-high-gloss optic, double parabolic (D6)

Matt mirror, ribbed cross louvers (M2)

Optical cover Prismatic cover (P)

Connection Screw connection

Option Available on request:

Material Housing: post-painted steel, white RAL9010

Installation Individual; lay-in exposed ceiling grid or with ceiling

Accessory Bracket ZBS257 SMB SET40 for concealed ceiling

Main applications Ofce

Opal cover (O)

Emergency lighting, 3 hours

Gear, High Frequency Performer or Regulator

Lamp types, 24 W, 35 W, 49 W, 54 W, 80 W

Connection, Wieland

Optic: high-grade anodized aluminum

Optical cover: PET

brackets in concealed ceiling grids or plasterboard

ceilings

(40 pcs suitable to install 10 luminaires)

for cover types for cover types

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

Recessed luminaires

TBS257 14 W TBS257 28 W

TBS257 recessed luminaire with TL5

uorescent lamps and OLC high-gloss

aluminum optics 3D lamellae (C6)

TBS257 recessed luminaire with TL5

uorescent lamps and OLC semi-high-

gloss aluminum optics with 3D lamellae

(D6)

Preferred selection

Product ID Order Code

TBS257 2xTL5-28W EBS C6 9131 010 610 xx

TBS257 2xTL5-28W EBE C6 9131 010 615 xx

TBS257 3xTL5-14W EBS C6 9131 010 600 xx

TBS257 4xTL5-14W EBS C6 9131 010 605 xx

Please contact your local Philips representative for additional congurations

Preferred selection

Product ID Order Code

TBS257 2xTL5-28W EBS D6 9131 010 611 xx

TBS257 2xTL5-28W EBE D6 9131 010 616 xx

TBS257 3xTL5-14W EBS D6 9131 010 601 xx

TBS257 4xTL5-14W EBS D6 9131 010 606 xx

Please contact your local Philips representative for additional congurations

Recessed luminairesPhilips indoor luminaires

2.81

Philips indoor luminaires2.82

TBS257

Recessed luminaires

TBS257 recessed luminaire with TL5

uorescent lamps and matt aluminum

optics with proled lamellae (M2)

TBS257 recessed luminaire with TL5

uorescent lamps and prismatic cover

(P)

Preferred selection

Product ID Order Code

TBS257 2xTL5-28W EBS M2 9131 010 612 xx

TBS257 2xTL5-28W EBE M2 9131 010 617 xx

TBS257 3xTL5-14W EBS M2 9131 010 602 xx

TBS257 4xTL5-14W EBS M2 9131 010 607 xx

Please contact your local Philips representative for additional congurations

Preferred selection

Product ID Order Code

TBS257 2xTL5-28W EBS P 9131 010 613 xx

TBS257 2xTL5-28W EBE P 9131 010 618 xx

TBS257 3xTL5-14W EBS P 9131 010 603 xx

TBS257 4xTL5-14W EBS P 9131 010 608 xx

TBS257 2xTL5-28W EBS O 9131 010 614 xx

TBS257 2xTL5-28W EBE O 9131 010 619 xx

TBS257 3xTL5-14W EBS O 9131 010 604 xx

TBS257 4xTL5-14W EBS O 9131 010 609 xx

Please contact your local Philips representative for additional congurations

Accessories

Product ID Description Order Code

ZBS257 SMB SET40 Mounting brackets 9131 010 800 xx

TBS257

Recessed luminaires

Recessed luminairesPhilips indoor luminaires

2.83

Philips indoor luminairesRecessed luminaires

TBS288

TBS288 – crisp, stimulating light
with a subtle tint

TBS288 is a TL5 electronic ofce lighting system for both task and general

lighting in ofce spaces and department stores. It features a super slim, stylish

design, easy maintenance and adds a hint of color to ofce ceilings to enhance

the ambience.

Light lter slots allow the blue inll

panel to give a stimulating subtle tint

2.84

TBS288

TBS288

Type TBS288

Ceiling grid Module size: modules 600 x 600, 300 x 1200

Exposed tee ceilings

Light source Fluorescent:

3 x or 4 x TL5 Essential / G5 / 14 W

(square version)

2 x TL5 Essential / G5 / 28 W

Connection Screw connection

Material Housing: post-painted steel, white

Installation Individual; lay-in exposed ceiling grid

Main applications Ofce

Optic: lmed aluminum with anodized

aluminum louvers

Inll panels: PMMA (blue)

(rectangular version)

Lamp included Yes (light color 840 or 865)

Gear Electronic, 220 - 240 V / 50 - 60 Hz (HF)

Optic High-gloss optic, proled louvers,

blue inll panels (BL)

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

TBS288 2 x TL5

TBS288 recessed luminaire

2 x 28 W

TBS288 3, 4 x TL5

Preferred selection

Product ID Weight

(kg)

TBS288 2xTL5-28W/840 HF G2 BL ID 3.40 9114 009 51380

TBS288 2xTL5-28W/865 HF G2 BL ID 3.40 9114 009 50680

Please contact your local Philips representative for additional congurations

Recessed luminaires

Order Code

TBS288 recessed luminaire

3 x 14 W

Preferred selection

Product ID Weight

(kg)

TBS288 3xTL5-14W/840 HF G2 BL ID 3.40 9114 009 51480

TBS288 3xTL5-14W/865 HF G2 BL ID 3.40 9114 009 50780

TBS288 4xTL5-14W/840 HF G2 BL ID 3.50 9114 009 51780

TBS288 4xTL5-14W/865 HF G2 BL ID 3.50 9114 009 51080

Please contact your local Philips representative for additional congurations

Recessed luminairesPhilips indoor luminaires

Order Code

2.85

Indolight TBS330

Philips indoor luminairesRecessed luminaires2.86

Indolight TBS330 – extensive
functionality

Indolight TBS330 recessed is a versatile, easy-to-install luminaire range that offers

outstanding lighting performance and user comfort. Available with up to four

TL-D lamps and in a variety of dimensions, the low-height Indolight TBS330

family provides the ideal recessed solution, whether for standard renovations or

new buildings.

Indolight TBS330 luminaires t in all standard ceiling systems such as exposed and concealed

mineral ceilings, metal ceilings, etc. Installation is always fast and straightforward, thanks to the

use of smart universal mounting brackets and simple plug-and-play connectors.

Wide application coverage

In general applications – e.g. in hospitals, schools, laboratories, industrial areas and other

public buildings – Indolight TBS330’s extensive range of optics and covers provides stylish,

comfortable and effective lighting. In ofces, Indolight TBS330’s excellent glare control ensures

visual comfort and helps people remain productive. And in shops, Indolight TBS330 creates a

welcoming ambience, with its precision light distribution making the merchandise virtually leap

out from the display racks.

Indolight TBS330

Recessed luminaires

www.philips.com/lighting

TBS330 2-lamp

TBS330 3-lamp TBS330 4-lamp

Recessed luminaires 2.87Philips indoor luminaires

Indolight TBS330

Indolight

Type TBS330

Ceiling system Module size: 600 x 600, 300 x 600, 300 x 1200,

300 x 1500 mm

Exposed tee and concealed xed ceilings

Light source Fluorescent:

1 x, 2 x, 3 x or 4 x MASTER TL-D / G13 / 18,

36, 58 W

Lamp included Yes (lamp color 827, 830 or 840)

No

Gear Electro magnetic (low loss), 230 or 240 V / 50 Hz:

Inductive (I)

Inductive, parallel compensated (IC)

Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP)

High Frequency Regulator, DALI (HFD)

High Frequency Regulator (HFR)

Optic High-gloss optic, high-reective (C6-H)

High-gloss optic, double parabolic (C6)

Semi-high-gloss optic, high-reective (D6-H)

Semi-high-gloss optic, double parabolic (D6)

Matt optic, high-reective(M6-H)

Matt optic, double parabolic louvers (M6)

Matt optic, double parabolic, bi-directional 30°

(M6-BD30)

Matt mirror, ribbed cross louvers (M2)

Matt mirror, ribbed louvers, bi-directional 30°

(M2-BD30)

Lamellae louvers, at cross louvers (L1)

Mirror with decorative green louvers (M-DGN)

Optical cover Acrylate micro lens optic (AC-MLO)

Polycarbonate micro lens optic (PC-MLO)

Decorative opal cover (OD)

Opal cover (O)

Prismatic cover (P)

Connection (outside

housing)

Wieland connector (W)

Push-in connector (PI)

Option Emergency lighting: 3 hours (EL3)

Lighting control:

Luxsense daylight controller (LX)

ActiLume multi controller (ACL)

Separate switching (SW)

Euro fuse (FU) included

Inll plate: standard (IP), decorative (IPD)

Protection foil (FL) to protect the optic during

installation

Safety cable (SC)

Material Housing: zinc-coated steel, white

Installation Individual; lay-in in exposed ceiling grids or with

ceiling brackets in concealed ceiling grids

Accessory Suspension bracket set

Remarks The luminaire offers air-handling functionality via

the housing

Housing has safety suspension points for chain,

cable or threaded rod

Main applications Ofce, education, healthcare, recreation, retail,

industry

for optical covers

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

A B

18W 597 44

36W 1197 54

58W 1497 54

TBS330 1, 2 x TL-D

TBS330 3, 4 x TL-D

Recessed luminaires

Philips indoor luminaires2.88

Indolight TBS330

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

matt high-quality aluminum optic with

proled lamellae (M2)

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

white painted aluminum optic with at

lamellae (L1)

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

decorative opal cover (OD)

Preferred selection

Product ID Weight

(kg)

TBS330 1xTL-D58W/830 HFP M2 W FL 8.10 625249 00

TBS330 1xTL-D36W/840 HFP M2 W FL 5.50 705668 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS330 2xTL-D36W/840 HFP L1 W IP FL 5.50 705804 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS330 2xTL-D36W HFP OD PI IP 5.50 626765 00

TBS330 2xTL-D58W HFP OD PI IP 8.10 626901 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

OLC high-gloss high-quality aluminum

optic with 3D lamellae (C6) or high-

reectance 3D lamellae (C6-H)

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

OLC matt high-quality aluminum

optic with 3D lamellae (M6) or high-

reectance 3D lamellae (M6-H)

Preferred selection

Product ID Weight

(kg)

TBS330 3xTL-D18W HFP C6 PI IP 5.20 602691 00

TBS330 3xTL-D18W IC C6 PI IP 5.20 636153 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS330 3xTL-D18W HFP M6 PI IP 5.20 602776 00

TBS330 3xTL-D18W IC M6 PI IP 5.20 636177 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.89

Recessed luminaires

Indolight TBS330

Indolight TBS330 recessed luminaire

with matt high quality aluminum optic

with greenish translucent concave cross

louvers (M-DGN)

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

OLC semi-high-gloss high-quality

aluminum optic with 3D lamellae (D6)

or high-reectance 3D lamellae (D6-H)

Indolight TBS330 recessed luminaire

with TL-D uorescent lamp(s) and

decorative opal cover (OD)

Preferred selection

Product ID Weight

(kg)

TBS330 3xTL-D18W/840 HFP M-DGN PI IP FL 5.20 630519 00

TBS330 3xTL-D18W IC M-DGN PI IP 5.20 636207 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS330 4xTL-D18W HFP D6 PI IP 5.20 602981 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

TBS330 4xTL-D18W HFP OD PI IP 5.20 629421 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Accessories

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

Recessed luminaires

Philips indoor luminaires2.90

Indolight TBS330

Recessed luminaires

Philips indoor luminaires 2.91

Recessed luminaires

Indolight FBS330

Philips indoor luminaires2.92 Recessed luminaires

Indolight – square of light

FBS330 is a square recessed luminaire, available in two different sizes (300,

500 and 600 mm), for PL-L and PL-S uorescent lamps. It provides a choice

of different high-performance optics and covers, including Omnidirectional

Luminance Control (OLC) optics. The luminaire offers air-handling functionality

via the housing. Accessories include suspension brackets for concealed ceilings.

www.philips.com/lighting

Recessed luminaires

600 x 600500 x 500300 x 300

Philips indoor luminaires 2.93Recessed luminaires

Indolight FBS330

Indolight

Type FBS330

Ceiling grid Module size: 300 / 500 / 600 mm

Exposed tee, concealed xed and plasterboard

ceilings

Light source Compact uorescent:

2 x or 3 x MASTER PL-L 4 pins / G24 q-1 /

18, 36, 40, 55 W

2 x MASTER PL-S 4 Pin / 2G7 / 11 W

Lamp included Yes (lamp color 830 or 840)

No

Gear Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency Performer (HFP), not for PL-S

11 W and PL-L 18 W versions

High Frequency Regulator, DALI (HFD), not for

PL-S 11 W and PL-L 18 W versions

High Frequency Regulator (HFR), not for PL-S

11 W and PL-L 18 W versions

High Frequency Matchbox (HFM), only for PL-S

11 W and PL-L 18 W versions

Optic High-gloss optic, double parabolic (C6)

Semi-high-gloss optic, double parabolic (D6)

Matt optic, double parabolic louvers (M6)

Matt mirror, ribbed cross louvers (M2)

Lamellae louvers, at cross louvers (L1)

Optical cover Decorative opal cover (OD)

Connection Wieland connector (W)

Push-in connector (PI)

Option Euro fuse (FU) included

Protection foil (FL) to protect the optic during

installation

Material Zinc coated steel, white

Installation Individual; lay-in in exposed ceiling grids or with

ceiling brackets in concealed ceiling grids or

plasterboard ceilings

Accessory Suspension bracket set

Remarks Housing has safety suspension points for chain,

cable or threaded rod

Air-handling functionality via housing (not for 11

and 18 W versions)

Main applications Ofce, education, healthcare, recreation, retail,

industry

for optical cover

Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

FBS330 2 x 11, 18 W

Recessed luminaires

Philips indoor luminaires2.94

Indolight FBS330

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC high-gloss high-quality

aluminum optic with 3D lamellae (C6)

or high-reectance 3D lamellae (C6-H)

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC semi-high-gloss

high-quality aluminum optic with 3D

lamellae (D6)

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC matt high-quality

aluminum optic with 3D lamellae (M6)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L18W/840 C6 PI IP 1.25 700380 00

FBS330 2xPL-L18W/840 HFM C6 PI IP SC 1.25 704029 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L18W/840 D6 PI IP 1.25 700397 00

FBS330 2xPL-L18W/840 HFM D6 PI IP SC 1.25 704036 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L18W/840 M6 PI IP 1.15 700403 00

FBS330 2xPL-L18W/840 HFM M6 PI IP SC 1.25 704043 00

FBS330 2xPL-S/4P11W/840 HFM M6 PI IP 1.25 700373 00

FBS330 2xPL-S/4P11W/840 HFM M6 PI IP SC 1.25 704012 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC high-gloss high-quality

aluminum optic with 3D lamellae (C6)

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC semi-high-gloss

high-quality aluminum optic with 3D

lamellae (D6)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L40W/840 HFP C6 PI IP FL 5.00 700472 00

FBS330 2xPL-L55W/840 HFP C6 PI IP FL 5.70 700502 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L40W/840 HFP D6 PI IP FL 5.70 700489 00

FBS330 2xPL-L55W/840 HFP D6 PI IP FL 4.50 700519 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Philips indoor luminaires 2.95

Recessed luminaires

Indolight FBS330

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC matt high-quality

aluminum optic with 3D lamellae (M6)

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC high-gloss high-quality

aluminum optic with 3D lamellae (C6)

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC semi-high-gloss

high-quality aluminum optic with 3D

lamellae (D6)

Preferred selection

Product ID Weight

(kg)

FBS330 2xPL-L40W/840 HFP M6 PI IP FL 5.70 700496 00

FBS330 2xPL-L55W/840 HFP M6 PI IP FL 5.70 700526 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

FBS330 3xPL-L40W/840 HFP C6 PI IP 5.70 700410 00

FBS330 3xPL-L55W/840 HFP C6 PI IP FL 5.70 700441 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Preferred selection

Product ID Weight

(kg)

FBS330 3xPL-L40W/840 HFP D6 PI IP 5.70 700427 00

FBS330 3xPL-L55W/840 HFP D6 PI IP 5.70 700458 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Accessories

Indolight FBS330 recessed luminaire

with PL-L or PL-S compact uorescent

lamps and OLC matt high-quality

aluminum optic with 3D lamellae (M6)

Suspension bracket set for recessed

mounting in false ceilings with

concealed proles

Product ID EOC

ZBS300 SMB (4PCS) 598147 99

ZBS300 SMB 598161 99

Preferred selection

Product ID Weight

(kg)

FBS330 3xPL-L40W/840 HFP M6 PI IP 5.70 700434 00

FBS330 3xPL-L55W/840 HFP M6 PI IP FL 5.70 700465 00

Please contact your local Philips representative for additional congurations

European Order

Code (EOC)

Recessed luminaires

Philips indoor luminaires2.96

Indolight FBS330

Recessed luminaires

Philips indoor luminaires 2.97

Recessed luminaires

Impala TBS160

Philips indoor luminaires2.98 Recessed luminaires

Impala – functional and convenient

Impala TBS160 is a functional recessed luminaire for 2, 3 or 4 TL-D uorescent

lamps. It offers a wide range of optics as well as a prismatic plate. The optics/

plate are tted to the housing by means of a clip for easy installation and

maintenance. An external connection system enables the mains connection

to be made without opening the luminaire. The luminaire ts in visible prole

ceilings as standard and, using accessories, in concealed and plaster ceilings.

www.philips.com/lighting

Recessed luminaires

4-lamp3-lamp2-lamp

Philips indoor luminaires 2.99Recessed luminaires
