Page 1
Philips indoor luminaires
Page 2
Lighting Controls
Page 3
Selection guide – Lighting Controls
Lighting controls,
get the best out of articial light
Lighting controls play a major role in all new lighting trends. From color-changing to energy-
saving solutions, from Light & Health to lighting as an integral part of building automation,
lighting controls are the enabler for a comprehensive project approach. In this catalog,
therefore, you will nd dedicated solutions to meet the challenges of a state-of-the-art
project. We provide solutions for TCO (total cost of ownership) applications as well as for
creating various atmospheres with lighting. The solutions we offer range from luminaire-
based products to a networked approach for a complete building.
Total Cost of Ownership:
Fast, easy installation, energy savings up to 50%, exibility and reliability will ensure an exceptional TCO
throughout the life cycle of your installation.
Comfort and emotion:
Lighting plays a very important role in people’s lives. With our solutions all users will enjoy great comfort
and pleasure.
11.2
Lighting Controls
Technology:
DALI, LON, DMX, RDM, TCP/IP, RF, Power Line communications are technologies we have adopted and
which are used according to the application.
Project planning, realization and support:
Our people and partners are all committed to working in close cooperation with you and to ensuring that
the project deliveries will meet your expectations. Please contact your local sales representative.
Philips indoor luminaires
Page 4
Selection guide – Lighting Controls
System Selection Matrix
LMM Building Solution
LMM – Ready to use
Dynamic Ambience Kit
TRIOS
Occuswitch
ActiLume
Personal Light
Luxsense
Linesense
ColourChaser DMX
ColourWheel
MultiDim
DMX – DALI Converter
DMX – PWM Converter
See page: 11.7 11.7 11.11 11.11 11.12 11.15 11.15 11.15 11.15 11.38 11.38 11.28 11.39 11.39 11.39
Dimming only •
Analog dimming control (1 – 10 V) • • • • •
Digital dimming control (DSI) • •
Digital dimming control (DALI) • • • • • • •
Leading-edge/trailing-edge phase control dimming • •
DMX control • • • •
Connection of pushbuttons or switches • • • • • • • •
Manual control of light or color • • • • • • • • •
Infrared remote control • • • • • • •
Presence detection (movement detection) • • • • • • • • •
Daylight-dependent control / switching • • •
Daylight-dependent control / dimming • • • • • • •
Dynamic Lighting • • •
Corridor linking • •
ograms • •
Time pr
Building modes • •
Emergency lighting testing •
Static lighting scenes • • • • • • •
Number of static lighting scenes 8 4 4 4 4 1 16
Dynamic lighting rhythms • • • •
Number of dynamic lighting rhythms 4 4 4 1
Integrated with building automation (LON) •
Programming via a remote control • • (•)
Programming via PC interface • • • •
Grouping of luminaires • •
Color mixing • • (•)
Color temperature control •
Sequencing • •
Lighting Controls
PWM – 1-10V Converter
Philips indoor luminaires 11.3
Lighting Controls
Page 5
Product family overview

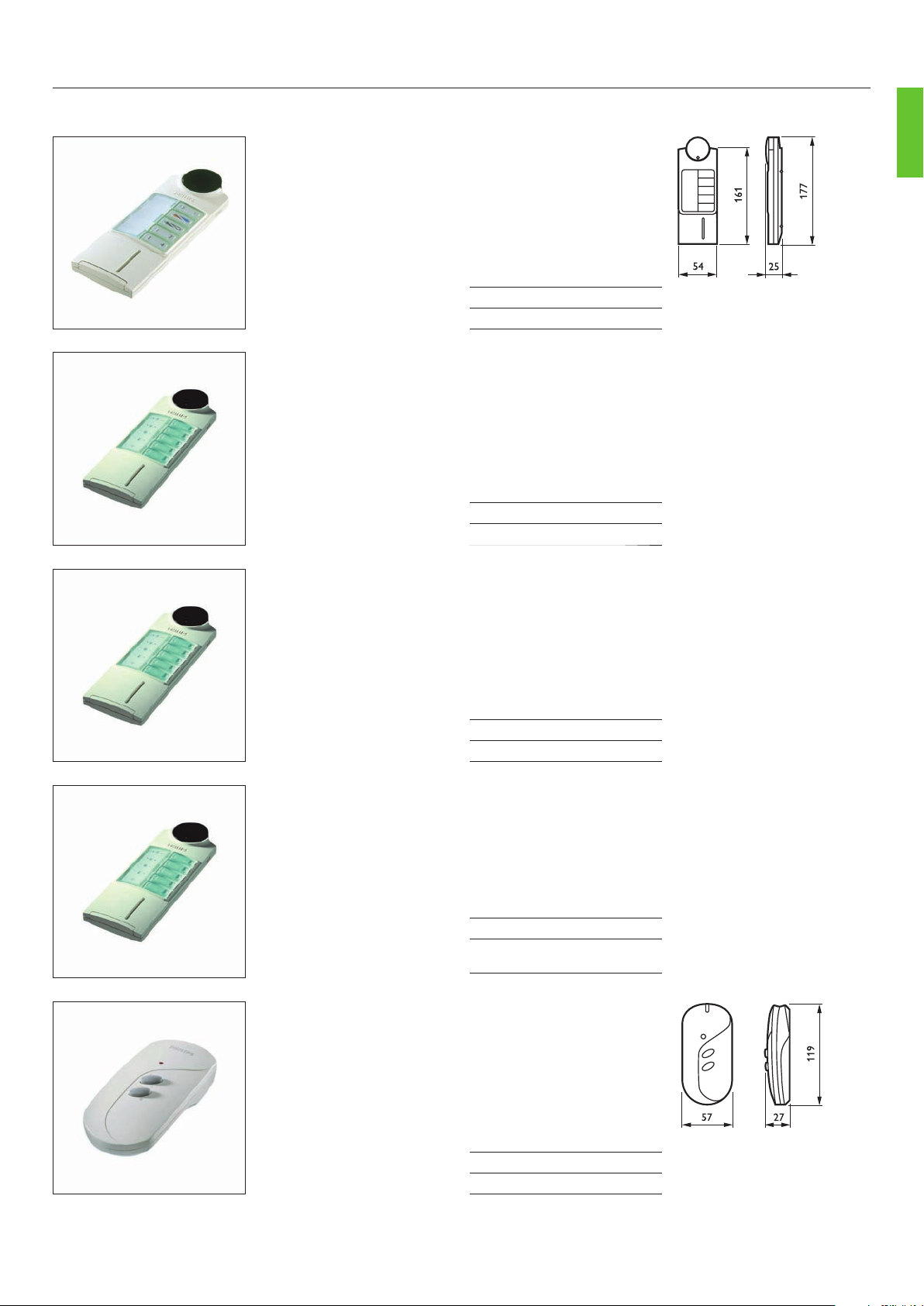

Transmitters/Tools
Push buttons
LCU8020
Push buttons
IRT8010 IRT8050 IRT8080
IRR8125/10 LRI8134
LRM8114/00 LRM8115/16
Occuswitch
LRM1080 LRM1070
Trios
LPS100
Controllers Sensors
LightMaster Modular
Floormanager
9LS 4LS 4SI
LON-DALI 4OUT
DALI
1..10V 1..10V 1..10V
DALI1..10V
LRC1010/15
LRC1015
LRC1020/25
LRC1030/35
LRC1025
LRC1035
LRD80x0
1..10V
11.4
Philips indoor luminairesLighting Controls
Page 6
MultiDim Colour Chaser
Product family overview
LRM8118
DCMD303
DCMD125 DCMD302 LRC9601
DCMD9242
DMX
DALI
Lighting Controls
LRC9600
DMX
Luminaire based
Luxsense
Actilume
DCMD450 DCMD494 LRC9632
LRC9630 LRC9631
1..10V
Philips indoor luminaires Lighting Controls
DALI DALI DALI 1..10V
DMX
DMX
PWM
11.5
Page 7
Indoor Lighting Management System
Lighting Controls
Indoor lighting management system
LightMaster Modular is designed to meet the requirements of modern buildings,
with the focus on the total cost of ownership (TCO). Costs are reduced by
minimizing energy consumption and maximizing exibility. This makes
LightMaster Modular the future-proof solution, complying with the latest
regulations.
Philips indoor luminaires11.6
Page 8
Energy savings
Awareness of the need to save energy is increasing rapidly
throughout the world. Focusing on the applications with
the highest possible savings, lighting is certainly one of
the most promising options - 19% of the world’s energy
consumption is used for lighting. Philips has therefore
positioned itself at the forefront of this movement with its
Green Switch campaign.
With our LightMaster Modular system we have chosen
the most obvious method of saving energy, which is also
the most efcient one: we adjust the light level to the
actual requirements. This means switching off lights when
they are not needed (presence detection) and reducing
the light level when sufcient daylight is available (daylight
linking). When both techniques are implemented energy
consumption is reduced by 30-50%.
Indoor lighting management system
Lighting Controls
Lights on when needed
Flexibility
We have also recognized the market need for exible
and easy-to-use products, resulting in state-of-the-art
connection technologies (Wieland) and modular system
architecture, which offers the right solution for every
application. With the highly exible LightMaster Modular,
the ofce layout can easily be adapted to the requirements
of new tenants. Wiring can easily be changed, and
functionality can be adjusted using intuitive PC software.
Integration
LightMaster Modular is based on LonWorks technology,
so all products can be integrated seamlessly into building
automation networks. Our components have been
shown to be interoperable with the products of all major
suppliers in the eld of building automation.
Perfect regulation for every area
Lighting ControlsPhilips indoor luminaires
11.7
Page 9

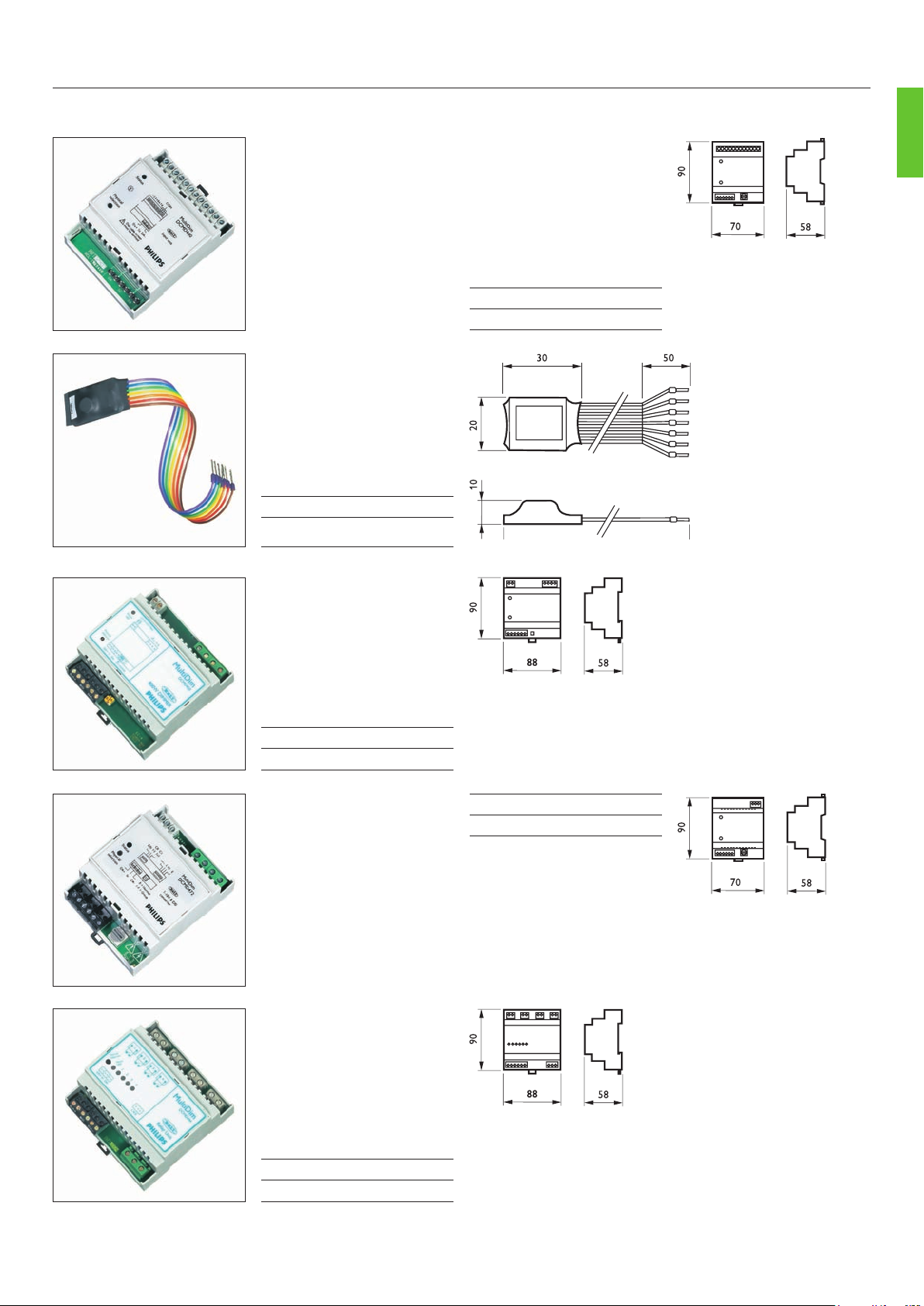

LMM Modules
A range of Lighting Control Modules
(LCM) with 9 outputs, 4 sensor interfaces
(light sensors, movement detectors and
infrared [IR] receivers) and 4 inputs for
standard wall switches and emergency
test sensors. All inputs and outputs and
network connections are plug-and-socket
for easy and secure installation. The
outputs are fused: one fuse (5 A) to each
of the three sides.
Product ID Description EOC
LRC5913/10 CONTR 9x4 PLUG 3 SW GST-conn: 3 pole, EM-test: no, Dimming: no 731032 99
LRC5914/10 CONTR 9x4 PLUG 4 SW GST-conn: 4 pole, EM-test: no, Dimming: no 731049 99
LRC5923/10 CONTR 9x4 PLUG 3 SW&RE GST-conn: 3 pole, EM-test: no, Dimming: 1-10V 731056 99
LRC5924/10 CONTR 9x4 PLUG 4 SW&RE GST-conn: 3 pole, EM-test: yes, Dimming:1-10V 731063 99
LRC5933/10 CONTR 9x4 PLUG 3 DIG GST-conn: 3 pole, EM-test: no, Dimming: DALI/DSI 731070 99
LRC5934/10 CONTR 9x4 PLUG 4 DIG GST-conn: 4 pole, EM-test: yes, Dimming: DALI/DSI 731087 99
LRC5944/10 CONTR 9x4 PLUG 4 DIGSW GST-conn: 4 pole, EM-test: yes, Dimming: DALI/DSI 731124 99
DIN-rail unit with 4 separate outputs
(Switching & Regulating [1-10 V]) able
to switch a load of 5 A each to control
The LCMs use Wieland GST connectors,
either 3 pole or 4 pole with a permanent
supply for emergency luminaires.
The LCMs are upgradeable from non-
dimming to dimming by exchanging the
logic
module. This can be done while
the power module remains installed.
The LRC5944 has three outputs that
can be congured to either DALI/DSI or
(mains) switching only.
Product ID EOC
LRC5423/10 CONTR 4X0 DIN
SW&RE
731100 99
luminaires directly or via contactors
in the cabinet to switch higher lighting
loads.
LRC5913
Input unit with 4 sensor interfaces
(light sensors, movement detectors and
infrared [IR] receivers) and 4 inputs
for standard wall switches/emergency
test sensors. DIN-rail unit, which is also
suitable for use as an installation box,
i.e. this unit does not require an outer
enclosure.
DALI Lighting Control Module in a
DIN-rail housing with 1 DALI output.
This controller can switch and regulate
up to 64 DALI devices. The DALI
devices can be controlled separately
or in groups. The unit has inputs for
sensors and switches, but is designed
to work in combination with the
4SI input unit for sensors.The use of
Product ID EOC
LRC5059/00 CONTR 0x4 SENSR
& SW DIN
730240 00
sensors and the maximum numbers of
separate DALI groups depend on the
application (refer to the datasheet for
more information).
Product ID EOC
LRC5141/10 CONTR 16x2 DIN
DALI
731117 99
LRC5423
LRC5059
LRC5141/5143
Lighting controls
Philips indoor luminaires11.8
Page 10

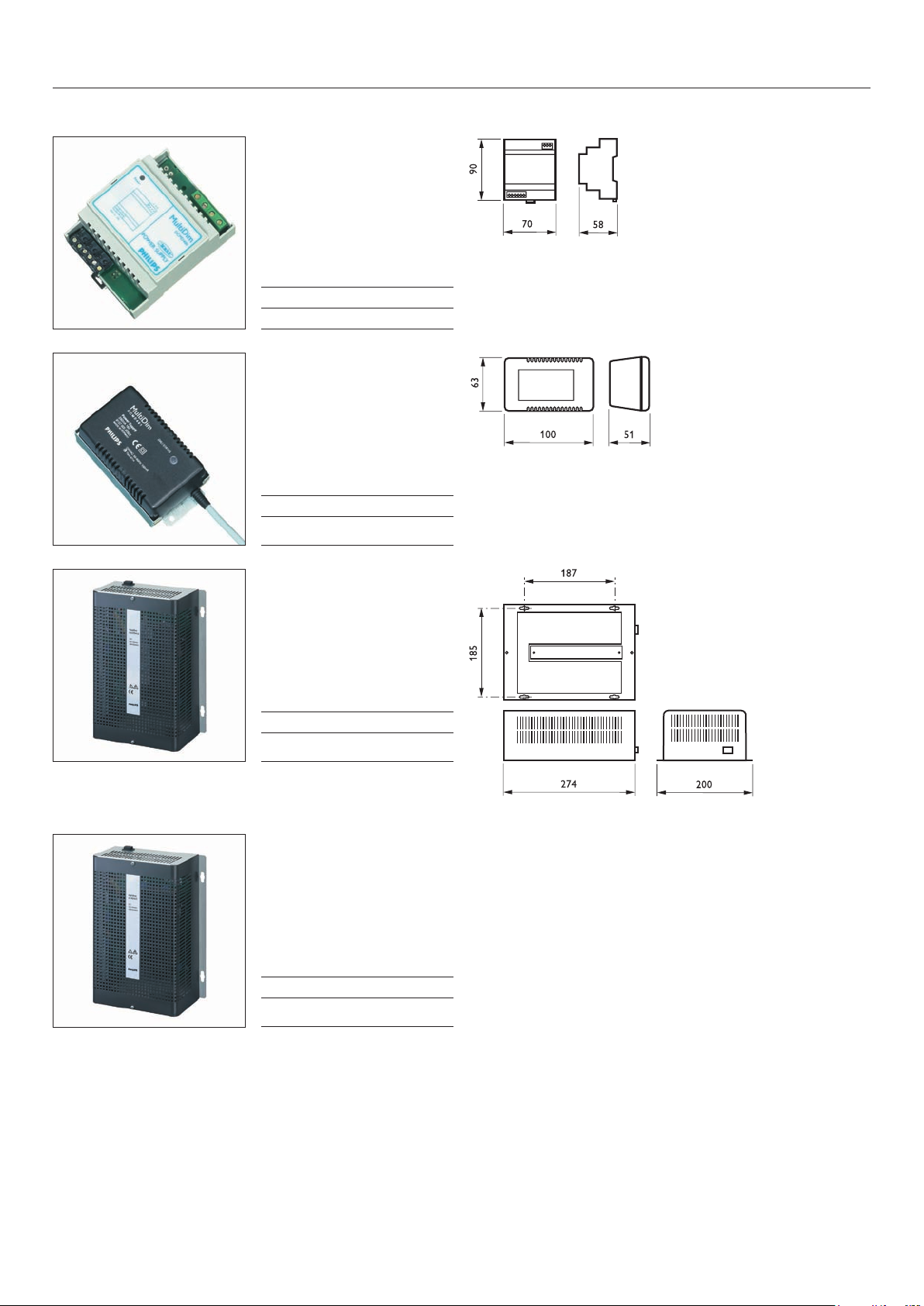

LMM Modules
Lighting Control Module for Dynamic
Ambience control. This controller can
be used stand-alone or as part of an
LMM system and holds 4 Dynamic
Ambience rhythms for different types
of Philips Dynamic Lighting luminaires.
It can control 64 ballasts (usually 32
luminaires). For more information, see
the system reference sheet.
Lighting Control Module with 4 volt-
free outputs, Switching & Regulating (1-
10 V), to allow separate circuits of the
same phase to be switched. There are
2 permanent supplies for emergency
luminaires, also volt-free but switched
simultaneously. The 4LS has 4 sensor
interfaces (light sensors, movement
detectors and infrared [IR] receivers)
A steel installer enclosure with
knock-out ports for cable glands.It
provides the right housing for those
situations where an LMM DIN rail unit
is required but where no installation
cabinet is available. Cannot be used for
the LRD80x0 dimmer devices.
Product ID EOC
LRH5100/10 HOUSE DIN 9TE 731148 99
Product ID EOC
LRC5143/10 LON-DALI DYNAMIC
LIGHT
731131 99
and 4 inputs for standard wall switches
and emergency test sensors. There is a
plug-and-socket network connection.
The 4 outputs have screw connectors
to supply switching loads up to 8 A
each.
Product ID EOC
LRC5414/10 CONTR 4x4 HW
SW&RE
731094 99
LRH5100
Lighting Controls
Network Components
The LightMaster Modular Floor
Manager has an important role in
connecting the physical parts (oors)
of a building-wide lighting control
system. It ensures transparent and
open communication to all parts of
the system while at the same time
managing the network trafc. It also
has embedded oor management
Product ID Description EOC
LCC5301/00 CABLE BUS 100M Bus cable, 100m 517148 00
Accessories
Product ID Description EOC
LCS5200/00 SOFTW LIGHT MGR
MOD LIC 200
LCS5010/00 SOFTW LIGHT MGR
MOD 10 CR
Software LMM 10 credits 730608 00
Software LMM Licence 200 credits 730615 00
functionality and resources, like a
scheduler, central control functions,
data logging and a possible link to the
internet using TCP/IP. The unit (DIN-
rail) is supplied with a 12 V DC adapter
and a bus line terminator.
Product ID EOC
LFC5099/00 NETWK FLOOR MGR
WPR SUP
730288 00
Philips indoor luminaires 11.9
Lighting Controls
Page 11

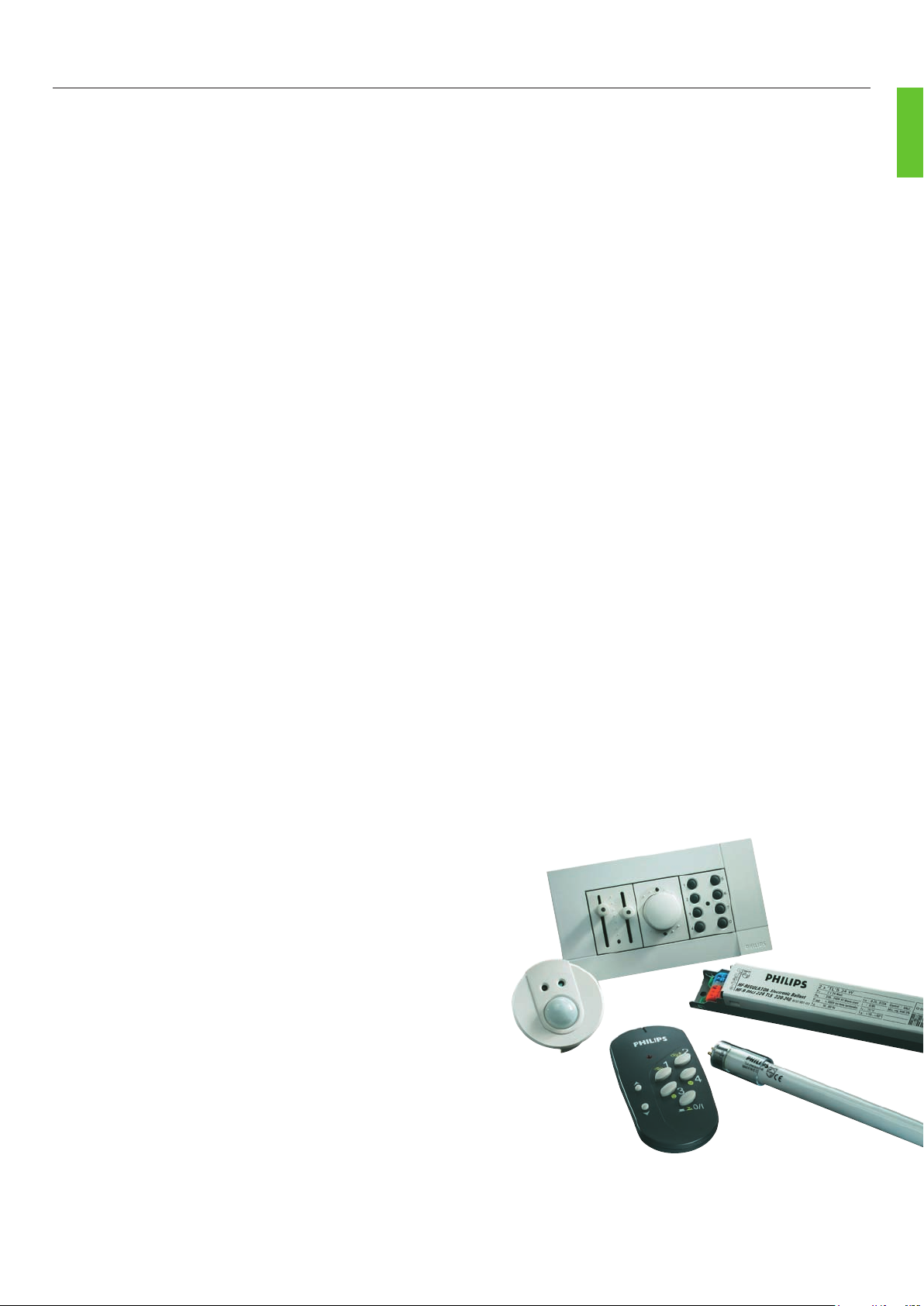

Indoor stand alone control
Our stand-alone systems are designed to offer the best solution for
dedicated tasks.
To provide easy to experience energy savings in an ofce
(Occuswitch), to improve working conditions with dynamic lighting,
or to offer project specic solutions with TRIOS.
Philips indoor luminairesLighting Controls11.10
Page 12
The 2nd-generation Occuswitch combines application
experience with a contemporary design and improved
functionality. It is the energy-saving solution with the
fastest payback time and can easily be combined with
Luxsense, our luminaire-based solution for daylight linking.
Indoor stand alone control
Lighting Controls
Conventional Occuswitch Occuswitch +
Initial investment 100 % 110 % 130 %
Energy savings 0 % 30 % 50 %
TRIOS is our most versatile system, which has proven
its reliability in innumerable applications and projects. In
combination with our superior sensor technology – also
in use in LightMaster Modular – the controllers provide
solutions for switching and dimming applications.
Luxsense
For the Dynamic Lighting concept with changing color
temperature and intensity, the Dynamic Ambience
Kit is our stand-alone solution. With only a minimal
conguration it supports our Light & Well-being approach
with different lighting rhythms: Human, Natural, Pendulum
and Wave.
Philips indoor luminaires Lighting Controls 11.11
Page 13
Occuswitch
Ø 80
Ø 95
50
51.5
95
113.5
26.5
1000
67.5
easy installation and mounting of
Occuswitch in the ceiling. A separate
Wieland cable is available for easy, fast
and trouble-free installationOccuswitch
basic version. LRM1070 is a movement
detector with a built-in switch. It
switches the lights off in a room or
area when it is vacated, thus saving up
to 30% on electricity consumption.
enables easy installation and mounting
of Occuswitch in the ceiling. A separate
Wieland cable is available for easy, fast
and trouble-free installation. Same
as the LRM1070 but with parallel
operation (up to 10 Occuswitches),
local override and absence
modeOccuswitch advanced version.
LRM1080 is a movement detector
Ceiling box for surface mounting of
Occuswitch (LRM1070, LRM1080)
Occuswitch can switch any load up
to 6 A and control an ofce area of
around 20 m². A detachable mains
connector enables easy installation
and mounting of Occuswitch in the
ceiling. A separate Wieland cable is
available for easy, fast and trouble-free
installation
with a built-in switch. It switches the
lights off in a room or area when it
is vacated, thus saving up to 30% on
electricity consumption. Occuswitch
can switch any load up to 6 A and
control an ofce area of around 20
m². A detachable mains connector
enables easy installation and mounting
of Occuswitch in the ceiling. A separate
Product ID EOC
LRM1070/00 SENSR MOV DET ST 731384 99
LRM1070/1080
Wieland cable is available for easy, fast
and trouble-free installation. Same
as the LRM1070 but with parallel
operation (up to 10 Occuswitches),
local override and absence mode
Product ID EOC
LRM1080/00 SENSR MOV DET
ST IR
731407 99
Product ID EOC
LRH1070/00 SENSR SURFACE BOX 731438 99
Extension cable for Wieland
connection of Occuswitch (LRM1070,
LRM1080)
Product ID EOC
LCC1070/00 PIR T-CABLE 3P 731773 99
LRH1070
LCC1070
Lighting Controls
Philips indoor luminaires11.12
Page 14
Accessories
They are specically designed for
energy-saving solutions with dimmable
and non-dimmable luminaires. The
functionality of the switching and
regulating LRC1030 can be adapted
by PC programming software
(available separately) for special
lighting control applications. A highly
informative Trios Manual is available
to assist designers and installers in
selecting the correct products for
their applications.Trios multifunctional
and addressable light controllers in
a housing for distributed installation
in three versions.The switching
(LRC1010) and the switching/regulating
(LRC1020) versions have pre-dened
functionalities that depend on the
connection of movement detector,
infrared receiver and/or light sensor.
They are specically designed for
energy-saving solutions with dimmable
and non-dimmable luminaires. The
functionality of the switching and
regulating LRC1030 can be adapted by
PC programming software (available
separately) for special lighting control
applications. A highly informative Trios
Trios
Manual is available to assist designers
and installers in selecting the correct
products for their applications.
Product ID EOC
LRC1010/20 CONTR 1x1 ST SW 731995 99
LRC1020/20 CONTR 1x1 ST
SW&RE
LRC1030/10 CONTR 1x1 PROG
ST SW&R
731971 99
731957 99
Lighting Controls
LRC1010/1020/1030
They are specically designed for
energy-saving solutions with dimmable
and non-dimmable luminaires.The
functionality of the switching and
regulating LRC1035 can be adapted by
PC programming software (available
separately) for special lighting control
applications. A highly informative Trios
Manual is available to assist designers
and installers in selecting the correct
products for their applications.Trios
multifunctional and addressable light
controllers in a DIN-rail housing
for centralized installation in three
versions. The switching (LRC1015)
and the switching/regulating
(LRC1025) versions have pre-dened
functionalities that depend on the
connection of a movement detector,
infrared receiver and/or light sensor.
They are specically designed for
energy-saving solutions with dimmable
and non-dimmable luminaires.The
functionality of the switching and
regulating LRC1035 can be adapted by
PC programming software (available
separately) for special lighting control
applications. A highly informative Trios
Manual is available to assist designers
and installers in selecting the correct
products for their applications.
Product ID EOC
LRC1015/20 CONTR 1x1 DIN SW 732008 99
LRC1025/20 CONTR 1x1 DIN
SW&RE
LRC1035/10 CONTR 1x1 PROG
DIN SW&R
731988 99
731964 99
LRC1015/1025/1035
Philips indoor luminaires 11.13Lighting Controls
Page 15
Indoor luminaire based control
The simplest way to achieve
lighting control
In order to improve comfort, energy saving and exibility in ofces, Philips has
incorporated miniature lighting controls within the luminaires. Philips offers a
choice of intelligent luminaire solutions that provide a wide range of functions
such as daylight linking, movement detection, remote control and scene setting,
with energy savings of up to 70%.
Intelligent luminaires enable lighting control to be incorporated into a building at
any stage of a project. The sensor-controller combination inside the luminaire has
little or no impact on the electrical installation.
Philips indoor luminairesLighting Controls11.14
Page 16
Indoor luminaire based control
ActiLume
Actilume is designed to t the needs of open plan and cell ofces, but can also be
adjusted to other applications. It combines energy-saving functions with simple
possibilities for user interaction. This DALI solution does not require the typical
DALI commissioning procedure, but still allows additional savings from daylight
harvesting when controlling two lighting groups separately. The presence detection
feature also allows the external sensor connection to enlarge the detection area.
The presence and daylight functions allow savings of 50% on electrical energy.
Acti Lume has capabilities for manual interaction by means of a pushbutton or an
IR control.
Luxsense
Luminaires tted with Luxsense offer the benet of a comfortable, constant level
of illumination throughout the working day. Moreover, they can provide substantial
energy savings (of between 25 and 50%) when installed near windows, where
natural illumination is usually greatest. They also save further energy by maintaining
the illumination level over the lifetime of the lamp, eliminating the need to set
higher-than-necessary initial lighting levels to compensate for the decrease in lamp
efciency over time.
Lighting Controls
Color Variation Control (Personal Light)
Personal Light enables individuals to control the lighting according to their
personal preference.
The desired lighting level and color temperature can be set by remote control
(IRT7090) to suit their working situation, mood and physical condition. CVC is
available for, amongst others, Savio luminaires.
Linesense
Linesense is a luminaire-based control system designed for light-line systems such
as the TTX400 that helps save energy in industrial facilities and warehouses by
switching the lights off when there is nobody.
Linesense consists of a 618 mm piece of trunking, which is fully pre-equipped and
wired and ready to be clicked between the light-line and the electrical connection
unit. High-bay movement detectors are connected with standard RJ-12 cables and
mounted at the right location with the use of dedicated brackets.
Philips indoor luminaires Lighting Controls 11.15
Page 17
Indoor Luminaire based control
ActiLume
Compact movement detector to be
used to expand the detection area
of luminaires incorporating ActiLume.
The sensor is connected to the DALI
bus from the ActiLume luminaire and
does not require external power. The
sensor is suitable for both recessed and
surface mounting. Mounting height is
between 2.5 and 3.5 m.
Simple mode selection tool for
ActiLume (mode 1 and mode 2
selection). Light set point calibrator,
easy to use. Batteries are included.
Product ID EOC
LRM8118/00 ACTILUME
EXTENSION SENSOR
Product ID EOC
IRT8098/00 ACTILUME
PROGRAMMER
730783 99
730806 99
LRM8118
IRT8098
Linesense
Light sensor intended for high-bay
mounting (approx. 7.5 m high).
Intended for use with the Linesense
control (ZTX400 MDU-D). An
installation bracket is included. The
sensor is connected to the control
unit with a modular plug-in (RJ-12)
connector cable.
High-bay passive infrared movement
detector (mounting height up to 15
m), equipped with an adjustable delay
timer (up to 35 minutes). Can be used
with all three MDU control units. A
dedicated mounting bracket (ZTX400
MB-MDU) is available, into which the
movement detector can be clicked.
Product ID EOC
LRL8102/00 HIGH BAY SENSR 517209 00
Product ID EOC
LRM8117/00 SENSR MOV
DET AISLE
518473 99
LRL8102/00
Lighting Controls
LRM8117
Philips indoor luminaires11.16
Page 18
Indoor Luminaire based control
Lighting Controls
Philips indoor luminaires 11.17
Lighting Controls
Page 19
General-purpose Products
General-purpose Products
General-purpose Products
The Philips Lighting Controls range of ‘general purpose products’ covers all the
sensors, infrared transmitters and other accessories that can be used with all our
systems and some third party systems.
The performance and capabilities of the general purpose products vary according to the
lighting control system they are connected to.
www.philips.com/lighting
Philips indoor luminaires11.18 Lighting Controls
Page 20
Remote control for personal light. With
this remote control, in combination
with a Dynamic Lighting luminaire that
includes the CVC option, the user can
apply his own preferences for light level
and color temperature.
General-purpose ProductsGeneral-purpose Products
Lighting Controls
Four-preset hand-held transmitter,
suitable for infrared control of Trios
and LightMaster Modular applications.
It has four keys for presets and one
key for “all off ”. Keys for individual
control and preset programming are
located under a hinged cover at the
bottom of the transmitter. In “teach
mode” the transmitter can be used as
Hand-held transmitter, suitable for
infrared control of LightMaster
Modular applications combined with
HVAC and Sunblind systems. It has keys
for two lighting groups, blinds control
and temperature control and a key
for “all off/absence”. Keys for lighting
presets and preset programming are
located under a hinged cover at the
Product ID EOC
IRT7090/00 TRANSM IR CVC + DA 518855 99
commissioning tool for Trios. The group
address selector switch is contained in
the battery compar tment. The unit is
supplied complete with wall holder and
batteries.
Product ID EOC
IRT8030/00 TRANSM IR TRIOS 517636 99
bottom of the transmitter. The group
address selector switch is contained in
the battery compar tment. The unit is
supplied complete with wall holder and
batteries.
Product ID EOC
IRT8040/00 TRANSM IR SYS 517650 99
IRT7090/IRT80x0
Hand-held transmitter, suitable for
infrared control of various lighting
control systems and other building
systems (sunblind, HVAC). The
transmitter can easily be adapted to
project specications by selecting
one of its 15 settings. This can be
achieved without any tools, and even
after installation. The group address
Hand-held two-key transmitter, for
infrared control of various lighting
control systems. The group address
selector switch is contained in the
battery compar tment. The unit is
supplied with batteries. A wall holder
is available. This transmitter is not
designed to be operated from the wall
holder.
selector switch is contained in the
battery compar tment. The unit is
supplied complete with text plates for
the various settings, wall holder and
batteries.
Product ID EOC
IRT8080/00 TRANSM IR
MULTI-FUNC
Product ID EOC
IRT8010/00 TRANSM IR POINT 517490 99
517674 99
IRT8010
Philips indoor luminaires 11.19Lighting Controls
Page 21
General-purpose Products
Wall holder for the IRT8010 hand-held
two-key transmitter
Two-key infrared remote control
transmitter for wall mounting and
table-top use. The unit can be used in
Trios applications. The actual function
of the two large keys can be selected
with a dip switch in the battery
compartment. A dip switch is also used
to select the group address.
LRH8010
Product ID EOC
LRH8010/00 MOUNT IR POINT 517971 99
IRT8050
Product ID EOC
IRT8050/00 TRANSM IR 2KEY WALL 517070 99
Multi-purpose infrared remote control
transmitter for wall mounting, suitable
for the transmission of measured
temperature values. The unit can be
used in integrated control systems with
Heating, Ventilation and Airconditioning
(HVAC) in combination with
LightMaster Modular applications. The
actual function of the two large keys
Commissioning tool for Occuswitch,
Luminaires with ActiLume and Saber
sensors. Easy to use and inexpensive
tool to adjust the functionality and/or
calibrate light levels. The functionality
is depending on the product it is used
with. Batteries are included.
Compact multi-sensor combining
advanced internal light sensor,
movement detector and infra-red
receiver. The unit features individual
element selection, variable delay-to-off
via DIP switch and auto-calibrating light
sensor. The movement detector can
be part-shaded to limit coverage. The
sensor is powered via the additional
can be selected with a switch in the
battery compar tment. The same switch
is used to select the group address.
Only available as project special.
Product ID EOC
IRT8055/00 TRANSM IR 2KEY
WALL TEMP
Product ID EOC
IRT8099/00 PRGMR IR 518893 00
518435 99
modular plug-in (RJ12) connector
cable that attaches it to a lighting
controller. The sensor is suitable for
both recessed and surface mounting.
Mounting height is between 2.5 m and
3.5 m.
Product ID EOC
LRI8134/00 SENSR MULTISENSOR 519043 99
IRT8055
LRI8134
Philips indoor luminaires11.20 Lighting Controls
Page 22
General-purpose Products
Compact advanced movement
detector that features variable delay-
to-off via DIP switch and can be part-
shaded to limit coverage. The sensor
is powered via the additional modular
plug-in (RJ12) connector cable that
attaches it to a lighting controller. The
sensor is suitable for both recessed and
surface mounting. Mounting height is
LRL5002/10 The solar level detector
monitors the level of ambient light at
its location. More then one solar level
detector may be used to monitor
daylight levels in different areas, or
aspects of a building. The unit provides
input to the lighting management
system in order to allow use of local
light level information. The detector is
Surface mounting box for the LRI8134
and LRM8114 sensors. Comes with
cut-out holes for most common cable
trunking.
between 2.5 m and 3.5 m.
Product ID EOC
LRM8114/00 SENSR MOV DET 519067 99
normally connected to the sensor input
of a Lighting Control Module (LCM)
Product ID EOC
LRL5002/10 SENSR
LIGHT EXT
731858 99
LRM8114
Lighting Controls
Infrared receiver for remote control of
lighting systems and other building-
related functions. The unit is especially
intended for “invisible” mounting
behind a false ceiling. Only a thin plastic
optic protrudes from the ceiling. More
infrared receivers can be connected
in parallel to cover large or odd-
shaped rooms. It is powered from the
Wall-mounted passive infrared
movement detector for energy-saving
solutions in indoor lighting applications
(automatic light switching based on
occupancy). It detects the slightest
movement within a range of 25 m.
Adjustable switch-off delay time of up
to 35 minutes. Electrical connections
via an additional sensor cable with a
Product ID EOC
LRH8100/00 SENSR SURFACE BOX 519203 99
corresponding controller, not requiring
an external power supply unit. Electrical
connections with a xed cable (1 m.)
with modular plug. Mounting height 2.5
to 3 m.
Product ID EOC
IRR8125/10 SENSR IR NV 731315 99
modular socket (“snap-in”). The daylight
override function prevents the lights
being switched on if enough daylight is
available.
Product ID EOC
LRM8115/00 SENSR MOV
DET LONG
517223 99
LRH8100
IRR8125
LRM8115/ LRM8116
Philips indoor luminaires 11.21Lighting Controls
Page 23
General-purpose Products
Wall-mounted passive infrared
movement detector for energy-saving
solutions in indoor lighting applications.
It detects movement within an angle
of 90º (maximum range 15 m at a
mounting height of 2.1 m). Adjustable
switch-off delay time of up to 35
minutes. Electrical connections via an
additional sensor cable with a modular
Push-button interface. RC5 code
generator with digital inputs for the
connection of push-buttons. Intended
for manual control of light controllers
and for coupling to other systems
such as building management systems.
The unit is connected to the infrared
remote control input of the controller.
Combination with an IR receiver is
Manual rotary potentiometer with
microswitch for recessed mounting.
In combination with one or more
electronic 1-10 V HFR ballasts,
electronic light regulators or Trios
controllers, it serves to control the
light level of uorescent lamps, halogen
lamps or incandescent lamps.
socket (“snap-in”). The daylight
override function prevents the lights
being switched on if enough daylight is
available.
Product ID EOC
LRM8116/00 SENSR MOV
DET WIDE
518411 99
possible. Codes generated depend
on the input terminals used; 20
combinations are possible. Different
sets of codes can be selected with a
rotary switch. The unit is powered from
the corresponding controller.
Product ID EOC
LCU8020/00 INTERF
PUSHBUTTON
Product ID EOC
LPS100/00 POTSW 1-10V DIM 558039 99
516561 99
LCU8020
LPS100/00
Manual rotary potentiometer with
microswitch for surface mounting.
In combination with one or more
electronic 1-10 V HFR ballasts,
electronic light regulators or Trios
controllers, it serves to control the
light level of uorescent lamps, halogen
lamps or incandescent lamps.
Light regulator for incandescent
lamps, high-voltage halogen lamps
and low-voltage halogen lamps with
electronic transformers. To be used in
combination with either a TRIOS unit,
LMM (1-10V) controller or LPS100.
Max. load is 1000 VA.
Product ID EOC
LPS100/01 POTSW 1-10V DIM 558060 99
Product ID EOC
LRD8000/10 DIMMER 1KVA
MAGNETIC TX
515717 99
LPS100/01
LRD8000
Philips indoor luminaires11.22 Lighting Controls
Page 24
Light regulator for incandescent lamps,
high-voltage halogen lamps and low-
voltage halogen lamps with electronic
transformers. Max. load is 1000 VA, to
be used in combination with either a
Trios unit, LightMaster Modular (1-10
V) controller or LPS100.
Interlink cable of 1 m length with
modular plugs at both ends for
interconnection of multifunctional
light controllers so that the connected
sensors can be shared by several
controllers.
Product ID EOC
LRD8010/10 DIMMER 1KVA
ELECTRONIC TX
Product ID EOC
LCC8011/00 CABLE
INTER RJ12M-RJ12M 1M
515731 99
515939 99
General-purpose Products
LRD8010
Lighting Controls
Extension cables of 5 m length
(LCC8012) and 20 m length
(LCC8013) with modular plugs and
sockets to increase the distance
between sensors (infrared receivers,
light sensors and movement detectors)
and the corresponding controllers.
Cable of 5 m length with modular
plugs at both ends for the connection
of sensors to the various types of light
controllers.
Interlink cable of 5 m length with
modular plugs at both ends for
interconnection of Trios light
controllers. The cable is intended to
distribute (only) the RC5 signal from
a push-button interface over the
connected controllers, especially in
centrally controlled Trios applications.
Product ID EOC
LCC8012/00 CABLE
EXT RJ12M-RJ12F 5M
LCC8013/00 CABLE
EXT RJ12M-RJ12F 20M
Product ID EOC
LCC8014/00 CABLE
SENSR RJ12M-RJ12M 5M
Product ID EOC
LCC8015/00 CABLE
IR RJ12M-RJ12M 5M
515953 99
515977 99
516370 99
517117 99
Philips indoor luminaires 11.23Lighting Controls
Page 25
General-purpose Products
Branching connector with three
modular sockets and one modular plug
for use when several sensors are to be
connected to the same controller input
socket (or extension cable socket).
Branching connector with 2 modular
sockets and a modular plug with a
20 cm lead. Designed for the daisy
chaining of sensors.
Product ID EOC
LCC8024/00 CONN BLOCK
RJ12 1M-3F
Product ID EOC
LCC8025/00 T-ADAPT RJ12 1M-2F 519326 99
515991 99
Philips indoor luminaires11.24 Lighting Controls
Page 26
General-purpose Products
Lighting Controls
Philips indoor luminaires 11.25Lighting Controls
Page 27
Indoor Luminaire - Based Control
11.26
Scene setting system
Versatile lighting control
MultiDim is a versatile scene-setting lighting control system that is suited to a wide range of
lighting applications. A variety of push-button interfaces, sensors and an easy-to-use remote
control unit allow different lighting scenes to be programmed and selected, changing the
mood of the room in seconds.
Creative lighting design
MultiDim is ideally suited to applications using a variety of luminares with different lamp
types, from incandescent to halogen and uorescent. In addition, the MultiDim system can
also be used to switch LCD projectors, lower projection screens or close window blinds.
Lighting Controls Philips indoor luminaires
Page 28
Scene setting for all occasions
The MultiDim lighting control system can be used in
conference halls, boardrooms, lecture theaters, hotel
function rooms, museums, showrooms, cafes, restaurants
and shops. Basically in any application where easy access
to lighting adjustment is required.
Digital control solution
MultiDim offers a versatile and easy-to-install lighting
control solution that brings the benets of digital lighting
control to many different application areas.
Quick and economical installation
MultiDim consists of an integrated range of DALI-
compatible devices that can be interlinked to create the
desired lighting control functionality. The system’s digital
addressable architecture means that only a single two-
core cable is needed to interconnect all the units. The
elimination of conventional vertical wall wiring reduces
both installation time and cost. In addition, the system
architecture makes it easier for the system to be modied
at a later date.
Scene setting system
Lighting Controls
Freedom in lighting design
MultiDim offers great exibility and ease of lighting system
design. The MultiDim controllers can be used directly in
combination with DALI-compatible uorescent ballasts
and lamp interface units (both high-voltage incandescent
lamps and low-voltage halogen lamps).
Maximizing exibility with DALI
Thanks to the system’s digital addressable control and
communication concept, each unit in the DALI network
has its own unique address that allows it to be switched
and controlled independently. Up to 63 devices can be
connected to the same physical control line. Luminaires
can be grouped and fade times or room-specic
parameters set via the MultiDim commissioning software
package.
Lighting ControlsPhilips indoor luminaires
11.27
Page 29
MultiDim
Accessories
MultiDim rotary module providing
dimming functionality + IR receiver
Product ID EOC
DCMD100 MODULE ROTARY 747921 00
MultiDim control module with single
slider providing dimming functionality +
IR receiver
Product ID EOC
DCMD110 MODULE SINGLE
SLIDER
747938 00
DCMD100
DCMD110
MultiDim control module with twin
sliders, both providing dimming
functionality + IR receiver
Product ID EOC
DCMD111 MODULE TWIN SLIDER 747945 00
MultiDim 2-button control module
providing ON and OFF functionality +
IR receiver
Product ID EOC
DCMD121 MODULE 2 BUTTON
ON/OFF
747952 00
DCMD111
DCMD121
Lighting Controls
Philips indoor luminaires11.28
Page 30
MultiDim 2-button control module
providing raise and lower functionality
+ IR receiver
Product ID EOC
DCMD122 MODULE 2 BUTTON
UP/DWN
747969 00
MultiDim 5-button control module
providing 4 scene buttons and OFF
button + IR receiver
Product ID EOC
DCMD124 MODULE 5 BUTTON 747976 00
MultiDim
Lighting Controls
DCMD122
DCMD124
MultiDim 7-button control module
providing 4 scene buttons, 2 raise/
lower buttons and OFF button + IR
receiver
Product ID EOC
DCMD125 MODULE 7 BUTTON 747983 00
MultiDim 8-button control module
providing 7 scene buttons and OFF
button + IR receiver
Product ID EOC
DCMD126 MODULE 8 BUTTON 747990 00
DCMD125
DCMD126
Philips indoor luminaires 11.29
Lighting Controls
Page 31
MultiDim
MultiDim single blank module used to
cover an empty module position in a
frame
Product ID EOC
DCMD150 MODULE SINGLE
BLANK
748003 00
This MultiDim module provides IR
receiver functionality only.
Product ID EOC
DCMD170 MODULE IR RECEIVER 748010 00
DCMD150
DCMD170
This MultiDim module provides a
hardware programming point for a
PC or laptop to be connected to the
MultiDim system via a dedicated serial
interface cable.
Product ID EOC
DCMD180 MODULE PROGR
POINT
748027 00
White MultiDim frame that can hold
up to 3 MultiDim control modules
Product ID EOC
DCMD200D FRAME TRIPLE
MODULE
748034 00
DCMD180
DCMD200D
Lighting Controls
Philips indoor luminaires11.30
Page 32
White MultiDim frame that holds a
single MultiDim control module
Product ID EOC
DCMD200S FRAME SINGLE
MODULE
748041 00
MultiDim
Lighting Controls
DCMD200S
DCMD302
This ceiling-mounted multi-sensor
contains an IR receiver, a constant
light sensor that measures reected
light from below the device, and a PIR
occupancy sensor. The multi-sensor is
provided with a 40° angle restrictor for
the light sensor. The timer of the PIR
occupancy sensor can be set between
1 and 85 minutes.
MultiDim 7-button IR transmitter.
The IR remote control provides basic
functions such as ON/OFF, up/down
and a selection of four preset light
scenes. It can also be used as a basic
system conguration tool.
Product ID EOC
DCMD303 TRANSM IR 7KEY 747884 00
Product ID EOC
DCMD302 MULTISENSOR CEILING 747877 00
DCMD303
Philips indoor luminaires 11.31
Lighting Controls
Page 33
MultiDim
MultiDim DIN-rail-mounted power
supply to feed the DALI wire. The
power supply is capable of a maximum
Product ID EOC
DCMD400 POWER SUPPLY DIN 747891 00
MultiDim ceiling-mounted power
supply to feed the DALI wire. The
power supply is capable of a maximum
Product ID EOC
DCMD401 POWER SUPPLY
CEILING
748744 00
DCMD400
DCMD401
Solo Dimmer, capable of dimming a
single channel with total loads of up
to 16A. It is suitable for controlling a
variety of light sources. The dimmer
is controlled by a digital signal, using
the DALI (Digital Addressable Lighting
Interface) protocol.
Product ID EOC
DCMD416 SINGLE CHANNEL
DIMMER 16A
731667 99
Solo Dimmer, capable of dimming a
single channel with total loads of up
to 25A. It is suitable for controlling a
variety of light sources. The dimmer
is controlled by a digital signal, using
the DALI (Digital Addressable Lighting
Interface) protocol.
Product ID EOC
DCMD425 SINGLE CHANNEL
DIMMER 25A
731674 99
DCMD416
Lighting controls
Philips indoor luminaires11.32
Page 34
MultiDim
operation.This means you can be in
control of your light from the moment
that power is rst applied.The Input
unit provides 8-volt free input contacts.
The input unit has three modes of
operation, two of these emulate
push button panels using momentary
contacts, and the third mode is for use
with continuous closure contacts.Like
This MultiDim push-button interface
allows users to connect their own
button panels to the MultiDim system.
For retractive (push-to-make) buttons
only.
Product ID EOC
DCMD444 PUSHBUTTON
INTERFACE
928887 00
The 800 W transistor dimmer (trailing
edge) is a DIN-rail-mounted unit that
can control a maximum load of up to
800 W. It can be connected to mains-
voltage (incandescent) lamps directly,
or to low-voltage (halogen) lamps via
an electronic transformer.
Product ID EOC
DCMD450 DIMMER 800W TE 747914 00
the other controls in the MultiDim
range the input unit is pre-congured
for out-of-box operation.This means
you can be in control of your light from
the moment that power is rst applied.
DCMD440
Lighting Controls
Product ID EOC
DCMD440 INPUT UNIT 731681 99
DCMD444
DCMD450
The 1 - 10 V Converter has been
designed to control HF-R ballasts. This
Product ID EOC
DCMD472 CONVERTER 1-10V 731698 99
ensures that MultiDim systems are
compatible with and easily integrated
into existing systems. The converter can
switch a maximum of 12 HF-R ballasts.
DCMD472
The analogue 1 - 10 V signal and the
digital DSI signal can control 50 HF-R
ballasts.
This MultiDim relay unit features 4
outputs capable of handling loads of up
to 8 A per output.
DCMD494
Product ID EOC
DCMD494 RELAY UNIT 4x8A 928894 00
Philips indoor luminaires 11.33
Lighting Controls
Page 35
MultiDim
MultiDim PC programming kit
comprises conguration software,
a serial interface cable and a
programming point.
Product ID EOC
DCMD502 PC PROGRAMMING
KIT
749802 00
DCMD9242
rst-class display quality combined with
attractive looks that further boost the
panels appeal. The Touchpanel can be
congured easily to meet individual
customer lighting control requirements.
The Touchpanel is a touch sensitive
full color LCD screen that can be
used for controlling and programming
a MultiDim lighting control system.
Key criteria for the consumer market
such as ease-of-use and installation
have been fully incorporated. With a
full color 3.5” high-resolution touch
screen the Touchpanel also offers
rst-class display quality combined with
attractive looks that further boost the
panels appeal. The Touchpanel can be
congured easily to meet individual
customer lighting control requirements.
Product ID EOC
DCMD9242 TOUCH PANEL BSS 731650 99
Lighting Controls
Philips indoor luminaires11.34
Page 36
MultiDim
Lighting Controls
Philips indoor luminaires 11.35
Lighting Controls
Page 37
Create your own atmosphere,
in-a-box solutions
ColourChaser is a range of simple, easy-to-use lighting control solutions that
enable users to create their own lighting experience.
11.36
Philips indoor luminairesLighting Controls
Page 38
Providing out-of-the-box functionalities, Philips’ user-
friendly control solutions are ready for use immediately
after installation.
Even users with minimal technical background can install
and operate these “in-a-box solutions”.
With the ColourChaser family it is possible to set a
color, dim, or create one’s own color sequence, simply by
pushing a button or turning a wheel.
Scene-setting in-a-box solutions
Lighting Controls
Philips indoor luminaires Lighting Controls 11.37
Page 39
ColourChaser
ColourChaser Touch
The ColourChaser Touch provides
an intuitive, touch-sensitive interface
– with acoustic feedback – to control
and match colors from multiple
sources (RGB, RGBW, CMY and
CMYK) and can control up to
100 (groups of) intelligent DMX-
controlable color-changing luminaires.
Color (C), Intensity (I) and Saturation
(S) can be simply adjusted directly by
pressing the appropriate button and
dialing the wheel
Product ID EOC
LRC9611 COLOURCHASER
TOUCH (48 V)
808963 99
Accessories
ColourWheel
Individually control up to 48 RGB
luminaires with one of the four pre-
programmed sequences or create
your own dynamic sequence. You can
create the sequences with Windows-
compatible software and upload via a
standard serial connection. Individual
control of up to 144 DMX channels
The ColourChaser Wheel makes it
possible to directly set a color, dim or
set a pre-programmed automatic color
sequence on a maximum of 30 RGB
luminaires with full manual control
Product ID EOC
LRC9610/00 COLCHAS WHEEL
DMX RGB
730882 00
Product ID EOC
LRC9600/00 COLCHAS SW DMX
144
LRC9601/00 DMX CONTR144+SW
(110V)
730899 00
730950 99
LRC9611
LRC9600/9601
Lighting Controls
LRC9610
Philips indoor luminaires11.38
Page 40
Converters
The DMX-to-DALI converter converts
four successive DMX channels into
four separate DALI lines and enables
digital control gear with DALI interfaces
to be switched and dimmed. Connects
easily to the ColourChaser DMX 144
(LRC9600) to enable DMX and DALI
luminaires to work together
The DMX-to-PWM converter
converts four successive DMX
channels into four separate PWM lines.
Connects easily to the ColourChaser
DMX 144 (LRC9600) to enable DMX
and PWM luminaires to work together
Product ID EOC
LRC9631/00 DMX-PWM CONV
(230V)
730936 99
Product ID EOC
LRC9630/00 DMX-DALI CONV
(230V)
730929 99
ColourChaser
Lighting Controls
Product ID Description EOC
LRC9632/00 PWM-1/10V CONV Converter PWM to 1-10 V 730943 99
Philips indoor luminaires 11.39
Lighting Controls
Page 41
Page 42
Vidiwall
Lighting ControlsLighting Controls
Page 43
Vidiwall – Candeo
Candeo – look on the bright side
The most effective communication in larger indoor environments occurs from a
distance of 5 to 50 meters. Until now, there has been no suitable means of
dynamic communication that can overcome the issue of size for full impact and
the ambient light conditions. With this in mind, Philips has developed the Philips
Candeo range of displays, designed specically to bridge this gap.
The Candeo LED video screen is the latest in professional display solutions. These seamless
LED-based screens display all content with ultra-high brightness so viewing is crystal clear, even
in bright ambient conditions. Candeo is the true out-of-the-box solution and through the use
of Dynamic Power Control, can be operated from a regular European mains socket.
www.philips.com/lighting
Philips indoor luminairesVidiwall11.42
Page 44
Candeo
Types VWL015, VWL025, VWL035
Brightness VWL015: 1200, VWL025: 2000, VWL035: 2000 cd/m
Display dimensions 2592 x 1458 mm
Display screen type 3 in 1 SMD LED
Viewing angle 150° (H) / 150° (V)
Pixel pitches 4.5, 6.75, 10.125 mm
Color temperature 6500 K
Refresh rate >100 Hz
Grey scale 15 bit
Color resolution 45 bit
Power consumption VWL015: 3200VA, VWL025: 2600VA, VWL035: 2600VA
LED lifetime >100 000 hours
Optional accessories Wall bracket, pedestal
Vidiwall – Candeo
Vidiwall
2
VWL015/025/035
Philips indoor luminaires Vidiwall 11.43
Loading...
