Philips HTS6520 12 User Manual

Download

www.philips.com/welcome

HTS6520

EN User manual

DE Benutzerhandbuch

ES Manual del usuario

FR Mode d’emploi

NL Gebruiksaanwijzing

Contents

1 Important 2

Safety and important notice 2 Trademark notice 4

2 Your product 5

Feature highlights 5 Product overview 6

6 Adjust sound 31

Control the volume 31 Adjust Bass/Treble 31 Select Ambisound 31 Select a preset sound 31

7 Adjust settings 32

General setup 32 Audio setup 34 Video setup 35 Preferences 37

English

3 Connect 8

Place the product 8 Connect video cables 9 Connect speakers and subwoofer 11 Connect radio antenna 11 Connect audio cables/other devices 12 Connect power cord 15 Attach table stand 15 Mount the main unit 15 Mount the speakers 16

4 Get started 17

Insert the remote control batteries 17 Find the correct viewing channel 17 Select menu display language 18 Start Ambisound setup 18 Turn on Progressive Scan 19 Use Philips EasyLink 20 Select a play source 21

8 Additional Information 39

Update software 39 Care 39

9 Speci cations 40

10 Troubleshooting

11 Glossary

5 Play 22

Play a disc 22 Play video 22 Play music 25 Play photo 26 Play from USB device 27 Play from portable media player 28 Play from iPod 28 Play from radio 29

1 Important

Safety and important notice

Warning

Risk of overheating! Never install the product • in a con ned space. Always leave a space of at least 4 inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product. Never place the product, remote control or

•

batteries near naked  ames or other heat sources, including direct sunlight. Only use this product indoors. Keep this

•

product away from water, moisture and liquid lled objects. Never place this product on other electrical

•

equipment.

•

Keep away from this product during lightning storms. Where the mains plug or an appliance

•

coupler is used as the disconnect device, the disconnect device shall remain readily operable. Visible and invisible laser radiation when open.

•

Avoid exposure to beam.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Copyright in the U.K. Recording and playback of material may require consent. See Copyright Act 1956 and The Performers’s Protection Acts 1958 to

1972.

Mains fuse (UK only)

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/EC (EMC).

This product is  tted with an approved moulded plug. Should it become necessary to replace the mains fuse, this must be replaced with a fuse of the same value as indicated on the plug (example 10A).

1 Remove fuse cover and fuse. 2 The replacement fuse must comply with

BS 1362 and have the ASTA approval mark. If the fuse is lost, contact your dealer in order to verify the correct type.

3 Re t the fuse cover.

Note

To conform with the EMC directive • (2004/108/EC), the mains plug on this product must not be detached from the mains cord.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

About Progressive Scan

Consumers should note that not all high de nition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard de nition’ output. If there are questions regarding our TV set compatibility with this model 525p and 625p DVD player, please contact our customer service center.

English

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Trademark notice

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.

DivX, DivX Ultra Cer ti ed, and associated logos are trademarks of DivX, Inc. and are used under license. Of cial DivX® Ultra Certi ed product. Plays all versions of DivX ® video (including DivX ® 6) with enhanced playback of DivX® media  les and the DivX® Media Format. Plays DivX® video with menus, subtitles and audio tracks.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

Made for

iPod

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPod” means that an electronic accessory has been designed to connect speci cally to iPod and has been certi ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

CLASS 1

LASER PRODUCT

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

HDMI, and HDMI logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

2 Your product

Congratulations on your purchase, and welcome to Philips! To fully bene t from the support that Philips offers, register your product at www.philips.com/welcome.

Feature highlights

Philips EasyLink Your product supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.

Note

Sync the audio output with the video play Synchronize audio and video by delaying the audio output if the video signal sent to the TV is slower than the audio streams.

Region codes

You can play discs with the following region codes.

DVD-områdekode Lande

Europa

Rusland

English

Philips does not guarantee 100% • interoperability with all HDMI CEC devices.

Philips Ambisound Philips Ambisound technology reproduces multi-channel surround sound with fewer speakers to give an embracing surround experience without the hassle of setting up a full range of speaker systems.

Video upscaling to 1080p Enjoy watching discs in the highest picture quality available for your HDTV. This product offers full high-de nition video playback up to 1080p resolution that provides a highly detailed picture and increased sharpness that delivers a more true-to-life picture for an amazing viewing experience.

Hi speed USB 2.0 Link and MP3 link Simply plug your USB device into the USB jack to play your MP3/WMA/JPEG/DivX  les; or plug your portable media player to the MP3 LINK jack to enjoy the music play in superb sound quality.

Product overview

Main unit

h i

j k

Note

Control buttons on this Home Theater • Sustem are operated through touch screen display. The control displays will be dimly lit after one second of inactivity.

•

You can change the brightness of the touch screen display (see ‘Adjust settings’ > ‘General Setup’ > [Display Dim] ).

Remote control

a ( Standby-On )

Turns on the Home Theater System • or switches to standby mode.

c VOL +/-

e SOURCE

( Play/Pause )

Star ts, pauses or resumes disc play.• In radio mode, automatically tune • radio stations during  rst-time setup.

Increases or decreases volume.•

( Stop )

Stops disc play.• In radio mode, erases the current • preset radio station.

Selects a media to play or listen to • audio from the connected device.

cdefg a

o p q

r s

t u

a b c d

f g

k l

( Open/Close )

Opens or closes the disc • compartment.

g Disc compartment h iPod DOCK

Docks a iPod.•

j MP3 LINK

k Display panel

Connects a USB supported device.•

Connects a portable audio player•

a ( Standby-On )

Turns on the Home Theater System • or switches to standby mode. When EasyLink is enabled, switches • the Home Theatre System and all EasyLink devices to standby. Note that you must press and hold ( Standby-On ) for at least 3 seconds for this to occur.

OPEN/CLOSE

Opens or closes the disc • compartment.

c Source buttons

• DISC : Switches to the disc source.

• USB : Switches to the USB source.

• RADIO : Switches to FM radio.

• AUDIO SOURCE : Selects an audio input source.

• iPod DOCK : Switches to the iPod in the dock.

SETUP

Accesses or exits the setup menu.•

( Navigation buttons )

Navigates through the menus.• Press left and right for fast backward • or forward search. In radio mode, press up and down to • tune the radio frequency. In radio mode, press left or right to • start auto search.

INFO

For discs, displays information about • the current status or the disc. For slideshows, displays a thumbnail • view of photo  les.

k AUDIO SYNC

Selects an audio language or channel. • Press and hold to access the setting • for audio sync, then press set the audio delay time. In radio mode, toggles between FM • stereo and FM mono.

l SOUND MODE

Selects a prede ned sound effect.•

m REPEAT / PROGRAM

Selects or turns off repeat or shuf e • mode. In radio mode, resets the list of preset • stations: press to manually reset; press and hold to automatically reset.

n OK

Con rms an entry or selection.•

BACK

Returns to a previous screen.• For DVD, goes to the title menu.• For VCD version 2.0 or SVCD with • PBC turned on, returns to the menu during playback.

/ ( Previous/Next )

Skips to the previous or next title, • chapter, or track.

+/- to

English

( Play/Pause )

Star ts, pauses or resumes disc play.• In radio mode, automatically tune • radio stations during  rst-time setup.

( Stop )

Stops disc play.• In radio mode, erases the current • preset radio station.

i TREBLE / BASS

Selects Treble or Bass mode, then • press

+/- to set the level for

treble or bass output.

j Numeric buttons

Selects an item to play.•

( Mute )

Mutes or restores audio output.•

+/-

Increases or decreases volume.•

s AMBISOUND

Selects stereo sound output or • multi-channel surround output.

t SUBTITLE

Selects a subtitle language for video.•

u HDMI / ANGLE

Selects the video resolution of HDMI • output. Press and hold to display video from • different camera angles.

v ZOOM

Zooms in or out of the picture.•

3 Connect

Make the following connections to use your Home Theater System.

Basic connections:

Video• Speakers and subwoofer• Power•

Optional connections:

Radio antenna• Audio•

Audio from TV• Audio from cable box/recorder/• game console

Other devices•

Portable media player• USB device•

iPod• Attach table stand• Mount the Home Theater System• Mount the speakers•

Note

Refer to the type plate at the back or bottom • of the product for identi cation and supply ratings. Before you make or change any connections,

•

ensure that all devices are disconnected from the power outlet.

Tip

Place the product

Place the product where it cannot be • pushed, pulled over or knocked down. Do not place it in an enclosed cabinet. Be sure that you have full access to the • power cord for easy disconnection of the product from the power supply.

LEFT

RIGHT

1 Place the home theater near your TV. 2 Place the speakers system at normal

listening height and parallel to your listening area.

3 Place the subwoofer in the corner of the

room or at least 1 meter/3 feet away from your TV.

Tip

To reduce interference or noise, place the • home theater away from radiation devices.

Different types of connectors can be used to • connect this product, depending on availability and your needs. A comprehensive interactive guide to help you connect your product is available at www.connectivityguide.philips. com.

Note

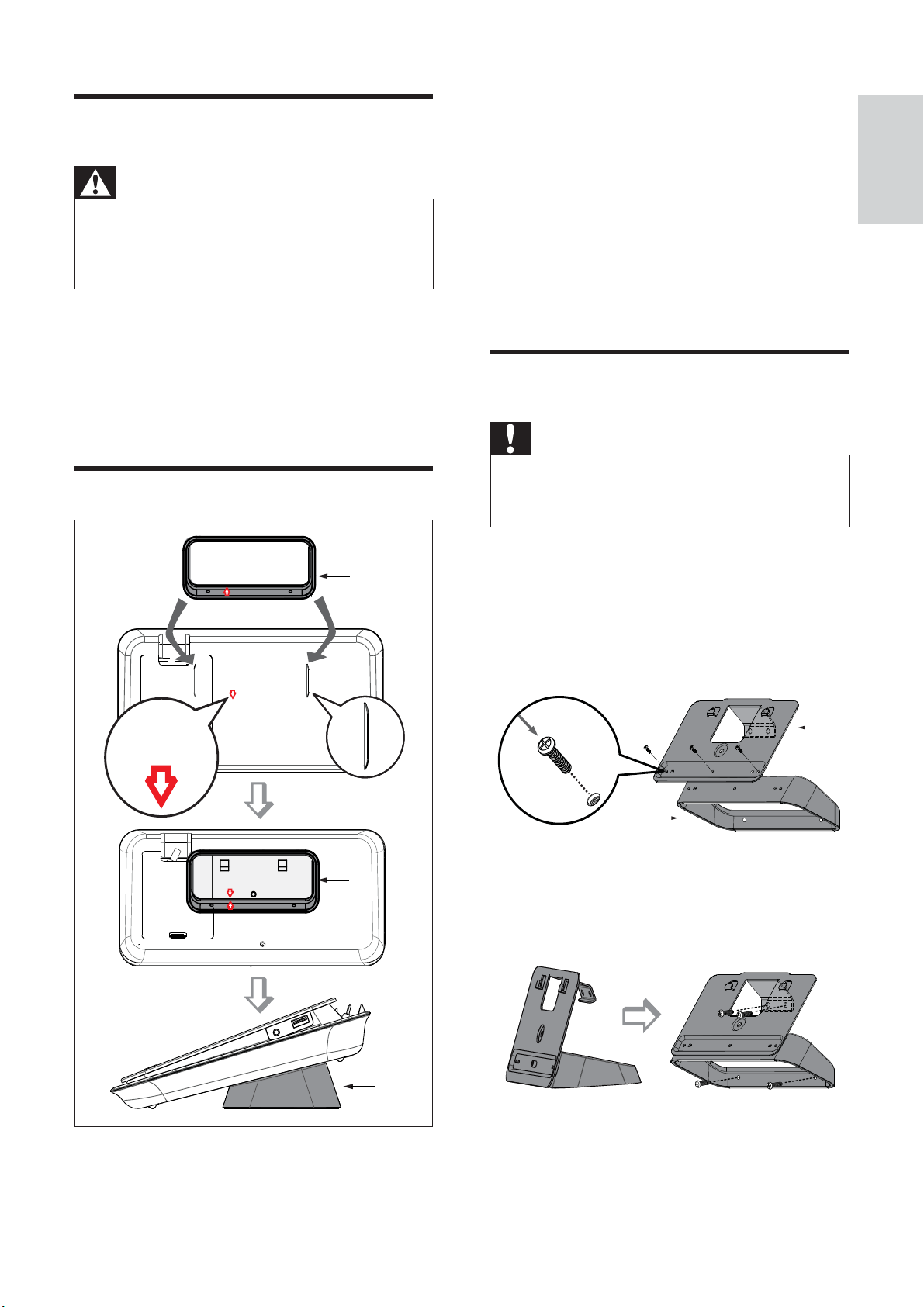

• Attach the table stand to this home theater before place it on a table top. (see ‘Attach table stand’ on page 15 ) Y ou can mount this home theater .

•

Connect video cables

Option 1: Connect to the HDMI jack

Connect this Home Theater System to TV to view disc play. Select the best video connection that the TV can support.

Option 1: Connect to the HDMI jack (for • a HDMI, DVI or HDCP-compliant TV). Option 2: Connect to the SCART jack • (for a standard TV). Option 3: Connect to the component • video jacks (for a standard TV or Progressive Scan TV).

Note

You must connect this Home Theater System • directly to a TV.

Before you connect

1 Push up the catch and remove the rear

cover.

English

HDMI OUT

HDMI IN

1 Connect an HDMI cable (not supplied)

to the HDMI OUT jack on this Home Theater System and the HDMI input jack on the TV.

2 Connect the cables to the corresponding

jacks and direct the cables to the open hole on top.

See the connection options in the •

following pages.

3 Once complete, close the rear cover.

Note

If your device supports HDMI CEC, you can • control compliant devices with a single remote control. (see ‘Get started’ > ‘Use Philips EasyLink’).

Tip

If the TV has a DVI connection only, connect • via a HDMI/DVI adaptor. Connect an audio cable for sound output. You can optimize the video output. (see

•

‘Adjust settings’ > ‘Video setup’ > [HDMI Setup] ). This type of connection provides the best

•

picture quality.

All the cables must be placed inside the rear • panel in order to close the rear cover properly.

Option2: Connect to the SCART jack

SCART

1 Connect a scart cable to the SCART jack

on this Home Theater System and the SCART input jack on the TV.

Option 3: Connect to the component video jack

COMPONENT

VIDEO OUT

Note

Scart connection allows TV’s audio output • through the speakers. Press AUDIO SOURCE repeatedly until ‘SCART INPUT’ is displayed on the display panel. This type of connection provides good picture

•

quality.

1 Connect the component video cable to

the COMPONENT VIDEO OUT jack on this Home Theater System and the COMPONENT VIDEO input jack on the TV.

If a progressive scan TV is used, you • may turn on the progressive scan mode .

Note

The component video input jack on the TV • might be labeled as Y Pb Pr , Y Cb Cr or YUV . This type of connection provides good picture

•

quality.

Connect speakers and subwoofer

LEFT

RIGHT

Connect radio antenna

FM ANTENNA

(75 Ω)

1 Connect the FM antenna to the FM75

jack on the subwoofer (for some models, this cable is already connected).

2 Extend the FM antenna and  x its ends to

the wall.

Tip

English

TO SUBWOOFER

TO MAIN UNIT

1 Connect the left and right speakers to the

matching jacks on the subwoofer.

2 Unwind the subwoofer’s interconnect

cable at TO MAIN UNIT and connect it to the TO SUBWOOFER jack on this Home Theater System.

For better FM stereo reception, connect to an • external FM antenna.

Note

Ensure that the front portion of the plug is fully • inserted into the jack.

Connect audio cables/other devices

Route the audio from other devices to this Home Theater System to enjoy audio play with multi-channel surround capabilities.

Connect audio from TV

(also used for EasyLink control)

Connect audio from a cable box, recorder or games console

You can choose to connect to analog or digital jacks depending on the device capabilities.

AUDIO OUT

1 Connect the audio cables (not supplied)

to the AUDIO IN-AUX1 jacks on this Home Theater System and the AUDIO output jacks on the TV.

AUX 2

AUDIO IN

AUDIO OUT

1 Connect the audio cables (not supplied)

to the AUDIO IN-AUX2 or AUX3 jacks on the subwoofer and the AUDIO output jacks on the device.

Note

To listen to the audio output from this • connection, press AUDIO SOURCE repeatedly until ‘AUX2 INPUT’ or ‘AUX3 INPUT’ is displayed on the display panel.

Note

To listen to the audio output from this • connection, press AUDIO SOURCE repeatedly until ‘AUX1 INPUT’ is displayed on the display panel.

Connect to coaxial jack

DIGITAL OUT

COAXIAL

DIGITAL IN

1 Connect a coaxial cable (not supplied) to

the COAXIAL DIGITAL-IN jack on the subwoofer and the COAXIAL/DIGITAL output jack on the device.

Note

To listen to the audio output from this • connection, press AUDIO SOURCE repeatedly until ‘OPTICAL INPUT’ is displayed on the display panel.

Connect portable media player

MP3

English

To listen to the audio output from this • connection, press AUDIO SOURCE repeatedly until ‘COAXIAL INPUT’ is displayed on the display panel.

Connect to optical jack

DIGITAL OUT

OPTICAL / DIGITAL IN

1 Connect an optical cable (not supplied)

to the OPTICAL DIGITAL-IN jack on the subwoofer and the OPTICAL/SPDIF output jack on the device.

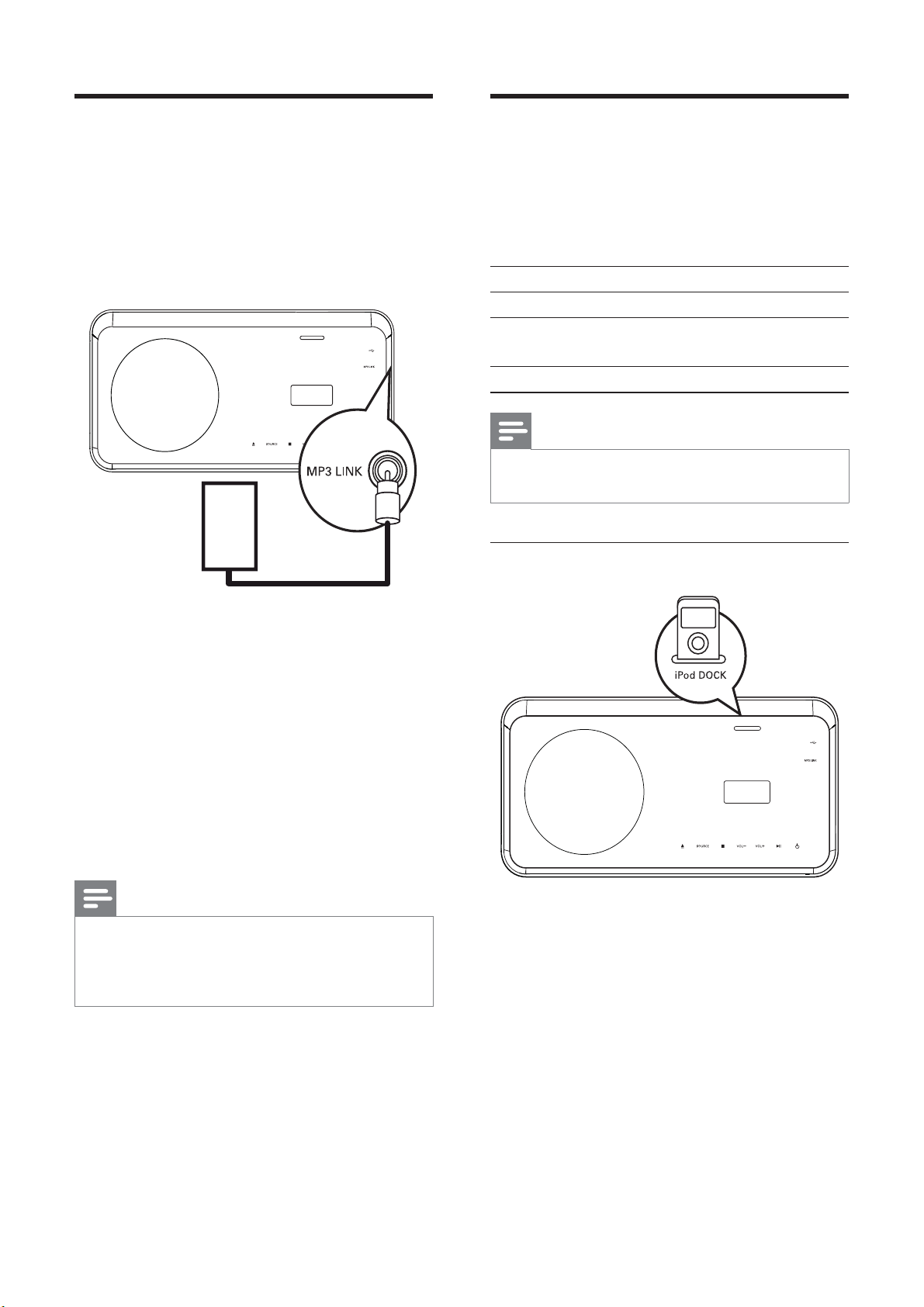

1 Connect a 3.5mm stereo audio cable (not

supplied) to the MP3 LINK jack on this Home Theater System and the phone jack on the portable media player (such as MP3 player).

Note

To listen to the audio output from this • connection, press AUDIO SOURCE repeatedly until ‘MP3 LINK’ is displayed on the display panel.

Connect USB device

Connect iPod

DOCK POSITION SWITCH

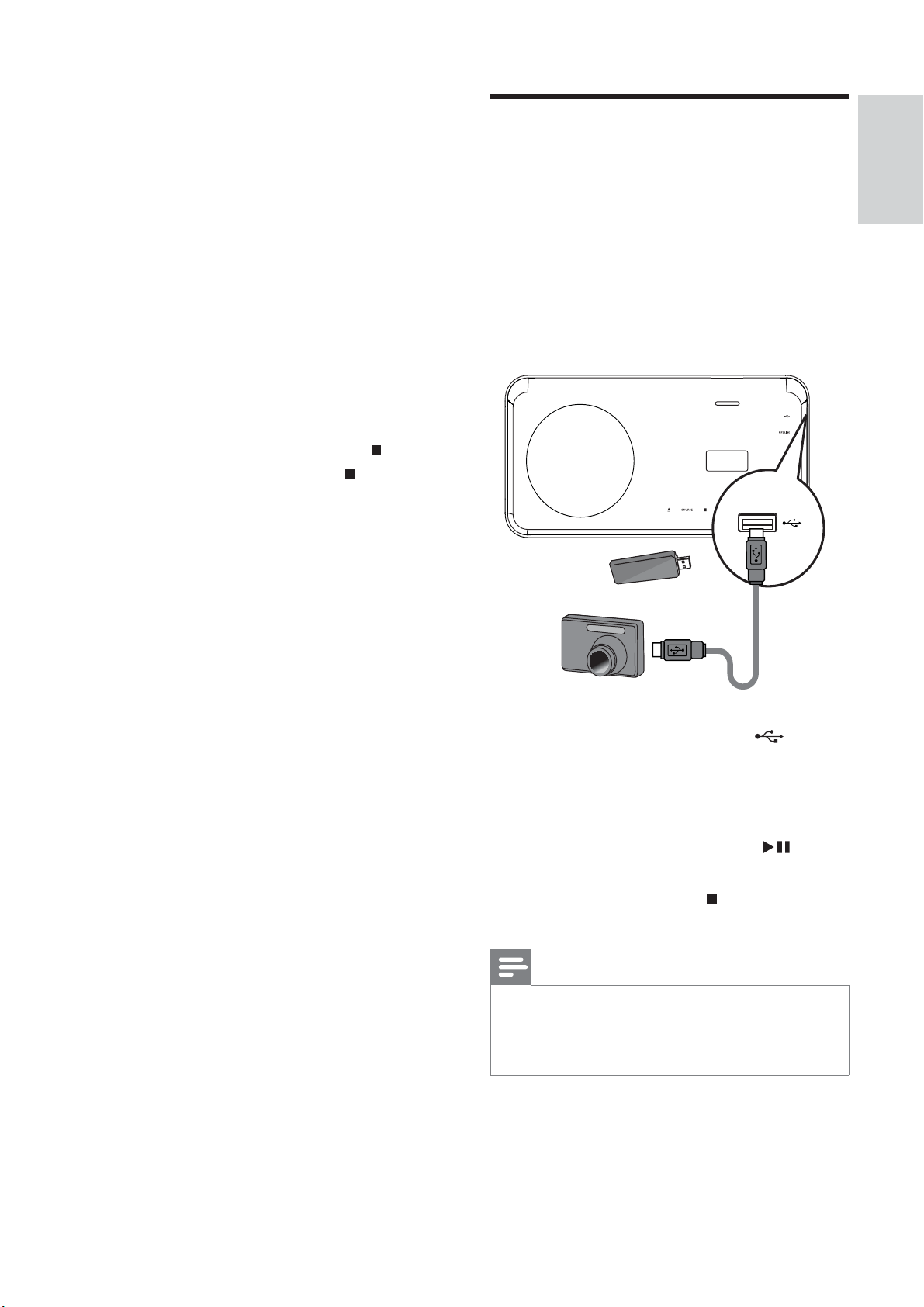

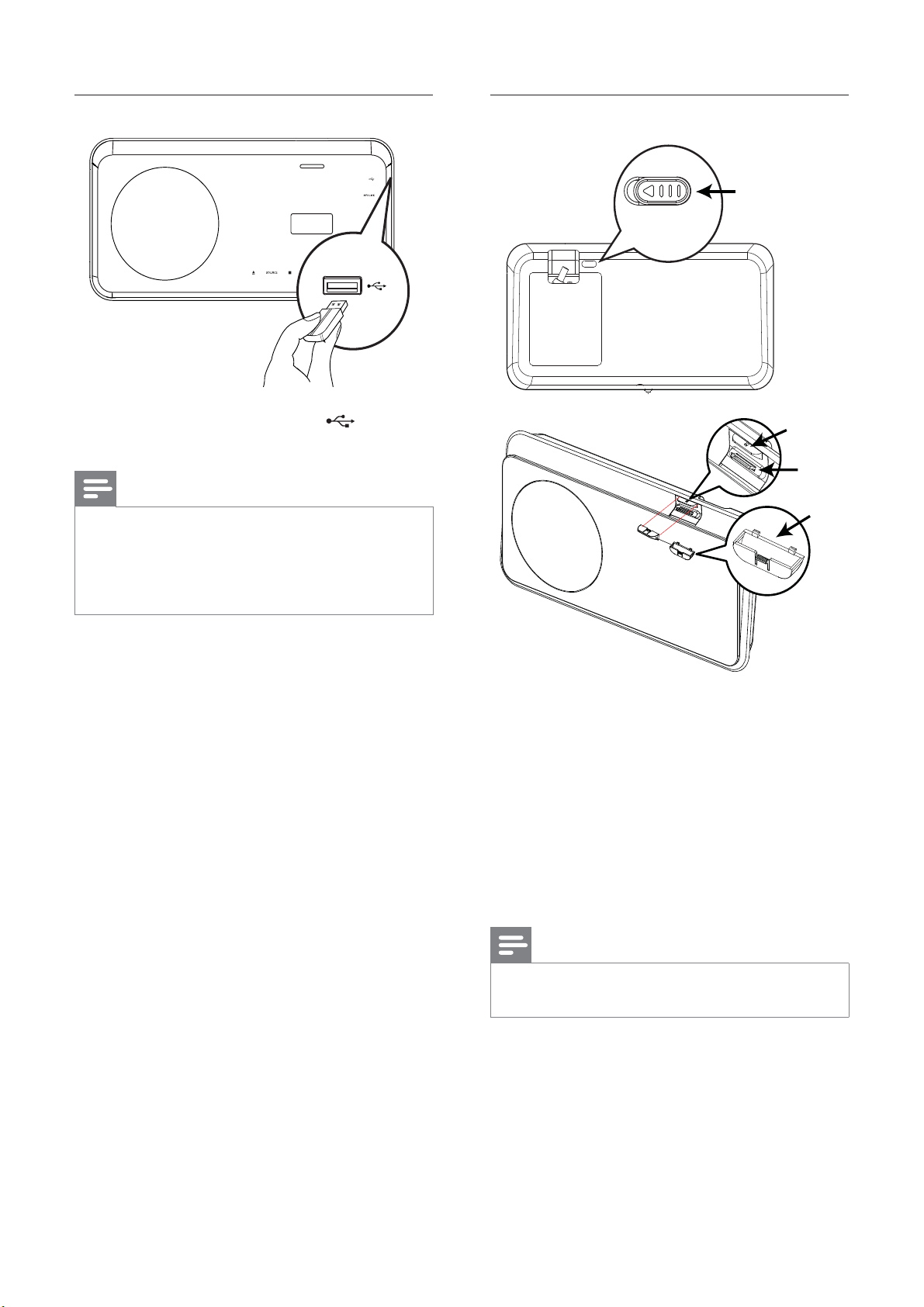

1 Connect the USB device to USB jack

on this Home Theater System.

Note

This Home Theater System can only play/view • MP3, WMA, DivX (Ultra) or JPEG  les that are stored on such devices. Press

• USB to access the content and play the

 les.

1 Push the ‘slide’ button (A) to one side

and move the ‘holder’ (C) until you get the best position to  t your iPod.

2 Release the ‘slide’ button (A). 3 Select a matching dock adaptor (D) and

attach it to the ‘holder’ (C).

4 Dock your iPod to iPod DOCK slot on

this Home Theater System.

Note

To listen to the audio output from this • connection, press iPod DOCK .

Connect power cord

Warning

Risk of product damage! Ensure that the • power supply voltage corresponds to the voltage printed on the back or the underside of the product.

1 Connect the power cord to the power

outlet when all the required connections are done.

This product is ready to be set up for » use.

Attach table stand

1 Ensure all the required cables are

connected to this Home Theater System and close the rear cover.

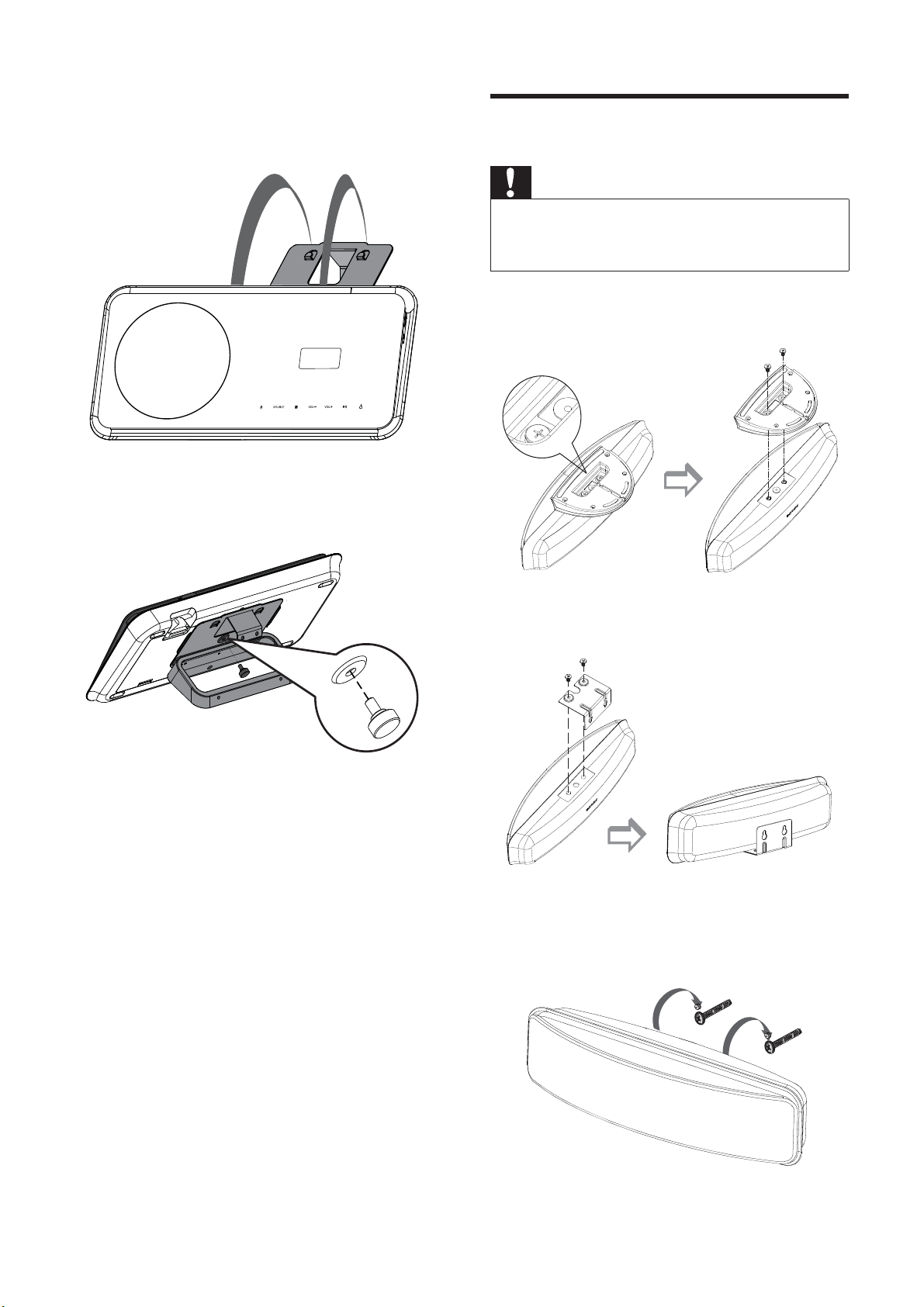

2 Attach the table stand bracket to the rear

of this Home Theater System.

Align the arrow indicators for • correct positioning and placement. Use the protrude panels to hold the • table stand bracket.

Mount the main unit

Caution

Risk of personal injur y and damage to the • product. Allow only quali ed persons to mount the product.

1 Ensure all the required cables are

connected to the main unit and close the rear cover.

English

Align Arrow

With table Stand

Align Arrow

With table Stand

2 Attach the big wall mount bracket to the

table stand bracket with screws.

3 Position the brackets on the wall, drill

four screw holes and secure the brackets onto the wall with screws (not supplied).

A = table stand bracket.

4 Hook the main unit  rmly onto the

mounted bracket.

5 Screw the supplied knob to the hole at

the center rear to secure the bracket.

Mount the speakers

Caution

Risk of personal injur y and damage to the • product. Allow only quali ed persons to mount the product.

1 Loosen the screws at the bottom of the

speaker to remove the speaker stand.

2 Attach the small wall mount bracket to

the speaker with screws.

3 Fix two screws (not supplied) to the wall,

then hook the bracket onto the screws and lock the speaker into position.

4 Get started

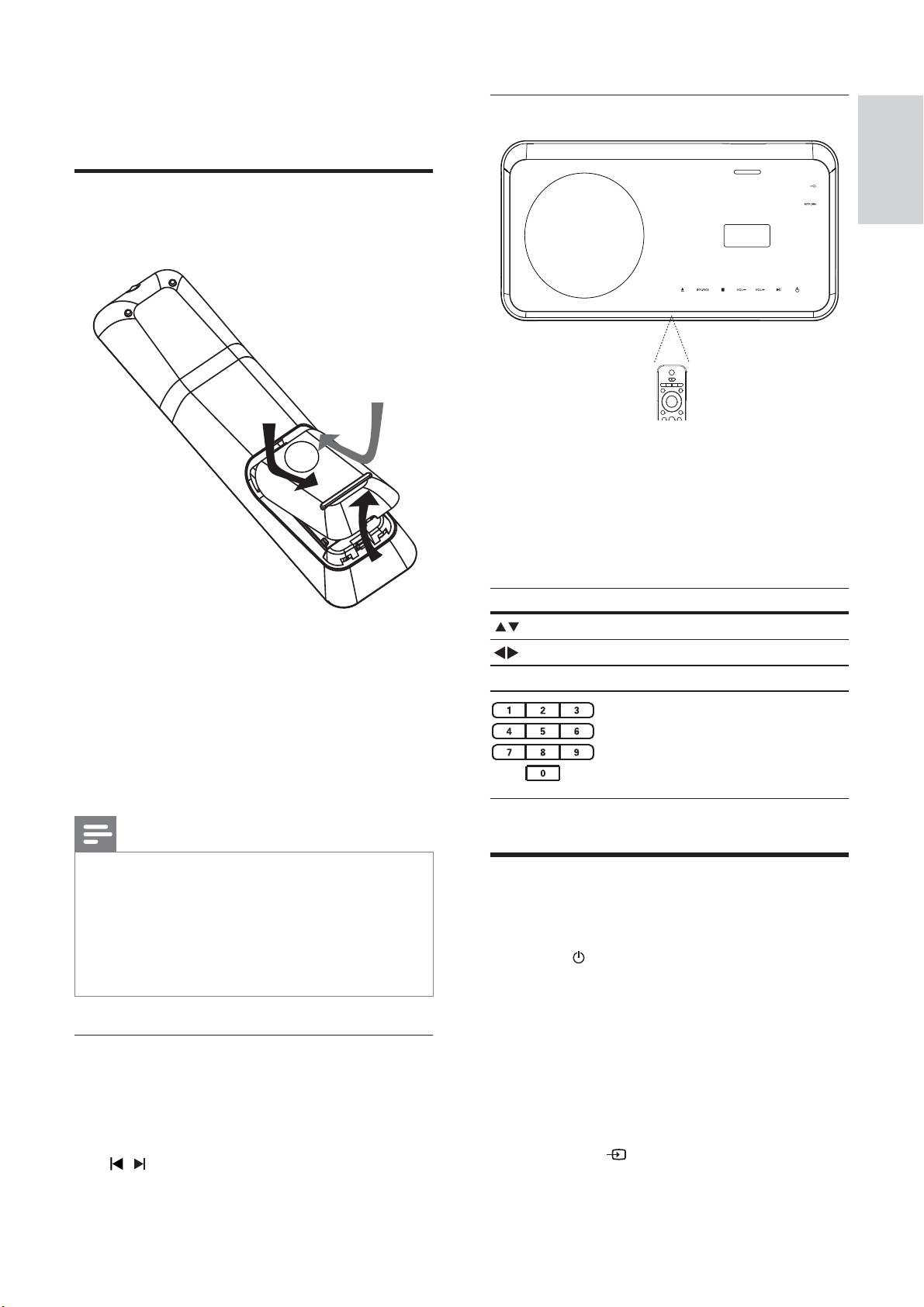

Insert the remote control batteries

Navigate through the menu

English

1 Point the remote control directly at the

remote sensor on the product and select the desired function.

2 Press the following buttons on the

remote control to navigate through the on-screen menus.

1 Slide the battery cover off the back of the

remote control.

2 Insert the 2 supplied batteries (AAA). Be

sure the + and - ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

Do not mix batteries (old and new or carbon • and alkaline, etc.).

•

Remove batteries if they are exhausted or if the remote control is not to be used for a long time. Batteries contain chemical substances, they

•

should be disposed of properly.

Control a play source

1 Press RADIO , USB or DISC button to

select the source you wish to control.

2 Select the desired function (for example

, ).

Button Action

Move up or down

OK Con rm a selection

Move left or right

Enter numbers

Find the correct viewing channel

1 Press to turn on this product. 2 Press DISC to switch to disc mode. 3 Turn on the TV and switch to the correct

video-in channel in one of the following ways:

Go to the lowest channel on your TV, • then press the Channel Down button until you see the Philips screen. Press • on the remote control of your TV.

SOURCE button repeatedly

Tip

The video-in channel is between the lowest • and highest channels and may be called FRONT, A/V IN, VIDEO, HDMI etc. See the TV user manual on how to select the correct input on the TV.

Select menu display language

Note

Start Ambisound setup

Change the Ambisound setup according to your room environment and setup in order to obtain the best possible surround sound effect.

Note

Before you start, ensure that you have made • all the required connections. Complete the Ambisound setup before you

•

insert a disc to play.

Skip this setting if this product is connected • to a HDMI CEC compliant TV. It switches automatically to the same OSD menu language as per your TV setting.

General Setup

EasyLink Setup

Disc Lock

Display Dim

OSD Language

Screen Saver

Sleep Timer

Low Power Standby

DivX(R) VOD code

Auto

English

Dansk

Nederlands

Suomi

Français

Deutsch

Italiano

1 Press DISC . 2 Press SETUP .

» [General Setup] menu is displayed.

3 Press .

Audio Setup

Ambisound Setup

HDMI Audio

Night Mode

1 Press DISC . 2 Press SETUP . 3 Press to select [Audio Setup] in the

menu, then press

4 Select [Ambisound Setup] in the menu,

then press

If the setup option is not accessible, • press above steps again.

twice before you try the

4 Press to select [OSD Language] in

the menu, then press

The language options are different •

depending on your country or

region. It may not correspond to the

illustration shown here.

5 Press to select a language, then press

OK .

Tip

You can set the default language for DVD disc • menu (see ‘Adjust settings’ > ‘Preferences’ > [Disc Menu] ).

5 Press to select a setting in the menu,

then press OK .

To exit the menu, press •

Ambisound Setup

Room Acoustics

Room Placement

Speaker Distance

Listening Position

Hard

Soft

SETUP .

To select the condition of the room

Select • [Room Acoustics] and press

To select this Home Theater System placement in the room

Select • [Room Placement] and press

To select the distance between two speakers

Select • [Speaker Distance] and press

To select the distance between the listening position and the speakers

Select • [Listening Position] and press

1 Turn on the TV and ensure that the TV

progressive scan mode is deactivated (see the TV user manual).

2 Switch the TV to the correct viewing

channel for this Home Theater System.

3 Press DISC . 4 Press SETUP . 5 Press to select [Video Setup] in the

menu, then press

6 Select [Component Video] > [YUV] ,

then press OK .

7 Select [Progressive] > [On] , then press

OK .

A warning message is displayed. »

English

Turn on Progressive Scan

If the TV supports progressive scan output, you can connect this Home Theater System and the TV using component video connection. (see ‘Connect video cables’ > ‘Connect to the component video jack’).

Video Setup

TV System

TV Display

Picture Setting

HDMI Setup

Closed Caption

Progressive

Component Video

YUV

RGB

8 To proceed, select [Ok] and press OK .

The progressive setup is complete. »

Note

If a blank/distorted screen is displayed, wait for • 15 seconds for the auto recover. If no picture displayed, turn off the progressive

•

scan mode as follows: 1) Press to open the disc compartment. 2) Press AUDIO SYNC .

. 3) Press

9 Press SETUP to exit the menu. 10 You can now turn on the progressive scan

mode on the TV.

Note

If distorted picture is displayed, turn off the • progressive scan feature on this product and TV.

Video Setup

TV System

TV Display

Picture Setting

HDMI Setup

Closed Caption

Progressive

Component Video

Off

Use Philips EasyLink

Your product supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.

Note

Philips does not guarantee 100% • interoperability with all HDMI CEC devices.

1 Turn on the HDMI CEC operations on

the TV and other connected devices. See TVs/devices manual for details.

System audio control When you connect your product to HDMI CEC compliant devices, your product can switch automatically to play audio from the connected device. To use one-touch audio, you must map the audio input from the connected device to your product. You can use the remote control from the connected device to adjust the volume.

Audio Input Mapping When you map the audio input correctly, this Home Theater System switches to the audio from the played device automatically.

2 You can now enjoy the following Philips

EasyLink controls.

EasyLink You can turn off or turn on all EasyLink features.

One-touch play When you connect your product to devices that suppor t one-touch play, you can control your product and the devices with one remote control. For example, when you press Play on your DVD remote control, your TV automatically switches to the correct channel to show the DVD content. To enable One-touch play, a video disc must be placed in the disc compartment before operation.

One-touch standby When you connect your product to devices that support one-touch standby, you can use your product remote control to switch your product and all connected HDMI devices to standby mode. You can perform one-touch standby using the remote control from any of the connected HDMI devices.

Map the devices to the audio inputs

Note

Before you start, ensure that the audio output • of the HDMI TV and other HDMI devices have been connected to the audio input jacks on this Home Theater System.

General Setup

EasyLink Setup

Disc Lock

Display Dim

OSD Language

Screen Saver

Sleep Timer

Low Power Standby

DivX(R) VOD Code

EasyLink

One Touch Play

One Touch Standby

System Audio Control

Audio Input Mapping

1 Press DISC . 2 Press SETUP .

» [General Setup] menu is displayed.

3 Press . 4 Select [EasyLink Setup] , then press .

• [One Touch Play] and [One Touch Standby] functions are turned on by

default in the factory.

5 Select [System Audio Control] > [On] ,

then press OK to start scanning devices.

Once complete, audio input mapping » menu is displayed.

Audio Input Mapping

Select a play source

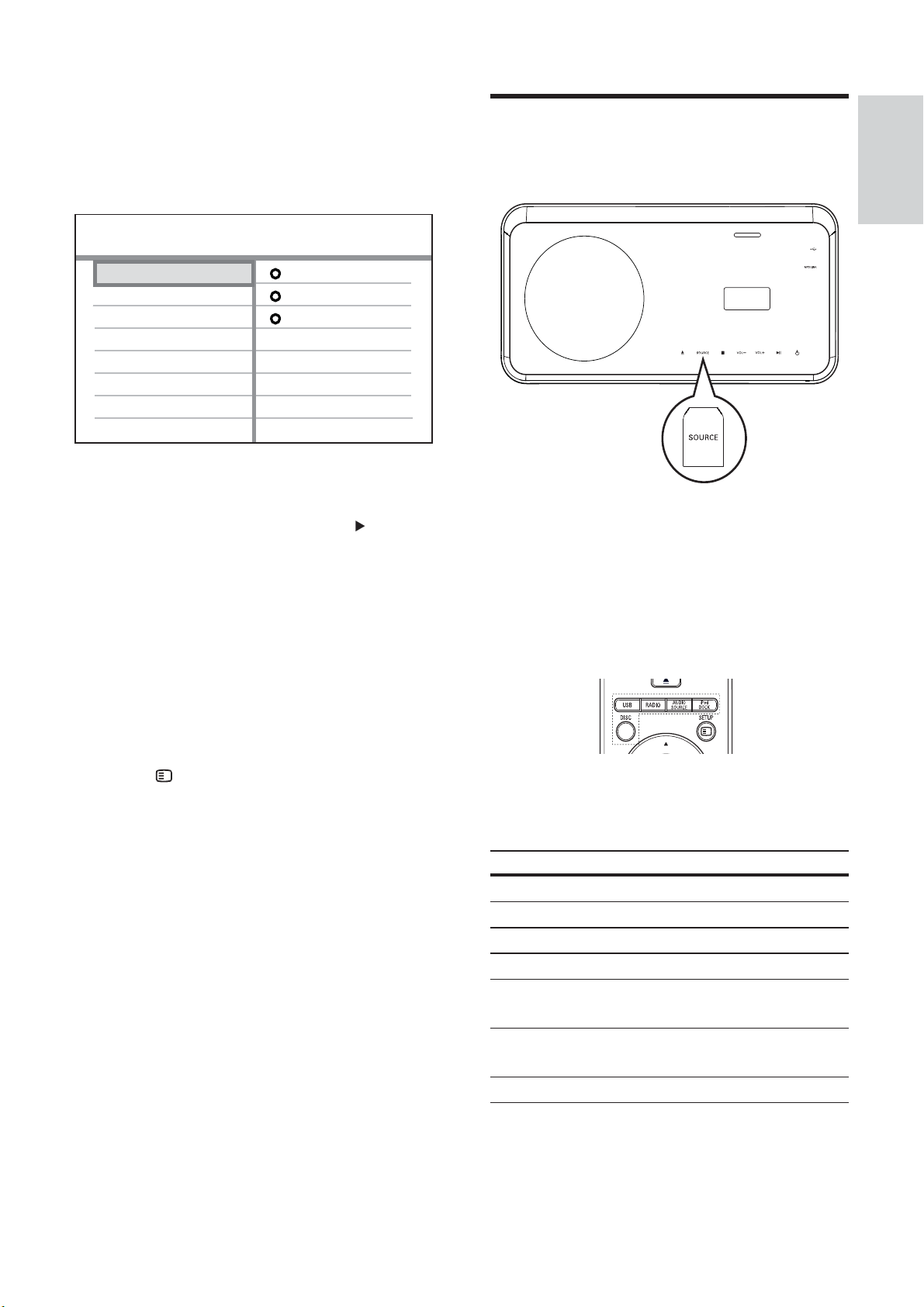

On the main unit

English

SCART Input

Aux1 Input

Aux2 Input

Aux3 Input

Coaxial Input

Optical Input

[TV]

[DVD 3400]

other(non-HDMI)

6 Select the audio input of this Home

Theater System that is used to connect to other HDMI device, then press

For example, if the TV audio is •

connected to the AUX1 jack on this

Home Theater System, select [Aux1

Input] and map with the TV (brand

name) at the right panel.

7 Select the correct connected device, then

press OK .

Repeat steps 5~7 to map other » connected devices.

Press • SOURCE repeatedly to select: DISC > IPOD > RADIO FM > COAXIAL INPUT > OPTICAL INPUT > SCART INPUT > AUX 1 INPUT > AUX2 INPUT > AUX3 INPUT > MP3 LINK > USB > DISC ...

On the remote control

8 Press SETUP to exit the menu.

Press • iPod DOCK to switch to dock mode. Press • AUDIO SOURCE repeatedly to switch to the connected audio source:

Display Device connected to

SCART INPUT SCART jack AUX1 INPUT AUDIO IN-AUX1 jacks AUX2 INPUT AUDIO IN-AUX2 jacks AUX3 INPUT AUDIO IN-AUX3 jacks COAXIAL

INPUT OPTICAL

INPUT

MP3 LINK MP3 LINK jack

Press • RADIO to switch to FM band. Press • USB to switch to USB mode. Press • DISC to switch to disc mode.

DIGITAL IN-COAXIAL jack

DIGITAL IN-OPTICAL jack

5 Play

Play video

Play a disc

Caution

Never place any objects other than discs into • the disc compartment.

•

Never touch the disc optical lens inside the disc compartment.

1 Press to open the disc compartment. 2 Insert a disc with its label facing up.

For double-sided disc, load the side •

to play faces up.

3 Press to close the disc compartment

and star t disc play.

To view disc play, turn on the TV to •

the correct viewing channel for this

Home Theater System.

To stop disc play, press •

Note

Check the types of discs suppor ted (see • ‘Speci cations’ > ‘Playback media’).

•

If the password entry menu is displayed, enter the password before you can play the locked or restricted disc. If you pause or stop a disc for about 15

•

minutes, the screen saver activates. To deactivate the screen saver, press DISC . After you pause or stop a disc and no buttons

•

are pressed within 30 minutes, this Home Theater System automatically switches to standby mode.

Note

For video disc, playback always resumes from • the point where it was last stopped. To start play from the beginning, press message is displayed.

while the

Control video play

1 Play a title. 2 Use the remote control to control the

title.

Button Action

Star ts, pauses or resumes

playback.

/ Searches fast-forward (right)

/ Searches slow-forward (down)

Stops play. Skips to the next title or chapter. Skips to the beginning of the

current title or chapter. Press twice to jump to the previous title or chapter.

or fast-backward (left). Press repeatedly to change the search speed.

In pause mode, slow motion • backward or forward play.

or slow-backward (up). Press repeatedly to change the search speed.

For VCD, only slow-forward • play is possible.

Change video play

1 Play a title. 2 Use the remote control to change the

video play.

Button Action

AUDIO SYNC

SUBTITLE Selects a subtitle language for

REPEAT Selects or turns off repeat or

ZOOM Zooms in or out of the picture.

INFO Displays the current status or the

Note

Some operations may not work with some • discs. See the information accompanying the disc for details.

Selects an audio language or channel.

video.

shuf e mode.

Repeat options vary • depending on the disc type. For VCDs, repeat play is • only possible if the PBC mode is turned off.

To pan through the zoomed • image, press the Navigation buttons .

disc information.

You can change the video • play options here without interrupting playback.

2 Select a play option, then press OK .

In some menus, press the • Numeric buttons to input your selection. To return to the title menu during • play, press

Access VCD menu

The PBC (Playback Control) for VCD is activated by default in the factory. When you load in a VCD, the contents menu is displayed.

BACK .

1 Press to select a play option, then

press OK to star t play.

If PBC is off, it skips the menu and • starts play from the  rst title. To return to the menu during play, • press PBC mode is on).

Tip

You can change the PBC setting (see ‘Adjust • settings’ > ‘Preferences’ > [PBC] ).

Sync audio output with video play

If the video play is slower than the audio output (sound does not match with the pictures), you can delay the audio output to match the video.

BACK (only possible if the

English

Access DVD menu

1 Press DISC to access disc main menu.

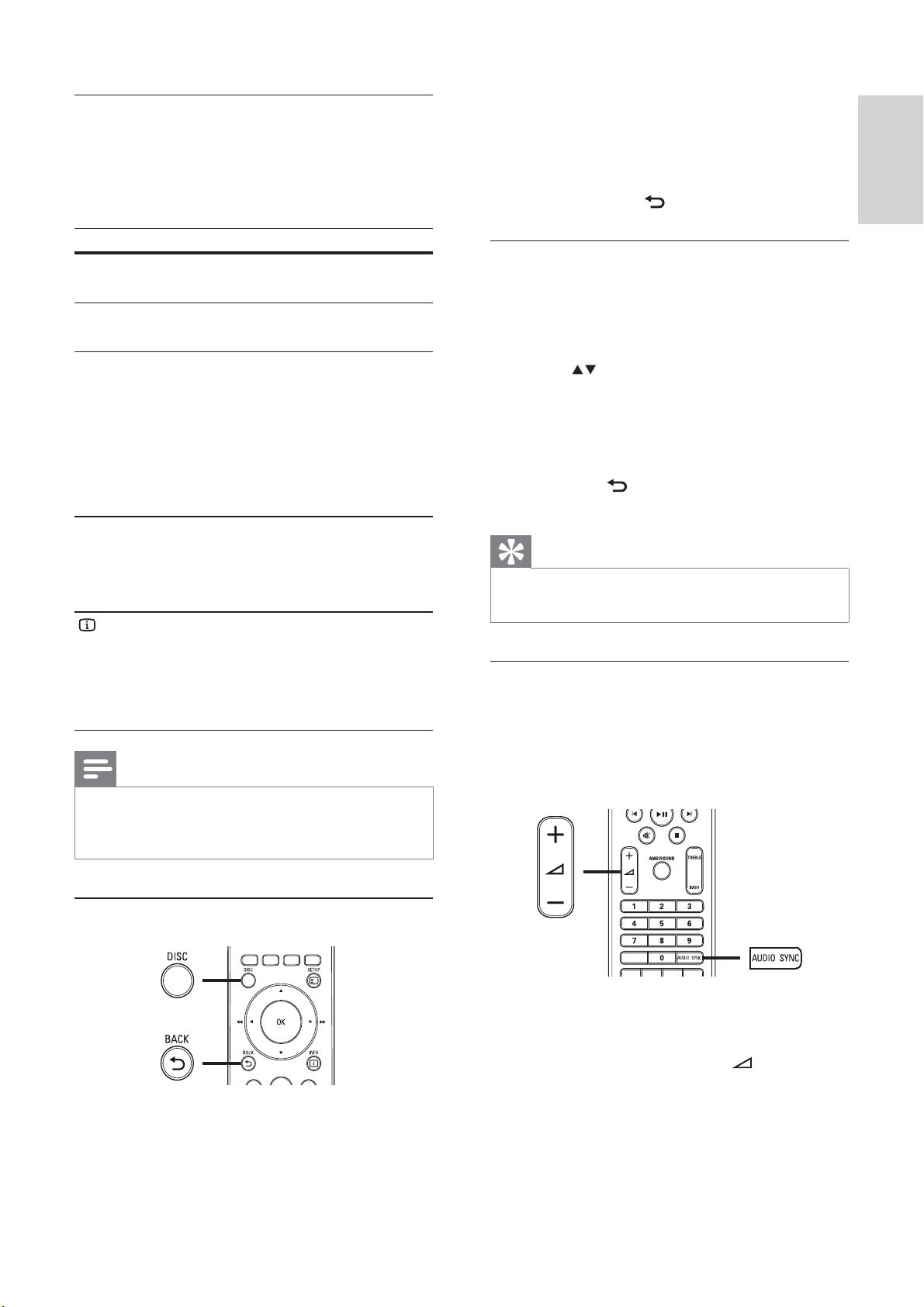

1 Press and hold AUDIO SYNC until

‘AUDIO SYNC’ is displayed.

2 Within  ve seconds, press +/- to set

the delay time for audio output.

Note

Play DivX® video

If the volume control is not used within  ve • seconds, it resumes normal volume control function.

View video play from different camera angles

1 During play, press and hold ANGLE to

display the angle options.

2 Press the Numeric buttons to select an

angle.

Play changes to the selected angle. »

Note

Applicable only to discs contain multi-angle • scenes.

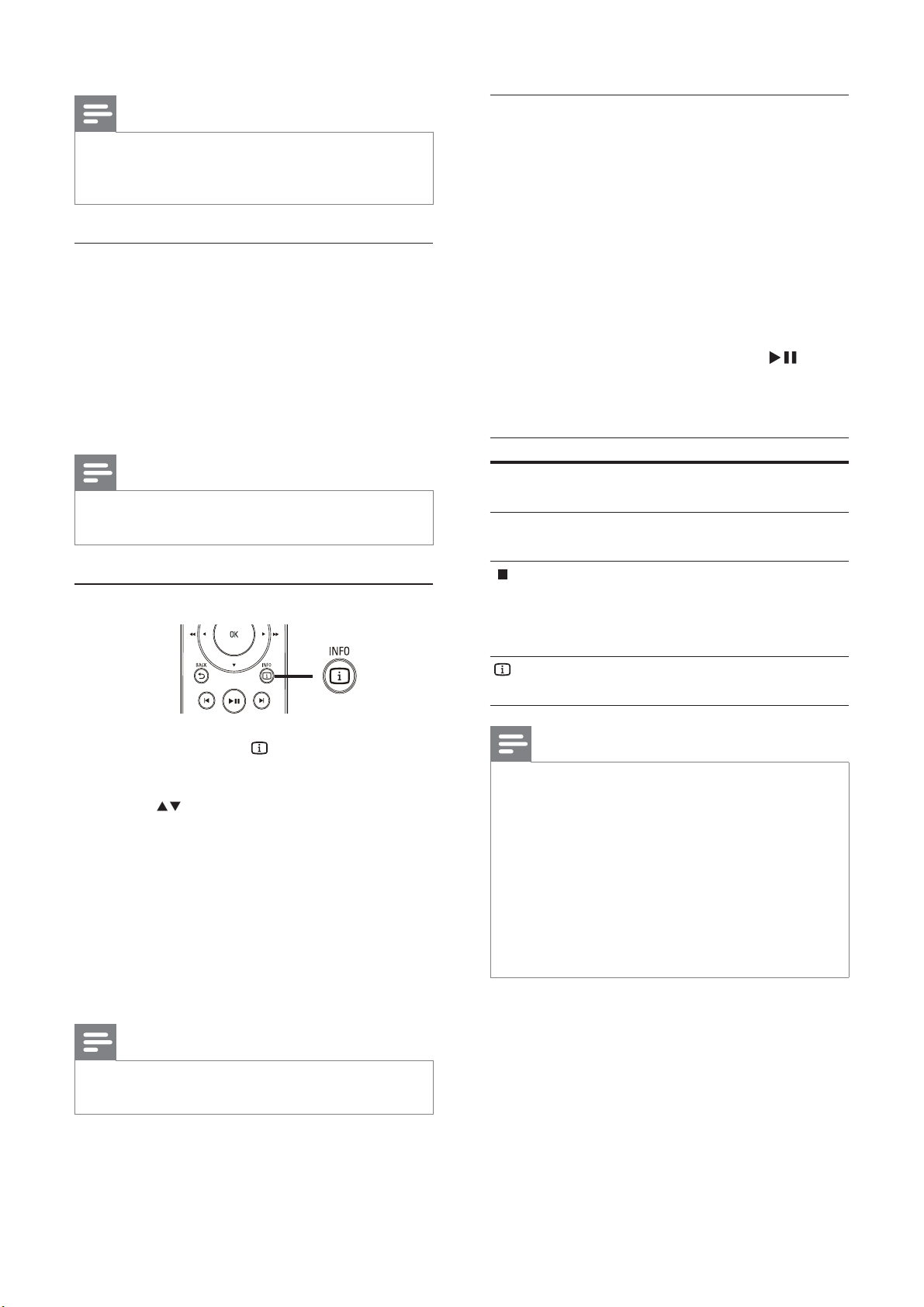

Quick skip play to a speci c time

DivX video is a digital media format that retains high quality despite a high rate of compression. You can enjoy DivX video on this DivX® Certi ed product.

1 Insert a disc or USB that contains the

DivX videos.

2 Press DISC or USB .

A contents menu is displayed. »

3 Select a title to play, then press . 4 Use the remote control to control the

title.

Button Action

AUDIO SYNC

SUBTITLE Selects a subtitle language for

INFO Displays DivX Ultra video

Selects an audio language or channel.

video. Stops play.

For DivX Ultra video, press this button again to display the contents menu.

information.

1 During play, press INFO .

The disc status menu is displayed. »

2 Press to view information, then press

OK .

• [TT Time] (title time)

• [Ch Time] (chapter time)

• [Disc Time] (disc time)

• [Track Time] (track time)

3 Press the Numeric buttons to enter the

time where you want to skip to, then press OK .

Note

The options are different depending on the • disc type.

Note

You can only play DivX videos that were • rented or purchased with the DivX registration code of this Home Theater System (see ‘Adjust settings’ > ‘General setup’ > [DivX(R) VOD Code] ) . You can play DivX video  les of up to 4GB.

•

If the subtitle does not appear correctly, • change the character set (see ‘Adjust settings’ > ‘Preferences’ > [DivX Subtitle] ). This Home Theater System can display up to

•

45 characters in the subtitle.

Play music

Control audio track play

1 Play a track. 2 Use the remote control to control the

track.

Button Action

Star ts, pauses or resumes

playback. Stops play. Skips to the next track. Skips to the beginning of

the current track. Press twice to jump to the previous track.

Selects an item to play.

/ Searches fast-forward

(right) or fast-backward (left). Press repeatedly to change the search speed.

REPEAT Selects or turns off repeat

or shuf e mode.

Play MP3/WMA music

MP3/WMA is a type of highly compressed audio  le ( les with .mp3 or .wma extensions).

1 Insert a disc or USB that contains the

MP3/WMA music.

2 Press DISC or USB .

A contents menu is displayed. »

3 Select a folder, then press OK . 4 Select a track to play, then press .

To return to the main menu, press •

BACK or press until ‘Previous’

folder is selected, then press OK .

Note

For disc recorded in multiple sessions, only the •  rst session is played. This product does not support MP3PRO audio

•

format. If any special characters are present in the MP3

•

track name (ID3) or album name, it might not be displayed correctly on the screen because these characters are not supported. Some WMA  les are protected by Digital

•

Rights Management and cannot be played on this product. Folders/ les that exceed the supported limit of

•

this product will not be displayed or played.

Tip

English

You can select the display of data contents, • view folders or  les (see ‘Adjust settings’ > ‘Preferences’ > [MP3/JPEG Display] ).

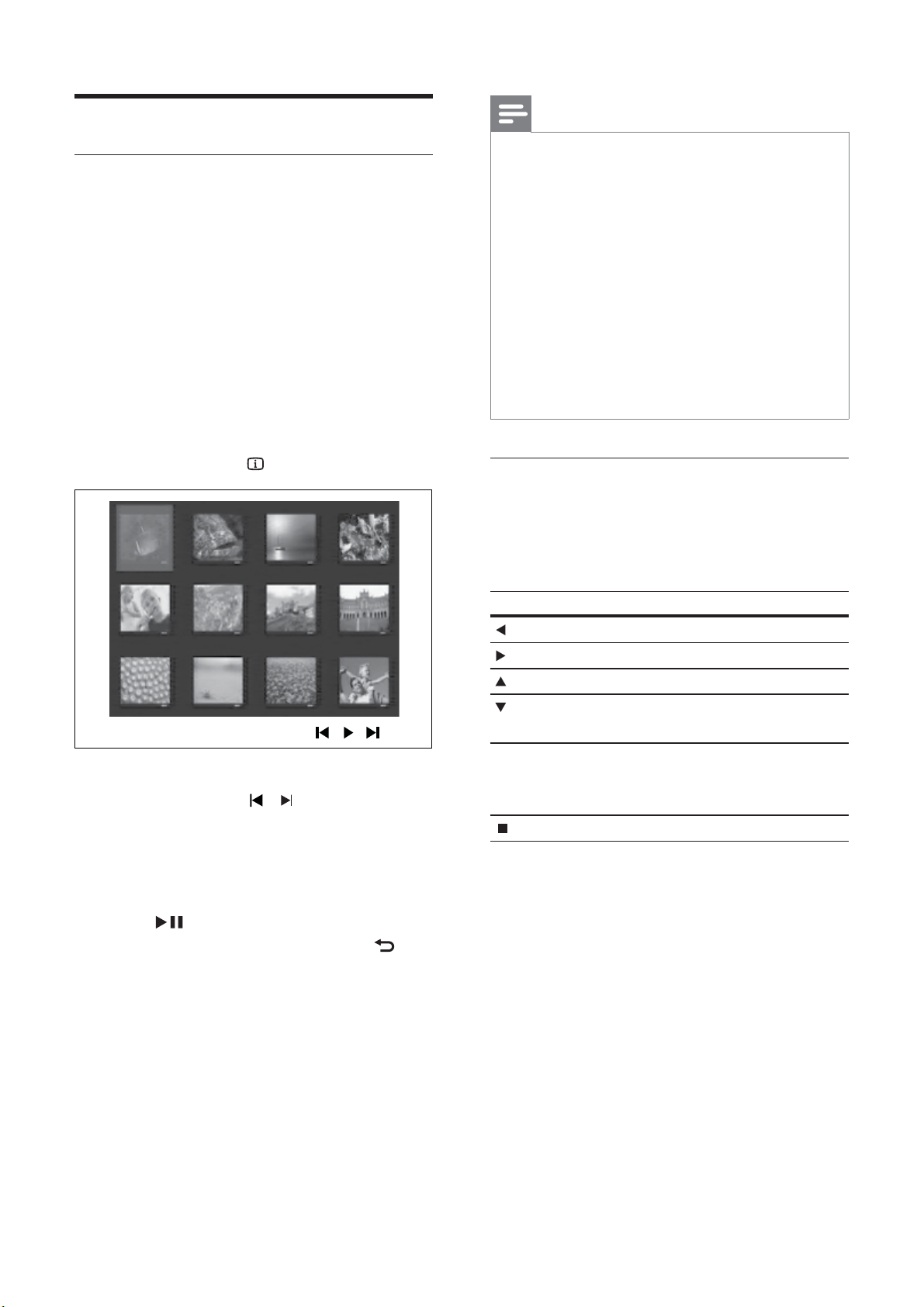

Play photo

Play photo as slideshow

This product can play JPEG photos ( les with .jpeg or .jpg extensions).

1 Insert a disc or USB that contains the

JPEG photos.

2 Press DISC or USB .

Slideshow begins (for Kodak disc) or » a contents menu (for JPEG disc) is displayed.

3 Select the folder/album you want to play.

To preview the photos in the folder/•

album, press

INFO .

Note

You may require longer time to display the disc • content on the TV due to the large number of songs/photos compiled onto one disc. If the JPEG photo is not recorded with an ‘exif’

•

type  le, the actual thumbnail picture is not be shown on the display. It is replaced by a ‘blue mountain’ thumbnail picture. This product can only display digital camera

•

pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display Motion JPEG and pictures in formats other than JPEG, or sound clips associated with pictures. Folders/ les that exceed the supported limit of

•

this product will not be displayed or played.

Control photo play

1 Play photo slideshow. 2 Use the remote control to control the

photo.

To go to previous or next screen •

display, press

To select a photo, press the •

Navigation buttons .

To display the selected photo only, •

press OK .

4 Press to start slideshow play.

To return to the menu, press •

BACK .

/ .

Button Action

Skips to the previous photo.

ZOOM Zooms in or out of the

Skips to the next photo. Rotates the photo clockwise. Rotates the photo anti-

clockwise.

picture. Play pause in zoom mode.

Stops play.

Play musical slideshow

Play MP3/WMA music  les and JPEG photo  les simultaneously to create musical slideshow. The MP3/WMA and JPEG  les must be stored on the same disc or USB device.

1 Play MP3/WMA music. 2 Navigate to the photo folder/album and

press OK to star t slideshow play.

Slideshow begins and continues till the » end of the photo folder or album.

Audio continues to play till the end of » the disc.

Play from USB device

This product plays/views MP3, WMA, DivX (Ultra) or JPEG  les on the following USB devices:

digital camera that complies with the PTP • standard  ash drive• memory card reader• HDD (external power source needed)•

English

To stop slideshow play, press •

To stop music play, press •

again.

1 Connect a USB device to the (USB)

jack.

2 Press USB .

A contents menu is displayed. »

3 Select a  le to play, then press .

Play starts. »

To stop play, press • USB device.

or remove the

Note

If the device does not  t into the USB jack, • connect it through a USB extension cable. If you connect a multiple USB card/device

•

reader, only one card/device can be accessed.

Play from portable media player

Simply connect your portable media player (e.g. MP3 player) to this Home Theater System to enjoy superb sound quality from your music collections.

MP3

Play from iPod

Simply dock your iPod to the iPod DOCK slot to enjoy your iPod play through this Home Theater System. List of supported iPod range:

iPod mini iPod mini 2nd gen iPod touch iPod touch 2nd gen iPod classic (80/120/160

GB) iPod with color display iPod 5th gen

Note

Refer to the Philips website for latest updates • on the supported iPod range.

Control iPod music

iPod nano 1st/2nd/ 3rd/4th gen

1 Connect a 3.5mm stereo audio cable

(not supplied) from the MP3 LINK jack on this Home Theater System to the ‘headphone’ jack on the portable media player.

2 Press AUDIO SOURCE repeatedly until

‘MP3 LINK’ is displayed.

3 Start play on your portable media player.

To stop play, press • STOP on the

portable media player.

Note

Control playback is only possible on the • portable media player. Stop play on the portable media player before

•

you switch to other play media/source.

1 Dock your iPod to the iPod DOCK slot

and turn it on.

2 Press iPod DOCK .

It may require longer time to • authenticate the compatibility of certain iPod range.

3 Start play on your iPod.

To view iPod video play, a video • connection to your TV through the SCART jack is required. Ensure that ‘TV ON’ setting on iPod is turned on.

4 Use the remote control to control the

music play.

Play from radio

Button Action

VOL +/- , +/-

SOUND MODE

AMBISOUND Selects stereo sound output

Skips to the previous or next

/ Searches fast-forward (right)

INFO Switches to ‘Extended

Note

While in iPod mode, the battery of your iPod • will be charged.

•

In ‘Extended Control mode’, control of iPod play is only possible through the screen display on your TV using the Navigation buttons on the remote control.

Increases or decreases volume.

Selects a prede ned sound effect.

or multi-channel surround output.

track.

or fast-backward (left). Press repeatedly to change the search speed.

Star ts, pauses or resumes playback on your EasyLink device.

Control mode’ to enable control of your iPod play through the contents displayed on TV. Control buttons on iPod have no function in this mode. Press this button again to return to simple play mode.

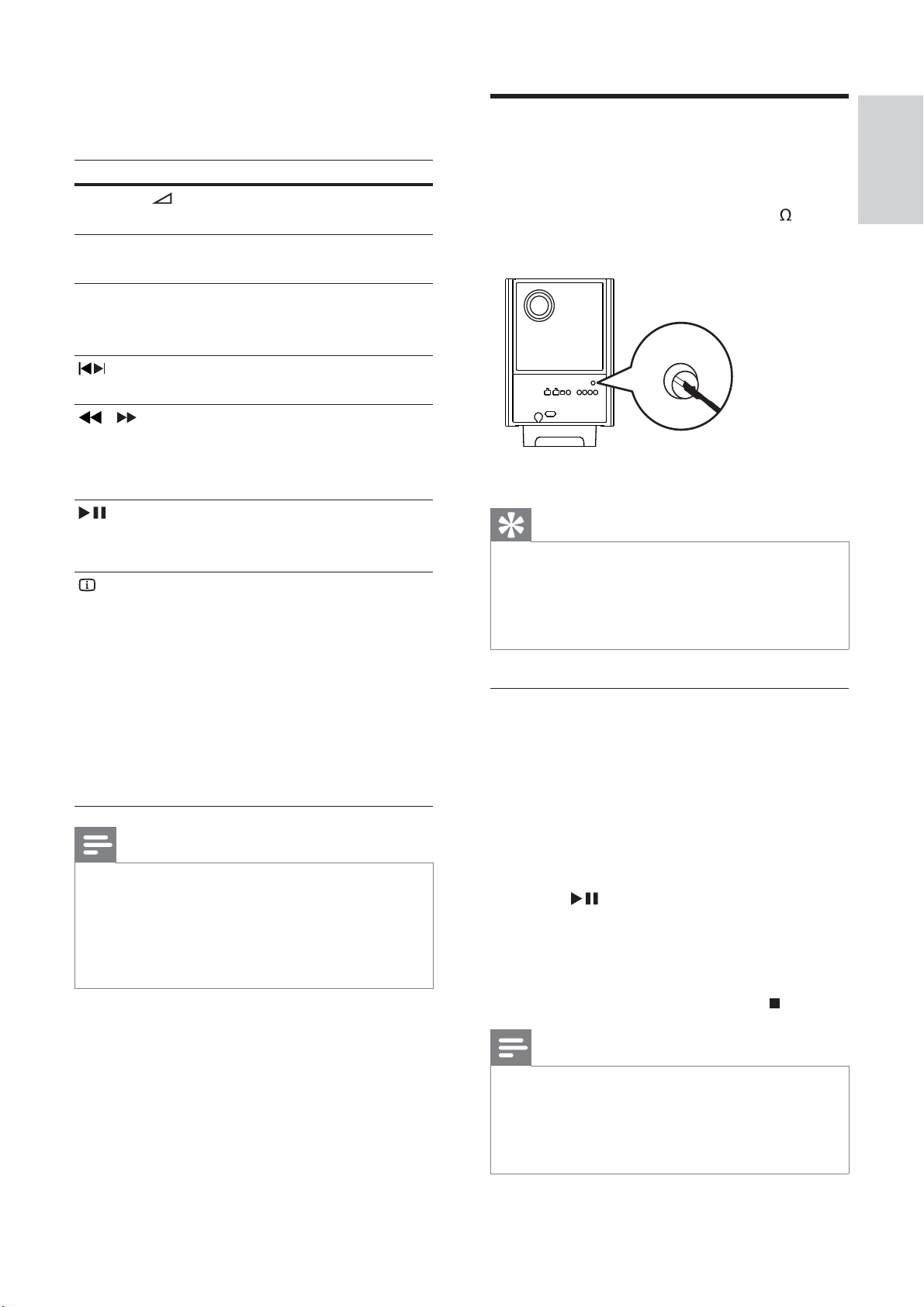

Check if the FM antenna has been connected to this Home Theater System. If not, connect the supplied FM antenna to the FM75 and  x its ends to the wall.

FM ANTENNA

(75 Ω)

jack

Tip

For the best reception, place the antenna away • from your TV or other sources of radiation. For even better reception of FM stereo,

•

connect an external FM antenna (not supplied).

First time tuning

When you access to radio mode for the  rst time, follow the instruction to install the radio stations.

1 Press RADIO .

’AUTO INSTALL ... PRESS PLAY’ is » displayed.

2 Press .

All detected radio stations are stored. » Once complete, it tunes to the  rst »

preset radio station.

English

To stop auto tuning, press •

Note

This Home Theater System can store up to a • maximum of 40 radio stations.

•

If auto installation is not activated or less than 5 radio stations are stored, you will be prompted to install the radio stations again.

Listen to radio

Search and store radio stations

1 Press RADIO . 2 Use the remote control to control the

radio.

Button Action

Selects a preset radio station.

Tunes the radio frequency up or

down.

Press • AUDIO SYNC to toggle between FM stereo and FM mono mode.

Press and hold this button to erase the current radio station from the preset list.

The preset number for • other radio stations remain unchanged.

Tip

individually

1 Press RADIO . 2 Press / .

It starts searching until a radio station » is detected.

3 Repeat step 2 until you tune to the radio

station you wish to store.

To  netune the radio frequency, • press

/ .

4 Press PROGRAM .

The preset station number blinks. » If no action is carried out within 20 »

seconds after the above step, it exits the preset mode.

5 Press / (or the Numeric buttons ) to

select a preset number to store.

6 Press PROGRAM to con rm.

Note

If the FM radio station transmits RDS (Radio • Data System) data, the name of the radio station is displayed.

Reinstall all the radio stations

1 Press RADIO . 2 Press and hold PROGRAM for more than

5 seconds.

All previously stored radio stations are » replaced.

Note

Check the radio antenna connection if no • stereo signal is detected or less than 5 stations are detected during radio installation.

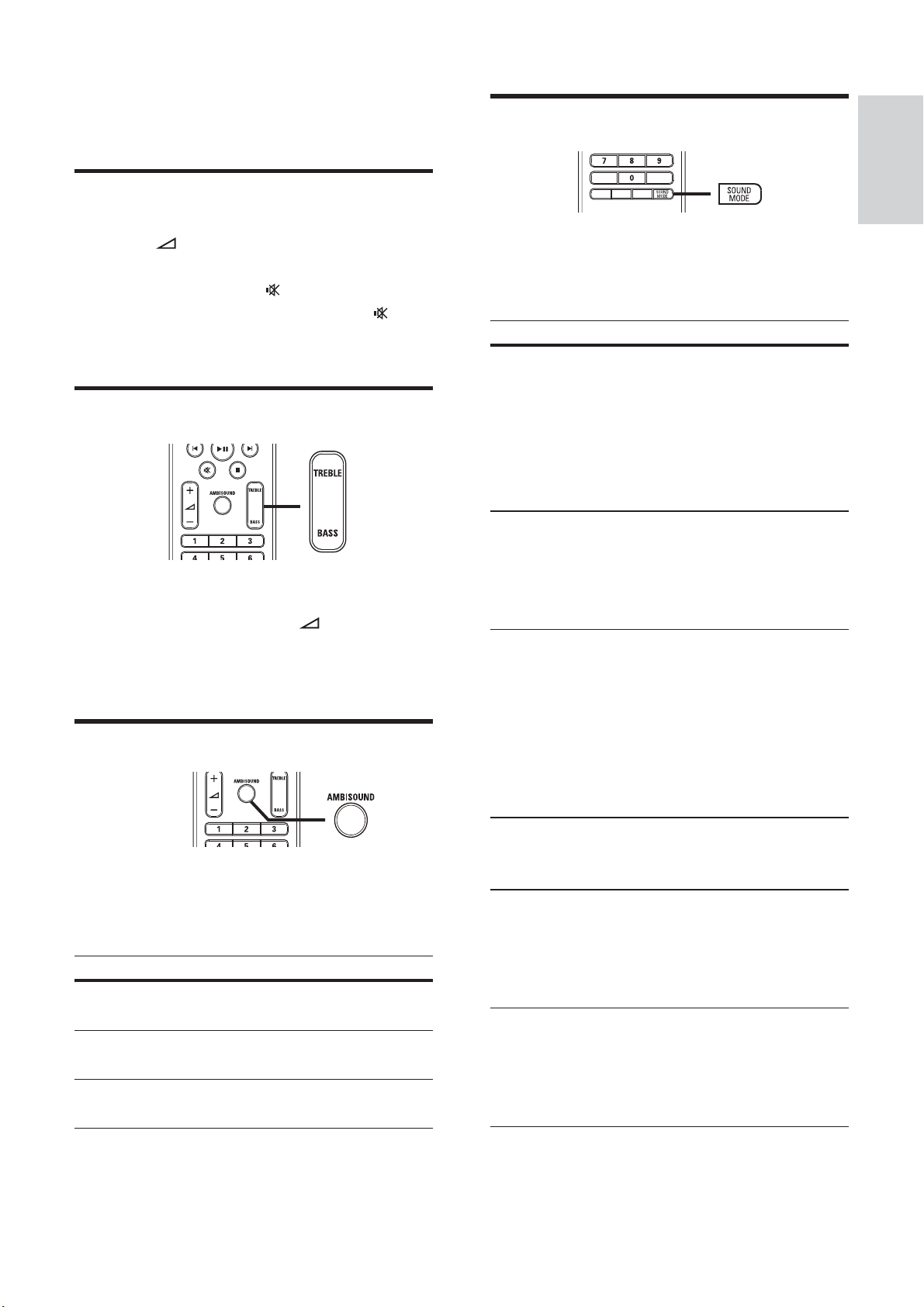

6 Adjust sound

Control the volume

Select a preset sound

English

1 Press +/- ( VOL +/- ) to increase or

decrease the volume.

To mute, press •

To restore the volume, press •

or press VOL + .

again

Adjust Bass/Treble

1 Press TREBLE or BASS . 2 Within 5 seconds, press +/- ( VOL +/- )

to set the high (TREBLE) or low (BASS) tone level.

Select Ambisound

1 Press AMBISOUND repeatedly to select

the best Ambisound output that most suitable for the video or music you play.

Option Description

AUTO Surround output based on the

audio stream.

MULTI-

CHANNEL

STEREO Stereo sound from two front

5.1 multi-channel output for a standard movie experience.

speakers.

1 Press SOUND MODE repeatedly to

select the sound effect that most suitable for the video or music you play.

Video/Music Description

ACTION / ROCK

CONCERT / CLASSIC

DRAMA / JAZZ

NEWS Enhanced mid range

GAMING / PARTY

SPORTS Moderate mid range

Enhanced low and high range for great sounding movie effects and atmosphere. Great for action movies and rock/pop music.

Flat and pure sound mode. Ideal for listening to classical music and watching live concert disc.

Clear mid and high range. Recreates the atmosphere of a live club with the artist just in front of you. Good for jazz music and watching dramas.

for clear vocals/ speech.

Slightly enhanced low range and strong mid range ideal for party music and video gaming.

and surround effects for clear vocals and the atmosphere of a live spor ts venue.

7 Adjust settings

You can customize various kinds of settings as you prefer. Refer to the following instructions to navigate through the setup menus.

Symbol Options

[General Setup]

4 Select a setting, then press OK .

To return to the previous menu, • press To exit the menu, press •

Note

See the explanations of the above options in • the following pages.

BACK .

SETUP .

[Audio Setup]

[Video Setup]

[Preferences]

Note

If the setup option is grayed out, it means the • setting cannot be changed at the current state.

General setup

General Setup

EasyLink Setup

Disc Lock

Display Dim

OSD Language

Screen Saver

Sleep Timer

Low Power Standby

DivX(R) VOD Code

1 Press SETUP .

» [General Setup] menu is displayed.

2 Press .

[EasyLink Setup] If this Home Theater System is connected to HDMI CEC compliant TV/devices, all connected devices can respond to the following commands simultaneously:

Option Description

[EasyLink] Turns off or on all EasyLink

features. To disable this feature, select [Off] .

[One

Touch Play]

[One Touch Standby]

[System Audio Control]

[Audio Input Mapping]

When you press PLAY , the TV and Home Theater System are turned on. Disc play starts if there is a disc in the Home Theater System. To disable this feature, select [Off] .

When you press and hold STANDBY for at least three seconds, the Home Theater System and all the HDMI CEC devices switch to standby simultaneously. To disable this feature, select [Off] .

When you play audio that is routed from the connected devices, this Home Theater System switches to the corresponding audio source automatically. To enable this feature, select [On] . Then proceed to [Audio Input Mapping] to scan and map all the connected devices.

When you map the audio input correctly, this Home Theater System switches to the audio from the played device automatically.

3 Select an option, then press OK .

Note

You must turn on the HDMI CEC operations • on the TV/devices before you can enjoy the EasyLink controls. See the TV/devices manual for details. Philips does not guarantee 100%

•

interoperability with all HDMI CEC compliant devices.

[Disc Lock] Sets play restriction for a speci c discs. Before you start, place the disc in the disc compartment (maximum 40 discs can be locked).

• [Lock] – Restricts access to the current disc. Once activated, a password is needed to unlock and play the disc.

• [Unlock] – Plays all discs.

Tip

[Sleep Timer] Switches to standby automatically after the preset time.

• [15 mins] , [30 mins] , [45 mins] , [60 mins] – Selects the count down time before the Home Theater System switches to standby.

• [Off] – Disables sleep timer mode.

[Low Power Standby] Turns off or on the low power standby mode. Reduces power consumption in standby mode.

• [On] – Sets the standby mode to low power.

• [Off] – Sets the standby mode to normal power.

[DivX(R) VOD Code] Displays the DivX® registration code.

English

You can set or change the password (see • ‘Adjust settings’ > ‘Preferences’ > [Password] ).

[Display Dim] Changes the brightness level of the display panel on this Home Theater System.

• [100%] – Normal brightness.

• [70%] – Medium brightness.

• [40%] – Dimmest display.

[OSD Language] Selects the default on-screen menu language.

[Screen Saver] Turns off or on the screen saver mode. Helps to protect the TV screen from being damaged due to over exposure to a static image for too long.

• [On] – Sets the screen saver to appear after 15 minutes of inactivity (for example, in pause or stop mode).

• [Off] – Disables screen saver mode.

Tip

Enter this Home Theater System DivX • registration code when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered.

Audio setup

Audio Setup

Ambisound Setup

HDMI Audio

Night Mode

[HDMI Audio] Selects the HDMI audio setting when you connect this Home Theater System and the TV with a HDMI cable.

• [On] – Allows audio output through the TV and the speaker system. If the audio format on the disc is not supported, it will be downmixed to two-channel sound (linear-PCM).

• [Off] – Disables audio output from the TV. The sound is only output through the speaker system.

1 Press SETUP .

» [General Setup] menu is displayed.

2 Press to select [Audio Setup] , then

press

3 Select an option, then press OK . 4 Select a setting, then press OK .

To return to the previous menu, •

press

To exit the menu, press •

Note

See the explanations of the above options in • the following pages.

[Ambisound Setup] Optimizes the Ambisound based on this Home Theater System setup in the room (see ‘Getting Started’ > ‘Start Ambisound setup’).

BACK .

SETUP .

[Night Mode] Makes loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others.

• [On] – Enjoys quiet viewing at night.

• [Off] – Enjoys surround sound with a full dynamic range.

Note

Applicable only to Dolby Digital encoded discs. •

Option Description

[Room Acoustics]

[Room Placement]

[Speaker Distance]

[Listening Position]

Selects the type of walls that surround the room.

Selects the placement in the room.

Selects the distance between speakers.

Selects the distance between the listening postion and this Home Theater System.

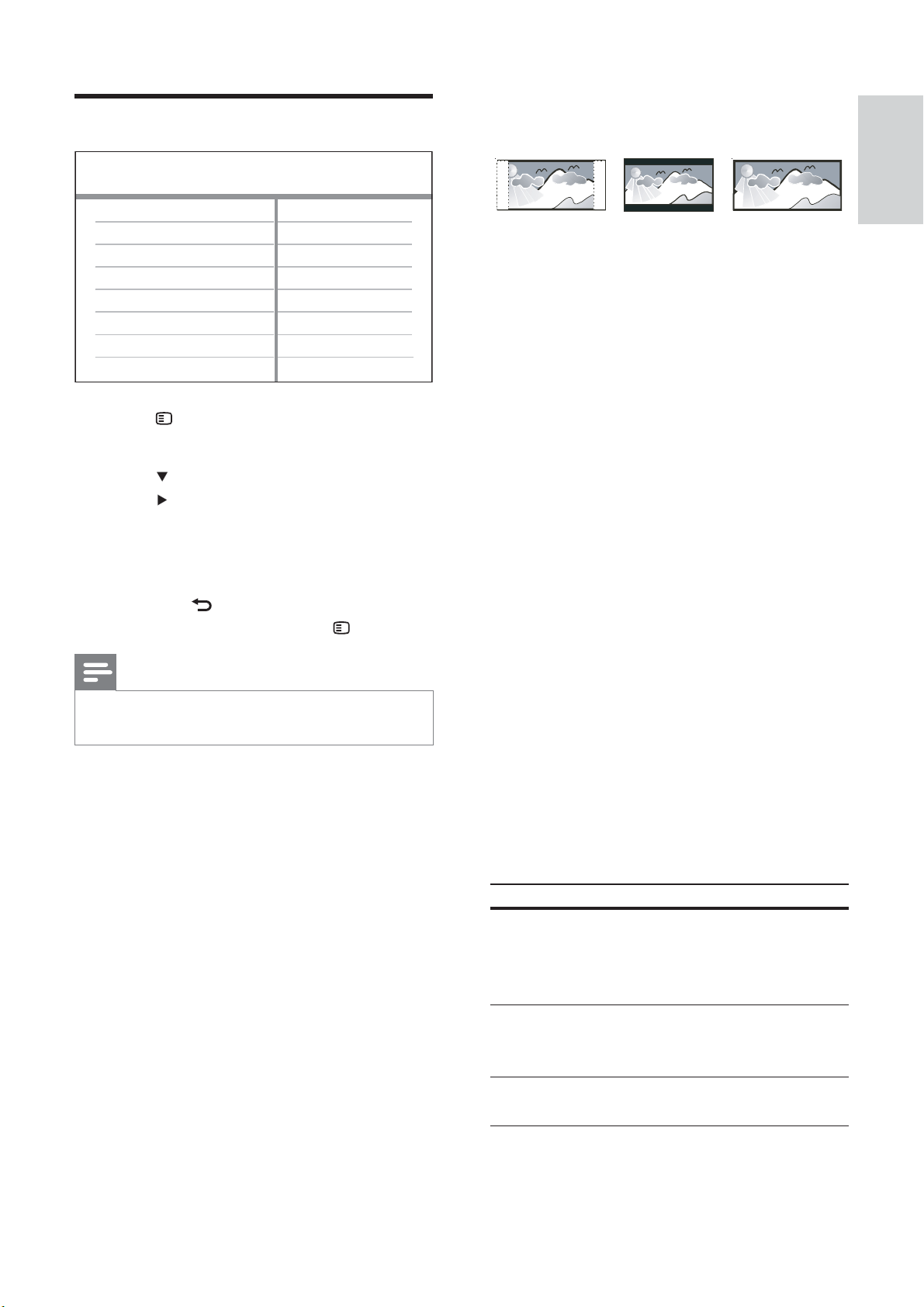

Video setup

[TV Display] Selects one of the following display formats:

Video Setup

TV System

TV Display

Picture Setting

HDMI Setup

Closed Caption

Progressive

Component Video

1 Press SETUP .

» [General Setup] menu is displayed.

2 Press to select [Video Setup] , then

press

3 Select an option, then press OK 4 Select a setting, then press OK .

See the explanations of the above options in • the following pages.

[TV System] Changes this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

• [PAL] – For PAL-system TV.

• [NTSC] – For NTSC-system TV.

• [Multi] – For TV that is compatible with both PAL and NTSC.

To return to the previous menu, •

press

To exit the menu, press •

Note

BACK .

SETUP .

4:3 Pan Scan (PS)

4:3 Letter Box (LB)

16:9 (Wide Screen)

• [4:3 Pan Scan] – For 4:3 screen TV: fullheight display with the trimmed sides.

• [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen.

• [16:9 Wide Screen] – For wide-screen TV: display ratio 16:9.

[Picture Setting] Selects a prede ned set of picture color settings or customize the personal setting.

• [Standard] – Original color setting.

• [Bright] – Vibrant color setting.

• [Soft] – Warm color setting.

• [Personal] – Customizes the color setting. Set the level of brightness, contrast, sharpness/tint and color saturation, then press OK .

[HDMI Setup] Selects the HDMI video setting when you connect this Home Theater System and the TV with a HDMI cable.

• [Wide Screen Format] – De nes wide screen format for disc play.

Option Description

[Superwide] Center position of the screen

is stretched less than the side. Applicable only to 720p and above video resolution setting.

[4:3 Pillar

Box]

[Off] Picture is displayed according to

No stretching of picture. Black bars are displayed on both sides of the screen.

the disc format.

English

Note

Tip

This setting is only available if you have set the • [TV Display] setting to [16:9 Wide Screen] .

• [HDMI Video] – Selects the HDMI video output resolution that is compatible with your TV display capability.

Option Description

[Auto] Detects and selects the best

supported video resolution automatically.

[480i] , [480p] , [576i] , [576p] , [720p] , [1080i] ,

Selects a video resolution that is best supported by the TV. See the TV manual for details.

[1080p]

Note

There is more detailed description available • (see ‘Get started’ > ‘Turn on Progressive Scan’).

Note

This setting is only available if you have set the • [Component Video] setting to [YUV] .

[Component Video] Selects the video output format that matches the video connection between this Home Theater System and the TV.

• [YUV] – Component video connection.

• [RGB] – Scart connection.

If the setting is not compatible with your TV, a • blank screen appears. Wait for 15 seconds for auto recover or press HDMI repeatedly until the picture appears.

[Closed Caption] Turns off or on display captions.

• [On] – Shows the sound effects in subtitles. Applicable only to discs with Closed Caption information included and the TV supports this feature.

• [Off] – Disables closed caption.

[Progressive] If the TV supports progressive scan output, you can turn on the progressive scan mode to enhance the picture quality. Video connection through Component Video is required.

• [On] – Turns on progressive scan mode.

• [Off] – Disables progressive scan mode.

Preferences

Note

Stop disc play before you can access to • [Preferences] .

Preferences

Audio

Subtitle

Disc Menu

Parental

PBC

MP3/JPEG Display

Password

DivX Subtitle

1 Press SETUP .

» [General Setup] menu is displayed.

2 Press to select [Preferences] , then

press

3 Select an option, then press OK . 4 Select a setting, then press OK .

To return to the previous menu, •

press

To exit the menu, press •

BACK .

SETUP .

Note

If the language you have set is not available on • the disc, the disc uses its own default language.

•

For some discs, the subtitle/audio language can only be changed from the disc menu.

•

To select the languages that are not listed in the menu, select [Others] . Then check the Language Code list at the back of this user manual and enter the respective 4-digit language code.

[Parental] Restricts access to discs that are unsuitable for children. These types of discs must be recorded with ratings.

1) Press OK .

2) Select a rating level, then press OK .

3) Press the Numeric buttons to enter the password.

Note

Rated discs above the level you set in • [Parental] require a password to be played. The ratings are country-dependent. To allow

•

all discs to play, select ‘ 8 ’. Some discs have ratings printed on them but

•

are not recorded with ratings. This function has no effect on such discs.

English

Note

See the explanations of the above options in • the following pages.

[Audio] Selects the default audio language for disc play.

[Subtitle] Selects the default subtitle language for disc play.

[Disc Menu] Selects the language for disc menu.

Tip

You can set or change the password (see • ‘Preferences’ > [Password] ).

[PBC] Turns off or on the content menu of VCDs/ SVCDs with PBC (playback control) feature.

• [On] - Displays index menu when you load a disc for play.

• [Off] - Skips the menu and star t play from the  rst title.

[MP3/JPEG Display] Selects to display the folders or display all the  les.

• [View Folders] – Displays the folders of MP3/WMA  les.

• [View Files] – Displays all the  les.

[Password] Sets or changes the password for locked discs and play restricted DVDs.

Change Password

Old Password

New Password

Confirm Password

[DivX Subtitle] Selects a character set that supports the DivX subtitle.

[Standard] English, Irish, Danish, Estonian,

Finnish, French, German, Italian, Portuguese, Luxembourgish, Norwegian (Bokmål and Nynorsk), Spanish, Swedish, Turkish

[Central

Europe]

[Cyrillic] Belarusian, Bulgarian, Ukrainian,

[Greek] Greek [Hebrew] Hebrew

Note

Polish, Czech, Slovak, Albanian, Hungarian, Slovene, Croatian, Serbian (Latin script), Romanian

Macedonian, Russian, Serbian

1) Press the Numeric buttons to enter ‘136900’ or the last set password at [Old Password]  eld.

2) Enter the new password at [New Password]  eld.

3) Enter the new password again at [Con rm Password]  eld.

4) Press OK to exit the menu.

Note

If you forget the password, enter ‘136900’ • before you set a new password.

Ensure that the subtitle  le has the exact same •  le name as the movie  le. If for example the  le name of the movie is ‘Movie.avi’, then you will need to name the text  le ‘Movie.sub’ or ‘Movie.srt’.

[Version Info.] Displays the software version of this Home Theater System.

Tip

This information is required when you want • to  nd out if a newest software version is available at the Philips website that you may download and install on this Home Theater System.

[Default] Resets all the settings of this Home Theater System to factory default, except for [Disc Lock] , [Password] and [Parental] settings.

8 Additional

Information

Update software

To check for new updates, compare the current software version of your Home Theater System with the latest software version (if available) at the Philips website.

Note

Do not remove the CD-R or USB when • software updating is in progress.

8 Disconnect the power cord for a few

seconds and connect again to reboot the system.

Care

English

Preferences

Disc Menu

Parental

PBC

MP3/JPEG Display

Password

DivX Subtitle

Version Info.

Default

1 Press SETUP . 2 Select [Preferences] > [Version Info.] ,

then press OK .

3 Write down the version number, then

press

SETUP to exit the menu.

4 Go to www.philips.com/suppor t to check

the latest software version available for this Home Theater System.

Caution

Never use solvents such as benzene, thinner, • cleaners available commercially, or anti-static sprays intended for discs.

Clean discs Wipe the disc with a micro  bre cleaning cloth from the centre to the edge in a straight line movement.

Clean main unit screen Wipe the screen surface with a micro  bre cleaning cloth.

5 If the latest software version is higher

than the software version of this Home Theater System, download it and store onto a CD-R or USB  ash drive.

6 Insert the CD-R or USB  ash drive to this

Home Theater System.

7 Press DISC or USB , then follow the

instruction on the TV to con rm update operation.

Once software update is complete, » this Home Theater System turns off to standby automatically.

9 Specifications

Note

Speci cation and design are subject to change • without notice

Playback media

DVD-Video, DVD+R/+RW, DVD-R/-• RW, DVD+R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3CD, WMA-CD, DivX-CD, USB  ash drive

Ampli er

Total output power: 600 W RMS• Frequency response: 30 Hz ~ 20 kHz / • ±3dB Signal-to-noise ratio: > 65 dB (CCIR)• Input sensitivity:•

SCART : 100 mV•

AUX1/2/3 : 250 mV•

MP3 LINK: 100 mV•

Disc

Laser Type: Semiconductor• Disc diameter: 12cm / 8cm• Video decoding: MPEG1/ MPEG2 / DivX • / DivX Ultra Video DAC: 12 bits, 108 MHz• Signal system: PAL / NTSC• Video S/N: 56 dB • Audio DAC: 24 bits / 96 kHz• Frequency response: •

4 Hz - 20 kHz (44.1 kHz)•

4 Hz - 22 kHz (48 kHz)•

4 Hz - 44 kHz (96 kHz)• PCM: IEC 60958• Dolby Digital: IEC 60958, IEC 61937• DTS: IEC 60958, IEC 61937•

Radio

Tuning range: FM 87.5-108 MHz (50 kHz)• 26 dB quieting sensitivity: FM 22 dBf• IF rejection ratio: FM 60 dB• Signal-to-noise ratio: FM 60 dB• Harmonic distortion: FM 3%• Frequency response: FM 180 Hz~10 kHz • / ±6dB Stereo separation: FM 26 dB (1 kHz)• Stereo Threshold: FM 29 dB•

USB

Compatibility: Hi-Speed USB (2.0)• Class support: UMS (USB Mass Storage • Class) File system: FAT12, FAT16, FAT32•

Main Unit

Dimensions (WxHxD): 419 x 48 x 214 • (mm) Weight: 1.7 kg•

Ambisound speakers

System: full range satellite• Speaker impedance: 8 ohm/channel• Speaker drivers: 2.5” full range/channel• Frequency response: 120 Hz - 20 kHz•

Dimensions (WxHxD): 335.5 x 113 x • 128 . 5 (mm) Weight: 1.72kg/each•

Power (Subwoofer)

Power supply: 220-240V; ~50 Hz• Power consumption: 150 W• Standby power consumption: •

Normal: <3 W•

Low Power: < 0.3 W• System: Bass Re ex System• Impedance: 4 ohm•

Speaker drivers: 165 mm (6.5”) •

woofer Frequency response: 30 Hz ~ 120 Hz•

Dimensions (WxHxD): 295 x 440 x •

295 (mm)

Weight: 10 kg•

Laser speci cation

Type: Semiconductor laser GaAIAs (CD)• Wave length: 645 - 660 nm (DVD), 770 •

- 800 nm (CD) Output power: 6 mW (DVD), 7 mW • (VCD/CD) Beam divergence: 60 degrees.•

English

10 Troubleshooting

Warning

Risk of electric shock. Never remove the • casing of the product.

To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Write the numbers here: Model No. __________________________ Serial No. ___________________________

Main unit

The buttons on this product do not work.

Disconnect this product from the power • outlet for a few minutes, then connect again.


No picture.

See TVs manual for correct video input • channel selection. Change the TV channel until you see the DVD screen. Press •DISC . If you have changed the •[TV System] setting, switch back to default mode: 1) Press Press

to open the disc compartment. 2)

. 3) Press SUBTITLE .

No picture on HDMI connection.

Check if the HDMI cable is faulty. Replace • a new HDMI cable. If this happens when you change the • HDMI video resolution, press HDMI repeatedly until the picture appears.

Sound

No sound.

Make sure that the audio cables are • connected and select the correct input source (for example, AUDIO SOURCE , USB ) for the device you want to play.

No sound on HDMI connection.

If the connected device is not HDCP- • compliant or is only DVI-compatible, you cannot transmit sound through an HDMI connection. Use an analog or digital audio connection. Make sure that the •[HDMI Audio] setting is turned on.

No sound from TV program.

Connect an audio cable from the AUDIO • input on this Home Theater System to the AUDIO output on your TV. Then press AUDIO SOURCE repeatedly to select the corresponding audio input source.

Play

DivX video  les cannot be played.

Make sure that the DivX  le is encoded • according to the ‘Home Theater Pro le’ with the DivX encoder. Make sure that the DivX video  le is • complete.

The aspect ratio of the screen is not aligned with the TV display setting.

The aspect ratio is  xed on the disc.•

DivX subtitle does not display correctly.

Ensure that the subtitle  le name is the • same as the movie  le name. Select the correct character set: 1) Press •

SETUP . 2) Select [Preferences] , then press press OK . 4) Select the character set that supports the subtitle.

. 3) Select [DivX Subtitle] , then

English

The contents of the USB  ash drive cannot be read.

The USB  ash drive format is not • compatible with this Home Theater System. Drive is formatted with different  le • system which is not supported by this unit (e.g. NTFS). Maximum size of memory supported is • 160GB.

The video (movies, photos, video clips, etc.) contents of the iPod does not display in Extended Control mode.

Video browsing is not supported in • Extended Control mode, you can only browse the video contents on the iPod itself.

11 Glossary

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-de nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

DivX®

The DivX® codec is a patent-pending, MPEG-4 based video compression technology developed by DivX®, Inc. It can shrink the  le size of digital video and still maintain the high visual quality.

HDCP

High-bandwidth Digital Content Protection. This is a speci cation that provides a secure transmission of digital contents between different devices (to prevent unauthorized copyright.)

HDMI

High-De nition Multimedia Interface (HDMI) is a high-speed digital interface that can transmit uncompressed high de nition video and digital multichannel audio. It delivers high quality picture and sound quality, completely free from noise. HDMI is fully backwardcompatible with DVI. As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output.

Dolby Digital

A surround sound system developed by Dolby Laboratories that contains up to six channels of digital audio (front left and right, surround left and right, center and subwoofer.)

DTS

Digital Theatre Systems. A surround sound system for providing 5.1 channels of discrete digital audio in consumer electronics products and software content. It is not developed by Dolby Digital.

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Exper t Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their  le extension ‘.jpg’ or ‘.jpeg.’

MP3

A  le format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

MPEG

Motion Picture Exper ts Group. A collection of compression systems for digital audio and video.

PBC

Playback Control. A system where you navigate through a Video CD/Super VCD with on-screen menus that are recorded onto the disc. You can enjoy interactive playback and search.

English

PCM

Pulse Code Modulation. A digital audio encoding system.

Progressive scan

The progressive scan displays twice the number of frames per second than in an ordinary TV system. It offers higher picture resolution and quality.

WMA

Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded with Windows Media player version 9 or Windows Media player for Windows XP. Files are recognized by their  le extension ‘.wma.’

Philips HTS6520 12 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
