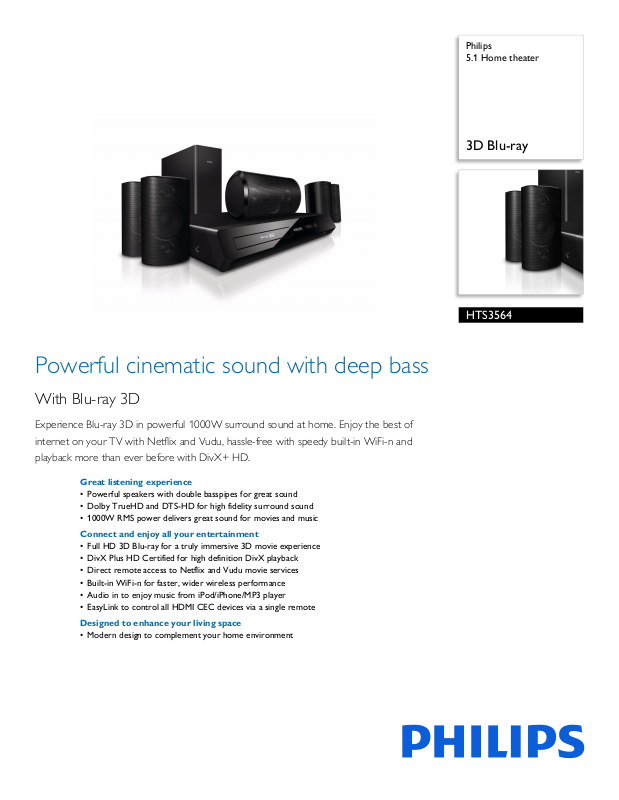

Philips

5.1 Home theater

3D Blu-ray

HTS3564

Powerful cinematic sound with deep bass

With Blu-ray 3D

Experience Blu-ray 3D in powerful 1000W surround sound at home. Enjoy the best of
internet on your TV with Netflix and Vudu, hassle-free with speedy built-in WiFi-n and
playback more than ever before with DivX+ HD.

Great listening experience

• Powerful speakers with double basspipes for great sound

• Dolby TrueHD and DTS-HD for high fidelity surround sound

• 1000W RMS power delivers great sound for movies and music

Connect and enjoy all your entertainment

• Full HD 3D Blu-ray for a truly immersive 3D movie experience

• DivX Plus HD Certified for high definition DivX playback

• Direct remote access to Netflix and Vudu movie services

• Built-in WiFi-n for faster, wider wireless performance

• Audio in to enjoy music from iPod/iPhone/MP3 player

• EasyLink to control all HDMI CEC devices via a single remote

Designed to enhance your living space

• Modern design to complement your home environment

5.1 Home theater

3D Blu-ray

Highlights

HTS3564/F7

1000W RMS power

1000W RMS power delivers great sound for
movies and music

Full HD 3D Blu-ray

Be enthralled by 3D movies in your own living
room on a Full HD 3D TV. Active 3D uses the
latest generation of fast switching displays for
real life depth and realism in full 1080x1920 HD
resolution. By watching these images through
special glasses with right and left lenses that are
timed to open and close in synchrony with
alternating images, the full HD 3D viewing
experience is created in your home cinema.
Premium 3D movie releases on Blu-ray offer a
wide, high quality selection of content. Blu-ray
also delivers uncompressed surround sound for
an unbelievably real audio experience.

Dolby TrueHD and DTS-HD

Dolby TrueHD and DTS-HD Master Audio
Essential deliver the finest sound from your Blu­ray Discs. Audio reproduced is virtually
indistinguishable from the studio master, so you
hear what the creators intended for you to hear.
Dolby TrueHD and DTS-HD Master Audio
Essential complete your high definition
entertainment experience.

Double bass sound

Powerful speakers with a bass-reflex system and
double basspipes enhance the lower frequencies
and deliver rock-solid, deep bass sounds. You'll
be able to hear the lowest murmur or the
deepest roar.

DivX Plus HD Certified

DivX Plus HD on your Blu-ray player and/or
DVD player offers the latest in DivX technology
to let you enjoy HD videos and movies from the
Internet direct to your Philips HDTV or PC.
DivX Plus HD supports the playback of DivX
Plus content (H.264 HD video with high-quality
AAC audio in an MKV file container) while also
supporting previous versions of DivX video up
to 1080p. DivX Plus HD for true HD digital
video.

WiFi-n

WiFi-n, also known as IEEE 802.11n, is the new
wireless network standard. It includes many new
options to improve the quality of the wireless
link, offering faster speed and wider range
compared to previous WiFi standards. WiFi-n
also features backward compatibility, which
makes it possible for this player to transmit to
and receive from routers that operate on older
WiFi standards.

Direct remote Netflix and Vudu

To speed up the process, and make it more
user-friendly
shortcut buttons on remote control that allow
you to do the basic commands necessary both
for watching your video and for controlling the
general interface.

, there are Netflix and VUDU

5.1 Home theater

3D Blu-ray

Specifications

HTS3564/F7

Sound

• Equalizer settings: Gaming, Movie, Music, News,
Original

• Sound Enhancement: Night Mode, Treble and Bass

ntrol

Co

• Sound System: Dolby Digital 5.1, Dolby Digital Plus,

• Center speaker output power: 166.66 W

• Satellite speaker output power: 4 x 166.66 W

• Subwoofer output power: 166.66 W

• Total Power RMS @ 10% THD: 1000 W

ue HD, DTS Digital Surround, DTS-HD

Dolby Tr
High Resolution Audio, DTS-HD Master Audio
Essential

Loudspeakers

• Loudspeaker types: 1 x Centre speaker, 4 x Satellite
speakers

• Center speaker drivers: 1 x 3" Full range woofer

• Center speaker freq range: 150 - 20k Hz

• Center speaker impedance: 4 ohm

• Drivers per Satellite speaker: 1 x 3" Full range

fer

woo

• Satellite speaker impedance: 4 ohm

• Satellite speaker freq range: 150 - 20k Hz

• Subwoofer type: Passive

• Subwoofer driver: 1 x 6.5" woofer

• Subwoofer freq range: 20 - 150 Hz

• Subwoofer impedance: 4 ohm

Connectivity

• Front Connections: Music iLINK, USB

• Integrated Connections: Wi-Fi

• Network connections: Wi-Fi - 802.11 b/g/n

• Rear Connections: AUX IN 1, Click-fit Speaker

onnectors, Composite video (CVBS) output,

C
Digital coaxial in, Digital optical in, Ethernet, FM
Antenna Socket, HDMI 1.4 output (ARC)

Convenience

• EasyLink (HDMI-CEC): 21:9 format subtitle support,
Audio Return Channel, Automatic audio input
mapping, Dynamic Lipsync, One touch play, One
touch standby, Remote Control-Passthrough,
System standby

• HDMI Features: 3D, Audio R
Content Type, Deep color

• Online services: Netflix, Vudu

eturn Channel (ARC),

Tuner/Reception/Transmission

• Tuner Bands: FM

• Number of Preset Channels: 40

Optical Playback Media

• Playable Discs: AVCHD, BD, BD R / BD RE, CD,
CDDA, CD-R/CD-RW, DVD, DVD +R/+RW, DVD

-R/-RW, SVCD, VCD

File Format

• Audio: aac, mka, mp3, wma

• Picture: GIF, JPEG, JPG

• Video: asf, avi, divx, mkv, mp4, mpeg, mpg

Audio Playback

• Compression format: AAC, MP3, WAV, WMA

• Lip-sync: up to 200ms

• MP3 bit rates: 32 - 320kbps

Video Playback

• Compression formats: DivX Plus HD, MPEG1,
MPEG2, MPEG4

Still Picture Playback

• Compression format: GIF, JPEG, JPEG HD, JPEG
Progressive, PNG

• Picture Enhancement: Rotate, Slideshow with music

ack, Zoom

playb

Picture/Display

• Picture enhancement: HD (720p, 1080i, 1080p/
24fps), Progressive scan, Video upscaling

Power

• Power consumption: 180 W

• Power supply: 110V, 60Hz

• Standby power consumption: < 0.9 W

Dimensions

• Main Unit (W x H x D): 360 x 58 x 325 mm

• Main Unit Weight: 2.40 kg

• Center Speaker (W x H x D): 161 x 95 x 92 mm

• Center Speaker Weight: 0.77 kg

• Centre Speaker cable length: 2 m

• Front Speaker (W x H x D): 87 x 161 x 95 mm

• Front Speaker Weight: 0.56 kg

• Front Speaker cable length: 3 m

• Rear Speaker (W x H x D): 95 x 161 x 87 mm

• Rear Speaker Weight: 0.5 kg

• Rear Speaker cable length: 7 m

• Subwoofer (W x H x D): 123 x 309 x 369 mm

• Subwoofer cable length: 3 m

• Subwoofer Weight: 3.81 kg

• Packaging (W x H x D): 467 x 361 x 372 mm

Accessories

• Included accessories: 2 x AAA Batteries, FM
antenna, Power cord, Remote Control, Safety &
Legal Leaflet, Trademarks Sheet, User Manual,
World Wide Warranty leaflet

Product dimensions

• Product dimensions (W x H x D):
36 x 5.8 x

• Product dimensions (W x H x D):

14.2 x 2.3 x 13.2 inch

•Weight: 2.5 kg

• Weight: 5.512 lb

33.5 cm

Packaging dimensions

• Packaging type: Carton

• Number of products included: 1

• Type of shelf placement: Laying

• Packaging dimensions (W x H x D):
.8 x 37 x 37.6 cm

46

• Packaging dimensions (W x H x D):
.4 x 14.6 x 14.8 inch

18

• Gross weight: 10.3 kg

• Nett weight: 9.16 kg

• Tare weight: 1.14 kg

• Gross weight: 22.707 lb

• Nett weight: 20.194 lb

• Tare weight: 2.513 lb

• UPC: 6 09585 22882 5

Outer Carton

• Number of consumer packagings: 1

•Outer carton (L x W x H): 46.8 x 37.6 x 37 cm

•Outer carton (L x W x H): 18.4 x 14.8 x 14.6 inch

• Gross weight: 10.3 kg

• Nett weight: 9.16

• Tare weight: 1.14 kg

• Gross weight: 22.707 lb

• Nett weight: 20.194 lb

• Tare weight: 2.513 lb

• UPC: 6 09585 22882 5

•

kg

Issue date 2014-07-15

Version: 5.3.2

12 NC: 8670 000 94108
UPC: 6 09585 22882 5
