Philips HTS3548/93 user manual

Remote Control

and 2 batteries

Enjoy

Main Unit

User Manual

1 center, 2 front, 2 rear speakers

and subwoofer

FM wire antenna

AM/MW

loop antenna

MP3 LINE-IN cable

Composite video cable

Start disc playback

A Press OPEN/CLOSE ç to open the disc tray.

B Place a disc with the disc label facing up. C Press OPEN/CLOSE ç to close the disc tray. D Playback starts automatically. E If the disc menu appears on the TV, use

  keys or the numeric keypad to select an option in the menu and press OK to start playback.

To enjoy the powerful surround sound from the

speakers, press SURROUND on the remote control to turn on the multi-channel surround mode.

F Press



to stop playback.

Note When you press u button, playback resumes from where it last stopped. To start playback from the beginning, you have to press .

Playback other supported devices

USB

USB device

A Insert your USB device to the USB socket. B Press DISC/USB to switch to ‘USB’ mode. C Press u to start playback. D To stop playback, press DISC/USB to switch to

‘DISC’ mode. You can unplug your USB device now.

Other portable audio player

A Use the supplied MP3 LINE-IN cable to connect the

headphone output socket on your portable audio player to MP3 LINE-IN socket.

B Press PLAY on your portable audio player. C Press MP3 LINE-IN to listen to the playback.

Need help?

User Manual

See the user manual that came with your Philips DVD Home Theatre System.

Screws and Allen key

(for connecting the

tall speakers)

What’s in the box?

www.philips.com/welcome

Connect

Set up

Enjoy

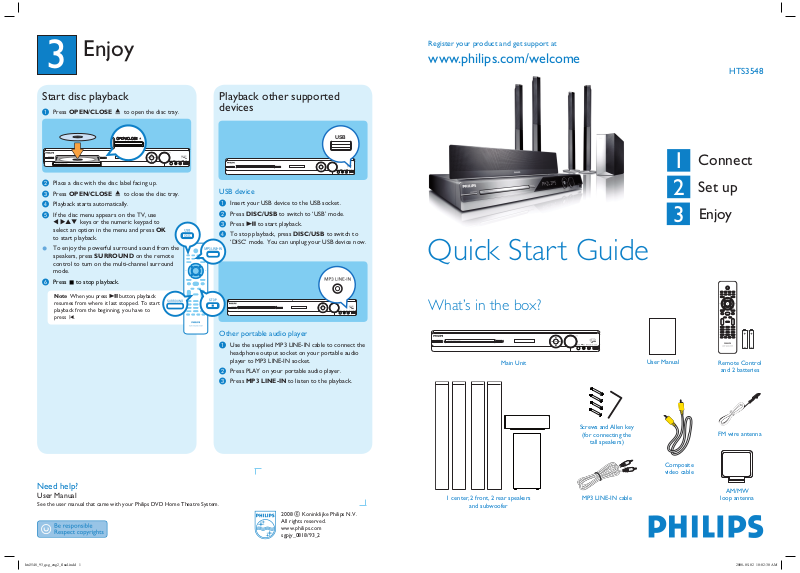

HTS3548

Quick Start Guide

hts3548_93_qsg_eng2_final.indd 1hts3548_93_qsg_eng2_final.indd 1 2008-05-02 10:02:30 AM2008-05-02 10:02:30 AM

Connect

Placement

Proper speakers system placement is important to ensure optimum sound performance.

A Place the center speaker above or close to the TV. B Place the subwoofer on the floor, at least one meter

away from the TV.

C Place the front speakers at equal distances from the

TV.

D Place the rear speakers at the back or beside the

listening position.

Connect the main unit to TV

COAXIAL

CVBS

S-VIDEO

VIDEO OUT

VIDEO IN

(CVBS)

Connect a composite video cable (supplied) from the

CVBS jack on the main unit to the VIDEO IN jack on your TV.

Note It is important to connect the main unit directly to your TV.

Set up

Connect the speakers and subwoofer

A Connect the tall speakers, secure it with the supplied

screw using the Allen key.

B Connect the various colored plugs from the

speakers and subwoofer to the same colored jacks at the rear of the main unit.

Main Unit (rear)

Finding the viewing channel

A Press 2 (STANDBY ON) on the main unit to turn

it on.

B Turn on the TV. Use the TVs remote control to

select the correct viewing channel.

Note To search for the correct viewing channel, press the Channel Down button on the TVs remote

control repeatedly (or AV, SELECT,

° button) until

you see the Video In channel.

Select the display language on the

screen

A Press SETUP.

The { General Setup Page } appears.

B Press  to select { OSD Language } and press . C Use  keys to select a language option in the

menu and press OK to confirm.

D Press SETUP to exit.

Note The language set here is only for the menus

that are shown on the TV while operating this Home Theater system, not for the DVD disc menu.

There are various setup options (Audio Setup, Video Setup, Preference Setup) available on this Home Theater System. Refer to the user manual for more information.

Connect the radio antennas and

power cable

Keep the antennas away from the electronic devices to prevent unwanted interference.

A Connect the FM antenna to the inner pin of the

FM 75  jack. Extend the wire for optimum reception.

B Unfold the AM/MW loop antenna and fix the claw

into the slot. Push the tabs and insert the wires into the AM/MW jacks.

C Connect the power cable from the main unit to the

AC power outlet.

Connect audio output from TV

(optional)

To hear the TV audio through this home theater system, use a red and white audio cables (not supplied) to connect the AUDIO IN-TV jacks on the main unit to the AUDIO OUT jacks on your TV.

AUDIO

OUT

Note Press TV on the remote control to get the sound output from the speakers system when watching the TV programs.

Main Unit (rear)

Television (rear)

Main Unit (rear)

Television ( rear)

Main Unit (rear)

FM antenna

AM/MW antenna

SUBWOOFER

FRONT RIGHT

FRONT LEFT

REAR RIGHT

REAR LEFT

FRONT CENTER

FRONT LEFT

REAR LEFT

VIDEO IN (CVBS)

CENTER

REAR RIGHT

FRONT RIGHT

SUBWOOFER

SETUP

STANDBY-ON

General Setup Page

Disc Lock Display Dim Program

OSD Language

Screen Saver Sleep DivX(R) VOD Code

English

AUDIO OUT

DOCK

AUDIO IN
