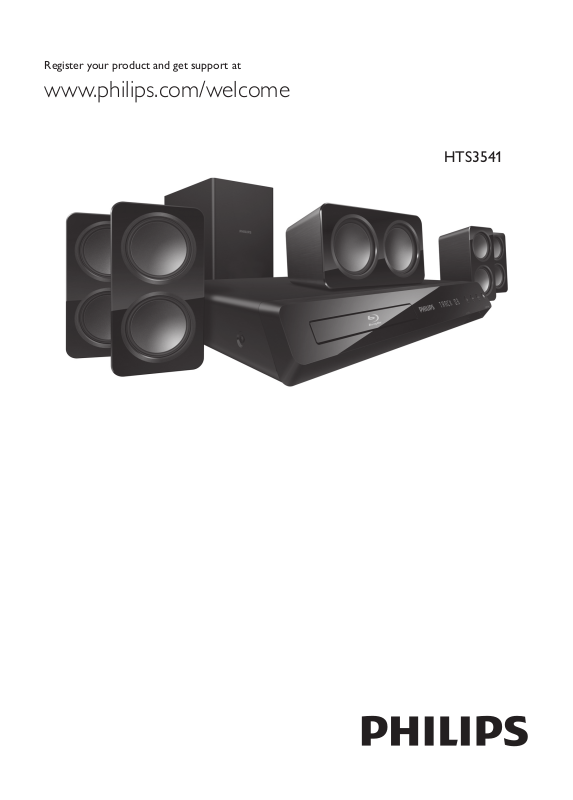

Philips HTS3541 User Manual [ru]

www.philips.com/welcome

HTS3541

Contents

5 Change settings 16

Language settings 16

1 Important 1

Safety 1 Care for your product Care for the environment Help and support

2 2 2

2 Your home theatre 3

Main unit 3 Connectors Remote control

3 4

3 Connect and set up 5

Connect speakers 5 Connect to TV Connect audio from TV and other devices Set up speakers Set up EasyLink (HDMI-CEC control) Connect and set up a home network

6 7 8 8 9

4 Use your home theatre 10

Access the home menu 10 Discs Data ﬁ les USB storage devices Audio, video and picture options Radio MP3 player YouTube videos Picasa web albums Choose sound

10 11 12 12 13 14 14 14 14

Picture and video settings Audio settings Parental control settings Display settings Energy saving settings Speaker settings Restore default settings

6 Update software 18

Check software version 18 Update software through USB Update software through the Internet

7 Product speciﬁ cations 19

8 Troubleshooting 21

9 Notice 23

10 Index 25

16 16 16 17 17 17 17

18 18

23 23 23 24

English

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or ﬁ re!

• Never expose the product and accessories to

rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power socket immediately. Contact Philips Consumer Care to have the product checked before use.

• Never place the product and accessories

near naked ﬂ ames or other heat sources, including direct sunlight.

• Never insert objects into the ventilation slots

or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power

socket before lightning storms.

• When you disconnect the power cord, always

pull the plug, never the cable.

Risk of short circuit or ﬁ re!

• Before you connect the product to the power

socket, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power socket if the voltage is different.

Risk of injury or damage to the home theatre!

• For wall-mountable products, use only the

supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that result in accident, injury or damage.

• For speakers with stands, use only the

supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on ﬂ at, level surfaces that can support the combined weight of the speaker and stand.

• Never place the product or any objects on

power cords or on other electrical equipment.

• If the product is transpor ted in temperatures

below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power socket.

• Visible and invisible laser radiation when

open. Avoid exposure to the beam.

• Do not touch the disc optical lens inside the

disc compartment.

• Parts of this product may be made of glass.

Handle with care to avoid injury and damage.

Risk of overheating!

• Never install this product in a conﬁ ned space.

Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon

and alkaline etc.).

• Danger of explosion if batteries are

incorrectly replaced. Replace with the same or equivalent type only.

• Remove batteries if they are exhausted or if

the remote control is not to be used for a long time.

• Batteries contain chemical substances; they

should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a coin/

button-type battery, which could be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.

• If you suspect that a battery has been

swallowed or placed inside any part of the body, seek immediate medical attention.

• When you change the batteries, always

keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.

• If the battery compartment cannot be

completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

2 EN

Care for your product

Help and support

• Do not inser t any objects other than discs

into the disc compartment.

• Do not insert warped or cracked discs into

the disc compartment.

• Remove discs from the disc compartment

if you are not using the product for an extended period of time.

• Use only microﬁ bre cloth to clean the

product.

Care for the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Philips provides extensive online support. Visit our website at www.philips.com/support to:

• download the complete user manual

• print the quick star t guide

• watch video tutorials (only available for

selected models)

• ﬁ nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and serial number of your product. You can ﬁ nd this information on the back or bottom of your product.

English

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

2 Your home theatre

Congratulations on your purchase, and welcome to Philips! To fully beneﬁ t from the support that Philips offers, register your product at www.philips. com/welcome.

Main unit

This section includes an overview of the main unit.

a Disc compartment b Display panel c ( Open/Close )

Open or close the disc compartment, or eject the disc.

d ( Play/Pause )

Start, pause or resume play.

e SOURCE

Select an audio or video source for the home theatre.

f ( Standby-On )

Switch the home theatre on or to standby.

Connectors

This section includes an overview of the connectors available on your home theatre.

Front connectors

a ( USB )

Audio, video or picture input from a USB storage device.

b MUSIC iLINK

Audio input from an MP3 player.

Rear connectors

a AC MAINS

Connect to the power supply.

b SPEAKERS

Connect to the supplied speakers and subwoofer.

c ANTENNA FM

Fixed FM antenna.

d AUDIO IN - AUX

Connect to an analogue audio output on the TV or an analogue device.

e VIDEO OUT

Connect to the composite video input on the TV.

f HDMI OUT (ARC)

Connect to the HDMI input on the TV.

g LAN

Connect to the LAN input on a broadband modem or router.

h DIGITAL IN - OPTICAL

Connect to an optical audio output on the TV or a digital device.

i DIGITAL IN - COAXIAL

Connect to a coaxial audio output on the TV or a digital device.

4 EN

Remote control

This section includes an overview of the remote control.

16 17

a ( Standby-On )

• Switch the home theatre on or to standby.

• When EasyLink is enabled, press and hold

for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

b ( Home )

Access the home menu.

c Source buttons

• DISC / POP-UP MENU : Switch to disc

source. Access or exit the disc menu when you play a disc.

• RADIO : Switch to FM radio.

• AUDIO SOURCE : Select an audio input

source.

d BACK

• Return to a previous menu screen.

• In radio mode, press and hold to erase

the current preset radio stations.

e Navigation buttons

• Navigate menus.

• In radio mode, press left or right to start

auto search.

• In radio mode, press up or down to tune

the radio frequency.

f OK

Conﬁ rm an entry or selection.

g / ( Previous/Next )

• Skip to the previous or next track,

chapter or ﬁ le.

• In radio mode, select a preset radio station.

h ( Stop ) / ( Eject / Open/Close )

• Stop play.

• Press and hold for three seconds to open

or close the disc compartment, or eject the disc.

i / ( Fast Backward / Fast Forward )

Search backwards or forwards. Press repeatedly to change the search speed.

j +/- ( Volume )

Increase or decrease volume.

k SOUND SETTINGS

Access or exit sound options.

l Alphanumeric buttons

Enter values or letters (using SMS-style entr y).

m REPEAT

Select or turn off repeat mode.

n TOP MENU

Access the main menu of a disc.

o OPTIONS

• Access more play options while playing a

disc or a USB storage device.

• In radio mode, set a radio station.

English

p ( Play )

Start or resume play.

q ( Pause )

Pause play.

r ( Mute )

Mute or restore volume.

s AUDIO

Select an audio language or channel.

t SUBTITLE

Select subtitle language for video.

u Colour buttons

Select tasks or options for Blu-ray discs.

3 Connect and set up

This section helps you connect your home theatre to a TV and other devices, and then set it up. For information about the basic connections of your home theatre and accessories, see the quick start guide. For a comprehensive interactive guide, visit www.connectivityguide.philips.com.

Note

For identiﬁ cation and supply ratings, see the type

•

plate at the back or bottom of the product.

• Before you make or change any connections,

make sure that all devices are disconnected from the socket.

Connect speakers

The speaker cables are colour-coded for easy connection. To connect a speaker to your home theatre, match the colour on the speaker cable to the colour on the connector.

Speaker position plays a critical role in setting up a surround sound effect. For the best effect, position all the speakers towards the seating area and then place them close to and level with your ears (when seated).

6 EN

Note

Surround sound depends on factors such as

•

room shape and size, type of wall and ceiling, windows and reﬂ ective surfaces, and speaker acoustics. Experiment with the speaker positions to ﬁ nd the optimum setting for you.

Follow these general guidelines for speaker placement.

1 Seating position:

This is the centre of your listening area.

2 FRONT CENTER (front centre) speaker:

Place the centre speaker directly in front of the seating position, either above or below your TV.

3 FRONT LEFT (front left) and FRONT

RIGHT (front right) speakers:

Place the left and right speakers at the front, and at an equal distance from the centre speaker. Make sure that the left, right and the centre speakers are at an equal distance from your seating position.

4 REAR LEFT (rear left) and REAR RIGHT

(rear right) speakers: Place the rear surround speakers to the left and right side of your seating position, either in line with it or slightly behind it.

5 SUBWOOFER (subwoofer):

Place the subwoofer at least one metre to the left or right of the TV. Leave about 10-centimetres clearance from the wall.

Connect to TV

Connect your home theatre to a TV to watch videos. You can listen to the TV audio through your home theatre speakers. Use the best quality connection available on your home theatre and TV.

Option 1: Connect to TV through HDMI (ARC)

Best quality video Your home theatre supports HDMI version 1.4 Audio Return Channel (ARC). If your TV is HDMI ARC compliant, you can hear the TV audio through your home theatre by using a single HDMI cable.

1 Using a High-Speed HDMI cable, connect

the HDMI OUT (ARC) connector on your home theatre to the HDMI ARC connector on the TV.

• The HDMI ARC connector on the TV

might be labelled differently. For details, see the TV user manual.

2 On your TV, turn on HDMI-CEC operations.

For details, see the TV user manual.

• If you cannot hear the TV audio through

your home theatre, set up the audio manually (see 'Set up the audio' on page 9 ) .

Option 2: Connect to TV through standard HDMI

Best quality video If your TV is not HDMI ARC-compliant, connect your home theatre to the TV through a standard HDMI connection.

1 Using a High-Speed HDMI cable, connect the

HDMI OUT (ARC) connector on your home theatre to the HDMI connector on the TV.

2 Connect an audio cable to hear the TV audio

through your home theatre (see 'Connect audio from TV and other devices' on page 7 ) .

3 On your TV, turn on HDMI-CEC operations.

For details, see the TV user manual.

• If you cannot hear the TV audio through

your home theatre, set up the audio manually (see 'Set up the audio' on page 9 ) .

Note

If your TV has a DVI connector, you can use an

•

HDMI/DVI adapter to connect to TV. However, some of the features may not be available.

English

Note

When your home theatre and TV are connected

•

through HDMI ARC, an audio connection is not required (see 'Option 1: Connect to TV through HDMI (ARC)' on page 6 ) .

Option 3: Connect to the TV through composite video

Basic quality video If your TV does not have HDMI connectors, use a composite video connection. A composite connection does not support high-deﬁ nition video.

1 Using a composite video cable, connect the

VIDEO connector on your home theatre to the VIDEO IN connector on the TV.

• The composite video connector might

be labelled AV IN , COMPOSITE or BASEBAND .

2 Connect an audio cable to hear the TV audio

through your home theatre (see 'Connect audio from TV and other devices' on page 7 ) .

3 When you watch TV programmes, press

SOURCE on your home theatre repeatedly to select the correct audio input.

4 When you watch videos, switch your TV to

the correct video input. For details, see the TV user manual.

Option 1: Connect audio through a digital optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL

connector on your home theatre to the OPTICAL OUT connector on the TV or other device.

• The digital optical connector might be

labelled SPDIF or SPDIF OUT .

Option 2: Connect audio through a digital coaxial cable

Good quality audio

1 Using a coaxial cable, connect the COAXIAL

connector on your home theatre to the COAXIAL/DIGITAL OUT connector on the TV or other device.

• The digital coaxial connector might be

labelled DIGITAL AUDIO OUT .

Connect audio from TV and other devices

Play audio from your TV or other devices through your home theatre speakers. Use the best quality connection available on your TV, home theatre and other devices.

8 EN

Option 3: Connect audio through analogue audio cables

Basic quality audio

1 Using an analogue cable, connect the AUX

connectors on your home theatre to the AUDIO OUT connectors on the TV or other device.

VCR

Note

Depending on the manufacturer, HDMI-CEC is

•

known by many names. For information on your device, see the user manual of the device.

• Philips does not guarantee 100% interoperability

with all HDMI-CEC devices.

Before you start

• Connect your home theatre to the HDMI-CEC

compliant device through a HDMI connection.

• Make the necessary connections described in

the quick start guide, and then switch the TV to the correct source for your home theatre.

Enable EasyLink

English

Set up speakers

Manually set up the speakers to experience customised surround sound.

Before you start

Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theatre.

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Audio] > [Speaker Setup] . 4 Enter the distance for each speaker, and

then listen to the test tones and change the volume. Experiment with the speaker positions to ﬁ nd the ideal setting.

Set up EasyLink (HDMI-CEC control)

This home theatre supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI can be controlled by a single remote control.

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [EasyLink] > [EasyLink] > [On] . 4 On your TV and other connected devices,

turn on HDMI-CEC control. For details, see the user manual of the TV or other devices.

• On your TV, set the audio output to

'Ampliﬁ er' (instead of TV speaker). For details, see the TV user manual.

EasyLink controls

With EasyLink, you can control your home theatre, TV and other connected HDMI-CEC compliant devices with a single remote control.

• [One Touch Play] (One-touch play): When a

video disc is in the disc compartment, press

( Play ) to wake up the TV from standby, and

then play a disc.

• [One Touch Standby] (One-touch standby):

If one-touch standby is enabled, your home theatre can switch to standby with the remote control of the TV or other HDMI-CEC devices.

• [System Audio Control] (System audio

control):If system audio control is enabled, the audio of the connected device is automatically output through your home theatre speakers when you play the device.

• [Audio Input Mapping] (Audio input

mapping): If system audio control does not work, map the connected device to the correct audio input connector on your home theatre (see 'Set up the audio' on page 9 ) .

Note

• To change the EasyLink control settings, press

( Home ), select [Setup] > [EasyLink] .

Set up the audio

If you cannot hear the audio output of a connected device through your home theatre speakers, check that you have enabled Easylink on all the devices (see 'Enable EasyLink' on page 8 ) . Then, set up the EasyLink audio control.

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [EasyLink] > [System Audio Control]

> [On] .

• To play the audio from the TV speakers,

select [Off] and skip the following steps.

4 Select [EasyLink] > [Audio Input Mapping] . 5 Follow the onscreen instructions to map the

connected device to the audio inputs on your home theatre.

• If you connect your home theatre to the

TV through an HDMI ARC connection, make sure that the TV audio is mapped to the ARC input on your home theatre.

Connect and set up a home network

Connect your home theatre to a home network with Internet access and enjoy:

• YouTube leanback

• Picasa web albums

• BD-Live applications

• Software update

Caution

Familiarise yourself with the network router

•

and networking principles. If necessary, read documentation that accompanies the network components. Philips is not responsible for lost, damaged or corrupt data.

Before you start

• For software updates, make sure that the

network router has access to the Internet with high-speed connection and is not restricted by ﬁ rewalls or other security systems.

• Make the necessary connections described in

the quick start guide, and then switch the TV to the correct source for your home theatre.

Set up the wired network

What you need

• A network cable (RJ45 straight cable).

• A network router (with DHCP enabled).

LAN

www

1 Using a network cable, connect the LAN

connector on your home theatre to the network router.

2 Press ( Home ). 3 Select [Setup] , and then press OK . 4 Select [Network] > [Network Installation]

> [Wired (Ethernet)] .

5 Follow the onscreen instructions to complete

the setup.

• If connection fails, select [Retry] , and

then press OK .

6 Select [Finish] , and then press OK to exit.

• To view the network settings, select

[Setup] > [Network] > [View Network Settings] .

10 EN

4 Use your home

Play buttons

theatre

This section helps you use the home theatre to play media from a wide range of sources.

Before you start

• Make the necessary connections described in

the Quick start guide and the user manual.

• Switch the TV to the correct source for the

home theatre.

Access the home menu

The home menu provides easy access to connected devices, setup and other useful features in your home theatre.

1 Press ( Home ).

» The home menu is displayed.

2 Press the Navigation buttons and OK to

select the following:

• [play disc] : Start disc play.

• [Browse USB] : Access the USB content

browser

• [Picasa] : Access Picasa web albums.

• [YouTube] : Access YouTube Leanback

page.

• [Setup] : Access menus to change video,

audio and other settings.

3 Press ( Home ) to exit.

Discs

Button Action Navigation

buttons OK Conﬁ rm an entr y or selection.

( Play )

AUDIO Select an audio language or channel. SUBTITLE Select subtitle language for video. DISC /

POP-UP

OPTIONS

REPEAT Select or turn off repeat mode.

Navigate menus.

Start or resume play. Pause play. Stop play. Skip to the previous or next track,

chapter or ﬁ le. Fast reverse or fast forward. Press

repeatedly to change the search speed.

Access or exit the disc menu.

Access the advanced options when you play your audio, video or media ﬁ les (see 'Audio, video and picture options' on page 12 ) .

Synchronise picture and sound

If the audio and video are not synchronised, delay the audio to match the video.

1 Press SOUND SETTINGS . 2 Select AUD SYNC , and then press OK . 3 Press the Navigation buttons (up/down) to

synchronise the audio with the video.

4 Press OK to conﬁ rm.

English

Your home theatre can play DVDs, VCDs, CDs and Blu-ray discs. It can also play discs that you’ve made at home, such as CD-R discs of photos and music.

1 Inser t a disc into the home theatre. 2 If the disc does not play automatically, press

DISC or select [play Disc] from the home menu.

3 Use the remote control to control play (see

'Remote control' on page 4 ) .

• It is normal to hear a slight noise when

you play a Blu-ray disc. This does not mean that your home theatre is faulty.

Bonus View on Blu-ray

On Blu-ray discs that suppor t the Bonus View, enjoy extra content such as commentaries in a small screen window. Bonus View is also known as picture-in-picture.

1 Enable Bonus View in the Blu-ray disc menu. 2 While you play the movie, press OPTIONS .

» The options menu is displayed.

3 Select [PIP Selection] > [PIP] .

• Depending on the video, PIP menu [1] or

[2] is displayed.

• To disable Bonus View, select [Off] .

4 Select [2nd Audio Language] or [2nd Subtitle

Language] .

5 Select the language, and then press OK .

2 To stop play, press .

• To resume the video from where you

stopped, press

• To play the video from the start, press OK .

( Play ).

BD-Live on Blu-ray

Access additional features on the Blu-ray discs with BD-Live content, such as Internet chats with the director, the latest movie trailers, games, wallpaper and ringtones. BD-Live services and content vary from disc to disc.

What you need

• Blu-ray disc with BD-Live content

• a USB storage device, with at least 1 GB of

memory

1 Connect your home theatre to a home

network with Internet access (see 'Connect and set up a home network' on page 9 ) .

2 Connect a USB storage device to your home

theatre.

3 Press ( Home ) and select [Setup] . 4 Select [Advanced] > [BD-Live Security] >

[Off] to enable BD-Live.

• To disable BD-Live, select [On] .

5 Select the BD-Live icon in the disc menu, and

then press OK .

» BD-Live starts to load. The loading time

depends on the disc and your Internet connection.

6 Press the Navigation buttons to navigate BD-

Live, and then press OK to select an option.

Note

To clear the memor y on the storage device,

•

press

( Home ), select [Setup] > [Advanced]

> [Clear Memory] .

Data ﬁ les

Your home theatre can play pictures, audio and video ﬁ les contained in a disc or a USB storage device. Before you play a ﬁ le, check that the ﬁ le format is supported by your home theatre (see 'File formats' on page 19 ) .

1 Play the ﬁ les from a disc or USB storage

device.

Note

To play DivX DRM protected ﬁ les, connect your

•

home theatre to a TV through an HDMI cable.

Subtitles

If your video has subtitles in multiple languages, select a subtitle language.

Note

Make sure that the subtitle ﬁ le has exactly the

•

same name as the video ﬁ le. For example, if the video ﬁ le is named 'movie.avi', name the subtitle ﬁ le 'movie.sr t' or 'movie.sub'.

• Your home theatre suppor ts the following ﬁ le

formats: .srt, .sub, .txt, .ssa, .ass, smi and .sami. If the subtitles do not appear correctly, change the character set.

1 While playing video, press SUBTITLE to

select a language.

2 For DivX videos, if the subtitles do not

appear correctly, continue with the following steps to change the character set.

3 Press OPTIONS .

» The options menu is displayed.

4 Select [Character Set] , and then select a

character set that supports the subtitles.

Europe, India and Russia

Character Set

[Standard] English, Albanian, Danish, Dutch, Finnish,

[Central Europe]

[Cyrillic] Bulgarian, Belorussian, English,

[Greek] Greek

Language

French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish

Albanian, Croat, Czech, Dutch, English, German, Hungarian, Irish, Polish, Romanian, Slovak, Slovene and Sorbian

Macedonian, Moldavian, Russian, Serbian and Ukrainian

12 EN

VOD code for DivX

Before you purchase DivX videos and play them on your home theatre, register the home theatre on www.divx.com using the DivX VOD code.

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Advanced] > [DivX® VOD Code] .

» The DivX VOD registration code for

your home theatre is displayed.

USB storage devices

Enjoy pictures, audio and video stored on a USB storage device such as an MP4 player or digital camera.

What you need

• A USB storage device that is formatted for

FAT or NTFS ﬁ le systems and complies with the Mass Storage Class.

• A media ﬁ le in one of the supported ﬁ le

formats (see 'File formats' on page 19 ) .

Note

If you use a USB extension cable, USB HUB or

•

USB multi-reader, the USB storage device may not be recognised.

1 Connect a USB storage device to the

( USB ) connector on your home theatre.

2 Press ( Home ). 3 Select [browse USB] , and then press OK .

» A content browser is displayed.

4 Select a ﬁ le, and then press OK . 5 Press the play buttons to control play (see

'Play buttons' on page 10 ) .

Audio, video and picture options

Use advanced features when you play pictures, audio and video ﬁ les from a disc or a USB storage device.

Audio options

While playing audio, repeat an audio track, a disc or a folder.

1 Press OPTIONS repeatedly to cycle through

the following functions:

• RPT TRACK / RPT FILE : Repeat the

current track or ﬁ le.

• RPT DISC / RPT FOLDER : Repeat all

the tracks on the disc or the folder.

• RPT RANDOM : Play audio tracks in

random order.

• RPT OFF : Turn off the repeat mode.

Video options

While watching video, select options such as subtitles, audio language, time search and picture settings. Depending on the video source, some options are not available.

1 Press OPTIONS .

» The video options menu is displayed.

2 Press the Navigation buttons and OK to

select and change:

• [Audio Language] : Select audio language

for video.

• [Subtitle Language] : Select subtitle

language for video.

• [Subtitle Shift] : Change the subtitle

position on the screen.

• [Info] : Display information about what is

playing.

• [Character Set] : Select a character set

that supports the DivX subtitle.

• [Time Search] : Skip to a speciﬁ c par t of the

video by entering the time of the scene.

• [2nd Audio Language] : Select the second

audio language for Blu-ray video.

• [2nd Subtitle Language] : Select the second

subtitle language for Blu-ray video.

• [Titles] : Select a speciﬁ c title.

• [Chapters] : Select a speciﬁ c chapter.

• [Angle List] : Select a different camera angle.

• [Menus] : Display the disc menu.

• [PIP Selection] : Display Picture-in-Picture

window when playing a Blu-ray disc that supports the Bonus View.

• [Zoom] : Zoom into a video scene or

picture. Press the Navigation buttons (left/right) to select a zoom factor.

• [Repeat] : Repeat a chapter or title.

English

• [Repeat A-B] : Mark two points within a

chapter or track to repeat play, or turn off the repeat mode.

• [Picture Settings] : Select a predeﬁ ned

colour setting.

Radio

Listen to FM radio on your home theatre, and store up to 40 radio stations.

Picture options

While viewing a picture, zoom into the picture, rotate it, add animation to a slideshow and change the picture settings.

1 Press OPTIONS .

» The picture options menu appears.

2 Press the Navigation buttons and OK to

select and change the following settings:

• [Rotate +90] : Rotate the picture 90

degrees clockwise.

• [Rotate -90] : Rotate the picture 90

degrees anti-clockwise.

• [Zoom] : Zoom into a video scene or

picture. Press the Navigation buttons (left/right) to select a zoom factor.

• [Info] : Display picture information.

• [Duration per slide] : Select the display

speed for each picture in a slide show.

• [Slide Animation] : Select animation for

the slideshow.

• [Picture Settings] : Select a predeﬁ ned

colour setting.

• [Repeat] : Repeat a selected folder.

Musical slideshow

If the picture and audio ﬁ les are from the same disc or USB storage device, you can create a musical slideshow.

1 Select an audio track, and then press OK . 2 Press BACK , and go to the picture folder. 3 Select a picture, and then press ( Play ) to

start the slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Note

Make sure that the picture and audio formats

•

are supported by your home theatre (see 'File formats' on page 19 ) .

Note

AM and digital radio are not suppor ted.

•

• If no stereo signal is detected, or if fewer than

ﬁ ve stations are found, you are prompted to install the radio stations again.

1 Extend the FM antenna at the back of your

home theatre and place it away from the TV or other sources of radiation.

2 Press RADIO .

» If you have already installed the radio

stations, the last channel that you listened to is played.

» If you have not installed any radio

stations, the message AUTO INSTALL...PRESS PLAY appears on the display panel. press

( Play ).

3 Use the remote control to listen or to

change radio stations.

Button Action

/ or Alphanumeric buttons

Navigation buttons

BACK

OPTIONS Manual:

Select a preset radio station.

Left/Right: Search for a radio station. Up/Down: Fine tune a radio frequency.

Press to stop the installation of radio stations.

Press and hold to erase the preset radio station.

1) Press Press preset. 3) Press again to store the radio station. Automatic: Press and hold for three seconds to reinstall the radio stations.

OPTIONS . 2)

/ to select your

OPTIONS

14 EN

MP3 player

Picasa web albums

Connect an MP3 player to play audio ﬁ les.

What you need

• An MP3 player.

• A 3.5-mm stereo audio cable.

1 Using the 3.5 mm stereo audio cable,

connect the MP3 player to the MUSIC iLINK connector on your home theatre.

2 Press AUDIO SOURCE repeatedly until

MUSIC I-LINK appears on the display panel.

3 Press the buttons on the MP3 player to select

and play audio ﬁ les.

YouTube videos

Enjoy YouTube videos through your home theatre.

1 Connect your home theatre to a home

network with a high-speed Internet access (see 'Connect and set up a home network' on page 9 ) .

2 Press ( Home ). 3 Select [YouTube] , and then press OK .

» The YouTube Leanback page is displayed.

4 Follow the onscreen instructions to browse

the YouTube page.

5 Use the remote control to select and

navigate the application.

Button Action Navigation

buttons

Up: Access the onscreen keyboard. Down: Access the onscreen playback buttons. Left/Right: Select a video from the playlist.

Access Picasa Web Albums through your home theatre.

What you need

• An account with Picasa Web Albums.

1 Connect your home theatre to a home

network with Internet access (see 'Connect and set up a home network' on page 9 ) .

2 Press ( Home ). 3 Select [Picasa] , and then press OK . 4 Log in to your Picasa web account.

• The ﬁ rst time you log in, select [New

user] , and then enter your username and

password. Save your login information for subsequent use.

• If you have logged in before, select a

stored username and enter the password.

5 Select the onscreen options to view the

albums or photos.

6 Press ( Home ) to exit Picasa menu.

View slideshow

1 Select [My photos] from the Picasa menu,

and then press OK .

» The photo albums in your Picasa Web

Albums are displayed.

2 Select a photo, and then press OK to view

the photo in full screen.

3 Press OK again to view the photos in a

slideshow.

4 While viewing a slideshow, press OPTIONS

to access more play options.

5 Press BACK to return to the previous

screen.

English

• If you do not press a button within few

seconds, the onscreen buttons and menu exit automatically.

6 Press ( Home ) to exit the YouTube page.

Choose sound

This section helps you choose the ideal sound for your video or music.

1 Press SOUND SETTINGS . 2 Press the Navigation buttons (left/right) to

access the sound options on the display.

Sound settings Description SOUND Select a sound mode. SURROUND Select surround sound or

stereo sound.

TREBLE Change the high frequency

output.

MID Change the middle frequency

output.

BASS Change the low frequency

output.

AUD SYNC Delay the audio to match the

video.

3 Select an option, and then press OK . 4 Press BACK to exit.

If you do not press a button within a minute, the menu exits automatically.

Surround sound mode

Experience an immersive audio experience with surround sound modes.

1 Press SOUND SETTINGS . 2 Select SURROUND , and then press OK . 3 Press the Navigation buttons (up/down) to

select a setting from your display:

• AUTO : Surround sound based on the

audio stream.

• 5CH STER : Enhanced stereo sound. Ideal

for party music.

• MULTI-CH : Immersive multi-channel

sound for an enhanced movie experience.

• STEREO : Two-channel stereo sound. Ideal

for listening to music.

4 Press OK to conﬁ rm.

Sound mode

Select predeﬁ ned sound modes to suit your video or music.

1 Press SOUND SETTINGS . 2 Select SOUND , and then press OK . 3 Press the Navigation buttons (up/down) to

select a setting on the display:

• MOVIE : Enjoy a cinematic audio

experience, specially enhanced for movies.

• MUSIC : Recreate the original recording

environment of your music, in the studio or at a concert.

• ORIGINAL : Experience the original

sound of your movies and music, without added sound effects.

• NEWS : Hear every word with optimised

speech and clear vocals.

• GAMING : Enjoy thrilling arcade sounds,

ideal for action-packed video games or loud parties.

4 Press OK to conﬁ rm.

Equalizer

Change the high frequency (treble), mid frequency (mid) and low frequency (bass) settings of the home theatre.

1 Press SOUND SETTINGS . 2 Select TREBLE , MID or BASS , and then press

OK .

3 Press the Navigation buttons (up/down) to

change the frequency.

4 Press OK to conﬁ rm.

16 EN

5 Change settings

The home theatre settings are already conﬁ gured for optimal performance. Unless you have a reason to change a setting, we recommend that you keep the default setting.

Note

You cannot change a setting that is greyed out.

•

• To return to the previous menu, press

BACK . To exit the menu, press

Language settings

( Home ).

4 Press the Navigation buttons and OK to

select and change:

• [TV Display] : Select a picture format to

ﬁ t the TV screen.

• [HDMI Video] : Select the resolution of the

video signal that is output from HDMI OUT (ARC) on your home theatre. To enjoy the selected resolution, make sure that your TV supports the selected resolution.

• [HDMI Deep Color] : Recreate the natural

world on your TV screen by displaying vivid images using billions of colours. Your home theatre must be connected to a Deep Color enabled TV through an HDMI cable.

• [Picture Settings] : Select pre-deﬁ ned

colour settings for the video display.

• [Watch 3D video] : Set HDMI video to

support 3D or 2D video.

English

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Preference] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Menu Language] : Select a display

language for the menu.

• [Audio] : Select an audio language for the

discs.

• [Subtitle] : Select a subtitle language for

the discs.

• [Disc Menu] : Select a menu language for

the discs.

Note

If your preferred disc language is not available,

•

select [Others] from the list and enter the 4-digit language code found at the end of this user manual .

• If you select a language that is not available on a

disc, the home theatre uses the default language of the disc.

Picture and video settings

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Video] , and then press OK .

Note

If you change a setting, make sure that the TV

•

supports the new setting.

Audio settings

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Audio] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Night Mode] : For quiet listening,

decrease the volume of loud sounds on your home theatre. Night mode is only available for Dolby-encoded DVD and Blu-ray discs.

• [HDMI Audio] : Set the HDMI audio

output from your TV, or disable HDMI audio output from the TV.

• [Default sound settings] : Restore the

equaliser settings of all the sound modes to the default values.

Parental control settings

1 Press ( Home ). 2 Select [Setup] , and then press OK .

3 Select [Preference] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Change Password] : Set or change your

password for parental control access. If you do not have a password or have forgotten your password, enter 0000 .

• [Parental Control] : Restrict access to

discs that are recorded with age ratings. To play all discs, irrespective of the ratings, select 8 or [Off] .

Display settings

Speaker settings

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Advanced] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Enhanced Audio] : Select [On] to enable

audio post processing on the speaker and enable karaoke settings (if your product supports Karaoke). To play the original audio of the disc, select [Off] .

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Preference] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Auto Subtitle Shift] : Enable or disable

automatic repositioning of subtitles on TVs that support this feature.

• [Display Panel] : Set the brightness of the

home theatre front panel display.

• [VCD PBC] : Enable or disable the content

menu navigation of VCD and SVCD discs with Play Back Control feature.

Energy saving settings

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Preference] , and then press OK . 4 Press the Navigation buttons and OK to

select and change:

• [Screen Saver] : Switch the home theatre

to screen saver mode after 10 minutes of inactivity.

• [Auto Standby] : Switch the home theatre

to standby after 30 minutes of inactivity. This timer only works when a disc or USB play is paused or stopped.

• [Sleep Timer] : Set the duration of the sleep

timer so that the home theatre is switched to standby after the speciﬁ ed period.

Tip

Enable audio post processing before you select a

•

predeﬁ ned sound mode (see 'Sound mode' on page 15 ) .

Restore default settings

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Advanced] > [Restore Default

Settings] , and then press OK .

4 Select [OK] , and then press OK to conﬁ rm.

» Your home theatre is reset to its default

settings except for some settings, such as parental control and DivX VOD registration code.

18 EN

6 Update software

Philips continually tries to improve its products. To get the best features and suppor t, update your home theatre with the latest software.

Compare the version of your current software with the latest version on www.philips.com/support. If the current version is lower than the latest version available on the Philips support website, upgrade your home theatre with the latest software.

Caution

Do not install a lower version of software than

•

the version currently installed on your product. Philips is not liable for problems caused due to software downgrading.

Check software version

Check the version of the software currently installed on your home theatre.

1 Press ( Home ). 2 Select [Setup] , and then press OK . 3 Select [Advanced] > [Version Info.] , and then

press OK .

» The software version is displayed.

4 Save the zip ﬁ le in the root directory of your

USB ﬂ ash drive.

5 Use the archive utility to extract the software

update ﬁ le in the root directory.

» The ﬁ les are extracted in the UPG_ALL

folder on your USB ﬂ ash drive.

6 Disconnect the USB ﬂ ash drive from your

computer.

Step 2: Update the software

Caution

Do not switch off the home theatre or remove

•

the USB ﬂ ash drive during the update.

1 Connect the USB ﬂ ash drive containing the

downloaded ﬁ le to your home theatre.

• Make sure that the disc compartment is

closed and that there is no disc inside.

2 Press ( Home ). 3 Select [Setup] , and then press OK . 4 Select [Advanced] > [Software Update] > [USB] . 5 Follow the onscreen instructions to conﬁ rm

the update.

» Once complete, the home theatre

automatically switches off and restarts. If it does not, disconnect the power cord for a few seconds and then reconnect it.

English

Update software through USB

What you need

• A USB ﬂ ash drive that is FAT or NTFS-

formatted, with at least 75 MB of memory. Do not use a USB hard drive.

• A computer with Internet access.

• An archive utility that supports the ZIP ﬁ le

format.

Step 1: Download the latest software

1 Connect a USB ﬂ ash drive to your computer. 2 In your web browser, go to www.philips.com/

support.

3 At the Philips Support website, ﬁ nd your

product and locate the Software and drivers .

» The software update is available as a zip ﬁ le.

Update software through the Internet

1 Connect your home theatre to a home network

with a high-speed Internet access (see 'Connect and set up a home network' on page 9 ) .

2 Press ( Home ). 3 Select [Setup] , and then press OK . 4 Select [Advanced] > [Software Update] >

[Network] .

» If upgrade media is detected, you are

prompted to start or cancel the update.

5 Follow the onscreen instructions to conﬁ rm

the update.

» Once complete, the home theatre

automatically switches off and restarts. If it does not, disconnect the power cord for a few seconds and then reconnect it.

+ 47 hidden pages
