Philips HTS3532 User Manual

Download

Page 1

www.philips.com/welcome

HTS3532

This Philips Home Theatre System is covered under warranty against any defect arising out of faulty

WARRANTY

or defective material or workmanship for a period of 12 Months from the date of purchase.

Should a defect develop during the period of warranty, Philips Electronics India Limited undertakes to repair the apparatus free of charge through an Authorised Philips service centre. If the purchaser shifts his residence to other town, the warranty will be valid at the nearest Authorised Philips service center.

The Warranty is not valid in case:

• Proof of purchase is not accompanied with this warranty form

• This warranty form is not completed immediately after purchase

• The Apparatus is not used according to this manual

• Defects are caused by improper or reckless use

• Any repair work are done by person other than Authorised Philips service center

• Any modification or alteration of any nature are made in the apparatus

• The serial number is tampered

• Defects due to causes beyond control like lightning, abnormal voltage, Acts of God or

Maintenance Tips for your Home Theatre System:

• Always keep a Disc loaded in your Home Theatre System tray.

• Keep the home theatre away from the dusty areas. Keep it covered with a dust cover.

• Clean your Home Theatre System Lens after every 20 Discs played.

• Clean the CDs / VCD / DVD / MP3 CD before inserting in your Home Theatre System

while in transit to the purchaser’s residence

o Use the 2 brush Philips DVD Lens Cleaner SVC2520 for best results.

Page 2

Page 3

Contents

6 Update software 15

Check software version 15

1 Important 2

Safety 2 Care for your product Care of the environment Help and support

3 3 3

2 Your home theater 4

Main unit 4 Connectors Remote control

4 5

Update software through USB

7 Product specif cations 16

8 Troubleshooting 18

9 Notice 19

English

3 Connect and set up 6

Connect speakers 6 Connect to TV Connect audio from TV and other devices Set up speakers Set up EasyLink (HDMI-CEC control)

7 8 8 8

10 Index 20

4 Use your home theater 9

Discs 9 Data ﬁ les USB storage devices Audio, video, and picture options Radio MP3 player Create MP3 ﬁ les Choose sound

10 11 11 12 12 12 13

5 Change settings 14

Language settings 14 Picture and video settings Audio settings Parental control settings Display settings Energy saving settings Restore default settings

14 14 14 15 15 15

Page 4

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or f re!

• Never expose the product and accessories to

rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

• Never place the product and accessories

near naked ﬂ ames or other heat sources, including direct sunlight.

• Never insert objects into the ventilation slots

or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power

outlet before lightning storms.

• When you disconnect the power cord, always

pull the plug, never the cable.

Risk of short circuit or f re!

• Before you connect the product to the

power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the home theater!

• For wall-mountable products, use only the

supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

• For speakers with stands, use only the

supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on ﬂ at, level surfaces that can support the combined weight of the speaker and stand.

• Never place the product or any objects

on power cords or on other electrical equipment.

• If the product is transpor ted in temperatures

below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

• Visible and invisible laser radiation when

open. Avoid exposure to beam.

• Do not touch the disc optical lens inside the

disc compartment.

• Parts of this product can be made of glass.

Handle with care to avoid injury and damage.

Risk of overheating!

• Never install this product in a conﬁ ned space.

Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon

and alkaine, etc.).

• Danger of explosion if batteries are

incorrectly replaced. Replace only with the same or equivalent type.

• Remove batteries if they are exhausted or if

the remote control is not to be used for a long time.

• Batteries contain chemical substances, they

should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain

a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.

• If you suspect that a battery has been

swallowed or placed inside any part of the body, seek immediate medical attention.

• When you change the batteries, always

keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.

• If the battery compartment cannot be

completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

2 EN

Page 5

Care for your product

Help and support

• Do not inser t any objects other than discs

into the disc compartment.

• Do not insert warped or cracked discs into

the disc compartment.

• Remove discs from the disc compartment

if you are not using the product for an extended period of time.

• Use only microﬁ ber cloth to clean the

product.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Philips provides extensive online support. Visit our website at www.philips.com/support to:

• download the complete user manual

• print the quick star t guide

• watch video tutorials (available only for

selected models)

• ﬁ nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and serial number of your product. You can ﬁ nd this information on the back or bottom of your product.

English

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Page 6

2 Your home theater

Congratulations on your purchase, and welcome to Philips! To fully beneﬁ t from the support that Philips offers, register your product at www.philips. com/welcome.

Main unit

a ( USB )

Audio, video or picture input from a USB storage device.

b MUSIC iLINK

Audio input from an MP3 player.

Rear connectors

This section includes an overview of the main unit.

a Disc compartment b Display panel c ( Open/Close )

Open or close the disc compartment, or eject the disc.

d ( Play/Pause )

Start, pause or resume play.

e SOURCE

Select an audio or video source for the home theater.

f ( Standby-On )

Switch the home theater on or to standby.

Connectors

This section includes an overview of the connectors available on your home theater.

a AC MAINS

Connect to the power supply.

b SPEAKERS

Connect to the supplied speakers and subwoofer.

c HDMI OUT

Connect to the HDMI input on the TV.

d OPTICAL

Connect to an optical audio output on the TV or a digital device.

e VIDEO OUT

Connect to the composite video input on the TV.

f AUDIO IN - AUX

Connect to an analog audio output on the TV or an analog device.

g ANTENNA FM 75

Signal input from an antenna, cable or satellite.

Front connectors

4 EN

Page 7

Remote control

This section includes an overview of the remote control.

a ( Standby-On )

• Switch the home theater on or to standby.

• When EasyLink is enabled, press and hold

for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

b ( Open/Close )

Open or close the disc compartment, or eject the disc.

c Source buttons

• DISC : Switch to disc source. Access or

exit the disc menu when you play a disc.

• AUDIO SOURCE : Select an audio input

source.

• RADIO : Switch to FM radio.

• USB : Switch to USB storage device.

d Navigation buttons

• Navigate menus.

• In video mode, press left or right to fast

backward or fast forward; press up or down to slow forward or slow backward.

• In radio mode, press left or right to

search a radio station; press up or down to ﬁ ne tune a radio frequency.

e OK

Conﬁ rm an entry or selection.

f BACK

Return to a previous menu screen.

g / ( Previous/Next )

• Skip to the previous or next track,

chapter or ﬁ le.

• In radio mode, select a preset radio station.

h ( Mute )

Mute or restore volume.

i VOL +/-

Increase or decrease volume.

j SOUND

Select a sound mode.

k Numeric buttons

Select an item to play.

l ANGLE

Select video scenes recorded in different camera angels.

m REPEAT / PROGRAM

• Select or turn off repeat mode.

• In radio mode, press once to access

program mode, and press again to store the radio station.

• In radio mode, press and hold for three

seconds to reinstall the radio stations.

n REPEAT A-B

Mark two points within a chapter or track to repeat play, or turn off the repeat mode.

English

Page 8

o CREATE MP3 / ZOOM

• Access the create MP3 menu.

• Zoom into a video scene or picture.

Press the Navigation buttons (left/right) to select a zoom factor.

p SCREEN FIT

Fit the picture format to the TV screen.

q SUBTITLE

Select subtitle language for video.

r AUDIO SYNC

• Select an audio language or channel.

• Press and hold to access audio delay

setting, and then press the +/- or Navigation buttons to delay the audio to match the video.

s SURR

Select surround sound or stereo sound.

t ( Stop )

• Stop play.

• In radio mode, press and hold to erase

the current preset radio stations.

u ( Play/Pause )

Start, pause or resume play.

v INFO

Access more play options while playing a disc or a USB storage device.

w SETUP

Access or exit the setup menu.

x SLEEP

Switch the home theater to standby mode after the elapsed time.

3 Connect and set up

This section helps you connect your home theater to a TV and other devices, and then set it up. For information about the basic connections of your home theater and accessories, see the quick start guide. For a comprehensive interactive guide, visit www.connectivityguide.philips.com.

Note

For identiﬁ cation and supply ratings, see the type

•

plate at the back or bottom of the product.

• Before you make or change any connections,

make sure that all devices are disconnected from the power outlet.

Connect speakers

The speaker cables are color-coded for easy connection. To connect a speaker to your home theater, match the color on the speaker cable to the color on the connector.

Speaker position plays a critical role in setting up a surround sound effect. For best effect, position all the speakers towards the seating position and place them close to your ear level (seated).

6 EN

Page 9

Note

Surround sound depends on factors such as

•

room shape and size, type of wall and ceiling, windows and reﬂ ective surfaces, and speaker acoustics. Experiment with the speaker positions to ﬁ nd the optimum setting for you.

Follow these general guidelines for speakers placement.

1 Seating position:

This is the center of your listening area.

2 FRONT CENTER (front center) speaker:

Place the center speaker directly in front of the seating position, either above or below your TV.

3 FRONT LEFT (front left) and FRONT

RIGHT (front right) speakers:

Place the left and right speakers in the front, and at equal distance from the center speaker. Make sure that the left, right, and the center speakers are at equal distance from your seating position.

4 REAR LEFT (rear left) and REAR RIGHT

(rear right) speakers: Place the rear surround speakers to the left and right side of your seating position, either in line with it or slightly behind it.

5 SUBWOOFER (subwoofer):

Place the subwoofer at least one meter to the left or right of the TV. Leave about 10-centimeter clearance from the wall.

Connect to TV

Connect your home theater to a TV to watch videos. You can listen to the TV audio through your home theater speakers. Use the best quality connection available on your home theater and TV.

Option 1: Connect to TV through standard HDMI

Best quality video Connect your home theater to the TV through a standard HDMI connection.

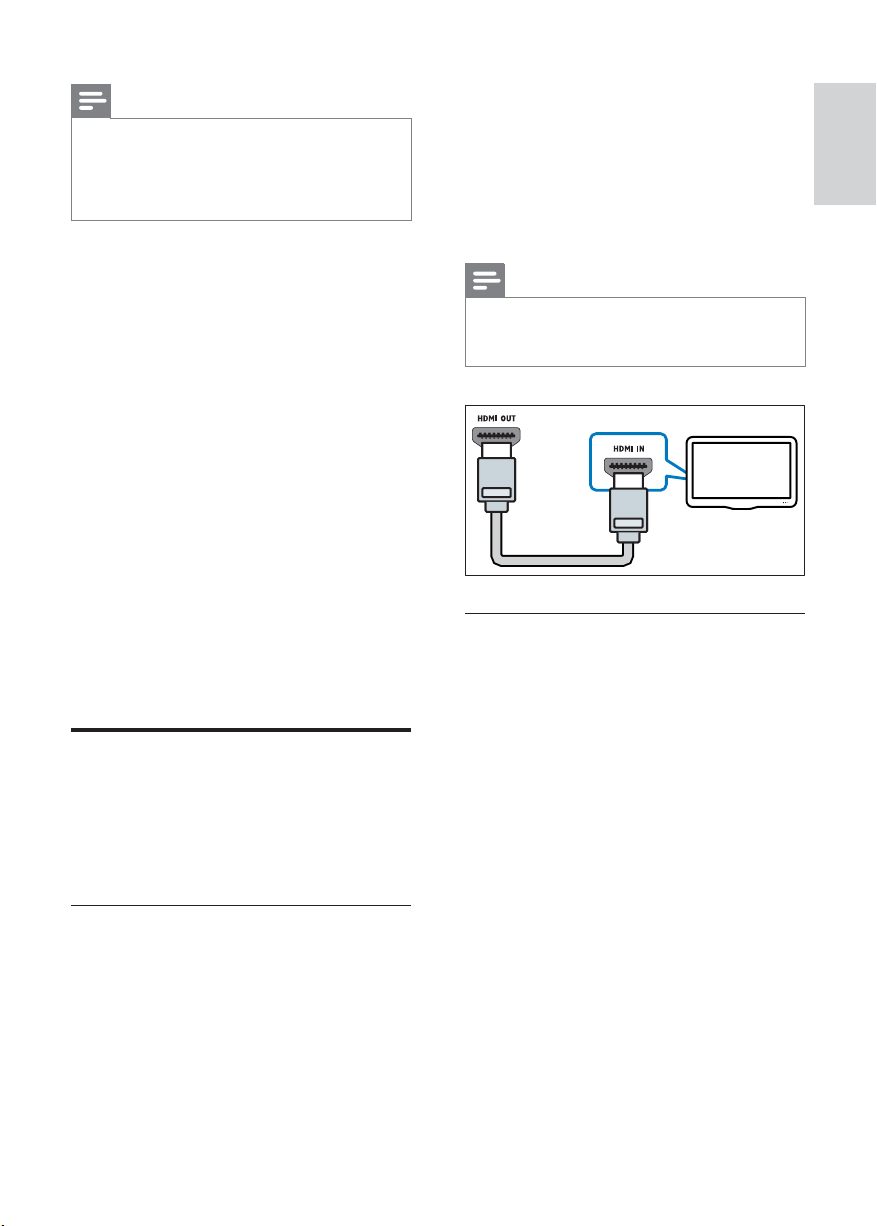

1 Using a High Speed HDMI cable, connect

the HDMI OUT connector on your home theater to the HDMI connector on the TV.

2 Connect an audio cable to hear the TV audio

through your home theater (see 'Connect audio from TV and other devices' on page 8 ) .

• When you watch TV programs, press

SOURCE on your home theater repeatedly to select the correct audio input.

3 On your TV, turn on HDMI-CEC operations.

For details, see the TV user manual.

Note

If your TV has a DVI connector, you can use an

•

HDMI/DVI adapter to connect to TV. However, some of the features may not be available.

Option 2: Connect to the TV through composite video

Basic quality video If your TV does not have HDMI connectors, use a composite video connection. A composite connection does not support high-deﬁ nition video.

1 Using a composite video cable, connect the

VIDEO connector on your home theater to the VIDEO IN connector on the TV.

• The composite video connector might

be labeled AV IN , COMPOSITE , or BASEBAND .

2 Connect an audio cable to hear the TV audio

through your home theater (see 'Connect audio from TV and other devices' on page 8 ) .

3 When you watch TV programs, press

SOURCE on your home theater repeatedly to select the correct audio input.

4 When you watch videos, switch your TV to

the correct video input. For details, see the TV user manual.

English

Page 10

Option 2: Connect audio through analog

audio cables

Basic quality audio

1 Using an analog cable, connect the AUX

connectors on your home theater to the AUDIO OUT connectors on the TV or other device.

Connect audio from TV and other devices

Play audio from TV or other devices through your home theater speakers. Use the best quality connection available on your TV, home theater, and other devices.

Note

The audio connections in this user manual

•

are only recommendations. You can use other connections too.

Option 1: Connect audio through a digital optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL

connector on your home theater to the OPTICAL OUT connector on the TV or other device.

• The digital optical connector might be

labeled SPDIF or SPDIF OUT .

VCR

Set up speakers

Set up the speakers manually to experience customized surround sound.

Before you start

Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

1 Press SETUP on your home theater

remote control.

2 Select [Audio Setup] and then press OK . 3 Press the Navigation buttons and OK to

select and change:

• [Speakers Volume] : Set the volume level

of each speaker.

• [Speakers Delay] : Set the delay time for

speakers which are placed closer to the seating position in order to obtain equal audio transmission from all the speakers.

8 EN

Set up EasyLink (HDMI-CEC control)

This home theater supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI can be controlled by a single remote control.

Page 11

Note

Depending on the manufacturer, HDMI-CEC is

•

known by many names. For information on your device, see the user manual of the device.

• Philips does not guarantee 100% interoperability

with all HDMI-CEC devices.

Before you start

• Connect your home theater to the HDMI-CEC

compliant device through HDMI connection.

• Make the necessary connections described in

the quick start guide, and then switch the TV to the correct source for your home theater.

4 Use your home

theater

English

This section helps you use the home theater to play media from a wide range of sources.

Before you start

• Make the necessary connections described in

the quick start guide and the user manual.

• Switch the TV to the correct source for your

home theater (for example, HDMI, AV IN).

Enable EasyLink

1 Press SETUP . 2 Select [Video Setup] and then press OK . 3 Select [HDMI Setup] > [EasyLink Setup] >

[EasyLink] > [On] .

4 On your TV and other connected devices,

turn on HDMI-CEC control. For details, see the user manual of the TV or other devices.

• On your TV, set the audio output to

'Ampliﬁ er' (instead of TV speakers). For details, see the TV user manual.

EasyLink controls

With EasyLink, you can control your home theater, TV, and other connected HDMI-CEC compliant devices with a single remote control.

• [One Touch Play] (One-touch play): When a

video disc is in the disc compartment, press

to wake up the TV from standby, and

then play a disc.

• [One Touch Standby] (One-touch standby):

If one-touch standby is enabled, your home theater can switch to standby with the remote control of the TV or other HDMICEC devices.

Note

To change the EasyLink control settings, press

•

SETUP , select [Video Setup] > [HDMI Setup] > [EasyLink Setup] .

Discs

Your home theater can play DVDs, VCDs, and CDs. It can also play discs that you’ve made at home, such as CD-R discs of photos and music.

1 Inser t a disc into the home theater. 2 If the disc does not play automatically, press

DISC .

3 Use the remote control to control play (see

'Remote control' on page 5 ) .

Play buttons

Button Action Navigation

buttons

OK Conﬁ rm an entr y or selection.

( Play/

Pause )

SUBTITLE Select subtitle language for video. DISC Access or exit the disc menu. AUDIO

SYNC

Navigate menus. Up/Down: Flip the picture vertically or horizontally. Left/Right: Rotate the picture clockwise or counter-clockwise.

Start, pause or resume play.

Stop play. Skip to the previous or next track,

chapter or ﬁ le. Fast backwards or fast forwards.

Press repeatedly to change the search speed.

Select an audio language or channel.

Page 12

Button Action

SCREEN

FIT ZOOM Zoom into a video scene or

REPEAT Select or turn off repeat mode. REPEAT

A-B

ANGLE Select video scenes recorded in

INFO

Fit the picture format to the TV screen.

picture.

Mark two points within a chapter or track to repeat play, or turn off the repeat mode.

different camera angels. Access the advanced options when

you play your audio, video, or media ﬁ les (see 'Audio, video, and picture options' on page 11 ) .

Synchronize picture and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 While playing video, press and hold AUDIO

SYNC .

» Audio sync menu is displayed.

2 Press the +/- or Navigation buttons to

synchronize the audio with the video, and then press OK .

Note

Picture and sound can be synchronized through

•

the setup menu of your home theater, press

SETUP , select [Audio Setup] > [Audio Sync] .

Data f les

Your home theater can play pictures, audio and video ﬁ les contained in a disc or a USB storage device. Before you play a ﬁ le, check that the ﬁ le format is supported by your home theater (see 'File formats' on page 16 ) .

1 Play the ﬁ les from a disc or USB storage

device.

2 To stop play, press .

• To resume the video from where you

stopped, press

Subtitles

If your video has subtitles in multiple languages, select a subtitle language.

Note

Make sure that the subtitle ﬁ le has the exact

•

same name as the video ﬁ le. For example, if the video ﬁ le is named 'movie.avi', name the subtitle ﬁ le as 'movie.sr t' or 'movie.sub'.

• Your home theater supports the following ﬁ le

formats: .srt, .sub, .txt, .ssa, .ass, smi, and .sami. If the subtitles do not appear correctly, change the character set.

1 While playing video, press SUBTITLE to

select a language.

2 For DivX video, if the subtitles do not appear

correctly, continue the following steps to change the character set.

3 Press SETUP . 4 Select [Preference Setup] and then press OK . 5 Select [DivX Subtitle] and then select a

character set that supports the subtitle.

Character Set Language [Standard] English, Albanian, Danish,

[Central Europe] Albanian, Croat, Czech, Dutch,

[Cyrillic] Bulgarian, Belorussian, English,

[Greek] Greek [Hebrew] Hebrew [Chinese(Simp)] Simpliﬁ ed Chinese

Dutch, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish

English, German, Hungarian, Irish, Polish, Romanian, Slovak, Slovene and Sorbian

Macedonian, Moldavian, Russian, Serbian and Ukrainian

VOD code for DivX

Before you purchase DivX videos and play them on your home theater, register the home theater on www.divx.com using the DivX VOD code.

1 Press SETUP .

10 EN

Page 13

2 Select [General Setup] and then press OK . 3 Select [DivX(R) VOD Code] and then press

OK .

4 Press OK again.

» The DivX VOD registration code for

your home theater is displayed.

USB storage devices

Enjoy pictures, audio, and video stored on a USB storage device such as an MP4 player or digital camera.

What you need

• A USB storage device that is formatted for

FAT ﬁ le system, and complies with the Mass Storage Class.

Note

If you use a USB extension cable, USB HUB or

•

USB multi-reader, the USB storage device may not be recognized.

• You can connect to a digital camera if they can

play the ﬁ les without using a special computer program.

1 Connect a USB storage device to the

( USB ) connector on your home theater.

2 Press USB .

» A content browser is displayed.

3 Select a ﬁ le and then press OK . 4 Use the play buttons to control play (see

'Play buttons' on page 9 ) .

• Track Go To : Enter the track time to skip

to a speciﬁ c part of the track.

• Select Track : Select a speciﬁ c track.

English

Video options

1 Press INFO .

» The video options menu is displayed.

Depending on the video source, some options are not available.

2 Press the Navigation buttons and OK to

select and change:

• [Title] : Select a speciﬁ c title.

• [Chapter] : Select a speciﬁ c chapter.

• [Track] : Select a speciﬁ c track (for VCD/

SVCD only).

• [Audio] : Select audio language for video.

• [Subtitle] : Select subtitle language for

video.

• [Angle] : Select video scenes recorded in

different camera angels.

• [TT Time] : Skip to a speciﬁ c part of the

video by entering the title time.

• [Ch Time] : Skip to a speciﬁ c part of the

video by entering the chapter time.

• [Disc Time] : Skip to a speciﬁ c part of the

video by entering the disc time (for VCD/ SVCD only).

• [Track Time] : Skip to a speciﬁ c part of

the video by entering the track time (for VCD/SVCD only).

• [Preview] : Select a content preview for

disc.

• [Repeat] : Select a repeat mode.

• [Time Disp.] : Select the information of

time display.

Audio, video, and picture options

Use advanced features when you play pictures, audio and video ﬁ les from a disc or a USB storage device.

Audio options

1 Press INFO repeatedly to cycle through

the following options:

• Show the current track information and

time.

• Disc Go To : Enter the disc time to skip to

a speciﬁ c part of the disc.

Picture options

1 Press INFO to access picture preview

mode.

» 12 thumbnail pictures are displayed.

2 Press / to go to previous or next

preview page.

3 Press the Navigation buttons and OK to

select a picture.

Page 14

Musical slideshow

If the picture and audio ﬁ les are from the same disc or USB storage device, you can create a musical slideshow.

1 Select an audio track and then press OK . 2 Press BACK and then go to the picture

folder.

3 Select a picture and then press OK to star t

the slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Radio

Listen to FM radio on your home theater, and store up to 40 radio stations.

Note

•

AM and digital radio are not suppor ted.

• If no stereo signal is detected, or if fewer than

ﬁ ve stations are found, you are prompted to install the radio stations again.

PROGRAM Manual:

Press to stop the installation of radio stations. Press and hold to erase the preset radio station.

1) Press PROGRAM . 2) Press to select your preset. 3) Press

PROGRAM again to store the radio station. Automatic: Press and hold for three seconds to reinstall the radio stations.

Tuning grid

In some countries, you can toggle the FM tuning grid between 50 kHz and 100 kHz. Switching the tuning grid erases all preset radio stations.

1 Press RADIO . 2 Press . 3 Press and hold ( Play/Pause ) to toggle

between 50 kHz or 100 kHz.

MP3 player

1 Extend the FM antenna at the back of your

home theater and place it away from the TV or other sources of radiation.

2 Press RADIO .

» If you have already installed the radio

stations, the last channel that you listened to is played.

» If you have not installed any radio

stations, the message AUTO INSTALL...PRESS PLAY appears on the display panel. press

3 Use the remote control to listen or to

change radio stations.

Button Action Numeric

buttons ,

Navigation buttons

12 EN

Select a preset radio station.

Left/Right: Search for a radio station. Up/Down: Fine tune a radio frequency.

Connect a MP3 player to play audio ﬁ les.

What you need

• An MP3 player.

• A 3.5mm stereo audio cable.

1 Using the 3.5mm stereo audio cable, connect

the MP3 player to the MUSIC iLINK connector on your home theater.

2 Press SOURCE repeatedly until MUSIC

I-LINK appears on the display panel.

3 Press the buttons on the MP3 player to select

and play audio ﬁ les.

Create MP3 f les

Use your home theater to convert audio CDs into MP3 ﬁ les.

What you need

• An audio disc.

• A USB storage device.

Page 15

1 Connect a USB storage device to your home

theater.

2 Play your audio CD (CDDA). 3 Press CREATE MP3 .

» A conﬁ rmation message is displayed.

4 Select [Yes] , and then press OK .

» The create MP3 screen is displayed. The

right panel contains MP3 settings and the left panel shows the audio tracks.

CREATE MP3

OPTIONS

Speed Normal

Bitrate 128kbps

CRT ID3 Yes

Device USB1

SUMMARY

Select Track 0

Time 00:00

Start Exit

TRACK

Track01 04:14

Track02 04:17

Track03 03:58

Track04 04:51

Track05 03:53

Track06 04:09

Track07 04:38

Select All

Deselect All

5 Press the Navigation buttons and OK to

select and change:

• [Speed] : Select the write-to-ﬁ le speed.

• [Bitrate] : Select the conversion quality.

• [Device] : Select the USB storage device

which you use to store the MP3 ﬁ les.

6 Navigate to the right panel, select the audio

tracks and press OK .

• To select all tracks, navigate to [Select

All] , and then press OK .

7 Select [Start] and then press OK to start the

MP3 conversion.

» A new folder which contains the MP3

ﬁ les is created in the USB storage device.

• To exit the menu, select [Exit] , and then

press OK .

Note

Choose sound

This section helps you choose the ideal sound for your video or music.

Sound mode

Select predeﬁ ned sound modes to suit your video or music.

1 Press SOUND repeatedly to select a sound

mode.

• CINEMAA : Enjoy a cinematic audio

experience, specially enhanced for movies.

• SANGEET : Recreate the original

recording environment of your music, in the studio or at a concert.

• ORIGINAL : Experience the original

sound of your movies and music, without added sound effects.

• NEWS : Hear every word with optimized

speech and clear vocals.

• CRICKET : Enjoy thrilling arcade sounds,

ideal for action-packed video games or loud parties.

Surround sound mode

Experience an immersive audio experience with surround sound modes.

1 Press SURR repeatedly to select a surround

mode.

• MULTI-CH : Traditional 5.1 channel for a

more relaxing cinematic experience.

• STEREO : Two-channel stereo sound. Ideal

for listening to music.

Note

If the audio source is a 2.1 channel. multi-channel

•

mode will output 5-channel stereo sound.

English

Do not remove the USB and press any buttons

•

when the conversion is in progress.

• DTS CDs and copy-protected CDs cannot be

converted.

• Write-protected or password-protected USB

storage device cannot be used to store MP3 ﬁ les.

Page 16

5 Change settings

Picture and video settings

The home theater settings are already conﬁ gured for optimal performance. Unless you have a reason to change a setting, we recommend that you keep the default setting.

Note

You cannot change a setting that is grayed out.

•

• To return to the previous menu, press

BACK . To exit the menu, press

SETUP .

Language settings

Onscreen display language

1 Press SETUP . 2 Select [General Setup] and then press OK .

• [OSD Language] : Select a display

language for menu.

Disc language

1 Press SETUP . 2 Select [Preference Setup] and then press

OK .

• [Audio] : Select an audio language for

discs.

• [Subtitle] : Select a subtitle language for

discs.

• [Disc Menu] : Select a menu language for

discs.

1 Press SETUP . 2 Select [Video Setup] and then press OK .

• [TV System] : Select a video format

supported by the TV.

• [TV Display] : Select a picture format to

ﬁ t the TV screen.

• [HDMI Setup] : [Wide Screen Format] :

For 16:9 wide screen TV display setting. [HDMI Video] : Select the resolution of the video signal being output from the HDMI OUT.

• [Picture Settings] : Select color settings

for the video display on TV.

• [HD JPEG] : Enable or disable high

deﬁ nition picture display.

Note

If you change a setting, make sure that the TV

•

supports the new setting.

Audio settings

1 Press SETUP . 2 Select [Audio Setup] and then press OK .

• [HDMI Audio] : HDMI audio is

automatically down-mixed to two channel for TV speakers. If you do not want to output audio through your TV, disable the HDMI audio.

Note

If your preferred disc language is not available,

•

select [Others] from the list, and enter the 4-digit language code found at the end of this user manual .

• If you select a language that is not available on a

disc, the home theater uses the default language of the disc.

14 EN

Parental control settings

Password and Ratings

1 Press SETUP . 2 Select [Preference Setup] and then press OK .

• [Password] : Set or change your password

for parental control access. If you do not have a password or have forgotten your password, enter 0000 .

• [Parental] : Enable maturity-based restricted

access for playback of DVD-video that are recorded with ratings. To play discs irrespective of the rating, select [8 Adult] .

Page 17

Lock disc

1 Press SETUP . 2 Select [General Setup] and then press OK .

• [Disc Lock] : Lock the disc to restrict

play. You can lock up to 20 discs on your home theater.

Note

To play a locked disc, follow the onscreen

•

instructions to enter the password, and then press OK .

Display settings

1 Press SETUP . 2 Select [Preference Setup] and then press OK .

• [PBC] : Enable or disable the content

menu navigation of VCD and SVCD discs with Play Back Control feature.

• [MP3/JPEG Display] : Select the content

display for MP3/JPEG ﬁ les.

Energy saving settings

1 Press SETUP . 2 Select [General Setup] and then press OK .

• [Screen Saver] : Switch the home theater

to screen saver mode after 10 minutes of no activity.

• [Auto Standby] : Switch the home theater

to standby mode after 30 minutes of no activity when in disc or USB mode.

• [Sleep Timer] : Switch the home theater

to standby mode after the elapsed time.

• [Display Dim] : Set the brightness of the

home theater front panel display.

Restore default settings

6 Update software

Philips continually tries to improve its products. To get the best features and suppor t, update your home theater with the latest software.

Compare the version of your current software with the latest version on www.philips.com/ support. If the current version is lower than the latest version available on the Philips support website, upgrade your home theater with the latest software.

Caution

Do not install a lower version of software than

•

the current version installed on your product. Philips is not liable for problems caused due to software downgrade.

Check software version

Check the version of the current software installed on your home theater.

1 Press SETUP . 2 Select [Preference Setup] and then press

OK .

3 Select [Version Info.] and then press OK .

» The software version is displayed.

Update software through USB

What you need

• A USB ﬂ ash drive that is FAT-formatted, with

at least 75MB of memory. Do not use a USB hard drive.

• A computer with Internet access.

• An archive utility that supports the ZIP ﬁ le

format.

English

1 Press SETUP . 2 Select [Preference Setup] > [Default] , and

then press OK .

3 Select [Ok] and then press OK to conﬁ rm.

» Your home theater is reset to its default

settings, except for parental control setting.

Page 18

Step 1: Download the latest software

7 Product

1 Connect a USB ﬂ ash drive to your computer. 2 In your web browser, go to www.philips.com/

support.

3 At the Philips Support website, ﬁ nd your

product and locate the Software and drivers .

» The software update is available as a zip

ﬁ le.

4 Save the zip ﬁ le in the root directory of your

USB ﬂ ash drive.

5 Use the archive utility to extract the software

update ﬁ le in the root directory.

6 Disconnect the USB ﬂ ash drive from your

computer.

Step 2: Update the software

Caution

Do not switch off the home theater or remove

•

the USB ﬂ ash drive during the update.

1 Connect the USB ﬂ ash drive containing the

downloaded ﬁ le to your home theater.

• Make sure that the disc compartment is

closed and there is no disc inside.

2 Switch your TV to the correct source for

your home theater.

3 Follow the onscreen instructions to conﬁ rm

the update.

» Once complete, the home theater

automatically switches off and restarts. If it does not, disconnect the power cord for a few seconds and then reconnect it.

specifications

Note

Speciﬁ cations and design are subject to change

•

without notice.

Region codes

The type plate on the back or bottom of the home theater shows which regions it supports.

Country

DVD

Europe, United Kingdom

Russia, India

Media formats

• DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture ﬁ les, MP3 media, WMA media, DivX media, USB storage device

File formats

• Audio: .mp3, .wma

• Video: .avi, .divx, .mpg, .mpeg,

• Picture: .jpg, .jpeg

16 EN

Amplif er

• Total output power: 300W RMS (30% THD)

• Frequency response: 20 Hz-20 kHz / ±3 dB

• Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

• Input sensitivity:

• AUX: 2 V

• Music iLink: 1 V

Page 19

Video

• Signal system: PAL / NTSC

• HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

• S/PDIF Digital audio input:

• Optical: TOSLINK

• Sampling frequency:

• MP3: 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 32 kbps - 320 kbps

• WMA: 64 kbps - 192 kbps

Radio

• Tuning range:

• Europe/Russia/China: FM 87.5-108 MHz

(50 kHz)

• Asia Paciﬁ c/Latin America: FM 87.5-108

MHz (50/100 kHz)

• Signal-to-noise ratio: FM 50 dB

• Frequency response: FM 200 Hz-12.5 kHz /

±6 dB

USB

• Compatibility: Hi-Speed USB (2.0)

• Class support: USB Mass Storage Class

(MSC)

• File system: FAT16, FAT32

• Maximum memory support: < 160 GB

Subwoofer

• Output power: 50 W RMS (30% THD)

• Impedance: 4 ohm

• Speaker drivers: 133 mm (5.25") woofer

• Dimensions (WxHxD): 195 x 265 x 265 mm

• Weight: 2.83 kg

Speakers

Center speaker:

• Output power: 50 W RMS (30% THD)

• Speaker impedance: 4 ohm

• Speaker drivers: 1 x 63.5 mm (2.5") woofer

• Dimensions (WxHxD): 159 x 84.5 x 80 mm

• Weight: 0.33 kg

Front/Rear speaker:

• Output power: 4 x 50 W RMS (30% THD)

• Speaker impedance: 4 ohm

• Speaker drivers: 1 x 63.5 mm (2.5") full range

• Dimensions (WxHxD): 84.5 x159 x 80mm

• Weight: 0.34~0.37 kg/each

Remote control batteries

• 2 x AAA-R03-1.5 V

Laser

• Type: Semiconductor laser GaAIAs (CD)

• Wave length: 645 - 665 nm (DVD), 770 - 800

nm (CD)

• Output power: 6 mW (DVD), 7 mW (VCD/

CD)

• Beam divergence: 60 degrees.

English

Main unit

• Power supply:

• Europe/China/Russia/India: 220-240V~,

50 Hz

• Latin America/Asia Paciﬁ c: 110-240V~,

50-60 Hz

• Power consumption: 55 W

• Standby power consumption: ≤ 0.9 W

• Dimensions (WxHxD): 360 x 58 x 325 mm

• Weight: 2.3 kg

Page 20

8 Troubleshooting

Warning

Risk of electric shock. Never remove the casing

•

of the product.

• On your home theater, press SOURCE

repeatedly to select the correct audio input.

Distorted sound or echo.

• If you play audio from the TV through the

home theater, make sure that the TV is muted.

Audio and video are not synchronized.

• 1) Press and hold AUDIO SYNC . 2) Press

the +/- or Navigation buttons within 5 seconds to synchronize the audio with the video.

To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, get suppor t at www.philips. com/support.

Main unit

The buttons on the home theater do not work.

• Disconnect the home theater from the power

supply for a few minutes, then reconnect.


No picture.

• Make sure that the TV is switched to the

correct source for the home theater.

No picture on a TV connected through HDMI.

• Make sure that the HDMI cable is not faulty. If

it is faulty, replace it with a new cable.

• If this happens when you change the HDMI video resolution, switch to its default mode:

1) Press

. 2) Press . 3) Press ZOOM .

• Wait for 10 seconds for auto recovery, or

change the HDMI video setting .

Disc does not play high-def nition video.

• Make sure that the disc contains high-

deﬁ nition video.

• Make sure that the TV supports high-

deﬁ nition video.

• Use an HDMI cable to connect to the TV.

Sound

No sound from home theater speakers.

• Connect the audio cable from your home

theater to your TV or other devices (see 'Connect audio from TV and other devices' on page 8 ) .

• Reset your home theater to its factory settings

(see 'Restore default settings' on page 15 ) , then switch it off and switch on again.

Play

Cannot play a disc.

• Clean the disc.

• Make sure that the home theater supports

the type of disc (see 'Media formats' on page 16 ) .

• Make sure that the home theater supports

the region code of the disc .

• If the disc is a DVD±RW or DVD±R disc,

make sure that it is ﬁ nalized.

Cannot play a DivX f le.

• Make sure that the DivX ﬁ le is encoded

according to the 'Home Theater Proﬁ le' with the DivX encoder.

• Make sure that the DivX ﬁ le is complete.

DivX subtitles do not display correctly.

• Make sure that the subtitle ﬁ le name is the

same as the movie ﬁ le name (see 'Subtitles' on page 10 ) .

• Select the correct character set (see

'Subtitles' on page 10 ) .

Cannot read the contents of a USB storage device.

• Make sure that the format of the USB

storage device is compatible with the home theater.

• Make sure that the ﬁ le system on the USB

storage device is supported by the home theater.

'No entry' or 'x' sign appears on the TV.

• The operation is not possible.

EasyLink does not work.

• Make sure that the home theater is

connected to a Philips brand EasyLink TV, and the EasyLink option is turned on (see 'Set up EasyLink (HDMI-CEC control)' on page 8 ) .

When you switch on the TV, the home theater automatically switches on.

• This behavior is normal when you are using

Philips EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink.

18 EN

Page 21

9 Notice

This section contains the legal and trademark notices.

HDMI, and HDMI logo, and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

CLASS 1

LASER PRODUCT

English

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Trademarks

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DivX , DivX Ultra , DivX Certiﬁ ed and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. DivX Ultra advanced features and premium content. ABOUT DIVX VIDEO: DivX format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofﬁ cial DivX Certiﬁ ed device that plays DivX video. Visit divx.com for more information and software tools to convert your ﬁ les into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁ ed play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Certiﬁ ed to play DivX video with

is a digital video

device must be registered in order to

Page 22

10 Index

audio from TV and other devices 8 audio input mapping 9 audio language for discs 14 audio options 11 audio settings 14 auto standby 15

HDMI audio 14 HDMI video 14 HDMI-CEC 8

language settings 14 lock disc 15

batteries 17

change password 14 character set 10 connect analog audio cable 8 connect composite video cable 7 connect FM antenna 4 , 12 connect HDMI cable 7 connect home theater 6 connect optical audio cable 8 connect speakers 6 connect to TV 7 connectors 4 consumer support 3 control play buttons 9 create MP3 12

disc menu 14 discs 9 display brightness 15 display menu for MP3/JPEG 15 display menu for VCD/SVCD 15 disposal 3 DivX 10 , 16 DivX subtitles 10

Easylink (HDMI-CEC) 8 Easylink controls 9

main unit overview 4 menu language for discs 14 MP3 player 12 musical slideshow 12

one-touch play 9 one-touch standby 9 onscreen menu language 14

parental control 14 parental ratings 14 password 14 PBC (play back control) 15 picture options 11 picture settings 14 product serial number 3 program radio stations 12

radio 12 recycling 3 remote control overview 5 repeat mode 9 restore default settings 15 rotate pictures 9

20 EN

Page 23

screen saver 15 setup menu 14 sleep timer 15 slideshow 12 software version 15 sound mode 13 speakers placement 6 speakers setup 8 specif cations 16 subtitle language for discs 14 supported f le format 16 supported media formats 16 surround sound 13 synchronize picture and sound 10 system audio control 9

time search 11 titles 11 trademarks 19 troubleshooting 18 tuning grid 12

update software 15 USB storage device 11

English

video options 11 video resolution 14 VOD code for DivX 10

Page 24

WARRANTY

This Philips Home Theatre System is covered under warranty against any defect arising out of faulty or defective material or workmanship for a period of 12 Months from the date of purchase.

The Warranty is not valid in case:

• Proof of purchase is not accompanied with this warranty form

• This warranty form is not completed immediately after purchase

• The Apparatus is not used according to this manual

• Defects are caused by improper or reckless use

• Any repair work are done by person other than Authorised Philips service center

• Any modification or alteration of any nature are made in the apparatus

• The serial number is tampered

• Defects due to causes beyond control like lightning, abnormal voltage, Acts of God or

Maintenance Tips for your Home Theatre System:

• Always keep a Disc loaded in your Home Theatre System tray.

• Keep the home theatre away from the dusty areas. Keep it covered with a dust cover.

• Clean your Home Theatre System Lens after every 20 Discs played.

• Clean the CDs / VCD / DVD / MP3 CD before inserting in your Home Theatre System

while in transit to the purchaser’s residence

o Use the 2 brush Philips DVD Lens Cleaner SVC2520 for best results.

Philips Electronics India Limited,

For Any Sales & Service Enquiry:

Email us at [email protected]

Call us on Tel No. 1800 102 2929 * 1860 180 1111 *

*Standard Call rates apply for the calls made to above telephone lines

Pls fill the following for your reference and warranty validity:-

Registered Office: 7, Justice Chandra Madhab Road, Kolkata – 700 020

0124- 429 1111*

• Serial No:_______________________________

• Bill No. & Date of Purchase:________________

• Purchaser’s Name:________________________

• Location & Tel No.:_______________________

• Dealer’s Name:___________________________

• Location & Tel No:________________________

• Dealer’s Stamp & Sign:_____________________

Page 25

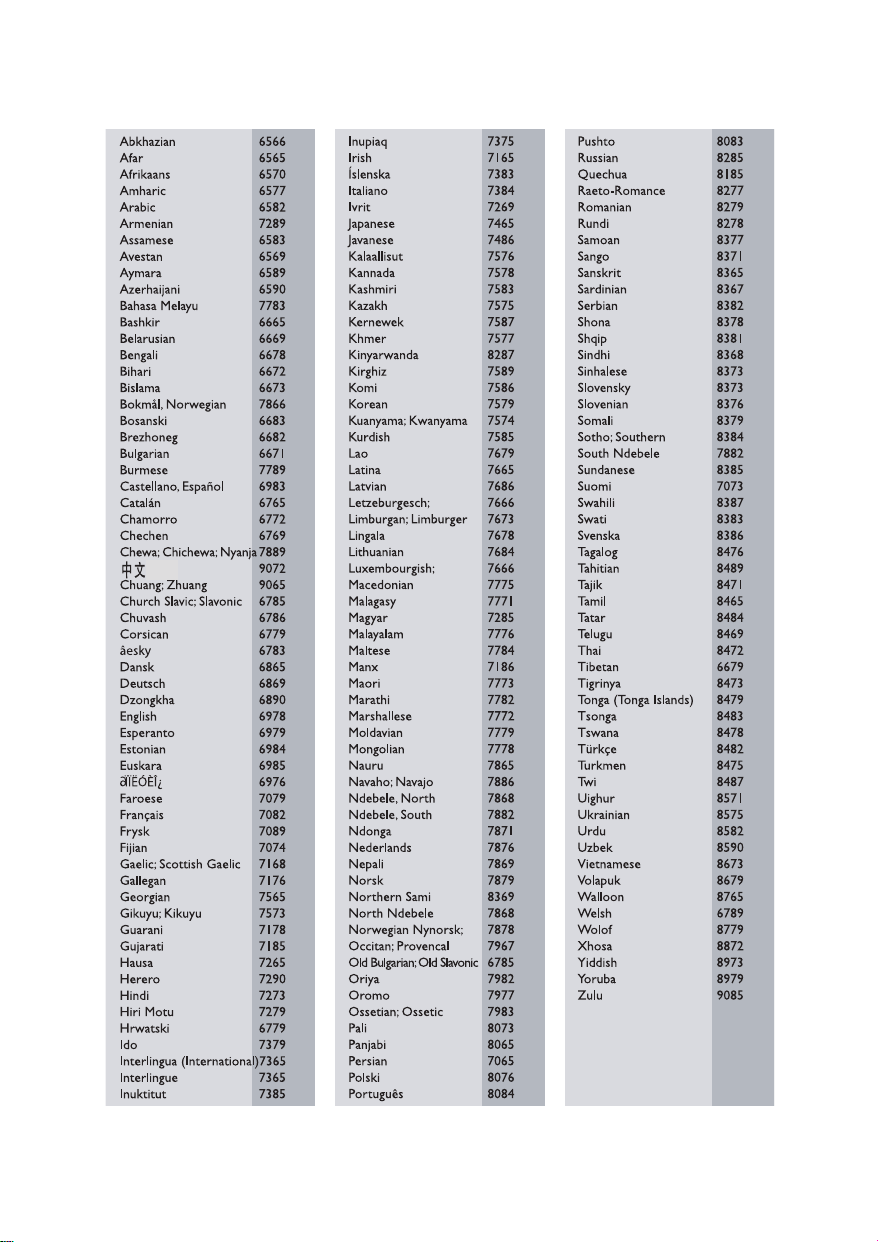

Language Code

Page 26

sgpjp_1208/94_v1
