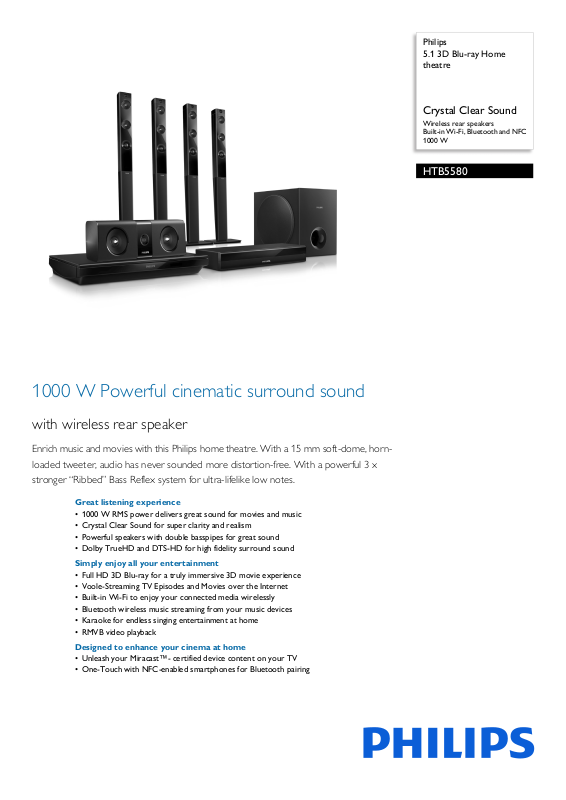

Philips
5.1 3D Blu-ray Home
theatre
Crystal Clear Sound
Wireless rear speakers
Built-in Wi-Fi, Bluetooth and NFC
1000 W
HTB5580
1000 W Powerful cinematic surround sound
with wireless rear speaker
Enrich music and movies with this Philips home theatre. With a 15 mm soft-dome, hornloaded tweeter, audio has never sounded more distortion-free. With a powerful 3 x
stronger “Ribbed” Bass Reflex system for ultra-lifelike low notes.
Great listening experience
• 1000 W RMS power delivers great sound for movies and music
• Crystal Clear Sound for super clarity and realism
• Powerful speakers with double basspipes for great sound
• Dolby TrueHD and DTS-HD for high fidelity surround sound
Simply enjoy all your entertainment
• Full HD 3D Blu-ray for a truly immersive 3D movie experience
• Voole-Streaming TV Episodes and Movies over the Internet
• Built-in Wi-Fi to enjoy your connected media wirelessly
• Bluetooth wireless music streaming from your music devices
• Karaoke for endless singing entertainment at home
• RMVB video playback
Designed to enhance your cinema at home
• Unleash your Miracast™- certified device content on your TV
• One-Touch with NFC-enabled smartphones for Bluetooth pairing
HTB5580/93
5.1 3D Blu-ray Home theatre
Crystal Clear Sound Wireless rear speakers, Built-in Wi-Fi, Bluetooth and NFC, 1000 W
Highlights
Crystal Clear Sound
Crystal Clear Sound for super clarity and
realism
1000 W RMS power
1000 W RMS power delivers great sound for
mo
vies and music
Full HD 3D Blu-ray
Be enthralled by 3D movies in your own living
roo
m on a Full HD 3D TV. Active 3D uses the
latest generation of fast switching displays for
real life depth and realism in full 1080 x 1920
HD reso
through special glasses with right and left
lenses that are timed to open and close in
synchrony with alternating images creates the
full HD 3D viewing experience in your home
cinema. Premium 3D movie releases on Bluray offer a wide, high-quality selection of
content. Blu-ray also delivers uncompressed
surround sound for an unbelievably real audio
experience.
Built-in Wi-Fi
lution. Watching these images
infotainment and other online content tailored
to fit your TV screen.
Miracast™
MiracastTM is a peer-to-peer wireless
screencasting standard formed via Wi-Fi
Direct connections. Simplified user interface
like mirroring the portable device's screen to a
bigger screen on a Miracast™ certified device,
not limited by pre-built codecs for decoding.
NFC technology
Pair Bluetooth devices easily with one-touch
NFC (Near Field Communications)
technology. Just tap the NFC-enabled
smartphone or tablet on the NFC area of a
speaker to turn the speaker on, start
Bluetooth pairing and begin streaming music.
Wireless rear speakers
speakers provide full surround sound without
unsightly wire connections. **The wireless
connection is between the main unit and the
rear speakers only. Rear speakers are both
connected to wireless receiver modules.
Voole video streaming
Instantly watch TV episodes and movies as
often as you want on your TV. All you need is
an internet connection (either Wi-Fi or
Ethernet) and a Voole membership package
that includes streaming*, and you are ready to
go.
Double Bass Sound
Powerful speakers with a bass-reflex system
and double bass pipes enhance the lower
frequencies and deliver rock-solid, deep bass
sounds. You'll be able to hear the lowest
murmur or the deepest roar.
Thanks to built-in Wi-Fi, by simply connecting
your home theatre directly to your home
network, you can experience a rich selection
of popular online services. You can enjoy some
of the best websites offering movies, pictures,
Wireless rear speakers give you scalability and
mobility in speaker placement. Developed
using interference-free technology, wireless
Dolby TrueHD and DTS-HD
Dolby TrueHD and DTS-HD Master Audio
E
ssential deliver the finest sound from your
Blu-ray Discs. Audio reproduced is virtually
indistinguishable from the studio master, so
you hear what the creators intended for you to
hear. Dolby TrueHD and DTS-HD Master
Audio Essential complete your high definition
entertainment experience.
HTB5580/93
5.1 3D Blu-ray Home theatre
Crystal Clear Sound Wireless rear speakers, Built-in Wi-Fi, Bluetooth and NFC, 1000 W
Specifications
Sound
• Total Power RMS @ 10% THD: 1000 W
• Sound System: Dolby Digit
Plus, Dolby True HD, DTS Digital Surround, DTSHD High Resolution Audio, DTS-HD Master
Audio
• Sound Enhancement: Auto Volume Leveller, Dolby
al Prologic II, Double Bass Sound, FullSound,
Digit
Night Mode, Treble and Bass Control
• Centre speaker output power: 166 W
• Satellite speaker output power: 4 x 166 W
• Subwoofer output power: 166 W
al 5.1, Dolby Digital
Loudspeakers
• Centre speaker freq. range: 150–20,000 Hz
• Centre speaker drivers: 1 x 3" Full range woofer
• Centre speaker impedance: 3 ohm
• Loudspeaker types: 4 x Tallboy speakers, 1 x
ntre speaker
Ce
• Satellite speaker freq range: 150–20,000 Hz
• Satellite speaker impedance: 3 ohm
• Subwoofer type: Passive
• Subwoofer driver: 1 x 8" woofer
• Subwoofer freq range: 20–150 Hz
• Subwoofer impedance: 3 ohm
Connectivity
• Front Connections: Audio in, USB, Microphone In,
Hi-Speed USB
• Rear Connections: Digital coaxial in, Digital optical
• Smart TV: DLNA, Online Services, Net TV
• Integrated Connections: Bluetooth, Wi-Fi,
net, FM Antenna Socket, HDMI 1.4 output
in, Ether
(ARC), Easy-Fit Speaker Jacks
ast, NFC, Wireless rear audio
Mirac
Convenience
• EasyLink (HDMI-CEC): Audio Return Channel,
Automatic audio input mapping, One touch play,
One touch standby, Remote Control-Passthrough
• HDMI Features: 3D, Audio Ret
Deep colour
• Online services: Voole
urn Channel (ARC),
Tuner/Reception/Transmission
• Tuner Bands: FM
Optical Playback Media
• Playable Discs: AVCHD, BD, BD R/BD RE, CD,
CDDA, CD-R/CD-RW, DVD, DVD +R/+RW,
DVD -R/-RW, SVCD, VCD
File Format
• Audio: aac, mka, mp3, wma
• Picture: GIF, JPEG, JPG
• Video: avi, DivX, mkv, mp4, mpeg, mpg
Audio Playback
• Compression format: AAC, MP3, WAV, WMA,
Dolby Digital, DTS, FLAC
• MP3 bit rates: 8 - 320 kbps
Video Playback
• Compression formats: AVCHD, MPEG1, MPEG2,
MPEG4, DivX Plus HD
Still Picture Playback
• Compression format: GIF, JPEG, JPEG HD, JPEG
Progressive, PNG
• Picture Enhancement: Rotate, Slideshow with
usic playback, Zoom
m
Picture/Display
• Picture enhancement: HD (720p, 1080i, 1080p/
24fps), Progressive scan
Power
• Power consumption: 160 W
• Power supply: 220-240 V
• Standby power consumption: < 0.5 W
Sustainability
• Packaging: Electronic User Manual
Dimensions
• Main Unit (W x H x D): 435 x 58 x 291 mm
• Centre Speaker (W x H x D): 314 x 103 x 83 mm
• Centre Speaker cable length: 2 m
• Front Speaker (W x H x D): 100 x 1178 x 101 mm
• Front Speaker cable length: 3 m
• Rear Speaker (W x H x D): 100 x 1178 x 101 mm
• Rear Speaker cable length: 6 m
• Subwoofer (W x H x D): 230 x 370 x 310 mm
• Subwoofer cable length: 3 m
Accessories
• Included accessories: 2 x AAA Batteries, FM
antenna, Remote Control, Safety and Legal Leaflet,
Trademarks Sheet, User Manual, Wireless rear
audio receiver, HDMI cable, World Wide
Warranty leaflet
Packaging dimensions
• EAN: 69 23410 72962 7
• Packaging dimensions (W x H x D):
.6 x 56.6 x 38.8 cm
96
•Gross weight: 29 kg
• Net weight: 25.1 kg
• Number of products included: 1
• Packaging type: Carton
• Tare weight: 3.9 kg
• Type of shelf placement: Laying
Outer Carton
• EAN: 69 23410 72962 7
•Gross weight: 29 kg
•Outer carton (L x W x H): 96.6 x 38.8 x 56.6 cm
• Net weight: 25.1 kg
• Number of consumer packages: 1
• Tare weight: 3.9 kg
Product dimensions
• Product dimensions (W x H x D):
43.5 x 5.8 x 28 cm
• Weight: 2.68 kg
•
Issue date 2016-04-17
Version: 2.1.3
12 NC: 8670 001 13677
EAN: 69 23410 72962 7
© 2016 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* To check whether Video on Demand is available in your country,
please visit www.philips.com/blu-ray.
* DivX, DivX Certified and associated logos are trademarks of
DivXNetworks, Inc. and are used under licence.
* Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories Inc.
