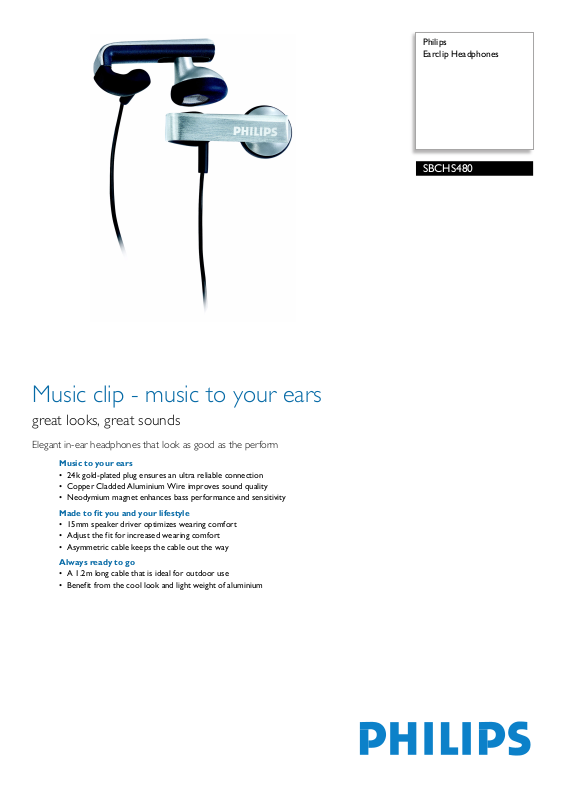

Page 1
For preview purpose only
Philips
Earclip Headphones
SBCHS480
Music clip - music to your ears
great looks, great sounds
Elegant in-ear headphones that look as good as the perform
Music to your ears
• 24k gold-plated plug ensures an ultra reliable connection
• Copper Cladded Aluminium Wire improves sound quality
• Neodymium magnet enhances bass performance and sensitivity
Made to fit you and your lifestyle
• 15mm speaker driver optimizes wearing comfort
• Adjust the fit for increased wearing comfort
• Asymmetric cable keeps the cable out the way
Always ready to go
• A 1.2m long cable that is ideal for outdoor use
• Benefit from the cool look and light weight of aluminium
Page 2
For preview purpose only
Earclip Headphones
Technical specifications Product highlights
Sound
• Acoustic system: Open
• Frequency response: 10 - 22 000 Hz
• Impedance: 16 Ohm
• Magnet type: Neodymium
• Maximum power input: 50 mW
• Sensitivity: 106 dB
• Speaker diameter: 15 mm
• Type: Dynamic
• Voice coil: CCAW
• Diaphragm: Mylar dome
Connectivity
• Connector: 3.5 mm stereo
• Finishing of connector: 24k Gold-plated
• Cable length: 1.2 m
• Type of cable: OFC
• Cable Connection: Two-parallel, asymmetric
•
SBCHS480/00
1.2 meter cable
The ideal cable length to give you the freedom to put
your audio device where you want.
15 mm speaker driver
Small enough for optimum wearing comfort and big
enough to deliver crisp, non-distorted sound, the 15 mm
speaker driver is an ideal size for listening enjoyment.
24k Gold-plated plug
Rest assured that the precious metal gold finishing on
the plug will give you a more reliable connection for
better quality audio.
Adjustable earpiece
By sliding the earpiece on the arm, a precise fit with
optimum comfort is easily achieved for your listening
pleasure.
Aluminium design
Alumimium is light, strong and has a look that
complements the headphone's cool design.
Asymmetric cabling system
This simple yet highly effective solution to cable tangling
works effectivly by enabling you to hang the cable
behind your neck instead of under your chin.
CCAW voice coil
By using top-quality Copper Cladded Aluminium Wire
(CCAW) in the headphone driver's voice coil, the sound
quality is considerably improved.
Neodymium magnet
Neodynium is the best material for producing a strong
magnetic field for greater sensitivity in a voice coil,
better bass response and higher overall sound quality.
Date of issue 2006-07-07
Version: 1.0
12 NC: 9082 100 01677
EAN: 87 10895 75924 3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
