Philips HR7780 User Manual
1
8 9
10
HR7780
a
b
c
d
e
f
g
h
j
k
l
m
n
o
p
q
r
Specifications are subject to change without notice
© 2018 Koninklijke Philips N.V.
All rights reserved.
3000 003 66302
EN User manual 5
DE Benutzerhandbuch 11
s
t
i
NL Gebruiksaanwijzing 18
2
bc
3 4
6
5
(optional)
7
a
1
1
3/4.5 mm
2
2
1-7 mm
4x4 mm
(MAX)
5 x 1 sec 750 g P
5 x 1 sec 1 kg P
30 sec 100 g P
60 sec 1 kg 9-12
45 sec 500 g 9-12
30 sec 400 g
10 x 1 sec 150 g P
8 x 1 sec 200 g P
10 x 1 sec 50 g P
40 sec 190 g 9-12
45 sec 190 g 9-12
40 sec 170 g 9-12
30 sec 1 kg 1-5
30 sec 200 g
30 sec 3 pcs 1-5
30 sec 1 kg 1-5
30 sec 3 pcs 1-5
30 sec 750 g 1-5
30 sec 1 kg 1-5
30 sec 3 pcs 1
1 min
200 g
(MAX)
9-12
1-5
12
(optional)
9965 100 56737
9965 100 56882
1 min
1 min 1 L 9-12
30 sec
30 sec 40 g 9-12
30 sec 50 g 9-12
30 sec 70 g 9-12
7 sec 60 g P
1.5 L 12
6 x
P x 10
English
EN
Important
Congratulations on your purchase and
welcome to Philips! To fully benet from
the support that Philips oers, register your
product at www.philips.com/welcome.
Read this user manual carefully before
you use the appliance, and save the
user manual for future reference.
Danger
• Do not immerse the
motor unit in water nor
rinse it under the tap.
Warning
• Never use your ngers
or an object to push
ingredients into the
feeding tube while the
appliance is running. Only
use the pusher.
• Before you connect the
appliance to the power,
make sure that the
voltage indicated on the
bottom of the appliance
corresponds to the local
power voltage.
• Never connect this
appliance to a timer
switch, to avoid a
hazardous situation.
• Do not use the appliance
if the power cord, the
plug, protecting cover,
rotating sieve or any other
parts are damaged or has
visible cracks.
• If the power cord is
damaged, you must have
it replaced by Philips, a
service center authorized
by Philips, or similarly
qualied persons to avoid
a hazard.
• This appliance shall not
be used by children. Keep
the appliance and its cord
out of reach of children.
• This appliance can be
used by persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance in
a safe way and if they
understand the hazards
involved.
• For their safety, do not
allow children to play with
the appliance.
• Never let the appliance
run unattended.
• If food sticks to the wall
of the blender jar or bowl,
switch o the appliance
and unplug it. Then use
5
EN
a spatula to remove the
food from the wall.
• Be careful when you
empty the bowl, handle
or clean the discs or the
blade units. The cutting
edges are very sharp.
• Do not touch the blades,
especially when the
appliance is plugged in.
The blades are very sharp.
• If the blades get stuck,
unplug the appliance
before you remove the
ingredients that block the
blades.
• Be careful if hot liquid
is poured into the food
processor or blender as
it can be ejected out of
the appliance due to a
sudden steaming.
• This appliance is intended
for household use only.
Caution
• Never switch o the
appliance by turning the
blender jar, the bowl,
or their lids. Always
switch o the appliance
by turning the speed
selector to OFF.
• Unplug the appliance
immediately after use.
• Always wait until the
moving parts stop
running, then switch o
and unplug the appliance
before opening the lid and
reaching into any of the
parts that move in use.
• Always switch o and
unplug the appliance
if it is left unattended,
and before assembling,
disassembling, cleaning
and changing accessories,
or approaching parts that
move in use.
• Thoroughly clean the
parts that come into
contact with food before
you use the appliance
for the rst time. Refer to
the instructions and table
for cleaning given in this
manual.
• Never use any accessories
or parts from other
manufacturers that Philips
does not specically
recommend. If you use
such accessories or parts,
your guarantee becomes
invalid.
• Do not exceed the
maximum level indication
on the bowl or the jar.
6
English
EN
Follow the quantities,
processing time and
speed as indicated in the
user manual.
• Let hot ingredients cool
down (< 80 °C) before
processing them.
• Always let the appliance
cool down to room
temperature after each
batch that you process.
• Certain ingredients such
as carrots may cause
discolorations on the
surface of the parts. This
does not have a negative
eect on the parts. The
discolorations usually
disappear after some time.
• Noise level: Lc = 86 dB [A]
Electromagnetic elds
(EMF)
This Philips appliance complies with all
applicable standards and regulations
regarding exposure to electromagnetic
elds.
Recycling
This symbol means that this
product shall not be disposed
of with normal household waste
(2012/19/EU).
Follow your country’s rules for the
separate collection of electrical and
electronic products. Correct disposal
helps prevent negative consequences
for the environment and human health.

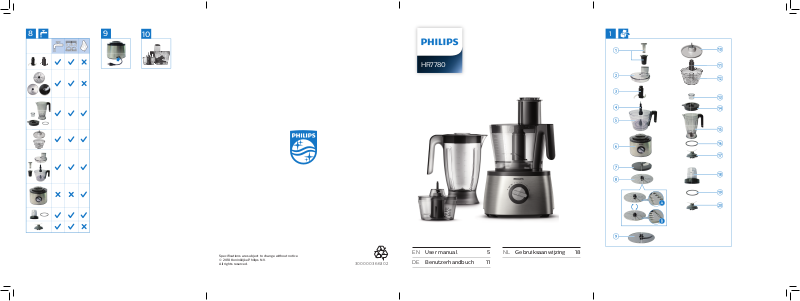

1 Overview
(Fig. 1)
a Food processor pusher
b Food processor bowl lid
c Blade unit
d Drive shaft
e Food processor bowl
f Motor unit
g Adjustable slicing disc
h Reversible shredding disc
A: For coarse shredding
B: For ne shredding
i Julienne disc
j Mini bowl lid
k Detachable blade unit for mini bow
l Mini bowl
m Measuring cup for blender
n Blender lid
o Blender jar
p Seal ring
q Detachable blade unit for blender
r Mini chopper jar (optional)
s Seal ring (optional)
t Detachable blade unit for mini
chopper (optional)
7
EN
2 Before first use
Before you use the appliance and
accessories for the rst time, thoroughly
clean the parts that come into contact
with food.
To explore more helpful tips
and basic recipes online,
you can:
1 Go to www.philips.com.
2 Click the search button on the
homepage.
3 Type the product number “HR7780”
in the search box.
4 Find or download the information
you need from the searching result.
5 For inspiring recipes, pls visit
www.philips.com/kitchen.
3 Use your food
processor
General Assembly
Before you use or assemble any of
the accessories, make sure that you
assemble according to Fig. 2 to 6.
1 Turn the bowl clockwise until you
hear a click to x it onto the motor
unit.
2 Assemble the accessory or the
accessory equipped with the shaft
to the bowl.
3 Put the ingredients in the bowl.
4 Put the lid on the bowl, and turn
the lid clockwise until you hear a
click to x it. Then put the pusher
into the feeding tube.
• For the discs, put the ingredients
into the feeding tube with the
pusher.
5 Connect the power plug to the
power supply.
6 Check the advised ingredient
quantity and setting in Table 7.
Turn the knob to the desired speed
setting.
7 After use, turn the knob to OFF, and
then unplug the appliance.
Discs
Before you start, make sure that you
pick your desired disc from following
and assemble according to Fig. 2:
Name Purpose
For shredding
Reversible
shredding
disc
Adjustable
slicing disc
Julienne
disc
Caution
• Be careful when you handle the slicing blade
of disc. It has a very sharp cutting edge.
• Never use the disc to process hard ingredients,
like ice cubes.
• Do not exert too much pressure on the pusher
when you press ingredients into the feed tube.
ingredients into
thin or thick at
pieces with the
reversible sides
For slicing
ingredients
to the slicing
thickness you set
For cutting
ingredients into
thin strips
8
English
EN
Note
• Put the ingredients into the feeding tube with
the pusher. Fill the feeding tube evenly for the
best results. When you have to process a large
amount of ingredients, process small batches
and empty the bowl between batches.
Blade unit
Before you start, make sure that you
assemble according to Fig. 3.
You can use the blade unit to chop,
mix, blend, or puree ingredients. You
can also use it to mix and blend cake
batters.
To remove food that sticks to the blade
or to the inside of the bowl, use a
spatula to remove the excess after you
switch o the appliance.
Usage/Application Purpose
Chopping meat/sh
Chopping onion/
herb
Chopping nuts or
chocolates
Pureeing nuts
Meat balls, sh
cake, burger
Salsa, pesto or
for garnishing
Toppings or
garnishing for
salads, bread,
puddings
Almond or
peanut butter
paste
Mini bowl
Before you start, make sure that you
assemble according to Fig. 4.
You can use the mini bowl to prepare
small portions of ingredients, such as baby
food and dressings. You can store the mini
bowl with food directly in a fridge.
Note
• Always put the mini blade in the bowl before
you start to add the ingredients, then put the
lid of mini bowl.
• Do not use the mini blade to chop hard
ingredients, like coee beans, turmeric,
nutmeg and ice cubes, as this may cause the
blade to get blunt.
• Do not let the appliance run too long
when you chop (hard) cheese or chocolate.
Otherwise these ingredients become too hot,
start to melt, and turn lumpy.
• Precut large pieces of food into pieces of
approx. 3 x 3 x 3 cm.
Blender
Before you start, make sure that you
assemble according to Fig. 5.
You can use the blender to prepare your
milkshakes, juice, soups and sauces
using fruits, vegetables and water or
other liquids. It can also be used for
making mayonnaise.
Note
• Always put the blade unit in the bowl before
you start to add the ingredients.
• Do not use the blade unit to chop hard
ingredients, like coee beans, turmeric,
nutmeg, and ice cubes, as this may cause the
blade to get blunt.
• Do not let the appliance run too long
when you chop (hard) cheese or chocolate.
Otherwise these ingredients become too hot,
start to melt, and turn lumpy.
9
