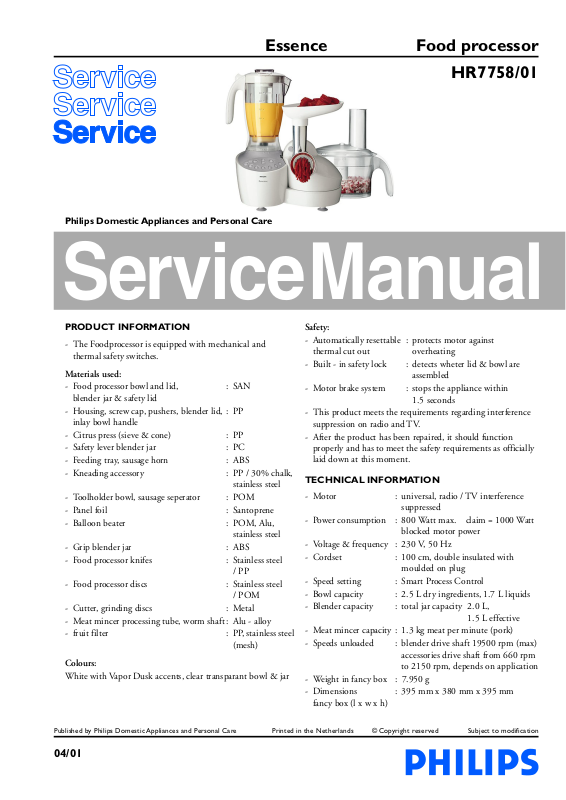

- The blender coupling on the motor shaft has been provided
with a customary left-handed thread.
The drive coupling (item 10) can be detached by means of
a hammer and a screwdriver. Strike the screwdriver with a
short sharp blow and remove the drive coupling, or block
the acc. drive wheel (item 17) and thereby the rotor shaft,
by sticking a pin through the hole (5 mm dia. - marked
with an arrow) in the bottom plate.
- The assembly of the accessories depends on the national
version.
- For specific versions, the component configuration may
differ from the one shown on the exploded view. However,
the actual components can be distinguished by their code
numbers.
- Make sure that all functions, including the safety devices,
are working correctly after you have completed the repair.
- To check the processes of smart control, please look at the
described functions on the next page.
Automatic resettable cut-out (part of item 11)
To prevent damage due to overheating, the appliance has been
equipped with an automatic cut-out system. This system will
automatically cut off the power supply when the appliance
overheats.
If the appliance suddenly stops running:
- Unplug the appliance
- Switch off the appliance
- Let the appliance cool down for 15 minutes
- Plug the appliance in again
- Switch the appliance on again
Safety lock (item 7)
Place the lid on the bowl in the right position. The appliance
will only function if the line on the applinace is directly
opposite the mark on the lid of the food processor bowl and
the same holds for the other accessoires. The built-in safety
lock will now be deblocked and you can turn the appliance on.
Note that if both the blender jar and the bowl have been
correctly mounted, only the blender will function.
Important:
If the appliance is used without the blender jar, the appliance
will not function, when the blender coupling (item 10) has not
been protected by the blender cover (item 1).
Note:
The blender cover can only be removed, when no bowl
including the bowl lid is mounted on the foodprocessor.
How to set the belt tension:
Step 1: Give 30 N pretension force on the adjusting plate to
minimise the distances between the belt and the belt
wheels
Step 2: Reduce the tension force from 30 N down to 10 N
which is the required belt drive force for the appliance.
Step 3: Fix the adjusting screw on the adjusting plate when the
tension force reaches the value of 10 N (after coming
down from 30 N!)
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- No specific issues
OPTIONAL (accessories)
MAINS
- No specific issues
F1
red
R10
U
C1
Main PCB
brown
F2
black
yellow
Change-over switch
in braking position
S1
S2
red
white
yellow
Rotor
2-8
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
PROCESSES
HR7758/01
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
Chopping process
The chopping process starts with four pulses. After that, the food processor will pick up speed until it
runs at maximum power. He will continue to run at this speed until the STOP button is pressed.
The speed can be decreased in three steps by pressing the - button.
Shredding and slicing process
When the shredding and slicing button is pressed, the food processor will start to run at a constant
speed to produce the best end results with the adjustable slicing disc or the inserts.
The food processor will continue to run at this constant speed until the STOP button is pressed.
The speed can be increased or decreased in three steps by pressing the + button or - button.
Kneading process
The kneading process starts with a Soft Start and then increases to a powerful kneading speed to
achieve a good end result in a short time. The food processor will continue to run at this speed until
the STOP button is pressed. The speed can be decreased in three steps by pressing the - button.
SMART
CONTROL
SMART
CONTROL
SMART
CONTROL
Whisking process
When the whisking process is selected the appliance starts with a 10 second Soft Start. The speed will
gradually increase until the maximum working speed for perfectly whisked egg whites or whipped
cream has been reached. The speed is maintained until the STOP button is pressed.
The speed can be decreased in three steps by pressing the - button.
Blending process
To prevent splashing, the blending process features a Soft Start. After a few seconds the speed gradually
increases to maximum speed to produce a perfectly smooth result. The blender will continue to run at
this speed until the STOP button is pressed. During the blending process the speed can be decreased
in three steps by pressing the - button.
Citrus pressing process
The citrus pressing process features a Soft Start, which means the cone starts rotating at a low speed
guaranteeing a pieasant sensation and a perfect result. The food processor will continue to run at this
speed until the STOP button is pressed. The speed can be decreased in three steps by pressing the
- button.
SMART
CONTROL
Meat mincing process
The meat mincing process has a Soft Start, which means that the meat mincer will start to run at a low
speed and gradually increase to maximum speed. The food processor will continue to run at this speed
until the STOP button is pressed. The speed can be decreased in three steps by pressing the - button.
3-8
PARTS LIST
HR7758/01
PosService codeDescription
1
4203 065 63470
2
4203 065 63620
3
4203 065 63950
4
4203 065 64780
5
4203 065 63890
6
4203 065 63490
7
4203 065 63580
8
4203 065 63960
10
4203 065 63570
11
4203 065 63930
12
4203 065 63590
13
4203 065 63600
14
4203 065 63540
15
4203 065 60310
16
4203 065 60440
17
4203 065 63560
18
4203 065 63610
19
4203 065 63980
4203 065 64000
4203 065 64020
Blender cover
Screw cap
Top housing printed
Panelfoil assy
PCB controll assy
Housing parts
Safety switch lever
PCB brake
Blender coupling
Motor Assy - 230 V
Motor coupling assy
Mounting plate
Adjusting piece
Motor screw
Tooth belt
Belt wheel
Single speed gear
Cordset EURO
Cordset UK
Cordset SWISS

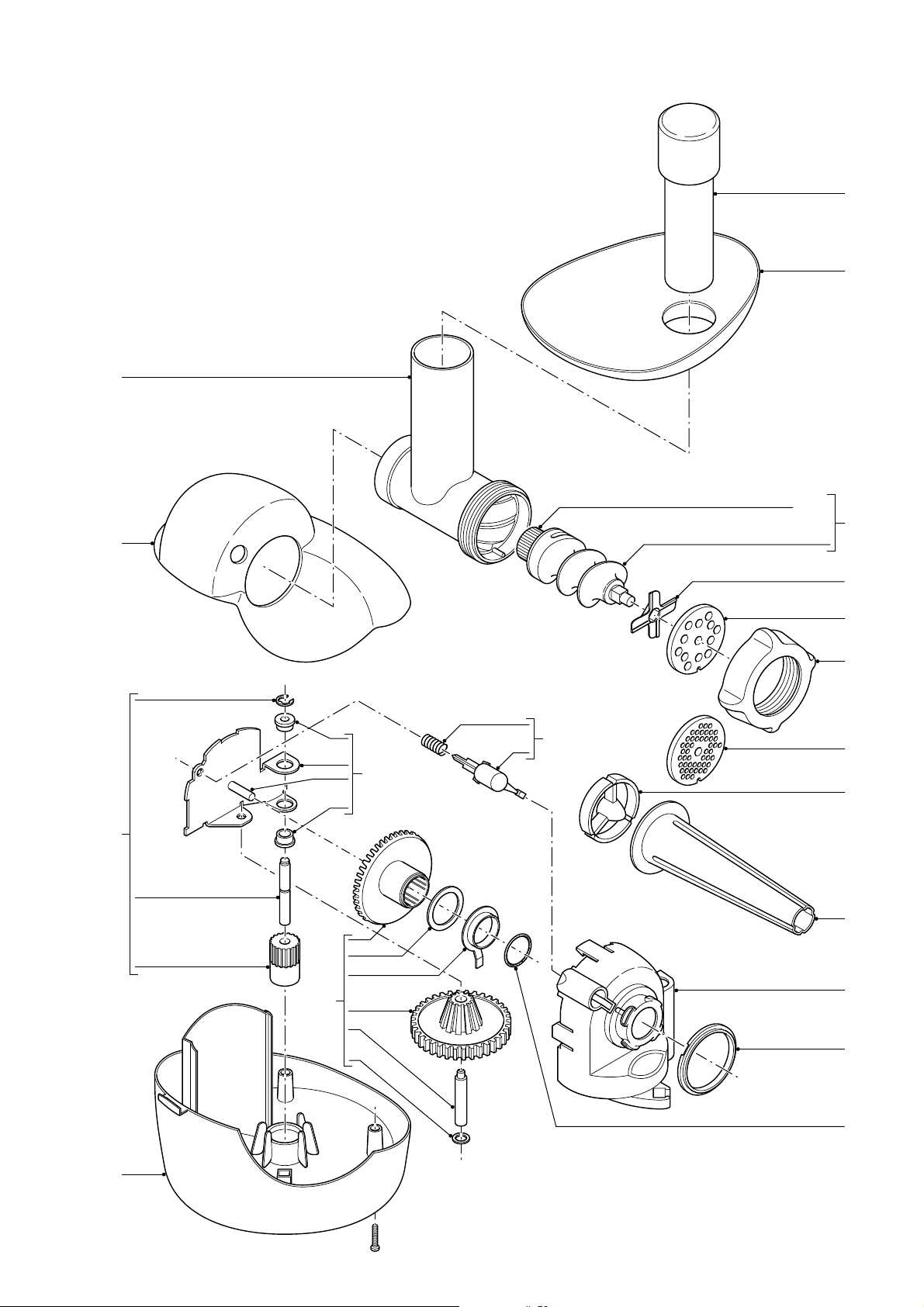

PosService codeDescription
70
4203 065 64160
71
4203 065 64170
72
4203 065 64180
73
4203 065 64220
74
4203 065 64240
75
4203 065 64230
76
4203 065 64190
77
4203 065 64210
78
4203 065 64200
80
4203 065 64050
81
4203 065 64060
82
4203 065 64070
83
4203 065 64080
84
4203 065 64090
85
4203 065 64100
86
4203 065 64110
87
4203 065 64140
88
4203 065 64150
89
4203 065 64120
90
4203 065 64130
Housing upper part
Housing lower part
Mounting plate
Gear assy
O - ring
Release button
Coupling part
Drive gear
Sealing
Feeding tube
