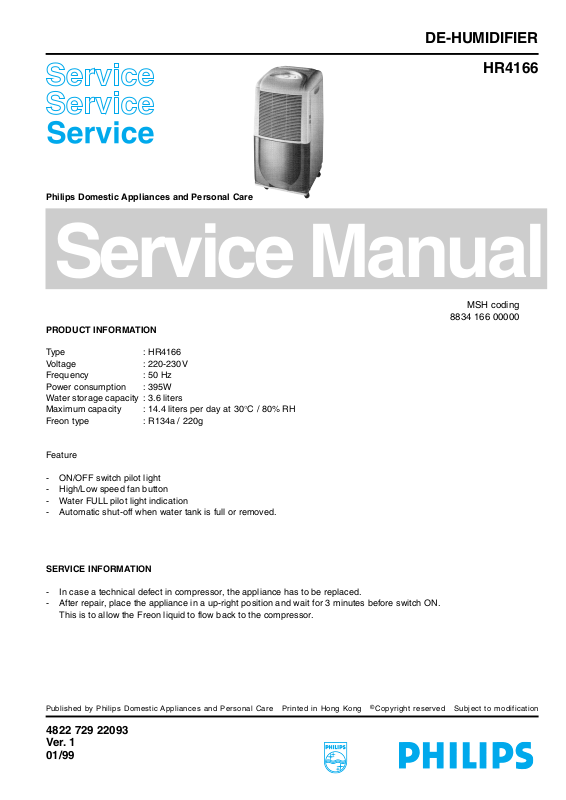

Philips HR4166 Service Manual
DE-HUMIDIFIER
HR4166
Service
Service
Philips Domestic Appliances and Personal Care
Service Manual
MSH coding
8834 166 00000
PRODUCT INFORMATION
Type : HR4166
Voltage : 220-230V
Frequency : 50 Hz
Power consumption : 395W
Water storage capacity : 3.6 liters
Maximum capacity : 14.4 liters per day at 30°C / 80% RH
Freon type : R134a / 220g
Feature
- ON/OFF switch pilot light
- High/Low speed fan button
- Water FULL pilot light indication
- Automatic shut-off when water tank is full or removed.

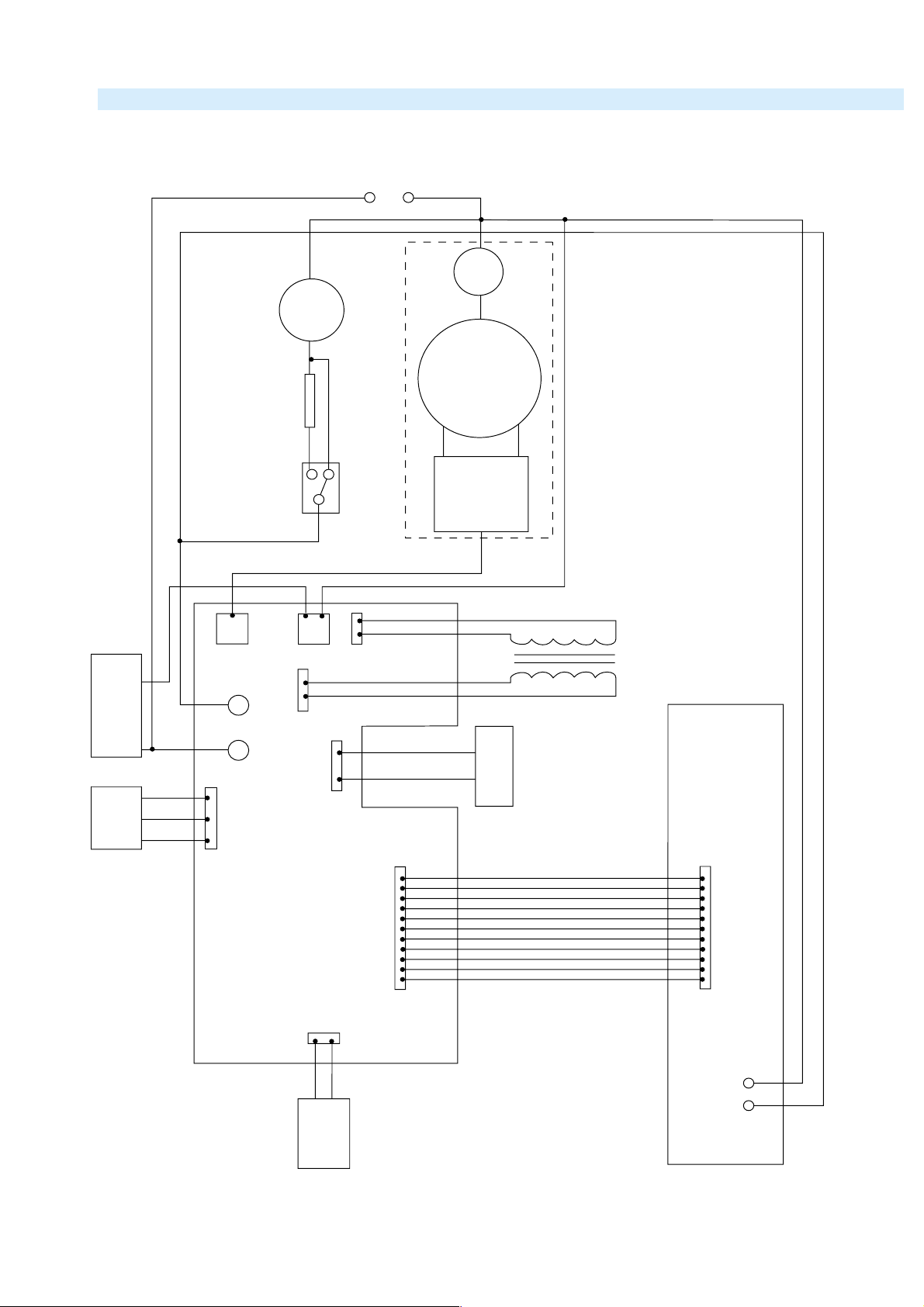

SERVICE INFORMATION
- In case a technical defect in compressor, the appliance has to be replaced.
- After repair, place the appliance in a up-right position and wait for 3 minutes before switch ON.
This is to allow the Freon liquid to flow back to the compressor.
Published by Philips Domestic Appliances and Personal Care Printed in Hong Kong©Copyright reserved Subject to modification
4822 729 22093
Ver. 1
01/99
Item Description Service code
1
Tank
2
Handle
3
Tank Floater
4
Filter
5
Carbon Filter
6
Filter cover
7
Front panel
8
Left cabinet
9
Right cabinet
10
Top cover +Inlay
11
Cover
12
Knob set
13
Control switch
14
Fan speed switch
15
Main control board
16
Humidity sensor
17
Transformer
18
Compressor starter
19
Resistor
20
Motor
21
Blower
22
Micro switch
23
Rubber plug
24
Tube set
25
Wheel
26
Power cord HK
4822 418 10423
4822 498 10731
4822 402 11289
4822 480 10265
4822 480 10264
4822 442 01785
4822 459 05271
4822 441 12319
4822 441 12321
4822 442 01787
4822 442 01788
4822 410 12343
4822 277 11865
4822 277 11866
4822 214 13036
4822 132 00126
4822 146 11135
4822 280 10384
4822 101 11946
4822 361 11167
4822 515 10071
4822 277 11868
4822 462 11173
4822 530 10526
4822 528 11321
4822 321 11494

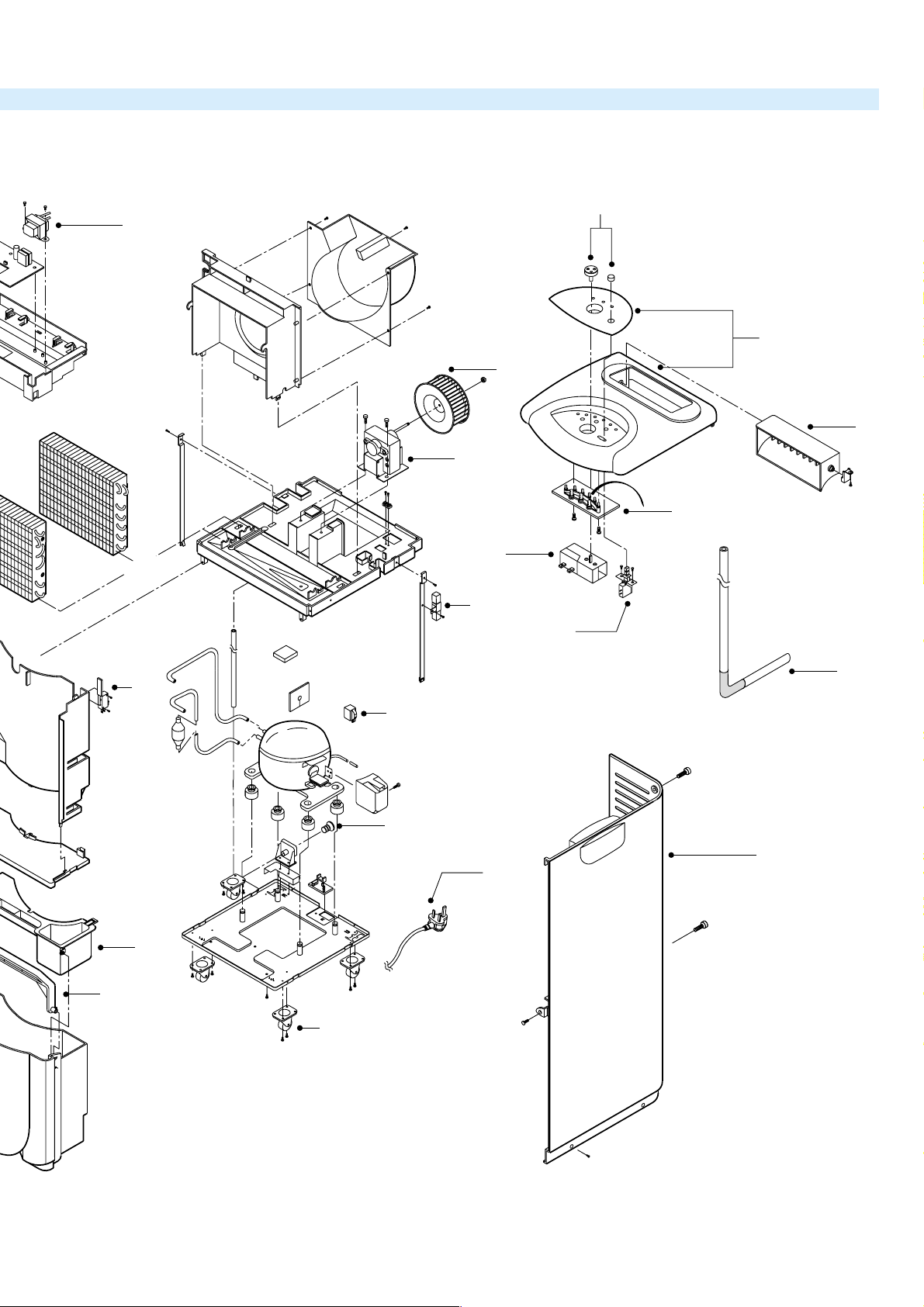

EXPLODED VIEWSERVICE PARTS
15
16
8
6
5
7
4
1
