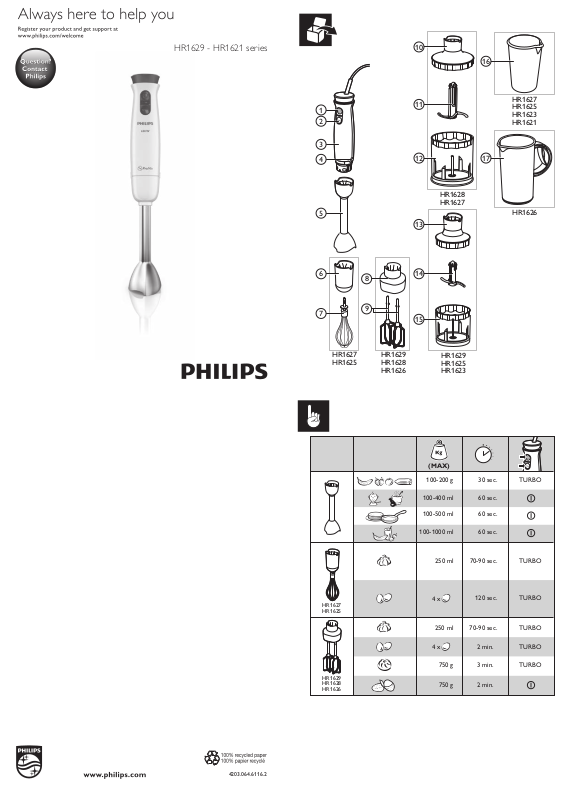

Philips HR1623, HR1625, HR1627, HR1626, HR1628 User Manual [nl]

...
HR1629 - HR1621 series
HR1623
10
16
1 2
3
4
5
6
7
HR1627 HR1625
11
HR1627 HR1625 HR1623 HR1621
12
17
HR1628 HR1627
HR1626
13
8
14
9
15
HR1629 HR1628 HR1626
HR1629 HR1625
HR1627 HR1625
HR1629 HR1628 HR1626
(MAX)
100-400 ml
100-500 ml
100-1000 ml
250 ml
4 x
250 ml 70-90 sec.
4 x
750 g
750 g
30 sec.
60 sec.
60 sec.
60 sec.
70-90 sec.
120 sec.
2 min.
3 min.
2 min.
TURBO
TURBO
TURBO
TURBO
TURBO
TURBO
4203.064.6116.2
Mini
HR1621
(MAX)
100 g
120 g
20 g
5 x 1 sec.
5 sec.
5 x 1 sec.
TURBO
1
HR1629 HR1625 HR1623
HR1628 HR1627
2
3
HR1629 HR1625 HR1623
XL
HR1628 HR1627
100 g
200 g
200 g
30 g
200 g
200 g
100 g
80 g
15 sec.
20 sec.
5 x 1 sec.
10 sec.
5 x 1 sec.
15 sec.
30 sec.
20 sec.
30 sec.
TURBO
TURBO
TURBO
TURBO
TURBO
TURBO
TURBO
3
2x2x2 cm
4
5 6
7
50-100 g
1
2
4
1
4
HR1627 HR1625
5
HR1629 HR1628 HR1626
2
5
6
HR1627 HR1625
3
6
HR1628 HR1627
HR1627 HR1625 HR1623
HR1629 HR1628 HR1626
XL
Mini
HR1629 HR1625 HR1623
HR1626
7
ENGLISH
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.com/welcome.
General description
1 Power-on button 2 TURBO button 3 Motor unit 4 Release button 5 Blender bar with integrated blade unit
6 Whisk coupling unit 7 Whisk
8 Double beater coupling unit 9 2 Beaters
10 XL chopper lid 11 XL chopper blade unit 12 XL chopper bowl
13 Compact chopper lid 14 Compact chopper blade unit 15 Compact chopper bowl
16 Small beaker (0.5l) 17 Large beaker
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.
Warning
- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
- Do not use the appliance if the plug, the mains cord
or other parts are damaged or have visible cracks.
- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by
Philips or similarly qualied persons in order to avoid
a hazard.
- This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- This appliance shall not be used by children. Keep the appliance and its cord out of the reach of children.
- Children shall not play with the appliance.
- Do not touch the cutting edges of the blade units under any conditions, especially when the appliance is plugged in. The cutting edges are very sharp.
- Never use a chopper blade unit without a chopper bowl.
- To avoid splashing, always immerse the bar into the ingredients before you switch on the appliance, especially when you process hot ingredients.
- Be careful when you pour hot liquid into the beaker, as hot liquid and steam may cause scalding.
- If one of the blade unit gets stuck, unplug the appliance before you remove the ingredients
that block the blade unit.
Caution
- Always disconnect the appliance from the mains if you leave it unattended and before you assemble, disassemble or clean it.
- Never use any accessories or parts from other
manufacturers or that Philips does not specically
recommend. If you use such accessories or parts, your guarantee becomes invalid.
- This appliance is intended for household use only.
- Only use this appliance for its intended purpose as shown in the user manual.
- Never ll the beaker, XL chopper bowl (specic types
only) or compact chopper bowl (specic types only)
with ingredients that are hotter than 80°C/175°F.
- Do not exceed the quantities and processing times indicated in the tables.
- Do not use the appliance with any of the accessories
longer than 3 minutes without interruption. Let the
appliance cool down for 15 minutes before you continue processing.
- Clean the blade unit of the blender bar under the tap. Never immerse the blender bar in water.
- After cleaning, let the blender bar dry. Store it either horizontally or with the blade unit pointing upwards. Make sure the blade unit is completely dry before you store the blender bar.
Electromagnetic elds (EMF)
This Philips appliance complies with all applicable standards and regulations
regarding exposure to electromagnetic elds.
Ordering accessories
To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care
Centre in your country (see the worldwide guarantee leaet for contact details).
Environment
- This symbol on a product means that the product is covered by European Directive 2012/19/EU. Inform yourself about the local separate collection system for electrical and electronic products. Follow local rules and never dispose of the product with normal household waste. Correct disposal of old products helps prevent
negative consequences for the environment and human health (Fig. 1).
Guarantee and support
If you need information or support, please visit www.philips.com/ support or read the separate worldwide guarantee leaet.
Baby food recipe Ingredients
- 50g potatoes, cooked
- 50g chicken, cooked
- 50g French beans, cooked
- 100ml milk
Process for 60 seconds. If you process more than one batch, let the appliance cool down after each batch.
