Philips HQ 7330 User Manual

English 4

Español 16

Português do Brasil 28

HQ7330

4English

Introduction

Congratulations on your purchase and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

-- Make sure the adapter does not get wet.

Warning

-- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

-- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

-- Children should be supervised to ensure that they do not play with the appliance.

Caution

-- Do not use the shaver or the adapter if it is damaged.

-- Only use the adapter supplied.

-- If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

-- Charge, use and store the shaver at a temperature between 5°C and 35°C.

English 5

-- Always unplug the shaver before you clean it under the tap and before you use the appliance in the bath or shower.

-- Be careful with hot water.Always check if the water is not too hot, to prevent your hands from getting burnt.

-- The appliance complies with the internationally approved IEC safety regulations and can be safely used in the bath or shower and cleaned under the tap.

-- Do not immerse the shaver in water.

-- Water may leak from the socket at the bottom of the appliance when you rinse it.This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

-- The shaver and the other accessories are not dishwasher-proof.

General

-- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

-- Noise level: Lc = 59dB(A)

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Charging

Make sure the appliance is switched off before you start charging it.

6English

When you charge the shaver for the first time or after a long period of disuse, let it charge continuously for at least 12 hours, for instance overnight.

Charging normally takes 1 hour.

After having been charged for 6 minutes, the battery contains enough energy for one shave.

When the shaver is fully charged, it has a shaving time of up to 35 minutes.

Note:The shaver cannot be used directly from the mains.

Charge indications

Charging

,,When you start charging the empty shaver, the charging light goes on.

Battery fully charged

,, When the battery is fully charged, the charging light starts to flash.

When you unplug the shaver, the charging light goes out.

Battery running low

,,When the battery is running low, the battery-low light goes on.

When you switch off the shaver, this light flashes a few times.

Charging the appliance

Charge the shaver when the battery-low light goes on.

English 7

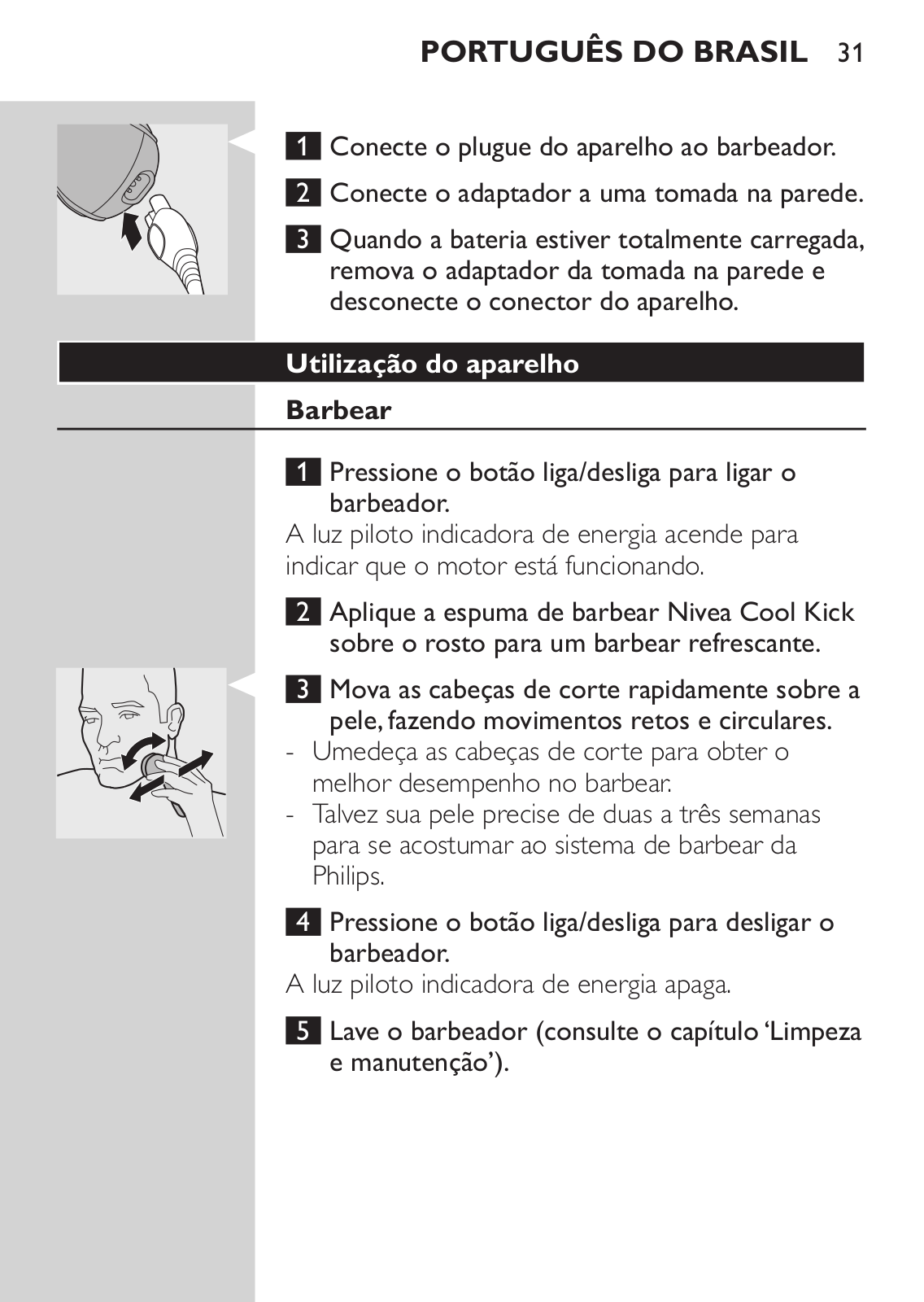

1 Put the appliance plug in the shaver.

2 Put the adapter in the wall socket.

3Remove the adapter from the wall socket and pull the appliance plug out of the shaver when the battery has been fully charged.

Using the appliance

Shaving

1Press the on/off button once to switch on the shaver.

The power-on lights go on to indicate that the motor is running.

2Apply Nivea Cool Kick shaving foam to your face, for a fresh shaving sensation. 

3 Move the shaving heads quickly over your skin, making both straight and circular movements.

-- Moisten the shaving heads for an optimal shaving performance.

-- Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

4Press the on/off button once to switch off the shaver.

The power-on lights go out.

5Clean the shaver (see chapter ‘Cleaning and maintenance’).

8English

6 Put the protection cap on the shaver every time you have used it, to prevent damage to the shaving heads.

Trimming

For grooming sideburns and moustache.

1 Open the trimmer by pushing the slide downwards.

The trimmer can be activated while the motor is running.

2 Close the trimmer (‘click’).

Cleaning and maintenance

Regular cleaning guarantees better shaving performance.

Be careful with hot water.Always check if the water is not too hot, to prevent your hands from getting burnt.

Note:Water may leak from the socket at the bottom of the appliance when you rinse it.This is normal and not dangerous.

English 9

Every day:shaving unit and hair chamber

1Switch off the shaver, remove the adapter from the wall socket and pull the appliance plug out of the shaver.

2Press the release button to open the shaving unit.

3Clean the shaving unit and the hair chamber by rinsing them under a hot tap for some time.

,, Make sure you clean the inside as well as the outside of the shaving unit.

4Close the shaving unit and shake off excess water.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

5 Open the shaving unit again and leave it open to let the appliance dry completely.

You can also clean the hair chamber without water by using the brush supplied.

Every six months:shaving heads

1Open the shaving unit, turn the lock anticlockwise (1) and remove the retaining frame (2).

10 English

2Clean the cutters and guards with the brush supplied.

Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

3 Put the shaving heads back into the shaving unit. Put the retaining frame back into the shaving unit and turn the lock clockwise.

4 Close the shaving unit.

Trimmer

Clean the trimmer every time you have used it.

1 Switch off the shaver, remove the adapter from the wall socket and pull the appliance plug out of the shaver.

2 Clean the trimmer with the brush supplied.

3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months.

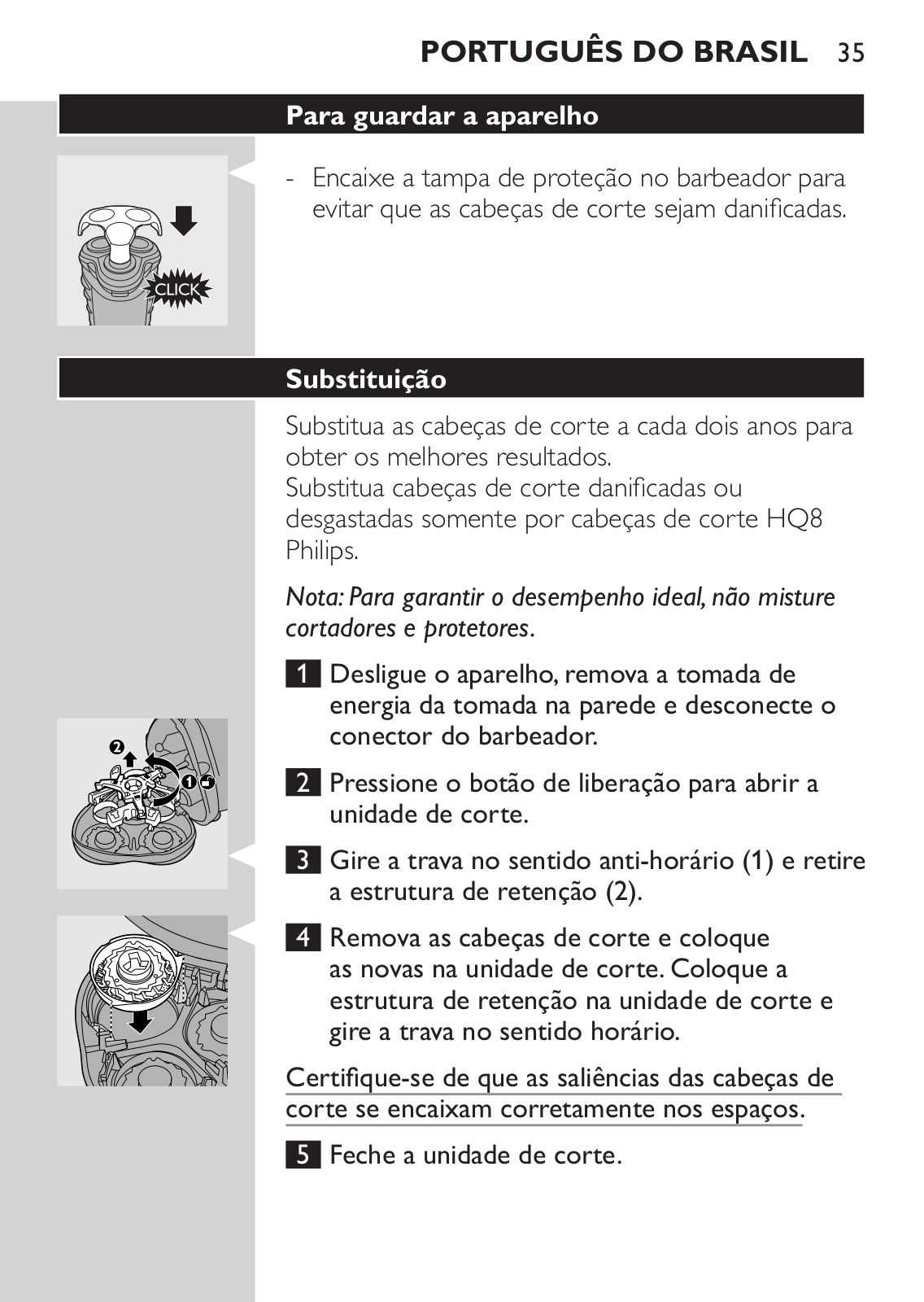

Storage

-- Put the protection cap on the shaver to prevent damage to the shaving heads.

English 11

Replacement

Replace the shaving heads every two years for optimal shaving results.’

Replace damaged or worn shaving heads with HQ8 Philips shaving heads only.

Note:Do not mix up the cutters and the guards to guarantee optimal shaving performance.

1Switch off the shaver, remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2Press the release button to open the shaving unit.

3Turn the lock anticlockwise (1) and remove the retaining frame (2).

4Remove the shaving heads and place new ones in the shaving unit. Put the retaining frame back into the shaving unit and turn the lock clockwise.

Make sure that the projections of the shaving heads fit exactly into the recesses.

5 Close the shaving unit.

Accessories

The following accessories are available:

-- HQ8 Philips Shaving Heads.HQ8010 car cord.

12 English

Environment

-- Do not throw away the appliance with the normal household waste at the end of its life, but hand

it in at an official collection point for recycling. By doing this, you help to preserve the environment.

-- Do not throw the battery away with the normal household waste but hand it in at an official collection point.

Disposal of the battery

The built-in rechargeable lithium-ion (Li-ion) battery contains substances that may pollute the environment.Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre.The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Only remove the battery if it is completely empty.

1 Remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2 Let the shaver run until it stops, undo the two screws in the hair chamber and remove it.

English 13

3Undo the two screws at the back of the shaver and remove the back panel of the housing.

4Remove the side panels by pulling them off the sealed power unit.

5Undo the three screws in the sealed power unit.

6Remove the back panel of the sealed power unit by means of a screwdriver.

7 Remove the battery.

Be careful, the battery strips are very sharp.

Do not connect the shaver to the mains again after the battery has been removed.

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there

14 English

is no Consumer Care Centre in your country, go to your local Philips dealer.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

1 The shaver does not shave as well as it used to. ,, Cause 1: the shaving heads are dirty.The shaver has not been rinsed long enough or the water

used was not hot enough.

-- Clean the shaver thoroughly before you continue shaving. See chapter ‘Cleaning and maintenance’.

,, Cause 2: long hairs are obstructing the shaving heads.

-- Clean the cutters and guards with the brush supplied. See chapter ‘Cleaning and maintenance’, section ‘Every six months: shaving heads’.

,, Cause 3: the shaving heads are damaged or worn.

-- Replace the shaving heads. See chapter ‘Replacement’.

2 The shaver does not work when the on/off button is pressed.

,, The battery is empty.

-- Recharge the battery. See chapter ‘Charging’.

Note:The shaver cannot be used directly from the mains.

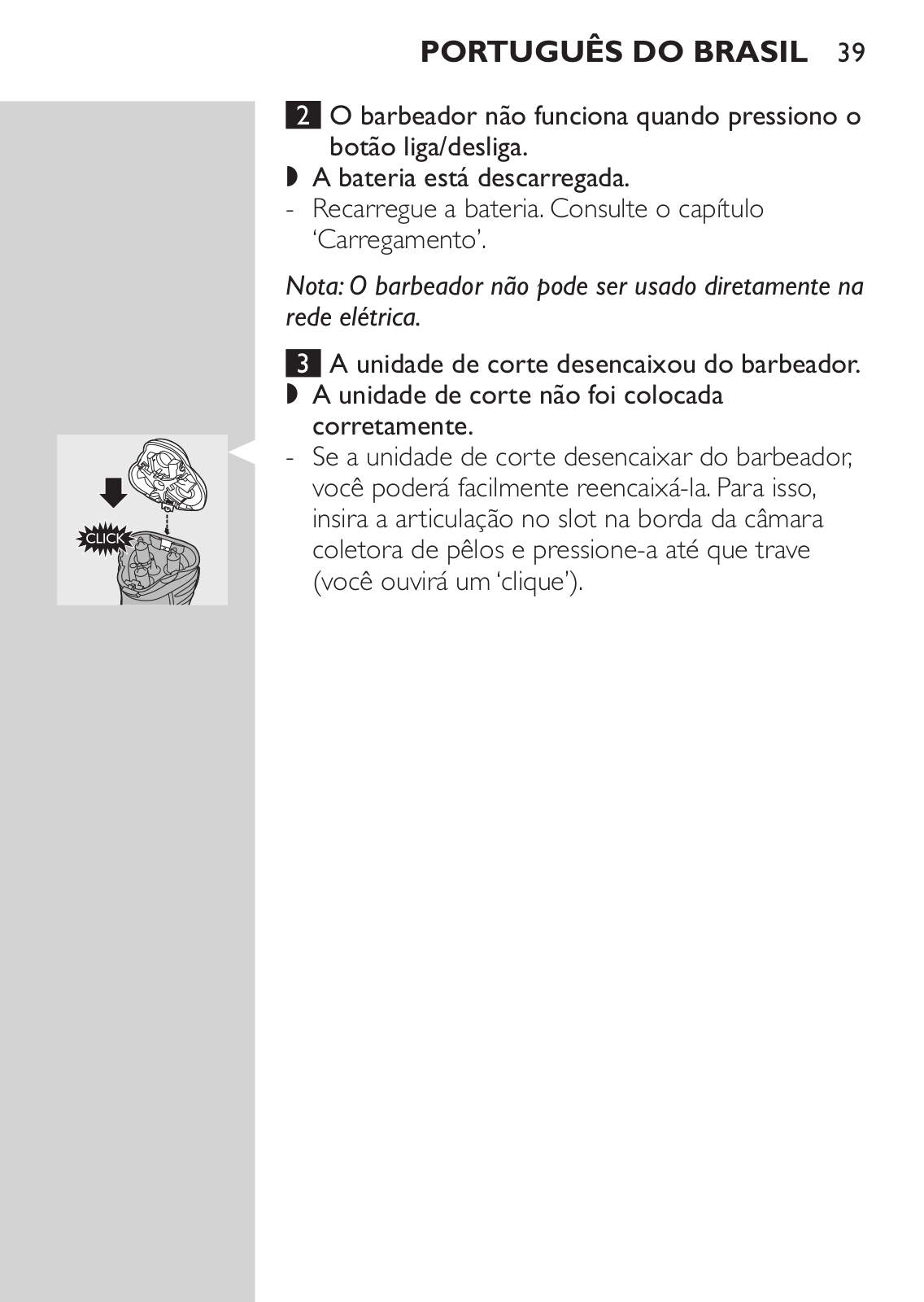

3 The shaving unit has come off the shaver.

,, The shaving unit has not been placed correctly.
