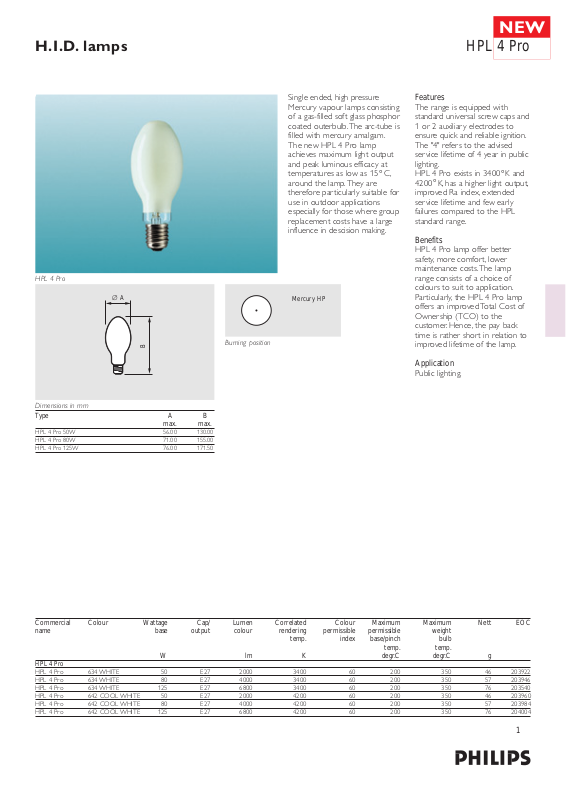

Philips HPL 4 Pro User Manual
1
H.I.D. lamps
Type A B
max. max.
HPL 4 Pro 50W 56.00 130.00
HPL 4 Pro 80W 71.00 155.00
HPL 4 Pro 125W 76.00 171.50
Features
The range is equipped with
standard universal screw caps and
1 or 2 auxiliary electrodes to
ensure quick and reliable ignition.
The "4" refers to the advised
service lifetime of 4 year in public
lighting.
HPL 4 Pro exists in 3400
˚
K and
4200
˚
K, has a higher light output,
improved Ra index, extended
service lifetime and few early
failures compared to the HPL
standard range.
Benefits
HPL 4 Pro lamp offer better
safety, more comfort, lower
maintenance costs.The lamp
range consists of a choice of
colours to suit to application.
Par ticularly, the HPL 4 Pro lamp
offers an improved Total Cost of
Ownership (TCO) to the
customer. Hence, the pay back
time is rather short in relation to
improved lifetime of the lamp.
Application
Public lighting.
Single ended, high pressure
Mercury vapour lamps consisting
of a gas-filled soft glass phosphor
coated outerbulb.The arc-tube is
filled with mercury amalgam.
The new HPL 4 Pro lamp
achieves maximum light output
and peak luminous efficacy at
temperatures as low as 15
˚
C,
around the lamp.They are
therefore particularly suitable for
use in outdoor applications
especially for those where group
replacement costs have a large
influence in descision making.
Dimensions in mm
HPL 4 Pro
Burning position
Mercury HP
Commercial Colour Wattage Cap/ Lumen Correlated Colour Maximum Maximum Nett EOC
name base output colour rendering permissible permissible weight
temp. index base/pinch bulb
temp. temp.
WlmK degr.C degr.C g
HPL 4 Pro
HPL 4 Pro 634 WHITE 50 E27 2000 3400 60 200 350 46 203922
HPL 4 Pro 634 WHITE 80 E27 4000 3400 60 200 350 57 203946
HPL 4 Pro 634 WHITE 125 E27 6800 3400 60 200 350 76 203540
HPL 4 Pro 642 COOL WHITE 50 E27 2000 4200 60 200 350 46 203960
HPL 4 Pro 642 COOL WHITE 80 E27 4000 4200 60 200 350 57 203984
HPL 4 Pro 642 COOL WHITE 125 E27 6800 4200 60 200 350 76 204004
NEW
NEW
HPL 4 Pro
∅ A
B
2
HPL 4 Pro 50-80-125 W
100
90
80
Survivals in %
70
60
50
0
6000 12000
18000
24000
Operating hours
HPL 4 Pro 50-80-125 W
100
90
Lumen in %
80
70
60
50
0
6000 12000
18000
24000
Operating hours
