Super automatic espresso machine
3000 series
02
USER MANUAL
Read carefully before using the machine.
HD8821
HD8822
English
EN
02
Register your product and get support at
www.philips.com/welcome
Page 2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 3
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
Page 4
2
ENGLISH
Congratulations on your purchase of a Philips fully automatic co ee machine!
To fully bene t from the support that Philips o ers, please
register your product at www.philips.com/welcome.
The machine is suitable for preparing espresso co ee using
whole co ee beans, as well as for dispensing steam and hot
water.
In this user manual you will nd all the information you need
to install, use, clean and descale your machine.
Page 5
ENGLISH
CONTENTS
IMPORTANT..................................................................................................... 4
Safety Instructions ..................................................................................................................... 4
Warnings ................................................................................................................................... 4
Cautions ..................................................................................................................................... 5
Electromagnetic Fields .............................................................................................................. 6
Disposal ..................................................................................................................................... 7
INSTALLATION ................................................................................................. 8
Product Overview ...................................................................................................................... 8
General Description.................................................................................................................... 9
PREPARING FOR USE .......................................................................................10
Machine Packaging ............................................................................................................. .....10
Machine Installation ................................................................................................................ 10
USING THE MACHINE FOR THE FIRST TIME ........................................................12
Circuit Priming .........................................................................................................................12
Automatic Rinse/Self-Cleaning Cycle ....................................................................................... 13
Manual Rinse Cycle .................................................................................................................. 14
MEASURING AND PROGRAMMING WATER HARDNESS........................................16
“INTENZA+” WATER FILTER INSTALLATION .......................................................17
ADJUSTMENTS ................................................................................................19
Saeco Adapting System ............................................................................................................ 19
Adjusting the Ceramic Co ee Grinder....................................................................................... 19
Adjusting the Co ee Dispensing Spout .................................................................................... 20
Adjusting the Co ee Length .................................................................................................... 22
BREWING ESPRESSO AND COFFEE ....................................................................23
FROTHING MILK / BREWING CAPPUCCINO ........................................................24
Frothing milk ........................................................................................................................... 24
Brewing a Cappuccino .............................................................................................................. 25
HOT WATER DISPENSING .................................................................................26
CLEANING AND MAINTENANCE ........................................................................27
Daily Cleaning of the Machine.................................................................................................. 27
Daily Cleaning of the Water Tank .............................................................................................. 28
Daily Cleaning of the Classic Milk Frother ................................................................................. 29
Weekly Cleaning of the Machine .............................................................................................. 29
Weekly Cleaning of the Classic Milk Frother ............................................................................. 29
Weekly Cleaning of the Brew Group ......................................................................................... 30
Monthly Lubrication of the Brew Group ................................................................................... 34
Monthly Cleaning of the Co ee Bean Hopper........................................................................... 35
DESCALING .....................................................................................................36
INTERRUPTION OF THE DESCALING CYCLE ........................................................42
CONTROL PANEL WARNINGS ............................................................................45
TROUBLESHOOTING ........................................................................................49
ENERGY SAVING ..............................................................................................51
Stand-by .................................................................................................................................. 51
TECHNICAL SPECIFICATIONS ............................................................................52
WARRANTY AND SERVICE ................................................................................52
Warranty .................................................................................................................................. 52
Service ..................................................................................................................................... 52
ORDERING MAINTENANCE PRODUCTS ..............................................................53
3
Page 6
4
ENGLISH
IMPORTANT
Safety Instructions
This machine is equipped with safety devices. Nevertheless,
read and follow the safety instructions carefully and only use
the machine properly as described in these instructions to
avoid accidental injury or damage due to improper use of the
machine. Keep this user manual for future reference.
The term WARNING and this icon warn against possible
severe injuries, danger to life and/or damage to the machine.
The term CAUTION and this icon warn against slight
injuries and/or damage to the machine.
Warnings
• Connect the machine to a wall socket with a voltage
matching the technical speci cations of the machine.
• Connect the machine to an earthed wall socket.
• Do not let the power cord hang over the edge of a table or
counter, or touch hot surfaces.
• Never immerse the machine, the mains plug or power cord
in water: Danger of electrical shock!
• Do not pour liquids on the power cord connector.
• Never direct the hot water jet towards body parts: Danger
of burning!
• Do not touch hot surfaces. Use handles and knobs.
• After switching o the machine by pressing the power
button on the back of the machine, remove the mains plug
from the wall socket:
- if a malfunction occurs;
- if the machine will not be used for a long time;
Page 7
ENGLISH
- before cleaning the machine.
• Pull on the mains plug, not on the power cord.
• Do not touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord
or the machine itself is damaged.
• Do not make any modi cations to the machine or its
power cord. Only have repairs carried out by a service
centre authorised by Philips to avoid any hazard.
• The machine should not be used by children younger than
8 years old.
• The machine can be used by children of 8 years and upwards
if they have previously been instructed on the correct use of
the machine and made aware of the associated dangers or if
they are supervised by an adult.
• Cleaning and maintenance should not be carried out by
children unless they are more than 8 years old and supervised by an adult.
• Keep the machine and its power cord out of reach of children under 8 years old.
• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient
experience and/or skills if they have previously been
instructed on the correct use of the machine and made
aware of the associated dangers or if they are supervised
by an adult.
• Children should be supervised to ensure that they do not
play with the machine.
• Never insert ngers or other objects into the co ee
grinder.
5
5
Cautions
• The machine is for household use only. It is not intended
for use in environments such as canteens, sta kitchens of
Page 8
6
ENGLISH
shops, o ces, factories or other work environments.
• Always put the machine on a at and stable surface.
• Do not place the machine on hot surfaces, directly next to
a hot oven, heater units or similar sources of heat.
• Only put roasted co ee beans into the co ee bean hopper.
If ground co ee, instant co ee, raw co ee or any other
substance is put in the co ee bean hopper, it may damage
the machine.
• Let the machine cool down before inserting or removing
any parts. The heating surfaces may retain residual heat
after use.
• Never use warm or hot water to ll the water tank. Use
only cold non-sparkling drinking water.
• Never clean with scrubbing powders or harsh cleaners.
Simply use a soft cloth dampened with water.
• Descale your machine regularly. Not doing this will make
your appliance stop working properly. In this case repair is
not covered under your warranty!
• Do not keep the machine at temperature below 0 °C.
Residue water in the heating system may freeze and cause
damage.
• Do not leave water in the water tank if the machine is
not used over a long period of time. The water can get
contaminated. Use fresh water every time you use the
machine.
Electromagnetic Fields
This appliance complies with all the applicable standards and
regulations relating to the exposure to electromagnetic elds.
Page 9
ENGLISH
7
7
Disposal
This symbol on a product indicates that the product is covered
by EU Directive 2012/19/EU. Please inform yourself about the
local separate collection system for electrical and electronic
products. Follow local regulations and do not dispose of
the product as household waste. Appropriate disposal of
old products helps prevent negative consequences for the
environment and human health.
Page 10
8
INSTALLATION
Product Overview
12
14
15
3
4
5
6
7
8
10 11 13
9
12
18
16
17
19
23
21
22
27
28
20
24 25 26
30
31
32
33
2934 35
Page 11
General Description
1. Grinder adjustment knob
2. Co ee bean hopper
3. Co ee bean hopper lid
4. Control panel
5. Co ee dispensing spout
6. Full drip tray indicator
7. Cup holder grill
8. Drip tray
9. Water tank + Lid
10. Co ee grounds drawer
11. Brew group
12. Co ee residues drawer
13. Service door
14. Grease for brew group - (optional)
15. Power cord
16. Wand protective gripper
17. Classic Milk Frother (for hot water/steam)
18. Co ee grinder adjustment key
19. Water hardness test strip
20. Cleaning brush - (optional)
21. Power cord socket
22. Power button
23. Descaling solution - to be purchased separately
24. Espresso brew button
25. ON/OFF button
26. Co ee brew button
27. Steam button
28. Hot water button
29. Descaling button
30. No water light
31. Empty co ee grounds drawer light
32. No co ee light
33. General warning light
34. Descaling cycle light
35. Rinse cycle light
ENGLISH
9
9
Page 12
10
ENGLISH
PREPARING FOR USE
Machine Packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine Installation
Remove the machine from the packaging.
1
For best use, it is recommended to:
2
• Choose a safe, level surface where there will be no danger of overturning the machine or being injured.
• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the gure.
Open the water tank lid.
3
Remove the water tank by using the handle
4
Page 13
ENGLISH
Rinse the water tank with fresh water.
5
Fill the water tank with fresh water up to the MAX level and reinsert it
6
into the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
Open the co ee bean hopper lid.
7
Slowly pour the co ee beans into the co ee bean hopper.
8
11
11
Note:
Do not pour too many co ee beans into the co ee bean hopper as this will
reduce the grinding performance of the machine.
Caution:
Only co ee beans must be put into the co ee bean hopper. If ground
co ee, instant co ee, caramelized co ee, raw co ee beans or any
other substance is put in the co ee bean hopper, it may damage the
machine.
Put the lid back on the co ee bean hopper.
9
Insert the plug into the socket located on the back of the machine.
10
1
Insert the plug on the other end of the power cord into a wall socket
11
with suitable power voltage.
2
Page 14
12
ENGLISH
Switch the power button to “I”. The " " button ashes.
12
To turn on the machine, simply press the " " button.
13
USING THE MACHINE FOR THE FIRST TIME
When using the machine for the rst time, the following activities need to
happen:
1) you need to prime the circuit;
2) the machine will perform an automatic rinse/self-cleaning cycle;
3) you need to perform a manual rinse cycle.
Circuit Priming
During this process, fresh water ows through the internal circuit of the
machine and the machine warms up. This takes a few minutes.
Place a container under the Classic Milk Frother.
1
The “ ” light and the “ ” light ash simultaneously; then the “ ” but-
2
ton lights up.
To prime the circuit, press the “
” button.
Page 15
ENGLISH
The machine warms up; the “ ” and “ ” buttons ash simultane-
3
ously.
13
13
Automatic Rinse/Self-Cleaning Cycle
When the warm-up phase has been completed, the machine automatically
performs a rinse/self-cleaning cycle of the internal circuits with fresh water.
This takes less than a minute.
Place a container under the co ee dispensing spout to catch the water
1
which will be dispensed.
The " " and " " buttons ash simultaneously. Wait for the cycle to
2
nish automatically.
When the operations described above have been completed, the " ",
3
", “ ” and " " buttons shine steadily. You can now perform the man-
"
ual rinse cycle.
Page 16
14
ENGLISH
Manual Rinse Cycle
During this process, the co ee brewing cycle is activated and fresh water
ows through the water circuit. This takes a few minutes.
Place a container under the co ee dispensing spout.
1
Check that the " ", " ", “ ” and " " buttons are shining steadily.
2
Press the
3
brewing has been completed and empty the container.
Place a container under the Classic Milk Frother.
4
" "
button. The machine starts brewing co ee. Wait until
Page 17
ENGLISH
Press the “ ” button to start dispensing hot water. The button ashes
5
during dispensing.
Dispense all the remaining water. The “ ” light shines steadily.
6
Note:
If you want to interrupt the manual rinse cycle, press the “
resume press the “
” button again.
” button; to
15
15
Fill the water tank again up to the MAX level. Now the machine is ready
7
to brew co ee.
Note:
The automatic rinse/self-cleaning cycle starts when the machine has been
in stand-by mode, or turned o , for more than 15 minutes.
When you have not used the machine for 2 or more weeks, you will need to
perform a manual rinse cycle.
At the end of the cycle, you can brew a co ee.
Page 18
16
ENGLISH
MEASURING AND PROGRAMMING WATER HARDNESS
Water hardness measuring is very important in order to de ne the descaling frequency and to install the “INTENZA+” water lter (for more details on
the water lter, see next chapter).
To measure the water hardness follow the steps below:
Immerse the water hardness test strip (supplied with the machine) in
1
water for 1 second.
Note:
The test strip can only be used for one single measurement.
Wait for one minute.
2
Intenza Aroma System
Check how many squares have changed colour to red and then refer to
3
C
B
A
23 4
Machine Water Hardness Setting
1
the table.
Note:
The numbers on the water hardness test strip correspond to the water
hardness.
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter).
Page 19
ENGLISH
17
17
“INTENZA+” WATER FILTER INSTALLATION
We recommend you to install the “INTENZA+” water lter as this prevents
limescale build-up in your machine and preserves a more intense aroma of
your co ee.
The “INTENZA+” water lter can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Water is a crucial part of every co ee, so it is very important to always have
it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.
Remove the small white lter from the water tank and store it in a dry
1
place.
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
Set the “INTENZA+” water lter according to the measurements per-
3
formed (see previous chapter) and indicated on the base of the lter:
A = soft water – equals 1 or 2 on the test strip
B = hard water (standard) – equals 3 on the test strip
C = very hard water – equals 4 on the test strip
Page 20
18
ENGLISH
Put the “INTENZA+” water lter into the empty water tank. Press it
4
down until it cannot move any further.
Fill the water tank with fresh water and put it into the machine.
5
Check that the " ", " ", “ ” and " " buttons are shining steadily.
6
Press the “ ” button to start dispensing hot water. The button ashes
7
during dispensing.
Dispense all water in the tank. The “ ” light shines steadily.
8
Fill the water tank again with fresh water and reinsert it into the ma-
9
chine.
When the operations described above have been completed, the " ",
10
", “ ” and " " buttons shine steadily.
"
Note:
The “INTENZA+” water lter must be replaced after two months of use.
Page 21
ENGLISH
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market, except for raw, caramelized and avoured co ee beans.
The machine automatically adjusts itself after brewing several cups of coffee to optimize co ee extraction.
Adjusting the Ceramic Co ee Grinder
Ceramic co ee grinders always guarantee accurate and perfect grinding
and coarseness for every co ee speciality.
This technology provides full aroma preservation, delivering a truly Italian
taste in every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dangerous. Do not insert ngers or other objects. Only adjust the ceramic
co ee grinder using the grinder adjustment key.
19
19
You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Warning:
You can only adjust the co ee grinder settings when the machine is
grinding co ee beans.
Place a cup under the co ee dispensing spout.
1
Press the “
” button to brew an espresso.
Page 22
20
ENGLISH
1
2
While the machine grinds co ee, press and turn the grinder adjust-
2
ment knob placed inside the co ee bean hopper one notch at a time.
Use the special co ee grinder adjustment key supplied. You will taste
the di erence after brewing 2-3 cups of co ee.
The reference marks inside the co ee bean hopper indicate the grind
3
setting. There are 5 di erent grind settings to choose from, from posi-
( )
tion 1
stronger taste. If co ee is watery or is brewed slowly, change the co ee
grinder settings.
for coarse grind - milder taste to position 2
( )
for ne grind -
Adjusting the Co ee Dispensing Spout
The height of the co ee dispensing spout can be adjusted to better t the
dimensions of the cups that you wish to use.
Move the co ee dispensing spout up or down with your ngers to adjust
its height as shown in the gure.
Page 23
ENGLISH

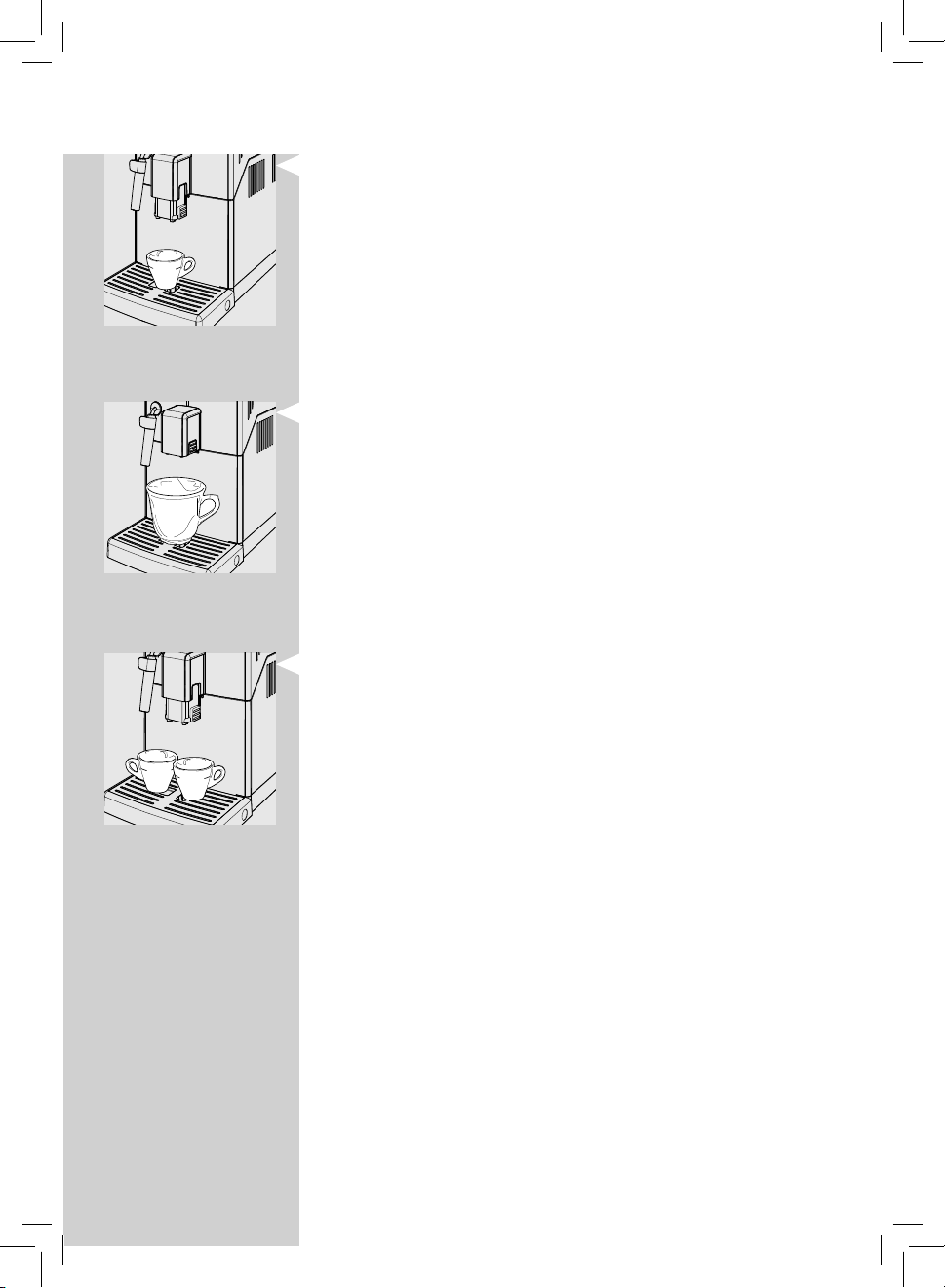

The recommended positions are:
For the use of small cups;
For the use of large cups.
Two cups can also be placed under the co ee dispensing spout to brew
two cups of co ee or two cups of espresso at the same time.
21
21
Page 24
22
ENGLISH
Adjusting the Co ee Length
The machine allows you to adjust the amount of brewed co ee according
to your taste and the size of your cups.
Each time the “
amount of co ee. Each button may be individually programmed for a
speci c brew setting.
” or
“ ”
button is pressed, the machine brews a pre-set
The following procedure describes how to program the “
Place a cup under the co ee dispensing spout.
1
Press and hold the “ ” button until it starts to ash quickly.
2
Then release the button. The machine is now in programming mode.
” button ashes throughout the programming cycle.
The “
The machine starts brewing co ee.
Press the “ ” button as soon as the desired amount of co ee is
3
reached.
Now the button “
will brew the same amount of espresso that was just programmed.
” is programmed; each time it is pressed, the machine
” button.
Note:
Follow the same procedure to program the
Press the
is reached.
“ ”
button to stop brewing when the desired amount of co ee
“ ”
button.
Page 25
ENGLISH
23
23
BREWING ESPRESSO AND COFFEE
Before brewing co ee, make sure that there are no warnings shown on the
control panel, and that the water tank and co ee bean hopper are lled.
", " ", “ ” and " " buttons are shining steadily.
The "
Place 1 or 2 cups under the co ee dispensing spout.
1
Press the “ ” button for an espresso or the
2
To brew 1 cup of espresso or co ee, press the desired button once. The
3
pressed button ashes slowly.
To brew 2 cups of espresso or co ee, press the desired button twice
4
consecutively. The pressed button ashes quickly twice.
Note:
In this operating mode, the machine automatically grinds and doses the
correct amount of co ee. Brewing two cups of espresso or co ee requires
two grinding and brewing cycles, automatically carried out by the machine.
After the prebrewing cycle, co ee begins to pour out of the co ee
5
dispensing spout.
Co ee brewing automatically stops when the preset level is reached;
6
press the same button pressed previously to stop it earlier.
“ ”
button for a co ee.
Page 26
24
ENGLISH
FROTHING MILK / BREWING CAPPUCCINO
Frothing milk
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water. The Classic Milk Frother may reach high temperatures. Never
touch it with bare hands. Use the appropriate protective handle only.
Fill 1/3 of a container with cold milk.
1
Note:
When preparing your cappuccino, use cold (~5°C / 41°F) milk with a protein
content of at least 3% to ensure optimum results. Whole milk or skimmed
milk may be used depending on individual taste.
Note:
When you plan to dispense steam right after turning on the machine or
after brewing a co ee, some water still present in the circuit may need to
be dispensed rst.
To do this, press the “
Thereafter press the “
step 2.
” button to dispense steam for a few seconds.
” button to stop dispensing. Then proceed with
Before dispensing steam, make sure that the machine is ready to use
2
and the water tank is lled. The "
shining steadily.
Immerse the Classic Milk Frother in the milk.
3
", " ", “ ” and " " buttons are
Page 27
ENGLISH
Press the “ ” button to start dispensing steam. The “ ”button
4
ashes.
The “ ” button ashes during the preheating time required by the
5
machine. Once the warm-up phase has been completed, steam dispensing begins and the “
Froth milk by gently swirling the container and moving it up and
6
down.
Press the “ ” button to stop dispensing steam.
7
Note:
It will take a few seconds before the machine stops dispensing steam
completely.
Note:
Steam dispensing stops after 3 minutes. If you need more, press the “
button again.
” button ashes.
25
25
”
Caution:
After frothing milk, a small quantity of hot water must be dispensed
into a container. Remove the external part of the Classic Milk Frother
and wash it with lukewarm water.
Note:
It is possible to brew an espresso or dispense hot water straight after
dispensing steam.
Brewing a Cappuccino
To prepare a cappuccino, place a cup of frothed milk under the co ee
dispensing spout and brew an espresso.
Page 28
26
ENGLISH
HOT WATER DISPENSING
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water. Use the appropriate protective handle only.
Before dispensing hot water, make sure that the machine is ready to use
and the water tank is lled. The "
ing steadily.
Place a container under the Classic Milk Frother.
1
Press the “ ” button to begin dispensing hot water; the “ ” button
2
ashes throughout the preparation and dispensing phase.
", " ", “ ” and " " buttons are shin-
The “ ” button ashes during the preheating time required by the
3
machine. Once the warm-up phase has been completed, hot water
dispensing begins and the “
Pour the desired amount of hot water. To stop dispensing hot water,
4
press the “
” button.
” button ashes.
Page 29
ENGLISH
27
27
CLEANING AND MAINTENANCE
Daily Cleaning of the Machine
Caution:
Timely cleaning and maintenance of your machine is very important
as it prolongs the life of your machine. Your machine is continuously
exposed to moisture, co ee and limescale!
The activities you need to perform and their frequency are described
in detail in this chapter. Not doing this will ultimately make your
machine stop working properly. This repair is NOT covered by your
warranty.
Note:
- Use a soft, dampened cloth to clean the machine.
- Only the cup holder grill can be washed in the dishwasher. Any other
components must be washed with lukewarm water.
- Do not immerse the machine in water.
- Do not use alcohol, solvents, and/or abrasive objects to clean the
machine.
- Do not dry the machine and/or its components using a microwave
and/or standard oven.
Empty and clean the co ee grounds drawer and the drip tray daily
1
1
with the machine turned on.
2
Other maintenance operations can only be carried out when the machine
is turned o and unplugged.
3
Remove the co ee grounds drawer and empty it.
2
Empty and clean the drip tray.
3
Page 30
28
ENGLISH
1
3
Insert the co ee grounds drawer back into the drip tray and place the
4
drip tray back into the machine.
2
Note:
Empty and wash the drip tray also when the full drip tray indicator is raised.
Daily Cleaning of the Water Tank
Remove the small white lter or the “INTENZA+” water lter (if in-
1
stalled) from the water tank and wash it with fresh water.
Put the small white lter or the “INTENZA+” water lter (if installed)
2
back in its housing by gently pressing and turning it at the same time.
Fill the water tank with fresh water.
3
Page 31
ENGLISH
Daily Cleaning of the Classic Milk Frother
For hygienic reasons and to ensure a perfect milk froth consistency, it is
important that you clean the Classic Milk Frother after each use.
After frothing milk, a small quantity of hot water must be dispensed into a
container.
Remove the external part of the Classic Milk Frother and wash it with
lukewarm water.
Weekly Cleaning of the Machine
Clean the seat of the drip tray.
1
29
29
Weekly Cleaning of the Classic Milk Frother
The weekly cleaning is more thorough, since you need to disassemble all
the Classic Milk Frother components.
The following cleaning operations are required:
Remove the external part of the Classic Milk Frother. Wash it with luke-
1
warm water.
Page 32
30
ENGLISH
Remove the upper part of the Classic Milk Frother from the steam/hot
2
water wand.
Wash the upper part of the Classic Milk Frother with fresh water.
3
Clean the steam/hot water wand of the Classic Milk Frother with a wet
4
cloth to remove milk residues.
Put the upper part back into the steam/hot water wand (make sure it is
5
completely inserted).
Reassemble the external part of the Classic Milk Frother.
6
Weekly Cleaning of the Brew Group
The brew group should be cleaned every time the co ee bean hopper is
lled or at least once a week.
Turn o the machine by pressing the “ ” button. Wait until the “ ”
1
button ashes and unplug the power cord.
Remove the drip tray and co ee grounds drawer.
1
2
2
3
Open the service door.
3
Page 33
ENGLISH
To remove the brew group, press the «PUSH» button and pull it by the
4
handle. Pull it out horizontally without turning it.
Clean the co ee outlet duct thoroughly with a spoon handle or with
5
another round-tipped kitchen utensil.
Remove the co ee residues drawer and wash it thoroughly.
6
31
31
Thoroughly wash the brew group with lukewarm water and carefully
7
clean the upper lter.
Caution:
Do not use detergent or soap to clean the brew group.
Let the brew group air-dry thoroughly.
8
Thoroughly clean the inside of the machine using a soft, dampened
9
cloth.
Page 34
32
ENGLISH
Make sure that the brew group is in the o position; the two reference
10
marks must match. If they do no match, proceed as described in step
(11).
Gently pull down the lever until it is in contact with the brew group
11
base and the two reference marks on the side of the brew group
match.
Press the “PUSH” button rmly.
12
Make sure that the hook which locks the brew group is in the correct
13
position. If it is still in the downward position push it upward until it
locks correctly into place.
Page 35
ENGLISH
Insert the co ee residues drawer in its seat and ensure that it is cor-
14
rectly in place.
Note:
If the co ee residues drawer is not correctly positioned, the brew group
may not t into the machine.
Insert the brew group back into its seat until it locks into place without
15
pressing the “PUSH” button.
Insert the co ee grounds drawer with the drip tray back into the ma-
16
chine and close the service door.
33
33
Page 36
34
ENGLISH
Monthly Lubrication of the Brew Group
Lubricate the brew group after approximately 500 cups of co ee or once a
month.
The grease to lubricate the brew group can be purchased separately. For
further details, please refer to the maintenance products page in this user
manual.
Caution:
Before lubricating the brew group, clean it with fresh water and let it
dry, as described in the “Weekly Cleaning of the Brew Group” chapter.
Apply the grease evenly on both side guides.
1
Also lubricate the shaft.
2
Page 37
ENGLISH
Insert the brew group into its seat until it locks into place (see the
3
“Weekly Cleaning of the Brew Group” chapter).
Insert the co ee grounds drawer into the drip tray, then insert both
4
back into the machine and close the service door.
Monthly Cleaning of the Co ee Bean Hopper
Clean the co ee bean hopper once a month when it is empty with a damp
cloth to remove co ee oil. Then re ll it with co ee beans.
35
35
Page 38
36
ENGLISH
DESCALING
When the "CALC CLEAN" button shines steadily, you need to descale the
machine.
The descaling cycle takes approx. 30 minutes.
Caution:
Not doing this will ultimately make your machine stop working
properly. In this case, repair is NOT covered by warranty.
Warning:
Use the Saeco descaling solution only. Its formula has been designed
to ensure better machine performance. The use of other products may
damage the machine and leave residues in the water.
The Saeco descaling solution can be purchased separately. For further
details, please refer to the maintenance products page in this user manual.
Warning:
Never drink the descaling solution or any products dispensed until the
cycle has been carried out to the end. Never use vinegar as a descaling
solution.
Note:
Do not remove the brew group during the descaling process.
To perform the descaling cycle, follow the steps below:
Before descaling:
Empty the drip tray and the co ee grounds drawer.
1
1
2
3
Page 39
ENGLISH
Remove the Classic Milk Frother from the steam/hot water wand.
2
Remove the water tank and the “INTENZA+” water lter from the water
3
tank (if it was installed), replacing it with the small white original one.
Pour all the descaling solution into the water tank.
4
Fill the water tank with fresh water up to the CALC CLEAN level and put
5
it back into the machine.
37
37
Place a large container (1.5 l) under both the steam/hot water wand
6
and the co ee dispensing spout.
Press and hold the " " button for at least 3 seconds to start the
7
descaling cycle.
The “
” button shines steadily. The " " button ashes throughout
the cycle.
Page 40
38
ENGLISH
The " " light shines steadily. The machine will start dispensing the
8
descaling solution at regular intervals for approximately 20 minutes.
Note:
The descaling cycle may be paused by pressing the
This allows you to empty the container or to leave the machine unattended
for a short time.
To resume the cycle, press the “ ” button again. During the pause the “ ”
button ashes. During the descaling cycle the “
“ ” button
” button is constantly on.
.
When the “ ”
9
Rinse the water tank and ll it with fresh water up to the MAX level. Put
10
it back into the machine.
Empty the drip tray and place it back.
1
11
light shines steadily, the water tank is empty.
2
3
Page 41
ENGLISH
Empty the container and place it back.
12
The “ ” light shines steadily. When the " " button ashes, press it to
13
start the rinse cycle.
Note:
The rinse cycle may be paused by pressing the
This allows you to empty the container or to leave the machine unattended
for a short time.
To resume the cycle, press the “ ” button again. During the pause the “ ”
button ashes. During the descaling cycle the “
At the end of the rinse cycle, the " " button turns o .
14
“ ”
button.
” button is constantly on.
39
39
The machine warms up and performs the automatic rinse cycle.
15
The "
The descaling cycle is now complete.
If the “ ” red light shines steadily and the “ ” light does not turn o ,
the water tank has not been lled to the MAX level for the rinse cycle.
Fill the water tank with fresh water and repeat the process from step 13.
" and
Caution:
" "
buttons ash simultaneously.
Page 42
40
ENGLISH
1
3
Empty the container used.
16
Empty the drip tray and place it back.
17
2
Remove the small white lter and place back the “INTENZA+” water
18
lter into the water tank if it was installed. Rinse the water tank and ll
it with fresh water up to the MAX level. Put it back into the machine.
Put back the Classic Milk Frother.
19
Page 43
ENGLISH
At the end of the descaling cycle, wash the brew group. For more
20
details, please see the “Weekly Cleaning of the Brew Group” chapter.
The machine is ready for use.
21
The "
", " ", “ ” and buttons are shining steadily.
41
41
Page 44
42
ENGLISH
INTERRUPTION OF THE DESCALING CYCLE
Once you have started the descaling cycle, you must complete it till the
very end without turning o the machine.
In case you get stuck during the descaling procedure, you can exit by
pressing the ON/OFF button. If this happens, follow the steps below.
Empty and carefully rinse the water tank, then ll it with fresh water up
1
to the MAX level.
Make sure that the power button is on "I".
2
Press the “ ” button to turn on the machine.
3
Wait until the " ", " ", “ ” and " " buttons are shining steadily.
4
Page 45
ENGLISH
Empty the drip tray and place it back.
1
5
43
43
2
3
Empty the container and place it back.
6
Press the “ ” button to dispense 500 ml of water. The “ ” button
7
ashes.
To stop dispensing water, press the “ ” button.
8
Empty the container.
Place the container under the co ee dispensing spout.
9
Page 46
44
ENGLISH
Press the “” button to brew a co ee.
10
Repeat steps 9 – 10; then continue with step 12.
11
9
10
Empty the container. The machine is ready for use.
12
Note:
If the “
descaling cycle as soon as possible.
” orange light does not turn o , you need to perform another
Page 47
Warning signals
Flashing
“ ” steady on " " and " " ashing
CONTROL PANEL WARNINGS
The machine is performing one of the following operations:
- Warm-up
- Automatic rinse.
The machine needs to prime the circuit. Press the " " button. Once pressed, the button turns o . The "
lights ash while the circuit is being primed, and they turn o
once priming has been completed.
The machine is ready for product brewing.
ENGLISH
" and " "
45
45
Steady on
Flashing slowly
Flashing slowly
Quick double ashing
The machine is brewing one cup of espresso.
The machine is brewing one cup of co ee.
The machine is brewing two cups of espresso.
Page 48
46
ENGLISH
Warning signals
The machine is brewing two cups of co ee.
Quick double ashing
The machine is programming the amount of espresso to be
brewed.
Flashing quickly
The machine is programming the amount of co ee to be
brewed.
Flashing quickly
The machine is in the steam dispensing phase.
Flashing slowly
Flashing slowly
Steady on
The machine is in the hot water dispensing phase.
Fill the water tank.
Page 49
Warning signals
Steady on
Flashing quickly
Flashing slowly
ENGLISH
Completely insert the drip tray with the co ee grounds
drawer into the machine and close the service door.
The brew group is being reset due to machine reset.
Insert the brew group.
Empty the co ee grounds drawer.
47
47
Steady on
Flashing
Steady on
The co ee grounds drawer is not inserted into the machine. Wait a few seconds until the
and the "
grounds drawer and close the service door.
Fill the co ee bean hopper with co ee beans and restart
the brewing cycle. The light turns o when the brew button of the selected product is pressed.
It is possible to dispense steam and hot water when this
warning message appears.
" light shines steadily. Then insert the co ee
" "
light turns o
Page 50
48
ENGLISH
Warning signals
All lights ashing simultaneously
You need to descale the machine. Follow the steps described in the “Descaling” chapter of this manual.
Please note that not descaling your machine will ultimately
make it stop working properly. In this case repair is NOT
covered under your warranty.
Steady on
Your machine is out of order.
Turn o the machine. Turn it back on after 30 seconds.
Repeat the procedure 2 or 3 times.
If the machine does not start, contact the Philips hotline in
your country (contact details in the warranty booklet).
Page 51
ENGLISH
TROUBLESHOOTING
This chapter summarizes the most common problems you could encounter with your machine.
If you are unable to solve the problem with the information below, visit
www.philips.com/support for a list of frequently asked questions or
contact the Philips hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.philips.com/support.
Machine actions Causes Solutions
The machine does not turn
on.
The drip tray gets lled although no water is drained.
“ ”
The
light is always dis-
played on the machine.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
Co ee does not have enough
(see note).
crema
The brew group cannot be
inserted.
The brew group cannot be
removed.
The machine is not connected to
the electric network, or the power
button is in the “O” position.
Water is sometimes drained automatically by the machine into the
Connect the machine to the electric
network and turn the power button
to the “I” position.
This is a normal behaviour of the
machine.
drip tray to manage the rinsing of
the circuits and ensure optimum
machine performance.
The co ee grounds drawer has
been emptied with the machine
o .
The blend is unsuitable, co ee is
not freshly roasted or the grind is
too coarse.
The co ee grounds drawer must
always be emptied with the machine
on.
Change co ee blend or adjust
the grind setting as explained in
the “Adjusting the Ceramic Co ee
Grinder” chapter.
The brew group is not in the o
position.
The gearmotor is not in the correct
position.
Make sure that the brew group in
the o position, as described in the
“Weekly Cleaning of the Brew Group”
chapter.
Insert the drip tray and the co ee
grounds drawer. Close the service door.
Turn on the machine without inserting
the brew group. The gearmotor moves
back to the correct position. Turn o
the machine and reinsert the brew
group as described in the “Weekly
Cleaning of the Brew Group” chapter.
The brew group is out of place. Turn on the machine. Close the ser-
vice door. The brew group automatically returns to the initial position.
The co ee grounds drawer is
inserted.
Remove the co ee grounds drawer
before removing the brew group.
49
49
Page 52
50
ENGLISH
Machine actions Causes Solutions
The machine grinds the
co ee beans but no co ee is
brewed (see note).
The co ee is too weak (see
note).
Co ee is brewed slowly (see
note).
Co ee leaks out of the co ee
dispensing spout.
No hot water or steam is
dispensed.
The descaling cycle cannot
be nished.
The brew group is dirty. Clean the brew group (see the
"Weekly Cleaning of the Brew
Group" chapter).
The circuit is not primed. Prime the circuit (see the “Using the
Machine for the First Time” chapter).
This might occur when the machine is automatically adjusting
the dose.
The co ee dispensing spout is
dirty.
This might occur when the machine is automatically adjusting
the dose.
The ceramic co ee grinder is set
to a coarse grind.
The co ee grind is too ne. Change co ee blend or adjust the
The circuit is not primed. Prime the circuit (see the “Using the
The brew group is dirty. Clean the brew group (see the
The co ee dispensing spout is
clogged.
The hole of the steam/hot water
wand is clogged.
You have used not enough water
for rinsing.
Brew a few cups of co ee as
described in the “Saeco Adapting
System” chapter.
Clean the co ee dispensing spout.
Brew a few cups of co ee as
described in the “Saeco Adapting
System” chapter.
Adjust the ceramic co ee grinder
to a ner setting (see the “Adjusting the Ceramic Co ee Grinder”
chapter).
grind as explained in the “Adjusting
the Ceramic Co ee Grinder” chapter.
Machine for the First Time” chapter).
"Weekly Cleaning of the Brew
Group" chapter).
Clean the co ee dispensing spout
and its holes.
Clean the hole of the steam wand
using a pin.
Make sure that the machine is
o and has cooled down before
performing this operation.
Press the ON/OFF button and follow
the instructions described in the
“Interruption of the Descaling Cycle”
chapter.
Note:
These problems can be considered normal if the co ee blend has been
changed or if the machine has just been installed. In this case, wait until
the machine performs a self-adjusting operation as described in the "Saeco
Adapting System" chapter.
Page 53
ENGLISH
ENERGY SAVING
Stand-by
The Philips fully automatic espresso co ee machine is designed for energy
saving, as proven by the Class A energy label.
After 30 minutes of inactivity, the machine turns o automatically. If a
product has been brewed, the machine performs a rinse cycle.
51
51
In stand-by mode, the energy consumption is below 1Wh.
To turn on the machine, press the
back of the machine is set to “I”). If the boiler is cold, the machine performs
a rinse cycle.
“ ” button (if the power button on the
Page 54
52
ENGLISH
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical
speci cations of the product.
Nominal Voltage - Power
Rating - Power Supply
Housing material Thermoplastic material
Size (w x h x d) 215 x 330 x 429 mm / 8.5” x 13” x 16.9”
Weight 7 kg / 16 pounds
Power cord length 800 - 1200 mm / 32-47”
Control panel Front panel
Cup sizes Up to 152 mm / 6”
Water tank 1.8 litres / 60.8 oz - Removable type
Co ee bean hopper capacity 250 g / 1 cup
Co ee grounds drawer
capacity
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices Thermal fuse
See data plate on the inside of the service
door
15
WARRANTY AND SERVICE
Warranty
For detailed information on your warranty and related conditions, please
read the warranty booklet supplied separately.
Service
We want to ensure that you remain satis ed with your machine.
If you have not already done so, please register your purchase at
www.philips.com/welcome. This will enable us to stay in contact with you
and send you cleaning and descaling reminders.
If you need service or support, please visit the Philips website at
www.philips.com/support or contact the Philips hotline in your country.
The contact details can be found in the warranty booklet supplied separately or at www.philips.com/support.
Page 55
ENGLISH
ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only.
can purchase these products at the Philips online shop (if available in your
country) at www.shop.philips.com/service, from your local dealer or at
authorised service centres.
If you have any di culties obtaining maintenance products for your machine, please contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.philips.com/support.
Overview of maintenance products
- Descaling solution CA6700
You
53
53
- INTENZA+ Water lter cartridge CA6702
- Grease HD5061
Page 56
54
ENGLISH
- Maintenance Kit CA 6706
- Cleaning brush HD5084
Page 57
Page 58
Page 59
Page 60
02
Rev.01 del 15-02-15
The manufacturer reserves the right to make changes without prior notice.
www.philips.com/welcome
EN
02
Loading...
