Type HD8743 / HD8745 / HD8747
SUP 033R
OPERATING INSTRUCTIONS
02
READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.
Page 3
• 2 •
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot
surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated
oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance other than for intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 4
• 3 •
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1 Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2 Never use warm or hot water to fill the water tank. Use cold water only.
3 Keep your hands and the cord away from hot parts of the appliance during
operation.
4 Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5 For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6 Do not use caramelized or flavored coffee beans.
English
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or extension
cord should be at least as great as the electrical rating of the appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the counter top
or table top where it can be pulled on by children or tripped over.
Page 5
• 4 •
GENERAL INFORMATION
The co ee machine is suitable for preparing espresso co ees using whole co ee beans and is
equipped with a device to dispense steam and hot water.
The machine is designed for domestic use and is not suitable for heavy or professional use.
Keep these operating instructions in a safe place and make them available to anyone
who may use the co ee machine.
For further information or in case of problems that are not included or not completely explained in these instructions, please contact the Saeco customer service or an authorized service
center.
Warning. No liability is assumed for damage caused by:
• Incorrect use not in accordance with the intended uses;
• Repairs not carried out by authorized service centers;
• Tampering with the power cord;
• Tampering with any part of the machine;
• Storage or use of the machine at a temperature outside the operating temperature
range (+15°C / +45°C);
• Use of non-original spare parts and accessories.
In these cases, the warranty shall be deemed null and void.
SAFETY REGULATIONS
Never allow water to come into contact with any of the electrical parts of the
machine: Danger of short circuit! Steam and hot water may cause scalding! Do
not direct the steam or hot water jet towards body parts. Carefully handle the steam/
hot water spout by means of the special handle: Danger of scalding!
Intended Use
The co ee machine is intended for domestic use only. Do not make any technical changes or use
the machine for unauthorized purposes since this would create serious hazards! The appliance is
not to be used by persons (including children) with reduced physical, mental or sensory abilities
or with limited experience and/or expertise, unless they are supervised by a person responsible
for their safety, or they are instructed by this person on how to properly use the machine.
Power Supply - Power Cord
Only connect the co ee machine to a suitable socket.
The socket to which the machine is connected must be:
- Compatible with the type of plug installed on the machine;
- Sized to comply with the data on the tag attached to the appliance;
- Connected to an e cient earthing system.
Never use the co ee machine if the power cord is defective or damaged.
If damaged, the power cord must be replaced by the manufacturer or an authorized service
center. Do not pass the power cord around corners, over sharp edges or over hot objects and
keep it away from oil. Do not use the power cord to carry or pull the co ee machine.
Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord
hang freely from tables or shelves.
Page 6
• 5 •
For the Safety of Others
Keep children under control to prevent them from playing with the product. Children are not
aware of the risks related to electric household appliances. Do not leave the machine packaging
materials within the reach of children.
Danger of Burns
Never direct the jet of hot steam and/or hot water towards yourself or others: Danger of scalding! Always use the handles or knobs provided.
Machine Location - Suitable Location for Operation and Maintenance
For best use, it is recommended to:
• Choose a safe, level surface, where there will be no danger of overturning it or being inju-
red.
• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.
• Allow for a minimum distance from the sides of the machine as shown in the illustration;
• During machine turning on/o , it is recommended to place an empty glass under the di-
spensing spout.
Do not keep the machine at a temperature below 0°C (32°F). Frost may damage the machine.
Do not use the co ee machine outdoors. In order to prevent its housing from melting or being
damaged, do not place the machine on very hot surfaces or close to open ames.
Storing the Machine - Cleaning
Before cleaning the machine, turn it o by pressing the ON/OFF button, then remove the plug
from the socket.
Wait for the machine to cool down.
Never immerse the machine in water!
It is strictly forbidden to tamper with the internal parts of the machine.
Water left in the tank for several days should not be consumed. Wash the tank and ll it with
fresh drinking water.
If the machine is to remain inactive for a long time, dispense water from the steam wand, and
carefully clean the Pannarello (if supplied), then turn it o and unplug it. Store it in a dry place,
out of the reach of children. Keep it protected from dust and dirt.
English
Repairs / Maintenance
In case of failure, problems or a suspected fault resulting from the falling of the machine, immediately remove the plug from the socket. Never attempt to operate a faulty machine.
Servicing and repairs may only be carried out by authorized service centers. All liability for
damages resulting from work not carried out by professionals is declined.
Fire Safety Precautions
In case of re, use carbon dioxide (CO2) extinguishers. Do not use water or dry powder extinguishers.
Page 7

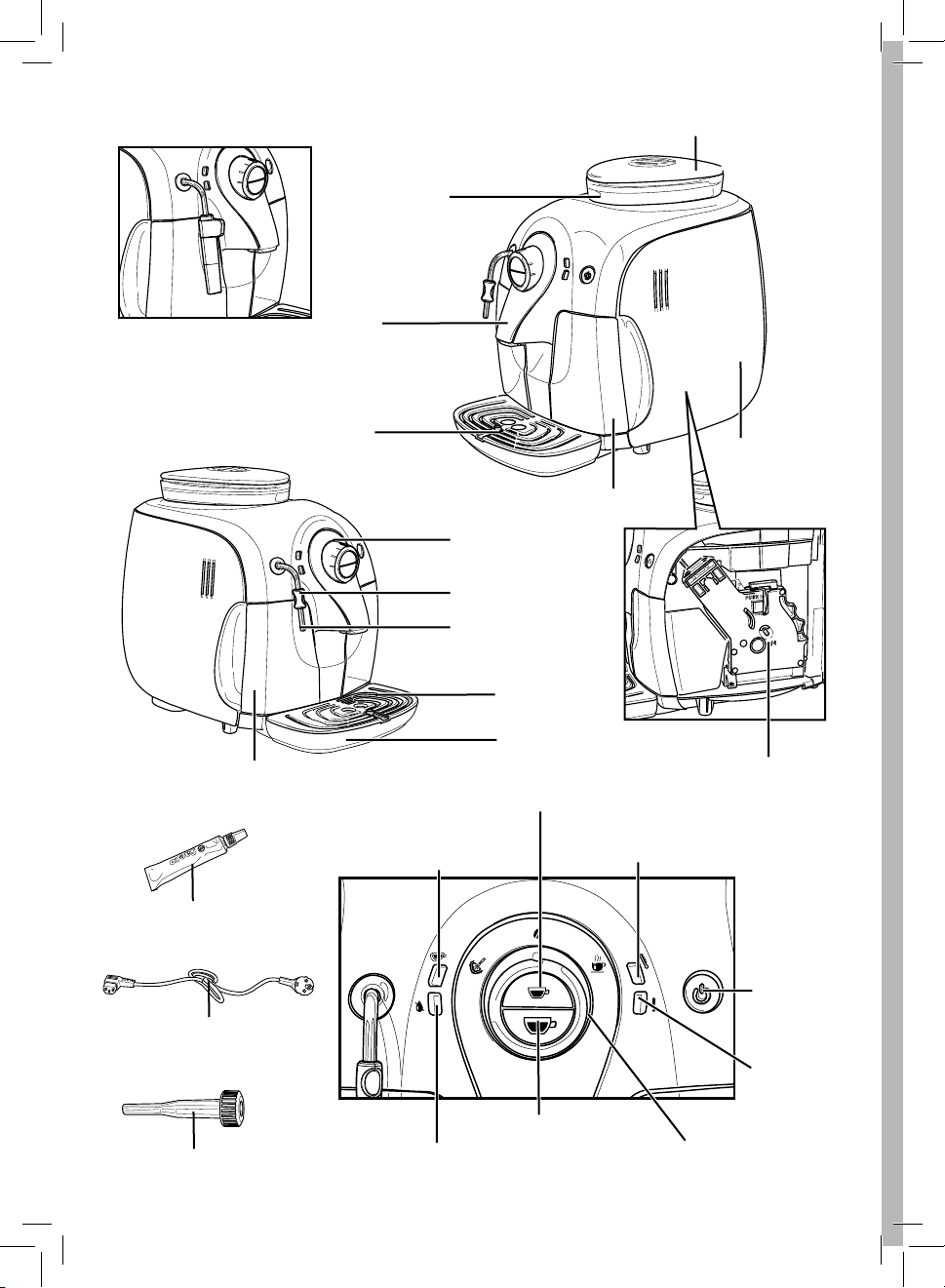

Pannarello (optional - only available
for certain models)
• 6 •
Co ee bean hopper lid
Co ee bean hopper
Dispensing spout
Full drip tray indicator
Service door
Dregdrawer
Control panel
Protective handle
Hot water/steam wand
Water tank
Brew group lubricant
Power cord
Grinder adjustment key
Grill
Drip tray
Small co ee button
Double co ee light and brewed
co ee length setting
Large co ee button
Water tank level
light
Brew group
Temperature light
ON/OFF button
Warning light
Control dial
Page 8
INSTALLATION
For your safety and the safety of
others, carefully follow the instructions provided in the “Safety Regulations” section.
• 7 •

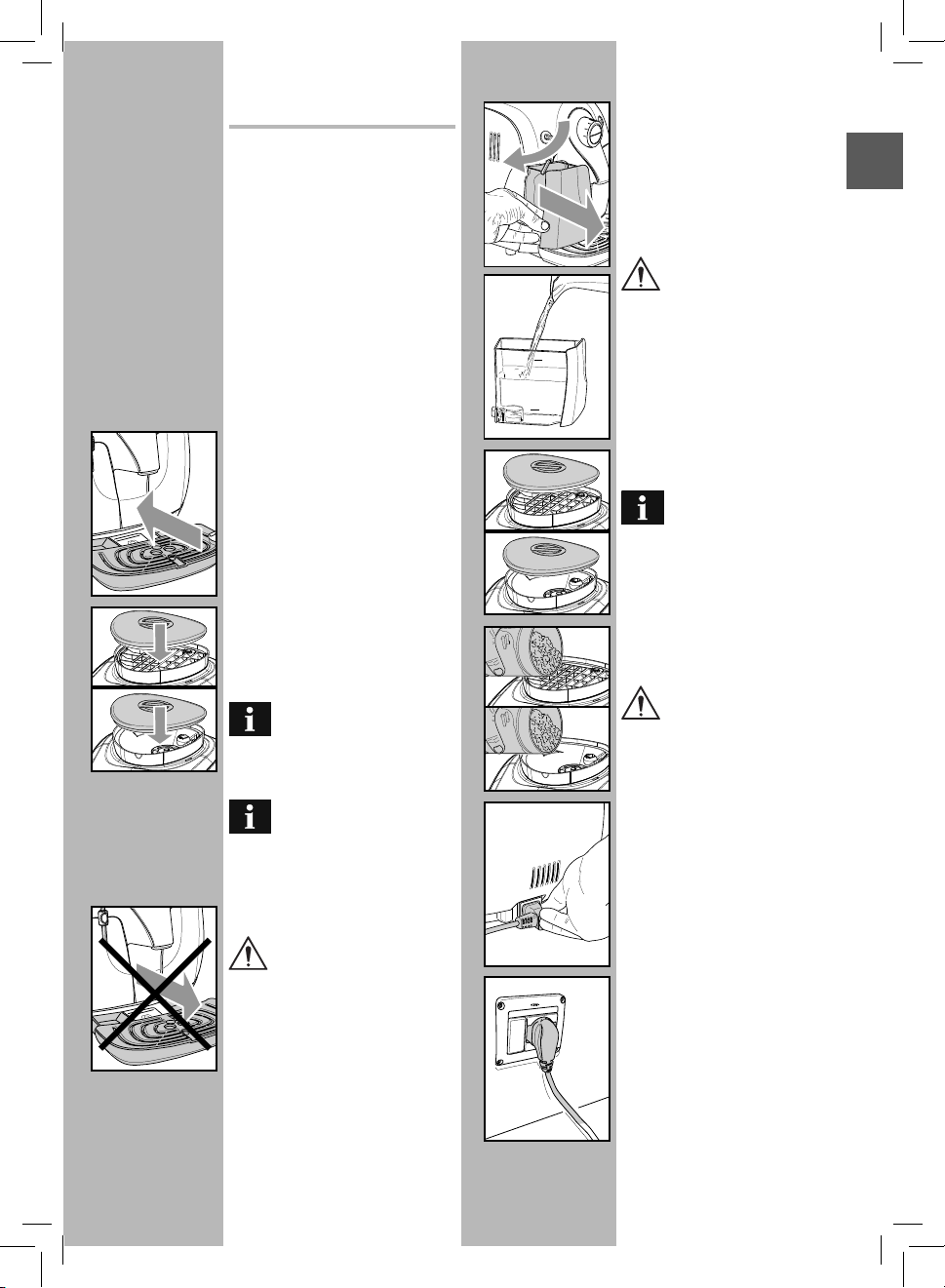

• Remove the water tank.
• Rinse and ll it with fresh water making sure that it is not lled exceeding
the MAX level indicated in the water
tank. Put the water tank back in its
seat to its limit stop.
English
Machine Packaging
The original packaging has been designed
and constructed to protect the machine
during transport. We recommend keeping
the packaging material for possible future
transport.
Preliminary Operations
• Remove the co ee bean hopper lid and
the drip tray with grill from the packaging.
• Remove the co ee machine from the
packaging and position it in a place that
meets the requirements described in the
“Safety Regulations”.
• Place the drip tray with grill into its
appropriate seat on the machine. Make
sure it is fully inserted to its limit stop.
• Replace the co ee bean hopper lid.
Note: Insert the plug into the
socket only when indicated
and check that the ON/OFF button is
not pressed.
Important Note: Carefully read
the explanations of all the
warnings displayed by the machine
to the user by means of the lights on
the control panel (see section “Control
Panel Lights”).
MIN
MAX
Use only fresh, non-sparkling
water to fill the tank. Hot
water or any other liquid may damage
the tank and/or the machine. Do not
turn on the machine when the tank
is empty: Make sure there is enough
water in the tank.
• Remove the co ee bean hopper lid.
Note: The hopper may be
fitted with different safety
features according to the regulations of the country of use of the
machine.
• Slowly pour the co ee beans into the
hopper.
Only co ee beans must be put
into the co ee bean hopper.
Ground coffee, instant coffee or
any other object may damage the
machine.
• Replace the lid on the co ee bean hop-
per.
• Insert the plug into the socket located
on the back of the machine.
NEVER remove the drip tray
when the machine is turned on.
Wait a couple of minutes after turning
on/o , since the machine will carry out
a rinse/self-cleaning cycle (see section
“Rinse/Self-Cleaning Cycle”).
• Insert the plug of the other end of the
power cord into a wall socket with
suitable power voltage.

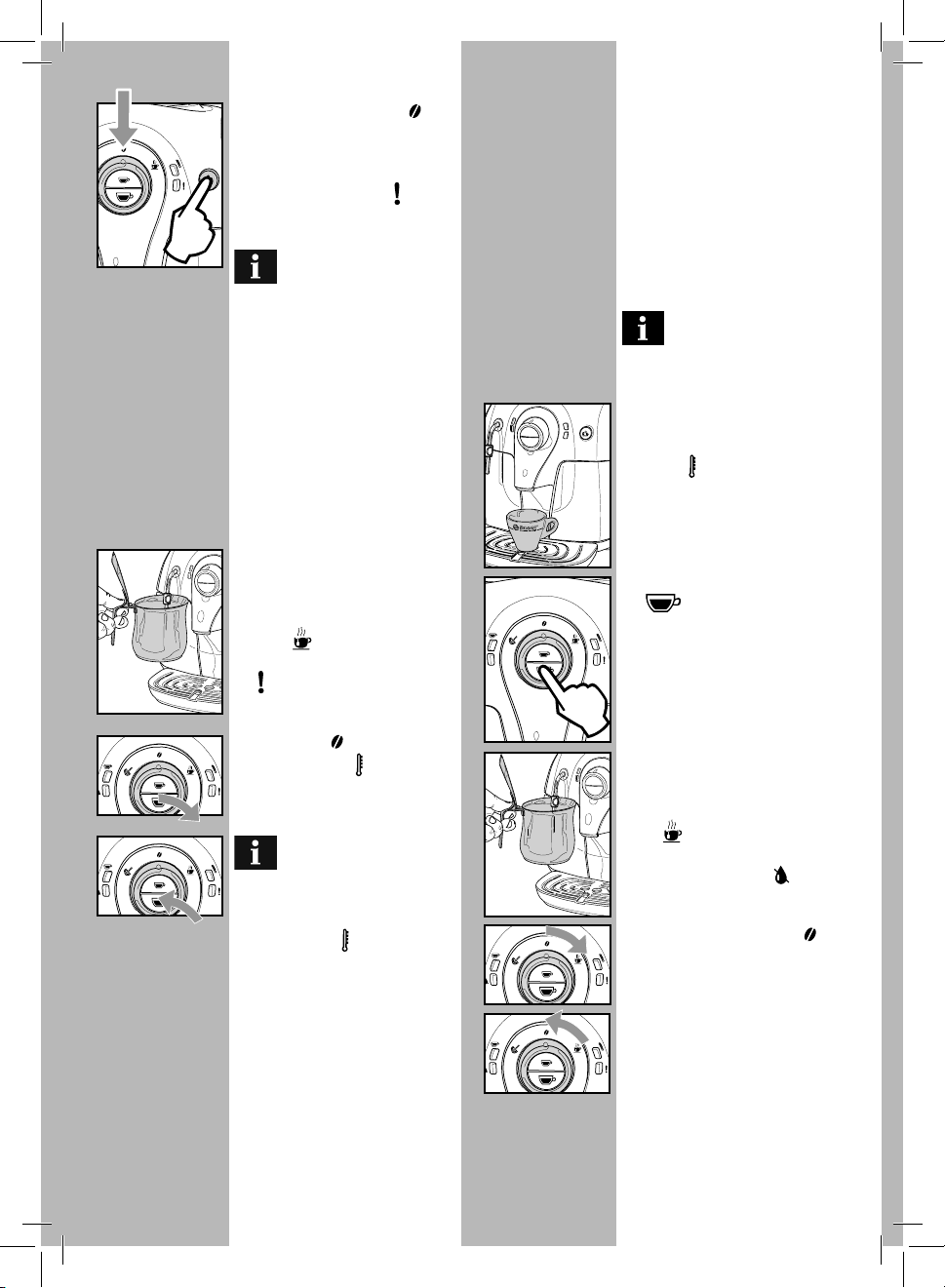

Page 9
• Make sure control dial is on “ ” position; if this is not the case, set it to that
position.
• Simply press the ON/OFF button to
turn the machine on; the “ “ light will
begin to blink rapidly indicating that
the water circuit must be primed.
Note: Before starting the
machine for the first time,
prime the water circuit.
Priming the Water Circuit
• To prime the water circuit, place a
container under the hot water / steam
wand.
• Turn the control dial clockwise to set it
to the “
When water steadily comes out and the
“
that the knob can be turned o - rotate
the control dial counter-clockwise to set
it back to the “
• At this point the “ “ light begins to
blink slowly, indicating that the machine is in warm-up mode.
cycle of the internal circuits.
• When the above steps are complete,
check that the “
The machine is now ready for use.
• To brew co ee, dispense hot water or
steam, and for a proper use of the machine, carefully follow the instructions
provided.
” position and wait.
“ light will blink slowly - indicating
” position.
When warm-up is complete,
the machine performs a rinse
“ light is on steady.
• 8 •
Using the machine for the
first time or after a long
period of inactivity.

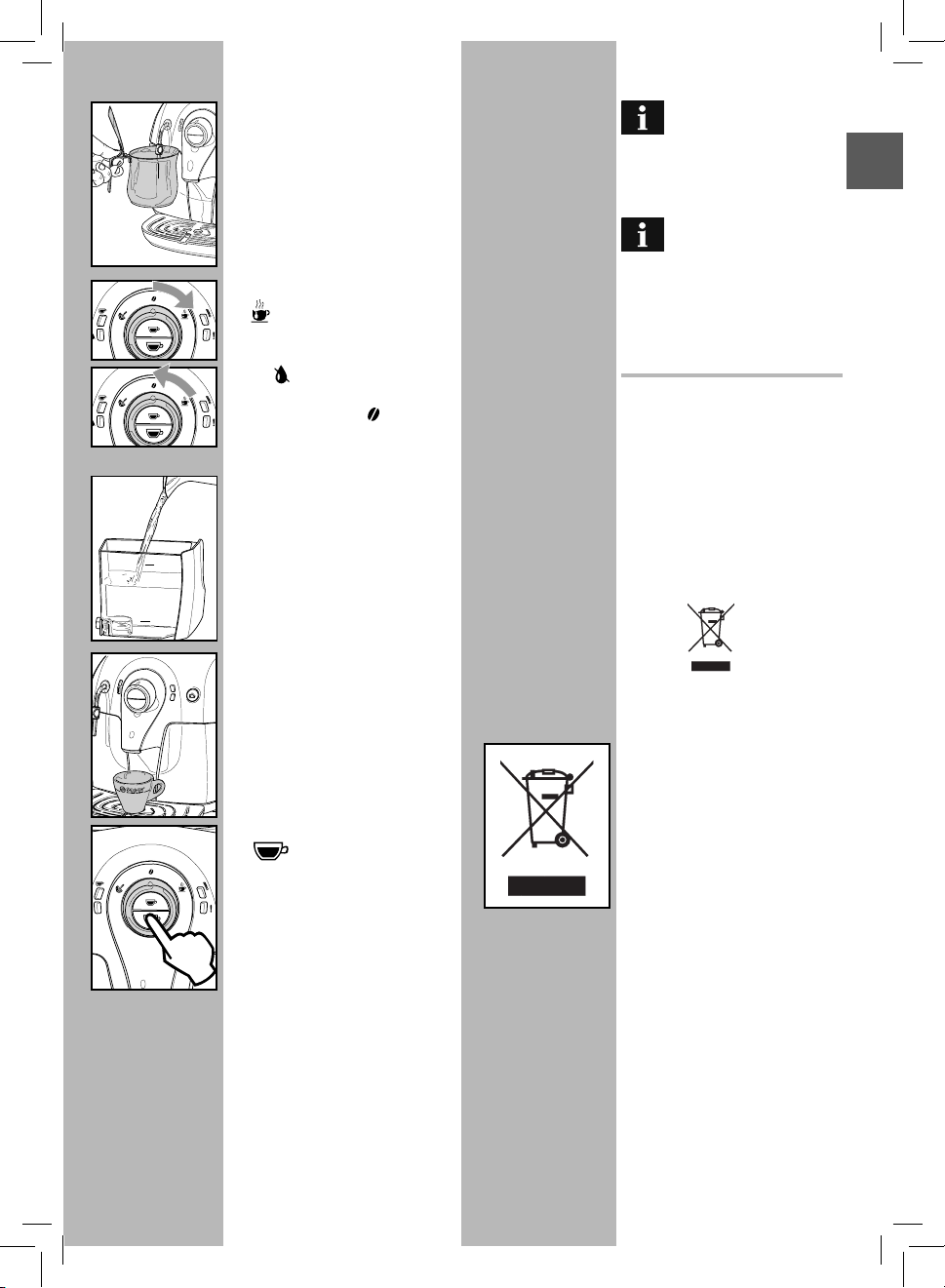

These simple operations will make it possible to always brew excellent co ee.
They have to be performed:
A) At rst start-up.
B) When the machine remains inactive
for a long time (more than 2 weeks).
Dispensed water must be emptied into an adequate drain.
It is not suitable for food use.
1 Place a container under the dispensing
spout.
2 Before starting the procedure, check
that the “
3 Brew one co ee. Press and release the
“
brewing co ee.
4 Wait until brewing is complete and
remove the container.
5 Place a container under the steam wand
(Pannarello, if supplied).
6 Turn the selector switch clockwise to
the “
7 Dispense water until the no water
signal is displayed. The “
mains steady on.
Now turn the selector switch counter-
clockwise to set it back to the “
sition.
8 At the end, fill the water tank again.
Then the products can be brewed as
described in the following sections
“ light is steady on.
“ button. The machine starts
” position.
” light re-
” po -
Page 10
Steady on
+
Blinking
Rinse/Self-Cleaning Cycle
This cycle will rinse the internal circuits
with fresh water.
The cycle is carried out:
• At machine start (with cold boiler)
• After priming the water circuit (with
cold boiler)
• During the standby preparation phase
(if a co ee product has been brewed)
• During the turning off phase after
pressing the ON/OFF button (if a co ee
product has been brewed).
Note: Before dispensing,
place a container beneath the
dispensing spout.
A small amount of water will be dispensed
which will rinse and heat all the machine
components; in this phase the indicator
lights ash counter-clockwise.
Wait for the cycle to nish automatically.
You can stop dispensing as well, by pressing either co ee button.
• 9 •
ADJUSTMENTS
The machine that you have bought allows
for certain adjustments that will permit
you to use it to its full potential.
Saeco Adapting System
Coffee is a natural product and its characteristics may change according to its
origin, blend and roast. The Saeco co ee
machine is equipped with a self-adjusting
system that allows the use of all types of
co ee beans available on the market (non
caramelized).
• The machine automatically adjusts
itself in order to optimize the extraction of the coffee, ensuring perfect
compression of the beans to obtain a
creamy espresso co ee that will release
all the aromas, regardless of the type of
co ee used.
• The optimization process is a learning
process that requires the brewing of a
certain number of co ees to allow the
machine to adjust the compactness of
the ground co ee.
English
• Attention should be given to special blends, which require grinder
adjustments in order to optimize the
extraction of the co ee (see section
“Co ee Grinder Adjustment”).

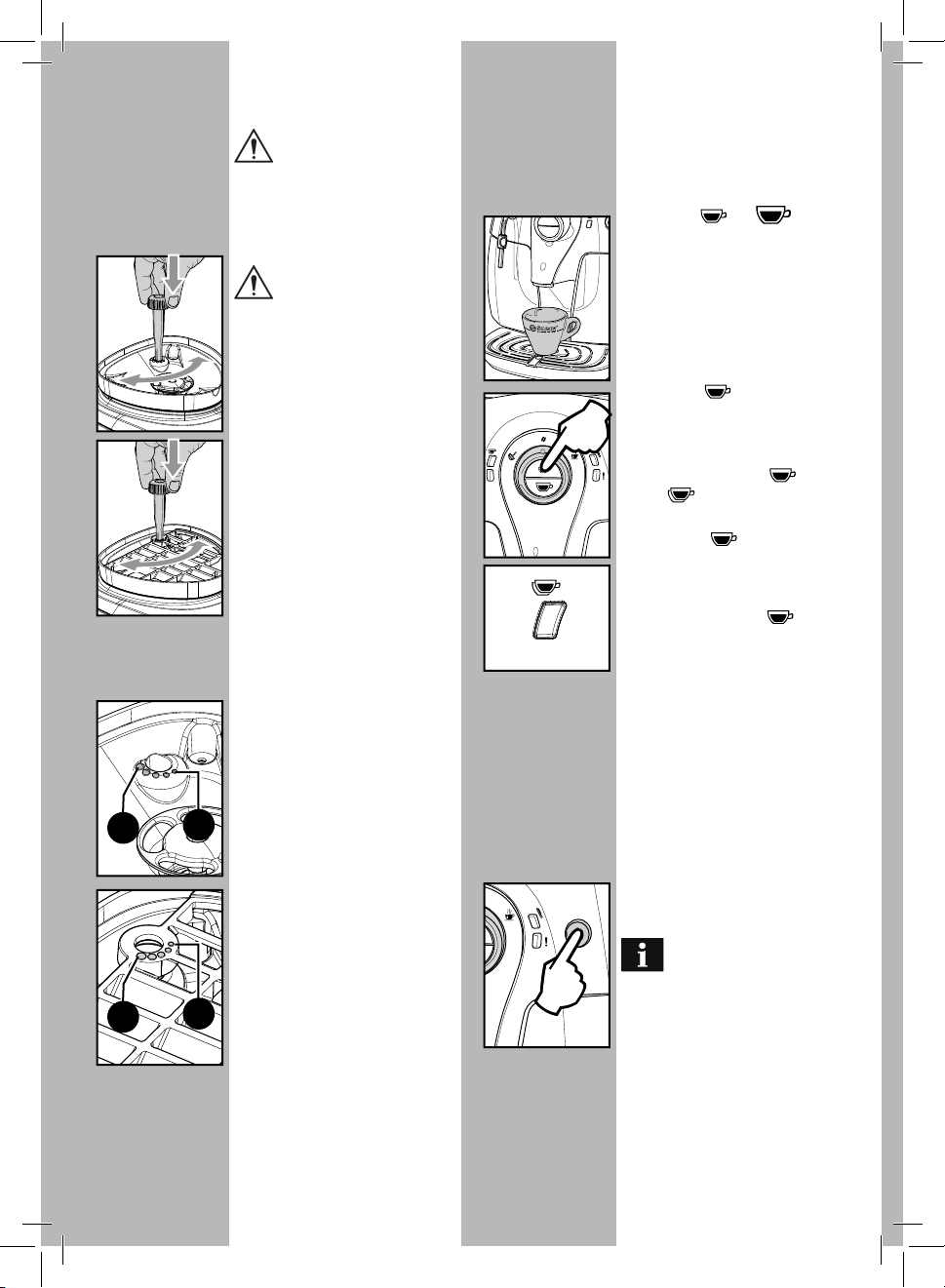

Page 11
Coff ee Grinder Adjustment
Warning! The grinder
adjustment knob, inside the
co ee bean hopper, must be turned
only when the grinder is working. Do
not pour ground and/or instant co ee
into the co ee bean hopper.
Do not insert any material
other than co ee beans into
the hopper. The grinder contains
moving parts that may be dangerous.
Therefore, do not insert ngers and/
or other objects. Only adjust the
grinder using the grinder adjustment
key. Turn o the machine by pressing
the ON/OFF button and remove the
plug from the socket before carrying
out any type of operation inside the
coffee bean hopper. Do not pour
co ee beans when the co ee grinder
is working.
The machine lets you make slight
adjustments to the coffee grinder to
adapt it to the kind of co ee used.
This adjustment should be carried out
by adjusting the pin on the inside of the
coffee bean hopper; this pin must be
pressed and turned only with the grinder
adjustment key provided with the co ee
machine.
• 10 •
Blinking
Adjusting the Brewed Coff ee
The machine allows you to adjust the
amount of brewed coffee according to
your taste and/or the size of your cups.
Each time the “
are pressed and released, the machine
brews a pre-set amount of coffee. This
amount may be reprogrammed to your
taste. Each button may be individually
programmed for a speci c brew setting.
As an example, the following procedure
describes the programming of the small
coffee button “
associated with espresso co ee.
• Place a cup under the dispensing
spout.
• Press and hold down the “
the “
phase.
• Release the “
amount of coffee in the cup reaches
the desired level.
At this point the button “
grammed; each time it is pressed and
released, the machine will brew the same
amount of co ee that was just programmed.
“ or “ “ buttons
“, which is normally
“ button;
“ light blinks during this
“ button when the
“ is pro-
Press and turn the pin one notch at a
time. You must brew 2-3 coffees before
you will taste a di erence.
1
1
2
The reference marks inside the coffee
bean hopper indicate the grind setting.
There are 5 di erent grind settings to choose from with the following references:
1 - Coarse Grind
2 - Fine Grind
2
Standby
The machine is designed for energy saving.
After 60 minutes of inactivity, the machines turns o automatically.
Note: During the turning o
phase, the machine performs
a rinse cycle, if a co ee product has
been brewed.
To turn the machine on again, simply
press the ON/OFF button; in this case the
machine will go through the rinse cycle
only if the boiler is cold.
Page 12
Steady on
Steady on

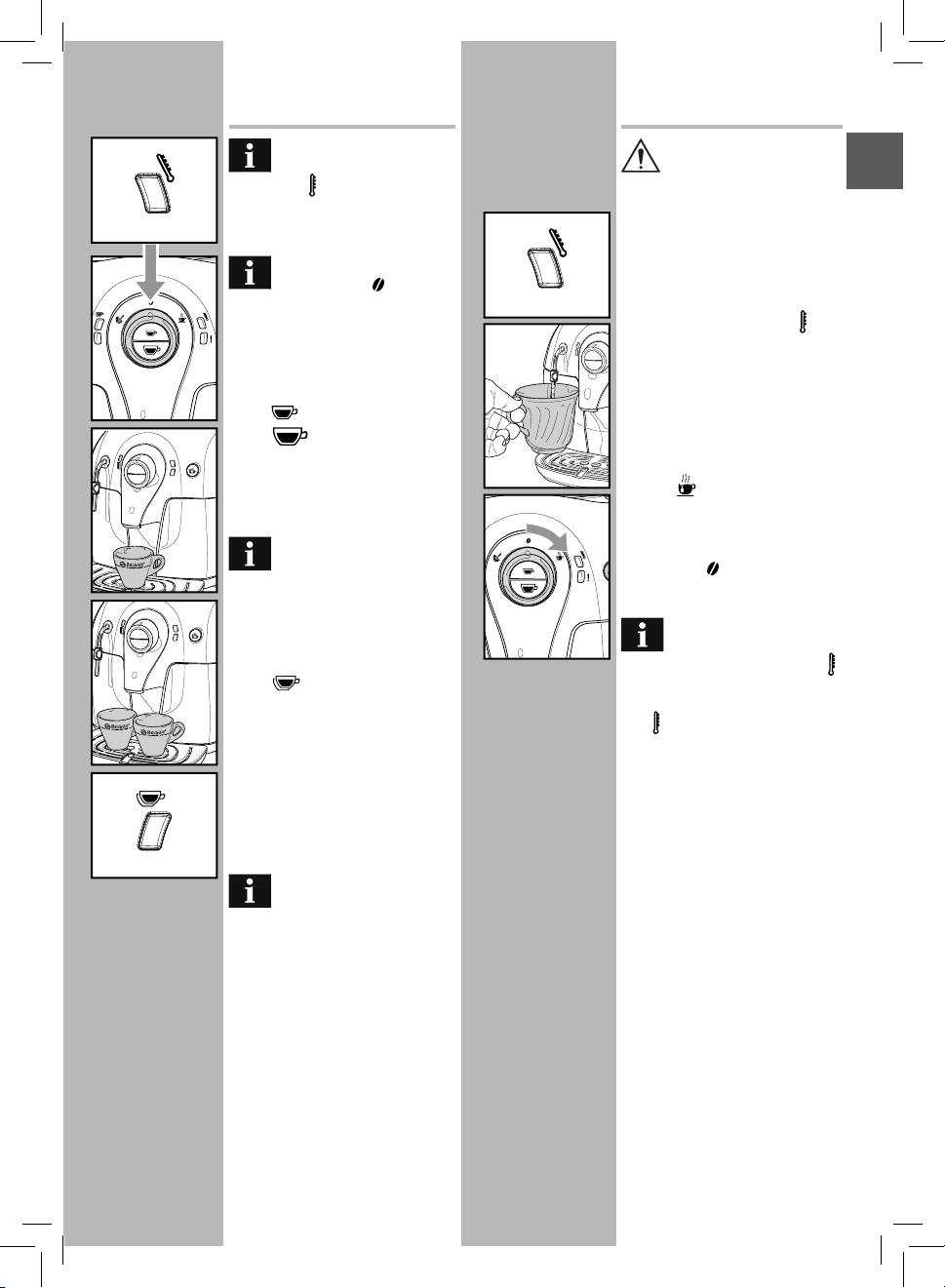

COFFEE BREWING
Before brewing co ee, make
sure that the green temperature light “
the water tank and the co ee hopper
are full.
dispensing phase.
• Place 1 or 2 cups under the dispensing
spout.
• To brew co ee, press and release:
the “
the “
• To dispense 1 cup of co ee, press the
button once. To dispense 2 cups of co ee,
press the button twice.
ds and doses the correct amount of
co ee. Brewing two co ees requires
two grinding cycles and two brewing
cycles, automatically carried out by
the machine; this option is indicated
by the “
• After the prebrewing cycle, co ee begins
to dispense out of the dispensing spout.
• Coffee brewing stops automatically
when the pre-programmed level is reached; however, it is possible to interrupt
co ee brewing by pressing the button
initially pressed.
coffee. This feature may slightly
lengthen the brewing time, allowing
the intense flavor of the coffee to
develop fully.
“ is steady on and that
Leave the control dial on the
co ee position “
“ button for an espresso co ee;
“ button for a long co ee.
In this operating mode, the
machine automatically grin-
“ light being constantly on.
The machine is adjusted to
brew a true Italian espresso
” during the
• 11 •
Steady on
DISPENSING HOT WATER
Warning: Dispensing may be
preceded by short sprays of
hot water, and scalding is possible.
The hot water/steam wand may reach
high temperatures. Do not touch it
with bare hands; use the appropriate
handle only.
• Before dispensing hot water, check
that the green temperature “
is steady on.
When the machine is ready, proceed as
follows:
• Place a container under the hot water /
steam wand (Pannarello, if supplied);
• Turn the control dial clockwise to set it
to the “
• Fill the cup with hot water to the desi-
red level; to stop hot water dispensing,
turn control dial counter-clockwise
back to the “
returns to the normal operating mode.
may not be dispensed and the “
light may blink slowly. To obtain a
ow of hot water, simply wait until
the “
mains steady.
” position.
” position. The machine
Occasionally, after turning
the control dial, hot water
“ light stops blinking and re-
“ light
English
“
Page 13
Blinking
Steady on

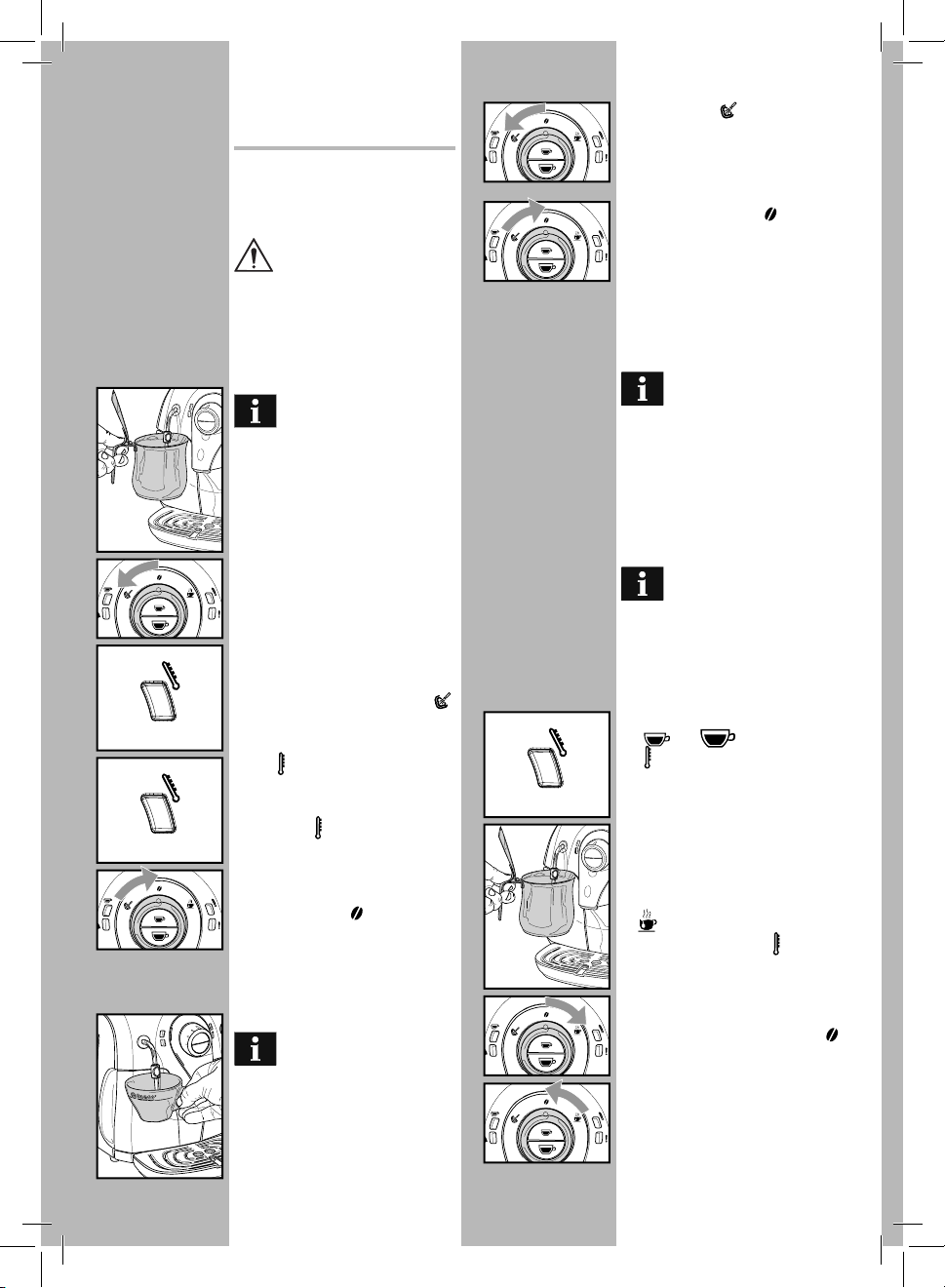

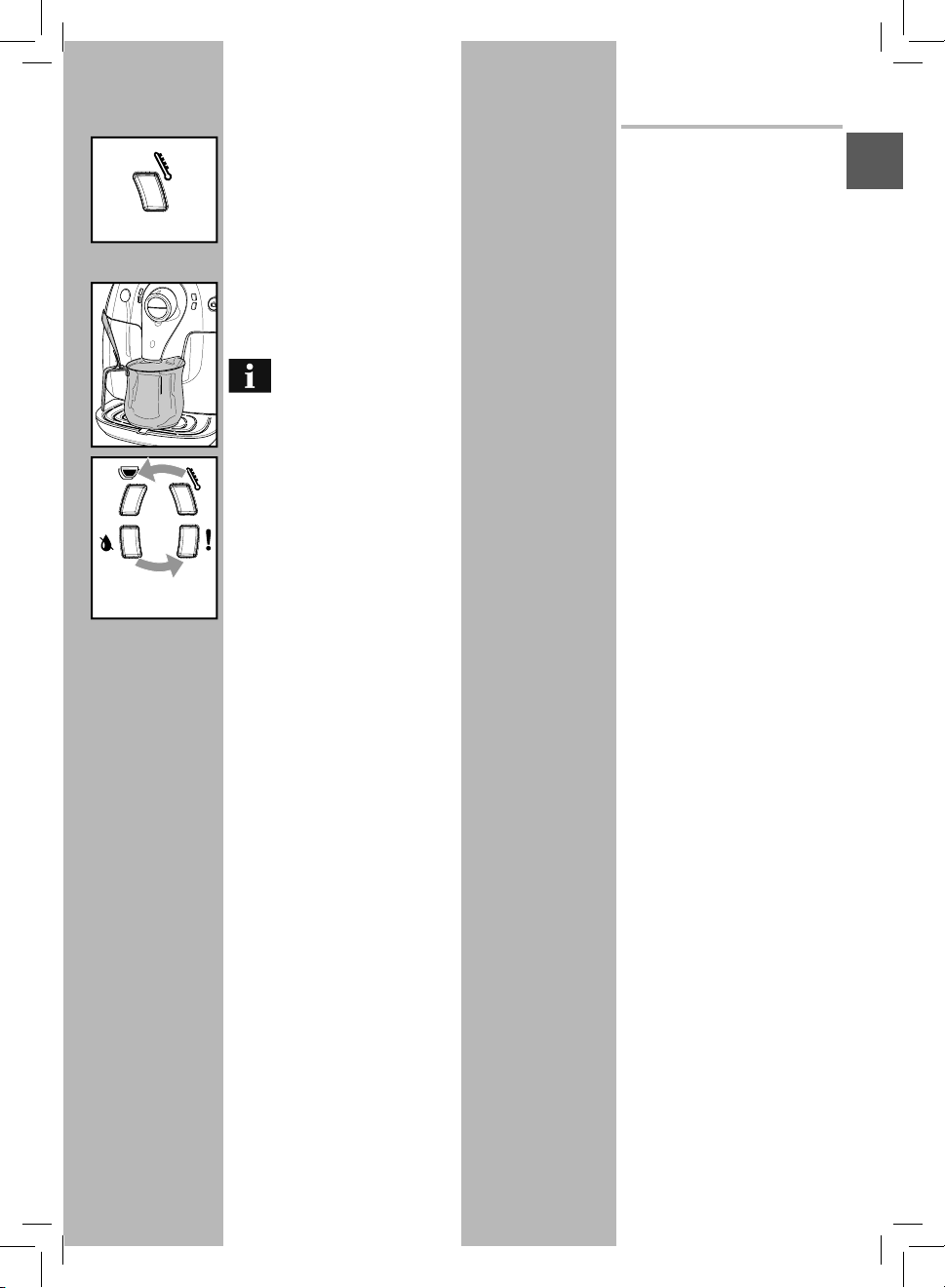

STEAM DISPENSING /
CAPPUCCINO BREWING
Steam may be used to froth milk for a
cappuccino, as well as to reheat other
beverages.
Warning: Dispensing may be
preceded by short sprays of
hot water, and scalding is possible.
The hot water/steam wand may reach
high temperatures. Do not touch it
with bare hands; use the appropriate
handle only.
Important Note: Immediately
after using the steam to froth
the milk, clean the steam wand (or
Pannarello when provided). When
the machine is ready, brew a small
amount of hot water in a glass and
clean the wand (or Pannarello when
provided) externally. In this way, all
parts will be perfectly cleaned and
free of any milk residue.
• Place a container under the hot water /
steam wand (Pannarello, if supplied).
• When the machine is ready to brew
co ee, turn the control dial counterclockwise to set it onto the “
position. Residual water may come out
of the wand (Pannarello, if supplied).
• The “
“ light blinks during the prehea-
ting time required by the machine.
• Steam dispensing will begin when the
green light “
after only steam will begin to come
out.
• Turn the control dial clockwise and
set it back to the “
dispensing steam.
• Fill 1/3 of the container you wish to use
to prepare the cappuccino with cold
milk.
cappuccino.
• Immerse the steam wand (Pannarello,
if supplied) in the milk to be heated and
turn the control dial counter-clockwise
“ remains steady on; soon
” position to stop
Use cold milk for better
results when preparing a
• 12 •
”
Blinking fast
to set it to the “
milk by gently swirling the cup and
moving it up and down.
• After dispensing steam for the desired
time, turn the control dial clockwise
and set it back to the “
stop dispensing steam.
• The same procedure can be used to heat
other beverages.
After using the steam wand (Pannarello,
if supplied), wash it as described in the
“Cleaning and Maintenance” section.
After using steam to prepare
a beverage;
To brew a coffee: Follow the procedu-
re described in section “Steam/Coffee
Switchover” to bring the machine back to
the co ee brewing temperature.
To dispense hot water: Follow the procedure described in section “Dispensing
Hot Water”.
If the control dial is left
on the central position, the
machine, in order to save energy, automatically reaches the temperature
needed to dispense co ee.
” position. Froth the
” position to
Steam/Coff ee Switchover
• After dispensing steam and pressing
“
“ or “ “ co ee button, the
“
“ light blinks quickly to show that
the machine is overheated and cannot
brew co ee.
• To brew coffee, first drain a small
amount of water.
Place a container under the steam wand
(Pannarello, if supplied) and turn the
control dial clockwise to set it to the “
” position.
Wait for the temperature “ “ light to be
steady.
Then turn the control dial counter-
clockwise and set it back to the “
position to stop dispensing.
• Now follow the procedure described in
the “Coffee Brewing” section to brew
co ee.
”

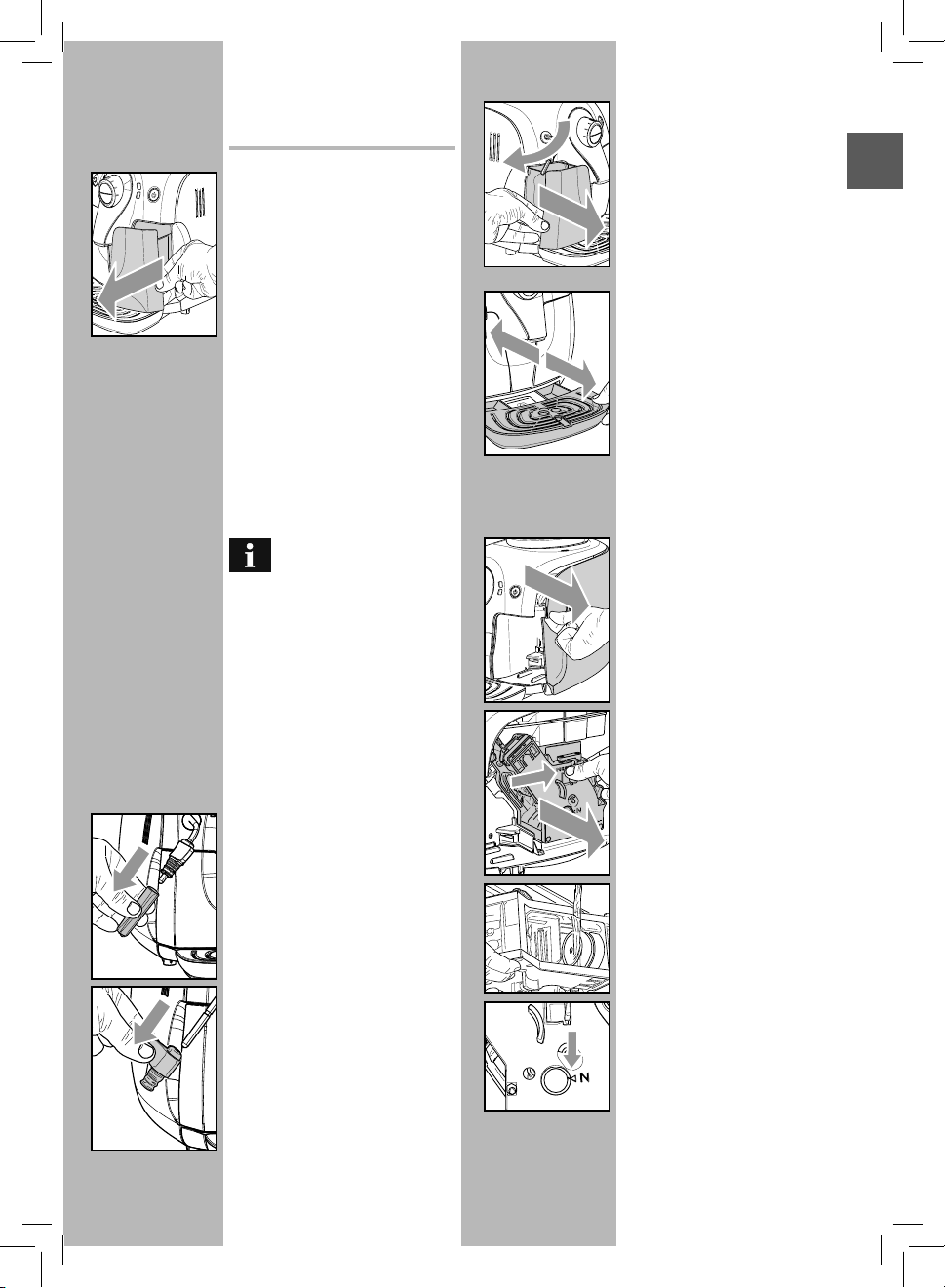

Page 14
CLEANING AND
MAINTENANCE
General Cleaning
• Empty and clean the dregdrawer daily,
with the machine turned on.
• Maintenance and cleaning operations
can only be carried out when the machine is turned o and unplugged.
• Do not immerse the machine in water.
• Do not wash any of its parts in the
dishwasher.
• Do not use alcohol, solvents, and/or
abrasive objects to clean the machine.
• Use a soft, dampened cloth to clean the
machine.
• Do not dry the machine and/or its
components using a microwave and/or
standard oven.
After brewing milk beverages,
dispense hot water from the
hot water / steam wand (Pannarello,
if supplied) to obtain a thorough
cleaning.
• Every day, after heating the milk, remove
the external part of the Pannarello (if
supplied) and wash it with fresh drinking
water.
• Clean the hot water / steam wand we-
ekly. In order to do this, perform the
following operations:
- Remove the external part of the
Pannarello (for standard cleaning);
- Remove the upper part of the Pannarello from the wand;
- Wash the upper part of the Pannarello
with fresh drinking water;
- Wash the wand with a wet cloth and
remove any milk residue;
- Replace the upper part in the wand
(make sure it is completely inserted).
Reassemble the external part of the
Pannarello.
• 13 •
• It is recommended to clean the water
tank daily:
- Remove the small white lter from
the water tank and wash it under
running drinking water.
- Reposition the small white lter in
its housing by gently pressing and
turning it at the same time.
- Fill the water tank with fresh drinking
water.
• Empty and clean the drip tray daily.
Perform this operation also when the
oat is raised.
Brew Group
• The brew group should be cleaned
every time the co ee bean hopper is
lled or at least once a week.
• Turn o the machine by pressing the
ON/OFF button and remove the plug
from the socket.
• Remove the dregdrawer. Open the
service door.
• To remove the brew group, pull it by the
handle and press the «PUSH» button.
The brew group must be washed only
with lukewarm water with no detergent/soap.
• Wash the brew group with lukewarm
water, carefully clean the upper lter
and dry.
• Thoroughly wash and dry all the parts
of the brew group.
• Thoroughly clean the inside of the
machine.
• Make sure that the two reference marks
match up.
English

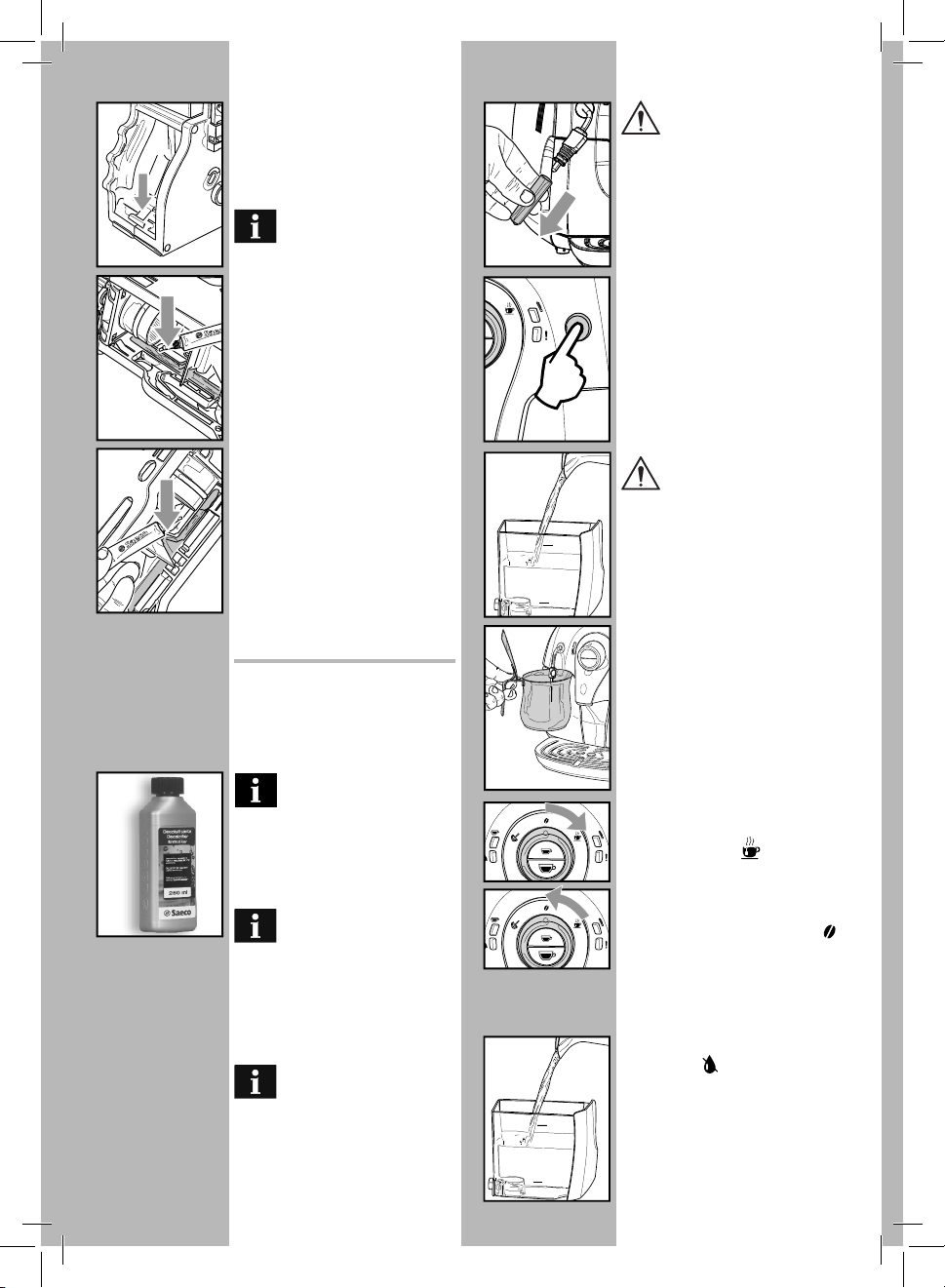

Page 15
• Make sure that the lever is in contact
with the brew group. Press the “PUSH”
button to make sure that the brew
group is in the correct position.
Lubricate the brew group
after approximately 500
brewing cycles. The brew group
lubricant may be purchased through
Saeco or authorized service centers.
• Lubricate the brew group guides using
the supplied lubricant only.
• Apply the lubricant evenly on both side
guides.
• Insert the brew group in its seat until it
locks into place WITHOUT pressing the
“PUSH” button.
• Insert the dregdrawer. Close the service
door.
• 14 •
Warning! Never drink the
descaling solution or any products dispensed until the cycle has
been carried out to the end. Never
use vinegar as a descaling solution.
Before descaling, remove the Pannarello
(if supplied) from the steam wand as described in the “Cleaning and Maintenance”
section.
• Turn the machine on by pressing the
ON/OFF button. Wait for the machine
to finish its rinse and warm-up
process.
Warning! Remove the “Inten-
za” filter before adding the
descaling solution.
DESCALING
Limescale normally builds up with the
use of the appliance. The machine needs
descaling every 1 - 2 months or whenever
a reduction in water ow is noticed.
In case of conflict, priority
must be given to what is
indicated in the operation and maintenance manual over the instructions
provided on separately sold accessories and materials.
Use the Saeco descaling pro-
duct. Its formula has been
designed to ensure better machine
performance and operation for its
whole operating life. If correctly used,
it also avoids alterations in the brewed
product.
Do not turn the machine o or
put it in stand-by mode during
the descaling process.
MIN
MAX
MAX
• Pour the entire content of the Saeco
concentrated descaling solution into
the water tank, and then ll the tank
with fresh drinking water up to the
MAX level. Place the tank back into the
machine.
1 Place a container under the steam
wand.
2 O nly after adding the descaling solution
in the tank, turn the selector switch
clockwise to the “
” position, and
dispense 2-3 cups of water (approx. 150
ml).
3 Stop dispensing by turning the selector
switch back to its central position “
4 Let the descaling solution take e ect
for 10 minutes.
5 Repeat steps 2 and 3 at intervals of 3
minutes, until there is no descaling
solution left in the water tank.
6 When the “
” light remains steady
on, rinse the tank thoroughly and re ll
it with fresh drinking water.
”.
MIN
Page 16
MIN
MAX
7 Empty the container used to collect the
liquid dispensed by the machine and
place it under the steam wand.
8 Turn the selector switch clockwise to the
“
” position. The machine rinse cycle
starts.
9 When the water in the tank is nished,
the “
” light remains steady on to
indicate that the selector switch must
be turned back to the “
” position.
10 Rinse the tank thoroughly and re ll it
with fresh drinking water.
11 Empty the container used to collect the
liquid dispensed by the machine.
• 15 •
The descaling solution must
be disposed of according
to the manufacturer’s instructions
and/or regulations in force in the
country of use.
If the machine is switched o
during the descaling cycle,
next time the machine is switched
on the cycle must be repeated from
the beginning.
MACHINE DISPOSAL
- The packing materials can be re-
cycled.
- Appliance: unplug the appliance and
cut the power cord.
- Deliver the appliance and power cord to
a service center or public waste disposal
facility.
This product complies with eu directive
2002/96/ec.
English
12 Place a container under the dispensing
spout.
13 Brew one co ee. Press and release the
“
“ button. The machine starts
brewing co ee.
14 Wait until brewing is complete and
remove the container.
15 Then repeat operations from step 7 to
step 10 until the second water tank is
empty.
16 At the end, ll the water tank again.
When descaling is complete, insert the
Pannarello (if supplied) onto the steam
wand as described in the “Cleaning and
Maintenance” section.
The descaling cycle is complete. Then, the
products can be brewed.
The symbol
on the product or on
its packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of
this product, please contact your local
city o ce, your household waste disposal
service or the shop where you purchased
the product.
Page 17
• 16 •

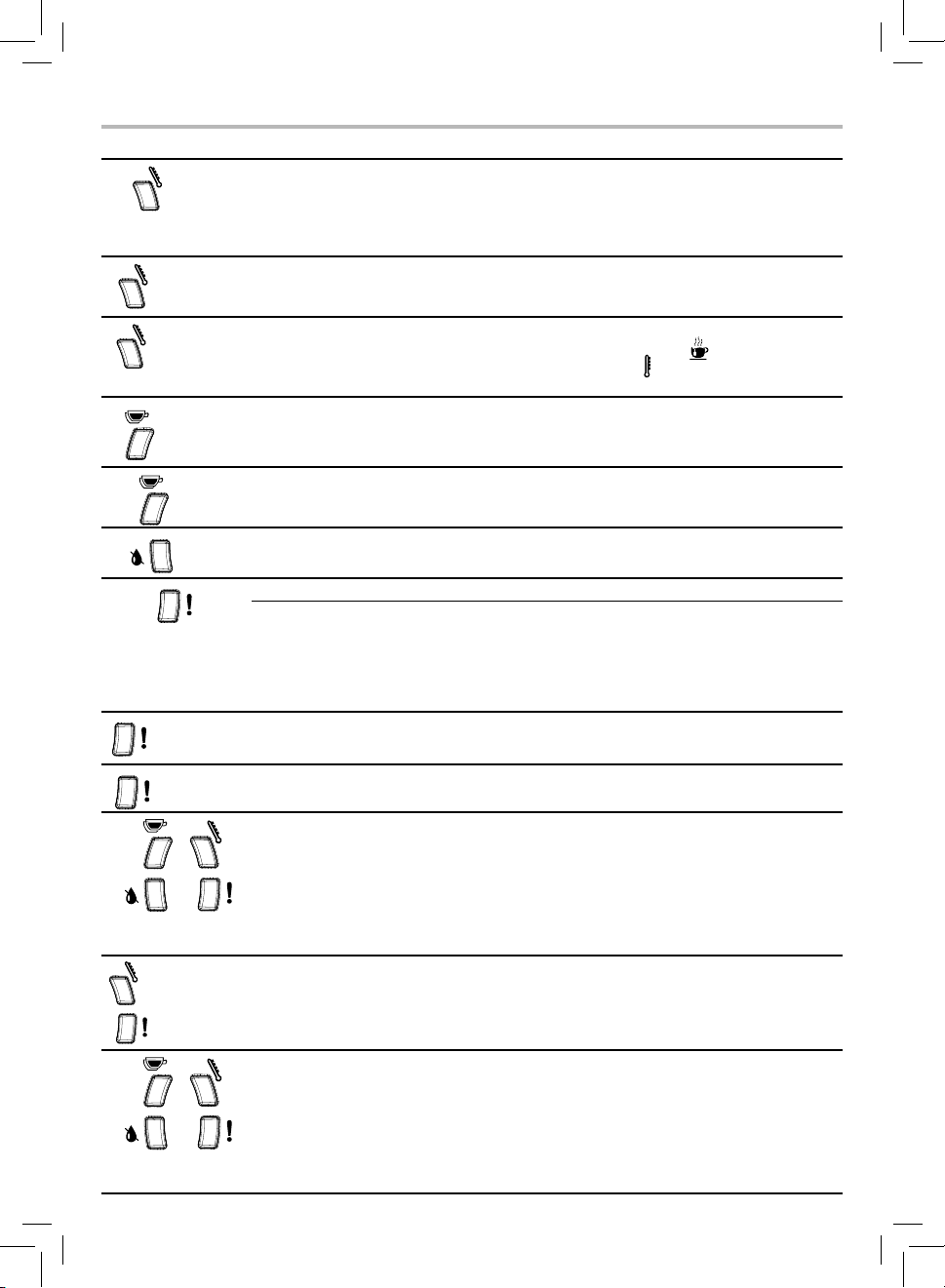

CONTROL PANEL LIGHTS
Light Signals Causes Solutions
The machine has reached the right temperature and
is now ready:
Steady on
Slowly ashing
- For co ee brewing;
- For hot water dispensing;
- For steam dispensing
The machine is warming up to brew coffee and
dispense hot water or steam.
Quickly ashing
Slowly ashing
Steady on
Steady on
Steady on
Quickly ashing
Slowly ashing
Machine is overheating. Co ee may not be brewed. The w ater mu st be drained into a container by turning the
selector switch clockwise to the
ready temperature light “ “ stays constantly on. After that, stop
dispensing water.
Indicates that the machine is programming the
amount of co ee to brew (see section “Adjusting the
Brewed Co ee”).
The machine is brewing a double co ee
Low water level. Fill the water tank with fresh drinking water. After re lling the water
The co ee bean hopper is empty. Fill the hopper with co ee beans and start the procedure again.
The dregdrawer is full With the machine turned on, empty the dregdrawer. The dregdrawer
The water circuit is empty. Fill the tank with fresh drinking water and prime the water circuit as
Brew group not inserted. Dregdrawer not inserted.
Service door open. Control dial is not in correct position.
The machine is performing the rinse/self-cleaning
cycle
tank, the indicator light turns o .
must be emptied after every 8 co ee cycles. If the dregdrawer is
emptied with the machine turned o , or when the indicator light
is not illuminated, the count of co ee cycles is not reset. For this
reason, the indicator light to empty the dregdrawer may illuminate
even when it is not full.
described in Section “Using the Machine for the First Time”.
Make sure that all components have been correctly inserted and
closed. The blinking red light will now turn o .
The machine ends the cycle automatically.
You can interrupt the cycle by pressing either co ee button.
“ ” position until the green
+
Blinking in counter-
clockwise direction (cyclical)
Flashing
alternately
+
Flashing
simultaneously
A fault has occurred in the brew group. Try again to brew another co ee.
A fault has occurred in the machine and hot water,
steam or co ee cannot be dispensed.
Turn the machine o . After 30-seconds, turn it back on.
Try this 2 or 3 times.
If the machine does NOT start, contact an authorized service center.
Page 18
TROUBLESHOOTING
• 17 •
Problems Causes Solutions
The machine does not turn on. The machine is not connected to the power source. Connect the machine to the power source.
The co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
Hot water or steam is not dispensed. The hole of the hot water / steam wand is clogged. Clean the hole of the hot water / steam wand using a pin.
Make sure that the machine is turned o and has cooled
before performing this operation.
Pannarello is dirty (if supplied). Clean the Pannarello.
The co ee is not creamy enough.
(See note)
The machine takes a long time to warm up or
the amount of water dispensed from the wand
is too little.
The brew group cannot be removed. The brew group is out of place. Turn the machine on. Close the service door. The brew group au-
The machine grinds the co ee beans but no cof-
fee comes out.
(See note)
The co ee is too weak.
(See note)
Co ee is brewed slowly.
(See note)
Note: These problems can be considered normal if the co ee blend has been changed or if the machine has just been installed. In this case
wait until the machine performs a self-adjusting operation as described in section “Saeco Adapting System”.
The co ee blend is unsuitable, the co ee is not freshly
roasted or the grind is too coarse.
The machine’s water circuit is obstructed by limescale
build-up
The dregdrawer is inserted. Remove the dregdrawer rst, then the brew group.
The brew group is dirty. Clean the brew group (section “Brew Group”).
The circuit is not primed. Prime the circuit (section “Using the Machine for the First Time”).
Rare event that occurs when the machine is automati-
cally adjusting the dose.
The dispensing spout is dirty. Clean the dispensing spout.
Rare event that occurs when the machine is automati-
cally adjusting the dose.
The co ee grind is too ne. Change co ee blend or adjust the grind as explained in section
The water circuit is not primed. Prime the circuit (section “Using the Machine for the First Time”).
The brew group is dirty. Clean the brew group (section “Brew Group”).
Change co ee blend or adjust the grinder as explained in section
“Co ee Grinder Adjustment”.
Descale the machine.
tomatically returns to the correct position.
Brew a few co ees as described in section “Saeco Adapting Sys-
tem”.
Brew a few co ees as described in section “Saeco Adapting Sys-
tem”.
“Co ee Grinder Adjustment”.
English
Please contact customer service for any problems not covered in the above table or when the suggested solutions do not solve the problem.
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical speci cations of the product.
Nominal Voltage - Power Rating - Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See label on the inside of the ser vice door
Housing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABS - Thermoplastic
Size (w x h x d) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 x 325 x 420 mm - 11.5” x 13” x 16.5”
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9 kg - 15 lbs.
Power Cord Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 m - 47”
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Front
Pannarello (only available for certain models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Special for cappuccinos
Water Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 litres – 33 oz. / Removable
Co ee Bean Hopper Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 - 6.5 oz.
Dregdrawer Drawer Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pump pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 bar
Boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless steel
Safety mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Thermal fuse
Page 19
• 18 •
Page 20
• 19 •
English
Loading...
